Week 10 - Challenge 2- Attachment Feature Creation (Dog House)

Door Trim-Dog House :

Tooling Axis:

1. All surfaces visible from normal view to Y axis, thus Y axis clears all surfaces.
2. Creating tool axis on Y axis.

Side Core Axis:

1. Dog House features clear in X axis direction, thus Side Core Axis in X axis.

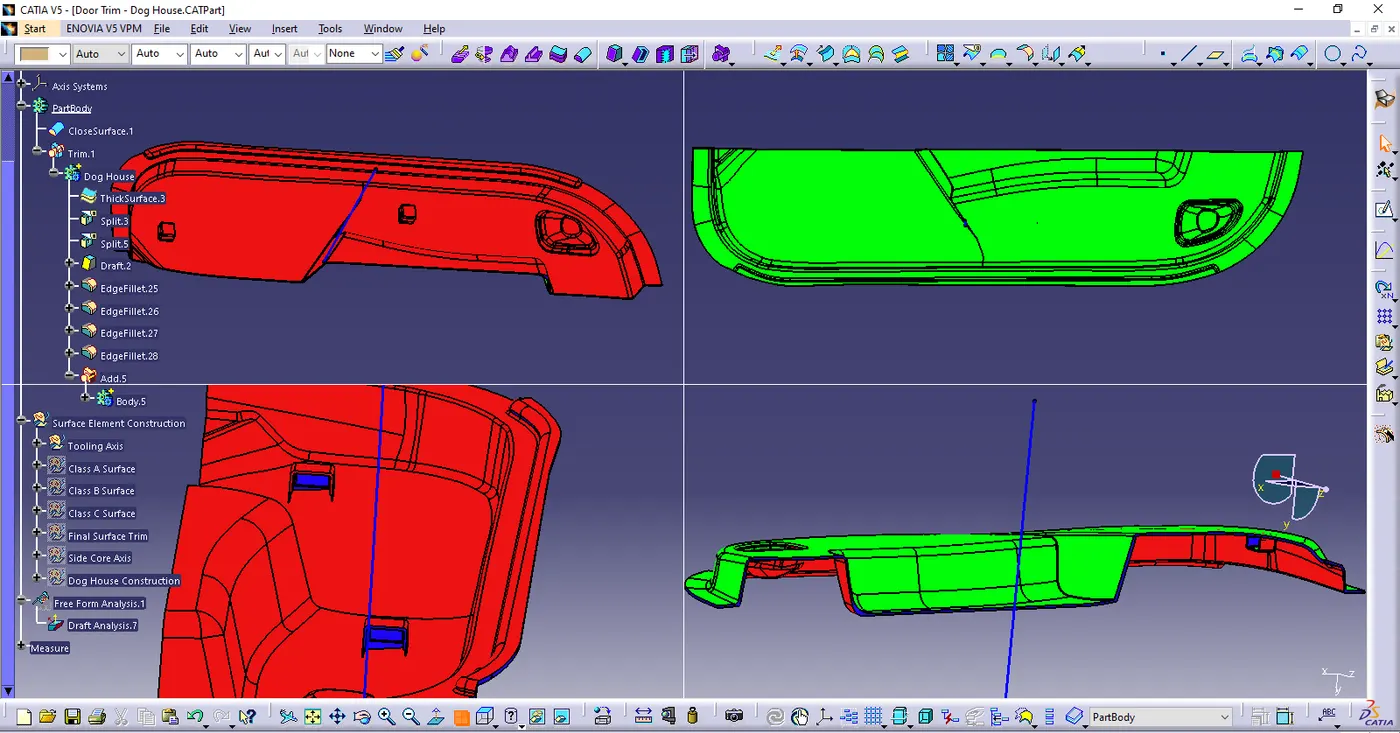

Draft Analysis:

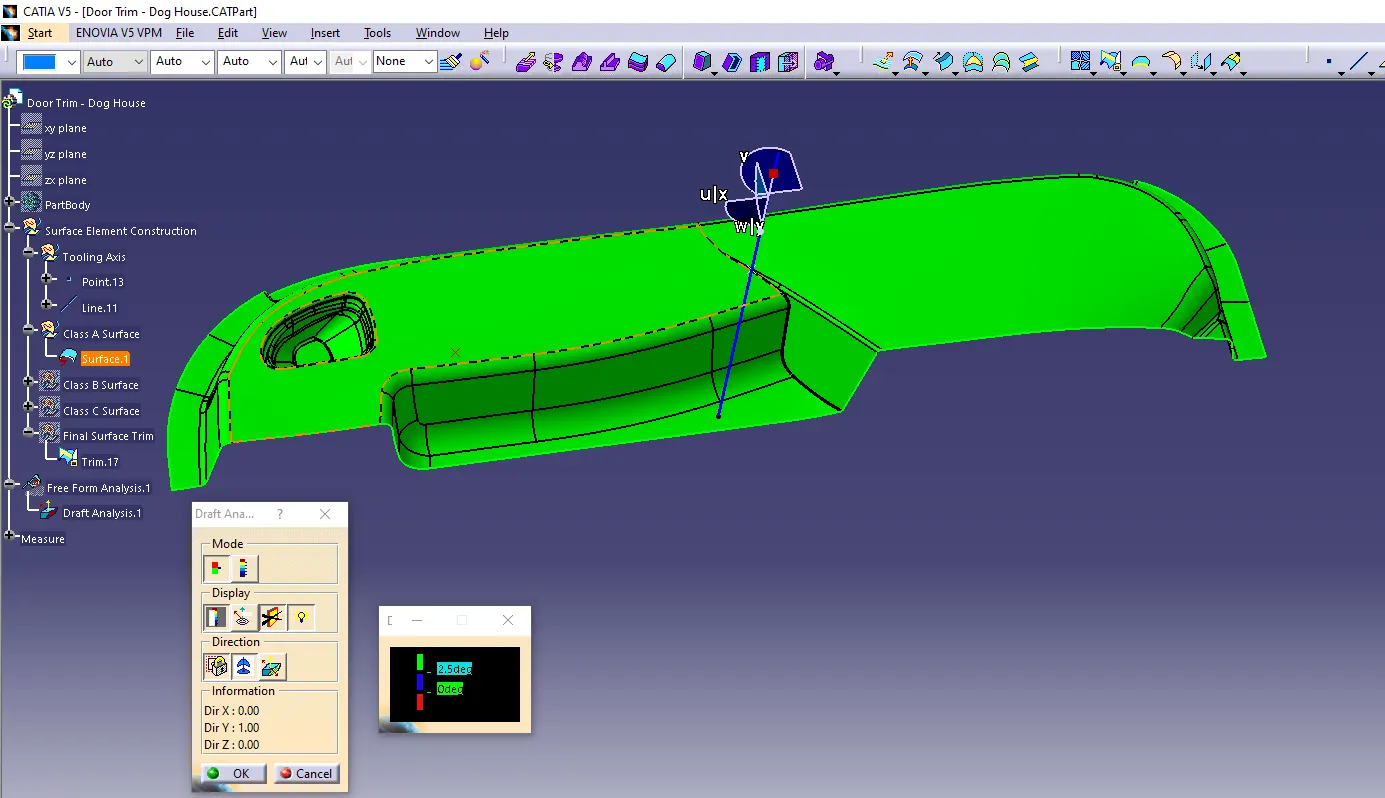

1. Class A surface:

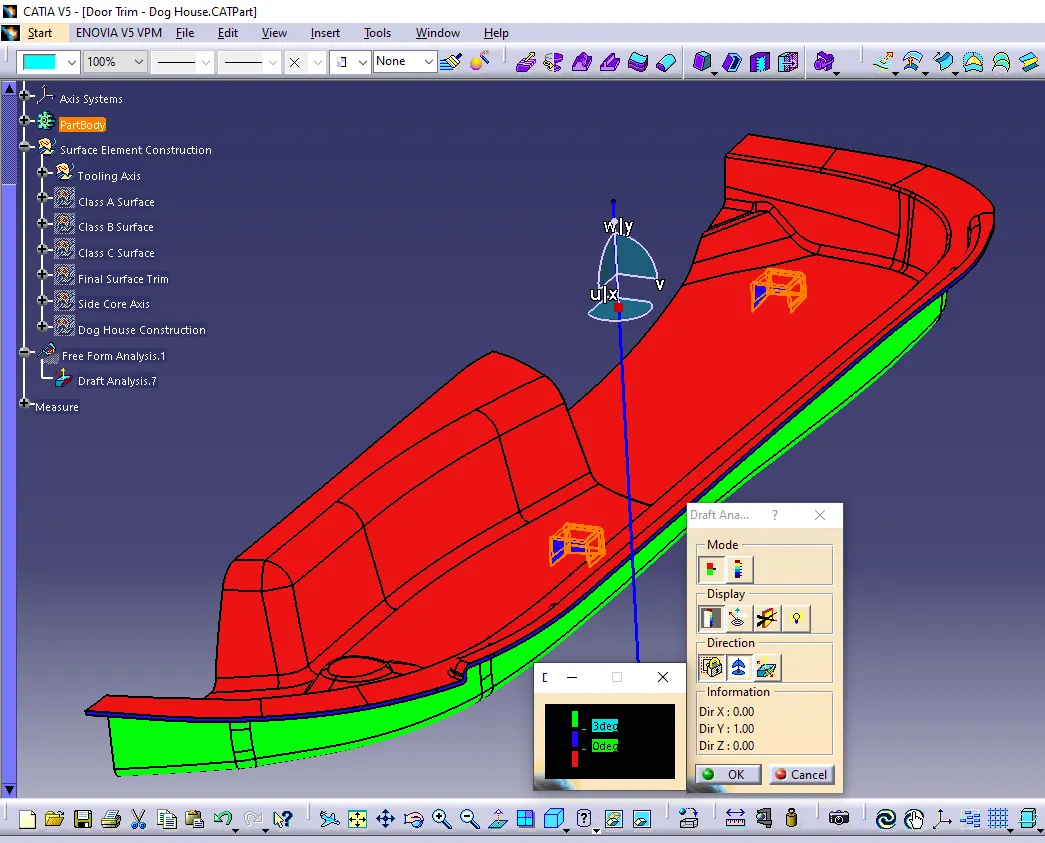

• Using earlier created tooling axis as referance for Compass and fix Draft direction.

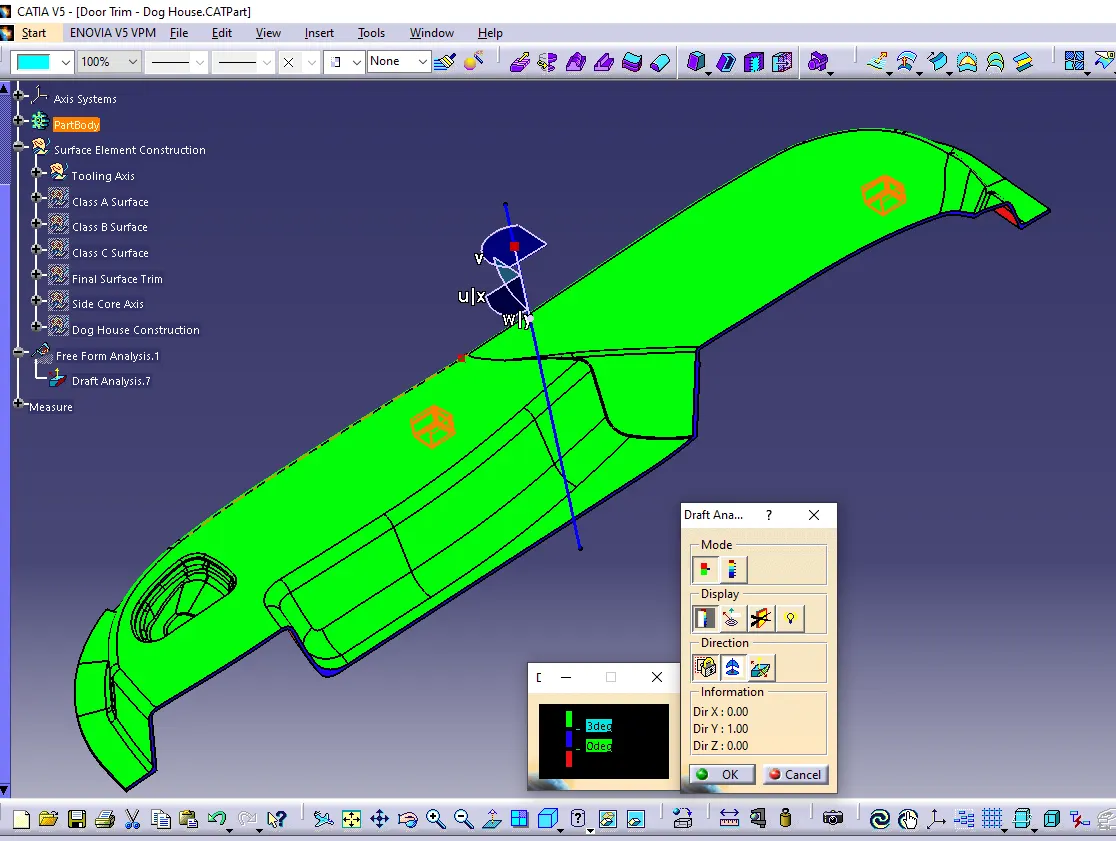

• Using Colour scale as reference checked draft values using Running point.
• Green colour shows draft within limits.

     2. Door Trim-Dog House :

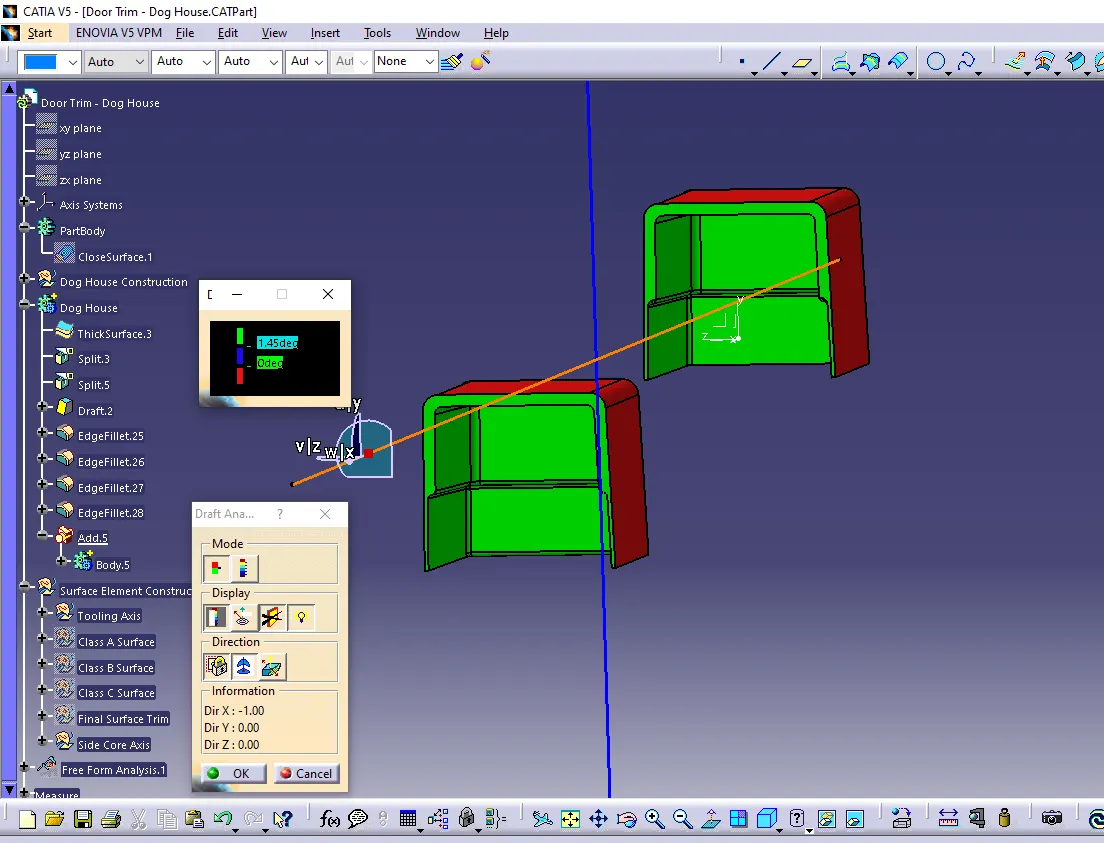

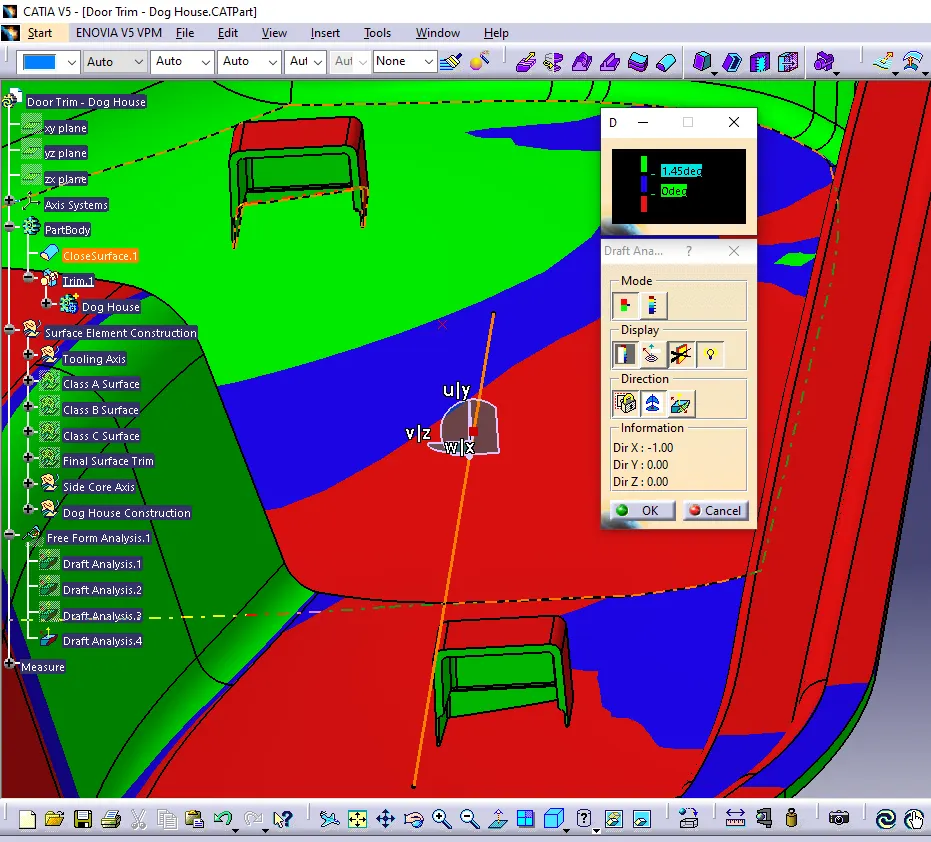

• Using earlier created tooling axis as referance for Compass and fix Draft direction.
• Using Colour scale as reference checked draft values using Running point.
• Green colour shows draft within limits.

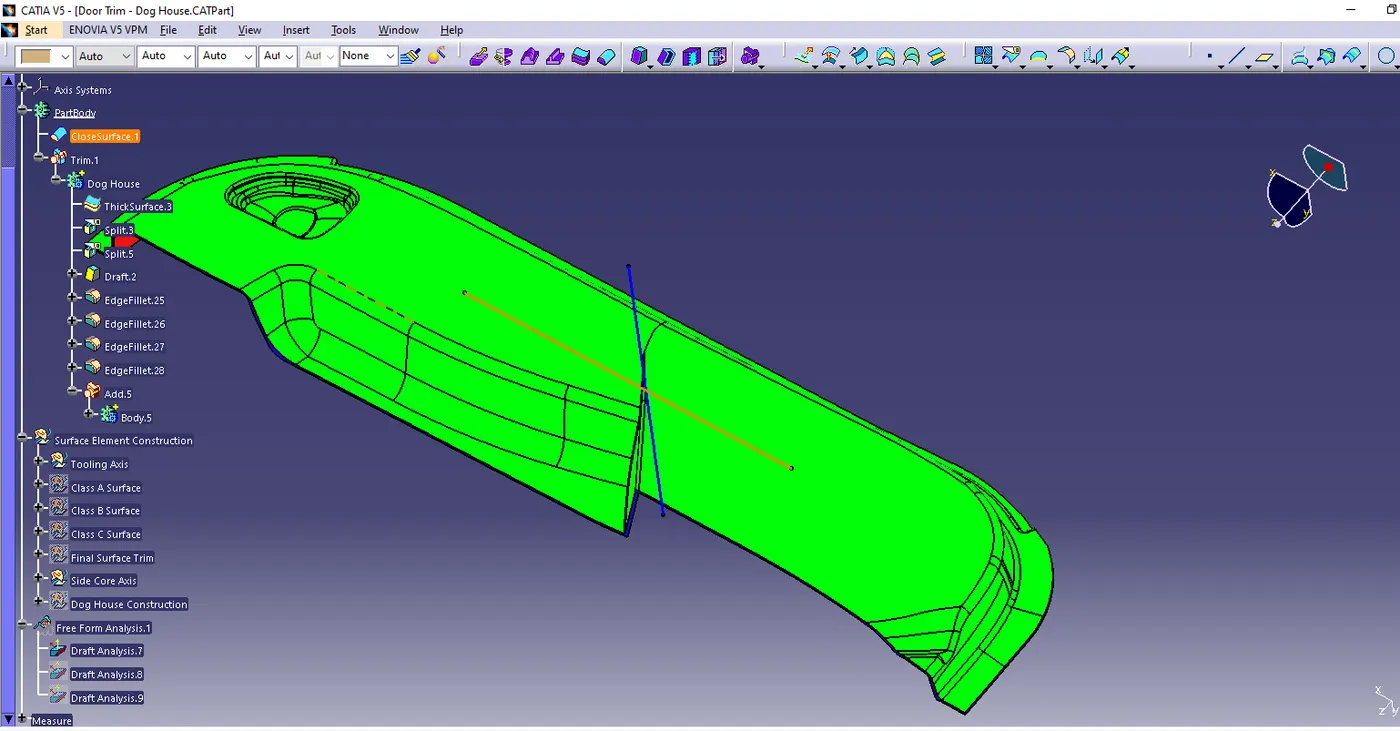

Assembled Dog House :

Publications:

• Tooling Axis
• Side Core Axis
• Class A, B, and C surface
