Week 10 - Challenge 2- Attachment Feature Creation (Dog House)

PROCEDURE:-

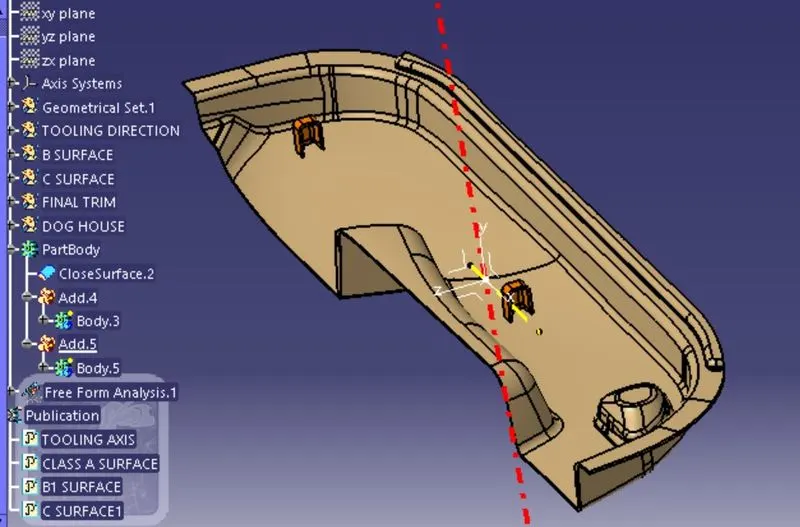

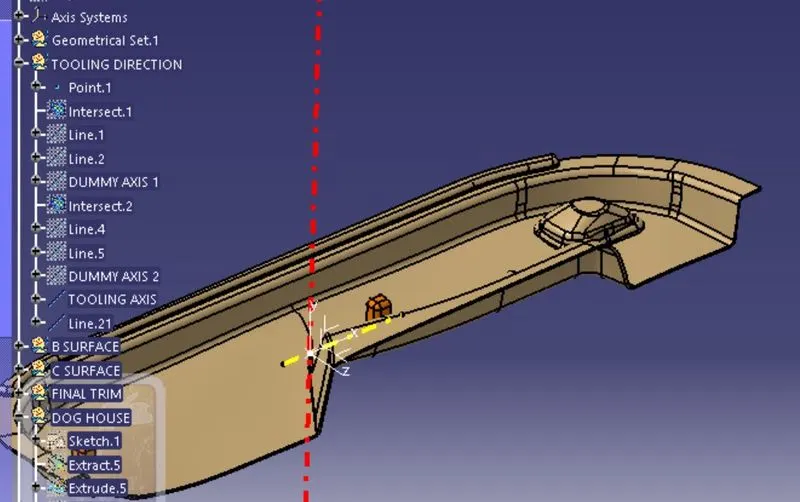

TOOLING AXIS TREE STRUCTURE

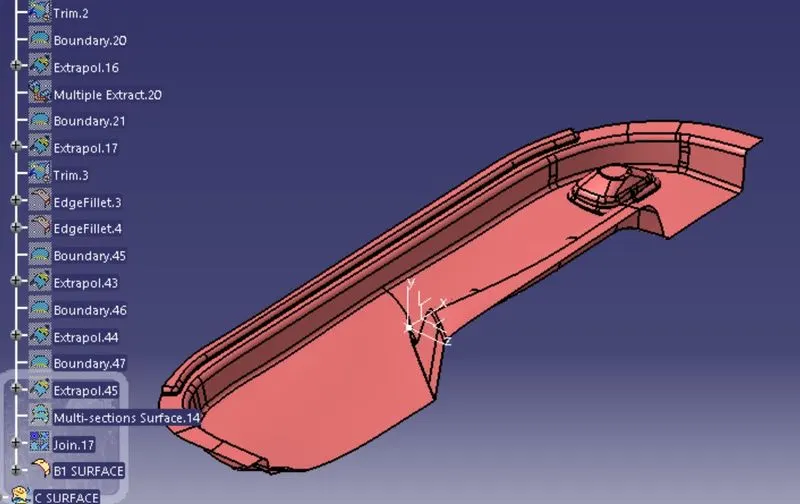

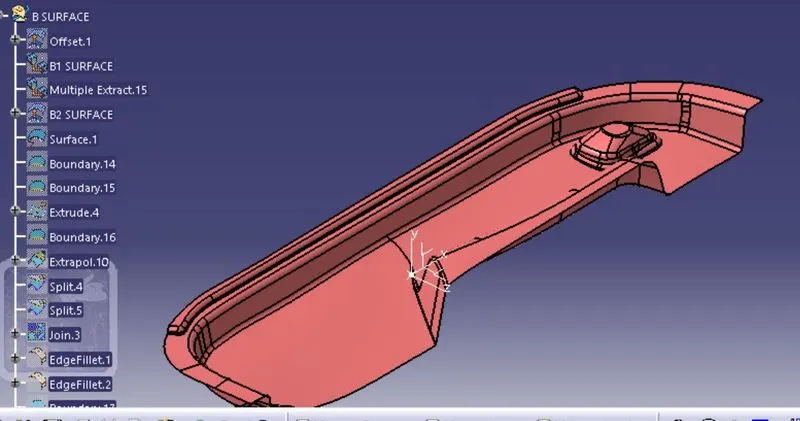

B SURFACE

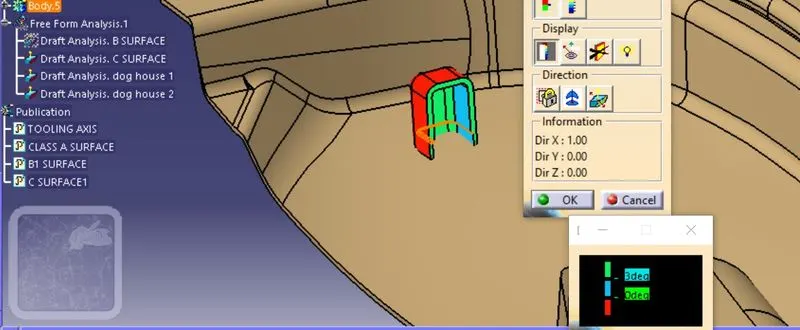

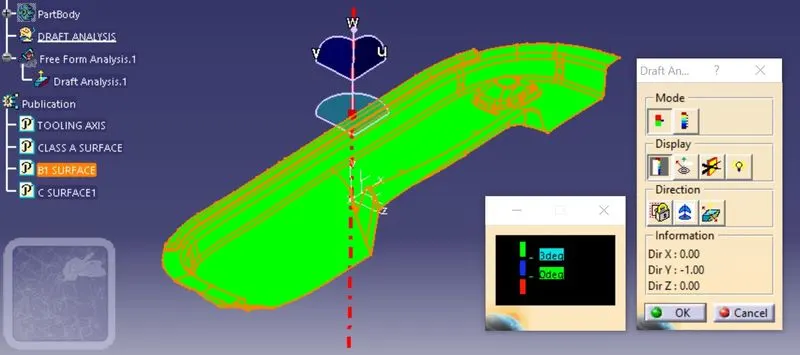

B SURFACE DRAFT ANALYSIS

DRAFT ANGLE > 3 DEGREE

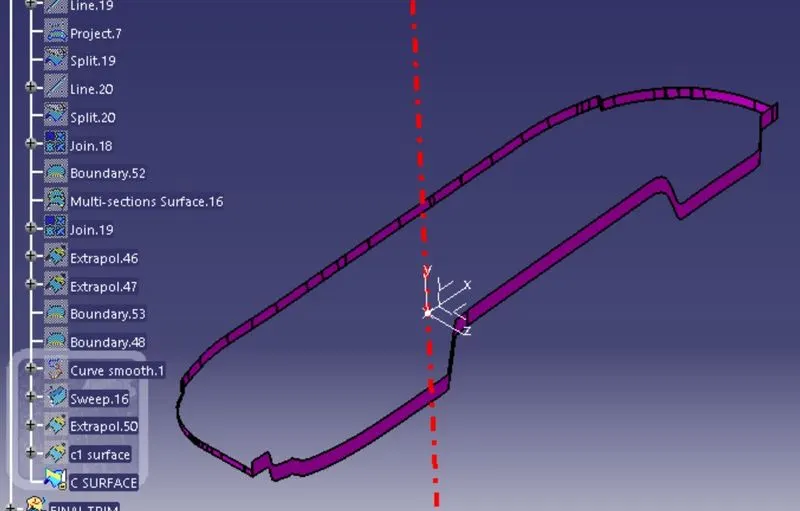

C SURFACE

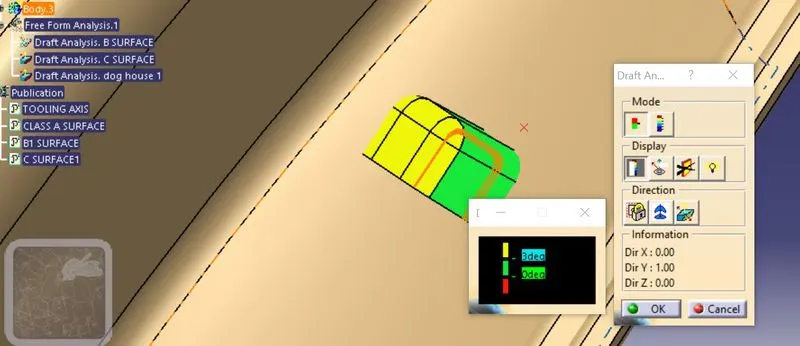

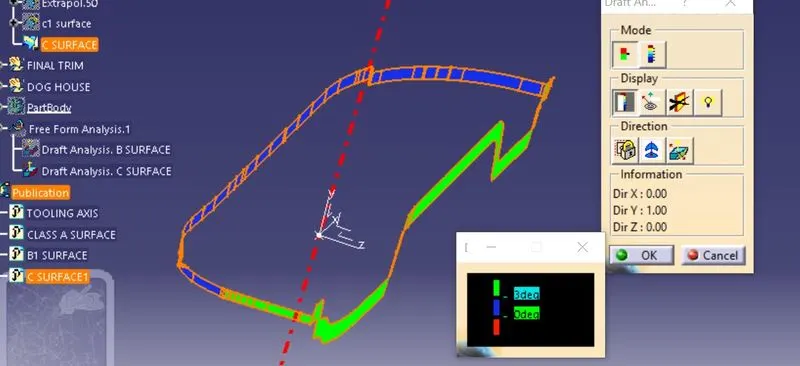

DRAFT ANALYSIS

DRAFT ANGLE < 3 DEGREE

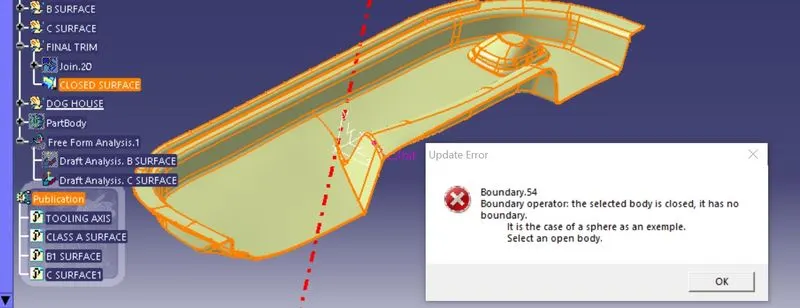

CLOSED SURFACE

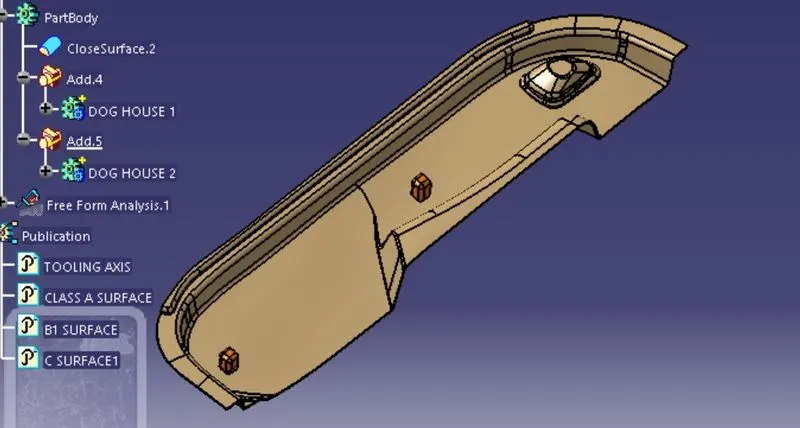

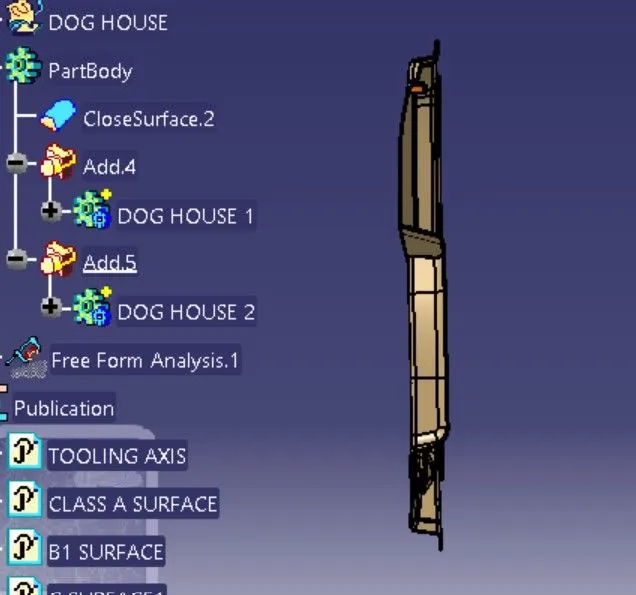

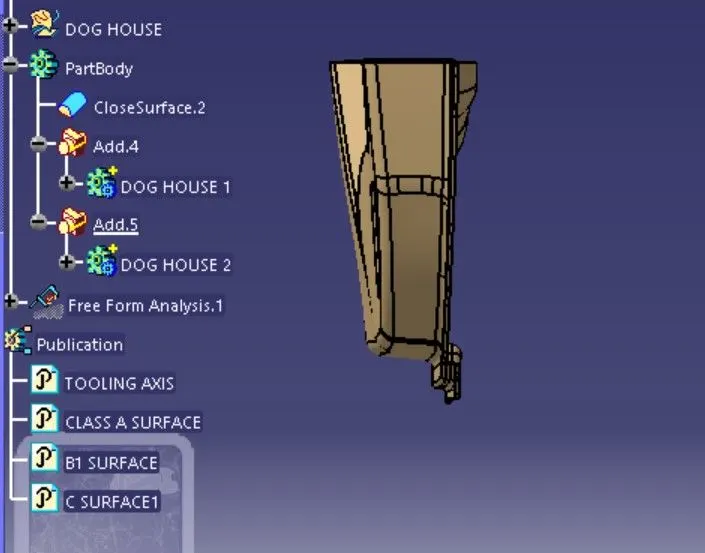

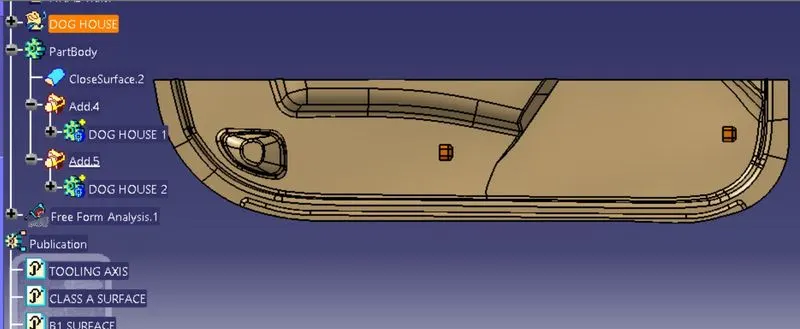

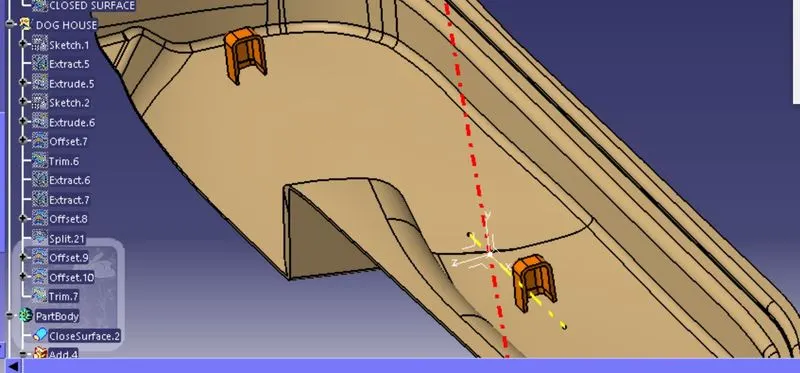

Dog house

T = 2.5 mm

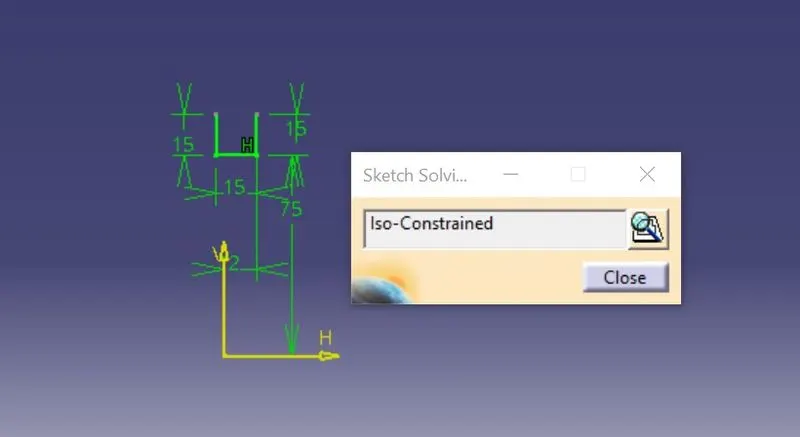

c = 0.4 x 2.5 = 1 mm

B = 3-6 mm

X = 15 mm

H/X = 2/1

Draft = 1.5 degree to die draw

PART BODY
