Objective:

Create the Dog House for the Door Trim considering the design rules & considering the thickness of the part to be 2.5 mm.

Inputs:

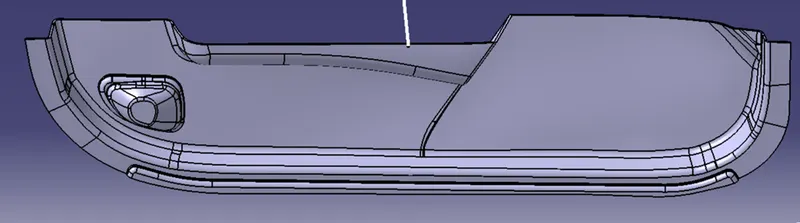

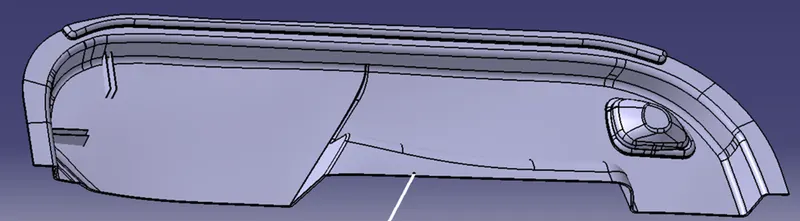

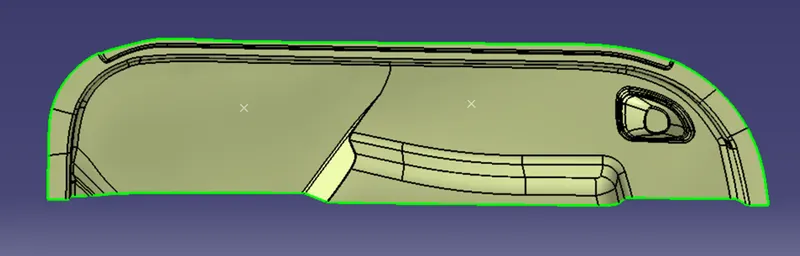

Class- A Surface

2 Points added for Dog House Reference

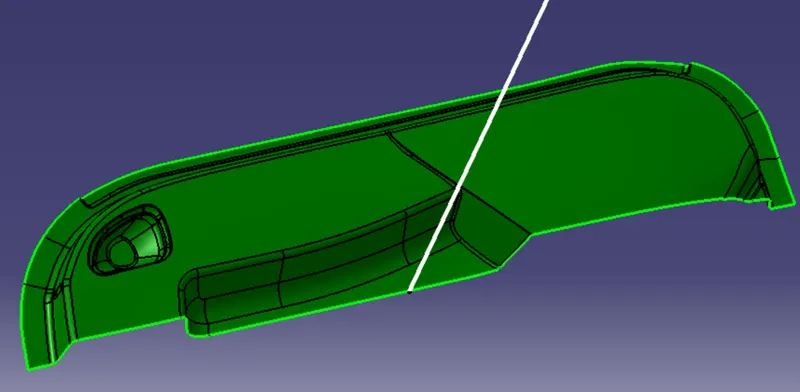

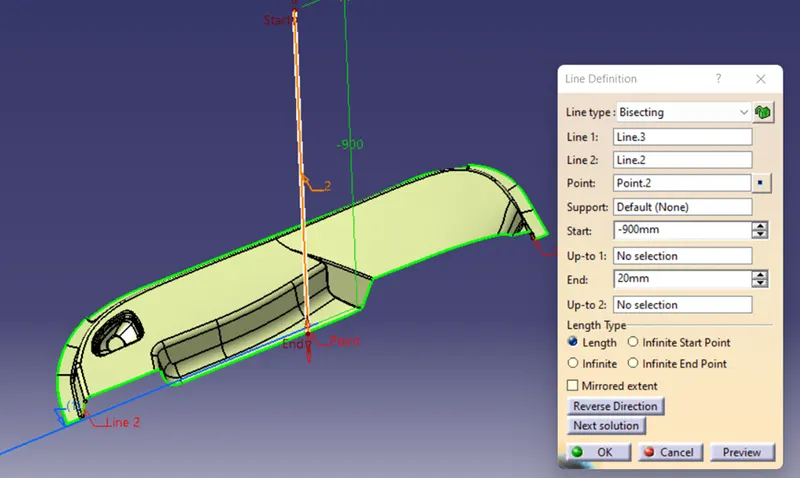

Creating Tooling Axis using Bisecting Method

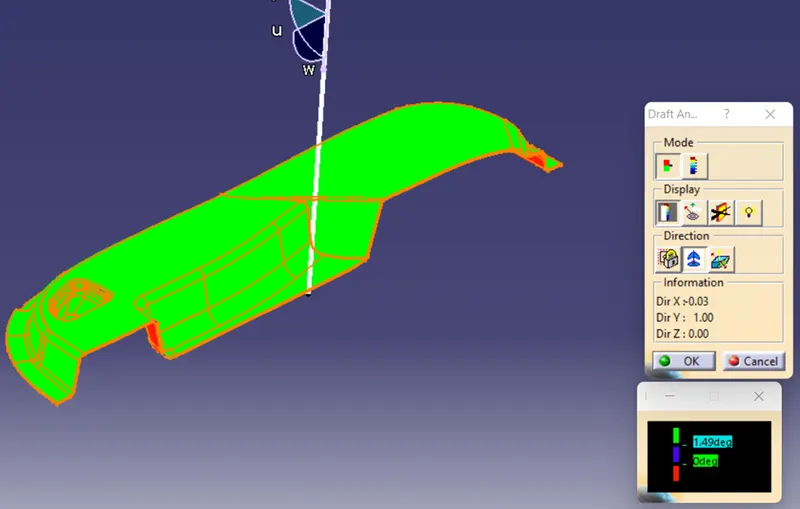

Draft Analysis of Class A Surface

Few surfaces in the class A Surface are not getting cleared, hence need to reach out to class A surface creating team to understand the scope of Class A Surface.

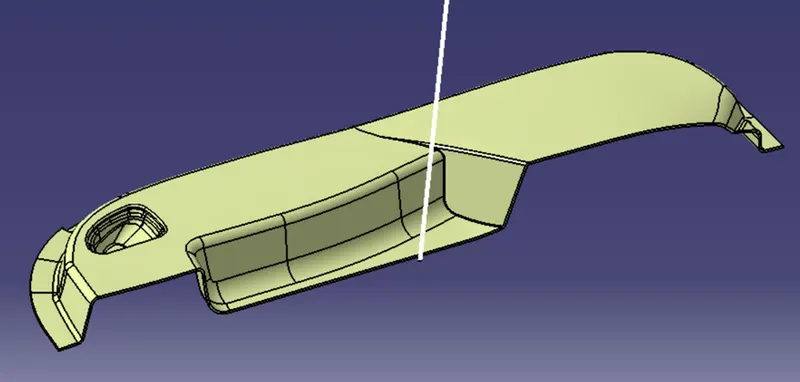

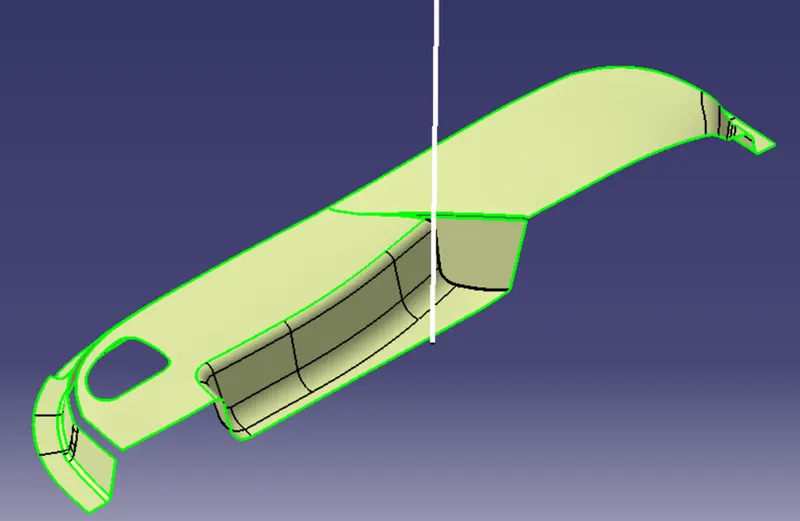

Class B Surface

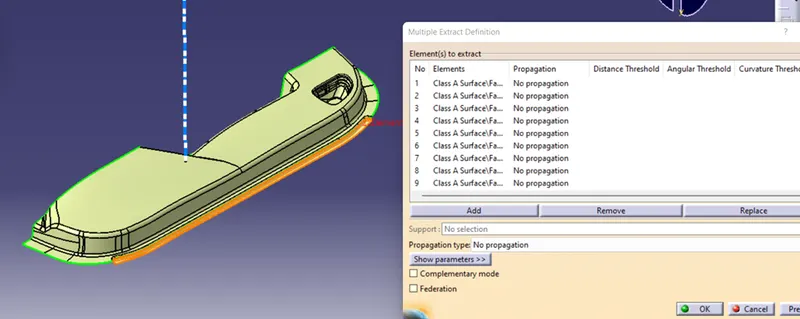

In order to create the Class B Surface for this profile, due to complexity of this profile, I have taken the individual multiple extract surface, which will be offset by 2.5mm and repaired individually.

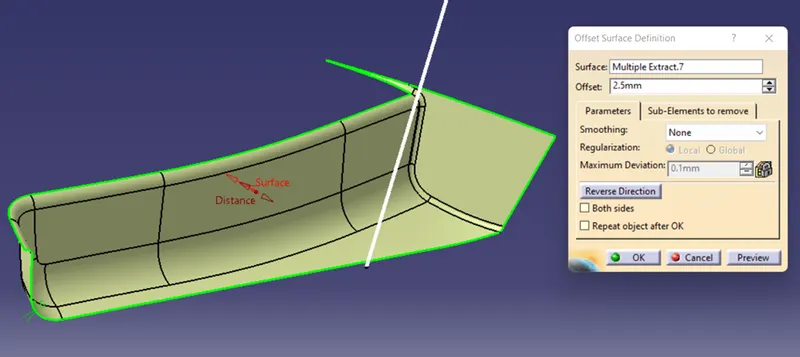

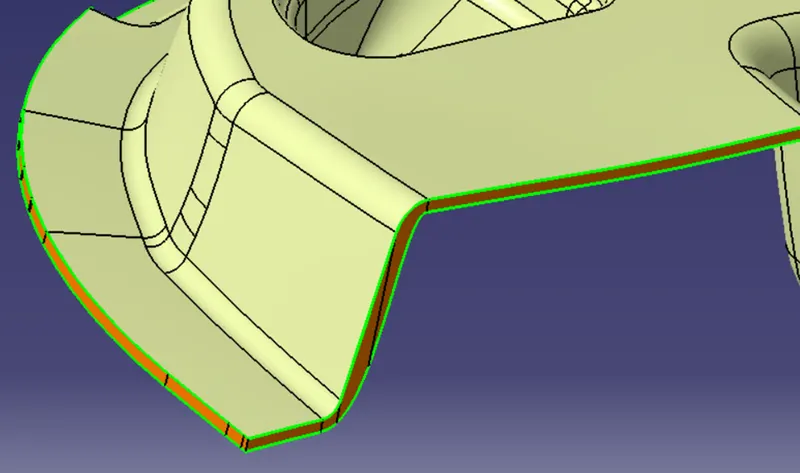

Offset of 2.5mm

Once after the individual offset of each extracted surface and later each surfaces are been improved and trim to make the final improvised surface.

Class C Surface

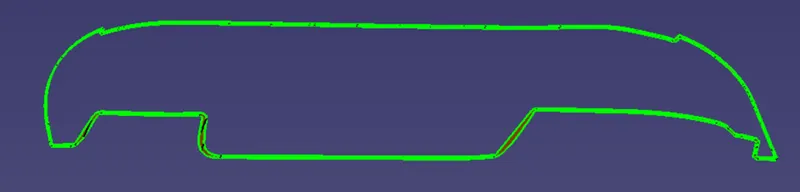

Through various sweep, multi section command and with the help of class-A surface we make the class C Surface.

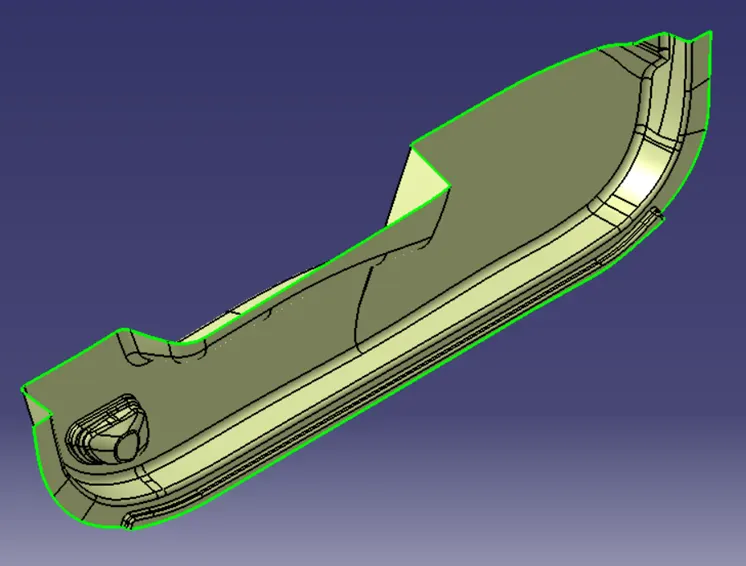

Closed Surface

Once the class A, B and C surface are created later the class A and C surface joined together and later B surface trim with A and C.

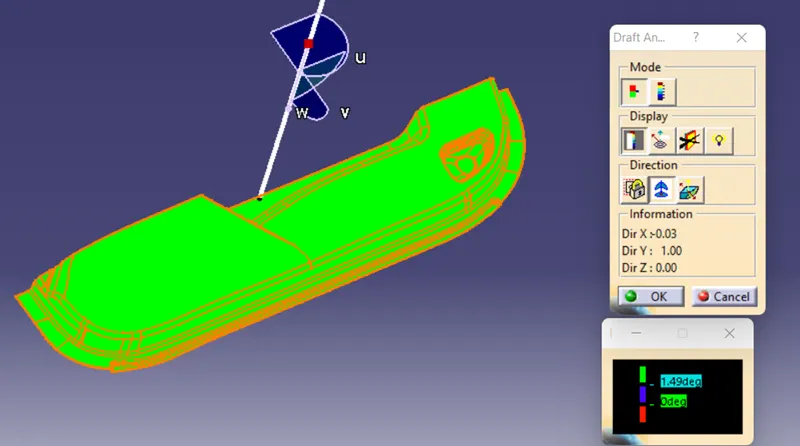

Draft Analysis of Closed Surface

Solid Surface

Creating Ribs

Ribs Creating Sketch 1

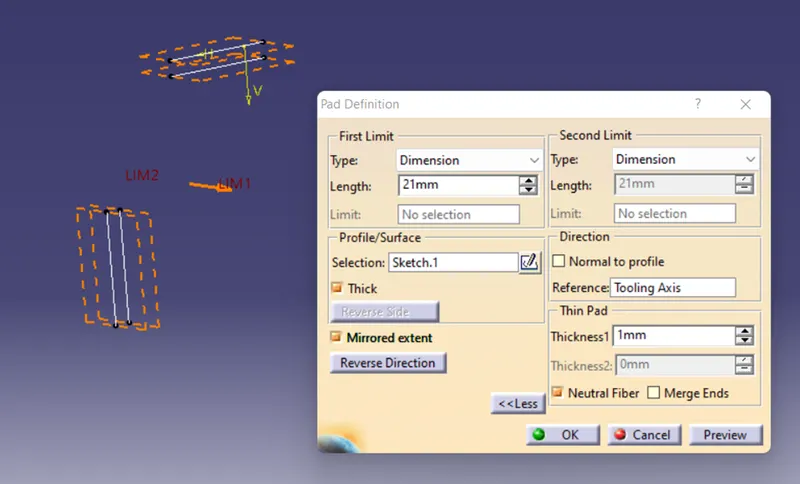

Extrude of Ribs

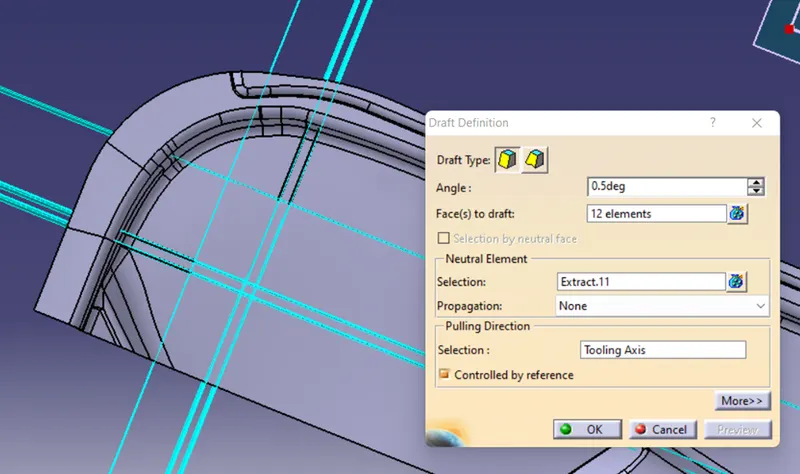

Adding Draft of 0.5°

Later the ribs will be union trim with solid body.

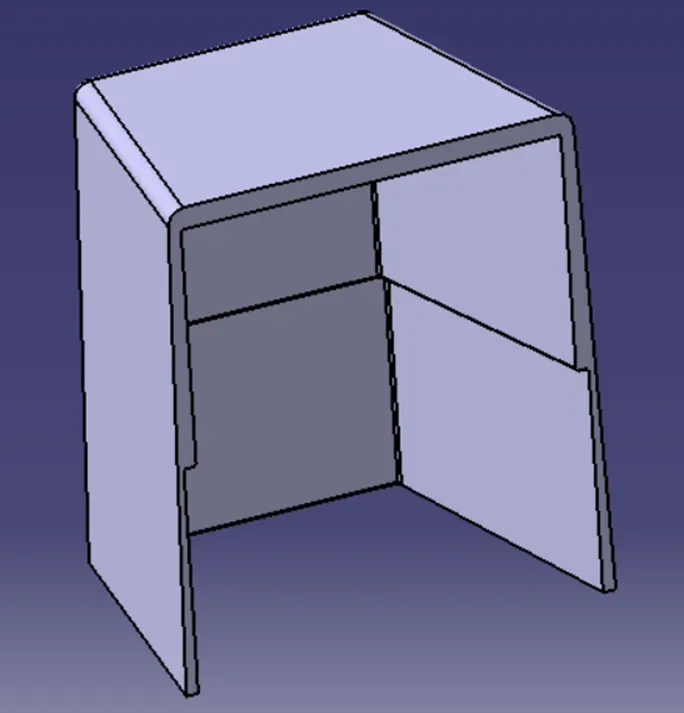

Dog House Creation

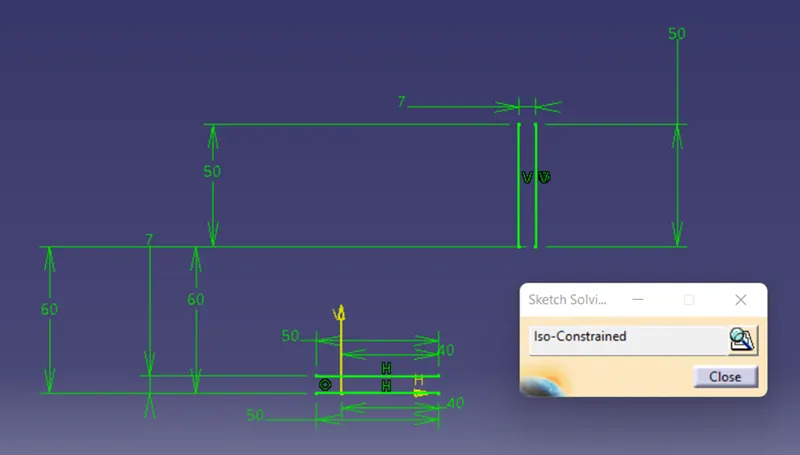

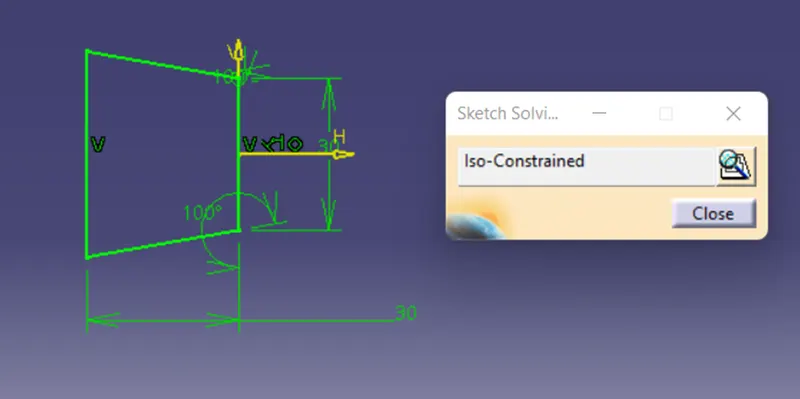

Dog House Sketch Status

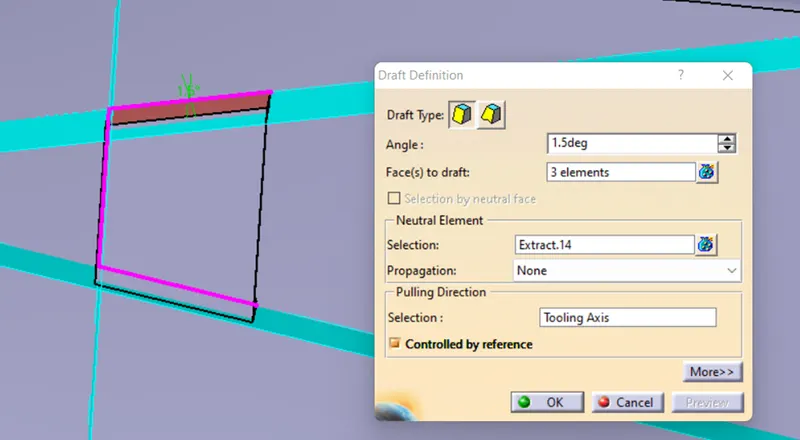

Draft of 1.5° draft to be applied on outer faces of the dog house

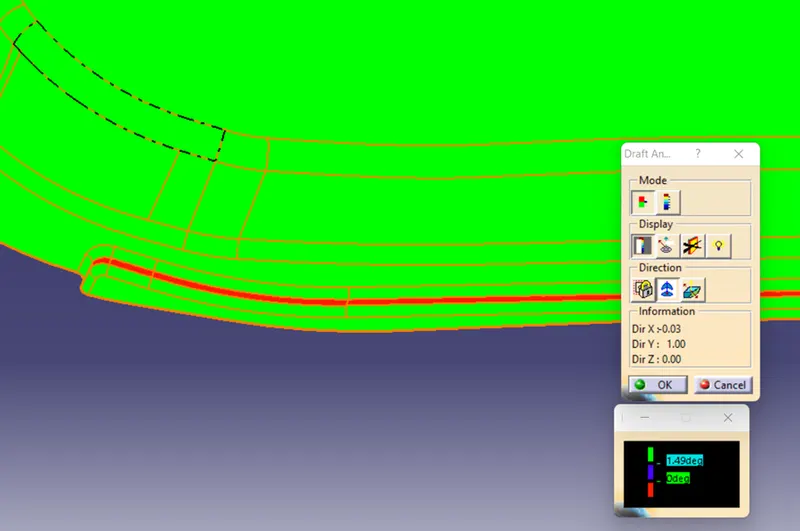

Once the dog house been created draft analysis has to analyze for 0.5°

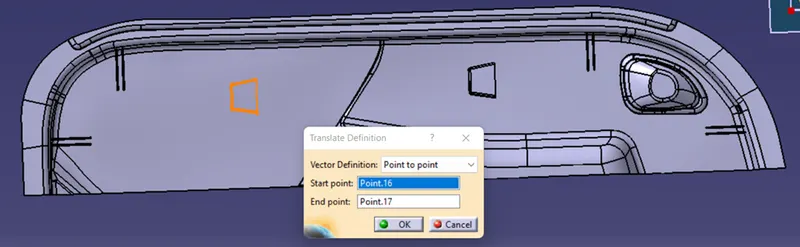

After clearing all these analysis the dog house will be copied and paste special with the link in order to translate it to other point as per mentioned in requirement.

Once the translation of Dog House completed, apply the union trim with closed body and fillet to be applied for 0.25mm.

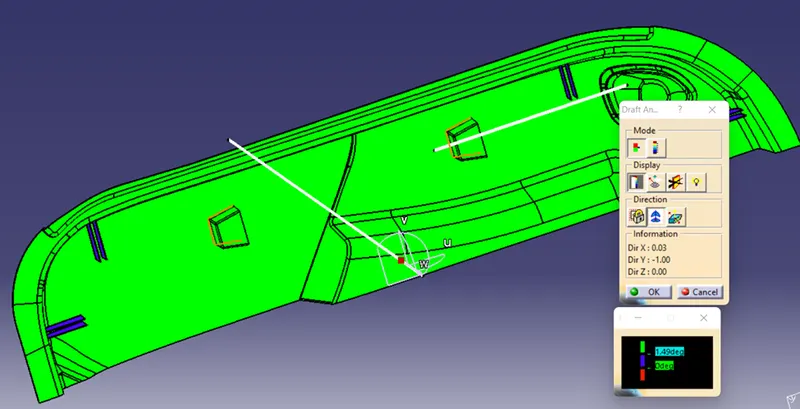

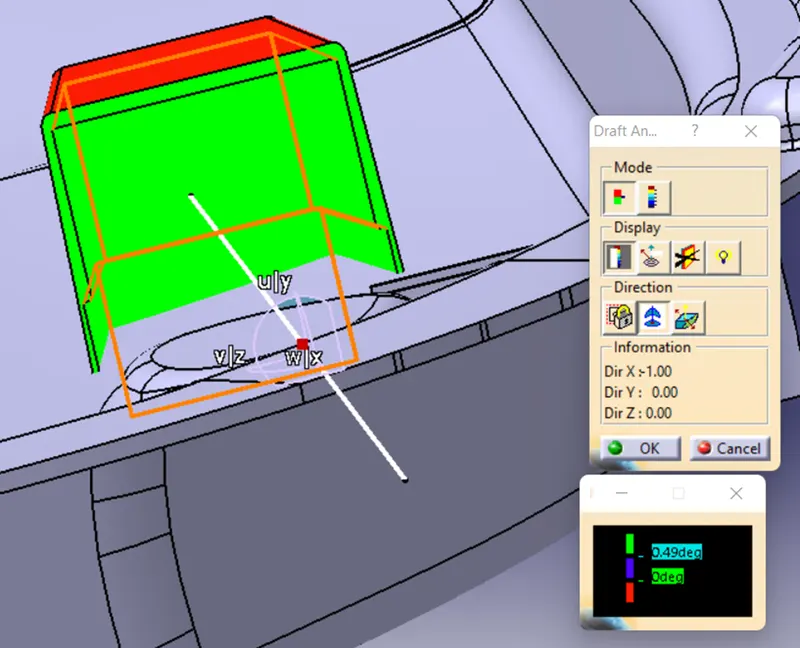

Draft Clearance for Dog House

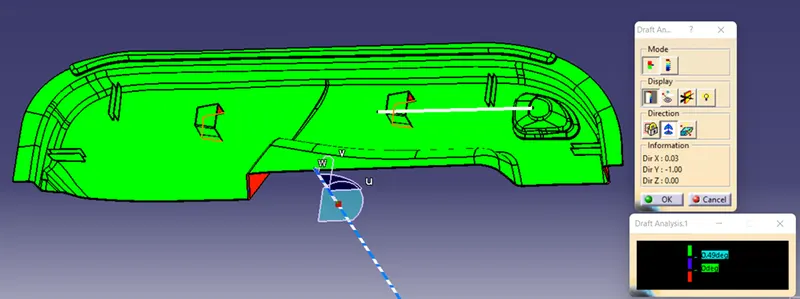

Draft Clearance for Ribs
