Week 10 - Challenge 2- Attachment Feature Creation (Dog House)

DOOR TRIM (DOG HOUSE):

Notations:

• Maintained proper tree stucture and gave proper name to geometric set.
• All sketches and surfaces have made under geometric set and close surface, thicksurface command is under part body.
• Also publicated tooling axis, side core pulling axis, class A, B and C surface and took thickness of component 2.5mm.
• Also have used Surface and Boolean features to create Dog house.

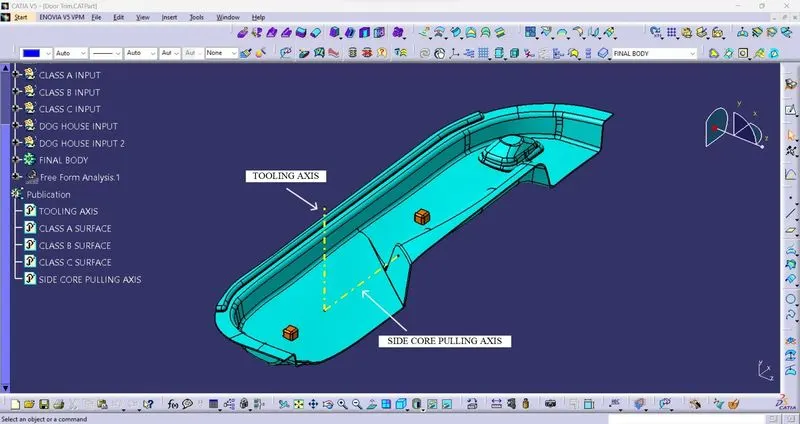

Tooling axis:

• For door trim design i have used Y direction for tooling direction cause as per it's Class A surface having that kind of surface which can easily pull out in moulding process and also have checked by draft analysis.
• For Dog house we need side core pulling axis and it's depend on where it get placed. Below we can see both axis with different direction.

Dog house design:

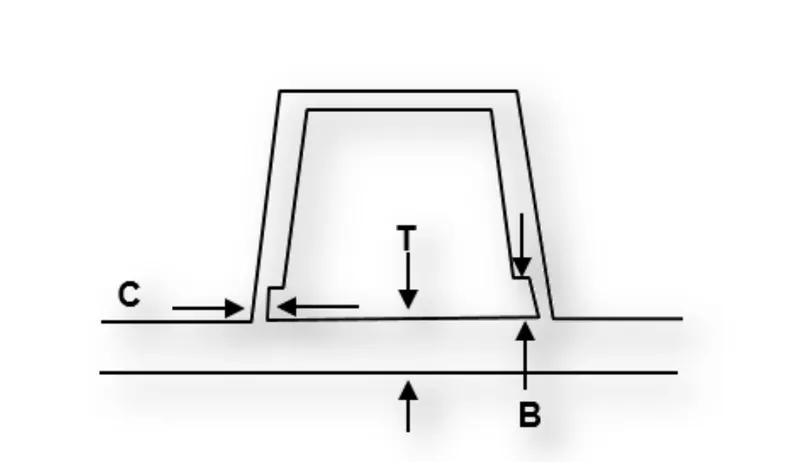

• From below picture how dog house look like and how it can create with design data.

Where,

T = Thickness ( 2.5mm )

C = Thickness x 0.4 ( 40% of thickness ) ( 2.5x0.4 = 1mm )

B = Between 3 to 6 mm ( 6mm selected )

Draft for outer walls = 1.5° ( Which give from tooling axis )

Draft for inner walls = 0.5° ( Which give from side core pulling axis )

Draft analysis:

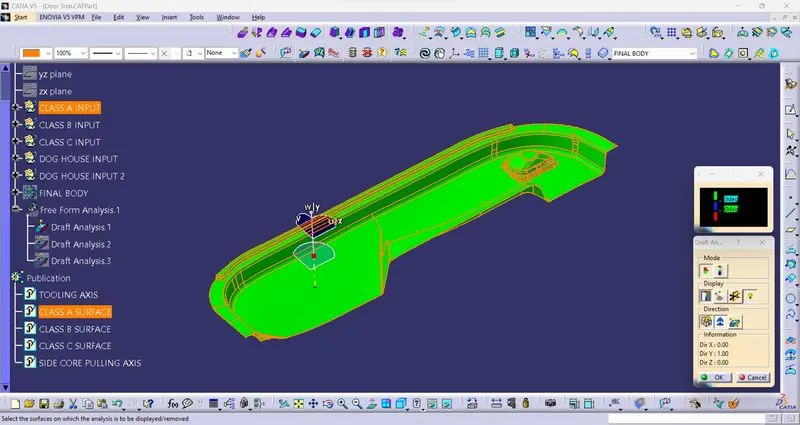

Class A surface draft analysis

• Below side Class A suface draft analysis has shown which is from tooling axis.

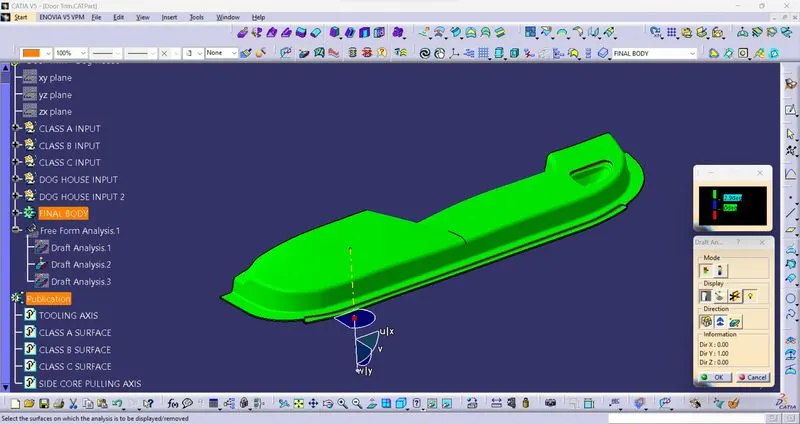

Final body draft analysis

• Below side final body draft analysis has shown which is from tooling axis.

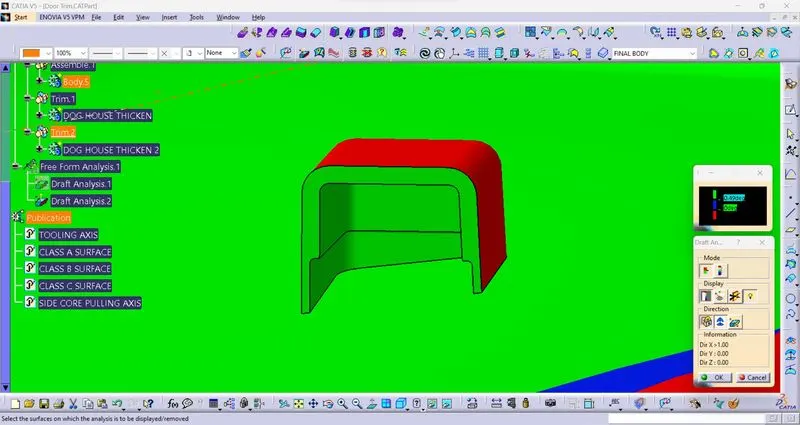

Dog house draft analysis

• Below side dog house draft analysis has shown which is from side core pulling axis.

Different types of views:

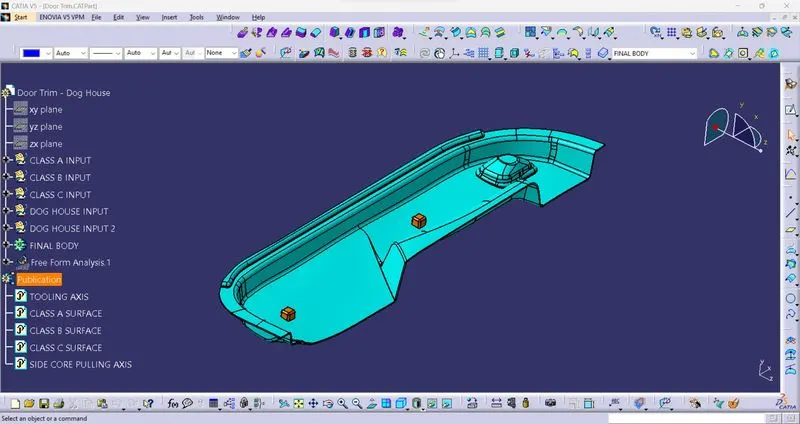

Isometric view

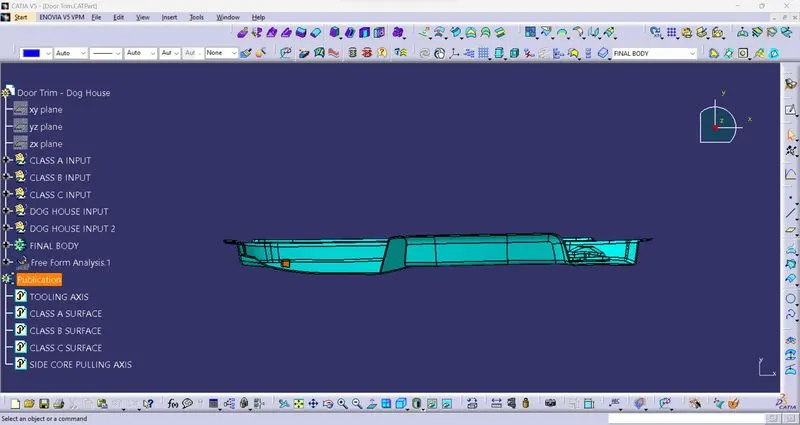

Front view

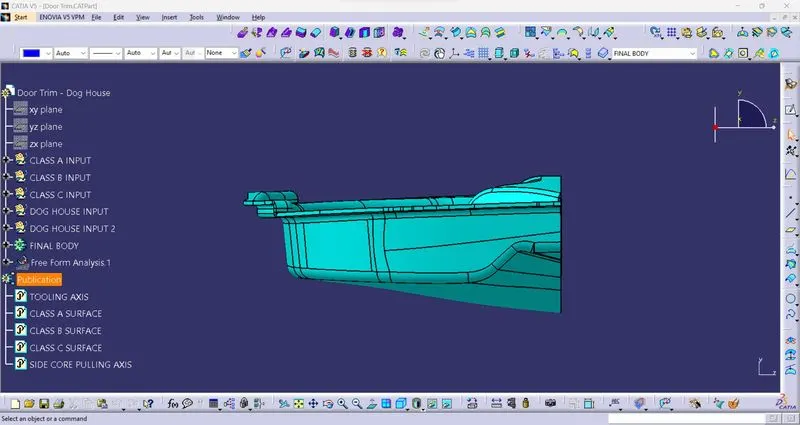

Side view

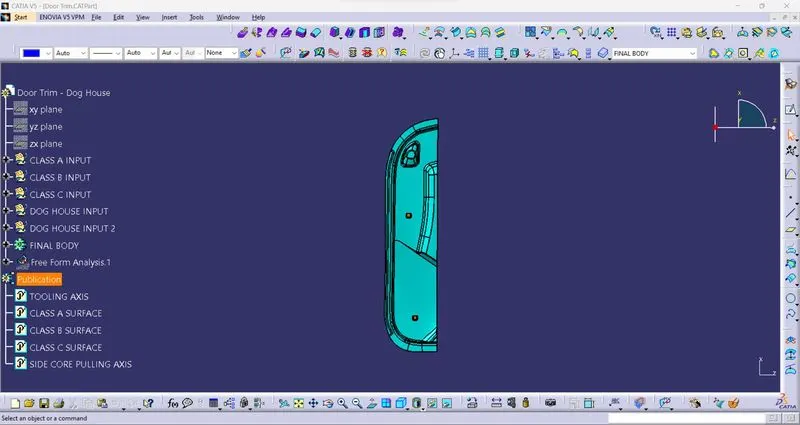

Top view

Conclusion: In this challenge i have learned about how to make dog house with their design data.
