Week 10 - Challenge 2- Attachment Feature Creation (Dog House)

REPORT:

THE MAIN TOOLING AXIS HAS BEEN MADE PERPENDICULAR TO Y AXIS ON THE EXTRACT OF THE A SURFACE USING LINE COMMAND (NORMAL TO THE SURFACE).

THE SIDE CORE AXIS HAS BEEN MADE PERPENDICULAR TO THE X AXIS BY TAKING THE LINE COMMAND .

THE DOOR TRIM SURFACE HAS BEEN DRAFTED AT 3 DEGREES WHERE ITS FULLHY DRAFTED.

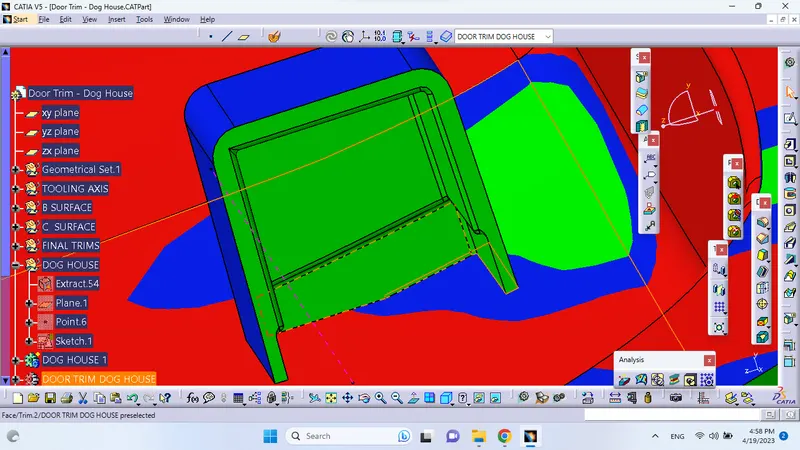

DOG HOUSE:

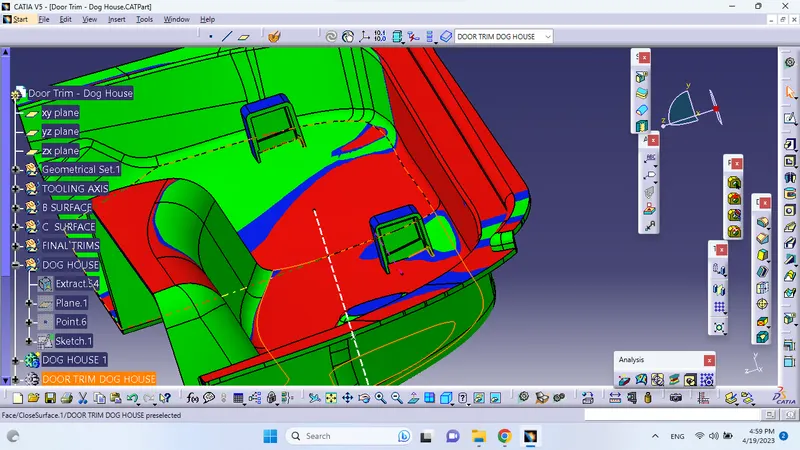

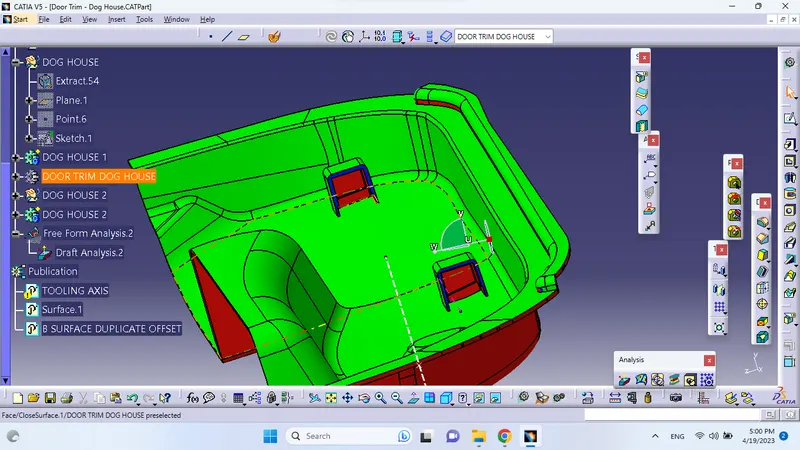

THE DOG HOUSE REQUIRES 2 DRAFT ANALYSIS REPORT

1.IS FOR THE OUTSIDE SIDE FACES DRAFTED AR 1.5 DEGREES USING THE MAIN TOOLING AXIS, TAKING THE FRONT AND BOTTOM FACE AS NEUTRALS .

2.FOR THE INSIDE FACES DRAFTED AT 0.5 DEGREES,USING THE SIDE CORE AXIS TAKIND THE BAXK INSIDE FACE AS NEUTRAL FACE .
