Week 10 Challenge

Aim : Calculate the snow loads

Span of the bridge is 10m .The snow is settled snow.

The deck of bridge is flat with B <30 degree.

The depth of accumulation of snow is 1250 mm.

Given that:

Span =10m

The snow = settled snow(Load=200-300 kg/m³,so max value adopted=300 kg/m³)

The deck of bridge =flat with B <30 degree(Shape co-efficient , µ = 0.8

The depth of accumulation of snow = 1250 mm.

Calculations:

Snow load, S­­­­­° = density x area

=3*1.25(Depth)*10(Span)

=37.5 Kn/m

Design snow load, S = µ x S°

= 0.8 x 37.5

Design snow load, S = 30 KN/m

Staad pro Modelling:

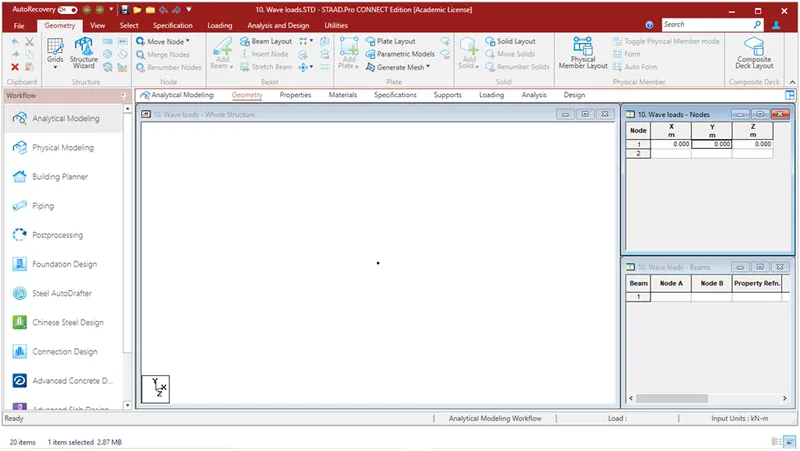

Creation of Origin:

Right side Nodes panel->x,y,z=0

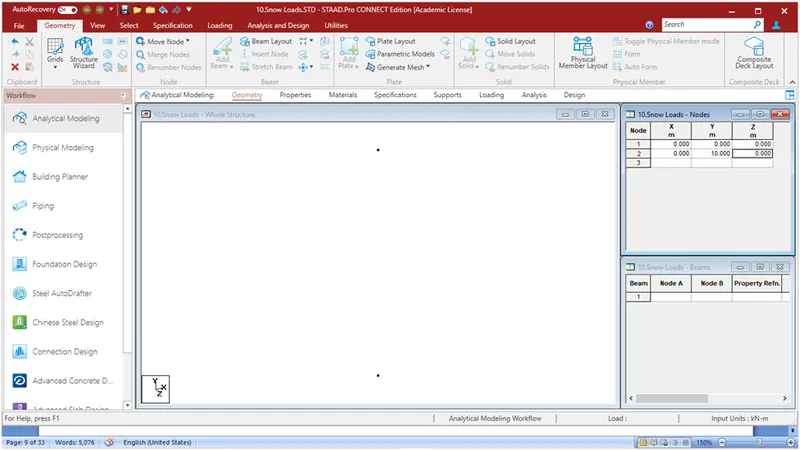

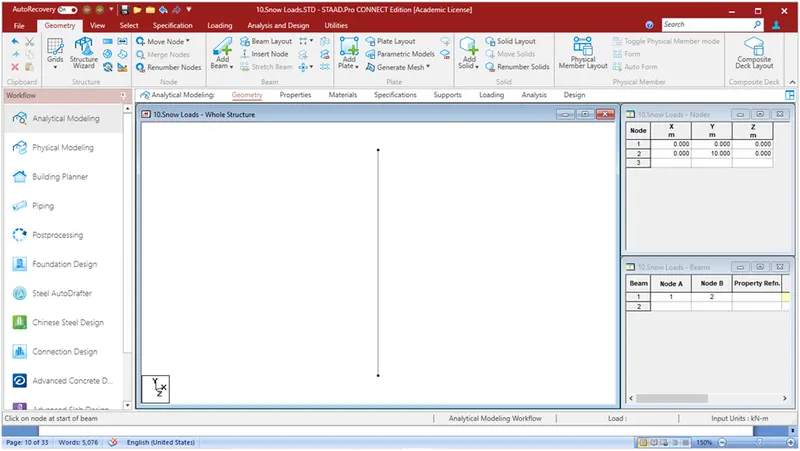

Creation of First pier:

Right side Nodes panel->x=0,y=10,z=0

Using Add beam option Connect Node 1 and Node2

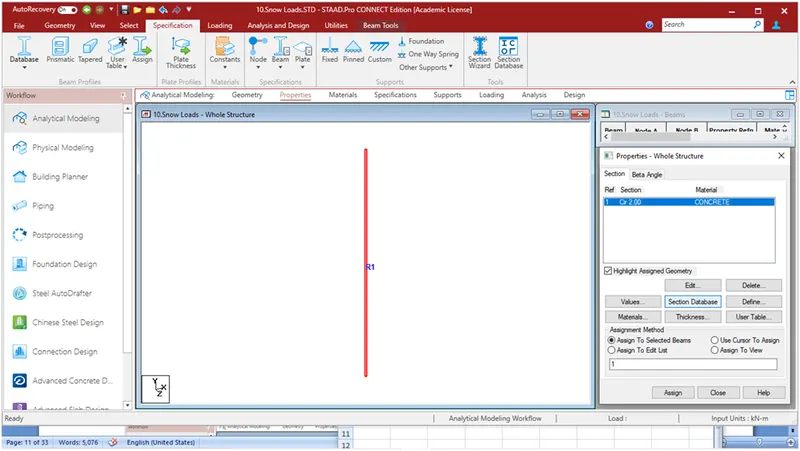

Assigning properties to Pier(Assuming 2 m dia )

Click Properties tab on Main panel->Click on Define tab on right side properties window->Circle=2m-> Add->Close

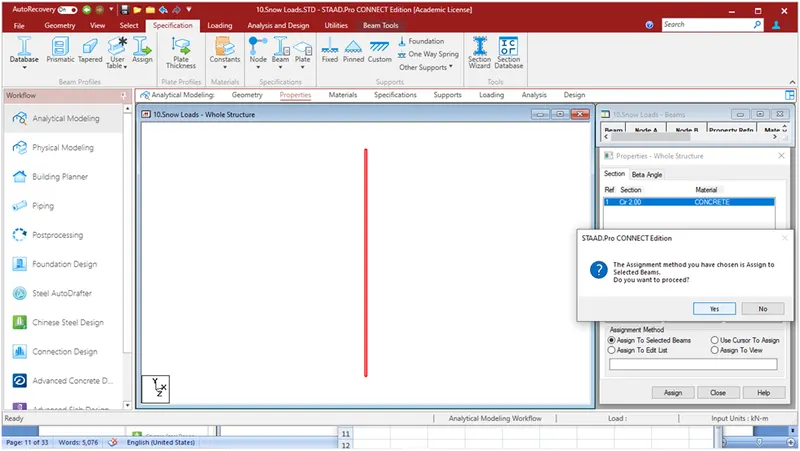

select Cir 2.0 Concrete on Properties panel-> Using Beam cursor select beam –Assign to Selected beams-> assign

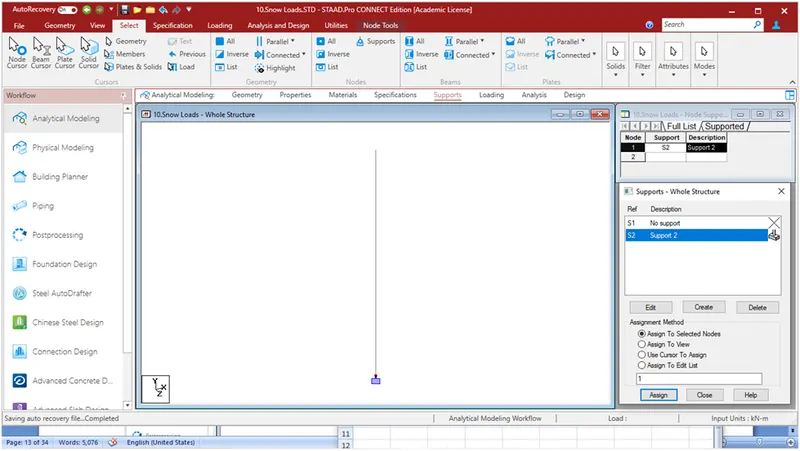

Assigning Fixed support to Pier

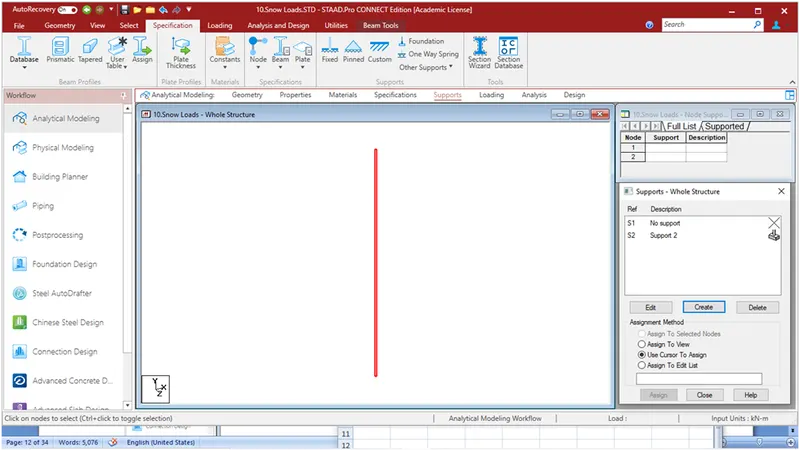

Click Supports tab on Main panel->Click on Create tab on right side Supports window->Create-> Add

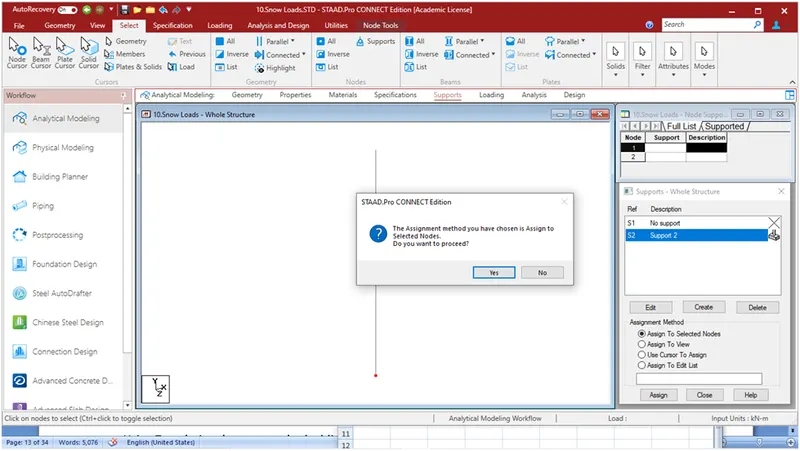

select S2 Support onSupports panel-> Using Node cursor select Pier bottom –Assign to Selected Node-> assign ->yes

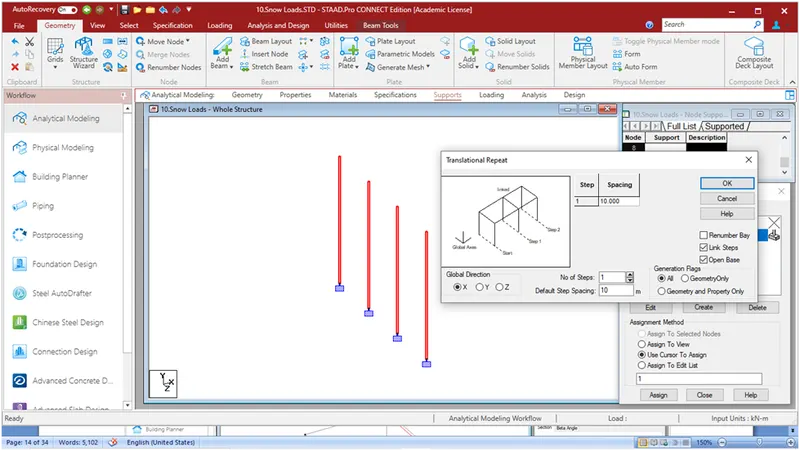

Using Translational repeat method adding Rhs piers(3Nos):

Select Pier using Beam Cursor->Under geometry Tab ->Translational repeat->Global direction=Z,No. of Steps=3,Default Spacing=4m, ->Ok

Creating 10m span’s Opposite side piers

Select all Beams using Beam cursor->Under geometry Tab ->Translational repeat->Global direction=Z,No. of Steps=1,Default Spacing=10m,Check Link steps and Open Base->Ok

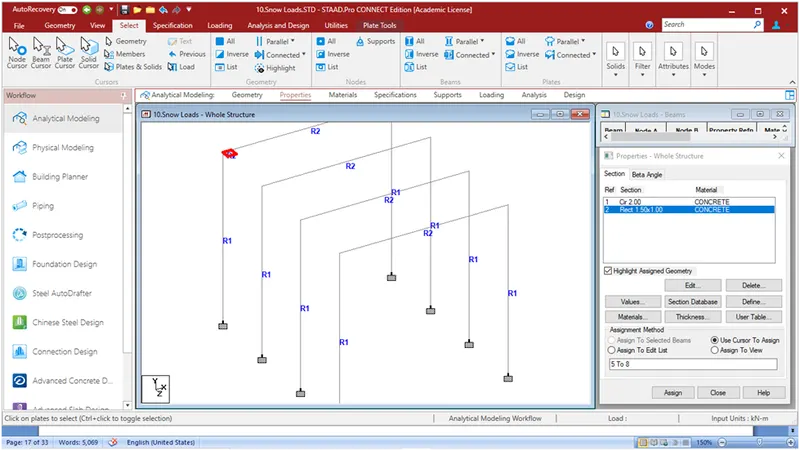

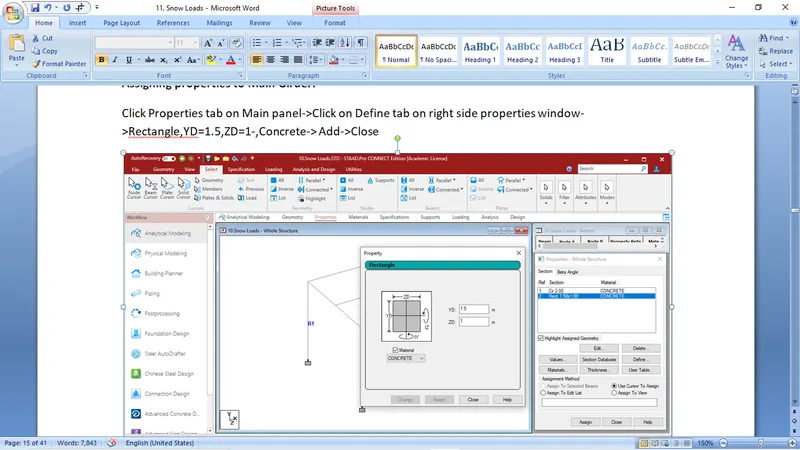

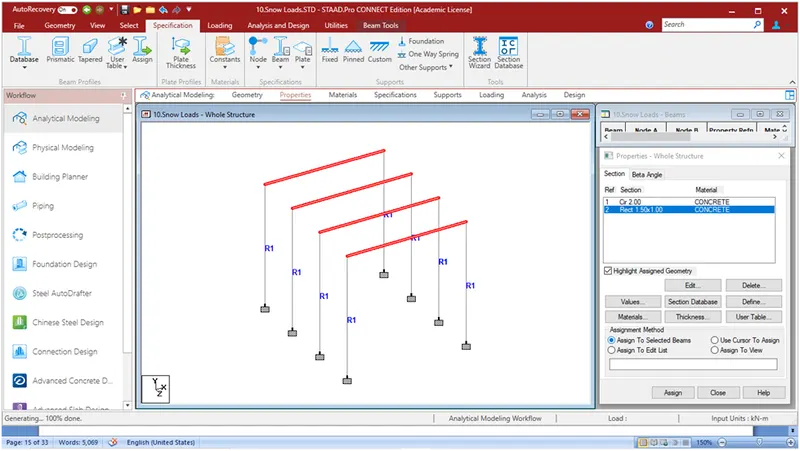

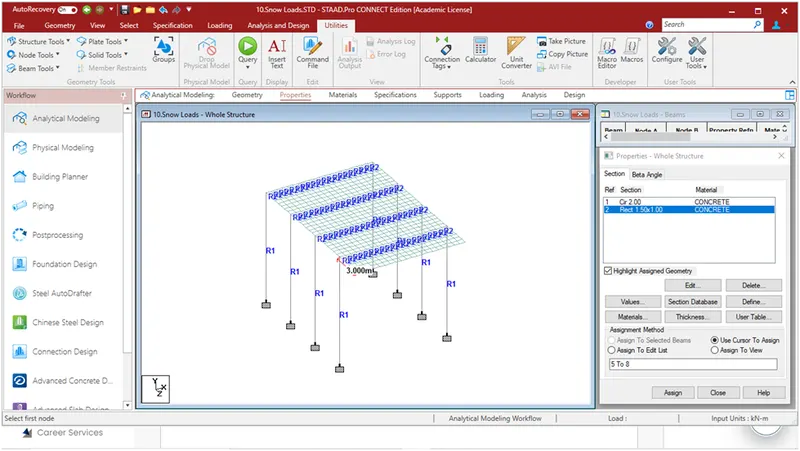

Assigning properties to Main Girder:

Click Properties tab on Main panel->Click on Define tab on right side properties window->Rectangle,YD=1.5,ZD=1-,Concrete-> Add->Close

select Rect 1.5 X 1.0 on Properties panel-> Using Beam cursor select beams parallel to X-axis –>Assign to Selected beams-> assign

Creation of Deck slab plates:

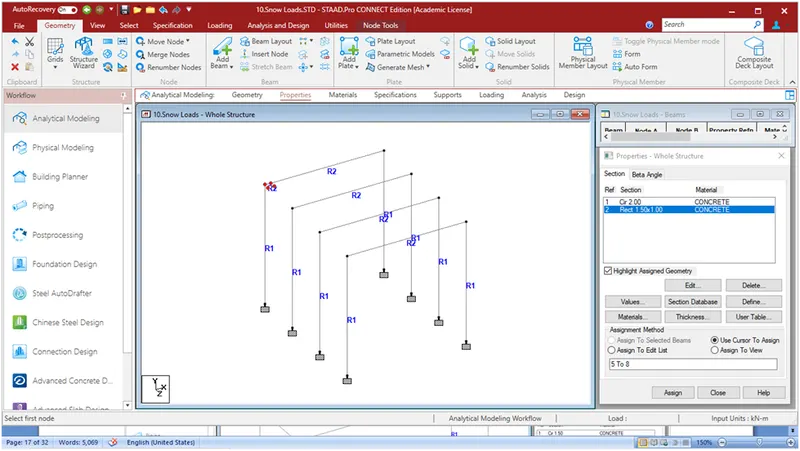

Creation of first Plate:

• By selecting Node cursor Click on Top left corner node->geometry->Using translational repeat method , global direction=X->No. of steps 1->Default spacing .5->O.K.
• Creation of Nodes in Z-direction: Selecting top left corner nodes->Using translational repeat method , global direction=z->No. of steps 1->Default spacing .5->O.K.

Add plate->Select all four nodes one by one –O.k

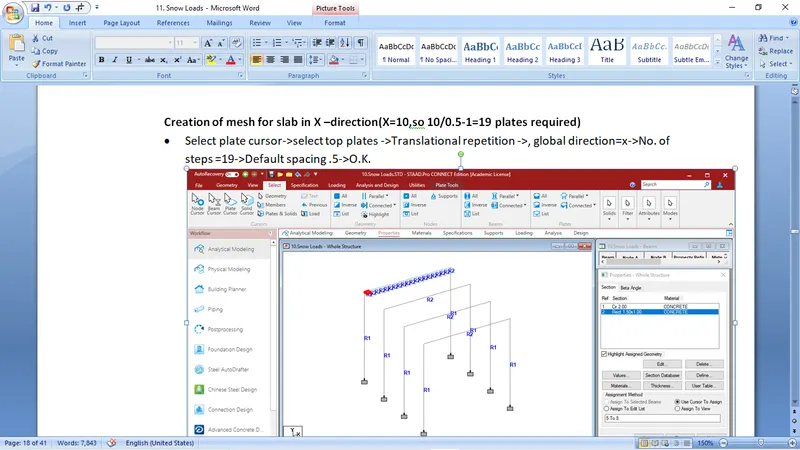

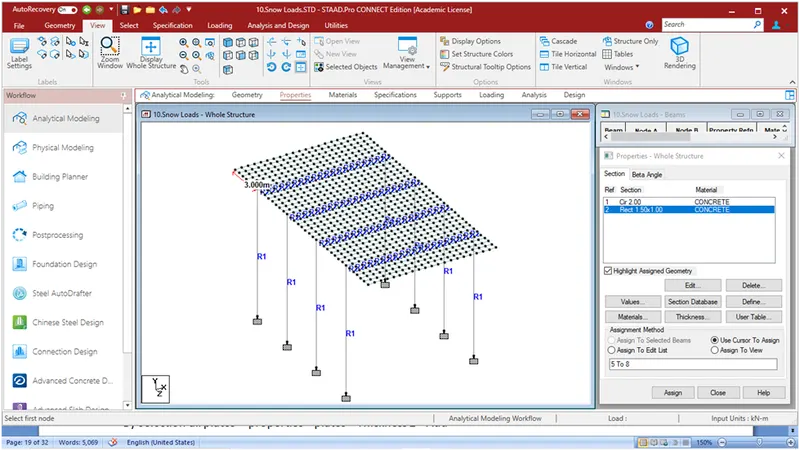

Creation of mesh for slab in X –direction(X=10,so 10/0.5-1=19 plates required)

• Select plate cursor->select top plates ->Translational repetition ->, global direction=x->No. of steps =19->Default spacing .5->O.K.

Creation of mesh for slab in 1 –direction(Z=15,so 15/0.5-1=29 plates required)

• Select plate cursor->select top plates ->Translational repetition ->, global direction=z->No. of steps =29->Default spacing .5->O.K.

Creation of mesh for slab in -Z –direction(Z=3,so 3/0.5=6 plates required)

• Select plate cursor->select top plates ->Translational repetition ->, global direction=z->No. of steps =3->Default spacing - .5->O.K.

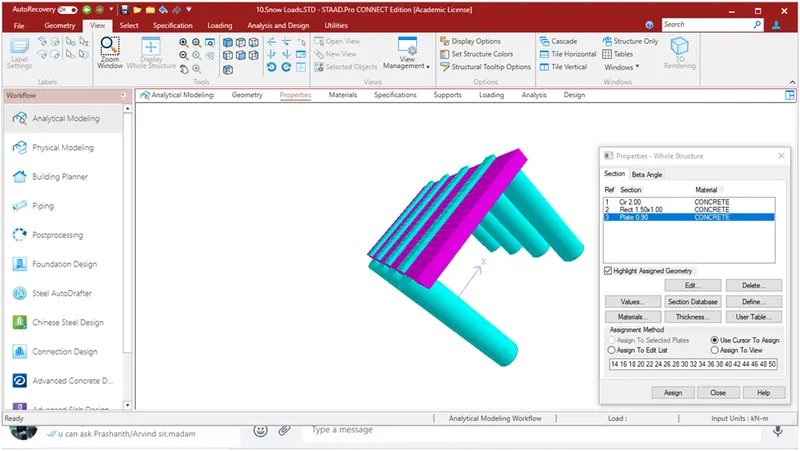

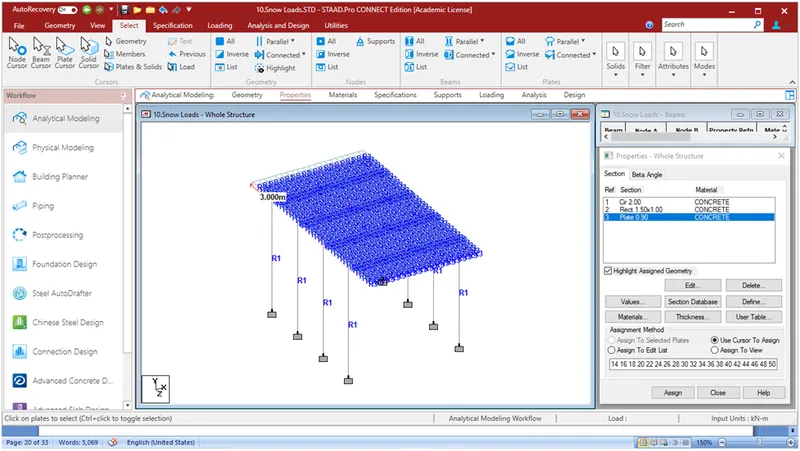

Assigning thickness to slab plates:

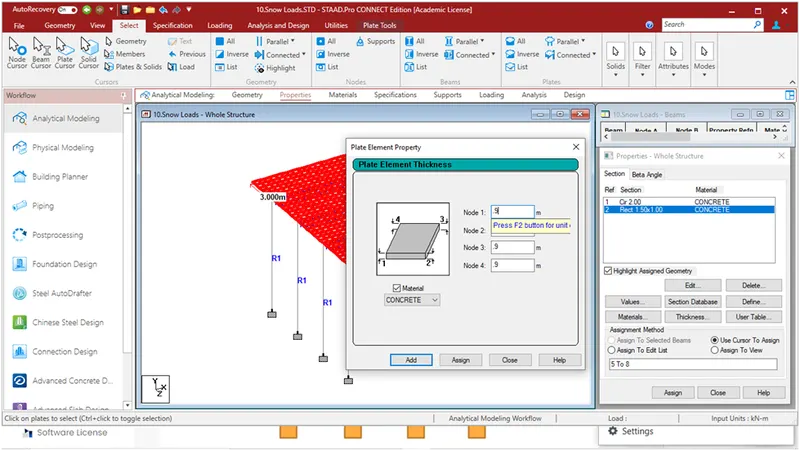

By Selection all plates ->properties->plates->Thickness 0.9->Add

Complete Render View

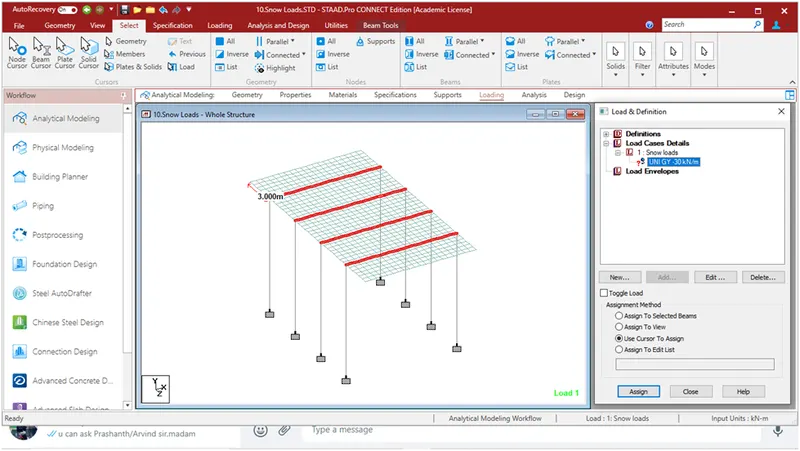

Assigning Loads:

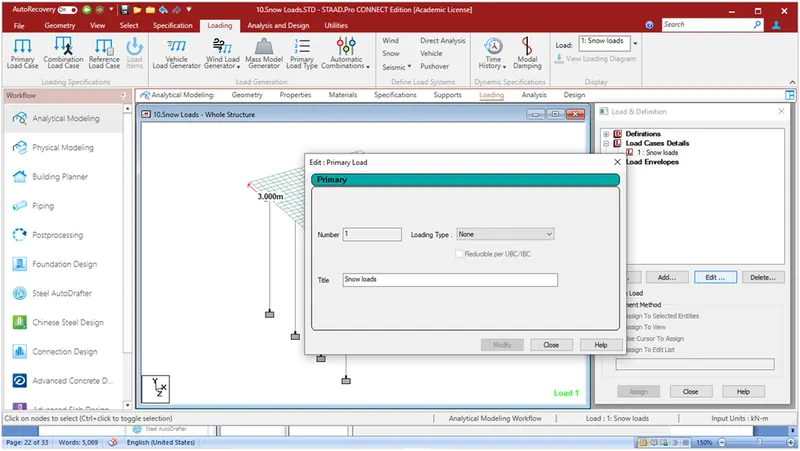

Select Loading tab in the main panel->Select load case details in Loads & defination panel->ADD->In Primary window Number=1,Title=Snow Loads->Add

Select all girders:

Select tab top panel,Select Beam cursor->Beams tab -> parallel to X

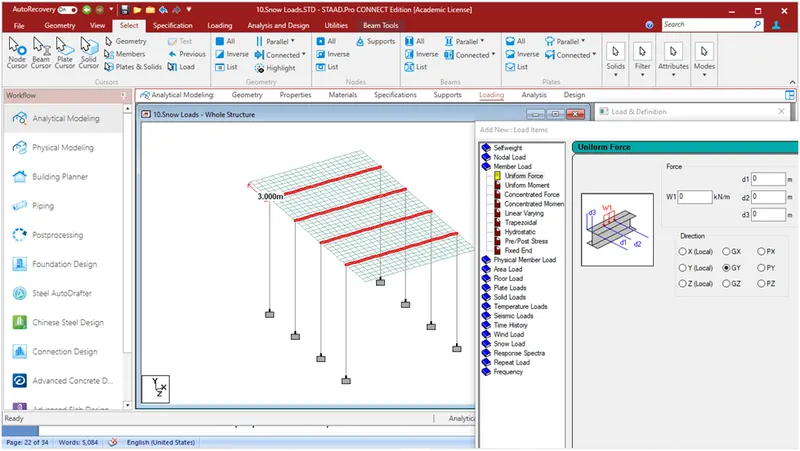

Click at Newly created Snow load->Add->In the Add New:Load items->Click at member load->Select Uniform force->Add-Close

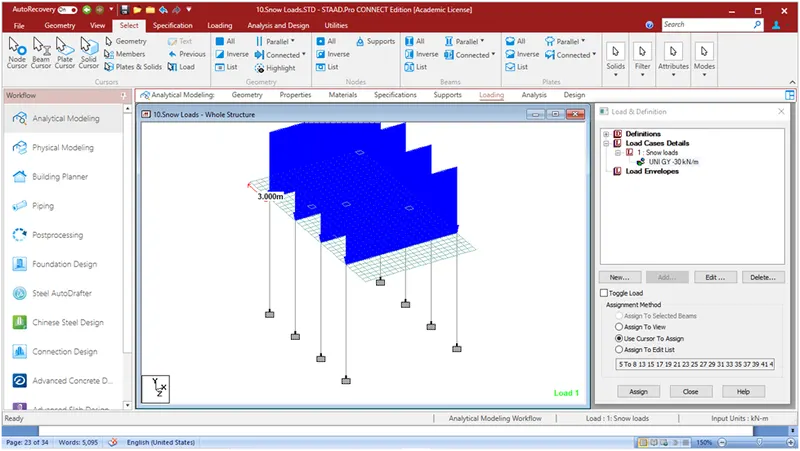

Select newly created UNI GY -30kn/m->click at Radial button of Assign to Selected beams->Assign button->Yes

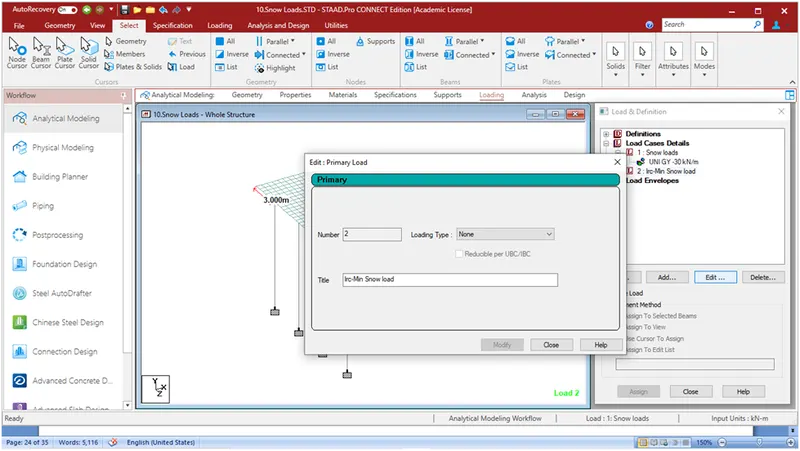

Select Loading tab in the main panel->Select load case details in Loads & defination panel->ADD->In Primary window Number=2,Title=Irc min snow load>Add

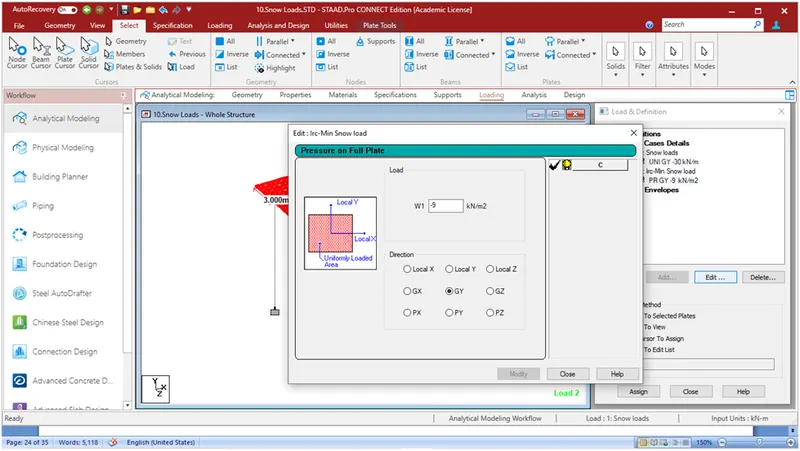

Click Irc-Min Snow load->Add->Plate loads ->Entrer w1=-9kn/m2,Direction=Gy->

-Add->Close

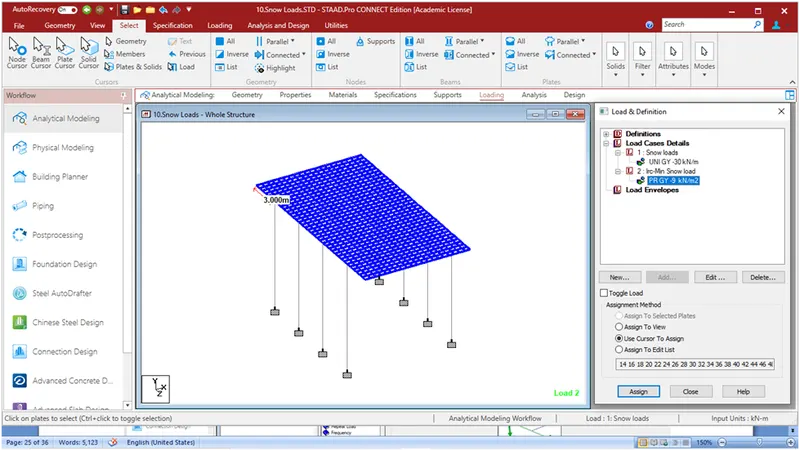

Select All plates using Plate cursor->click at PR GY -9 KN/M2->Assign to Selected Plates->Assign->Yes

In Analytical Model’s Main window ,right click ->Command file editor->Type “PERFORM ANALYSIS” at the end of file Before finish.

Run analysis(Ctrl+F5)

Displaying results:

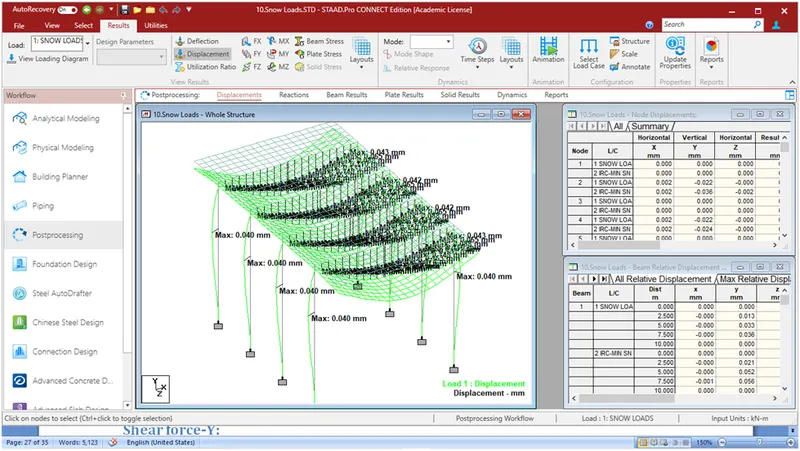

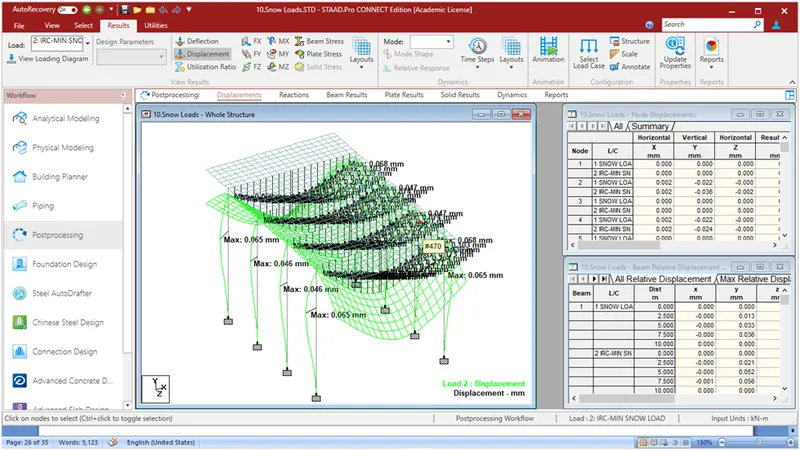

Displacement:

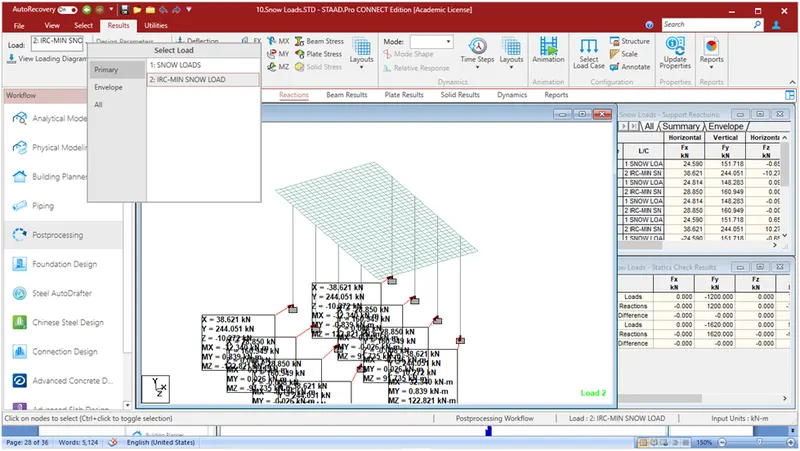

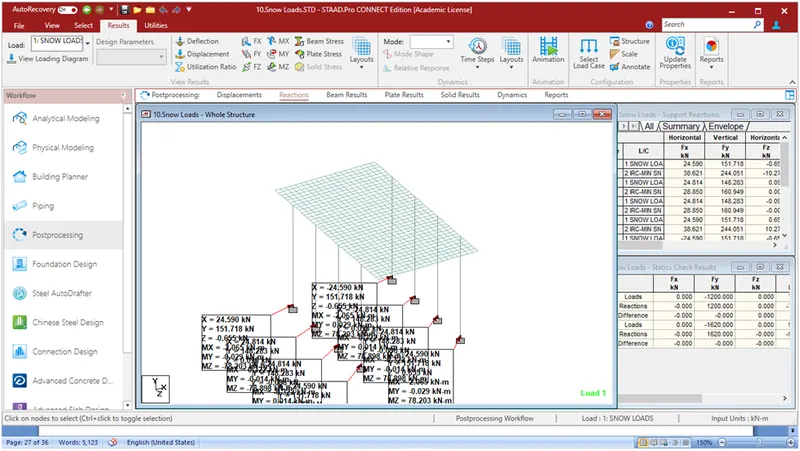

Reactions:

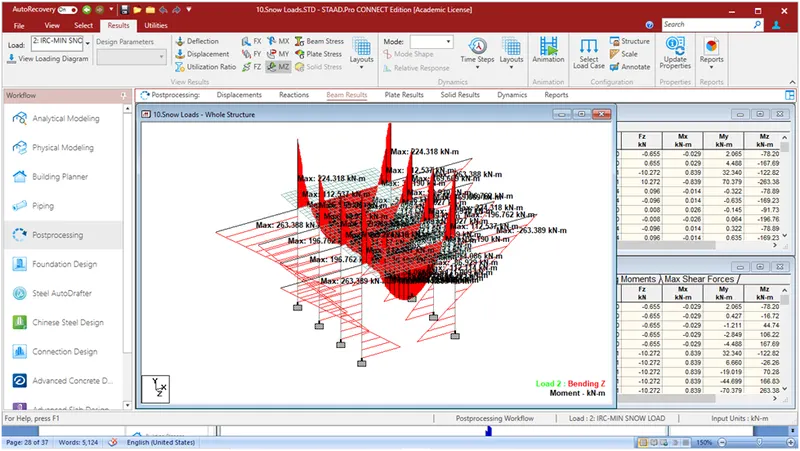

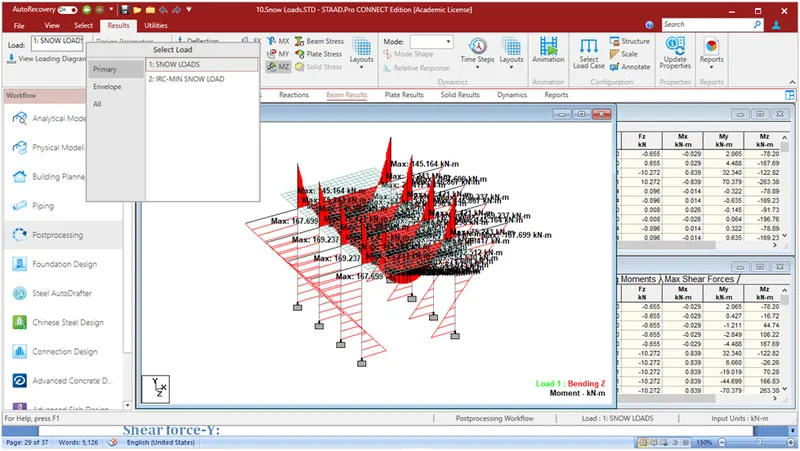

Bending Moment:

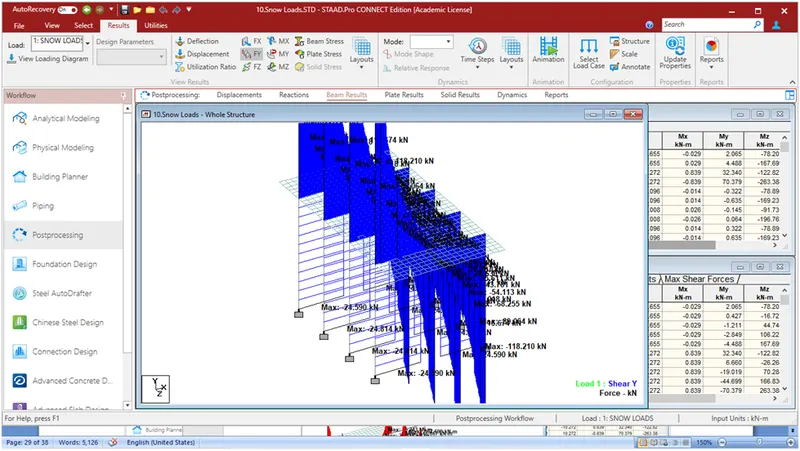

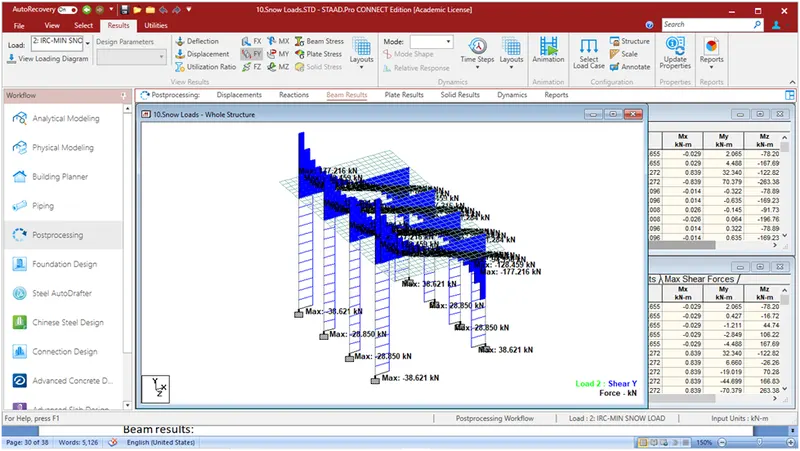

Shear force-Y:

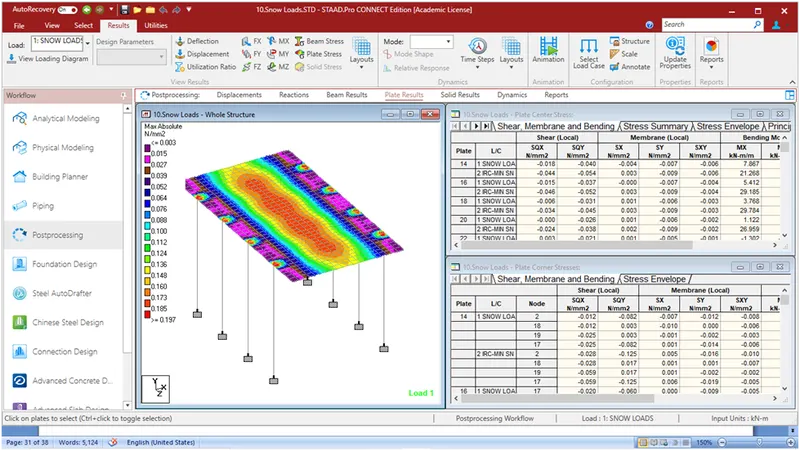

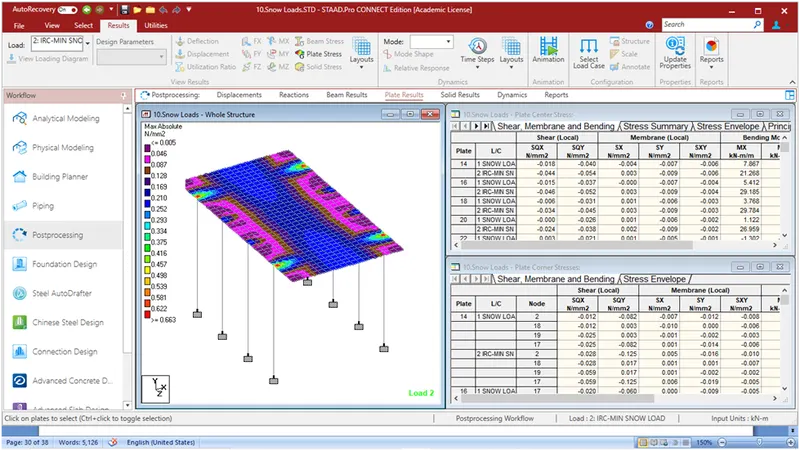

Plate results(Absolute):

Command File editor:

STAAD SPACE

START JOB INFORMATION

ENGINEER DATE 13-Feb-23

END JOB INFORMATION

INPUT WIDTH 79

UNIT METER KN

JOINT COORDINATES

1 0 0 0; 2 0 10 0; 3 0 0 4; 4 0 10 4; 5 0 0 8; 6 0 10 8; 7 0 0 12; 8 0 10 12;

9 10 0 0; 10 10 10 0; 11 10 0 4; 12 10 10 4; 13 10 0 8; 14 10 10 8; 15 10 0 12;

16 10 10 12; 17 0.5 10 0; 18 0 10 0.5; 19 0.5 10 0.5; 20 1 10 0; 21 1 10 0.5;

22 1.5 10 0; 23 1.5 10 0.5; 24 2 10 0; 25 2 10 0.5; 26 2.5 10 0; 27 2.5 10 0.5;

28 3 10 0; 29 3 10 0.5; 30 3.5 10 0; 31 3.5 10 0.5; 32 4 10 0; 33 4 10 0.5;

34 4.5 10 0; 35 4.5 10 0.5; 36 5 10 0; 37 5 10 0.5; 38 5.5 10 0; 39 5.5 10 0.5;

40 6 10 0; 41 6 10 0.5; 42 6.5 10 0; 43 6.5 10 0.5; 44 7 10 0; 45 7 10 0.5;

46 7.5 10 0; 47 7.5 10 0.5; 48 8 10 0; 49 8 10 0.5; 50 8.5 10 0; 51 8.5 10 0.5;

52 9 10 0; 53 9 10 0.5; 54 9.5 10 0; 55 9.5 10 0.5; 56 10 10 0.5; 57 0 10 1;

58 0.5 10 1; 59 1 10 1; 60 1.5 10 1; 61 2 10 1; 62 2.5 10 1; 63 3 10 1;

64 3.5 10 1; 65 4 10 1; 66 4.5 10 1; 67 5 10 1; 68 5.5 10 1; 69 6 10 1;

70 6.5 10 1; 71 7 10 1; 72 7.5 10 1; 73 8 10 1; 74 8.5 10 1; 75 9 10 1;

76 9.5 10 1; 77 10 10 1; 78 0 10 1.5; 79 0.5 10 1.5; 80 1 10 1.5;

81 1.5 10 1.5; 82 2 10 1.5; 83 2.5 10 1.5; 84 3 10 1.5; 85 3.5 10 1.5;

86 4 10 1.5; 87 4.5 10 1.5; 88 5 10 1.5; 89 5.5 10 1.5; 90 6 10 1.5;

91 6.5 10 1.5; 92 7 10 1.5; 93 7.5 10 1.5; 94 8 10 1.5; 95 8.5 10 1.5;

96 9 10 1.5; 97 9.5 10 1.5; 98 10 10 1.5; 99 0 10 2; 100 0.5 10 2; 101 1 10 2;

102 1.5 10 2; 103 2 10 2; 104 2.5 10 2; 105 3 10 2; 106 3.5 10 2; 107 4 10 2;

108 4.5 10 2; 109 5 10 2; 110 5.5 10 2; 111 6 10 2; 112 6.5 10 2; 113 7 10 2;

114 7.5 10 2; 115 8 10 2; 116 8.5 10 2; 117 9 10 2; 118 9.5 10 2; 119 10 10 2;

120 0 10 2.5; 121 0.5 10 2.5; 122 1 10 2.5; 123 1.5 10 2.5; 124 2 10 2.5;

125 2.5 10 2.5; 126 3 10 2.5; 127 3.5 10 2.5; 128 4 10 2.5; 129 4.5 10 2.5;

130 5 10 2.5; 131 5.5 10 2.5; 132 6 10 2.5; 133 6.5 10 2.5; 134 7 10 2.5;

135 7.5 10 2.5; 136 8 10 2.5; 137 8.5 10 2.5; 138 9 10 2.5; 139 9.5 10 2.5;

140 10 10 2.5; 141 0 10 3; 142 0.5 10 3; 143 1 10 3; 144 1.5 10 3; 145 2 10 3;

146 2.5 10 3; 147 3 10 3; 148 3.5 10 3; 149 4 10 3; 150 4.5 10 3; 151 5 10 3;

152 5.5 10 3; 153 6 10 3; 154 6.5 10 3; 155 7 10 3; 156 7.5 10 3; 157 8 10 3;

158 8.5 10 3; 159 9 10 3; 160 9.5 10 3; 161 10 10 3; 162 0 10 3.5;

163 0.5 10 3.5; 164 1 10 3.5; 165 1.5 10 3.5; 166 2 10 3.5; 167 2.5 10 3.5;

168 3 10 3.5; 169 3.5 10 3.5; 170 4 10 3.5; 171 4.5 10 3.5; 172 5 10 3.5;

173 5.5 10 3.5; 174 6 10 3.5; 175 6.5 10 3.5; 176 7 10 3.5; 177 7.5 10 3.5;

178 8 10 3.5; 179 8.5 10 3.5; 180 9 10 3.5; 181 9.5 10 3.5; 182 10 10 3.5;

183 0.5 10 4; 184 1 10 4; 185 1.5 10 4; 186 2 10 4; 187 2.5 10 4; 188 3 10 4;

189 3.5 10 4; 190 4 10 4; 191 4.5 10 4; 192 5 10 4; 193 5.5 10 4; 194 6 10 4;

195 6.5 10 4; 196 7 10 4; 197 7.5 10 4; 198 8 10 4; 199 8.5 10 4; 200 9 10 4;

201 9.5 10 4; 202 0 10 4.5; 203 0.5 10 4.5; 204 1 10 4.5; 205 1.5 10 4.5;

206 2 10 4.5; 207 2.5 10 4.5; 208 3 10 4.5; 209 3.5 10 4.5; 210 4 10 4.5;

211 4.5 10 4.5; 212 5 10 4.5; 213 5.5 10 4.5; 214 6 10 4.5; 215 6.5 10 4.5;

216 7 10 4.5; 217 7.5 10 4.5; 218 8 10 4.5; 219 8.5 10 4.5; 220 9 10 4.5;

221 9.5 10 4.5; 222 10 10 4.5; 223 0 10 5; 224 0.5 10 5; 225 1 10 5;

226 1.5 10 5; 227 2 10 5; 228 2.5 10 5; 229 3 10 5; 230 3.5 10 5; 231 4 10 5;

232 4.5 10 5; 233 5 10 5; 234 5.5 10 5; 235 6 10 5; 236 6.5 10 5; 237 7 10 5;

238 7.5 10 5; 239 8 10 5; 240 8.5 10 5; 241 9 10 5; 242 9.5 10 5; 243 10 10 5;

244 0 10 5.5; 245 0.5 10 5.5; 246 1 10 5.5; 247 1.5 10 5.5; 248 2 10 5.5;

249 2.5 10 5.5; 250 3 10 5.5; 251 3.5 10 5.5; 252 4 10 5.5; 253 4.5 10 5.5;

254 5 10 5.5; 255 5.5 10 5.5; 256 6 10 5.5; 257 6.5 10 5.5; 258 7 10 5.5;

259 7.5 10 5.5; 260 8 10 5.5; 261 8.5 10 5.5; 262 9 10 5.5; 263 9.5 10 5.5;

264 10 10 5.5; 265 0 10 6; 266 0.5 10 6; 267 1 10 6; 268 1.5 10 6; 269 2 10 6;

270 2.5 10 6; 271 3 10 6; 272 3.5 10 6; 273 4 10 6; 274 4.5 10 6; 275 5 10 6;

276 5.5 10 6; 277 6 10 6; 278 6.5 10 6; 279 7 10 6; 280 7.5 10 6; 281 8 10 6;

282 8.5 10 6; 283 9 10 6; 284 9.5 10 6; 285 10 10 6; 286 0 10 6.5;

287 0.5 10 6.5; 288 1 10 6.5; 289 1.5 10 6.5; 290 2 10 6.5; 291 2.5 10 6.5;

292 3 10 6.5; 293 3.5 10 6.5; 294 4 10 6.5; 295 4.5 10 6.5; 296 5 10 6.5;

297 5.5 10 6.5; 298 6 10 6.5; 299 6.5 10 6.5; 300 7 10 6.5; 301 7.5 10 6.5;

302 8 10 6.5; 303 8.5 10 6.5; 304 9 10 6.5; 305 9.5 10 6.5; 306 10 10 6.5;

307 0 10 7; 308 0.5 10 7; 309 1 10 7; 310 1.5 10 7; 311 2 10 7; 312 2.5 10 7;

313 3 10 7; 314 3.5 10 7; 315 4 10 7; 316 4.5 10 7; 317 5 10 7; 318 5.5 10 7;

319 6 10 7; 320 6.5 10 7; 321 7 10 7; 322 7.5 10 7; 323 8 10 7; 324 8.5 10 7;

325 9 10 7; 326 9.5 10 7; 327 10 10 7; 328 0 10 7.5; 329 0.5 10 7.5;

330 1 10 7.5; 331 1.5 10 7.5; 332 2 10 7.5; 333 2.5 10 7.5; 334 3 10 7.5;

335 3.5 10 7.5; 336 4 10 7.5; 337 4.5 10 7.5; 338 5 10 7.5; 339 5.5 10 7.5;

340 6 10 7.5; 341 6.5 10 7.5; 342 7 10 7.5; 343 7.5 10 7.5; 344 8 10 7.5;

345 8.5 10 7.5; 346 9 10 7.5; 347 9.5 10 7.5; 348 10 10 7.5; 349 0.5 10 8;

350 1 10 8; 351 1.5 10 8; 352 2 10 8; 353 2.5 10 8; 354 3 10 8; 355 3.5 10 8;

356 4 10 8; 357 4.5 10 8; 358 5 10 8; 359 5.5 10 8; 360 6 10 8; 361 6.5 10 8;

362 7 10 8; 363 7.5 10 8; 364 8 10 8; 365 8.5 10 8; 366 9 10 8; 367 9.5 10 8;

368 0 10 8.5; 369 0.5 10 8.5; 370 1 10 8.5; 371 1.5 10 8.5; 372 2 10 8.5;

373 2.5 10 8.5; 374 3 10 8.5; 375 3.5 10 8.5; 376 4 10 8.5; 377 4.5 10 8.5;

378 5 10 8.5; 379 5.5 10 8.5; 380 6 10 8.5; 381 6.5 10 8.5; 382 7 10 8.5;

383 7.5 10 8.5; 384 8 10 8.5; 385 8.5 10 8.5; 386 9 10 8.5; 387 9.5 10 8.5;

388 10 10 8.5; 389 0 10 9; 390 0.5 10 9; 391 1 10 9; 392 1.5 10 9; 393 2 10 9;

394 2.5 10 9; 395 3 10 9; 396 3.5 10 9; 397 4 10 9; 398 4.5 10 9; 399 5 10 9;

400 5.5 10 9; 401 6 10 9; 402 6.5 10 9; 403 7 10 9; 404 7.5 10 9; 405 8 10 9;

406 8.5 10 9; 407 9 10 9; 408 9.5 10 9; 409 10 10 9; 410 0 10 9.5;

411 0.5 10 9.5; 412 1 10 9.5; 413 1.5 10 9.5; 414 2 10 9.5; 415 2.5 10 9.5;

416 3 10 9.5; 417 3.5 10 9.5; 418 4 10 9.5; 419 4.5 10 9.5; 420 5 10 9.5;

421 5.5 10 9.5; 422 6 10 9.5; 423 6.5 10 9.5; 424 7 10 9.5; 425 7.5 10 9.5;

426 8 10 9.5; 427 8.5 10 9.5; 428 9 10 9.5; 429 9.5 10 9.5; 430 10 10 9.5;

431 0 10 10; 432 0.5 10 10; 433 1 10 10; 434 1.5 10 10; 435 2 10 10;

436 2.5 10 10; 437 3 10 10; 438 3.5 10 10; 439 4 10 10; 440 4.5 10 10;

441 5 10 10; 442 5.5 10 10; 443 6 10 10; 444 6.5 10 10; 445 7 10 10;

446 7.5 10 10; 447 8 10 10; 448 8.5 10 10; 449 9 10 10; 450 9.5 10 10;

451 10 10 10; 452 0 10 10.5; 453 0.5 10 10.5; 454 1 10 10.5; 455 1.5 10 10.5;

456 2 10 10.5; 457 2.5 10 10.5; 458 3 10 10.5; 459 3.5 10 10.5; 460 4 10 10.5;

461 4.5 10 10.5; 462 5 10 10.5; 463 5.5 10 10.5; 464 6 10 10.5;

465 6.5 10 10.5; 466 7 10 10.5; 467 7.5 10 10.5; 468 8 10 10.5;

469 8.5 10 10.5; 470 9 10 10.5; 471 9.5 10 10.5; 472 10 10 10.5; 473 0 10 11;

474 0.5 10 11; 475 1 10 11; 476 1.5 10 11; 477 2 10 11; 478 2.5 10 11;

479 3 10 11; 480 3.5 10 11; 481 4 10 11; 482 4.5 10 11; 483 5 10 11;

484 5.5 10 11; 485 6 10 11; 486 6.5 10 11; 487 7 10 11; 488 7.5 10 11;

489 8 10 11; 490 8.5 10 11; 491 9 10 11; 492 9.5 10 11; 493 10 10 11;

494 0 10 11.5; 495 0.5 10 11.5; 496 1 10 11.5; 497 1.5 10 11.5; 498 2 10 11.5;

499 2.5 10 11.5; 500 3 10 11.5; 501 3.5 10 11.5; 502 4 10 11.5;

503 4.5 10 11.5; 504 5 10 11.5; 505 5.5 10 11.5; 506 6 10 11.5;

507 6.5 10 11.5; 508 7 10 11.5; 509 7.5 10 11.5; 510 8 10 11.5;

511 8.5 10 11.5; 512 9 10 11.5; 513 9.5 10 11.5; 514 10 10 11.5; 515 0.5 10 12;

516 1 10 12; 517 1.5 10 12; 518 2 10 12; 519 2.5 10 12; 520 3 10 12;

521 3.5 10 12; 522 4 10 12; 523 4.5 10 12; 524 5 10 12; 525 5.5 10 12;

526 6 10 12; 527 6.5 10 12; 528 7 10 12; 529 7.5 10 12; 530 8 10 12;

531 8.5 10 12; 532 9 10 12; 533 9.5 10 12; 534 0 10 12.5; 535 0.5 10 12.5;

536 1 10 12.5; 537 1.5 10 12.5; 538 2 10 12.5; 539 2.5 10 12.5; 540 3 10 12.5;

541 3.5 10 12.5; 542 4 10 12.5; 543 4.5 10 12.5; 544 5 10 12.5;

545 5.5 10 12.5; 546 6 10 12.5; 547 6.5 10 12.5; 548 7 10 12.5;

549 7.5 10 12.5; 550 8 10 12.5; 551 8.5 10 12.5; 552 9 10 12.5;

553 9.5 10 12.5; 554 10 10 12.5; 555 0 10 13; 556 0.5 10 13; 557 1 10 13;

558 1.5 10 13; 559 2 10 13; 560 2.5 10 13; 561 3 10 13; 562 3.5 10 13;

563 4 10 13; 564 4.5 10 13; 565 5 10 13; 566 5.5 10 13; 567 6 10 13;

568 6.5 10 13; 569 7 10 13; 570 7.5 10 13; 571 8 10 13; 572 8.5 10 13;

573 9 10 13; 574 9.5 10 13; 575 10 10 13; 576 0 10 13.5; 577 0.5 10 13.5;

578 1 10 13.5; 579 1.5 10 13.5; 580 2 10 13.5; 581 2.5 10 13.5; 582 3 10 13.5;

583 3.5 10 13.5; 584 4 10 13.5; 585 4.5 10 13.5; 586 5 10 13.5;

587 5.5 10 13.5; 588 6 10 13.5; 589 6.5 10 13.5; 590 7 10 13.5;

591 7.5 10 13.5; 592 8 10 13.5; 593 8.5 10 13.5; 594 9 10 13.5;

595 9.5 10 13.5; 596 10 10 13.5; 597 0 10 14; 598 0.5 10 14; 599 1 10 14;

600 1.5 10 14; 601 2 10 14; 602 2.5 10 14; 603 3 10 14; 604 3.5 10 14;

605 4 10 14; 606 4.5 10 14; 607 5 10 14; 608 5.5 10 14; 609 6 10 14;

610 6.5 10 14; 611 7 10 14; 612 7.5 10 14; 613 8 10 14; 614 8.5 10 14;

615 9 10 14; 616 9.5 10 14; 617 10 10 14; 618 0 10 14.5; 619 0.5 10 14.5;

620 1 10 14.5; 621 1.5 10 14.5; 622 2 10 14.5; 623 2.5 10 14.5; 624 3 10 14.5;

625 3.5 10 14.5; 626 4 10 14.5; 627 4.5 10 14.5; 628 5 10 14.5;

629 5.5 10 14.5; 630 6 10 14.5; 631 6.5 10 14.5; 632 7 10 14.5;

633 7.5 10 14.5; 634 8 10 14.5; 635 8.5 10 14.5; 636 9 10 14.5;

637 9.5 10 14.5; 638 10 10 14.5; 639 0 10 15; 640 0.5 10 15; 641 1 10 15;

642 1.5 10 15; 643 2 10 15; 644 2.5 10 15; 645 3 10 15; 646 3.5 10 15;

647 4 10 15; 648 4.5 10 15; 649 5 10 15; 650 5.5 10 15; 651 6 10 15;

652 6.5 10 15; 653 7 10 15; 654 7.5 10 15; 655 8 10 15; 656 8.5 10 15;

657 9 10 15; 658 9.5 10 15; 659 10 10 15; 660 0 10 -0.5; 661 10 10 -0.5;

662 0.5 10 -0.5; 663 1 10 -0.5; 664 1.5 10 -0.5; 665 2 10 -0.5;

666 2.5 10 -0.5; 667 3 10 -0.5; 668 3.5 10 -0.5; 669 4 10 -0.5;

670 4.5 10 -0.5; 671 5 10 -0.5; 672 5.5 10 -0.5; 673 6 10 -0.5;

674 6.5 10 -0.5; 675 7 10 -0.5; 676 7.5 10 -0.5; 677 8 10 -0.5;

678 8.5 10 -0.5; 679 9 10 -0.5; 680 9.5 10 -0.5; 681 0 10 -1; 682 10 10 -1;

683 0.5 10 -1; 684 1 10 -1; 685 1.5 10 -1; 686 2 10 -1; 687 2.5 10 -1;

688 3 10 -1; 689 3.5 10 -1; 690 4 10 -1; 691 4.5 10 -1; 692 5 10 -1;

693 5.5 10 -1; 694 6 10 -1; 695 6.5 10 -1; 696 7 10 -1; 697 7.5 10 -1;

698 8 10 -1; 699 8.5 10 -1; 700 9 10 -1; 701 9.5 10 -1; 702 0 10 -1.5;

703 10 10 -1.5; 704 0.5 10 -1.5; 705 1 10 -1.5; 706 1.5 10 -1.5; 707 2 10 -1.5;

708 2.5 10 -1.5; 709 3 10 -1.5; 710 3.5 10 -1.5; 711 4 10 -1.5;

712 4.5 10 -1.5; 713 5 10 -1.5; 714 5.5 10 -1.5; 715 6 10 -1.5;

716 6.5 10 -1.5; 717 7 10 -1.5; 718 7.5 10 -1.5; 719 8 10 -1.5;

720 8.5 10 -1.5; 721 9 10 -1.5; 722 9.5 10 -1.5; 723 0 10 -2; 724 10 10 -2;

725 0.5 10 -2; 726 1 10 -2; 727 1.5 10 -2; 728 2 10 -2; 729 2.5 10 -2;

730 3 10 -2; 731 3.5 10 -2; 732 4 10 -2; 733 4.5 10 -2; 734 5 10 -2;

735 5.5 10 -2; 736 6 10 -2; 737 6.5 10 -2; 738 7 10 -2; 739 7.5 10 -2;

740 8 10 -2; 741 8.5 10 -2; 742 9 10 -2; 743 9.5 10 -2; 744 0 10 -2.5;

745 10 10 -2.5; 746 0.5 10 -2.5; 747 1 10 -2.5; 748 1.5 10 -2.5; 749 2 10 -2.5;

750 2.5 10 -2.5; 751 3 10 -2.5; 752 3.5 10 -2.5; 753 4 10 -2.5;

754 4.5 10 -2.5; 755 5 10 -2.5; 756 5.5 10 -2.5; 757 6 10 -2.5;

758 6.5 10 -2.5; 759 7 10 -2.5; 760 7.5 10 -2.5; 761 8 10 -2.5;

762 8.5 10 -2.5; 763 9 10 -2.5; 764 9.5 10 -2.5; 765 0 10 -3; 766 10 10 -3;

767 0.5 10 -3; 768 1 10 -3; 769 1.5 10 -3; 770 2 10 -3; 771 2.5 10 -3;

772 3 10 -3; 773 3.5 10 -3; 774 4 10 -3; 775 4.5 10 -3; 776 5 10 -3;

777 5.5 10 -3; 778 6 10 -3; 779 6.5 10 -3; 780 7 10 -3; 781 7.5 10 -3;

782 8 10 -3; 783 8.5 10 -3; 784 9 10 -3; 785 9.5 10 -3;

MEMBER INCIDENCES

1 1 2; 2 3 4; 3 5 6; 4 7 8; 5 2 17; 6 4 183; 7 6 349; 8 8 515; 9 9 10;

10 11 12; 11 13 14; 12 15 16; 13 17 20; 15 20 22; 17 22 24; 19 24 26; 21 26 28;

23 28 30; 25 30 32; 27 32 34; 29 34 36; 31 36 38; 33 38 40; 35 40 42; 37 42 44;

39 44 46; 41 46 48; 43 48 50; 45 50 52; 47 52 54; 49 54 10; 172 183 184;

173 184 185; 174 185 186; 175 186 187; 176 187 188; 177 188 189; 178 189 190;

179 190 191; 180 191 192; 181 192 193; 182 193 194; 183 194 195; 184 195 196;

185 196 197; 186 197 198; 187 198 199; 188 199 200; 189 200 201; 190 201 12;

351 349 350; 352 350 351; 353 351 352; 354 352 353; 355 353 354; 356 354 355;

357 355 356; 358 356 357; 359 357 358; 360 358 359; 361 359 360; 362 360 361;

363 361 362; 364 362 363; 365 363 364; 366 364 365; 367 365 366; 368 366 367;

369 367 14; 530 515 516; 531 516 517; 532 517 518; 533 518 519; 534 519 520;

535 520 521; 536 521 522; 537 522 523; 538 523 524; 539 524 525; 540 525 526;

541 526 527; 542 527 528; 543 528 529; 544 529 530; 545 530 531; 546 531 532;

547 532 533; 548 533 16;

ELEMENT INCIDENCES SHELL

14 2 18 19 17; 16 17 19 21 20; 18 20 21 23 22; 20 22 23 25 24; 22 24 25 27 26;

24 26 27 29 28; 26 28 29 31 30; 28 30 31 33 32; 30 32 33 35 34; 32 34 35 37 36;

34 36 37 39 38; 36 38 39 41 40; 38 40 41 43 42; 40 42 43 45 44; 42 44 45 47 46;

44 46 47 49 48; 46 48 49 51 50; 48 50 51 53 52; 50 52 53 55 54; 51 54 55 56 10;

52 18 57 58 19; 53 19 58 59 21; 54 21 59 60 23; 55 23 60 61 25; 56 25 61 62 27;

57 27 62 63 29; 58 29 63 64 31; 59 31 64 65 33; 60 33 65 66 35; 61 35 66 67 37;

62 37 67 68 39; 63 39 68 69 41; 64 41 69 70 43; 65 43 70 71 45; 66 45 71 72 47;

67 47 72 73 49; 68 49 73 74 51; 69 51 74 75 53; 70 53 75 76 55; 71 55 76 77 56;

72 57 78 79 58; 73 58 79 80 59; 74 59 80 81 60; 75 60 81 82 61; 76 61 82 83 62;

77 62 83 84 63; 78 63 84 85 64; 79 64 85 86 65; 80 65 86 87 66; 81 66 87 88 67;

82 67 88 89 68; 83 68 89 90 69; 84 69 90 91 70; 85 70 91 92 71; 86 71 92 93 72;

87 72 93 94 73; 88 73 94 95 74; 89 74 95 96 75; 90 75 96 97 76; 91 76 97 98 77;

92 78 99 100 79; 93 79 100 101 80; 94 80 101 102 81; 95 81 102 103 82;

96 82 103 104 83; 97 83 104 105 84; 98 84 105 106 85; 99 85 106 107 86;

100 86 107 108 87; 101 87 108 109 88; 102 88 109 110 89; 103 89 110 111 90;

104 90 111 112 91; 105 91 112 113 92; 106 92 113 114 93; 107 93 114 115 94;

108 94 115 116 95; 109 95 116 117 96; 110 96 117 118 97; 111 97 118 119 98;

112 99 120 121 100; 113 100 121 122 101; 114 101 122 123 102;

115 102 123 124 103; 116 103 124 125 104; 117 104 125 126 105;

118 105 126 127 106; 119 106 127 128 107; 120 107 128 129 108;

121 108 129 130 109; 122 109 130 131 110; 123 110 131 132 111;

124 111 132 133 112; 125 112 133 134 113; 126 113 134 135 114;

127 114 135 136 115; 128 115 136 137 116; 129 116 137 138 117;

130 117 138 139 118; 131 118 139 140 119; 132 120 141 142 121;

133 121 142 143 122; 134 122 143 144 123; 135 123 144 145 124;

136 124 145 146 125; 137 125 146 147 126; 138 126 147 148 127;

139 127 148 149 128; 140 128 149 150 129; 141 129 150 151 130;

142 130 151 152 131; 143 131 152 153 132; 144 132 153 154 133;

145 133 154 155 134; 146 134 155 156 135; 147 135 156 157 136;

148 136 157 158 137; 149 137 158 159 138; 150 138 159 160 139;

151 139 160 161 140; 152 141 162 163 142; 153 142 163 164 143;

154 143 164 165 144; 155 144 165 166 145; 156 145 166 167 146;

157 146 167 168 147; 158 147 168 169 148; 159 148 169 170 149;

160 149 170 171 150; 161 150 171 172 151; 162 151 172 173 152;

163 152 173 174 153; 164 153 174 175 154; 165 154 175 176 155;

166 155 176 177 156; 167 156 177 178 157; 168 157 178 179 158;

169 158 179 180 159; 170 159 180 181 160; 171 160 181 182 161;

191 162 4 183 163; 192 163 183 184 164; 193 164 184 185 165;

194 165 185 186 166; 195 166 186 187 167; 196 167 187 188 168;

197 168 188 189 169; 198 169 189 190 170; 199 170 190 191 171;

200 171 191 192 172; 201 172 192 193 173; 202 173 193 194 174;

203 174 194 195 175; 204 175 195 196 176; 205 176 196 197 177;

206 177 197 198 178; 207 178 198 199 179; 208 179 199 200 180;

209 180 200 201 181; 210 181 201 12 182; 211 4 202 203 183;

212 183 203 204 184; 213 184 204 205 185; 214 185 205 206 186;

215 186 206 207 187; 216 187 207 208 188; 217 188 208 209 189;

218 189 209 210 190; 219 190 210 211 191; 220 191 211 212 192;

221 192 212 213 193; 222 193 213 214 194; 223 194 214 215 195;

224 195 215 216 196; 225 196 216 217 197; 226 197 217 218 198;

227 198 218 219 199; 228 199 219 220 200; 229 200 220 221 201;

230 201 221 222 12; 231 202 223 224 203; 232 203 224 225 204;

233 204 225 226 205; 234 205 226 227 206; 235 206 227 228 207;

236 207 228 229 208; 237 208 229 230 209; 238 209 230 231 210;

239 210 231 232 211; 240 211 232 233 212; 241 212 233 234 213;

242 213 234 235 214; 243 214 235 236 215; 244 215 236 237 216;

245 216 237 238 217; 246 217 238 239 218; 247 218 239 240 219;

248 219 240 241 220; 249 220 241 242 221; 250 221 242 243 222;

251 223 244 245 224; 252 224 245 246 225; 253 225 246 247 226;

254 226 247 248 227; 255 227 248 249 228; 256 228 249 250 229;

257 229 250 251 230; 258 230 251 252 231; 259 231 252 253 232;

260 232 253 254 233; 261 233 254 255 234; 262 234 255 256 235;

263 235 256 257 236; 264 236 257 258 237; 265 237 258 259 238;

266 238 259 260 239; 267 239 260 261 240; 268 240 261 262 241;

269 241 262 263 242; 270 242 263 264 243; 271 244 265 266 245;

272 245 266 267 246; 273 246 267 268 247; 274 247 268 269 248;

275 248 269 270 249; 276 249 270 271 250; 277 250 271 272 251;

278 251 272 273 252; 279 252 273 274 253; 280 253 274 275 254;

281 254 275 276 255; 282 255 276 277 256; 283 256 277 278 257;

284 257 278 279 258; 285 258 279 280 259; 286 259 280 281 260;

287 260 281 282 261; 288 261 282 283 262; 289 262 283 284 263;

290 263 284 285 264; 291 265 286 287 266; 292 266 287 288 267;

293 267 288 289 268; 294 268 289 290 269; 295 269 290 291 270;

296 270 291 292 271; 297 271 292 293 272; 298 272 293 294 273;

299 273 294 295 274; 300 274 295 296 275; 301 275 296 297 276;

302 276 297 298 277; 303 277 298 299 278; 304 278 299 300 279;

305 279 300 301 280; 306 280 301 302 281; 307 281 302 303 282;

308 282 303 304 283; 309 283 304 305 284; 310 284 305 306 285;

311 286 307 308 287; 312 287 308 309 288; 313 288 309 310 289;

314 289 310 311 290; 315 290 311 312 291; 316 291 312 313 292;

317 292 313 314 293; 318 293 314 315 294; 319 294 315 316 295;

320 295 316 317 296; 321 296 317 318 297; 322 297 318 319 298;

323 298 319 320 299; 324 299 320 321 300; 325 300 321 322 301;

326 301 322 323 302; 327 302 323 324 303; 328 303 324 325 304;

329 304 325 326 305; 330 305 326 327 306; 331 307 328 329 308;

332 308 329 330 309; 333 309 330 331 310; 334 310 331 332 311;

335 311 332 333 312; 336 312 333 334 313; 337 313 334 335 314;

338 314 335 336 315; 339 315 336 337 316; 340 316 337 338 317;

341 317 338 339 318; 342 318 339 340 319; 343 319 340 341 320;

344 320 341 342 321; 345 321 342 343 322; 346 322 343 344 323;

347 323 344 345 324; 348 324 345 346 325; 349 325 346 347 326;

350 326 347 348 327; 370 328 6 349 329; 371 329 349 350 330;

372 330 350 351 331; 373 331 351 352 332; 374 332 352 353 333;

375 333 353 354 334; 376 334 354 355 335; 377 335 355 356 336;

378 336 356 357 337; 379 337 357 358 338; 380 338 358 359 339;

381 339 359 360 340; 382 340 360 361 341; 383 341 361 362 342;

384 342 362 363 343; 385 343 363 364 344; 386 344 364 365 345;

387 345 365 366 346; 388 346 366 367 347; 389 347 367 14 348;

390 6 368 369 349; 391 349 369 370 350; 392 350 370 371 351;

393 351 371 372 352; 394 352 372 373 353; 395 353 373 374 354;

396 354 374 375 355; 397 355 375 376 356; 398 356 376 377 357;

399 357 377 378 358; 400 358 378 379 359; 401 359 379 380 360;

402 360 380 381 361; 403 361 381 382 362; 404 362 382 383 363;

405 363 383 384 364; 406 364 384 385 365; 407 365 385 386 366;

408 366 386 387 367; 409 367 387 388 14; 410 368 389 390 369;

411 369 390 391 370; 412 370 391 392 371; 413 371 392 393 372;

414 372 393 394 373; 415 373 394 395 374; 416 374 395 396 375;

417 375 396 397 376; 418 376 397 398 377; 419 377 398 399 378;

420 378 399 400 379; 421 379 400 401 380; 422 380 401 402 381;

423 381 402 403 382; 424 382 403 404 383; 425 383 404 405 384;

426 384 405 406 385; 427 385 406 407 386; 428 386 407 408 387;

429 387 408 409 388; 430 389 410 411 390; 431 390 411 412 391;

432 391 412 413 392; 433 392 413 414 393; 434 393 414 415 394;

435 394 415 416 395; 436 395 416 417 396; 437 396 417 418 397;

438 397 418 419 398; 439 398 419 420 399; 440 399 420 421 400;

441 400 421 422 401; 442 401 422 423 402; 443 402 423 424 403;

444 403 424 425 404; 445 404 425 426 405; 446 405 426 427 406;

447 406 427 428 407; 448 407 428 429 408; 449 408 429 430 409;

450 410 431 432 411; 451 411 432 433 412; 452 412 433 434 413;

453 413 434 435 414; 454 414 435 436 415; 455 415 436 437 416;

456 416 437 438 417; 457 417 438 439 418; 458 418 439 440 419;

459 419 440 441 420; 460 420 441 442 421; 461 421 442 443 422;

462 422 443 444 423; 463 423 444 445 424; 464 424 445 446 425;

465 425 446 447 426; 466 426 447 448 427; 467 427 448 449 428;

468 428 449 450 429; 469 429 450 451 430; 470 431 452 453 432;

471 432 453 454 433; 472 433 454 455 434; 473 434 455 456 435;

474 435 456 457 436; 475 436 457 458 437; 476 437 458 459 438;

477 438 459 460 439; 478 439 460 461 440; 479 440 461 462 441;

480 441 462 463 442; 481 442 463 464 443; 482 443 464 465 444;

483 444 465 466 445; 484 445 466 467 446; 485 446 467 468 447;

486 447 468 469 448; 487 448 469 470 449; 488 449 470 471 450;

489 450 471 472 451; 490 452 473 474 453; 491 453 474 475 454;

492 454 475 476 455; 493 455 476 477 456; 494 456 477 478 457;

495 457 478 479 458; 496 458 479 480 459; 497 459 480 481 460;

498 460 481 482 461; 499 461 482 483 462; 500 462 483 484 463;

501 463 484 485 464; 502 464 485 486 465; 503 465 486 487 466;

504 466 487 488 467; 505 467 488 489 468; 506 468 489 490 469;

507 469 490 491 470; 508 470 491 492 471; 509 471 492 493 472;

510 473 494 495 474; 511 474 495 496 475; 512 475 496 497 476;

513 476 497 498 477; 514 477 498 499 478; 515 478 499 500 479;

516 479 500 501 480; 517 480 501 502 481; 518 481 502 503 482;

519 482 503 504 483; 520 483 504 505 484; 521 484 505 506 485;

522 485 506 507 486; 523 486 507 508 487; 524 487 508 509 488;

525 488 509 510 489; 526 489 510 511 490; 527 490 511 512 491;

528 491 512 513 492; 529 492 513 514 493; 549 494 8 515 495;

550 495 515 516 496; 551 496 516 517 497; 552 497 517 518 498;

553 498 518 519 499; 554 499 519 520 500; 555 500 520 521 501;

556 501 521 522 502; 557 502 522 523 503; 558 503 523 524 504;

559 504 524 525 505; 560 505 525 526 506; 561 506 526 527 507;

562 507 527 528 508; 563 508 528 529 509; 564 509 529 530 510;

565 510 530 531 511; 566 511 531 532 512; 567 512 532 533 513;

568 513 533 16 514; 569 8 534 535 515; 570 515 535 536 516;

571 516 536 537 517; 572 517 537 538 518; 573 518 538 539 519;

574 519 539 540 520; 575 520 540 541 521; 576 521 541 542 522;

577 522 542 543 523; 578 523 543 544 524; 579 524 544 545 525;

580 525 545 546 526; 581 526 546 547 527; 582 527 547 548 528;

583 528 548 549 529; 584 529 549 550 530; 585 530 550 551 531;

586 531 551 552 532; 587 532 552 553 533; 588 533 553 554 16;

589 534 555 556 535; 590 535 556 557 536; 591 536 557 558 537;

592 537 558 559 538; 593 538 559 560 539; 594 539 560 561 540;

595 540 561 562 541; 596 541 562 563 542; 597 542 563 564 543;

598 543 564 565 544; 599 544 565 566 545; 600 545 566 567 546;

601 546 567 568 547; 602 547 568 569 548; 603 548 569 570 549;

604 549 570 571 550; 605 550 571 572 551; 606 551 572 573 552;

607 552 573 574 553; 608 553 574 575 554; 609 555 576 577 556;

610 556 577 578 557; 611 557 578 579 558; 612 558 579 580 559;

613 559 580 581 560; 614 560 581 582 561; 615 561 582 583 562;

616 562 583 584 563; 617 563 584 585 564; 618 564 585 586 565;

619 565 586 587 566; 620 566 587 588 567; 621 567 588 589 568;

622 568 589 590 569; 623 569 590 591 570; 624 570 591 592 571;

625 571 592 593 572; 626 572 593 594 573; 627 573 594 595 574;

628 574 595 596 575; 629 576 597 598 577; 630 577 598 599 578;

631 578 599 600 579; 632 579 600 601 580; 633 580 601 602 581;

634 581 602 603 582; 635 582 603 604 583; 636 583 604 605 584;

637 584 605 606 585; 638 585 606 607 586; 639 586 607 608 587;

640 587 608 609 588; 641 588 609 610 589; 642 589 610 611 590;

643 590 611 612 591; 644 591 612 613 592; 645 592 613 614 593;

646 593 614 615 594; 647 594 615 616 595; 648 595 616 617 596;

649 597 618 619 598; 650 598 619 620 599; 651 599 620 621 600;

652 600 621 622 601; 653 601 622 623 602; 654 602 623 624 603;

655 603 624 625 604; 656 604 625 626 605; 657 605 626 627 606;

658 606 627 628 607; 659 607 628 629 608; 660 608 629 630 609;

661 609 630 631 610; 662 610 631 632 611; 663 611 632 633 612;

664 612 633 634 613; 665 613 634 635 614; 666 614 635 636 615;

667 615 636 637 616; 668 616 637 638 617; 669 618 639 640 619;

670 619 640 641 620; 671 620 641 642 621; 672 621 642 643 622;

673 622 643 644 623; 674 623 644 645 624; 675 624 645 646 625;

676 625 646 647 626; 677 626 647 648 627; 678 627 648 649 628;

679 628 649 650 629; 680 629 650 651 630; 681 630 651 652 631;

682 631 652 653 632; 683 632 653 654 633; 684 633 654 655 634;

685 634 655 656 635; 686 635 656 657 636; 687 636 657 658 637;

688 637 658 659 638; 689 660 2 17 662; 690 662 17 20 663; 691 663 20 22 664;

692 664 22 24 665; 693 665 24 26 666; 694 666 26 28 667; 695 667 28 30 668;

696 668 30 32 669; 697 669 32 34 670; 698 670 34 36 671; 699 671 36 38 672;

700 672 38 40 673; 701 673 40 42 674; 702 674 42 44 675; 703 675 44 46 676;

704 676 46 48 677; 705 677 48 50 678; 706 678 50 52 679; 707 679 52 54 680;

708 680 54 10 661; 709 681 660 662 683; 710 683 662 663 684;

711 684 663 664 685; 712 685 664 665 686; 713 686 665 666 687;

714 687 666 667 688; 715 688 667 668 689; 716 689 668 669 690;

717 690 669 670 691; 718 691 670 671 692; 719 692 671 672 693;

720 693 672 673 694; 721 694 673 674 695; 722 695 674 675 696;

723 696 675 676 697; 724 697 676 677 698; 725 698 677 678 699;

726 699 678 679 700; 727 700 679 680 701; 728 701 680 661 682;

729 702 681 683 704; 730 704 683 684 705; 731 705 684 685 706;

732 706 685 686 707; 733 707 686 687 708; 734 708 687 688 709;

735 709 688 689 710; 736 710 689 690 711; 737 711 690 691 712;

738 712 691 692 713; 739 713 692 693 714; 740 714 693 694 715;

741 715 694 695 716; 742 716 695 696 717; 743 717 696 697 718;

744 718 697 698 719; 745 719 698 699 720; 746 720 699 700 721;

747 721 700 701 722; 748 722 701 682 703; 749 723 702 704 725;

750 725 704 705 726; 751 726 705 706 727; 752 727 706 707 728;

753 728 707 708 729; 754 729 708 709 730; 755 730 709 710 731;

756 731 710 711 732; 757 732 711 712 733; 758 733 712 713 734;

759 734 713 714 735; 760 735 714 715 736; 761 736 715 716 737;

762 737 716 717 738; 763 738 717 718 739; 764 739 718 719 740;

765 740 719 720 741; 766 741 720 721 742; 767 742 721 722 743;

768 743 722 703 724; 769 744 723 725 746; 770 746 725 726 747;

771 747 726 727 748; 772 748 727 728 749; 773 749 728 729 750;

774 750 729 730 751; 775 751 730 731 752; 776 752 731 732 753;

777 753 732 733 754; 778 754 733 734 755; 779 755 734 735 756;

780 756 735 736 757; 781 757 736 737 758; 782 758 737 738 759;

783 759 738 739 760; 784 760 739 740 761; 785 761 740 741 762;

786 762 741 742 763; 787 763 742 743 764; 788 764 743 724 745;

789 765 744 746 767; 790 767 746 747 768; 791 768 747 748 769;

792 769 748 749 770; 793 770 749 750 771; 794 771 750 751 772;

795 772 751 752 773; 796 773 752 753 774; 797 774 753 754 775;

798 775 754 755 776; 799 776 755 756 777; 800 777 756 757 778;

801 778 757 758 779; 802 779 758 759 780; 803 780 759 760 781;

804 781 760 761 782; 805 782 761 762 783; 806 783 762 763 784;

807 784 763 764 785; 808 785 764 745 766;

ELEMENT PROPERTY

14 16 18 20 22 24 26 28 30 32 34 36 38 40 42 44 46 48 50 TO 171 191 TO 350 -

370 TO 529 549 TO 808 THICKNESS 0.9

DEFINE MATERIAL START

ISOTROPIC CONCRETE

E 2.17185e+07

POISSON 0.17

DENSITY 23.5616

ALPHA 1e-05

DAMP 0.05

G 9.28139e+06

TYPE CONCRETE

STRENGTH FCU 27579

END DEFINE MATERIAL

MEMBER PROPERTY

1 TO 4 9 TO 12 PRIS YD 2

5 TO 8 13 15 17 19 21 23 25 27 29 31 33 35 37 39 41 43 45 47 49 172 TO 190 -

351 TO 369 530 TO 548 PRIS YD 1.5 ZD 1

CONSTANTS

MATERIAL CONCRETE ALL

SUPPORTS

1 3 5 7 9 11 13 15 FIXED

LOAD 1 LOADTYPE None TITLE Snow loads

MEMBER LOAD

5 TO 8 13 15 17 19 21 23 25 27 29 31 33 35 37 39 41 43 45 47 49 172 TO 190 -

351 TO 369 530 TO 548 UNI GY -30

LOAD 2 LOADTYPE None TITLE Irc-Min Snow load

ELEMENT LOAD

14 16 18 20 22 24 26 28 30 32 34 36 38 40 42 44 46 48 50 TO 171 191 TO 350 -

370 TO 529 549 TO 808 PR GY -9

PERFORM ANALYSIS

FINISH
