Aim:- Attachment Feature Creation (Ribs & Screw Boss)

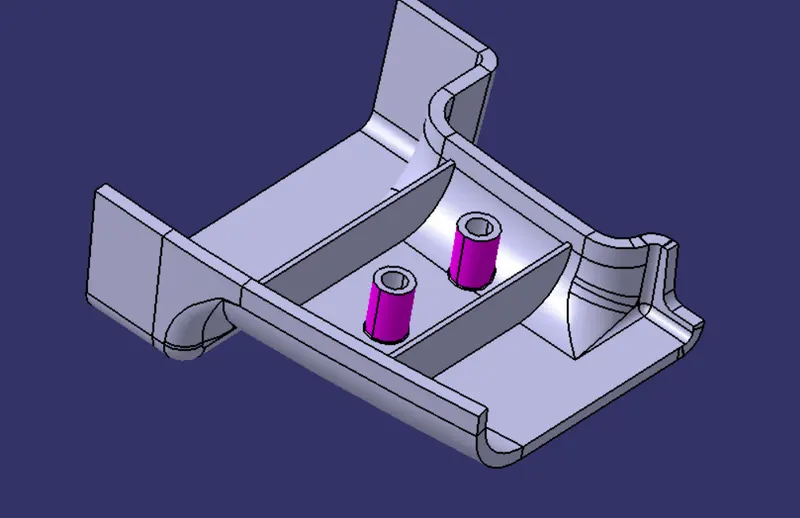

objective:-Create the rib for the Drill Handle considering the design rules mentioned in the video.

Create the Screw boss for the Drill Handle considering the design rules mentioned in the video.

General Guidelines for Bosses:

• Draft - 0.5 degrees on the walls of boss
• Thickness - Typically 40%* of the nominal wall at the base.
• Height to Diameter Ratio - 3:1
• Radii - 0.25mm maximum radii.

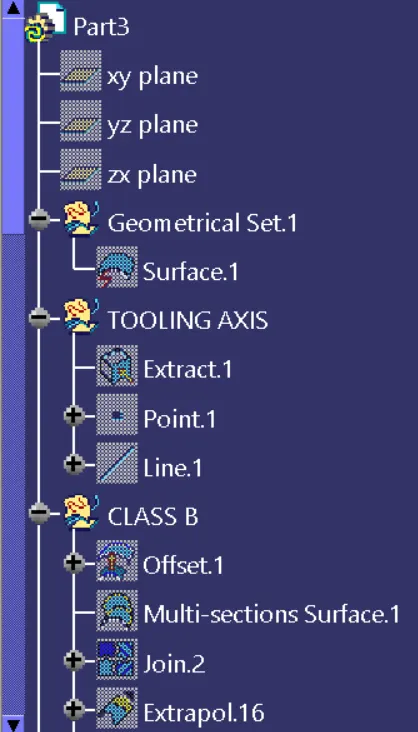

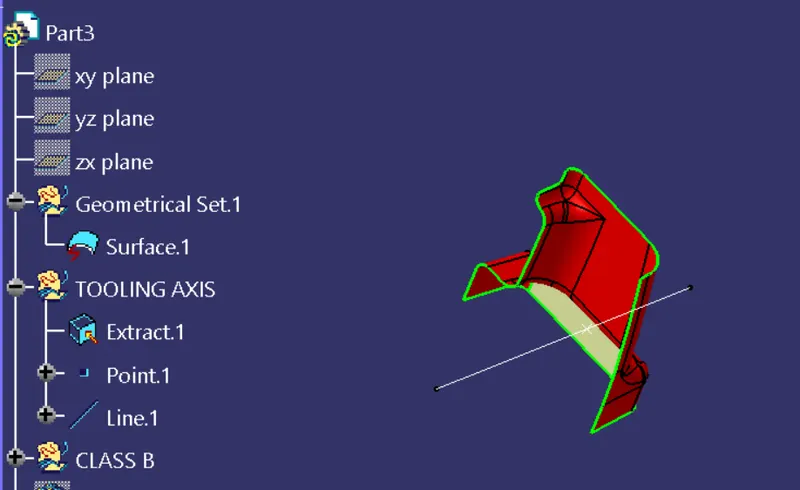

. CREATING TOOLING AXIS :-

The Tooling Direction is basically the direction that the mold pulls a part.

The mold is built in two separate pieces, basically. You have a Cavity side and you have the Core side.

The Core pulls apart from the Cavity and that's the Dye line or the Tooling Direction.

3. DRAFT ANALYSIS

The Draft Analysis command enables you to detect if the part you drafted will be easily removed. This type of analysis is performed based on color

ranges identifying zones on the analyzed element where the deviation from the draft direction at any point, corresponds to specified values.

Before going to drat analysis go to customized view parameter >under mesh >check material and then click ok.

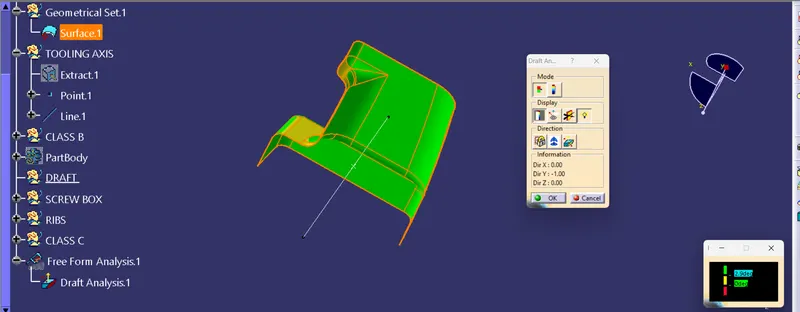

Now for draft analyses go to insert » analysis » feature draft analysis.

Use the compasss to define the draft direction.

In the colour scale change the draft angle to 3 degree.

The component changes to green in indication of passing draft angle.

Use a running point to check the angle on the component.

. CREATING CLASS B SURFACE

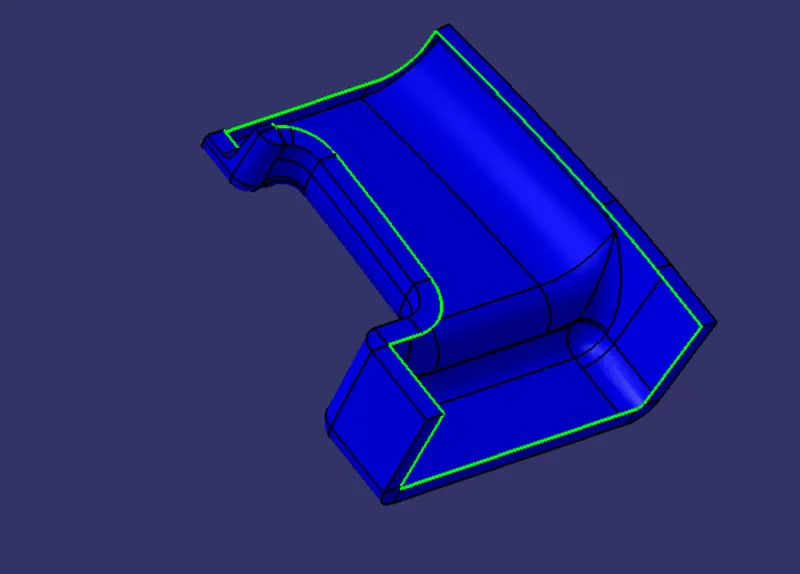

Extract the surfaces from the class A using multiple extract and untrim them.

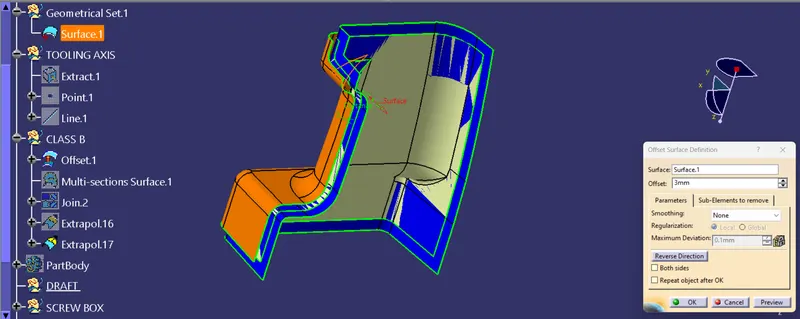

offset from class A to Class b surface 3 mm.

Use Extrapolate to make sure that all the untrims are properly intersected to trim and offset the surfaces to 3 mm to create the thickness.

Trim the extra surfaces using trim command.

Insert them into new geometrical set and name it with respective part names.

Apply fillets to the model after creating the entire surface.

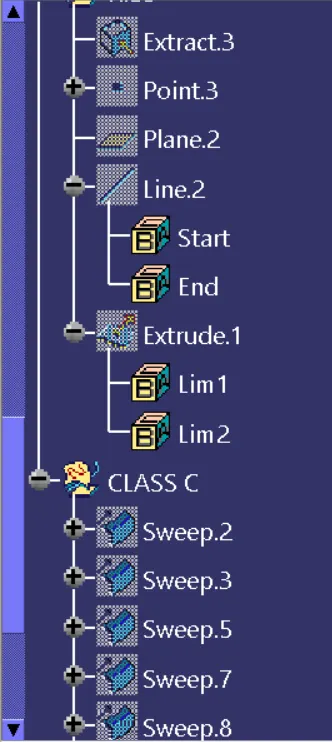

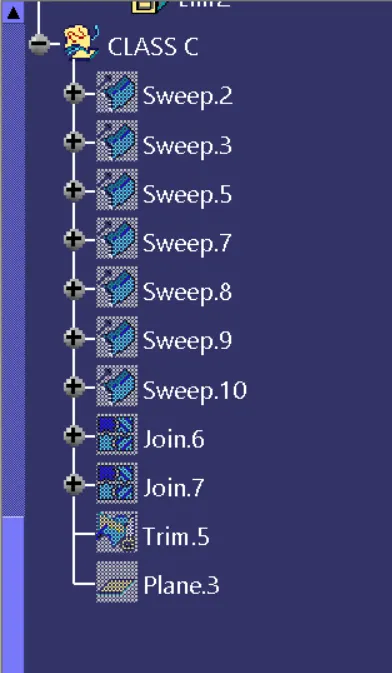

. CREATING CLASS C SURFACE

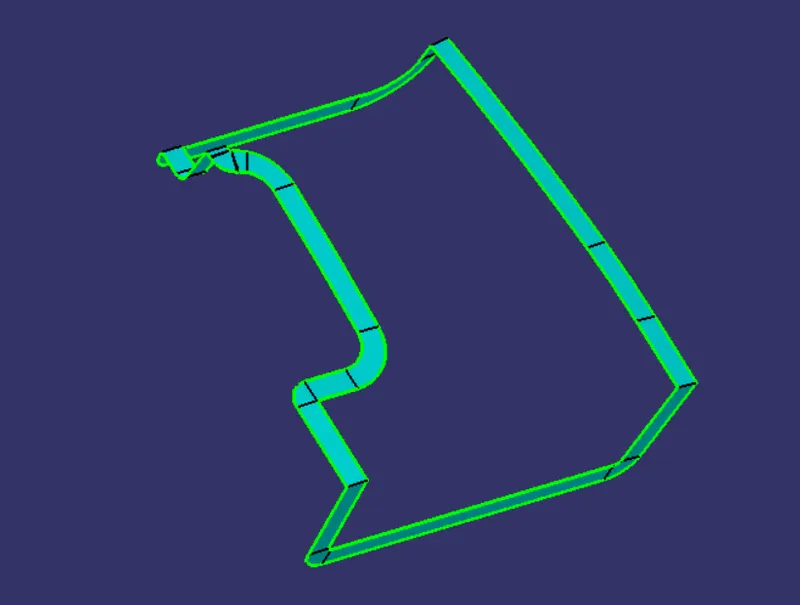

Extract the boundary from the class A surface using boundary command.

Using disassemble tool to divide the boundary as the boundary contains domains.

Use sweep command > choose profile type line > subtype as with draft direction > choose guide curve and draft direction > draft angle as 3 degree > preview.

then join to class A surface

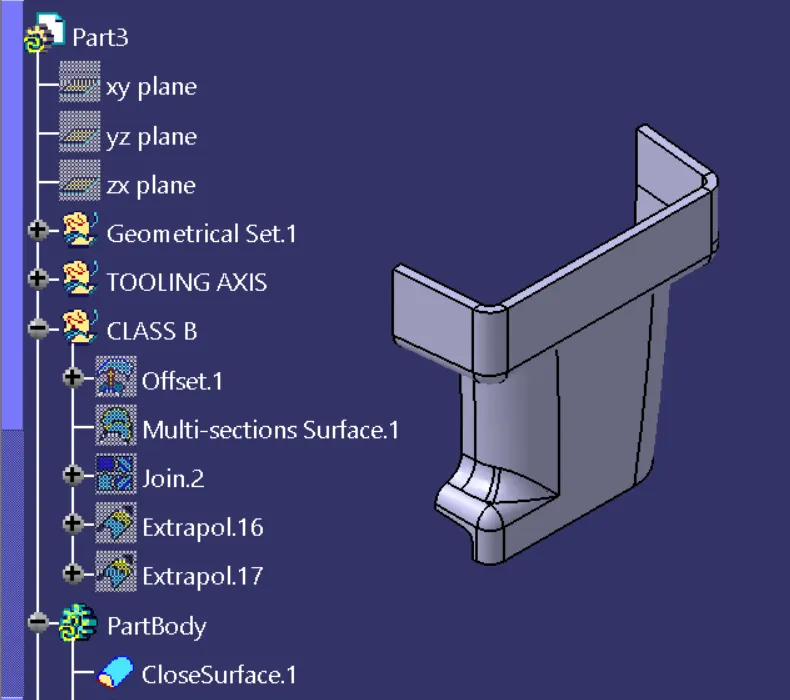

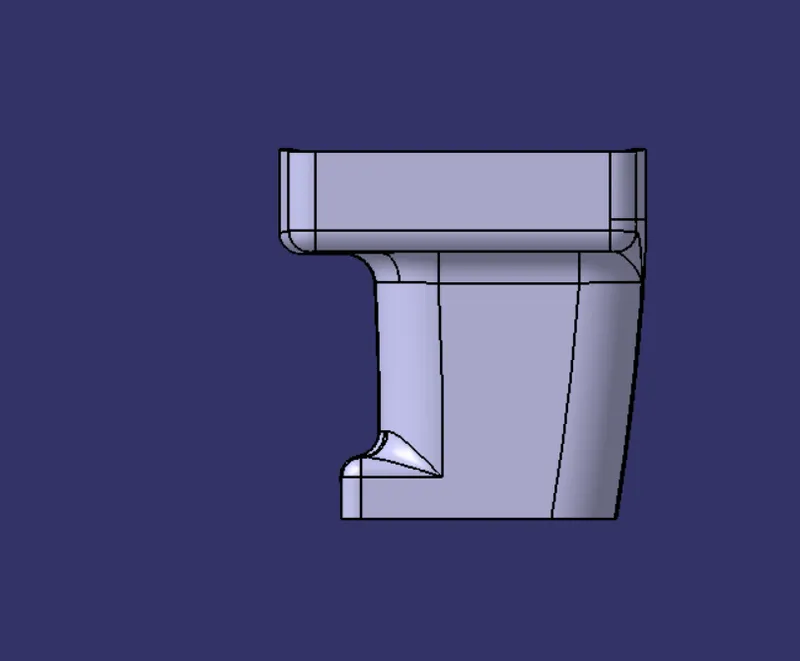

• Now open part design workbench and using close body surface create a solid of the component.

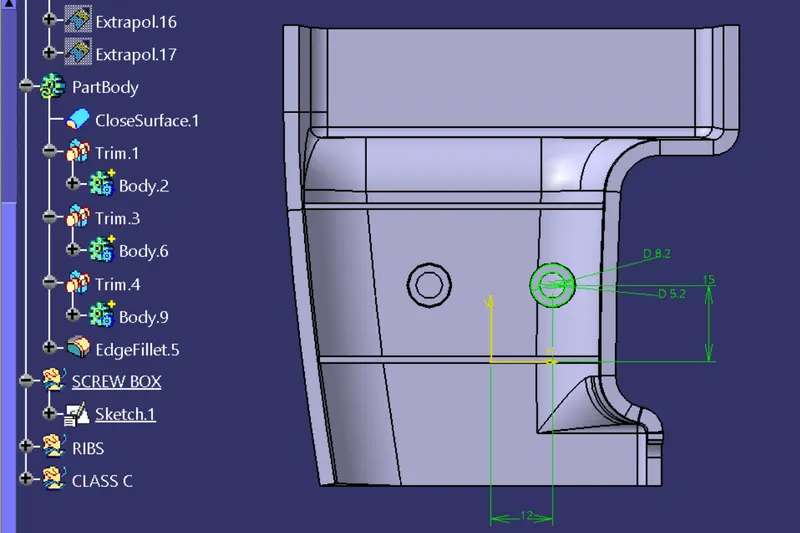

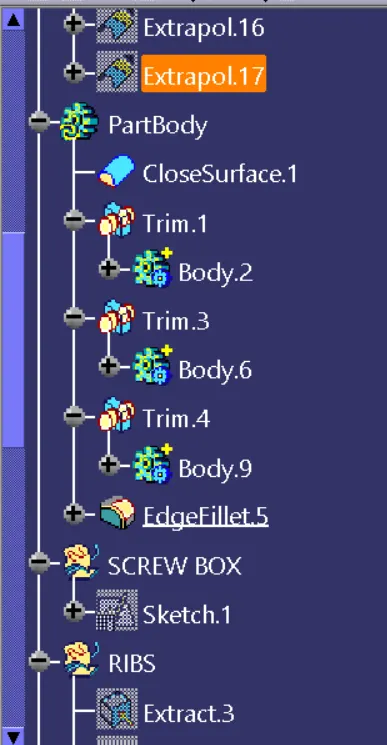

Sketch Used For Screw Boss Creation

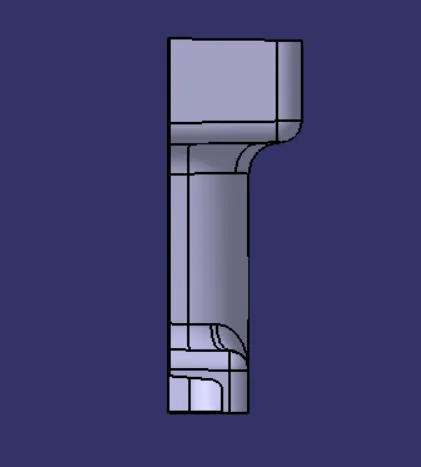

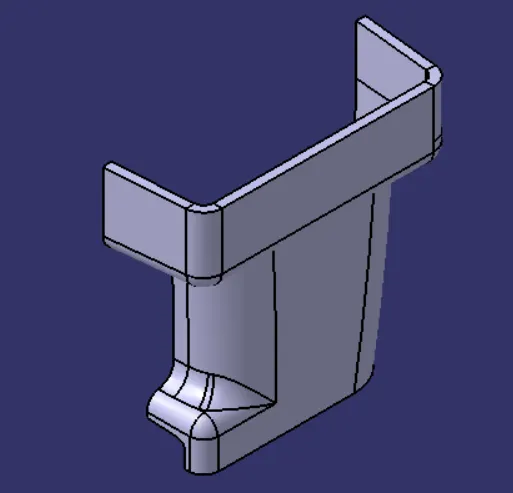

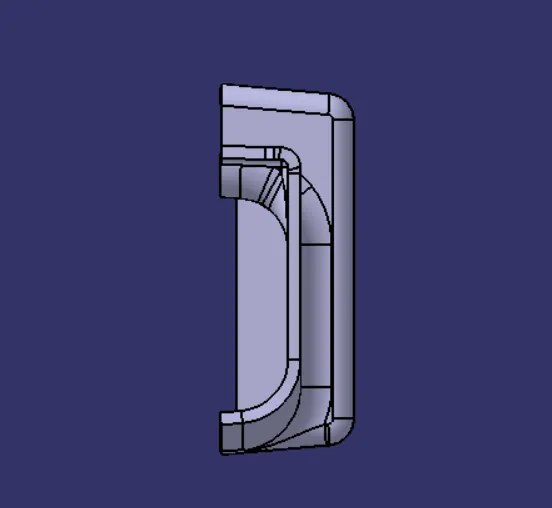

REVELENT IMAGES :

Attached zip file also
