Week 10 - Challenge 1- Attachment Feature Creation (Ribs & Screw Boss)

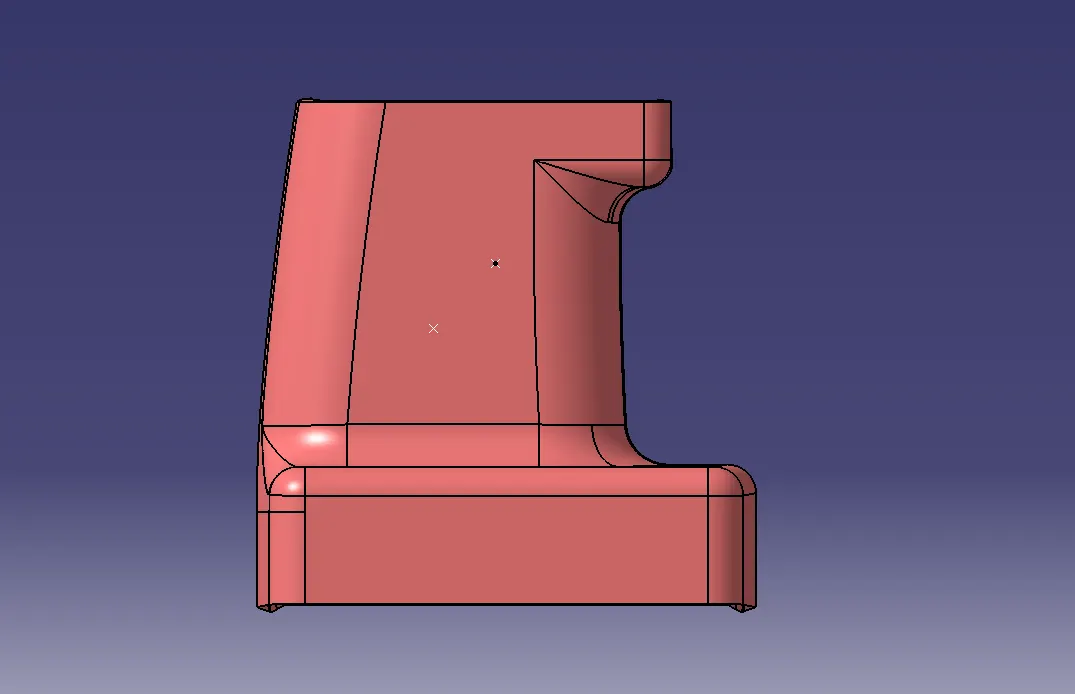

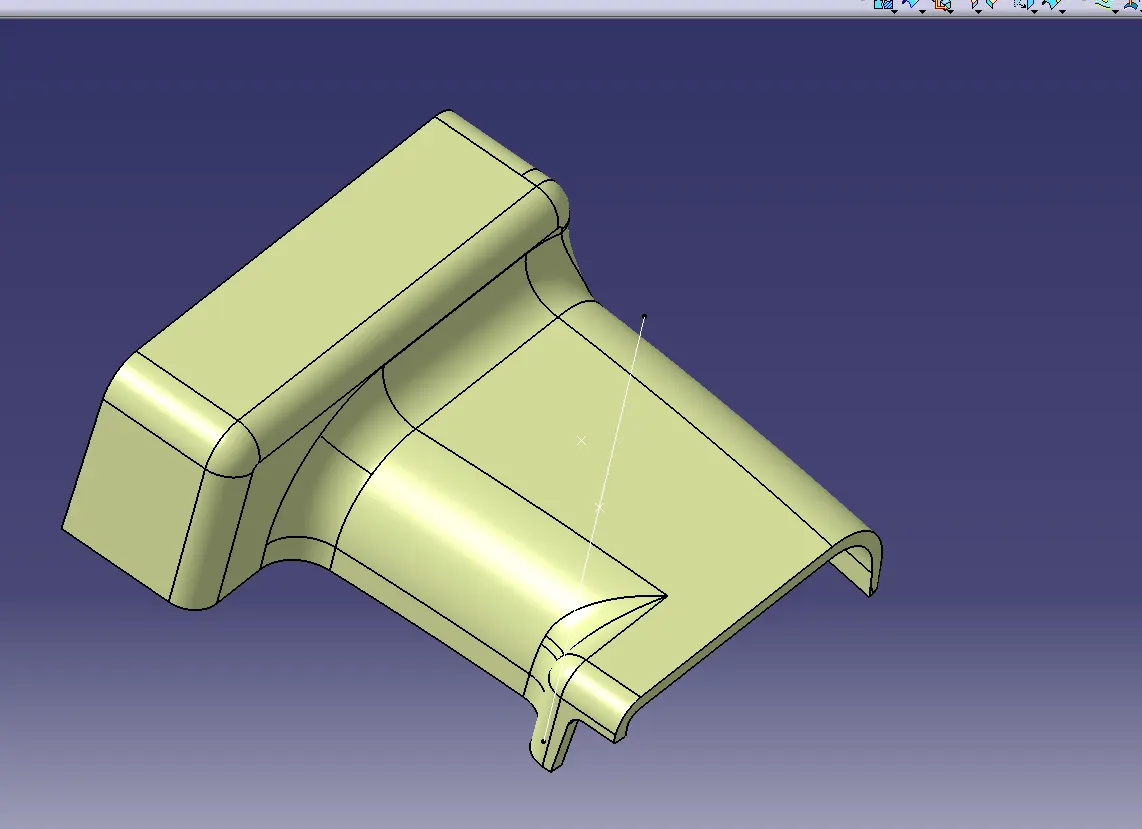

Given CLASS A Surface

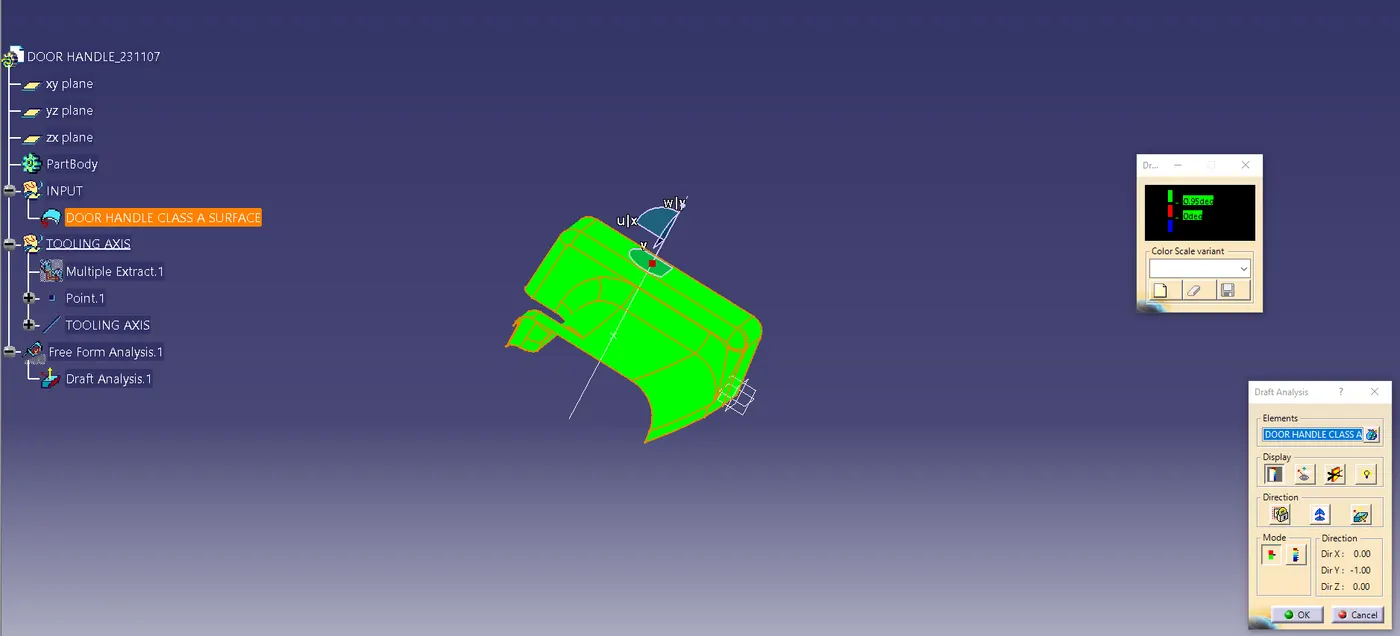

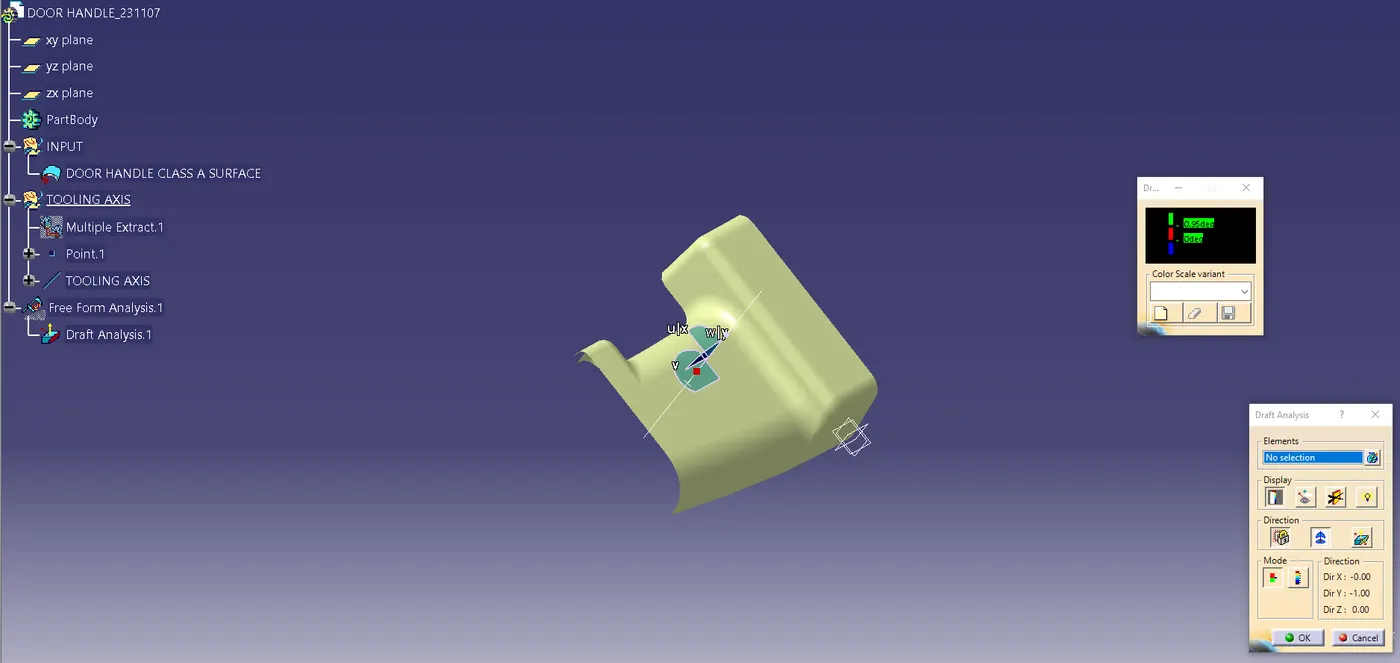

Tooling Axis Created Based on Extract top Surface No propogation mode and Create a point on Surface Y direction line Created

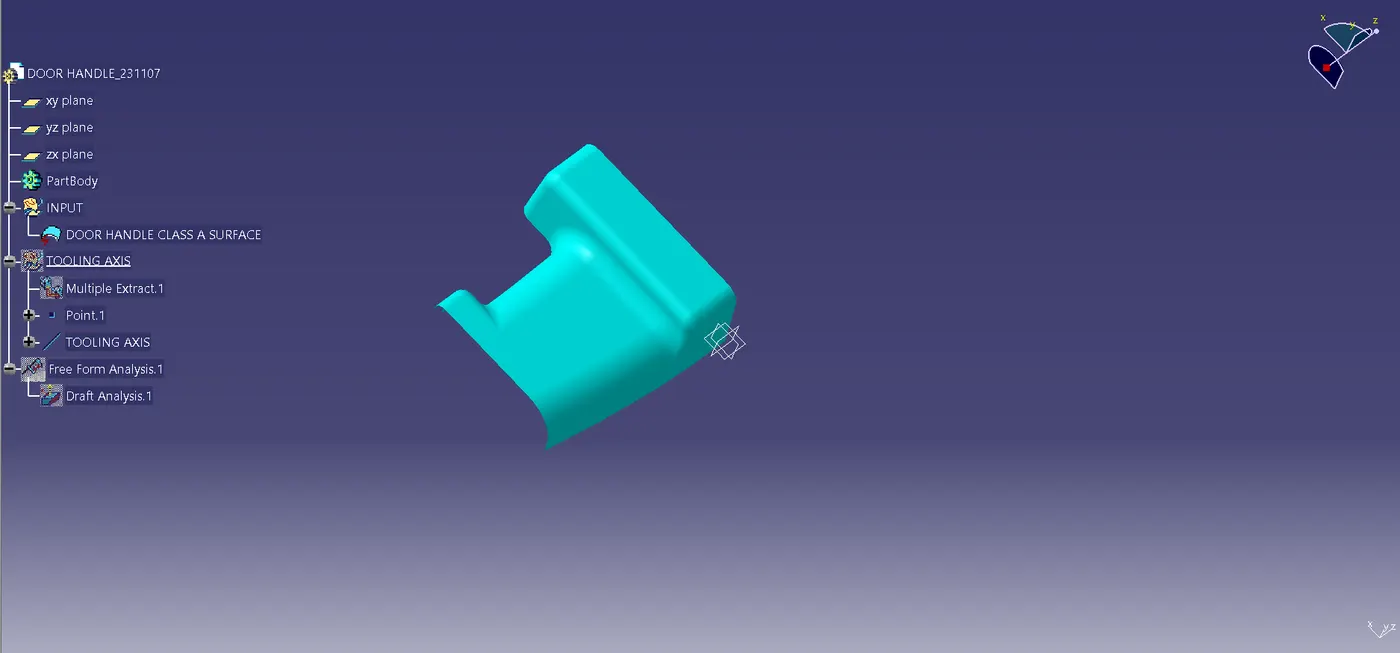

After Tooling Axis Created Given Class A Surface Draft Analysis

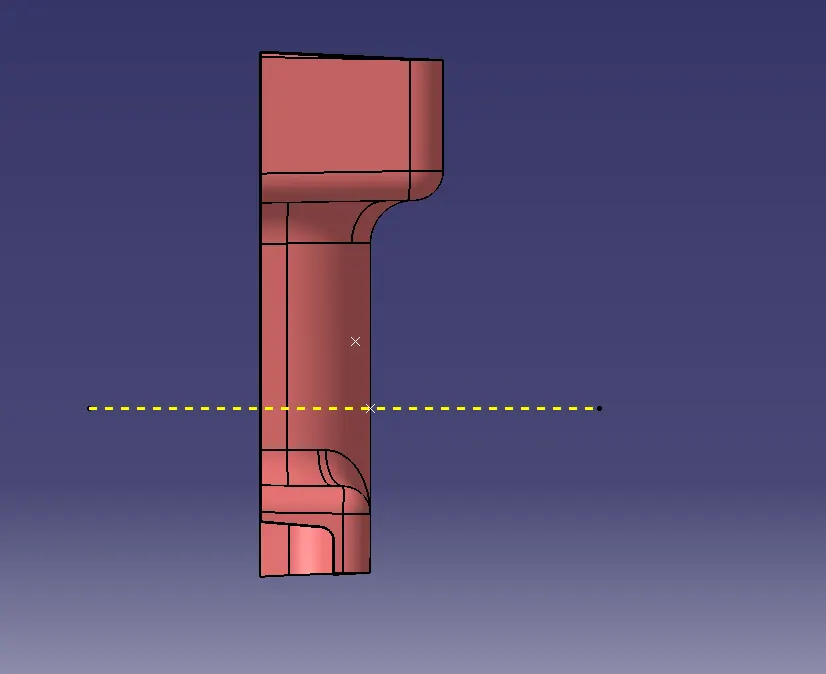

Draft Analysis Result 0.95deg Draft Cleared in All Directions

After Draft Analyasis Work Done. Class B Surface Construction Work Started

2.5mm Offset Condition Patch surface miss there is in Gap between the Surface So the Patch Work will be Started To Create a patch Multi section command used

Multi-section+ Offset Surface Join

Close surface created 2.5mm base thickness based on created

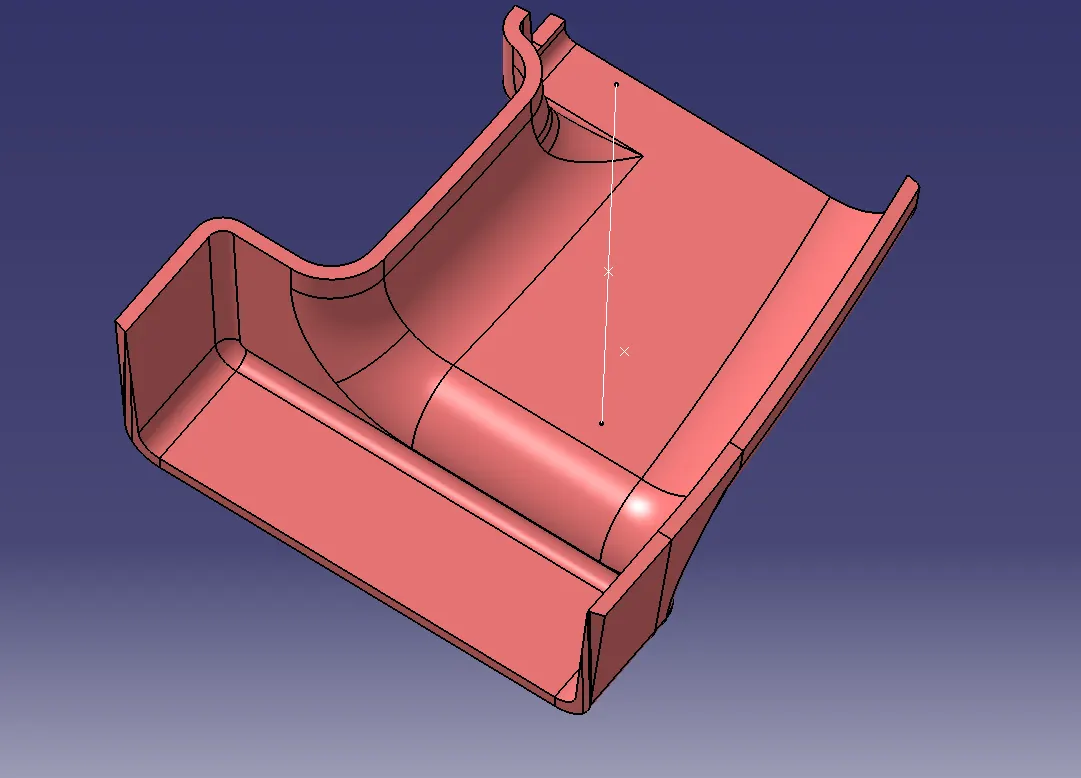

closed body created

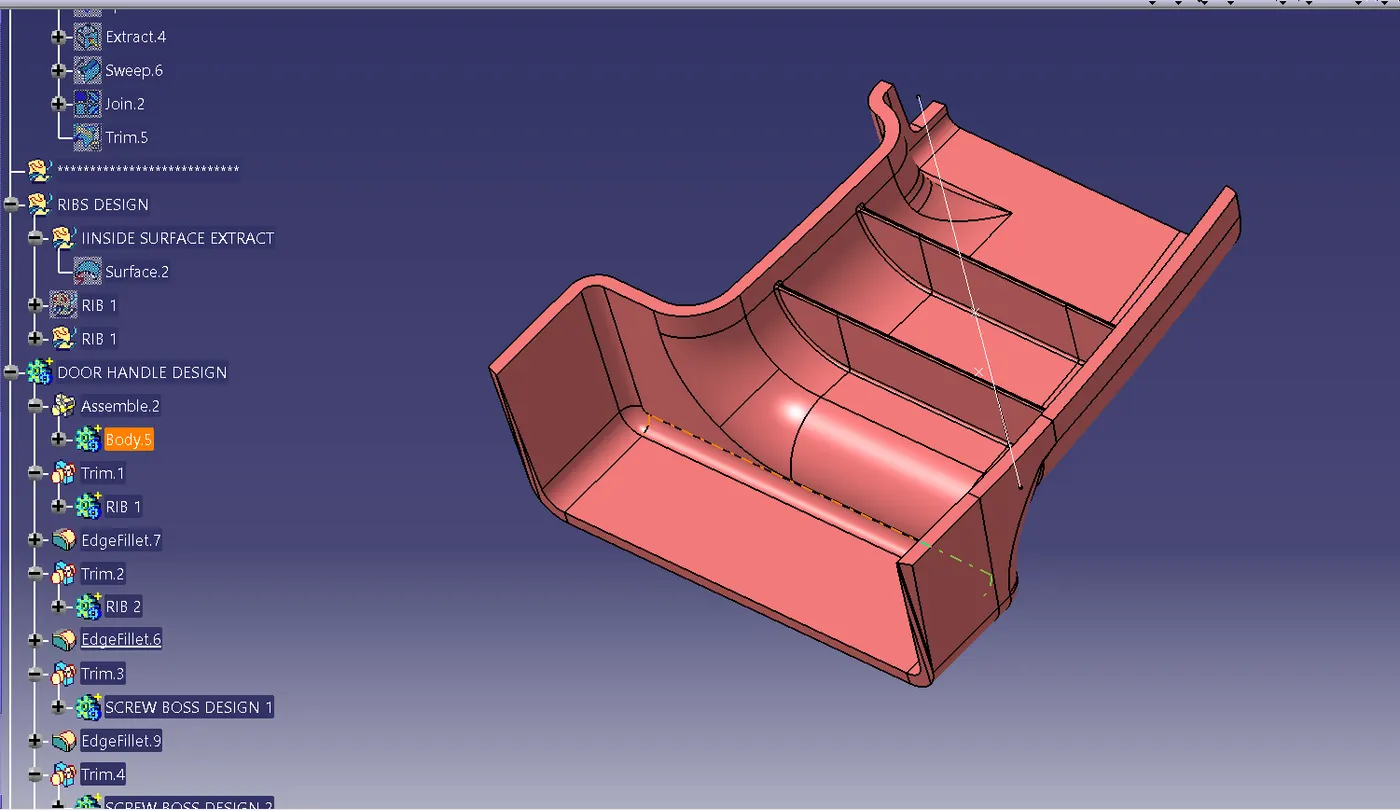

Ribs are created based on design rules

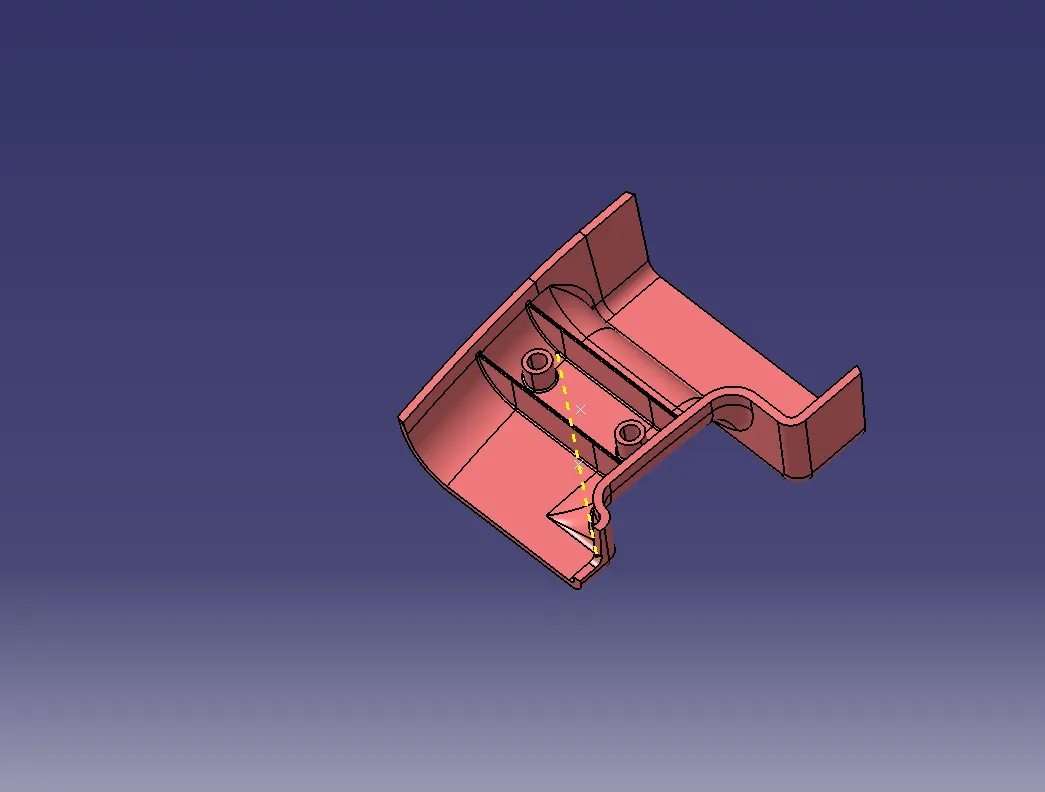

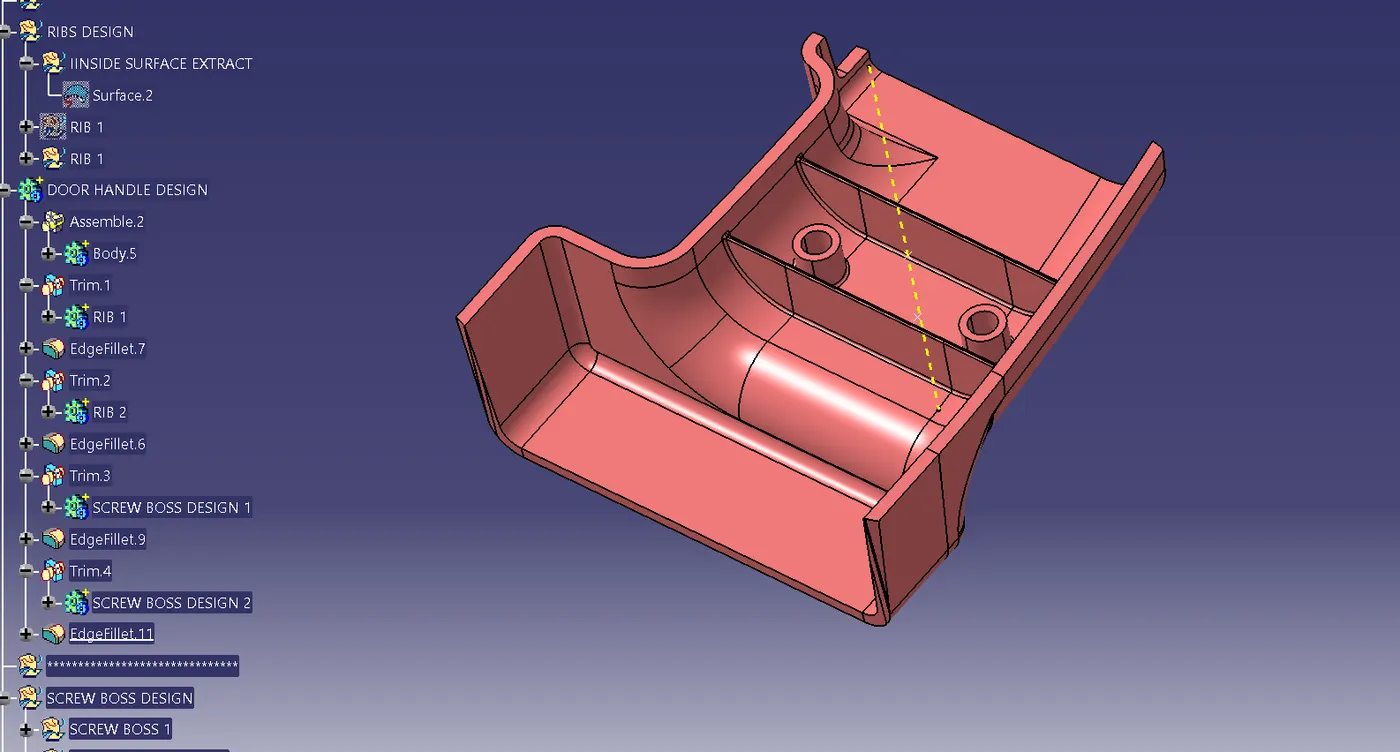

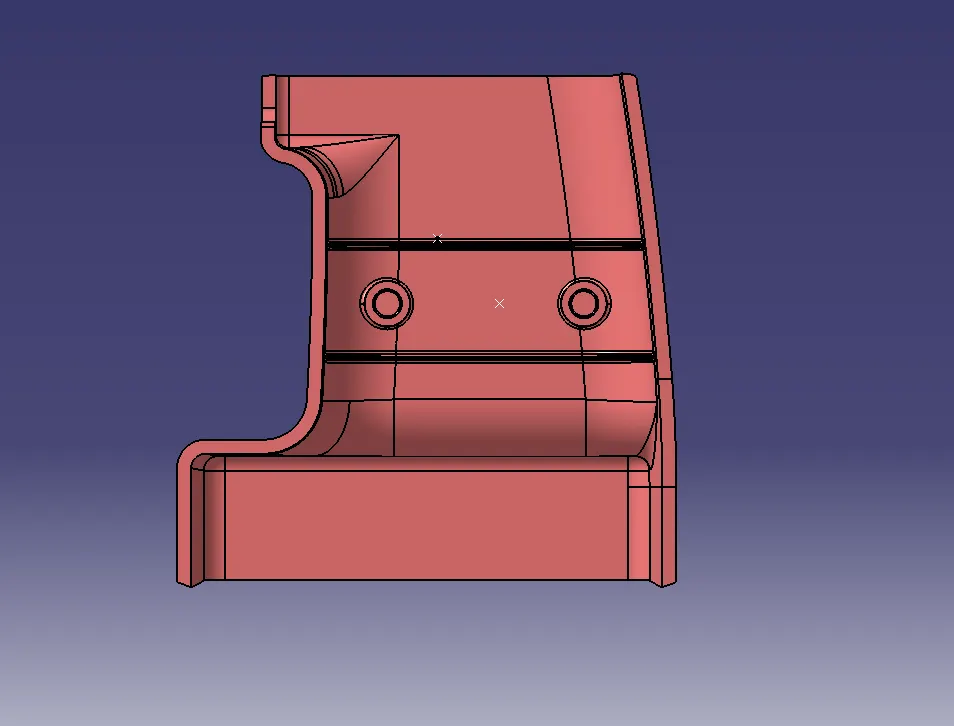

Finally created as per given design rules followed structure created

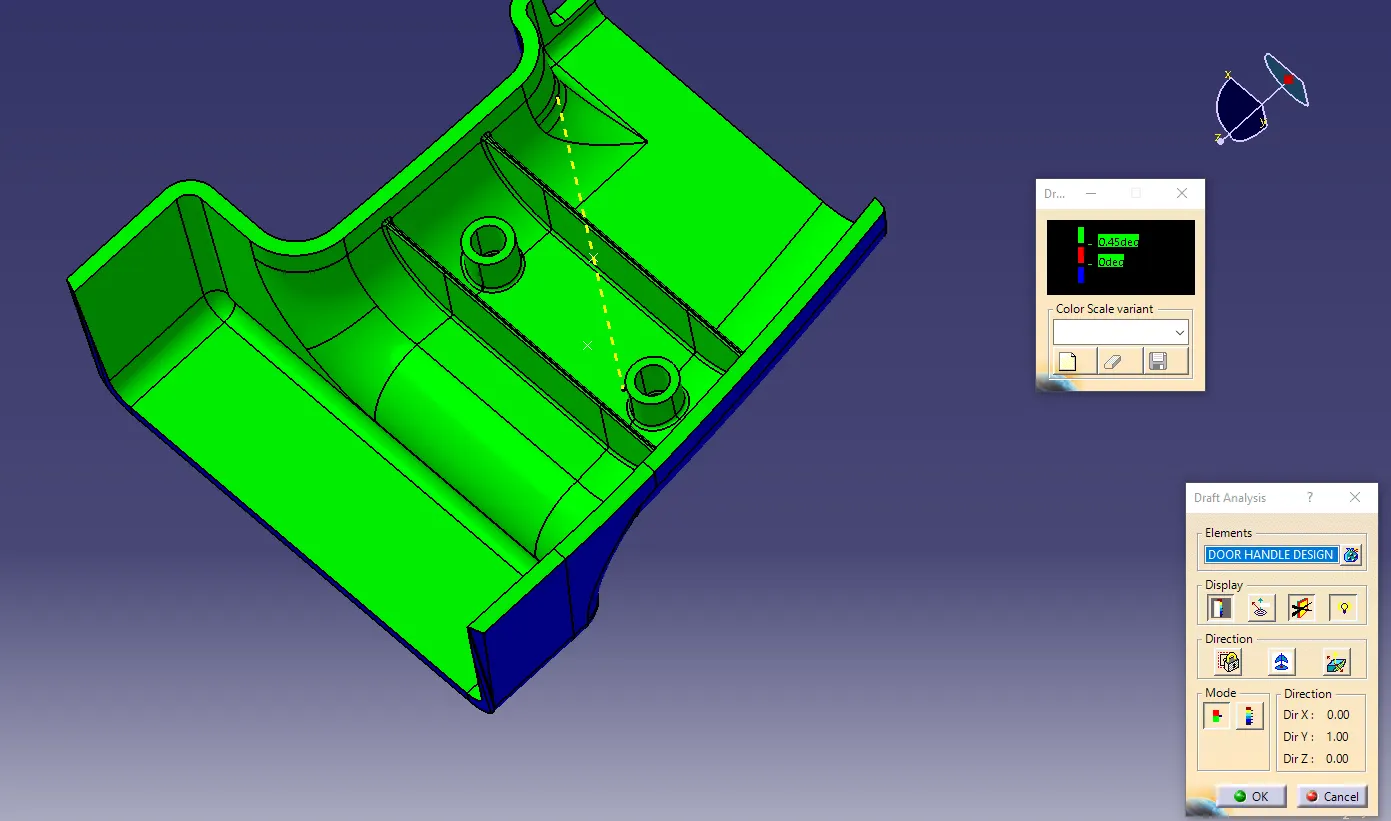

Draft analysis checked

Here i attached cat part also kindly verify
