Week 10 - Challenge 1- Attachment Feature Creation (Ribs & Screw Boss)

DRILL HANDLE ATTACHMENT OF RIBS AND SCREW BOSS

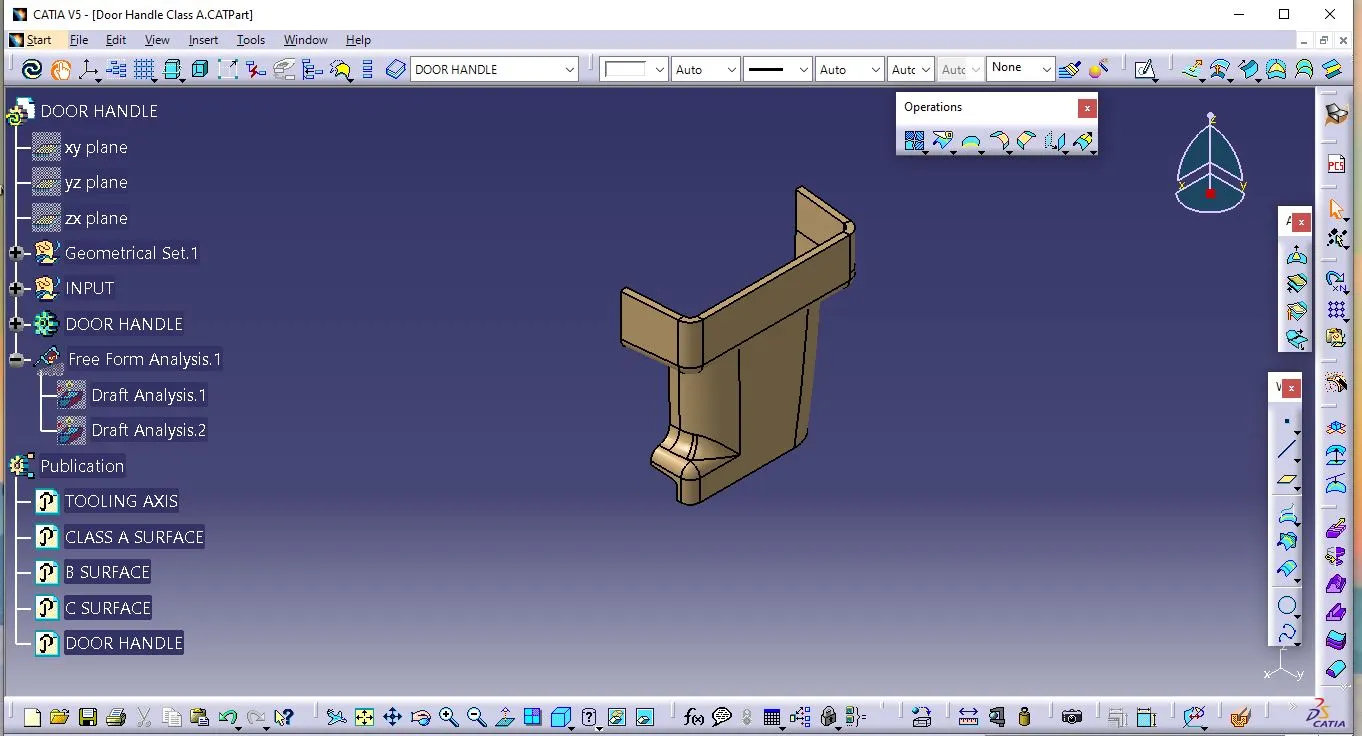

ISOMETRIC VIEW

FRONT VIEW

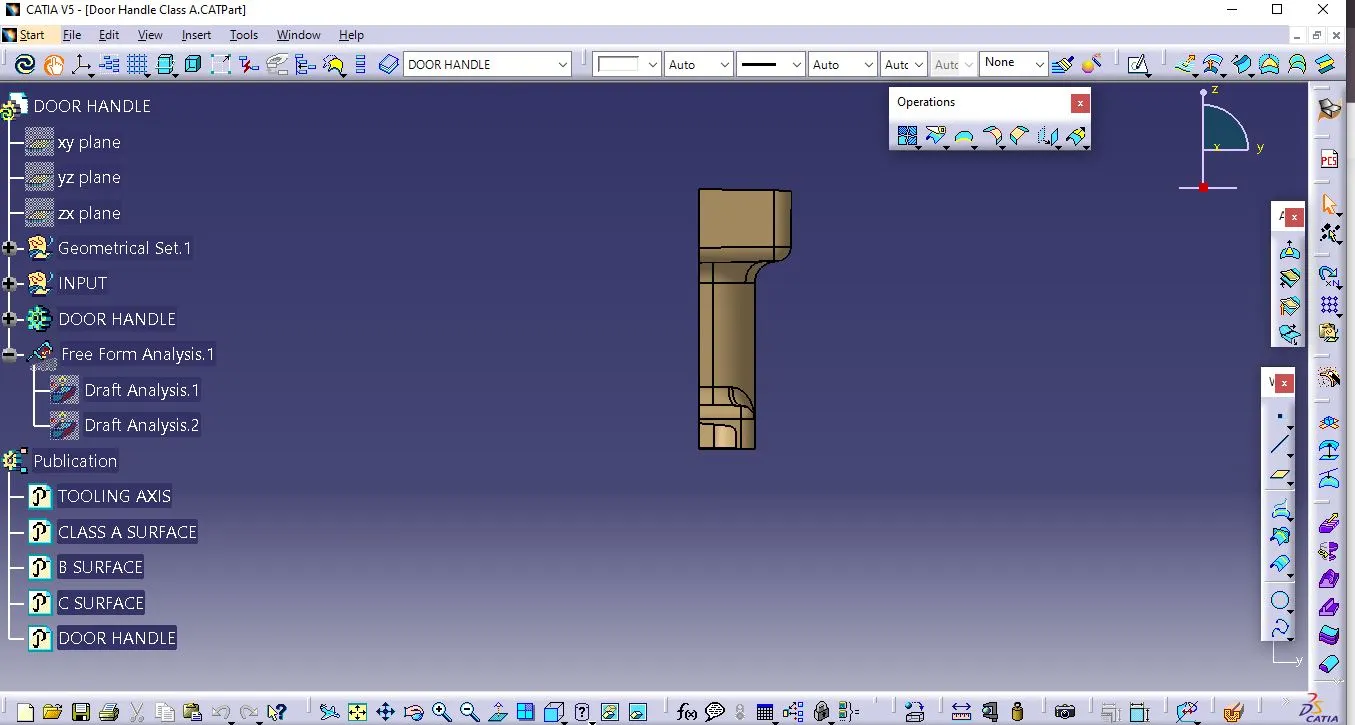

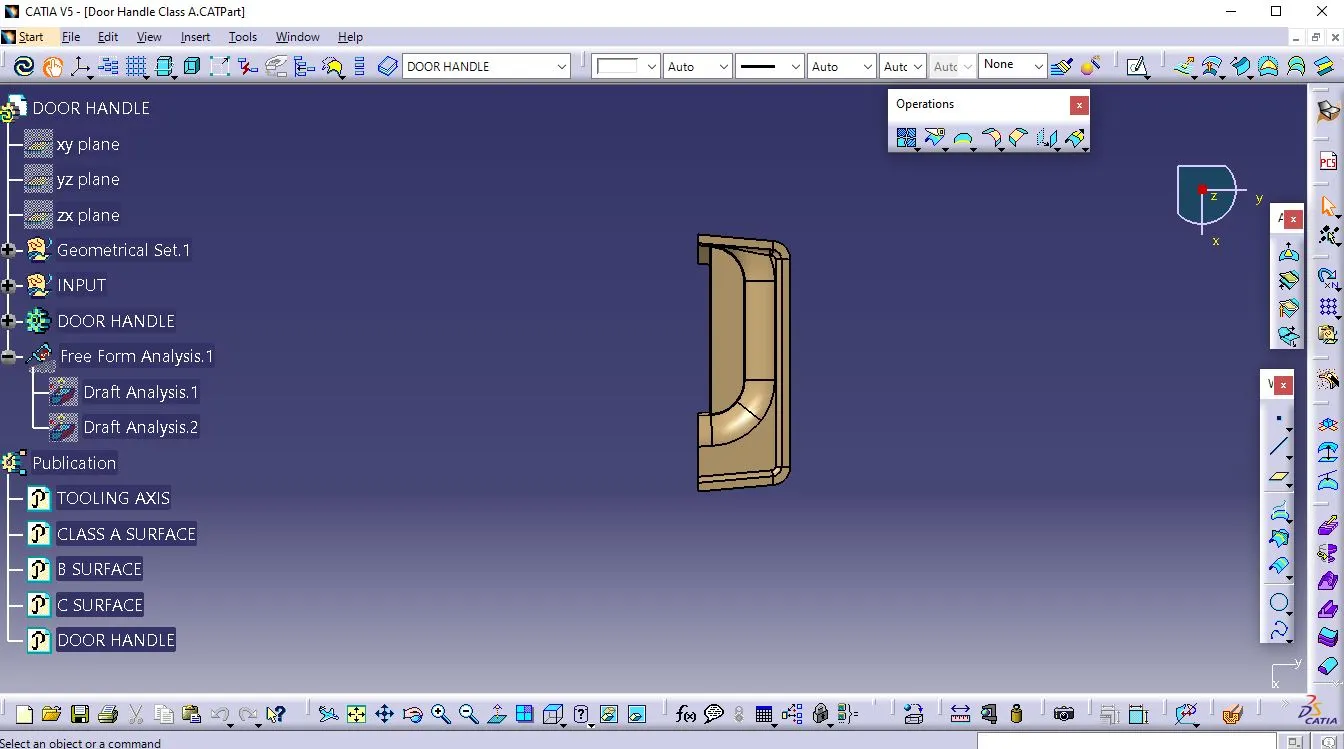

LEFT SIDE VIEW

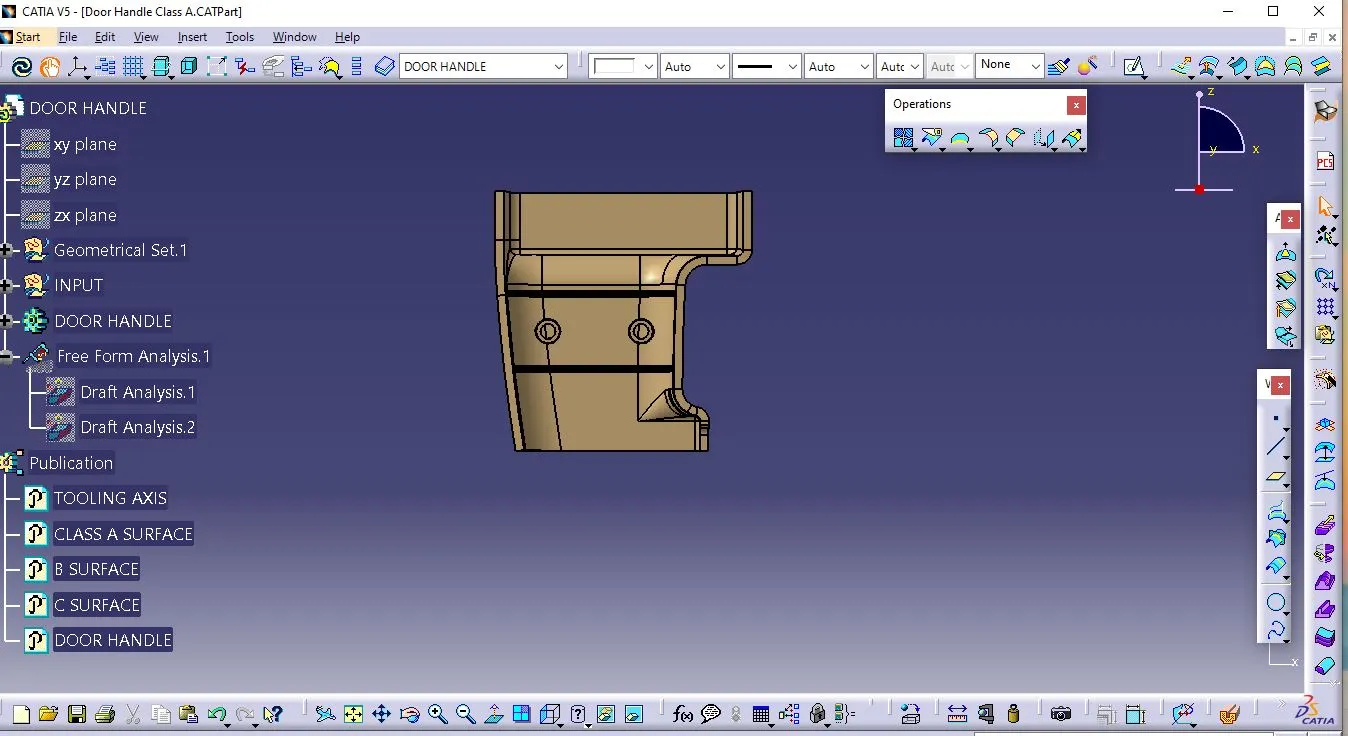

TOP VIEW

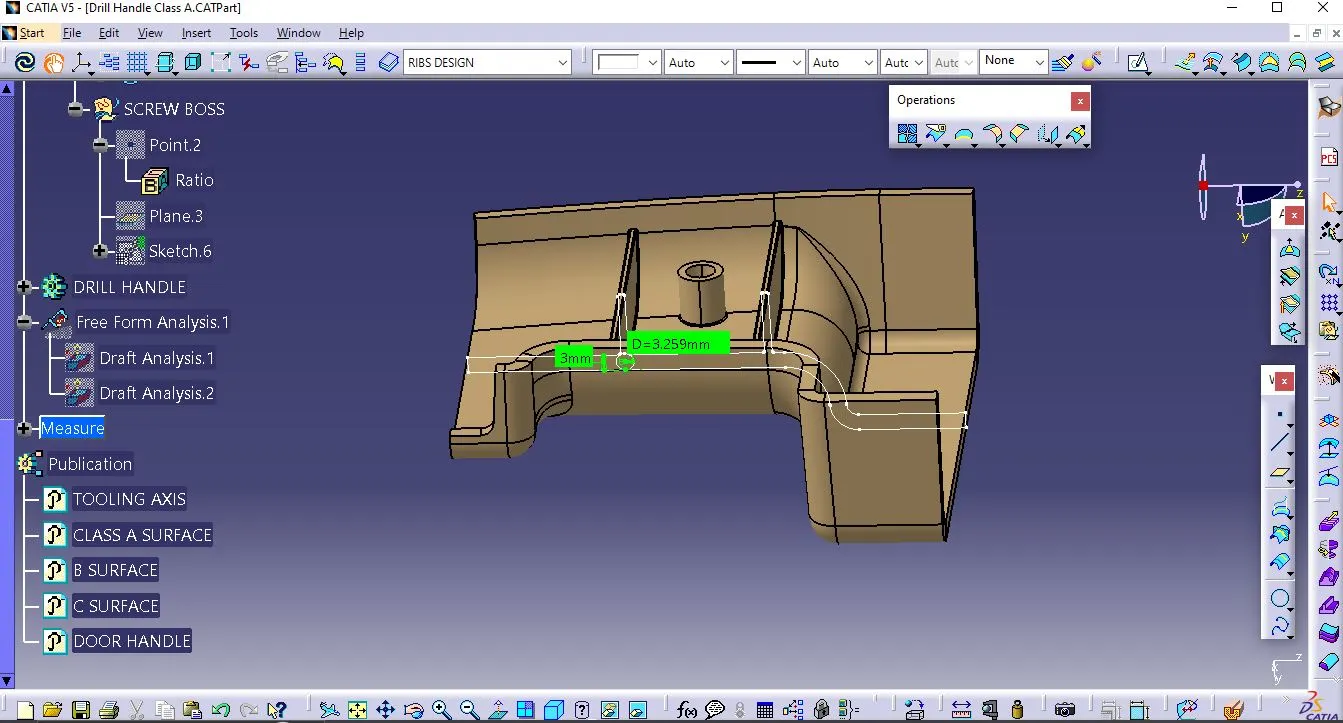

RIB ROOT THICKNESS

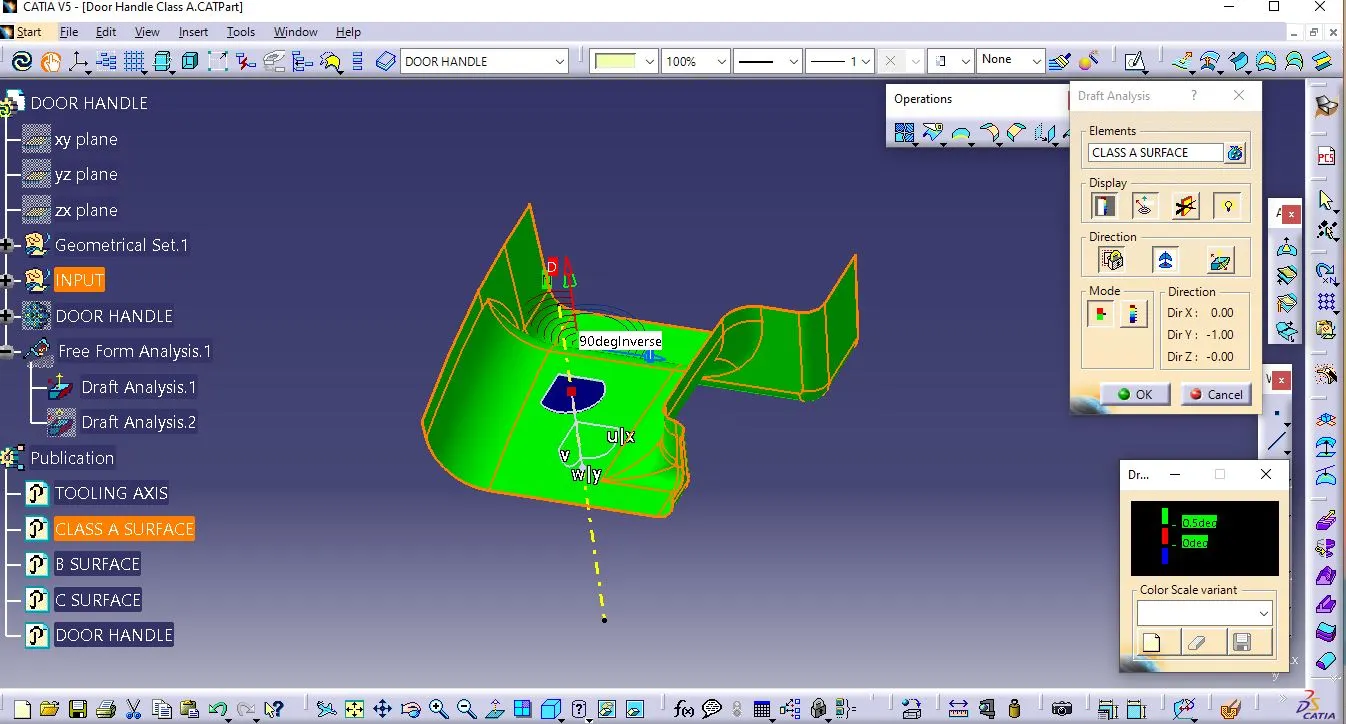

CLASS A DRAFT ANALYSIS

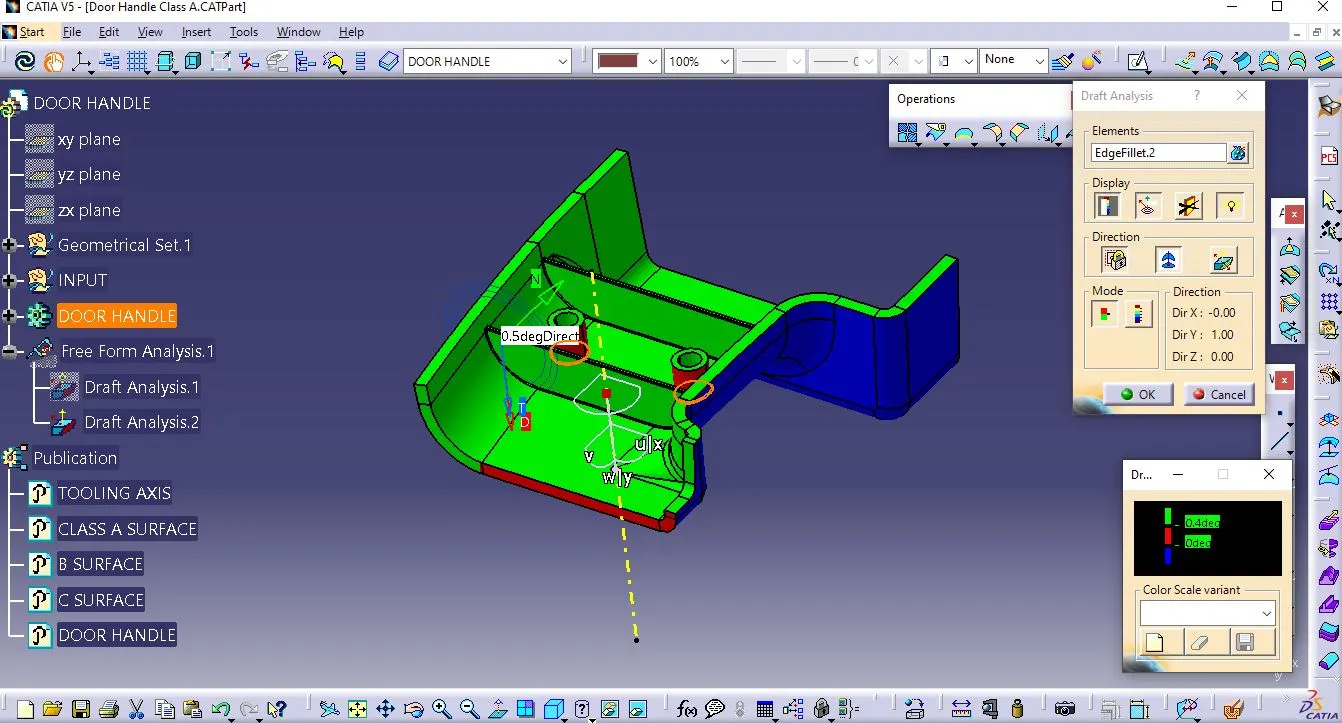

FINAL COMPONENT DRAFT ANALYSIS

After creation of final component do draft analysis on it.Draft Apply material mode click draft analysis features set degree 0.5 for green colour. MInimum Base thickness is 3mm

I got result the final component draft analysis is 0.5dedirect for RIBS and Screw Boss and 90degdirect for surface
