Week 10 - Challenge 1- Attachment Feature Creation (Ribs & Screw Boss)

REPORT

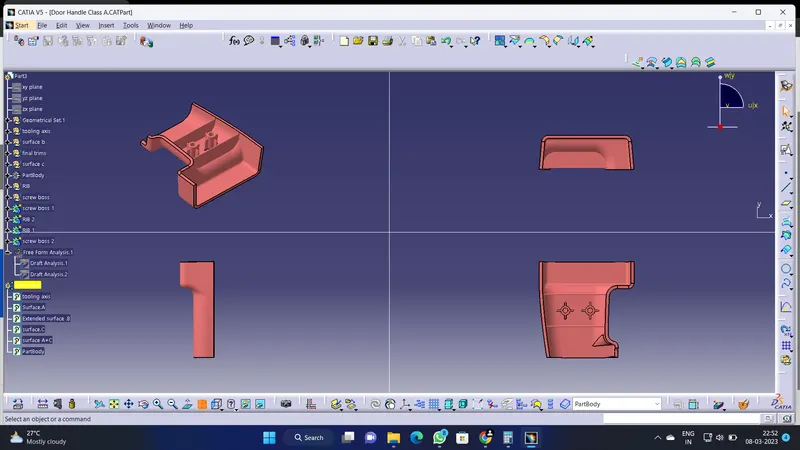

Tooling axis is selected in y direction.Tooling axis is normal to zx plane.only through we can get a clear view of all sections.bisecting method is here used for the tooling axis creation.

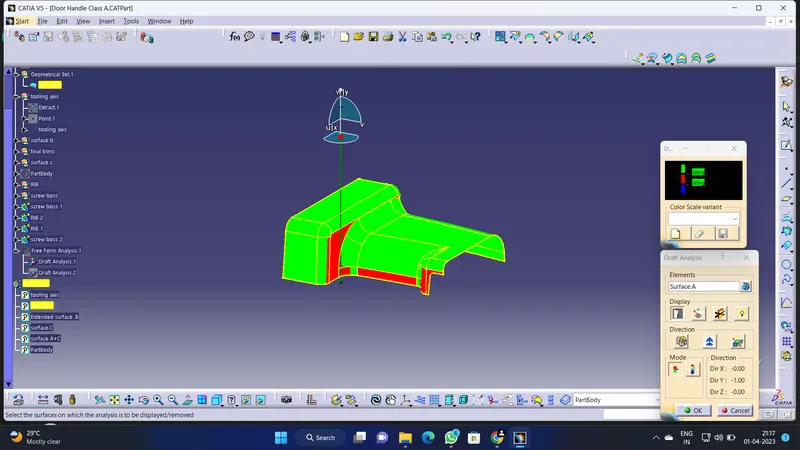

By conducting draft analysis found that the surface A is not proper.There are some region in surface A which is in between 0 and 3 degrees to the tooling axis

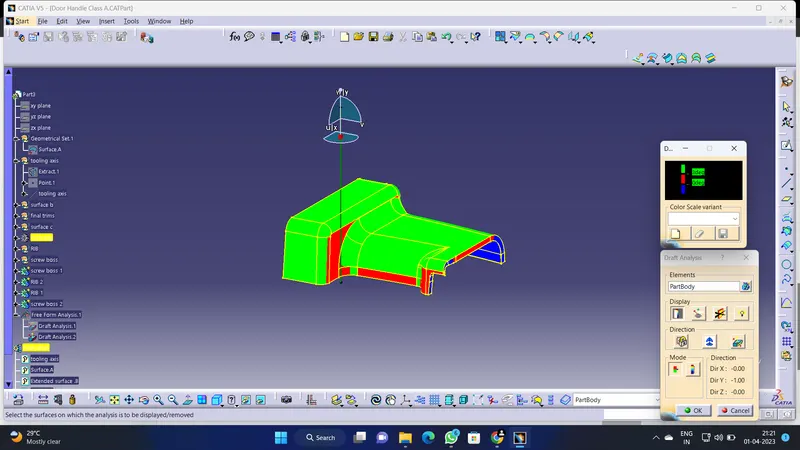

By conducting draft analysis in final part found that there is some region where less than 0 degree to tooling axis and some in between 0 and 3 degrees to tooling axis
