Week 10 - Challenge 1- Attachment Feature Creation (Ribs & Screw Boss)

Drill Handle Component :

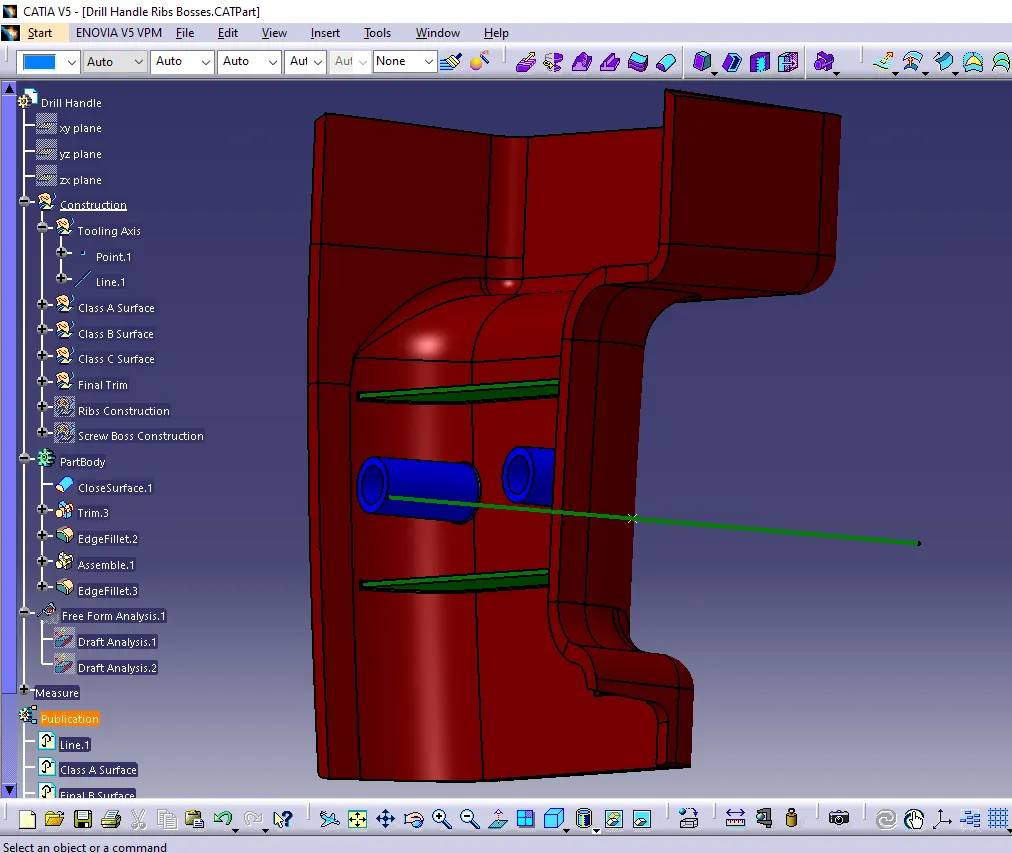

Tooling Axis:

1. All surfaces visible from normal view to Y axis, thus Y axis clears all surfaces.
2. Creating tool axis on Y axis.

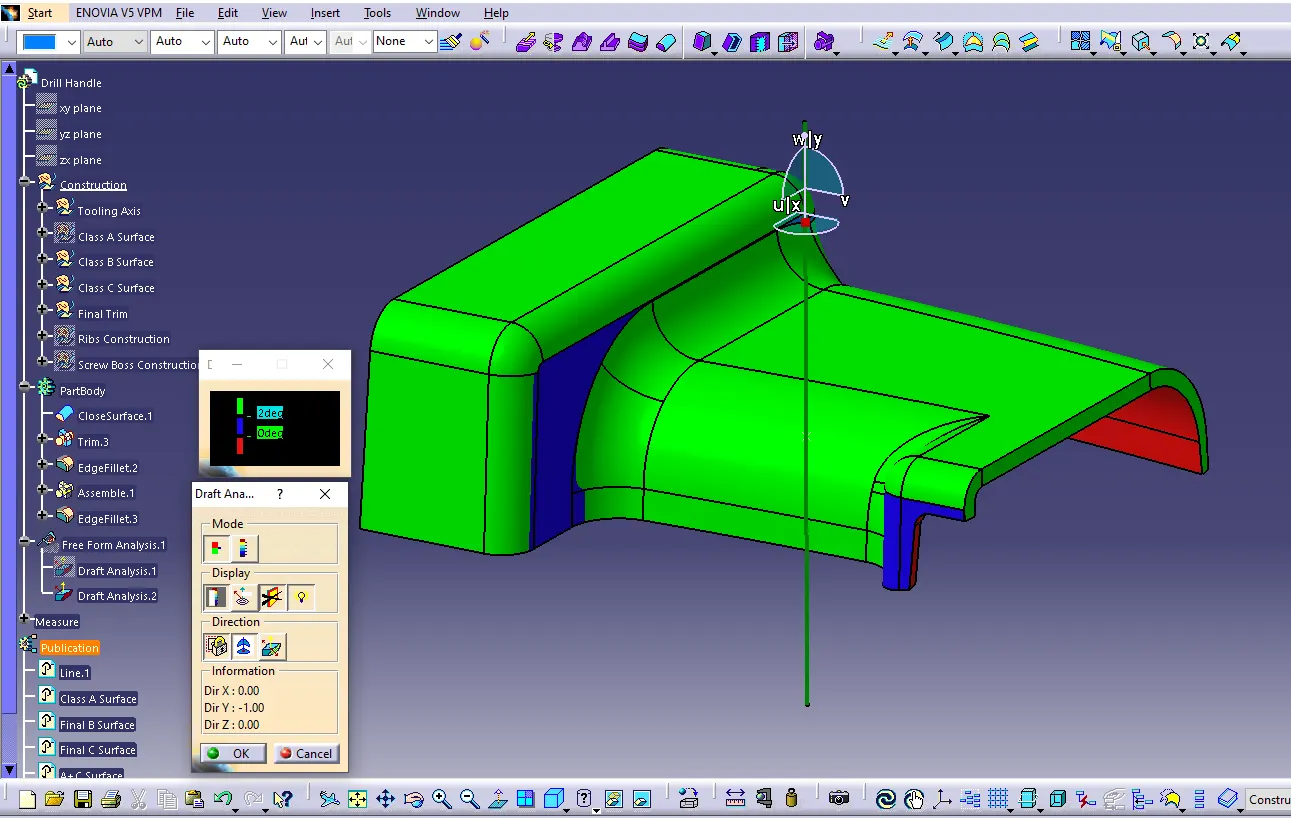

Draft Analysis:

1. Class A surface:

• Using earlier created tooling axis as referance for Compass and fix Draft direction.
• Using Colour scale as reference checked draft values using Running point.
• Green colour shows draft within limits.

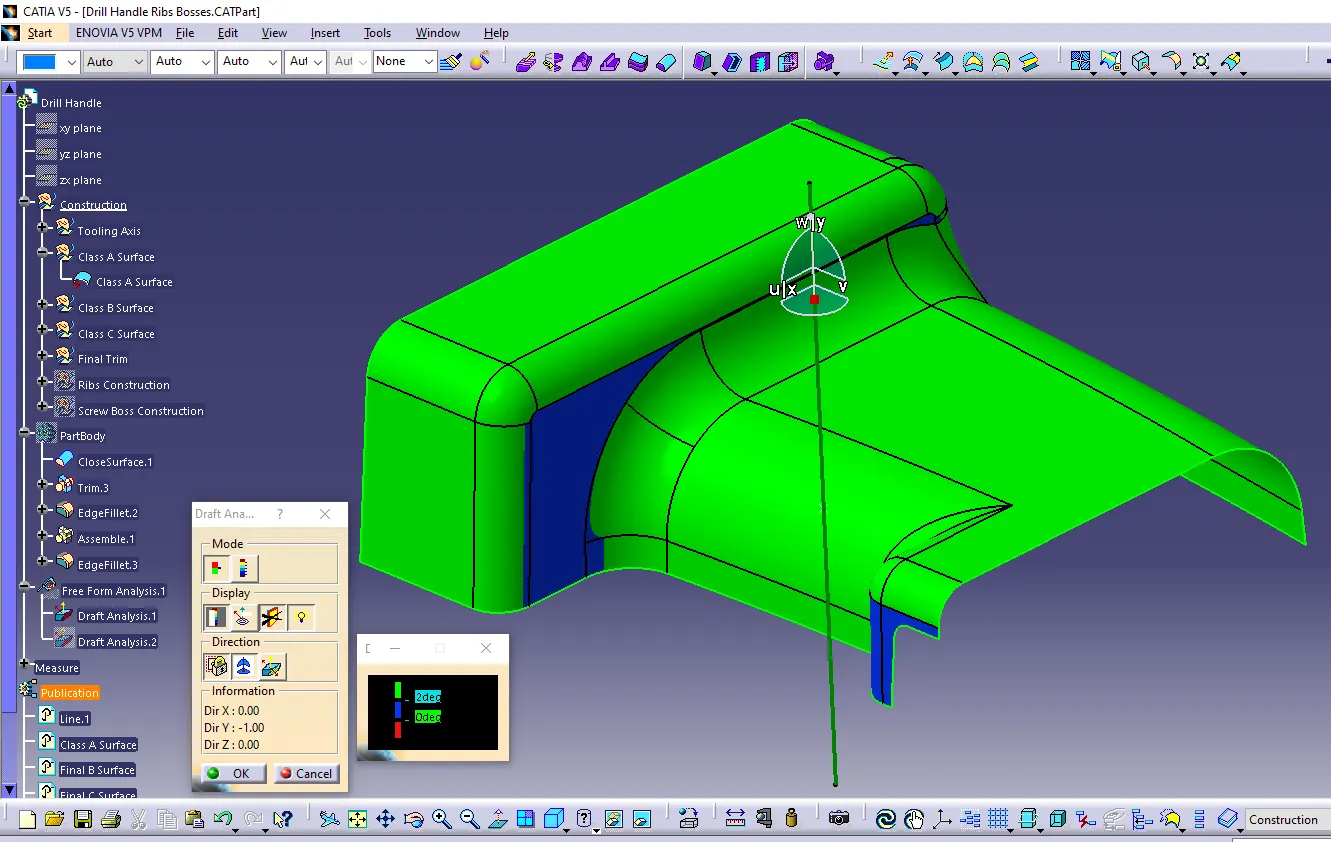

     2. Drill Handle Plastic Component:

• Using earlier created tooling axis as referance for Compass and fix Draft direction.
• Using Colour scale as reference checked draft values using Running point.
• Green colour shows draft within limits.

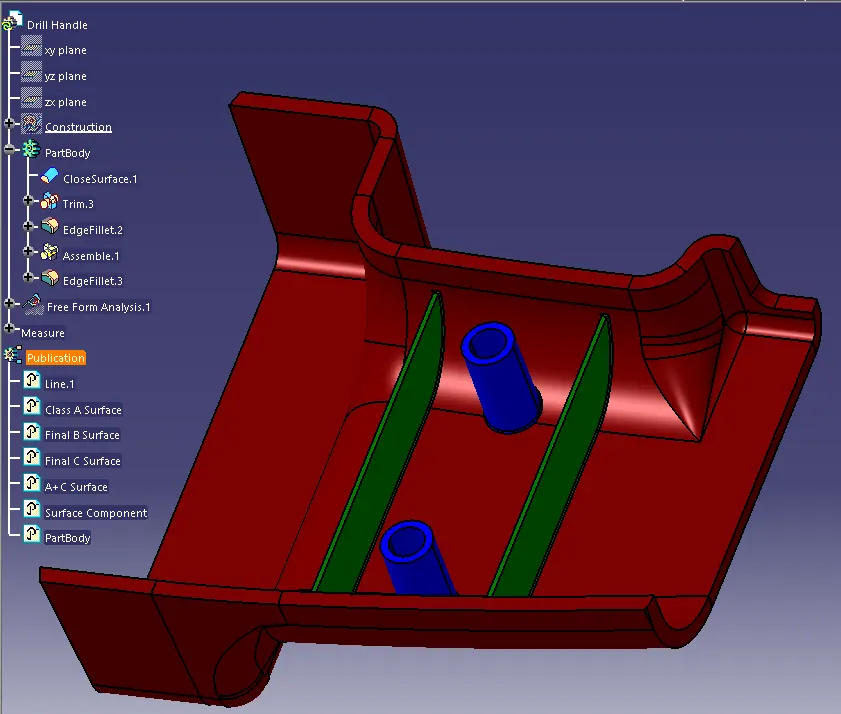

Publications:

• Tooling Axis
• Class A, B, and C surface

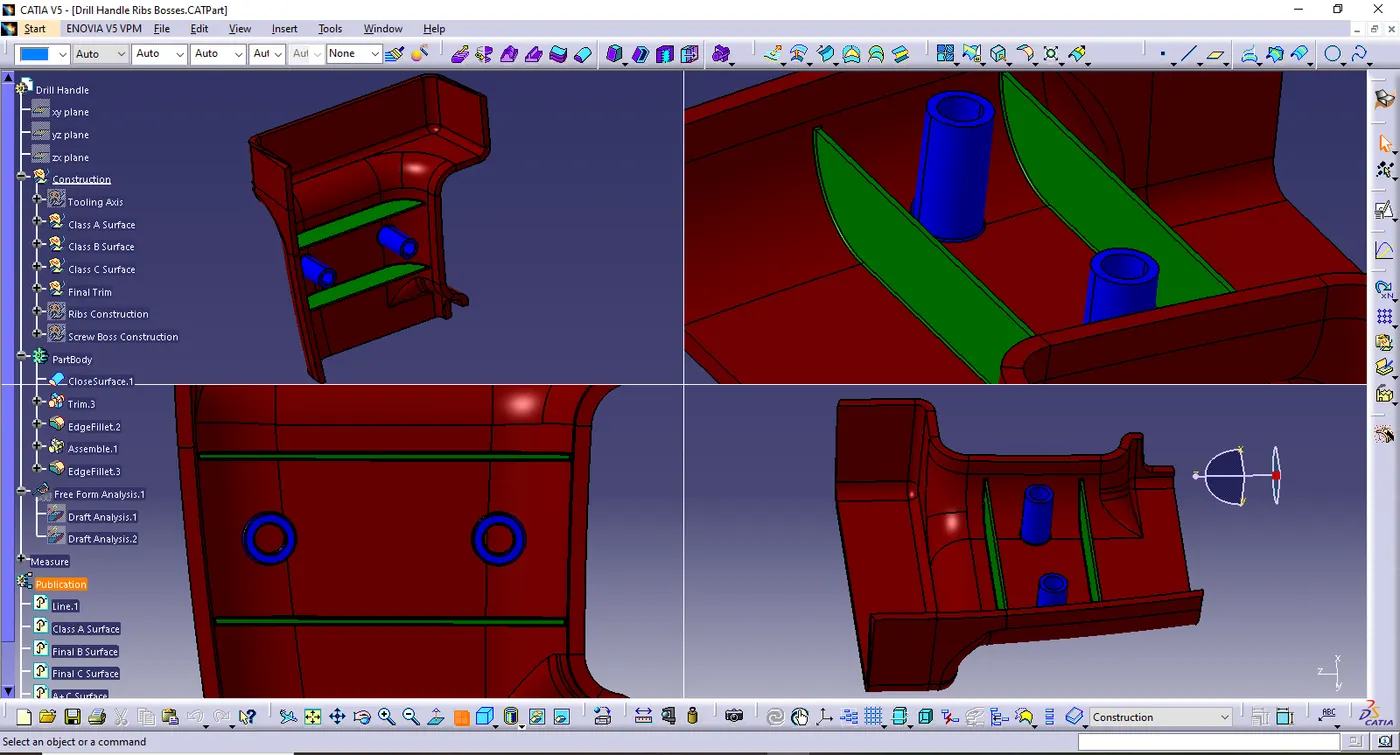

Design Rules :

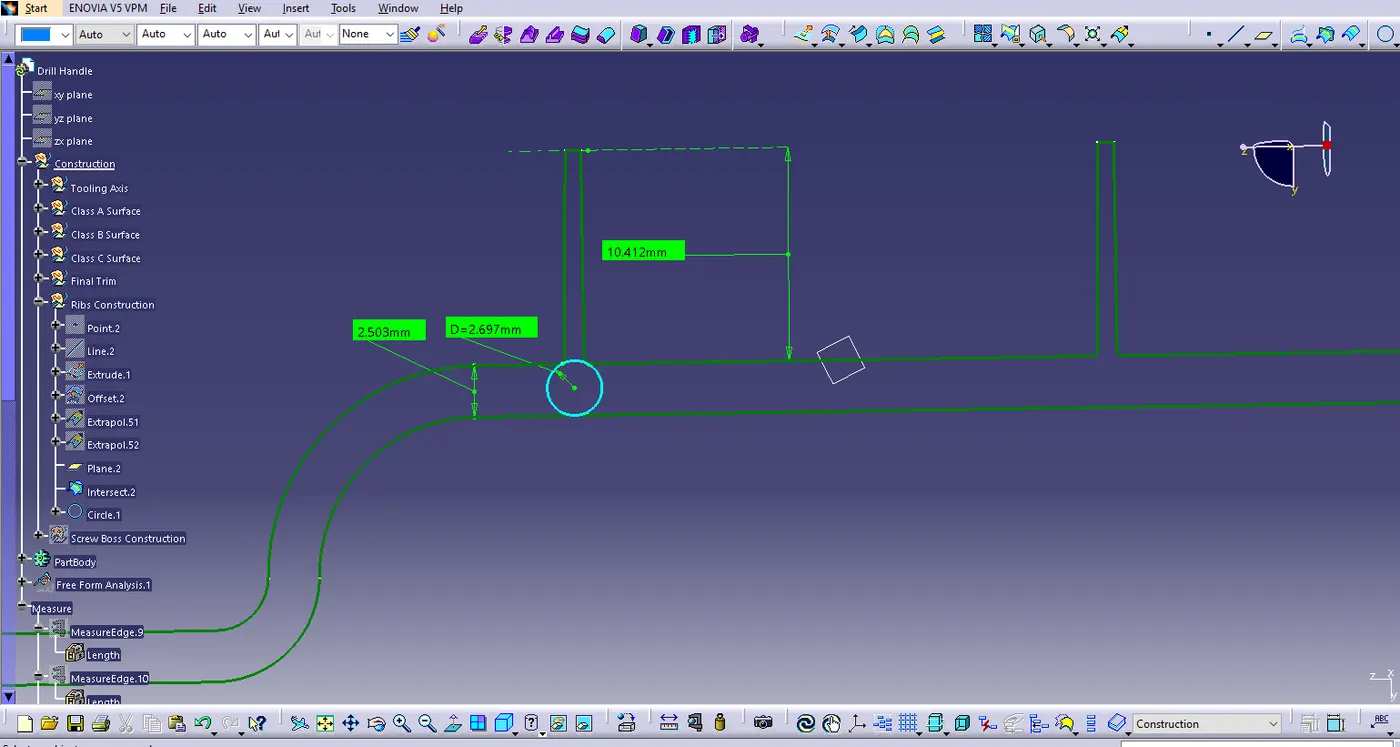

Ribs:

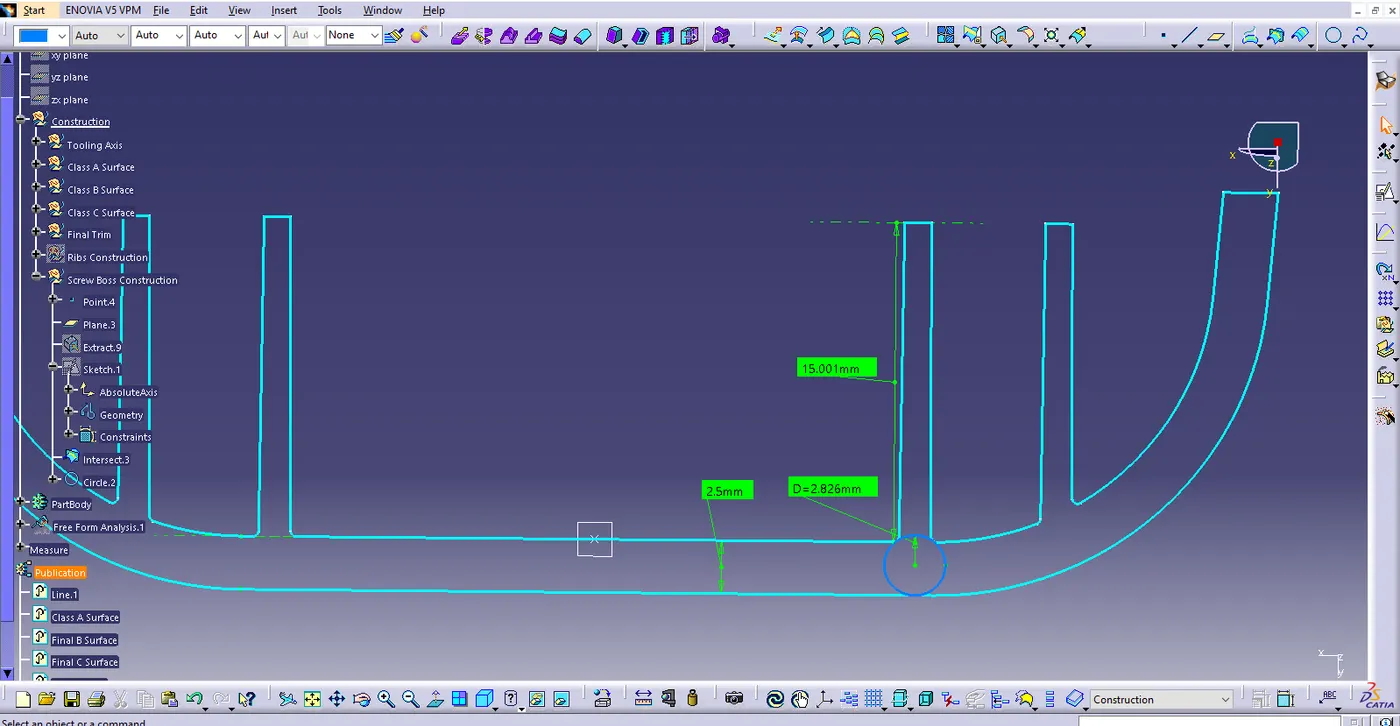

Screw Bosses:
