Week 10 - Challenge 1- Attachment Feature Creation (Ribs & Screw Boss)

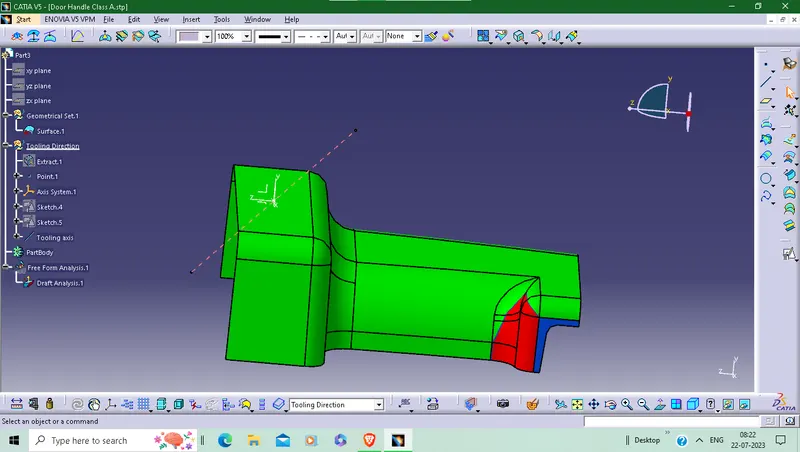

Report on Tooling Axis-

1. The tooling Axis is taken from the sketch in YX plane and YZ plane.
2. In YZ plane a bisecting line is drawn for the slant lines of the door handle
3. In YX plane a line is drawn inclined at an angle of 8 degrees from the horizontal is drawn which intersects the slanting edge.
4. from the two sketches a bisecting line is made taking the support of the projection point.

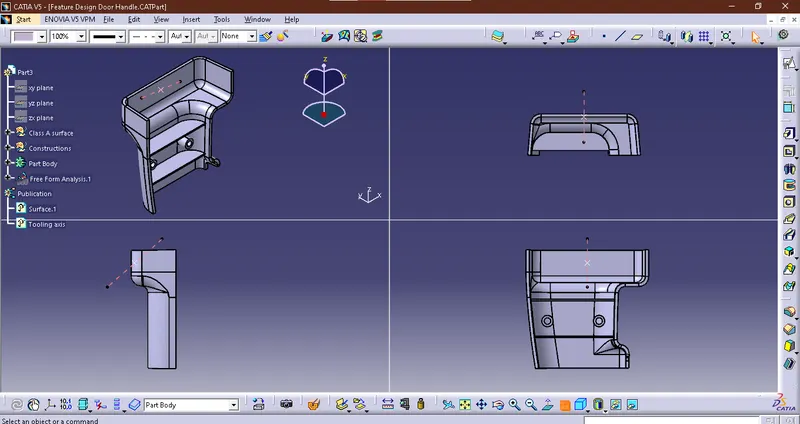

Screenshots of the final product from all the sides
