Week 10 - Challenge 1- Attachment Feature Creation (Ribs & Screw Boss)

OBJECTIVE:

1. Create the rib for the Drill Handle considering the design rules.

2. Create the Screw boss for the Drill Handle considering the design rules

General Guidelines for Bosses:

• Draft - 0.5 degrees on the walls of boss
• Thickness - Typically 40%* of the nominal wall at the base
• Height to Diameter Ratio - 3:1
• Radii - 0.25mm maximum radii

Input: Class A Surface

Design Procedure

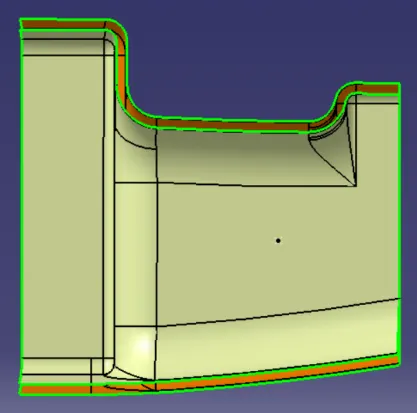

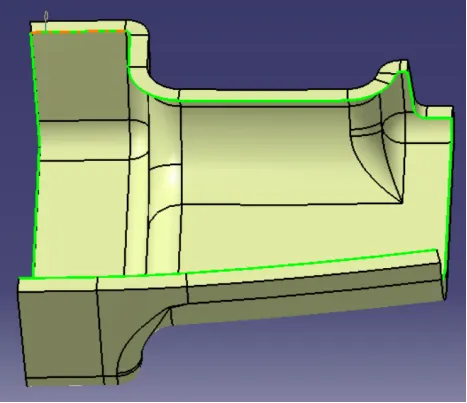

Creating the working surface of Class A Surface

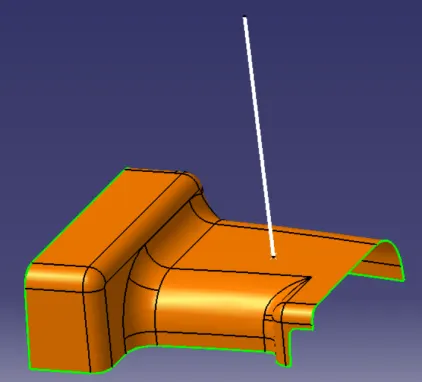

Creating Tooling Axis

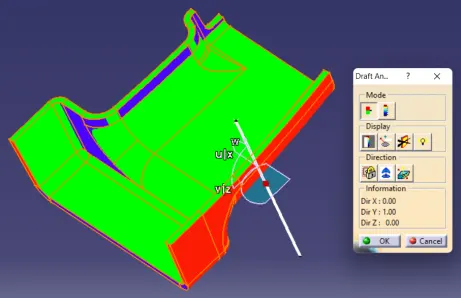

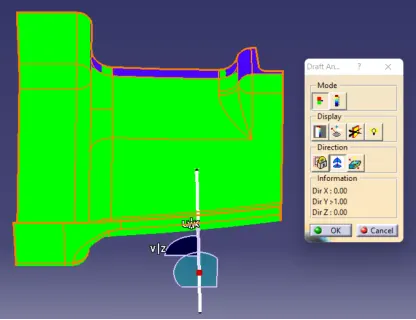

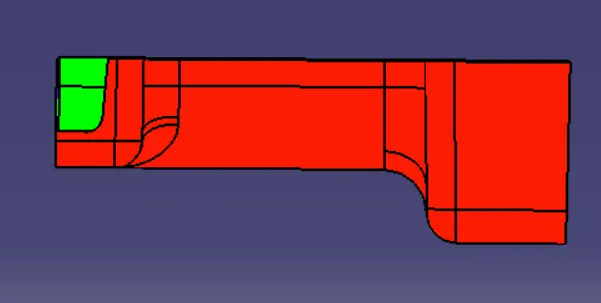

Draft Analysis and Class A Surface Quality Check

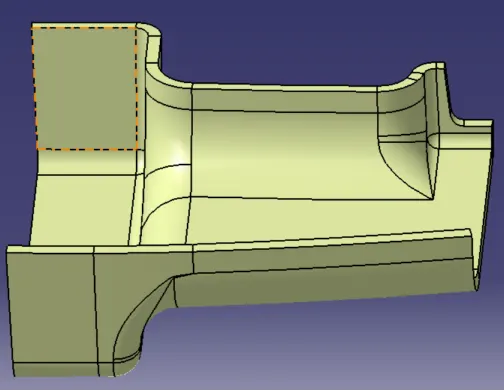

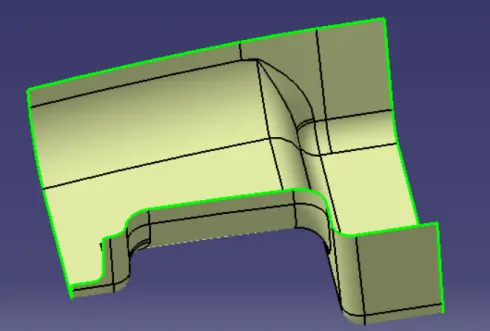

Creating Surface B

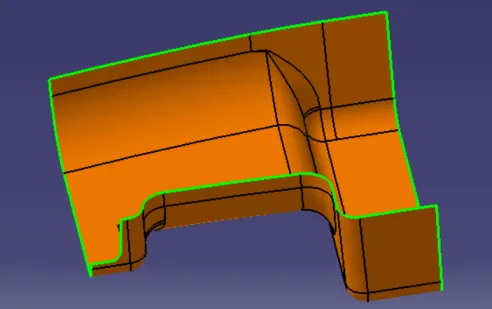

Creating Class C Surface

Joining of Class A and Class C Surface

Final Trim of Class A, Class C and Class B Surface

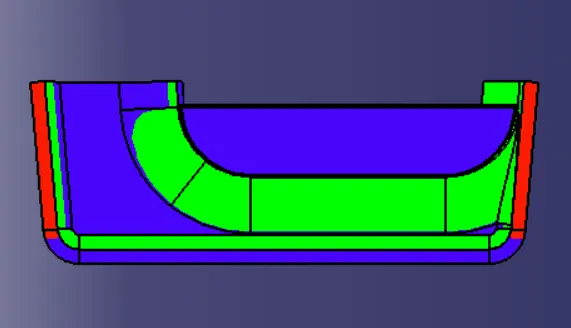

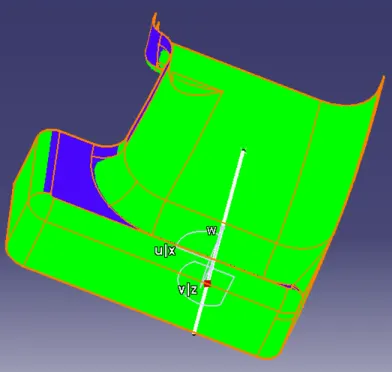

Draft Analysis for Closed Surface

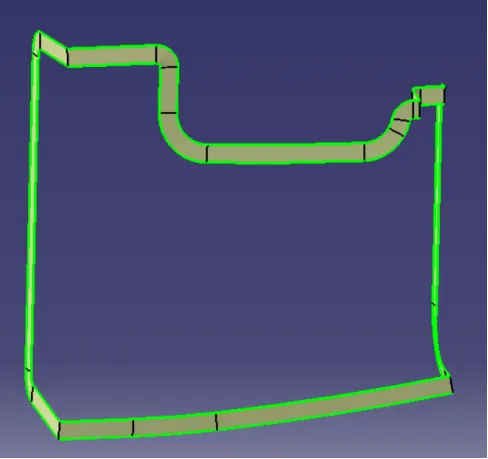

Here we are considering the Green Surface a Parting surface, in order to get the Class B features. Class A surface should be free from gate and ejector pin marks.

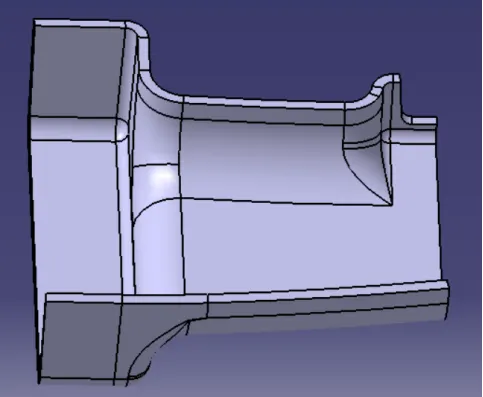

Creating Solid Surface

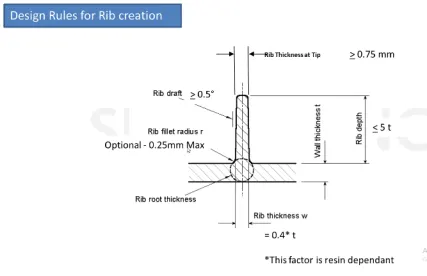

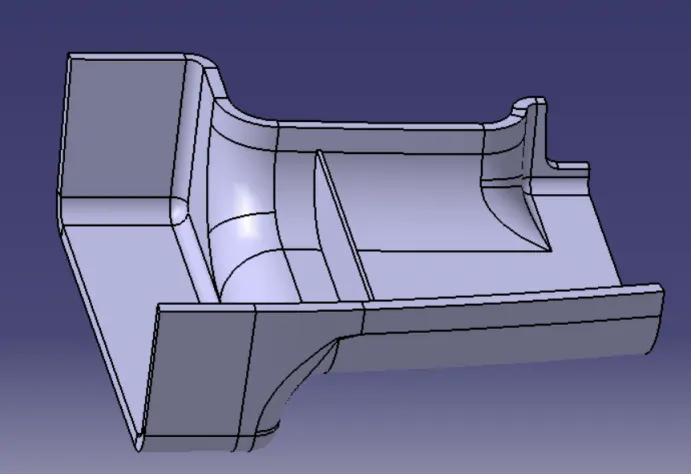

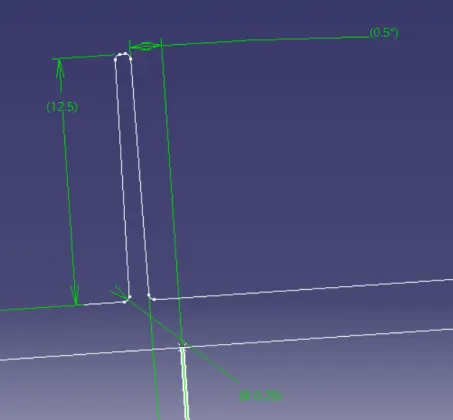

Creating Ribs

Rib fillet radius should be 0.25mm

Rib height should be 5 X t, where t is 2.5mm, Rib height will be 12.5mm

Draft Angle 0.5°

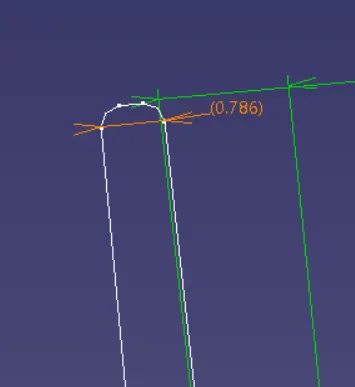

Rib Tip Thickness should be greater than 0.75mm.

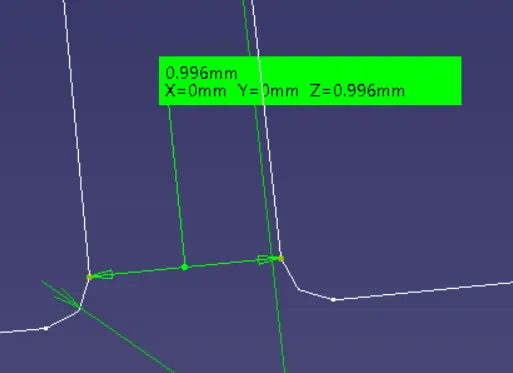

Rib Root thickness should be 0.4 X t, where t is 2.5mm. Hence the Rib root thickness should be 1mm.

Creating Bosses

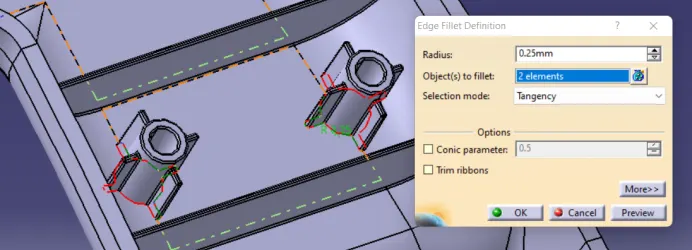

Fillet Radius should be 0.25mm

Draft in the Bosses should be 0.5°

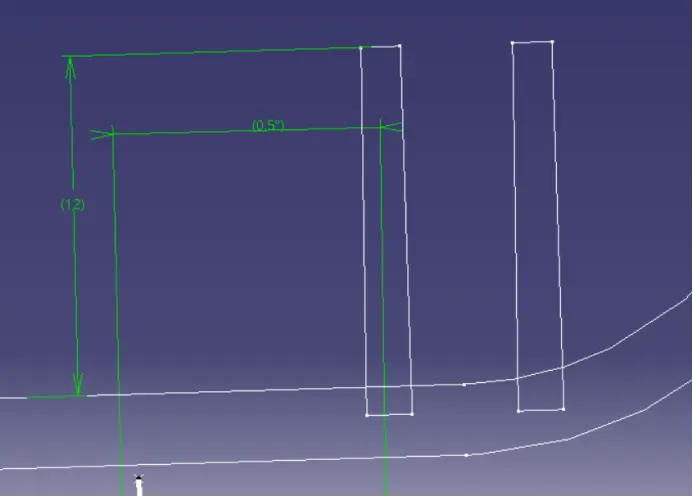

Height to Width ratio should be 3:1 i.e., 12:4

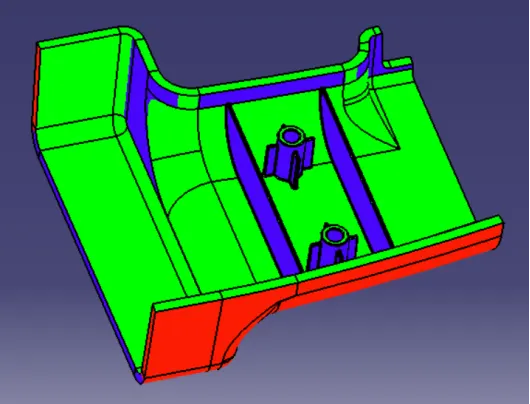

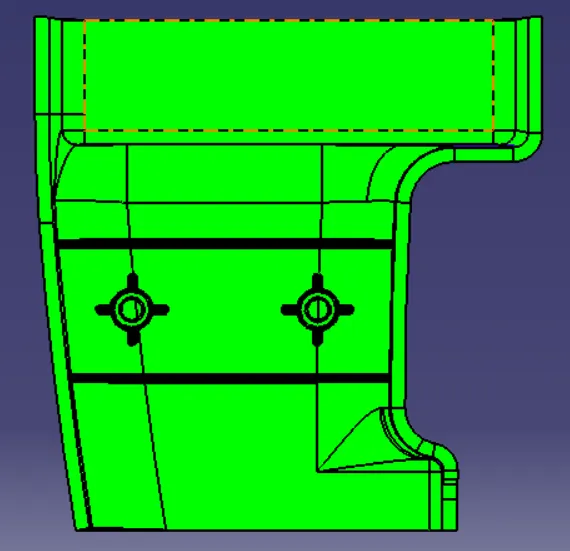

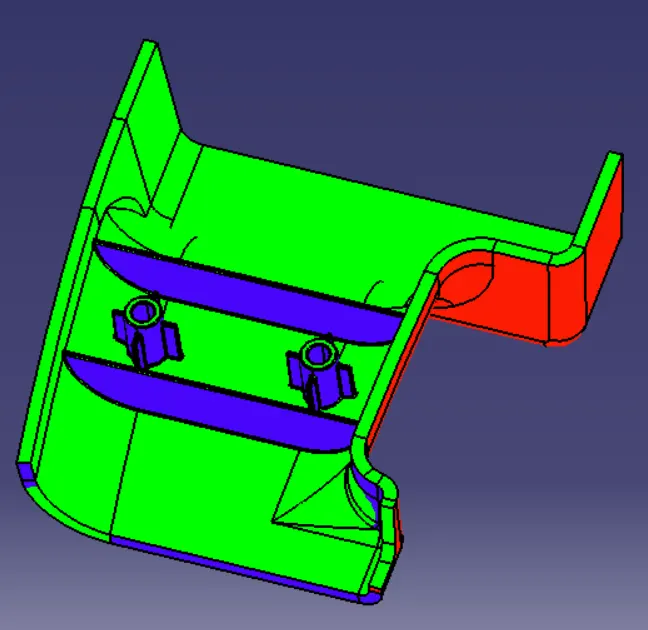

Final Draft analysis result

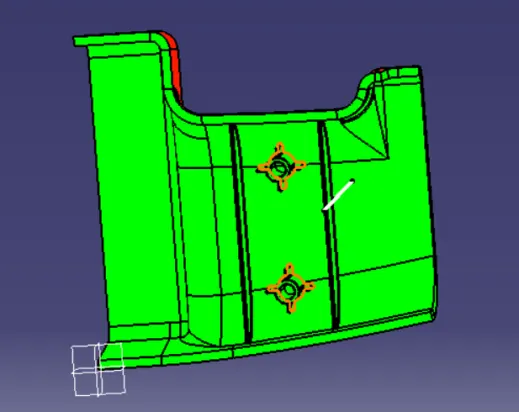

If we change the draft value from 3° to 0.5° to check the draft, the entire colour changed to green.

3D Views:

Isometric View

Front View

Top View

Side View

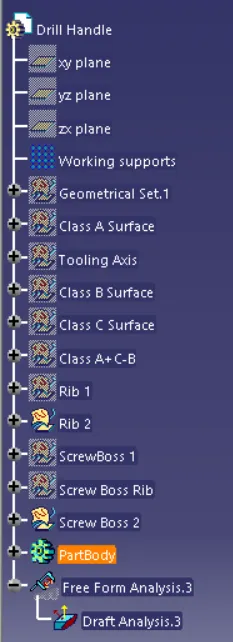

Feature Tree
