Week 10 Bullet penetrating a Bucket Challenge

Objective: To simulate a bullet (TANTALUM) penetrating a bucket using explicit dynamics module of ANSYS Workbench for three different materials of bucket.

1. Case 1: AL 1100-O
2. Case 2: IRON
3. Case 3: STEEL 1006

Procedure:

1. Contacts: Since it is a highly dynamic event, no contacts are defined.
2. Body Interactions:

   1. Type: Frictionless.
   2. Other Settings: Default.

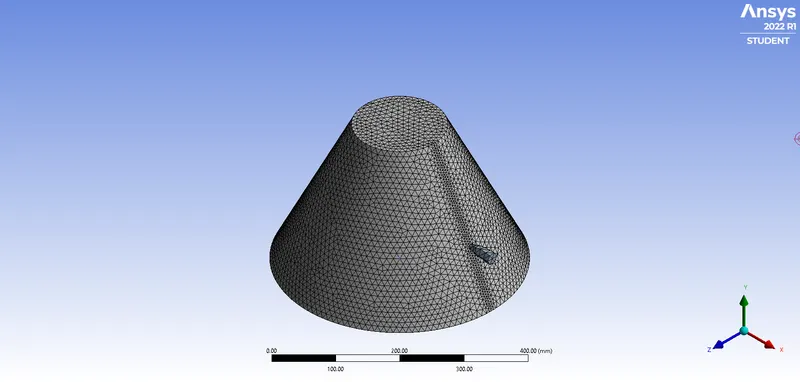

3. Meshing:

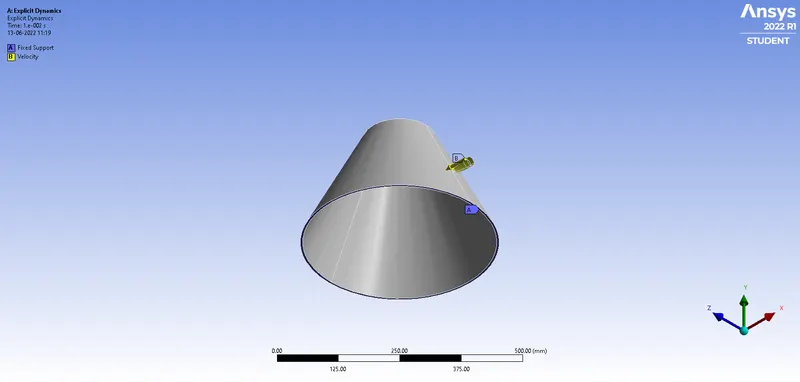

4. Boundary Conditions:

Analysis:

1. Case 1:
   1. Total Deformation:
   2. Equivalent Elastic Strain:

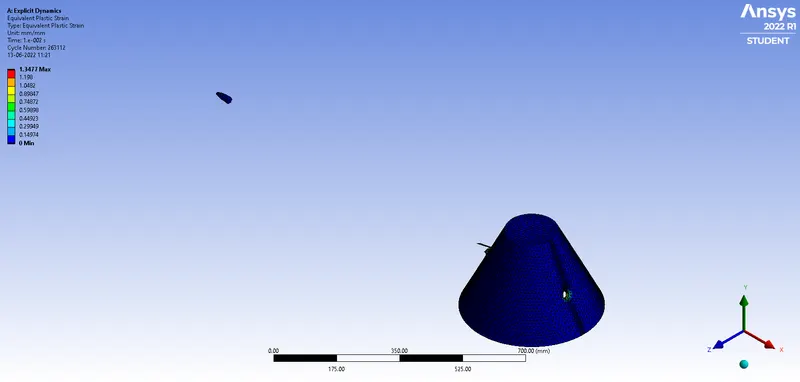

   3. Equivalent Plastic Strain:
   4. Equivalent Stress:
   5. Temperature:
2. Case 2:
   1. Total Deformation:
   2. Equivalent Elastic Strain:
   3. Equivalent Plastic Strain:
   4. Equivalent Stress:

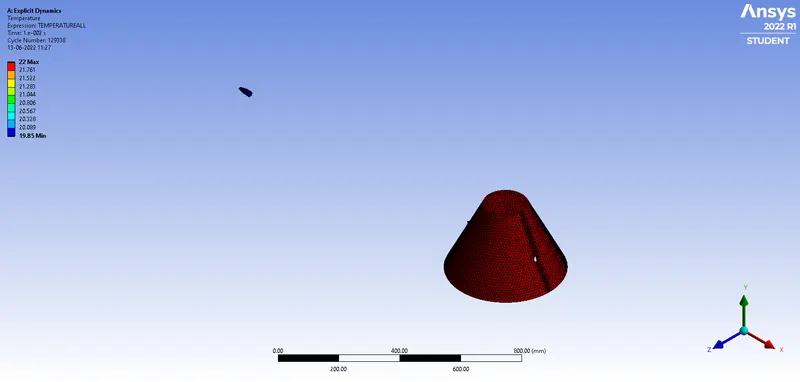

   5. Temperature:
3. Case 3:
   1. Total Deformation:
   2. Equivalent Elastic Strain:
   3. Equivalent Plastic Strain:

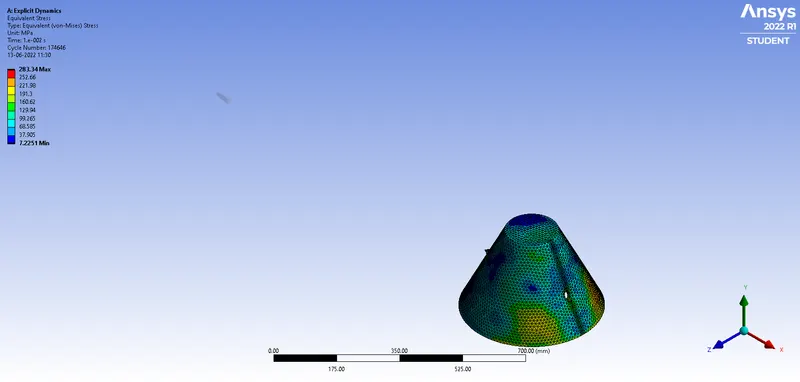

   4. Equivalent Stress:
   5. Temperature:

Result:

Physical Quantity	Extremum	Case 1	Case 2	Case 3
Total Deformation (mm)	Maximum	1390	1390	1390
	Minimum	1.8294×10^-24	1.2349×10^-22	4.5517×10^-23
Equivalent Elastic Strain (mm/mm)	Maximum	0.0029939	0.002274	0.0017516
	Minimum	0	0	0
Equivalent Plastic Strain (mm/mm)	Maximum	1.3477	1.3698	1.4022
	Minimum	0	0	0
Equivalent Stress (MPa)	Maximum	177.8	313.53	283.34
	Minimum	1.0349	6.7488	7.2251
Temperature (°C)	Maximum	328.82	22	590.96
	Minimum	19.85	19.85	19.85

Conclusion: The total deformation is maximum in case 2, lesser in case 3 and least in case 1. The equivalent elastic strain is maximum in case 1, lesser in case 2 and least in case 3. The equivalent plastic strain is maximum in case 3, lesser in case 2 and least in case 1. The maximum equivalent stress is maximum in case 2, lesser in case 3 and least in case 1. The minimum equivalent stress is maximum in case 3, lesser in case 2 and least in case 1. The temperature is maximum in case 3, lesser in case 1 and least in case 2.
