Week 1 Spur Gear Challenge

Objective: To simulate the total deformation, equivalent stress and stress intensity in a system of spur gears made of

1. Cast Iron
2. Cast Bronze
3. Cast Steel

Procedure:

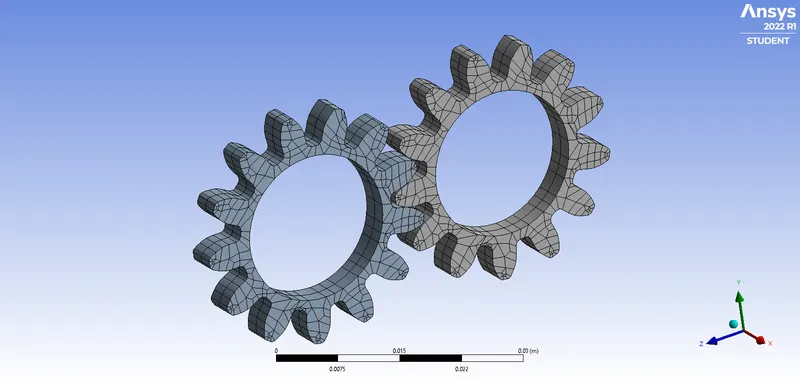

1. Meshing (Default):

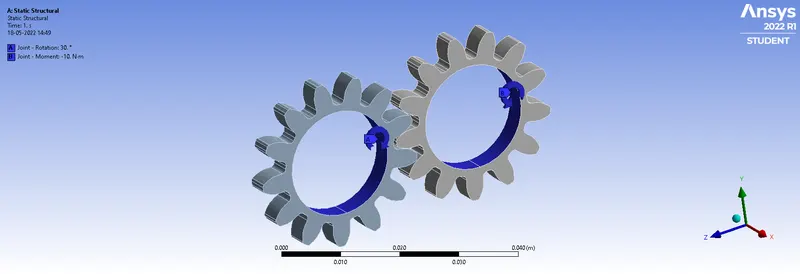

2. Boundary Conditions:

Analysis:

1. Case 1 (Cast Iron)

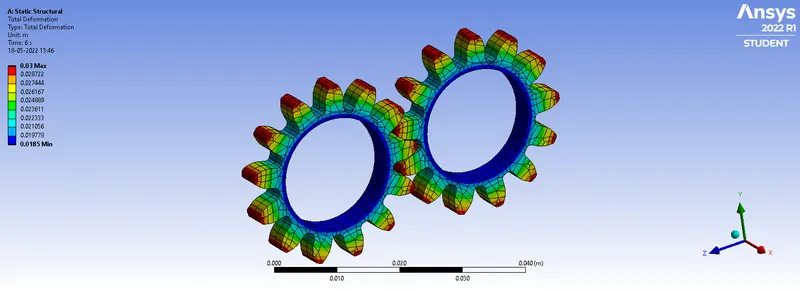

   1. Total Deformation:

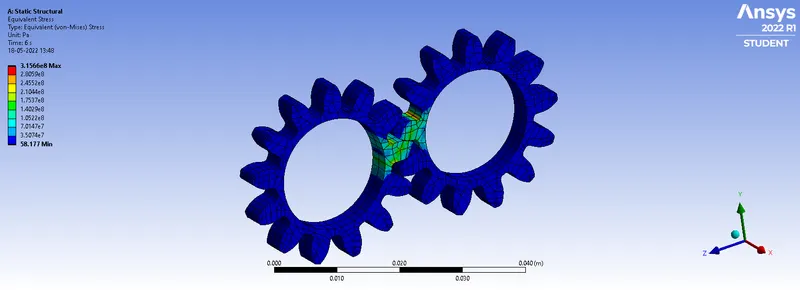

   2. Equivalent Stress:
   3. Stress Intensity:
2. Case 2 (Cast Bronze)

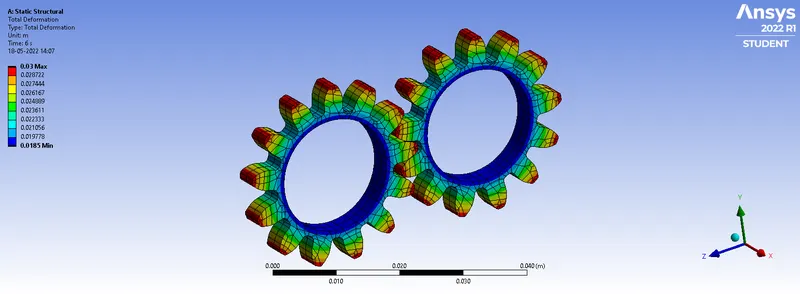

   1. Total Deformation:
   2. Equivalent Stress:

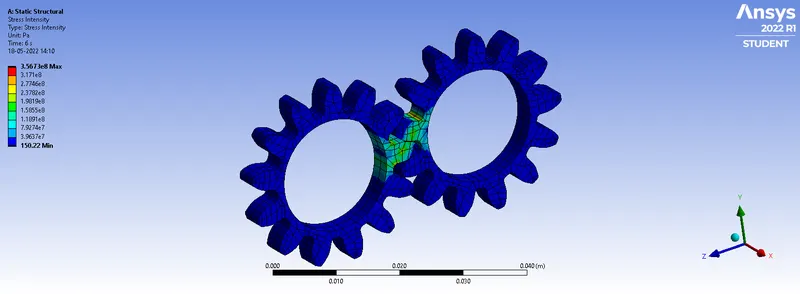

   3. Stress Intensity:
3. Case 3 (Cast Steel)
   1. Total Deformation:

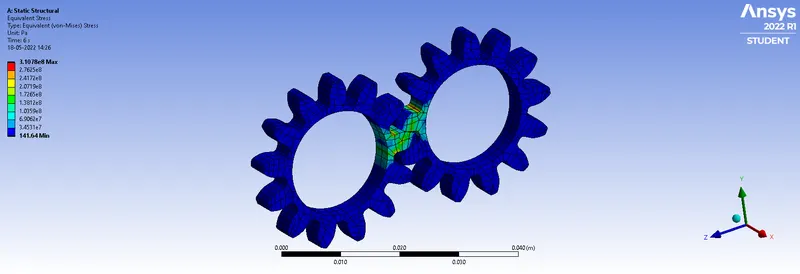

   2. Equivalent Stress:
   3. Stress Intensity:

Result:

Cases	Total Deformation (m)		Equivalent Stress (Pa)		Stress Intensity (Pa)
	Maximum	Minimum	Maximum	Minimum	Maximum	Minimum
Case 1	0.03	0.0185	3.1566×10^8	58.177	3.462×10^8	64.55
Case 2	0.03	0.0185	3.1912×10^8	136.19	3.5673×10^8	150.22
Case 3	0.03	0.0185	3.1078×10^8	141.64	3.4423×10^8	157.53

Conclusion:

From equivalent stress and stress intensity data, cast steel should be used for the gears because the maximum equivalent stress and the maximum stress intensity are both least in case of cast steel. So, chances of failure would also be lesser. The location of highest stress intensity is the most probable location of fracture.

PS: Unable to attach animations. There is no option to upload media from computer.
