Week 10- Assembly Workbench

Report:

First need to create all parts in Part workbench, then assembly has to be done for both model. After Compelting the asembly 2D drawing need to develope for bot assembly.

• Created all parts as per given drawings using part workbech.

• To create 3d Part, first sektch has been developed by using position sketch at respective plan.
• With the help of developed sketch to get desired shape part feature used.
• Same procedure follows for all the parts.

• Assembly developed by using previously designed 3D parts for both model.

• Assembly developed by using required constraints.

• After completing the above task drawing has been creating for both model.

• First Assembly imported to drawing sheet and then balloning has been done for that and respective BOM table generated.
• After that each part drawing has been created for both model

Below are the picture of developed part and asembly with proper tree structure.

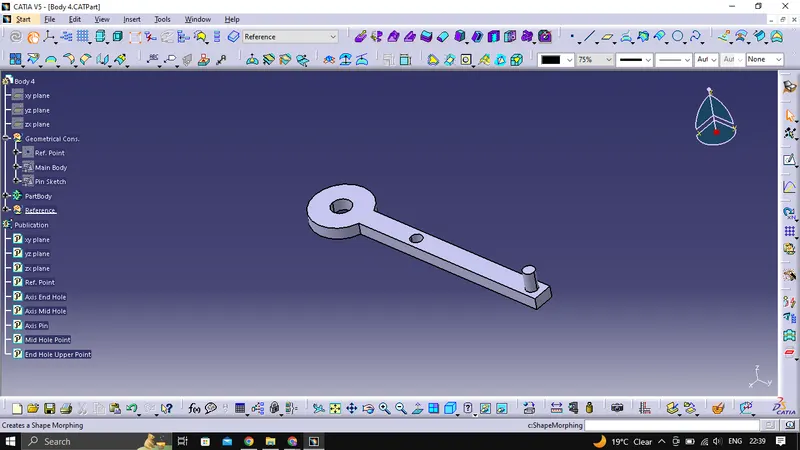

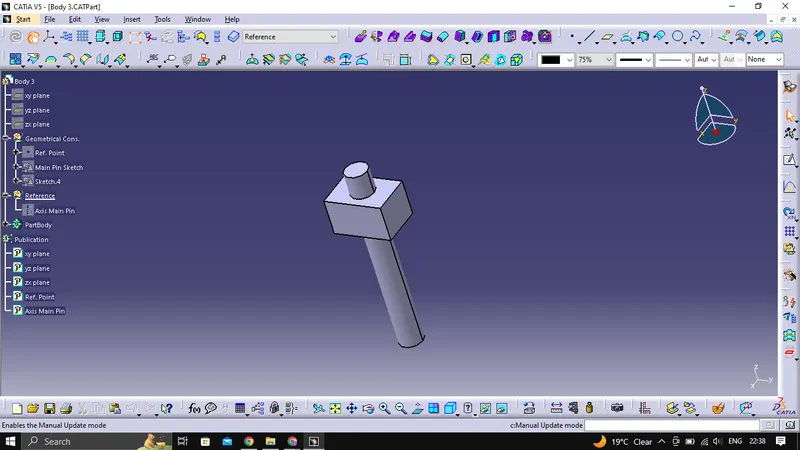

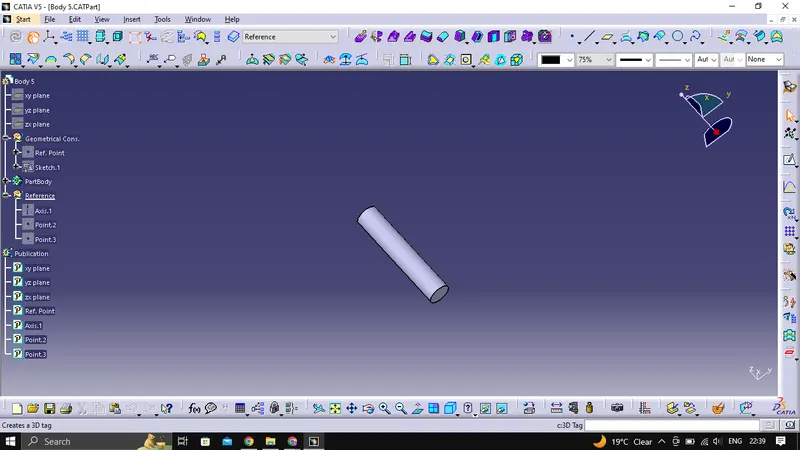

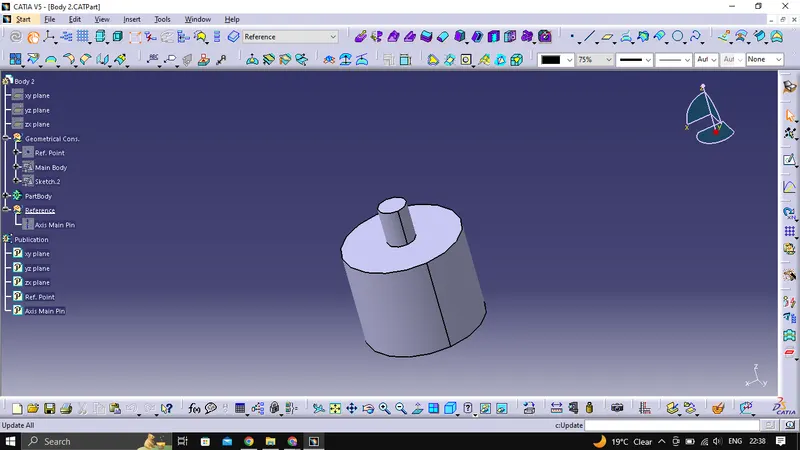

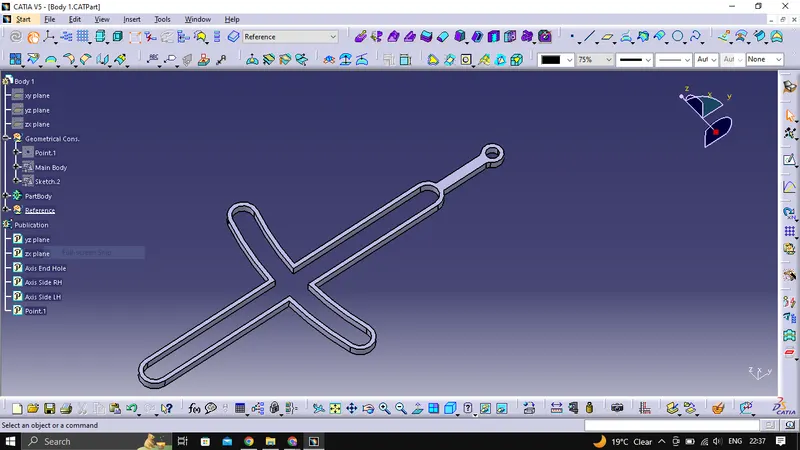

Model 1. Qick Return Mechnism:- Part Model:

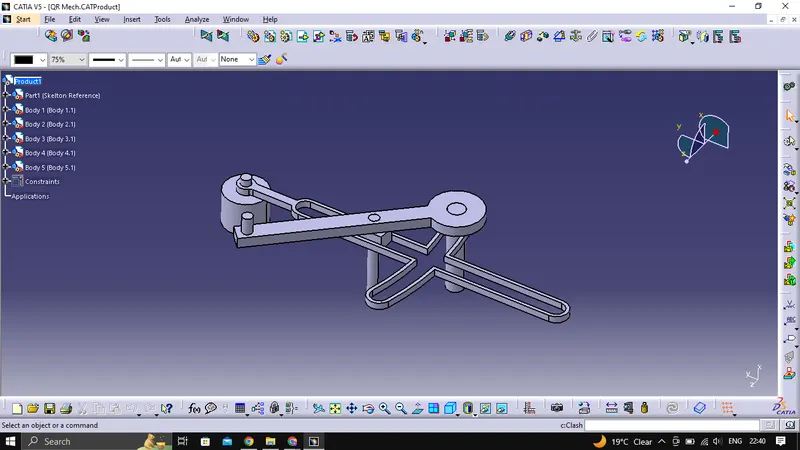

Model 1. Qick Return Mechnism:- Assembly

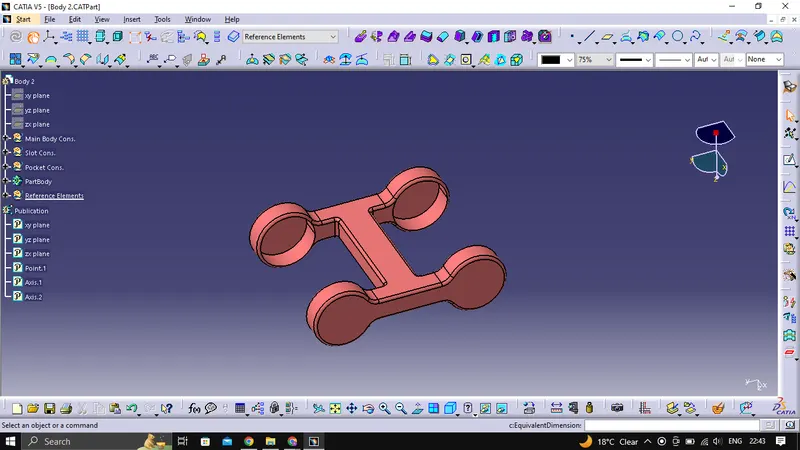

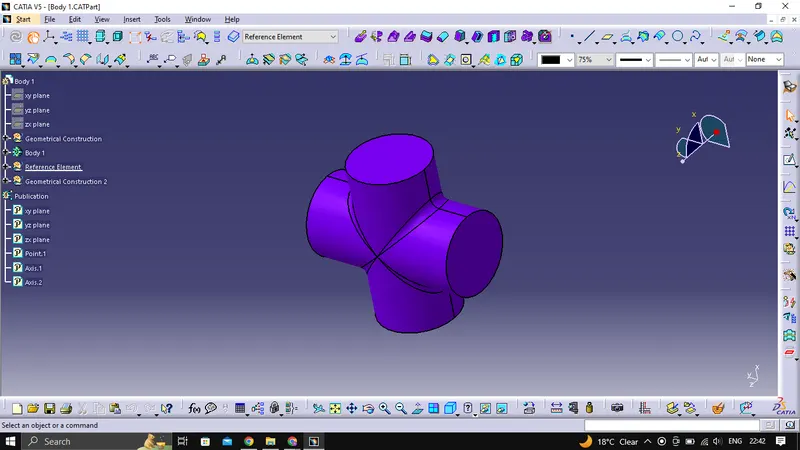

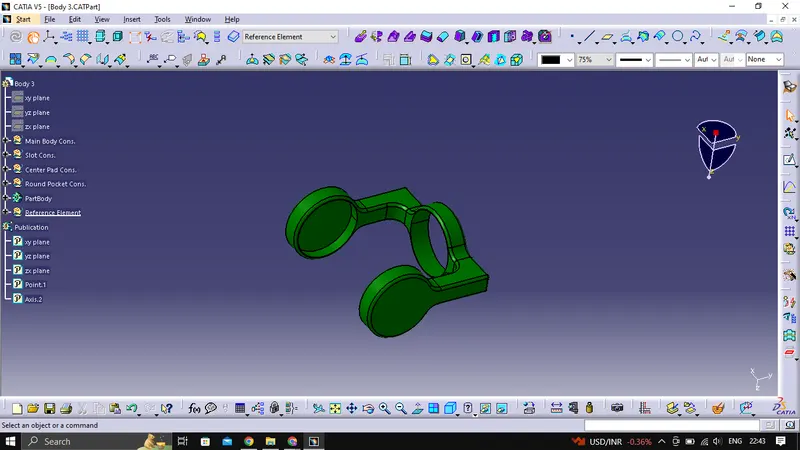

Model 2. CV Joint:- Part Model

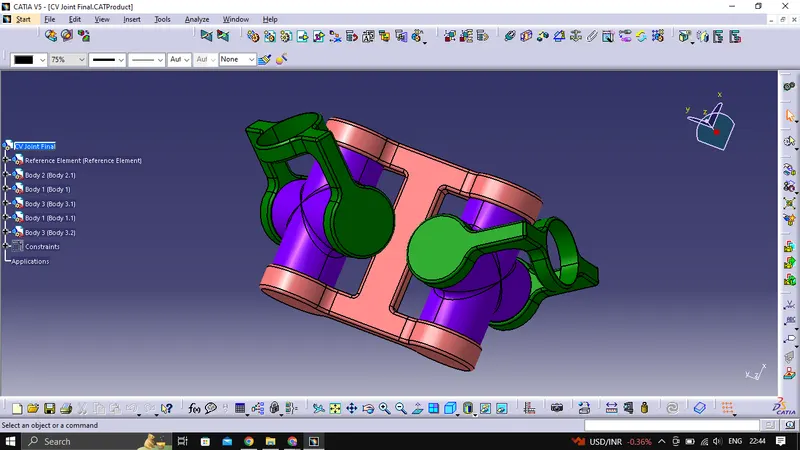

Model 2. CV joint:- Assembly

Kindly refer to attaced file to access Drawing and Part files.
