Week 10- Assembly Workbench

REPORT

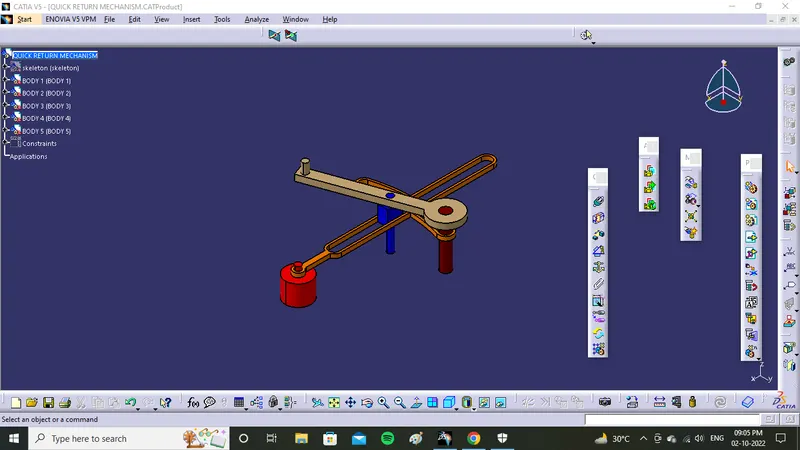

QUICK RETURN MECHANISM:

• FIRST CREATE PARTS SEPARATELY IN PART WORK BENCH
• THEN CREATE PRODUCT FROM EXISTING PARTS
• FOR THAT OPEN PRODUCT FILE THEN CLICK EXTRACT FROM THE OPTION
• THEN ASSEMBLE FIVE BODIES USING CONSTRAINTS
• FIX, OFFSET, COINCIDENCE ARE THE CONSTRAINTS USED
• NOT OVER CONSTRAINED SUCH THAT GIVEN ONLY REQUIRED
• FILE SAVED USING SAVE MANAGEMENT

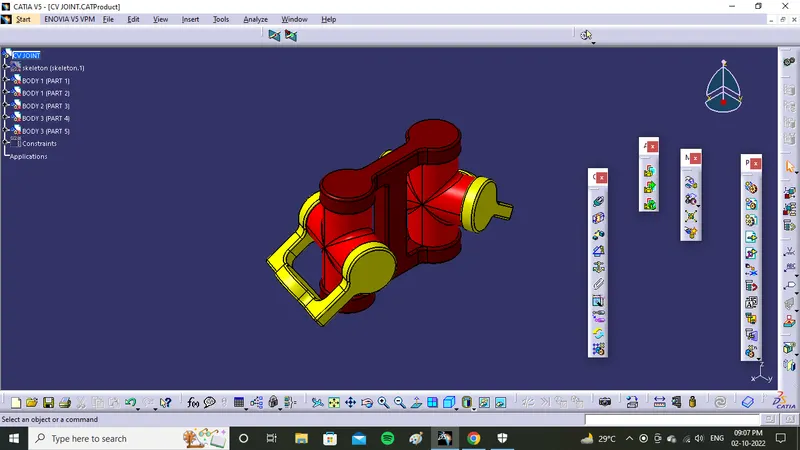

CV JOINT:

• HERE ALSO SAME PROCEDURE FOLLOWED AS ABOVE
• BUT ONLY DIFFERENCE IS EXTRACT BODY 1 AND BODY 2 TWICE
• BECAUSE SAME PART IS AT TWO POSITIONS IN PRODUCT

DRAFTING WORK BENCH

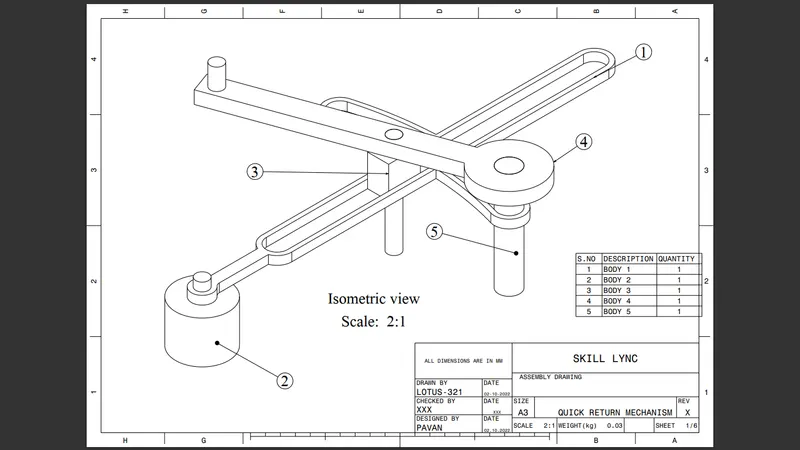

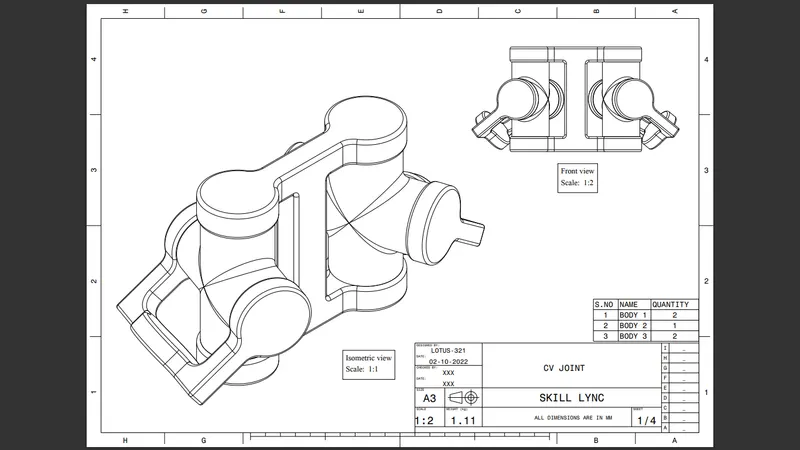

• IN DRAFTING WORK BENCH A3 SHEET USED FOR REPRESENTING 2D DRAWINGS
• IN A3 SHEET ADJUST THE DRAWING ACCORDING TO RATIO SUCH AS 1:2, 1:1, 2:1
• SO THAT DRAWING EASILY UNDERSTAND TO THE PL OPERATOR
• DRAWING PDF CREATED
