Week 10- Assembly Workbench

CV JOINT :

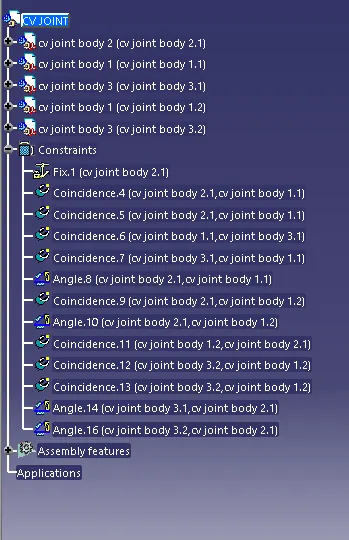

TREE STRUCTURE :

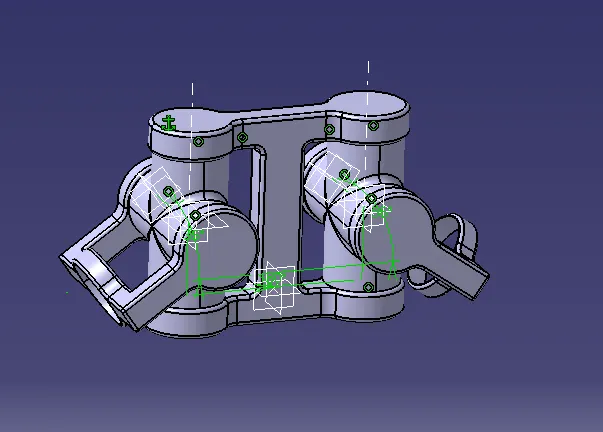

CV JOINT OVERALL ASSEMBLY WITH CONSTRAIN GEOMETRY :

CV JOIN ASSEMBLY PROCEDURE :

to work on the assembly model, the part model of the each component is need to updated or component should be created before moving to an assembly.
in this cv joint , there are three components are involved in the stage of assembly.
components are created using the part design option in catia v5.
after creating the part of all the three components, the reference geometry for the assemby is also created
for example, axis system is used to concentric both the component, and plane is also used as the reference geometry for the assembly mates.
after completion of the reference geometry, the new assembly workbench is needed to created.
and copy all the required component and paste it in the new assembly work bench
the primary or the parent component is need to fixed.
then using the assembly constrait, need to arrest the required degree of freedom, to make a complete working component.
for this cv joint there is a total of 5 parts is need to created the complete assembly. the symmetry of body A.

QUICK RETURN MECHANISM :

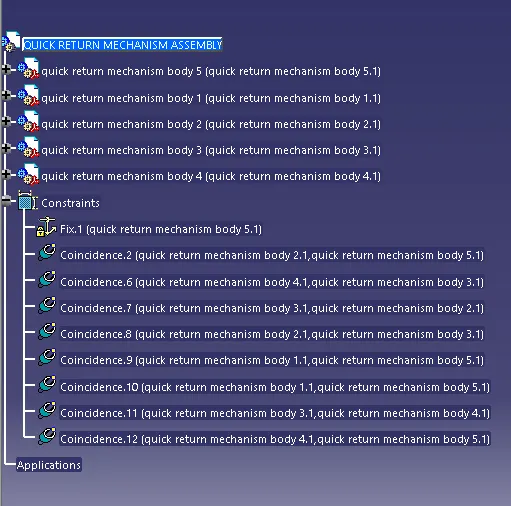

TREE STRUCTURE :

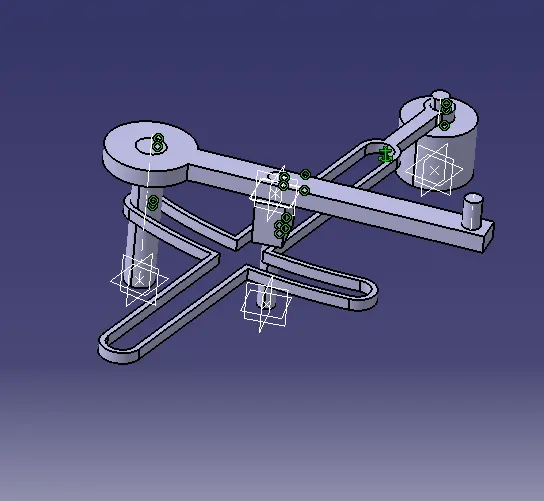

QUICK RETURN MECHANISM ASSEMBLY WITH CONSTRAIN GEOMETRY :

QUICK RETURN MECHANISM ASSEMBLY PROCEDURE :

to work on the assembly model, the part model of the each component is need to updated or component should be created before moving to an assembly.
in this quick return mechanism joint , there are five components are involved in the stage of assembly.
components are created using the part design option in catia v5.
after creating the part of all the five components, the reference geometry for the assemby is also created
for example, axis system is used to concentric both the component, and plane is also used as the reference geometry for the assembly mates.
after completion of the reference geometry, the new assembly workbench is needed to created.
and copy all the required component and paste it in the new assembly work bench
the primary or the parent component is need to fixed.
then using the assembly constrait, need to arrest the required degree of freedom, to make a complete working component.
