Week 10- Assembly Workbench

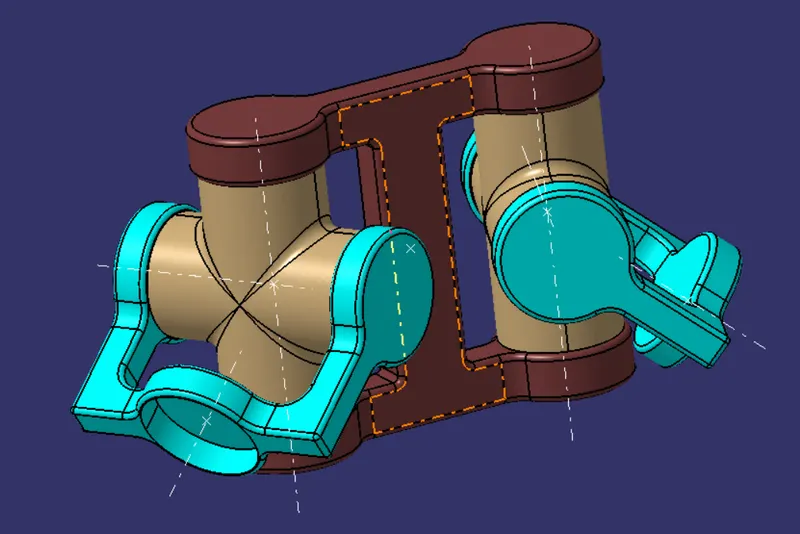

1. CV Joint Assembly:

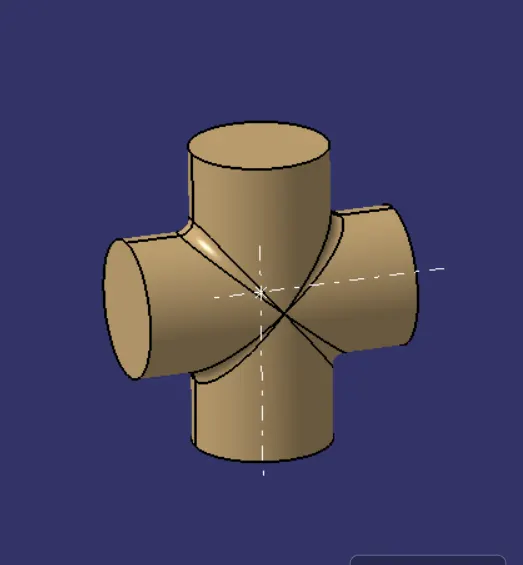

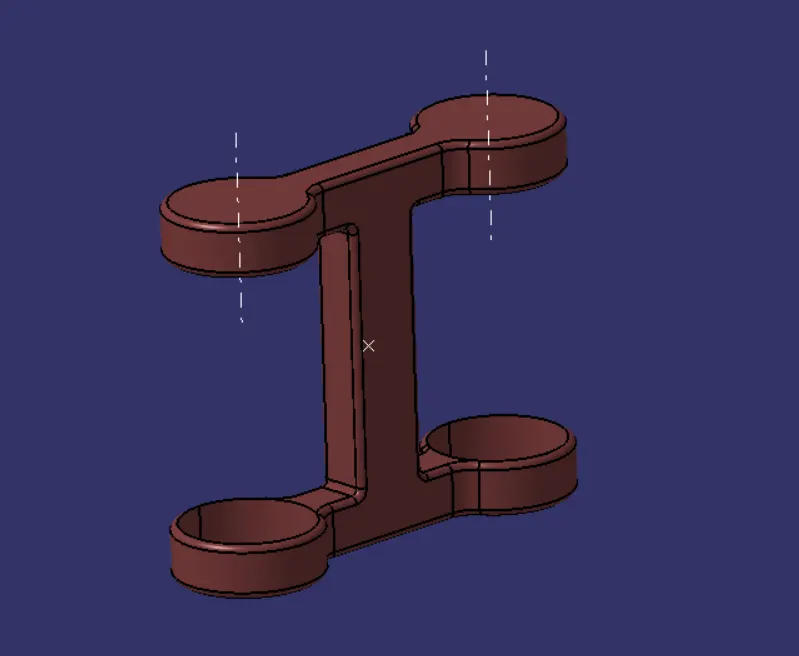

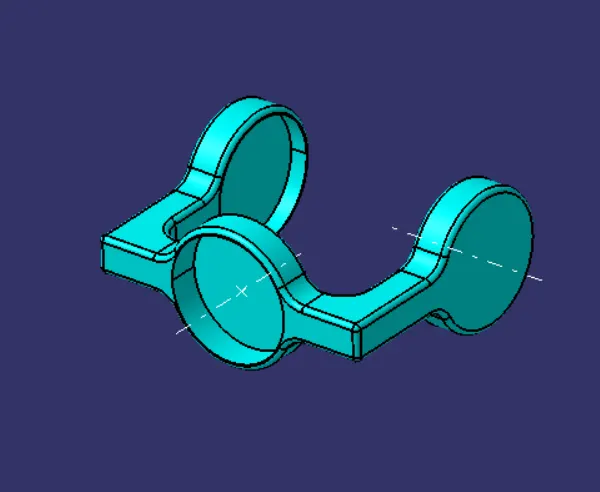

The first step is to create parts from the drawing using boolean operations.
Then assemble these parts in the assembly workbench by adding suitable constraints with the help of references created.

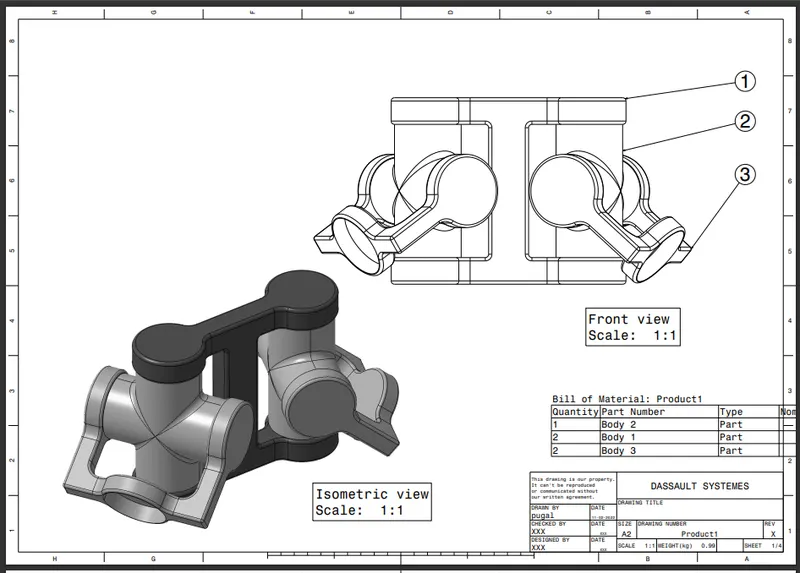

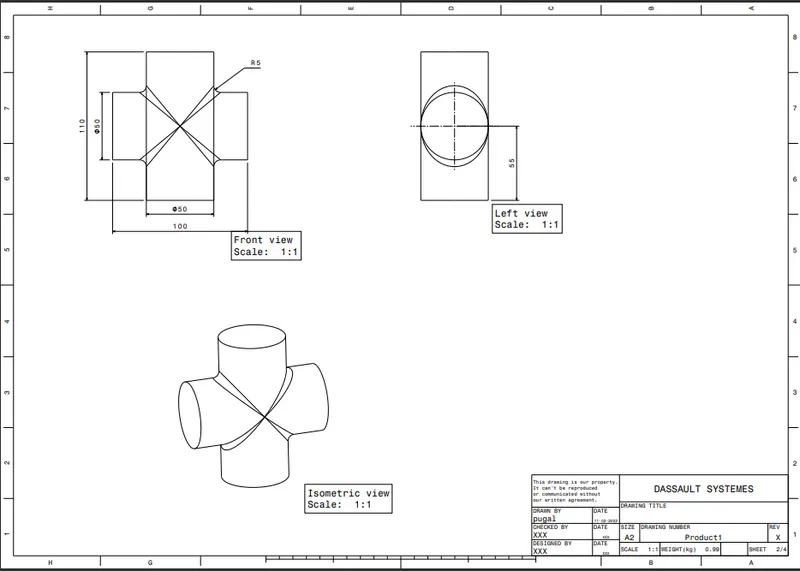

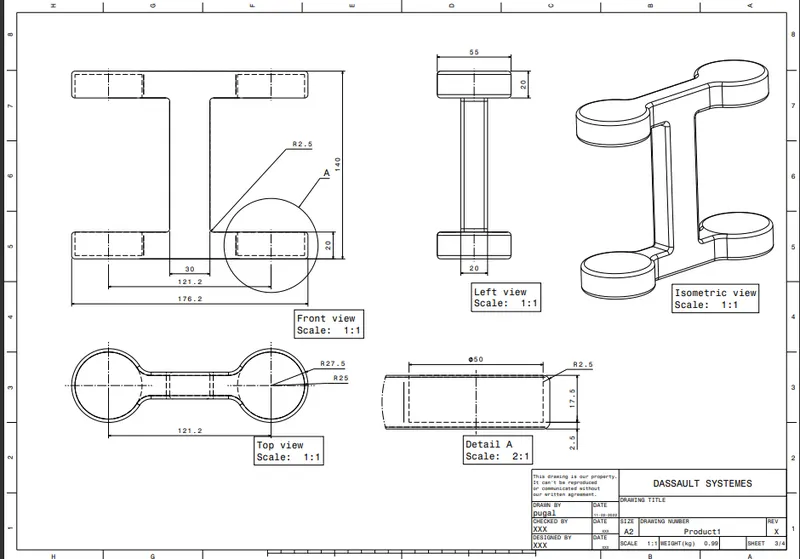

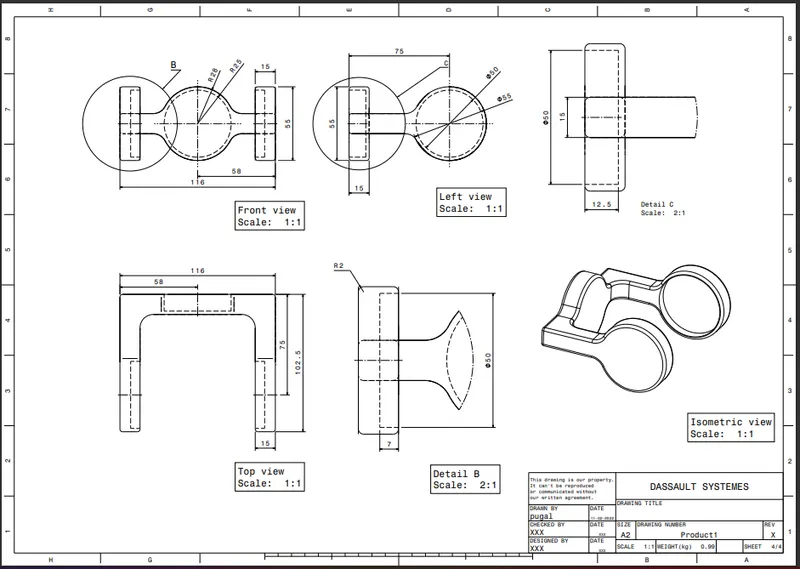

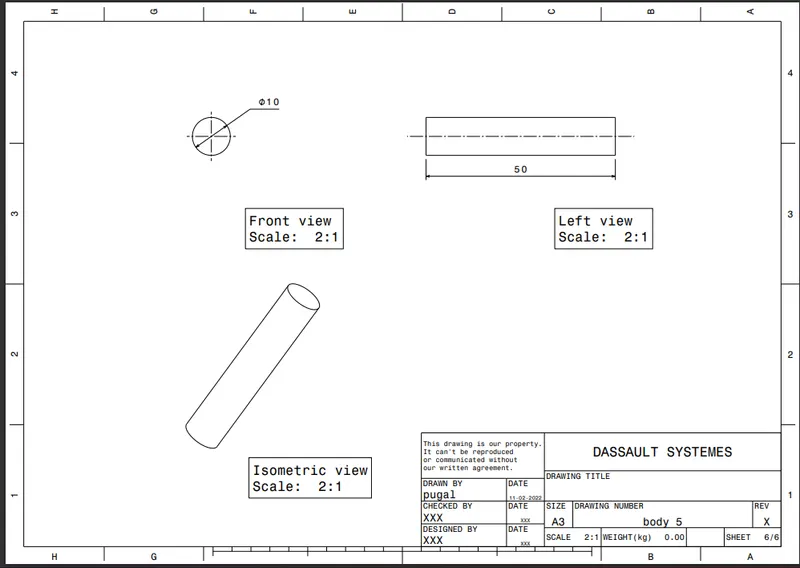

2D Drafting:
2. Quick Return Mechanism:

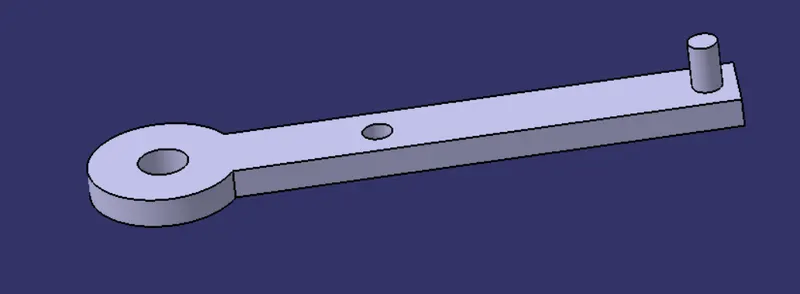

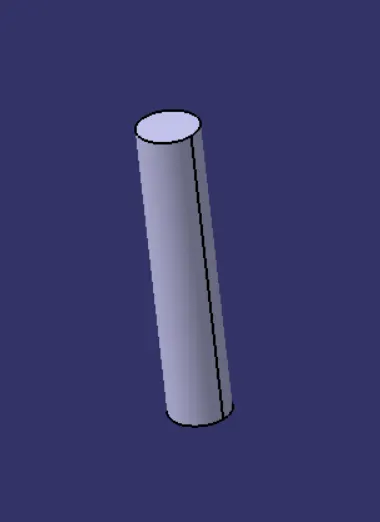

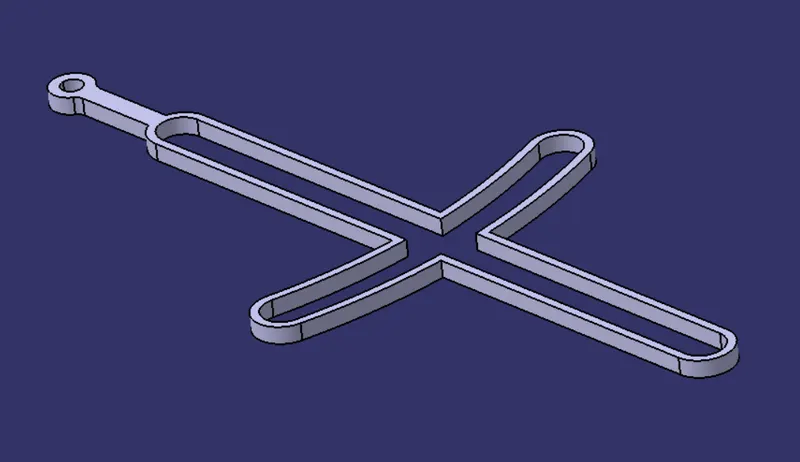

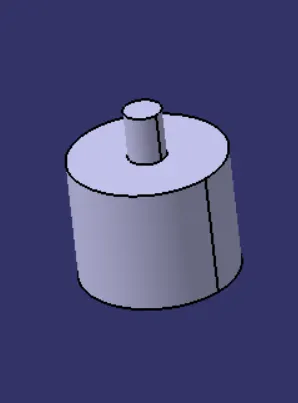

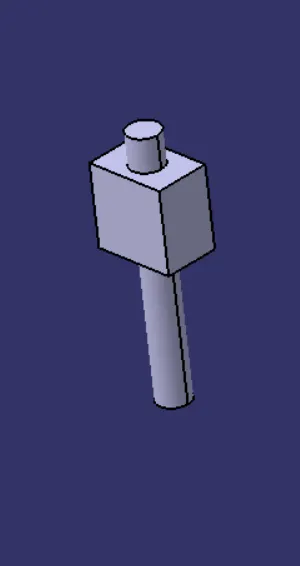

The first step is to create parts from the drawing using boolean operations.

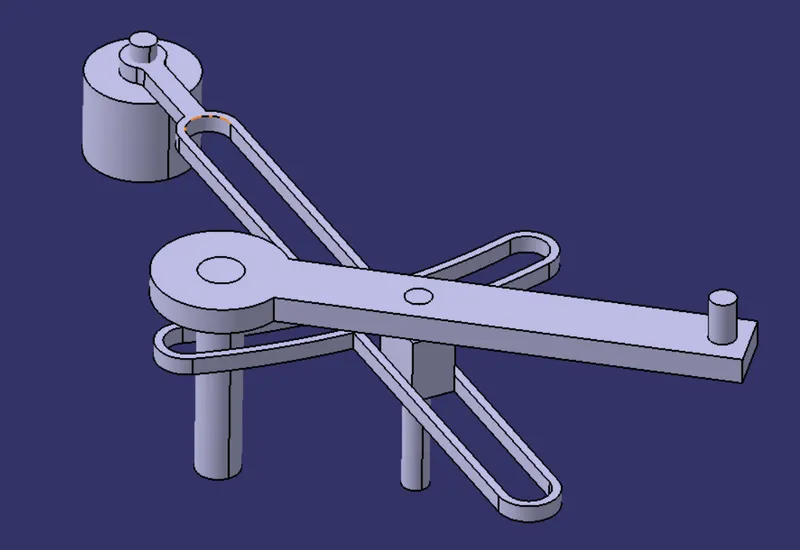

Assembly of the mechanism:

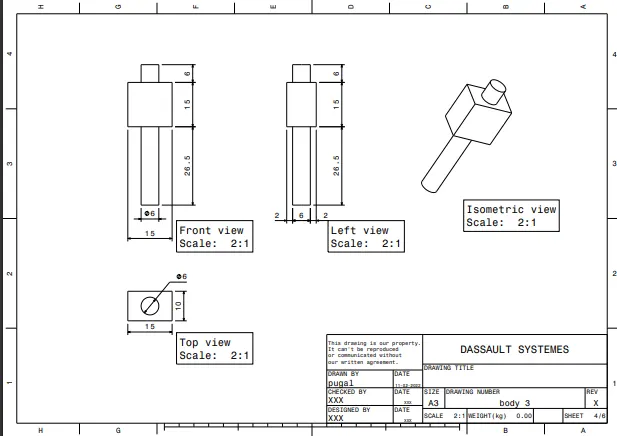

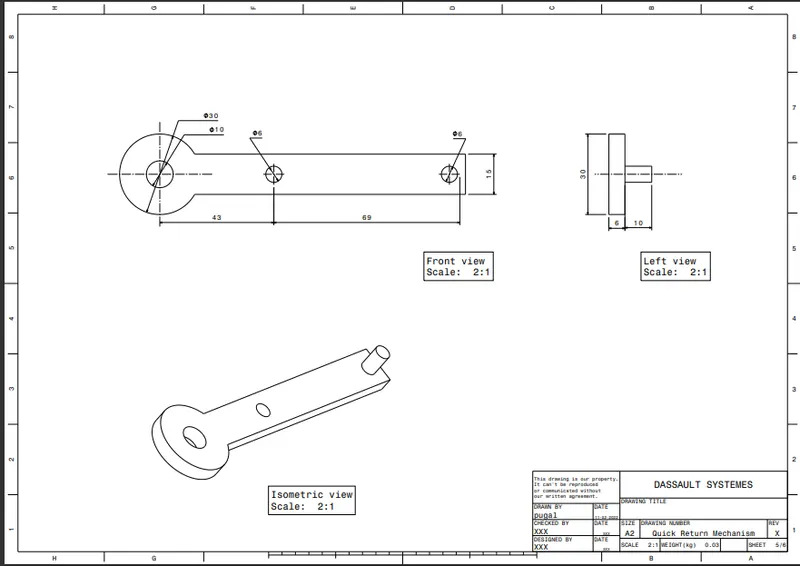

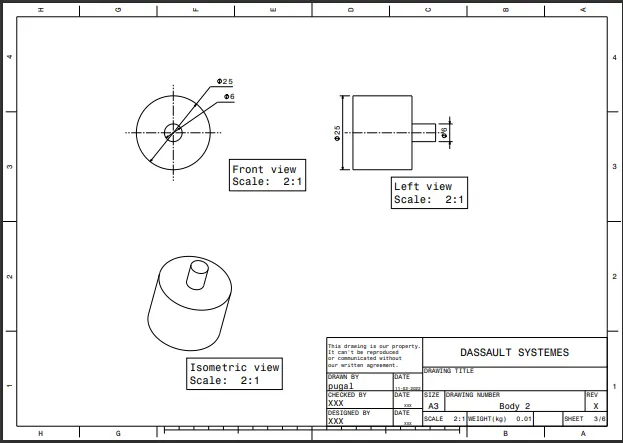

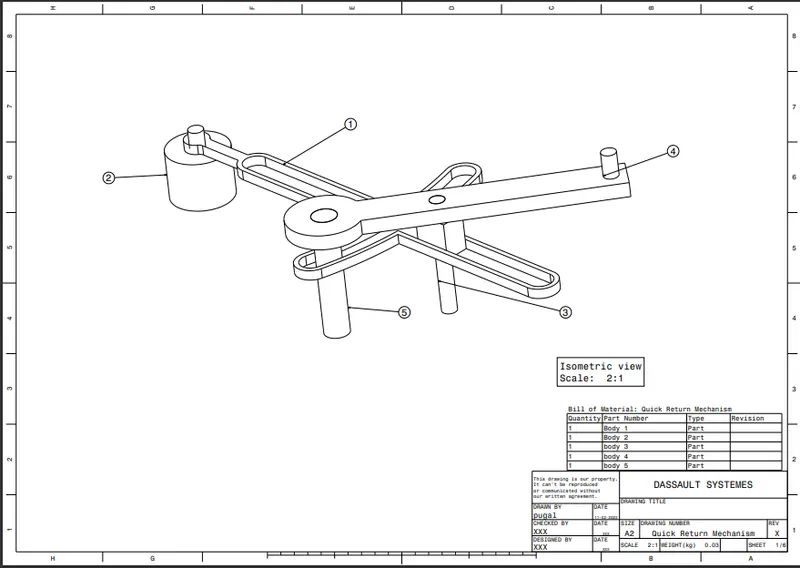

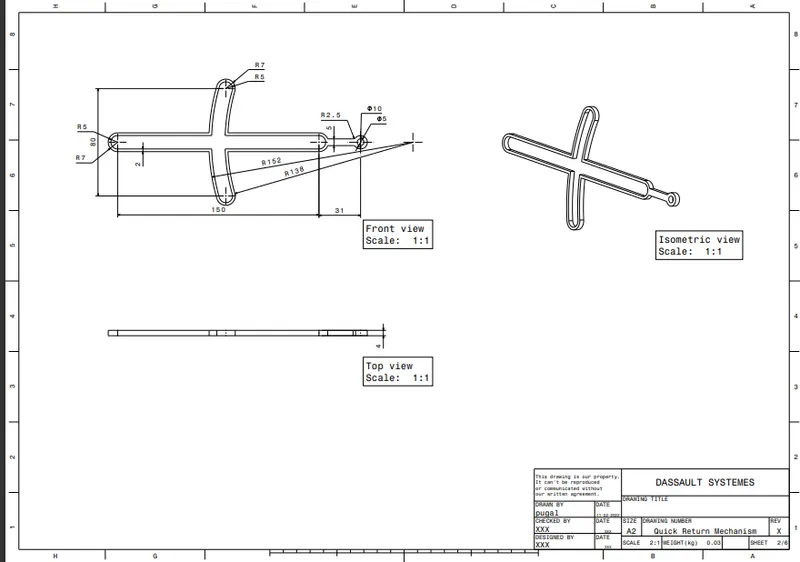

2D Drafting:
In drafting, the assembly and its parts are converted to 2d for their better understanding in the further process of the product life cycle.
