Week 10:- 2D Detailing Challenge

Aim:

1)Draft a Key Sheet for the Complete Fixture assembly created in challenge 8.

2)Draft a Base Unit and the Fix Pin Unit drawings with all child parts for the complete Fixture assembly from challenge 8.

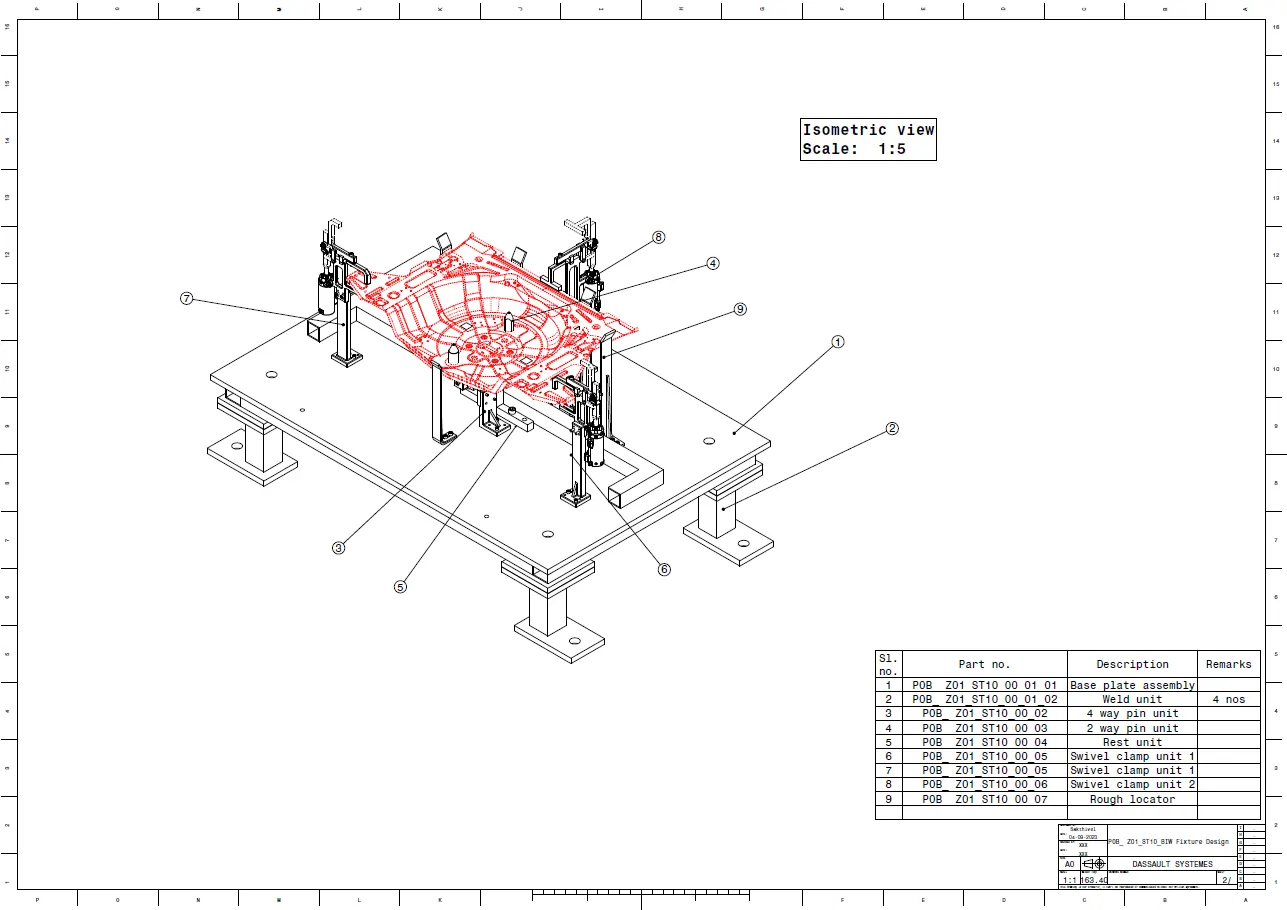

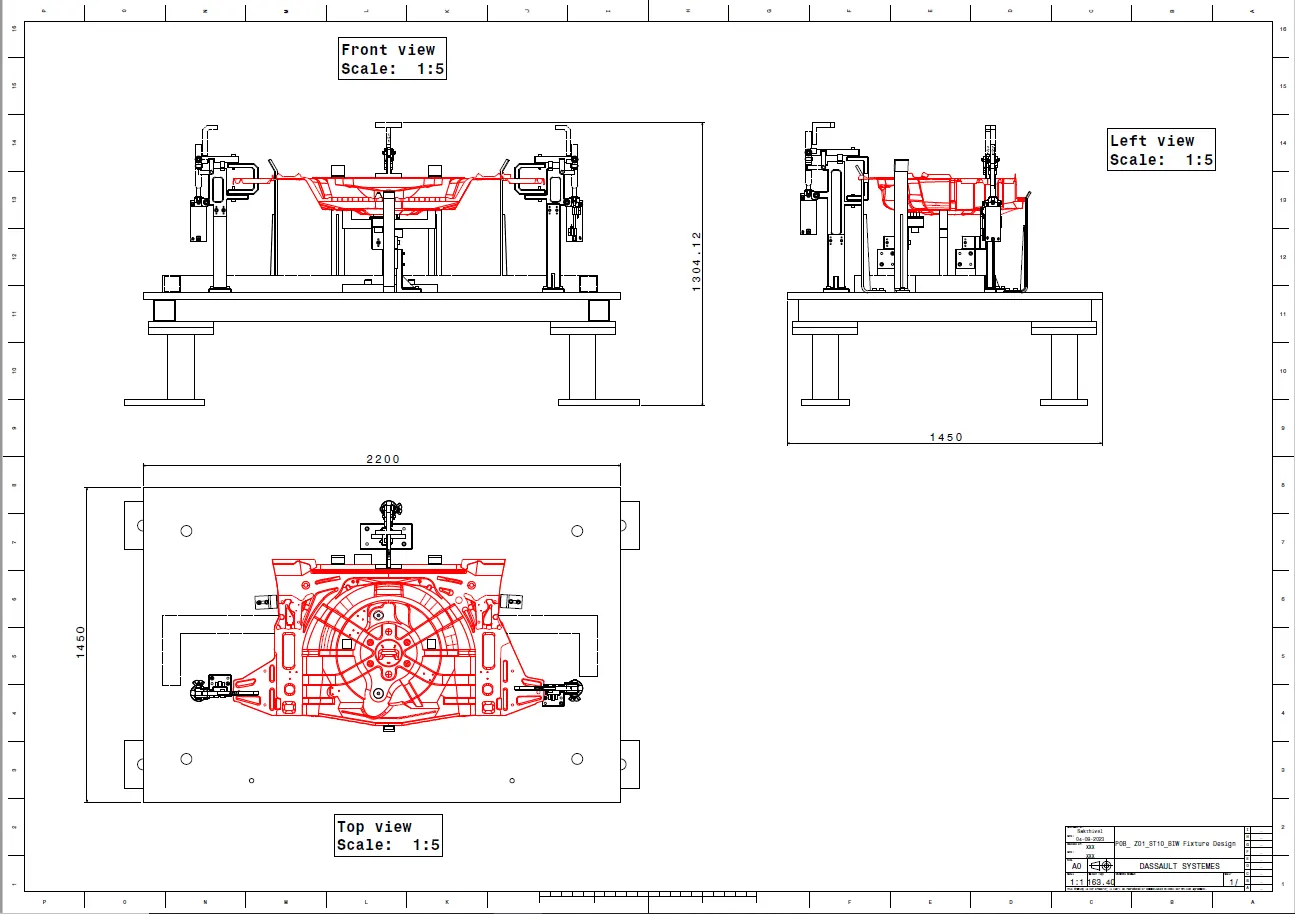

Key Sheet For Complete Fixture Assembly:

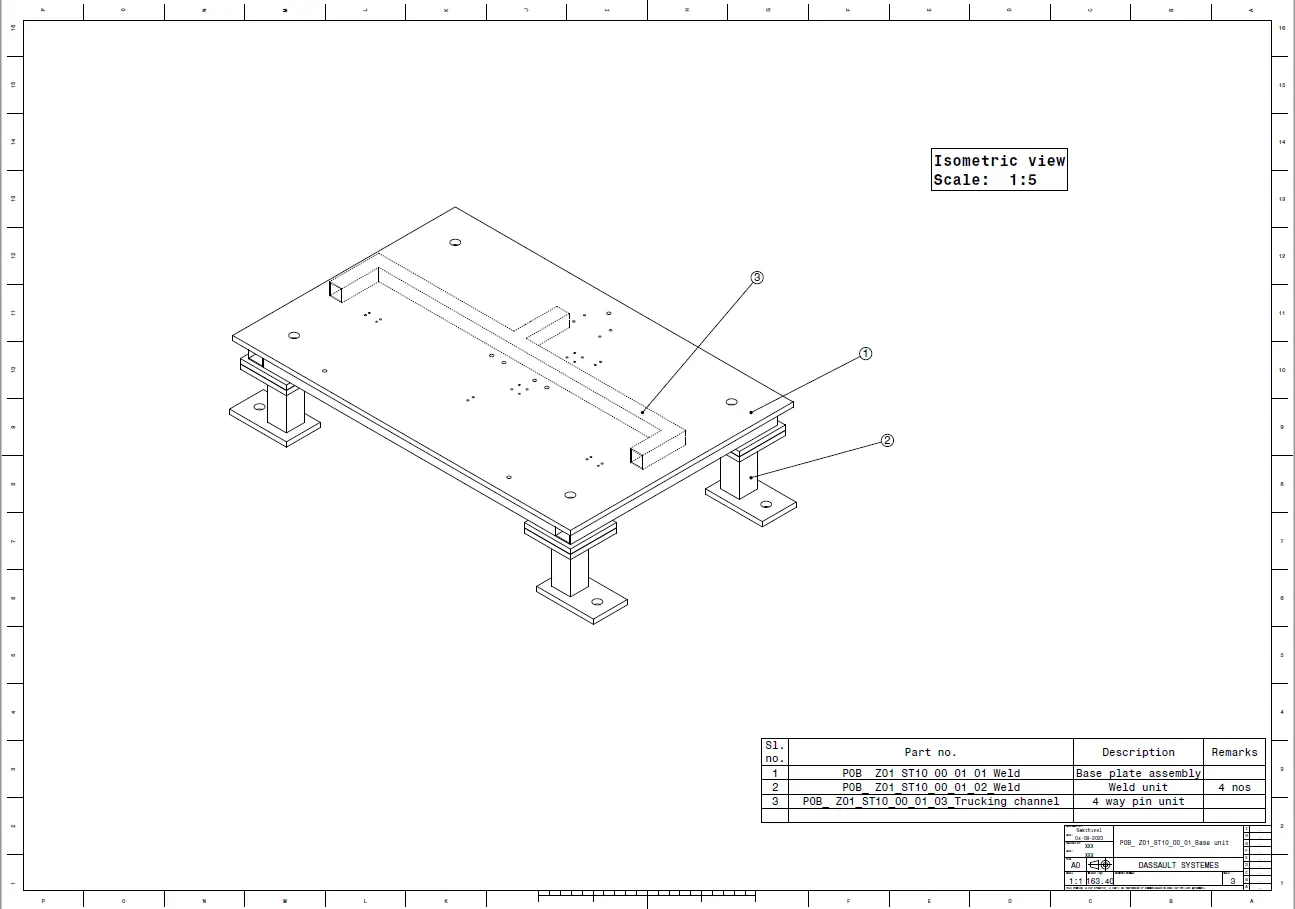

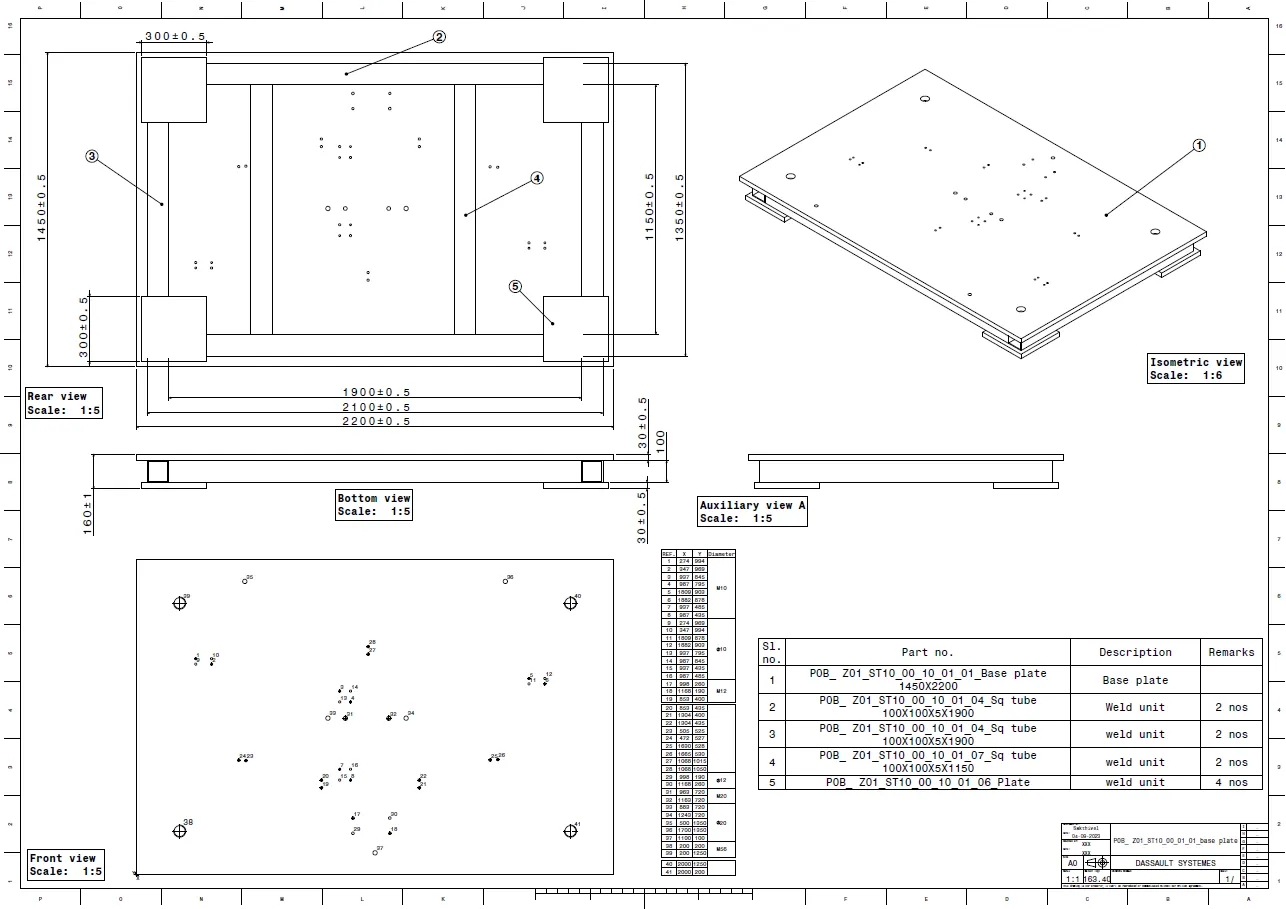

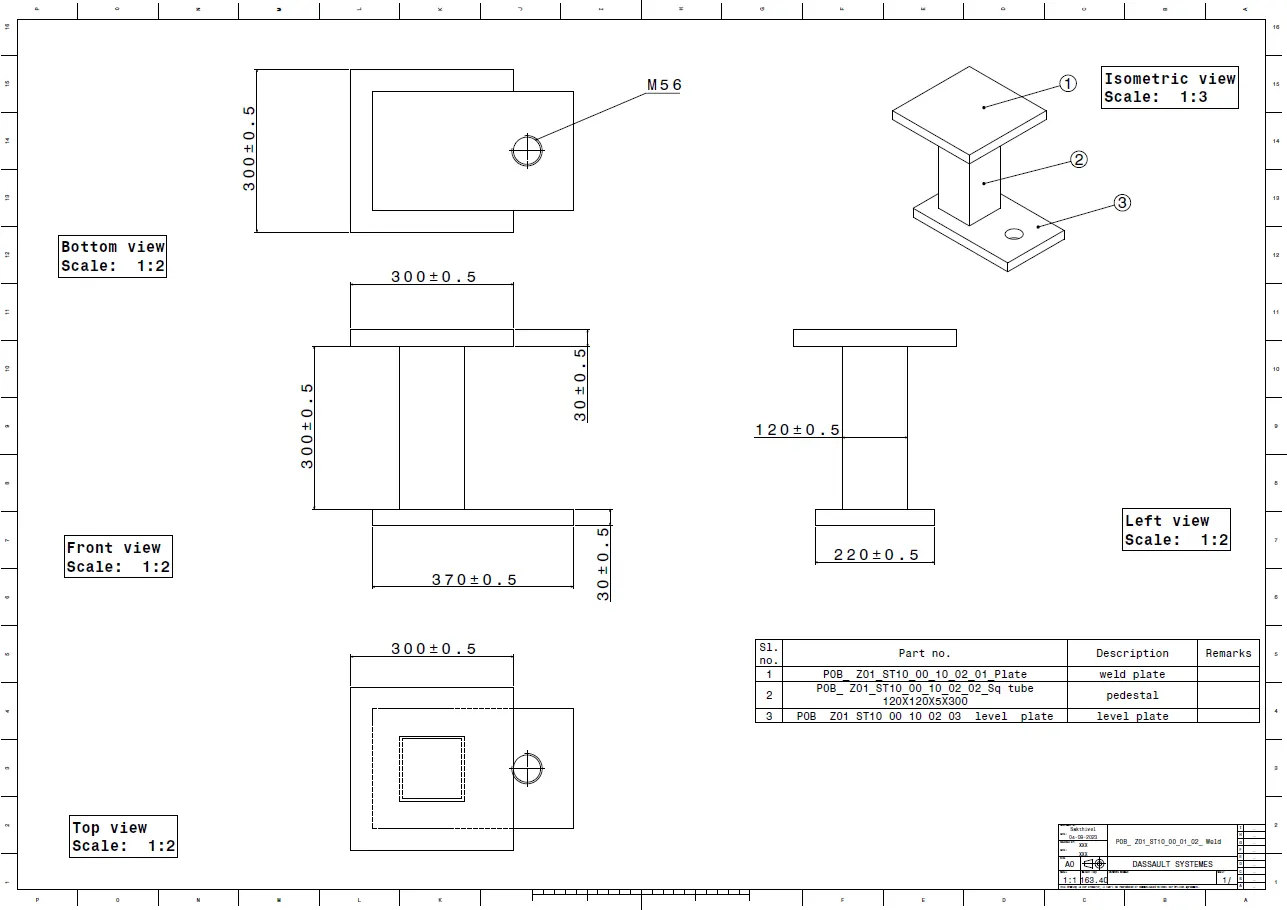

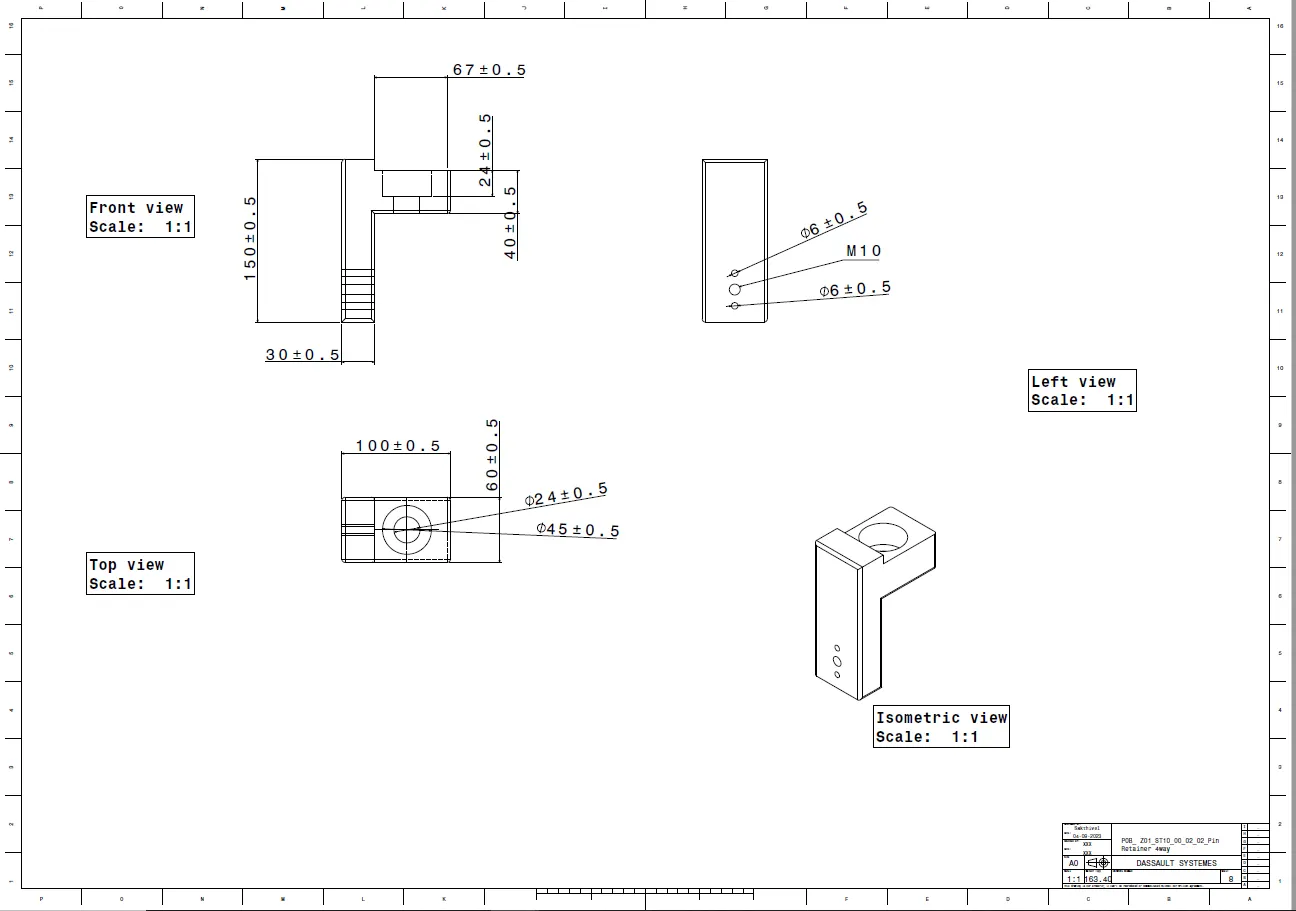

Base Unit Drawings:

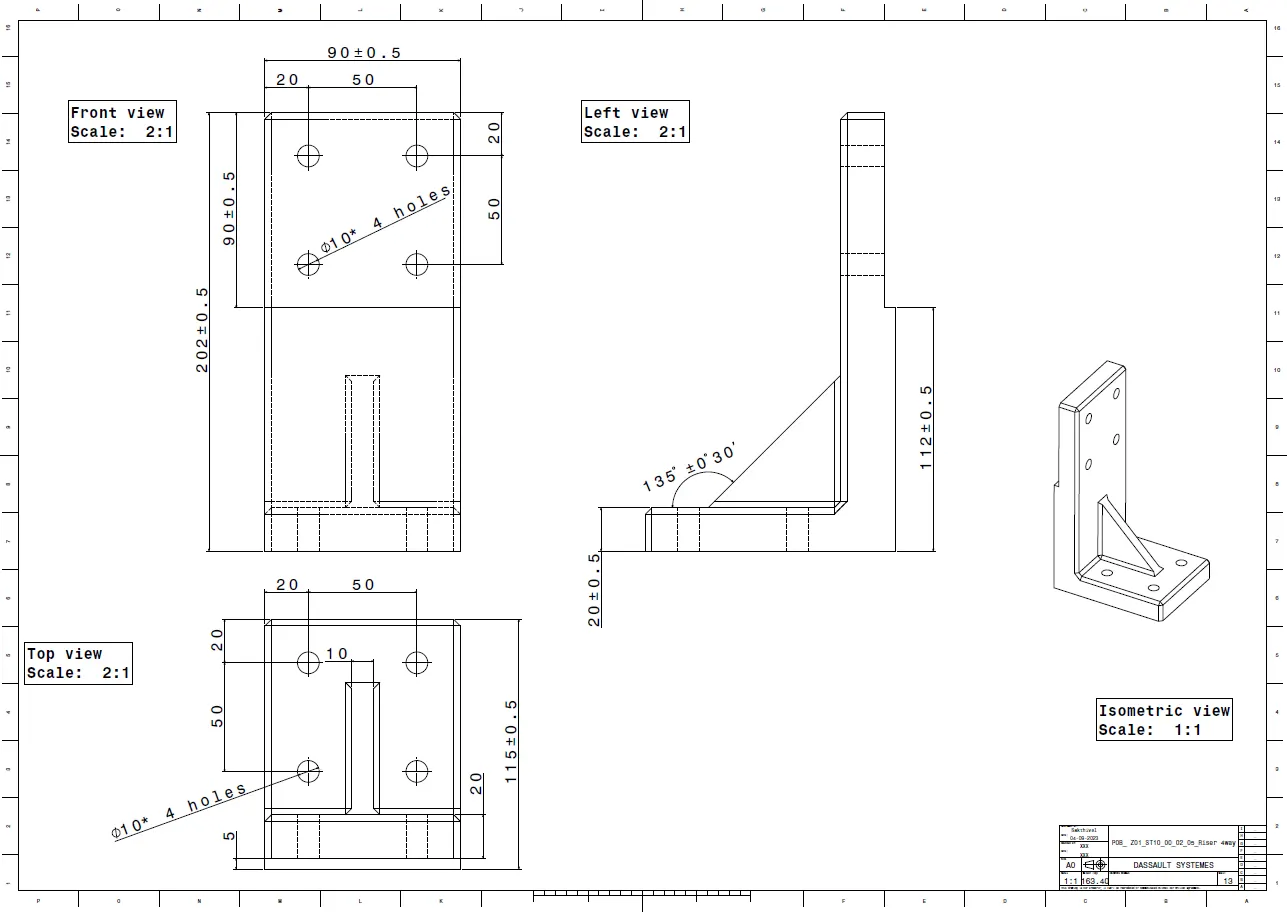

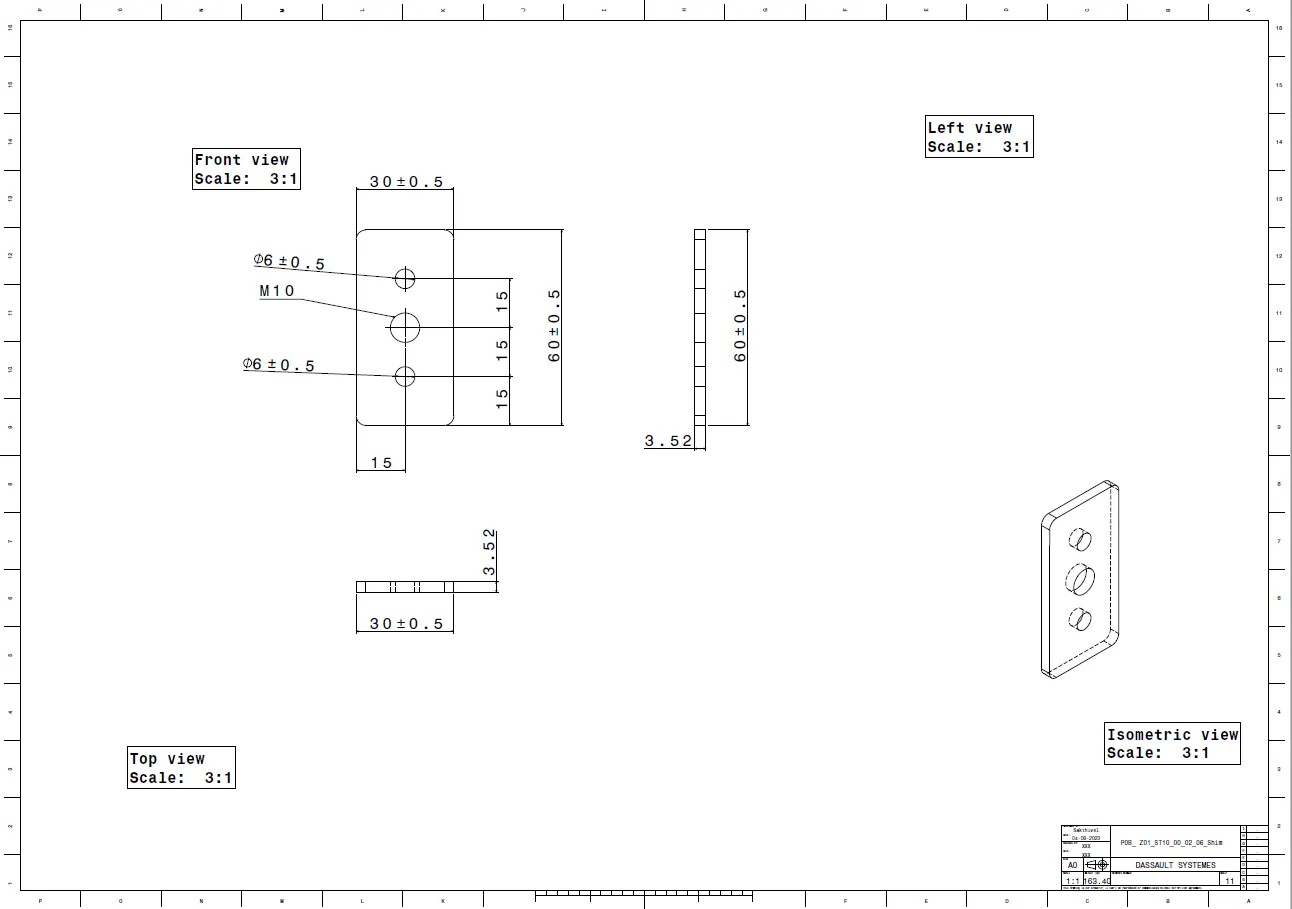

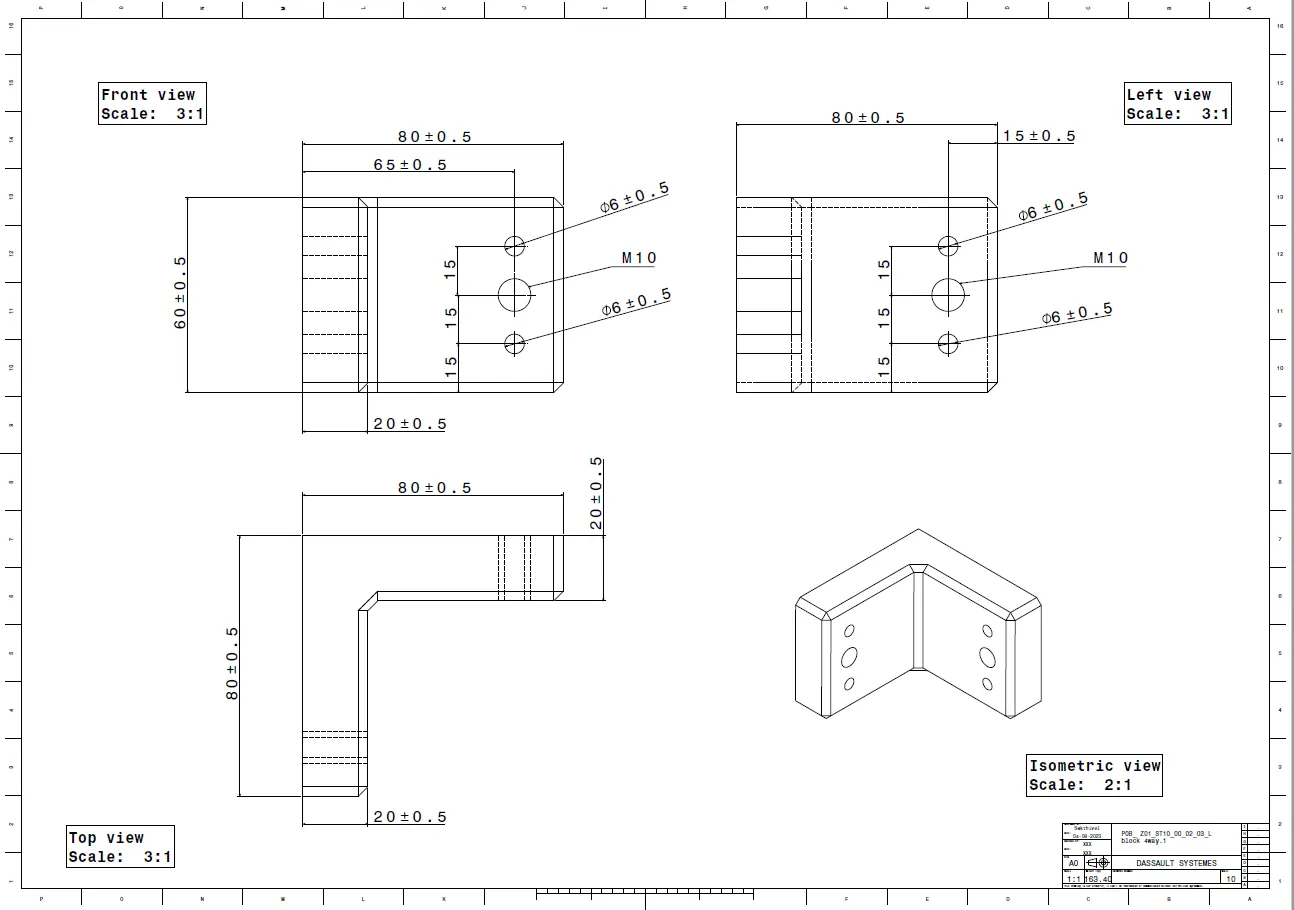

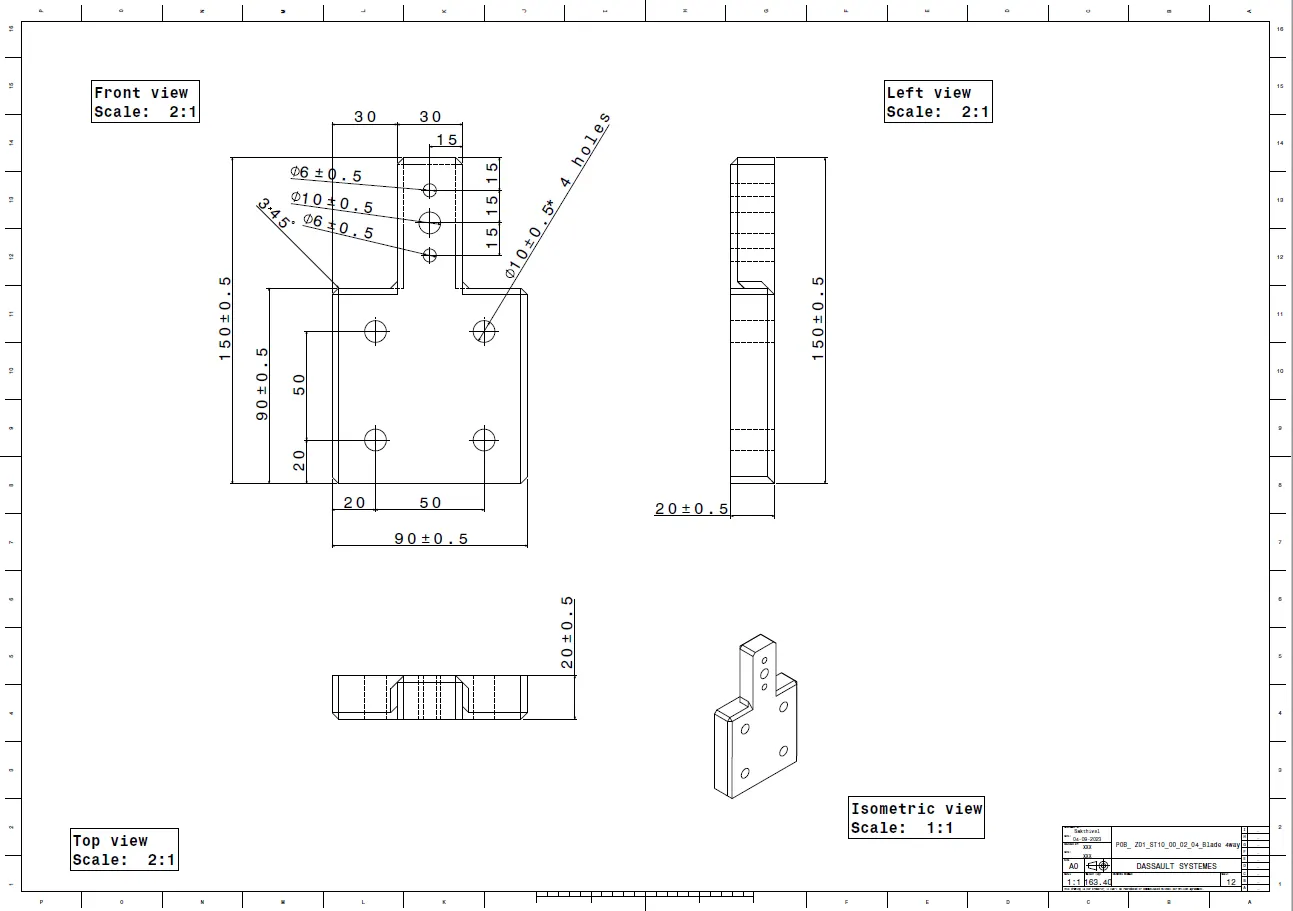

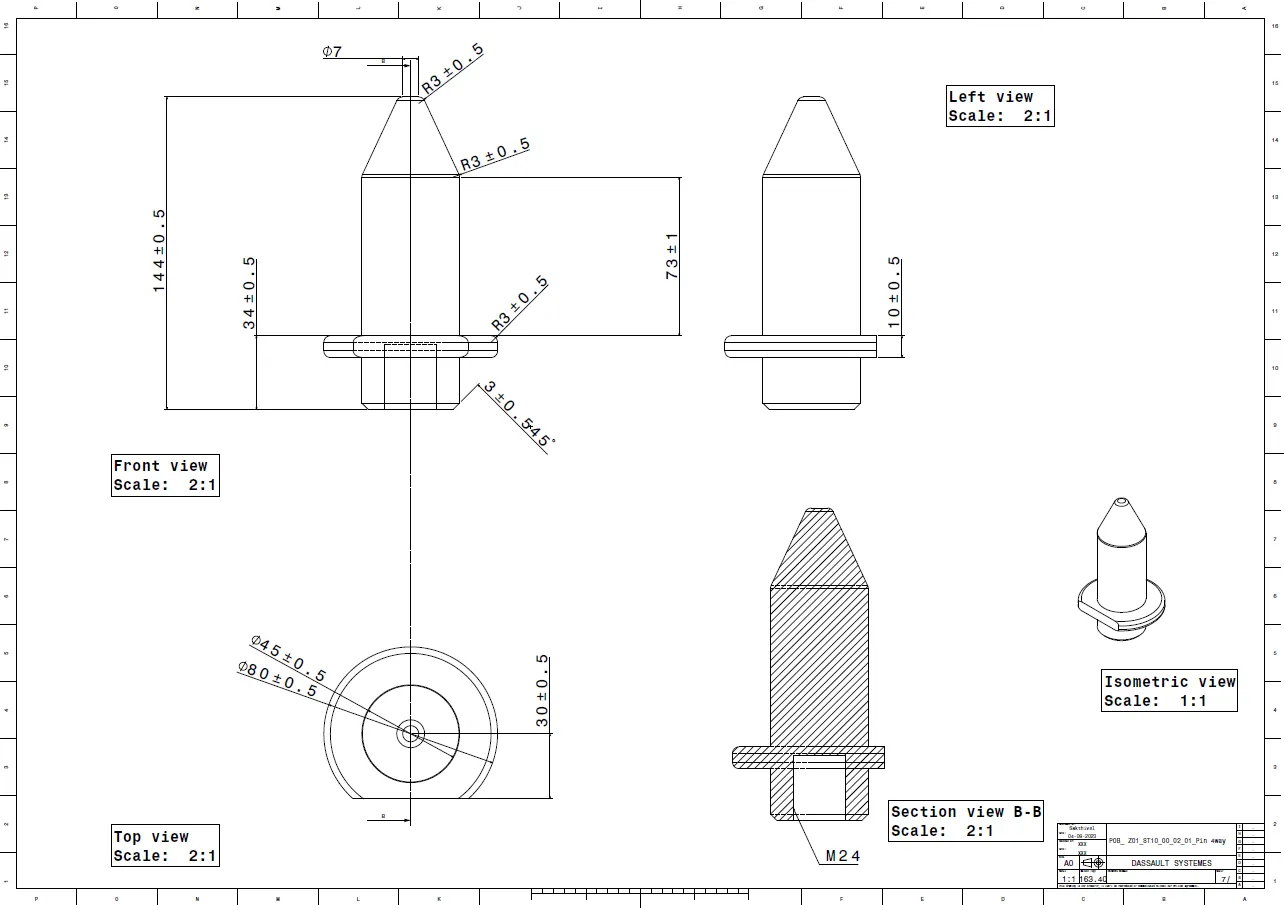

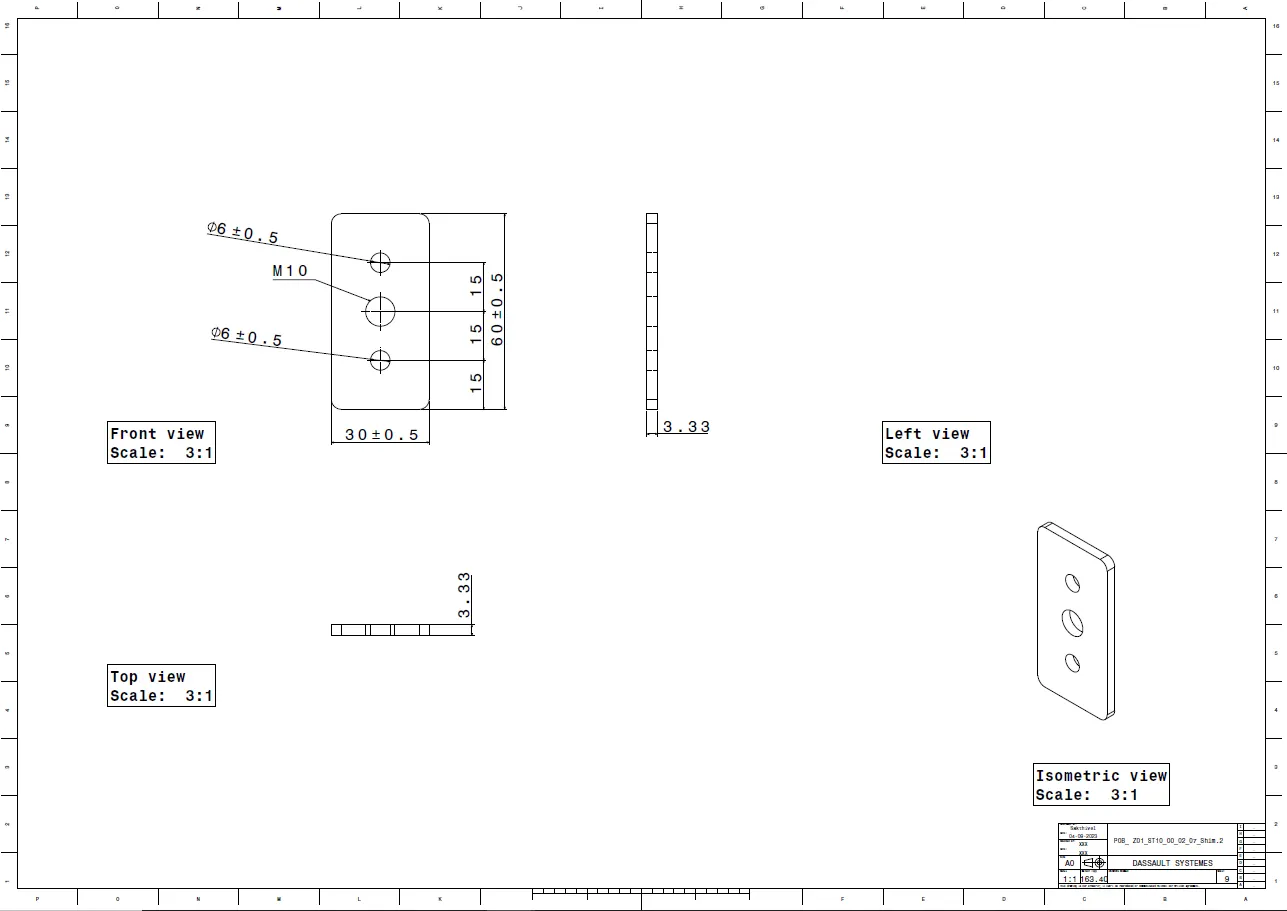

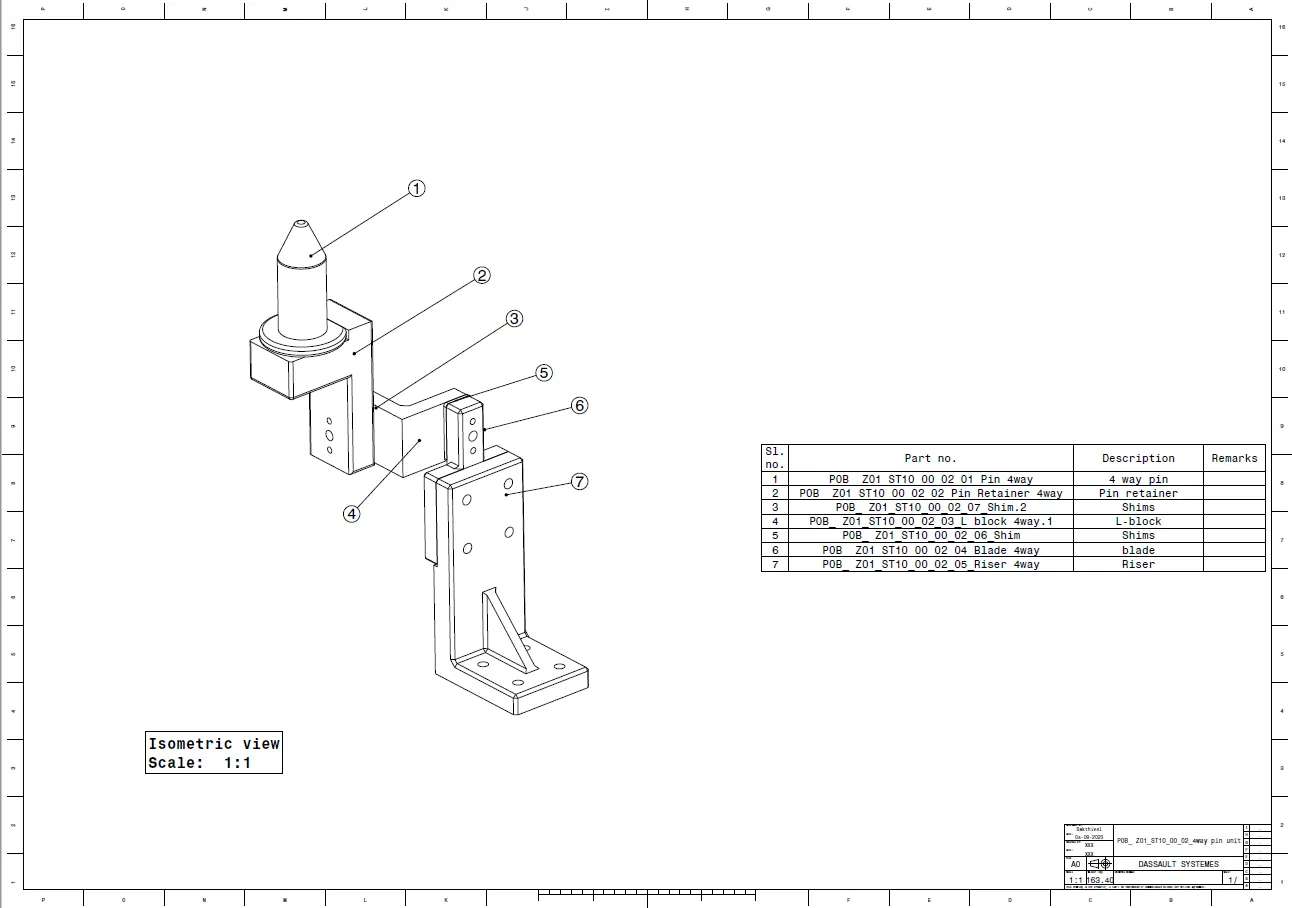

4 way Pin Unit  Drawings:

Conclusion

A detailed drafing of the complete fixture assembly, base unit and pin unit were done. A proper dimensioning were provided to the parts.
