Week 10:- 2D Detailing Challenge

OBJECTIVE:

Draft a key sheet for the complete fixture assembly and draft a base unit and fixed pin unit drawings with all child parts for the complete fixture assembly.

KEYSHEET:

Keysheet an index of units &their placement on the tool base.Keysheet shows placement and location of that particular unit on tool base where exactly & exact position of tool base.

Keysheet is showing orthogonal or isometric view of that entire unit.

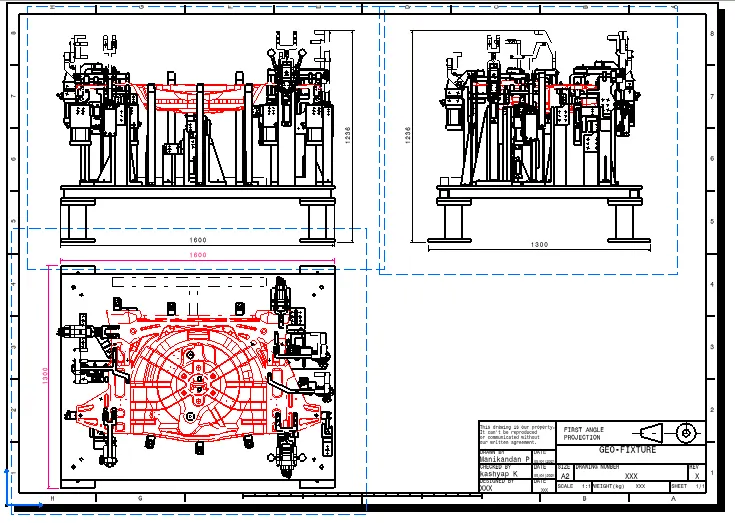

below fixture shows orthographic projection view of fixture assembly.

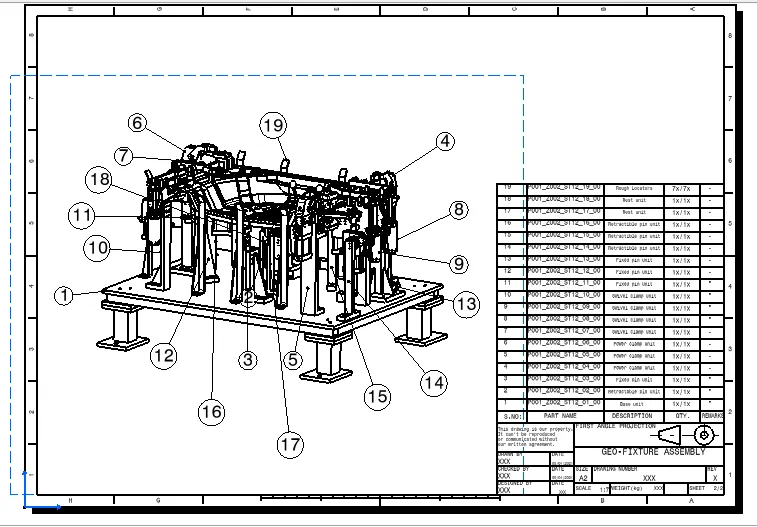

below fixture shows isometric view of fixture assembly.

In fixture assembly there are three kinds of parts majorly manufactured,brought out parts &hardwares.

Manufactured parts are those which taken from supplier or vendors.Here we are detailing each and every child parts of unitwhich is manufactured.some manufactured parts are repeatedly used in multiple units.This reduces designing and drafting time drastically.

Brought parts are those which are purchased from catalogue.These are standard parts universally accepted & manufacture in bulk & stored.It has required less lead time.Also use of std. parts/brought out parts also reduces drafting time as there no need to detail.

Hardwares are standard parts & same STD followed every where.so no detailing required.

BASE UNIT:

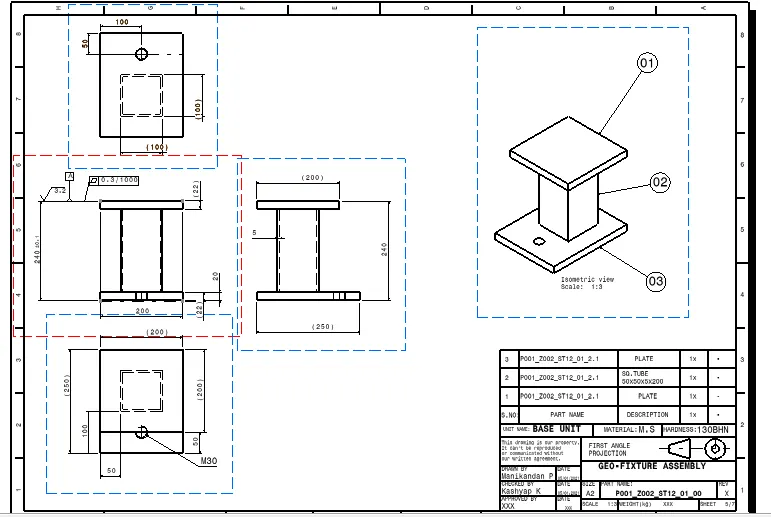

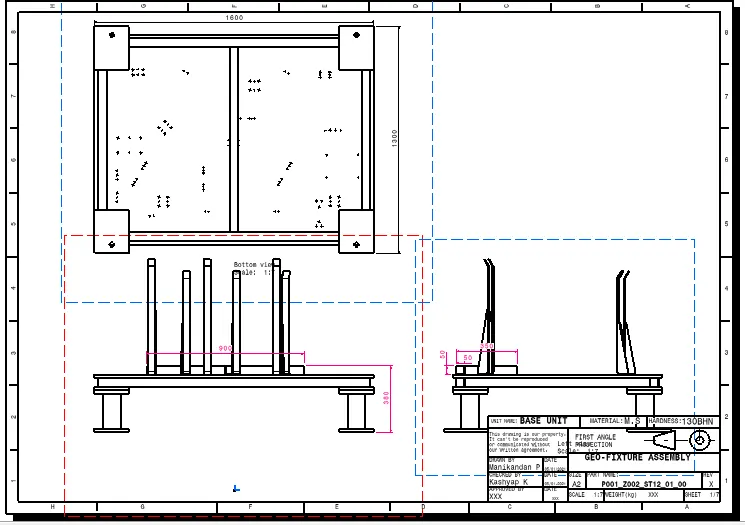

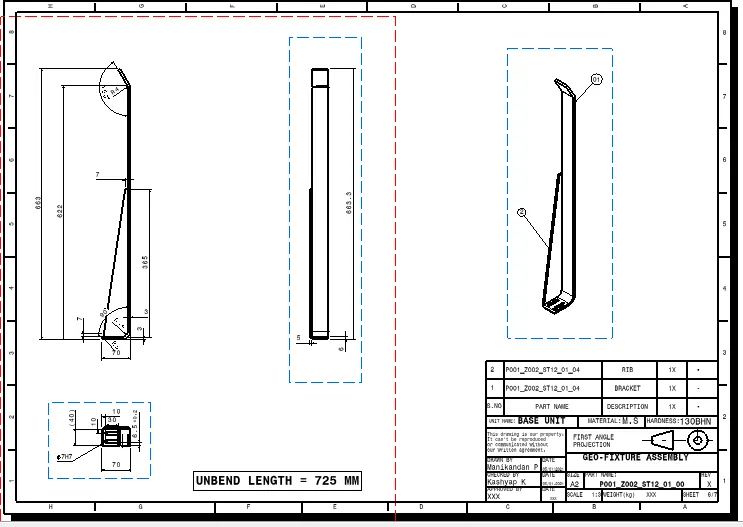

• DETAILING OF BASE UNIT(P001_Z002_ST12_01_00)

Below fig.shows ortho view of base unit.

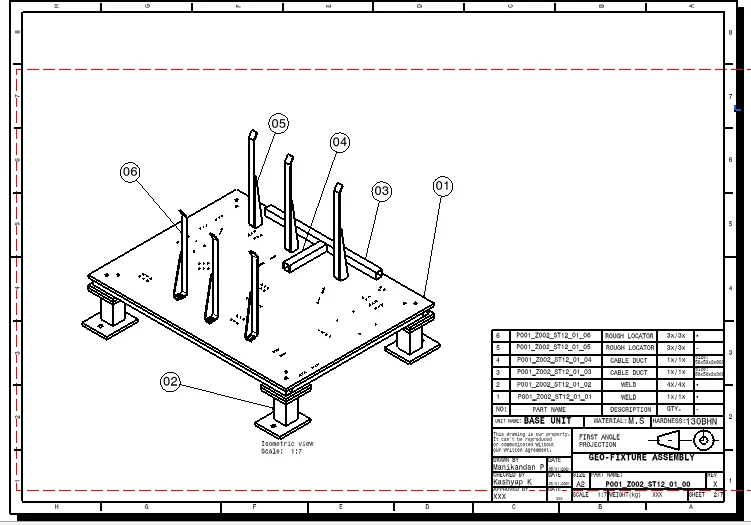

Below fig.shows iso-view of base unit.

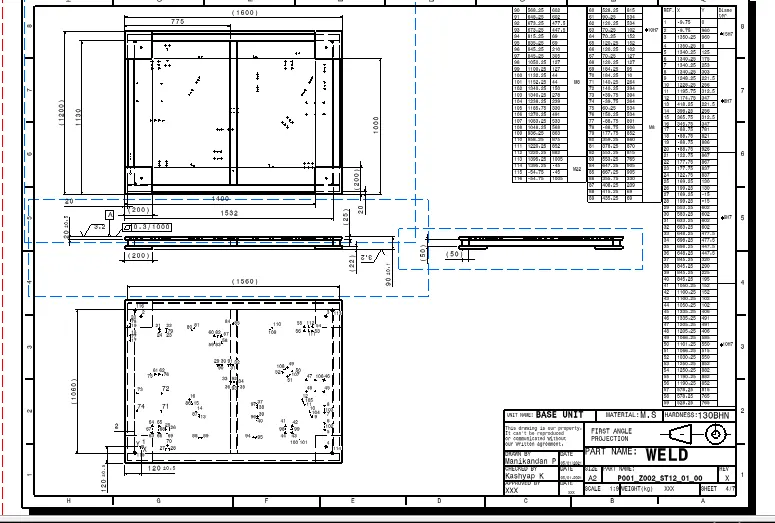

• DETAILING OF BASE PLATE(P001_Z002_ST12_01_1.1_WELD)

Below fig.shows ISO-view of base plate with child parts.

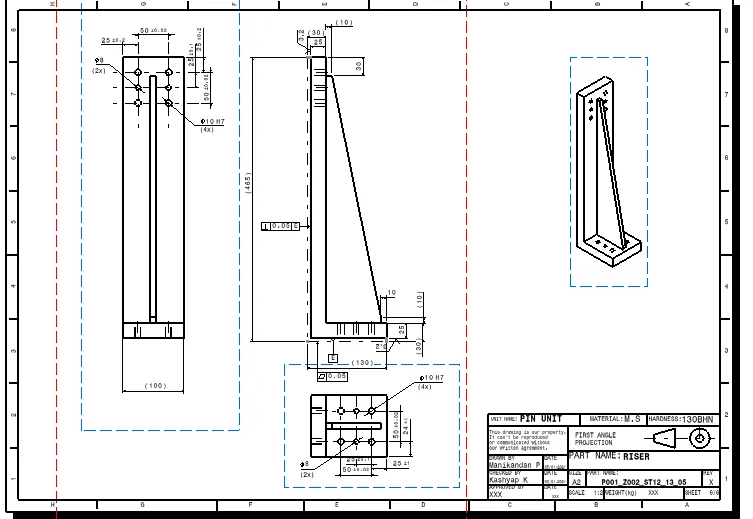

• DETAILING OF BASE PLATE SUPPORT(P001_Z002_ST12_01_1.2_WELD)

Below fig.shows Orthographic view of base plate with dimension.

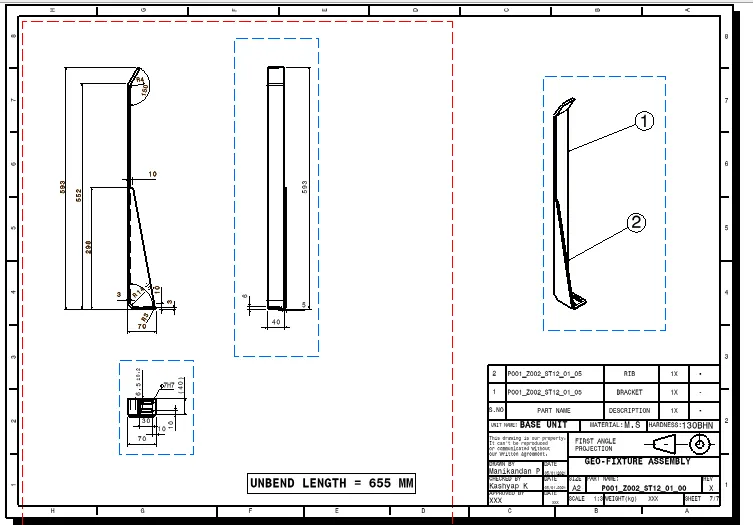

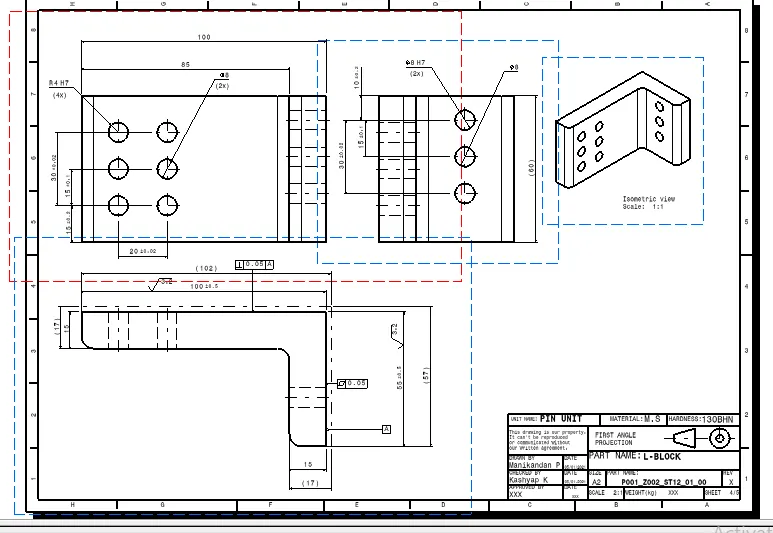

• DETAILING OF LOCATOR BRACKET(P001_Z002_ST12_01_1.3_ROUGH LOCATOR)

Below fig.shows detailied view of rough locator bracket.

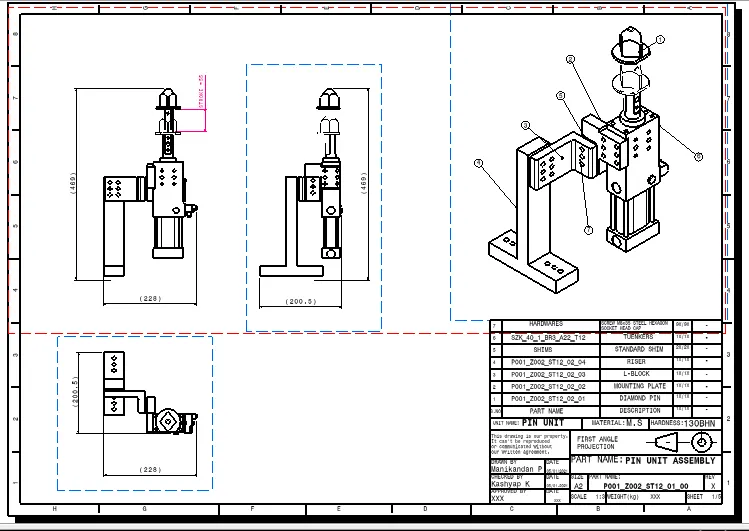

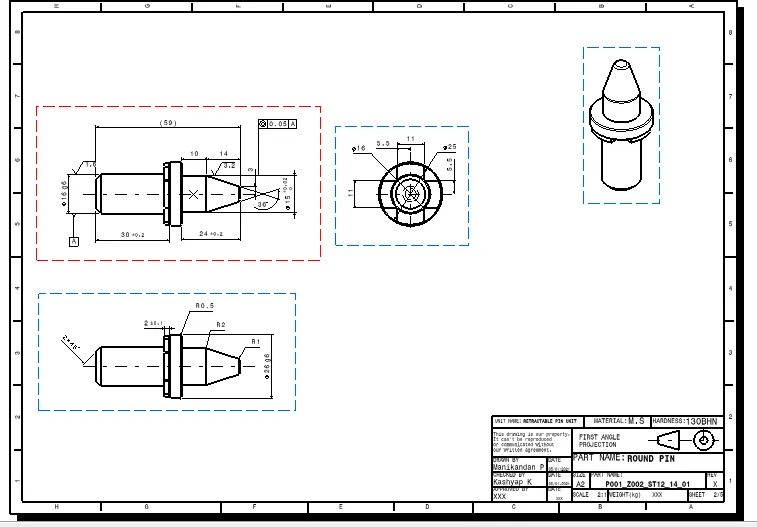

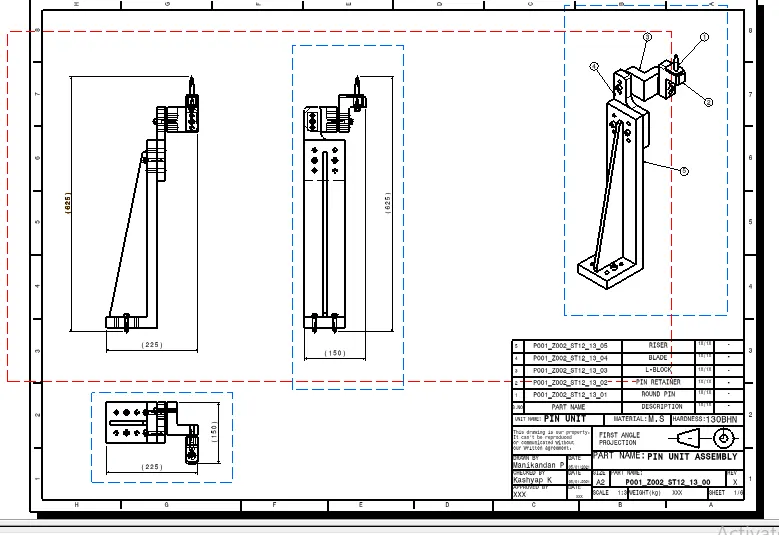

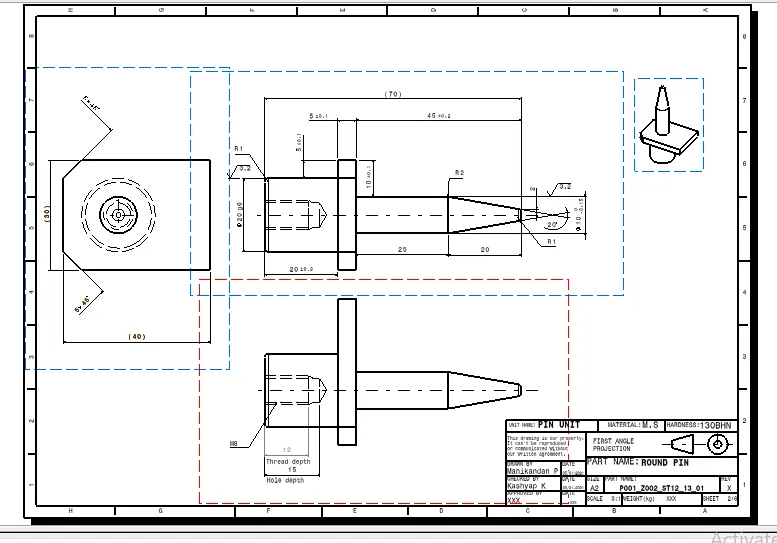

• DETAILING OF RETRACTABLE PIN UNIT(P001_Z002_ST12_02_00)

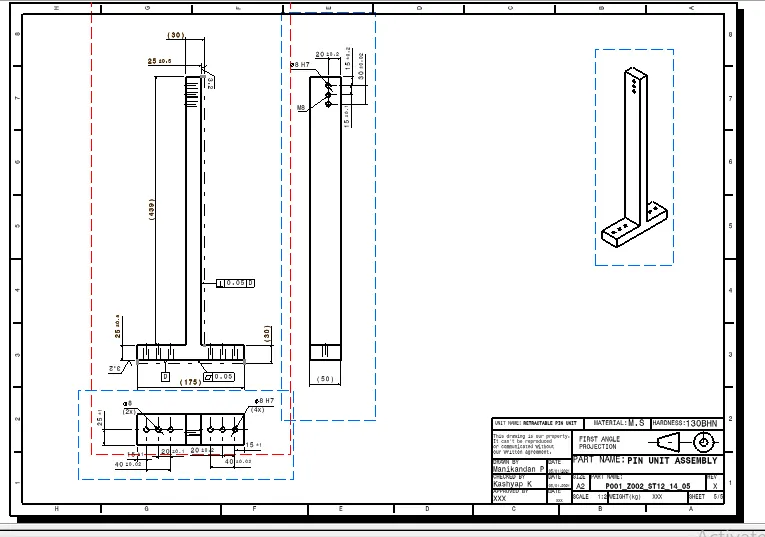

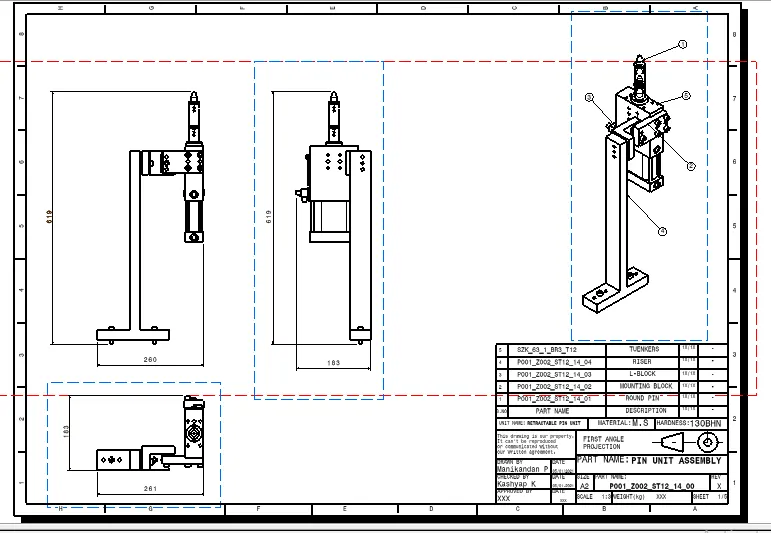

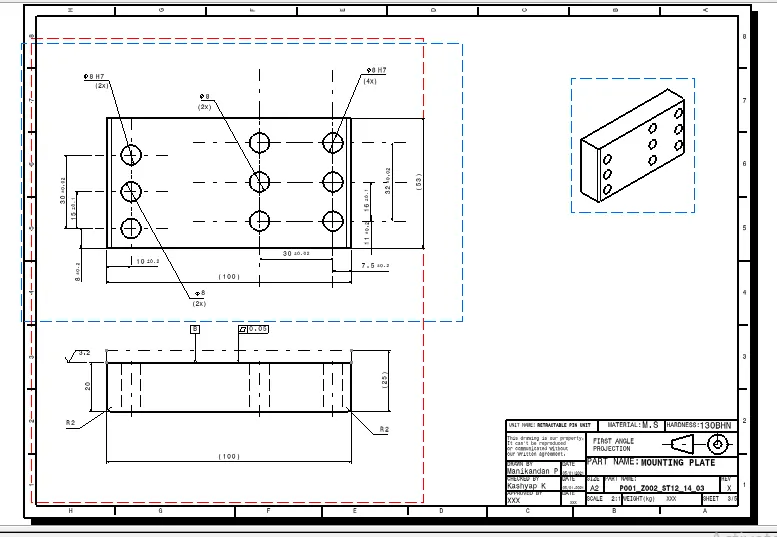

Below fig.shows detailied view of retractable pin unit-1

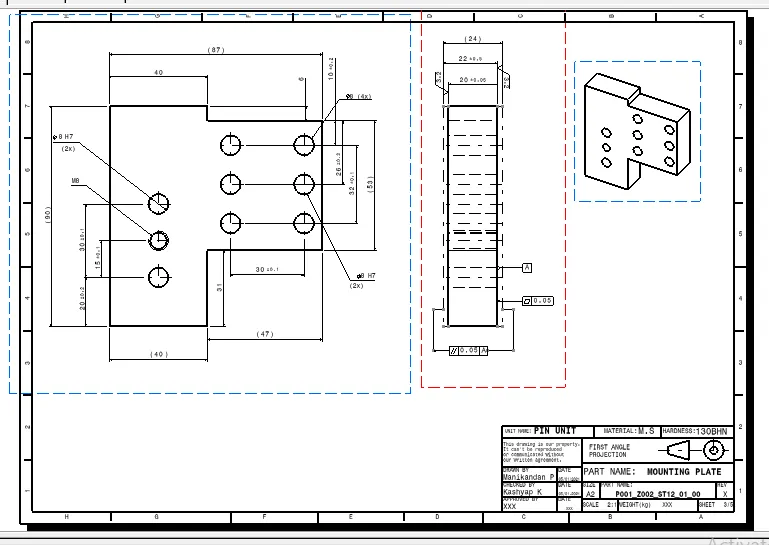

Below fig.shows detailied view of retractable pin unit-2

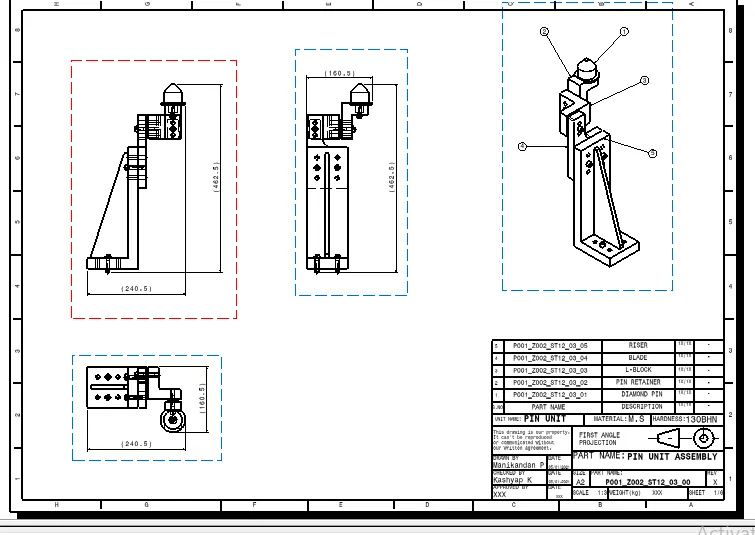

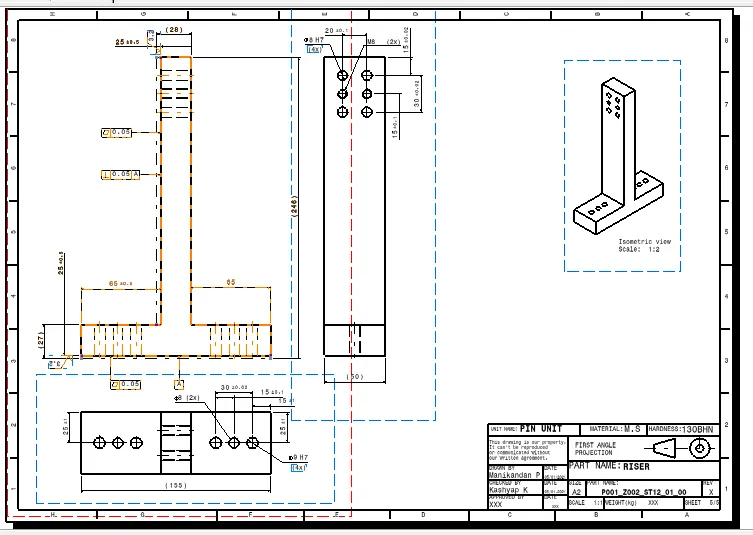

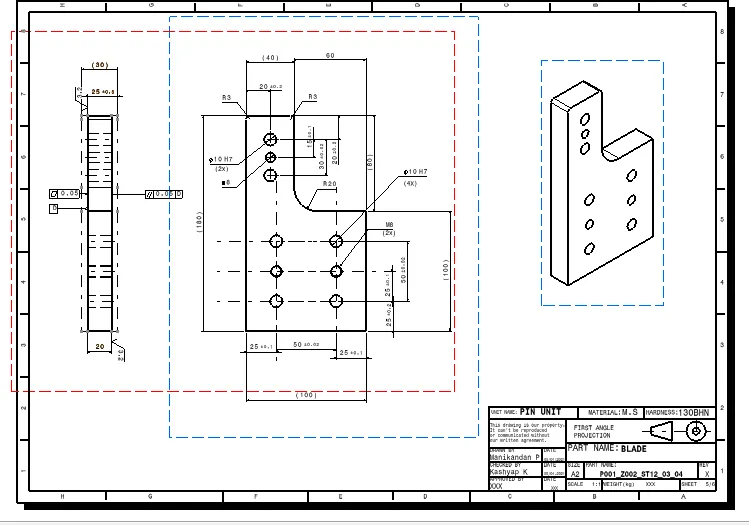

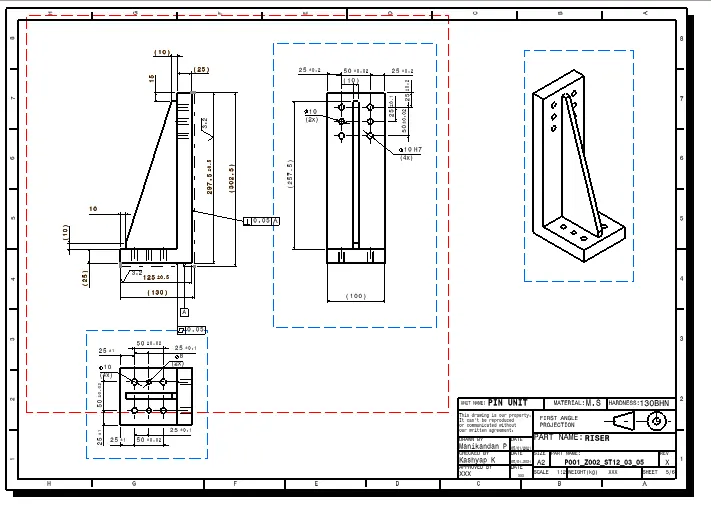

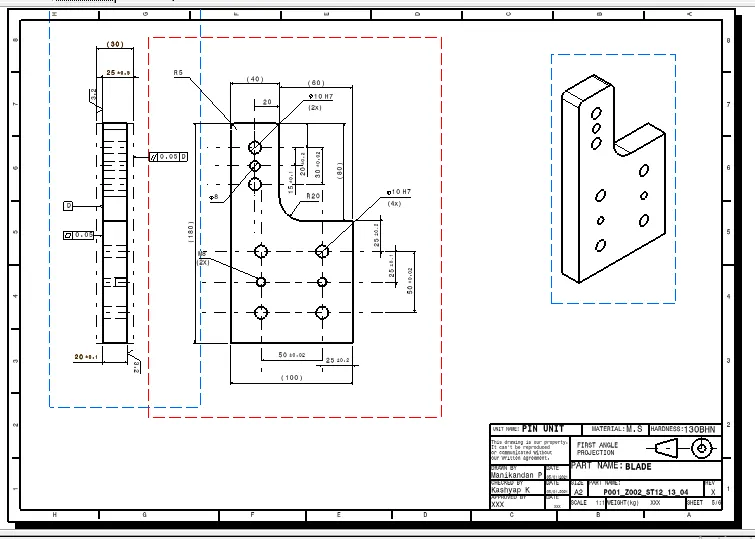

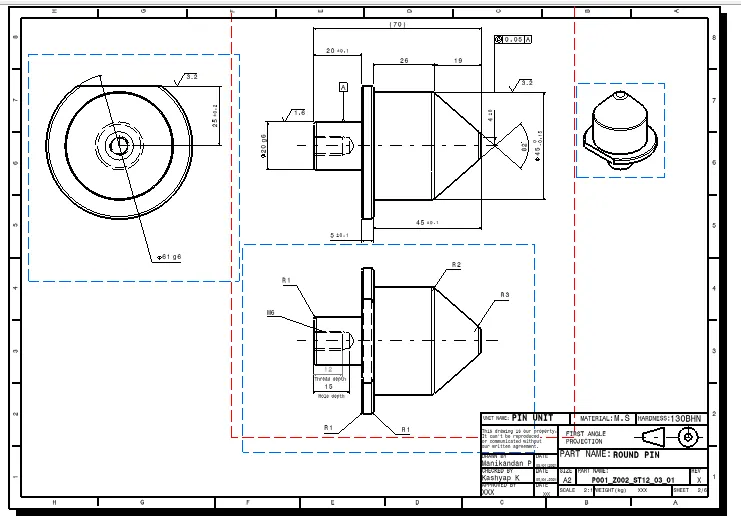

• DETAILING OF FIXED PINUNIT(P001_Z002_ST12_03_00)

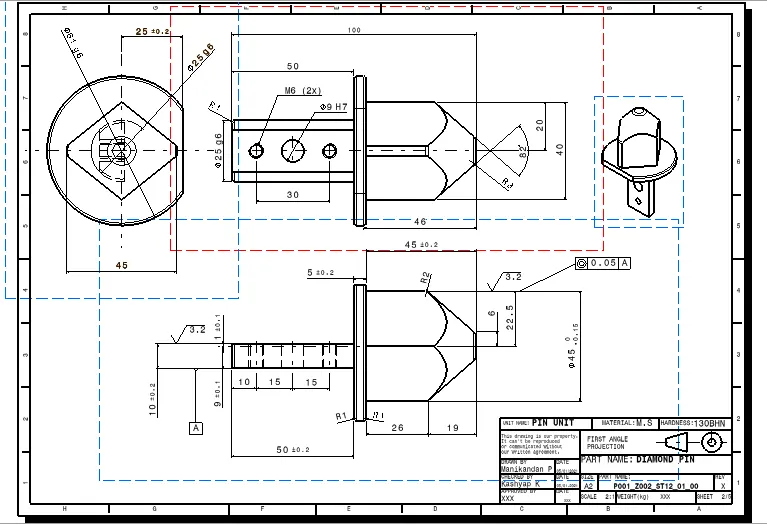

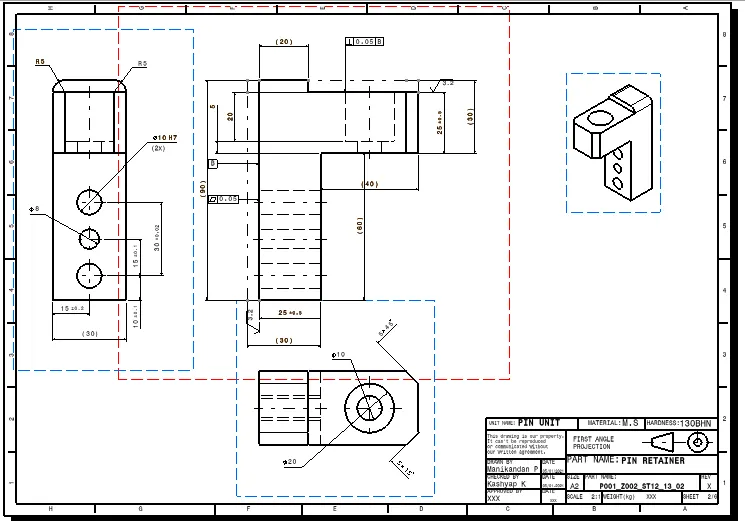

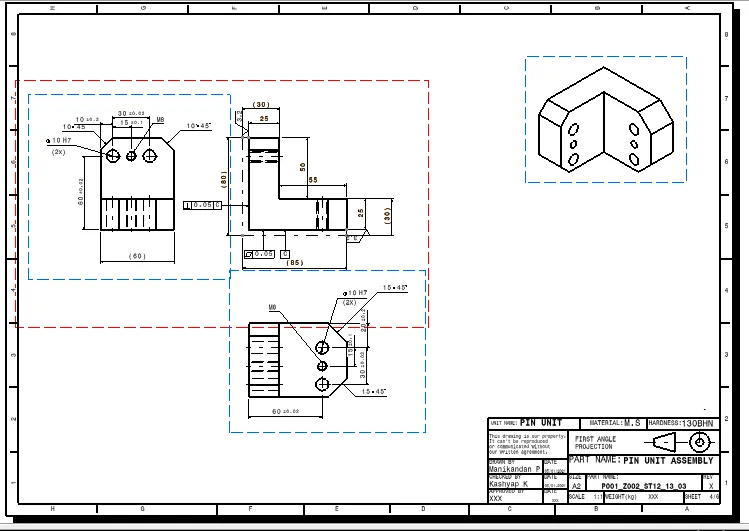

Below fig.shows detailied view of Fixed pin unit-1

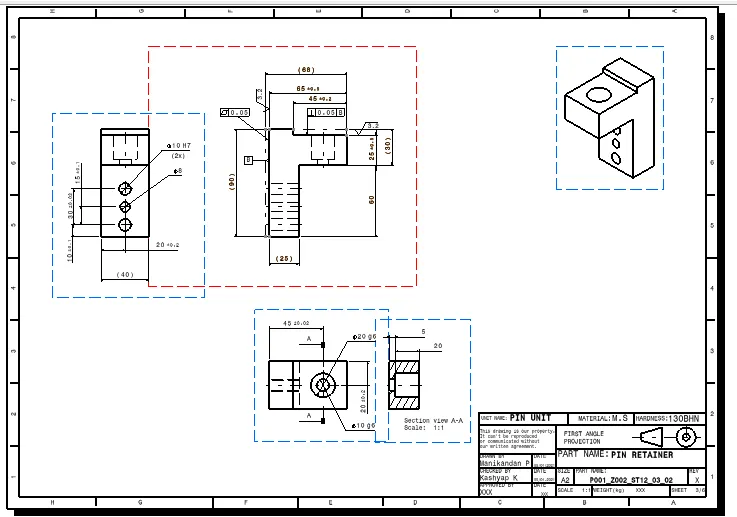

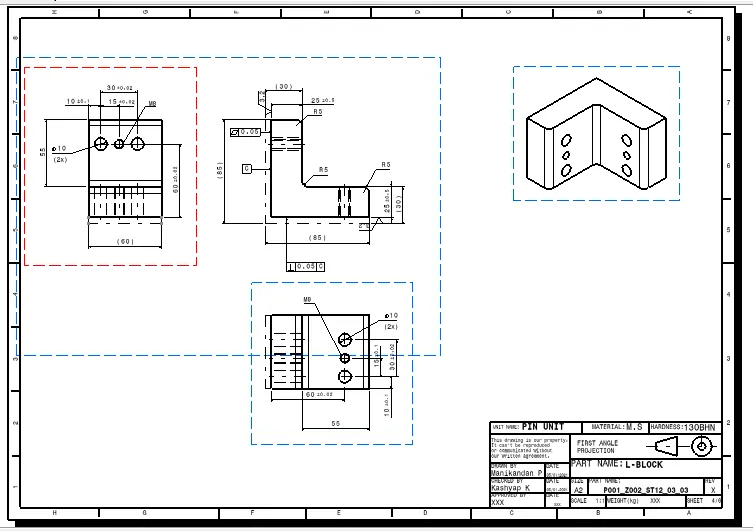

Below fig.shows detailied view of Fixed pin unit-2

CONCLUSION:

Thus as per the objective drafting a key sheet for complete fixture assembly and drafting for base unit and pin unit with all child parts is done using CATIA V5 software.
