Week 1 Understanding Different Battery Chemistry

1. Prepare a table that includes materials & chemical reactions occurring at the anode and cathode of LCO, LMO, NCA, NMC, LFP, and LTO-type lithium-ion cells. Give your detailed explanation of it

2. Compare the differences between each type of Li+ion battery based on their characteristics

Lithium-Ion:

A lithium-ion or Li-ion battery is a type of rechargeable battery in which lithium ions move from the negative electrode through an electrolyte to the positive electrode during discharge and back when charging.

Lithium-ion batteries are used in most aspects of our everyday lives. Most devices like smartphones and laptops cannot operate without these batteries. Lithium-ion batteries have also become very important in electromobility as they are now the battery of choice in most electric vehicles. Its high specific energy gives it an advantage over other batteries.

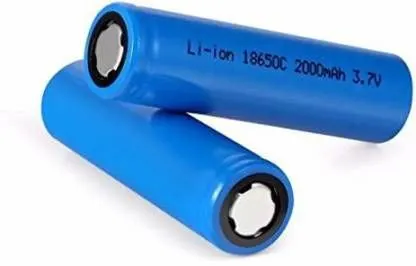

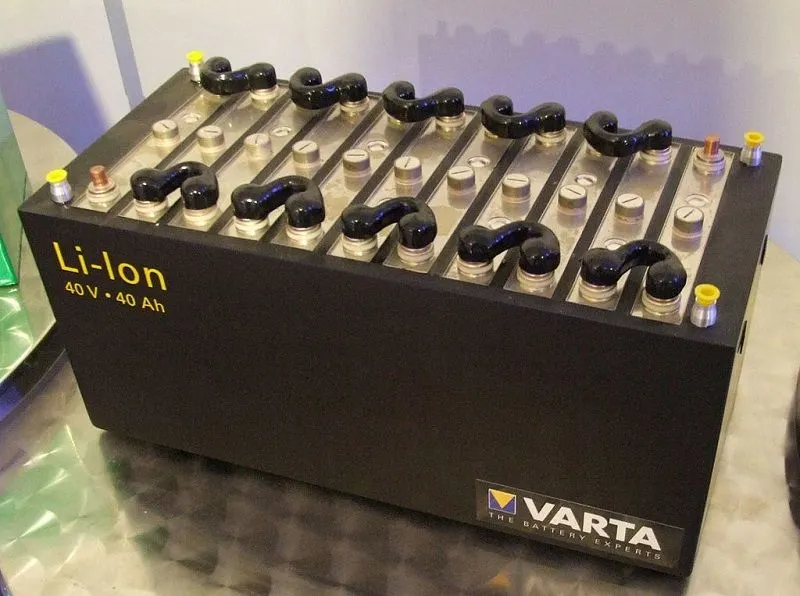

Mages of the Li-ion Batteries:

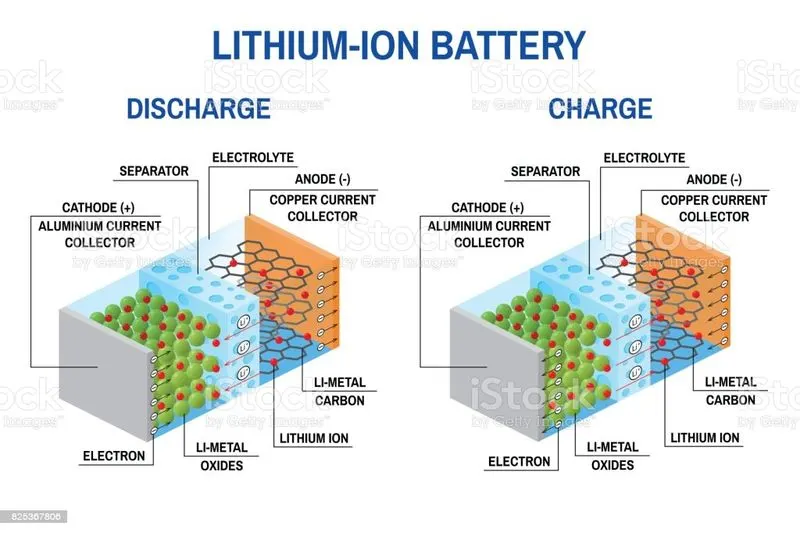

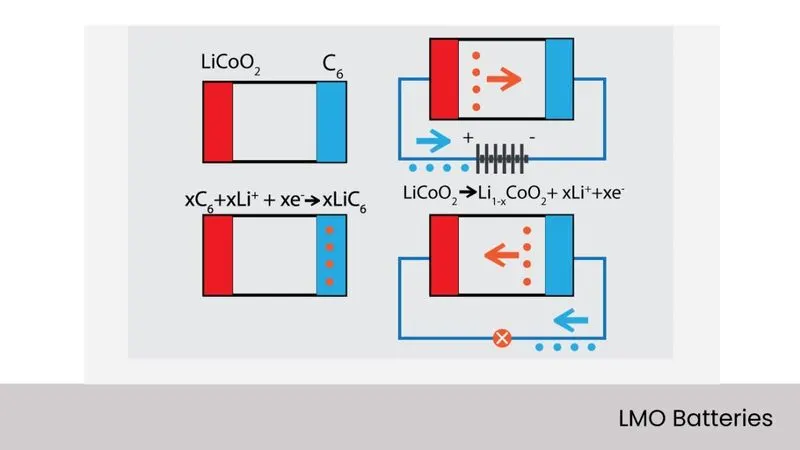

Charging and discharging process of the li-ion batteries:

Types of Li-ion batteries:

1. LCO: LCO stands for Lithium cobalt battery. Lithium cobalt oxide is one of the most common Lithium-ions; it has a chemical symbol which is LiCoO2, abbreviated as LCO. For simplification, Li-cobalt –which is short-term- can also be used for this type of battery. Cobalt is the core active material that defines the character of the storm.

LCO batteries technology and applications

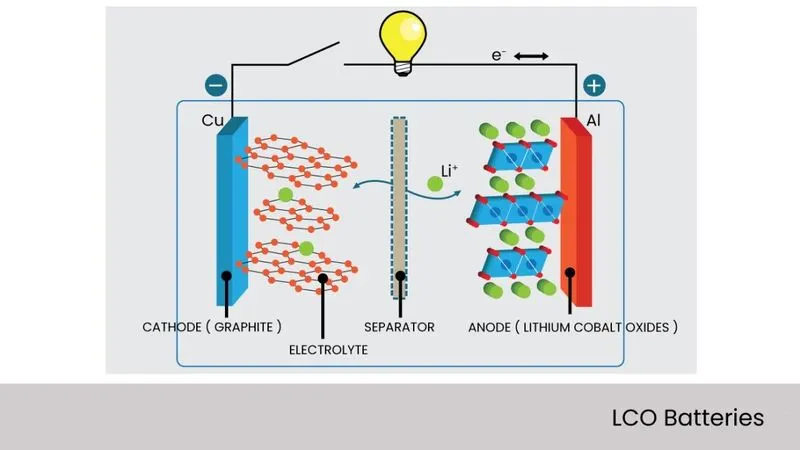

LCO (Lithium cobalt oxide) was invented in the year 1991. Its anode material is LiaC6, the cathode material is LibCoO2, and the carrier is Li+. It is used in various applications, from electronic devices to laptops and phone batteries. The majority of lithium-ion batteries for portable devices are cobalt-based. The system contains a cobalt oxide cathode (positive electrode) and graphite carbon anode (negative electrode).

2. LMO: LMO stands for Lithium manganese oxide batteries, commonly referred to as lithium-ion manganese batteries or manganese spinel. This battery was discovered in the 1980s, yet the first commercial lithium-ion battery made with a cathode material made from lithium manganese was produced in 1996.

LMO batteries technology and applications

LMO (Lithium magnesium oxide) was invented in the year 1996. Its anode material is LiaC6, the cathode material is LibMn2O4, and the carrier is Li+. It is used in different applications like power tools and electric cars. LMO batteries can deliver a lot of energy in a short period, which makes them extremely useful for use in power tools like drills. In 1996, lithium manganese oxide was first used as a cathode material. This structure formed a three-dimensional spinel structure; this improves the flow of ions between the electrodes. The high flow decreases the internal resistance and increases loading capability. LMO batteries are usually used in medical devices and equipment, power tools, electric bikes, and more. Because of their thermal resistance and higher safety. LMO batteries can also be used for laptops and electric cars.

3. NCA: NCA battery stands for Lithium nickel cobalt aluminum oxide-based battery (LiNiCoAlO₂). Also, NCA batteries are becoming increasingly critical in in-grid storage and electrical power terrain applications.

NCA battery technology and applications

NCA (Lithium nickel cobalt aluminum oxide) battery was invented in 1999. Its anode material is LiaC6, the cathode material is LibNi0.8Co0.15Al0.05O2, and the carrier is Li+. It is used in different applications like power grid applications, medical devices, and electric cars. Most notably, Tesla deploys NCA batteries in their electric vehicle's system. NCA batteries can store the same amount of energy as NMC. NCA batteries are not widely shared in the consumer industry but are quite promising in the electric car industry.

4. NMC: NMC stands for Lithium Nickel Manganese Cobalt Oxide battery. (LiNiMnCoO2) The cathode combination of NMC (nickel-manganese-cobalt) is among the most successful Li-ion systems. The NMC systems can serve as a Power Cell or an Energy Cell.

NMC batteries technology and applications

NMC (Nickel Manganese Cobalt Oxide) battery was invented in 2008. Its anode material is LiaC6, the cathode material is LibNi1–x–yCoxMnyO2, and the carrier is Li+. They commonly use it in different applications like Energy Systems and electric cars. NMC combines the best of nickel and manganese. Nickel has high specific energy but poor stability; manganese can form a spinel structure to achieve low internal resistance yet provide a low specific point. Joining the metals increases the strengths of both parts. NMC batteries are widely used for power tools, energy storage systems (EES) which need frequent cycling, and electrical power trains like automotives. The cathode combination typically used is 1-1-1, meaning one-third nickel, one-third manganese, and one-third cobalt. This reduces the raw material cost due to lowered content of cobalt. Another known combination for NCM is 5-3-2 (5 parts nickel, three parts cobalt, and two parts manganese). Other combinations are also possible.

5. LFP: LFP batteries stand for Lithium iron phosphate(LiFePO₄) batteries, which are known as li-phosphate batteries. They use phosphate as cathode material. In addition, they benefit from the low resistance properties that enhance their thermal stability and safety.

LFP batteries technology and applications

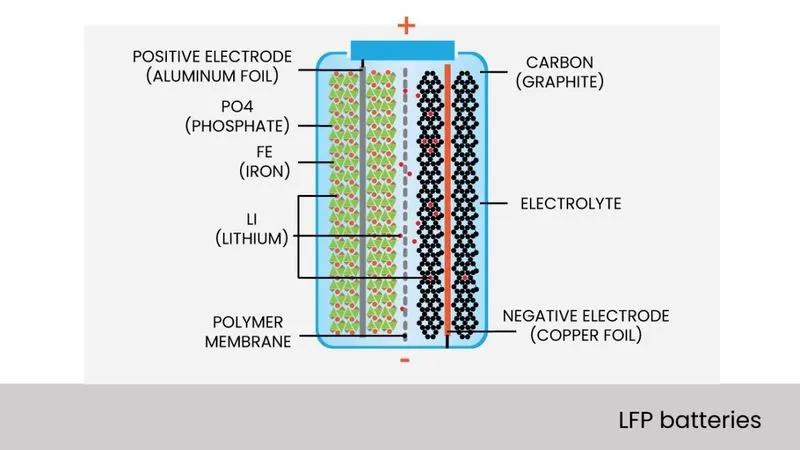

LFP (Lithium iron phosphate) was invented in the year 1996. Its anode material is LiaC6, the cathode material is LibFePO4, and the carrier is Li+. They use LFP batteries in applications like electric cars, buses, and trucks. The LFP is ideal for use in electric trucks or buses – as volume or weight isn’t a restriction as in cars- because the battery is less energy-dense yet cheaper to manufacture than other Li-ion battery types. In addition, they use LFP batteries in other applications like electric motorcycles, which need a longer life cycle and increased safety. LFP provides good electrochemical performance with lower resistance. The nano-scale phosphate cathode material enables this. The main benefits are long cycle life, higher current rating, and thermal stability, which means extra safety.

6. LTO: LTO batteries are lithium titanate (Li₂TiO₃) or li-titanate batteries, which is a class of batteries that is used in a growing number of applications. They are high-power batteries, which are perfect for use in fast-charging stations.

LTO batteries technology and applications

LTO (Lithium tint) was invented in the year 2008. Its anode material is Li4+aTi5O12, the cathode material is LibFePO4, and the carrier is Li+. They use it in applications like UPS, electrical power trains, solar-powered street lights, fast-charge stations, and forklifts. Other applications for LTO batteries include aerospace and military uses and, more importantly, wind and solar energy storage and intelligent grid creation. Li-titanate is used instead of graphite in the anode of a standard lithium-ion battery, and the material is formed into a spinel structure. The cathode material is either LMO or NMC. As mentioned, they use li-titanate batteries in electric vehicles. Yet, LTO batteries have lower energy density than other Li-ion battery types, which can be a disadvantage in efficiently powering vehicles. Still, the density of LTO batteries is higher than other non-Li-ion batteries.

Materials & chemical reactions occur at the anode and cathode of LCO, LMO, NCA, NMC, LFP, and LTO type of lithium-ion cells:

Six types of lithium-ion batteries are compared relative to one another:

• SP stands for specific power
• SE stands for specific energy
• SF stands for safety
• LS stands for lifespan
• CS stands for cost
• PF stands for performance
• L stands for low
• M stands for moderate
• H stands for high

Summary of the Table

Lithium Cobalt Oxide has high specific energy compared to the other batteries, making it the preferred choice for laptops and mobile phones. It also has a low cost and a moderate performance. However, it is highly unfavorable in all the other aspects when compared to the other lithium-ion batteries. It has low specific power, low safety, and a low lifespan.

Lithium Manganese Oxide has moderate specific power, moderate specific energy, and an average level of safety compared to other lithium-ion batteries. It has the added advantage of a low cost. The downsides are its low performance and low lifespan. It is usually used in medical devices and power tools.

Lithium Nickel Manganese Cobalt Oxide has two significant advantages compared to the other batteries. The first one is its high specific energy, making it desirable in electric powertrains, electric vehicles, and electric bikes. The other is its low cost. It is moderate in terms of specific power, safety, lifespan, and performance compared to other lithium-ion batteries. It can be optimized to have high specific power or high specific energy.

Lithium Iron Phosphate only has one significant disadvantage compared to other lithium-ion batteries, and that is its low specific energy. Besides, it has moderate to high ratings in all the other characteristics. It has a high specific power, offers a high level of safety, has an increased lifespan, and comes at a low cost. The performance of this battery is also moderate. It is often employed in electric motorcycles and other applications that require a long lifespan and a high level of safety.

Lithium Nickel Cobalt Aluminum Oxide offers one strong advantage compared to the five other batteries: high specific energy. It is moderate in other characteristics like performance, cost, specific power, and lifespan. The only downside to this battery type is its low level of safety. Its high specific energy and average lifespan make it a good candidate for electric powertrains.

Lithium Titanate offers high safety, high performance, and a high lifespan, essential features every battery should have. Its specific energy is low compared to the five other lithium-ion batteries, but it compensates for this with a moderate specific power. The only major disadvantage of lithium titanate compared to other lithium-ion batteries is its extremely high cost. Another essential feature of this battery worthy of mention is its speedy recharge time. It can be used for storing solar energy and creating intelligent grids.
