Week 1 Understanding Different Battery Chemistry

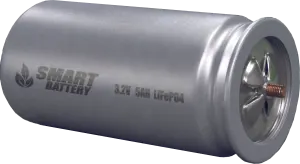

Cylindrical cells are the most common cell type in use today. This design allows for better automation processes and techniques that increase consistency and lower cost.

Question 2

2.Compare the differences between each type of Li-ion battery based on their characteristics

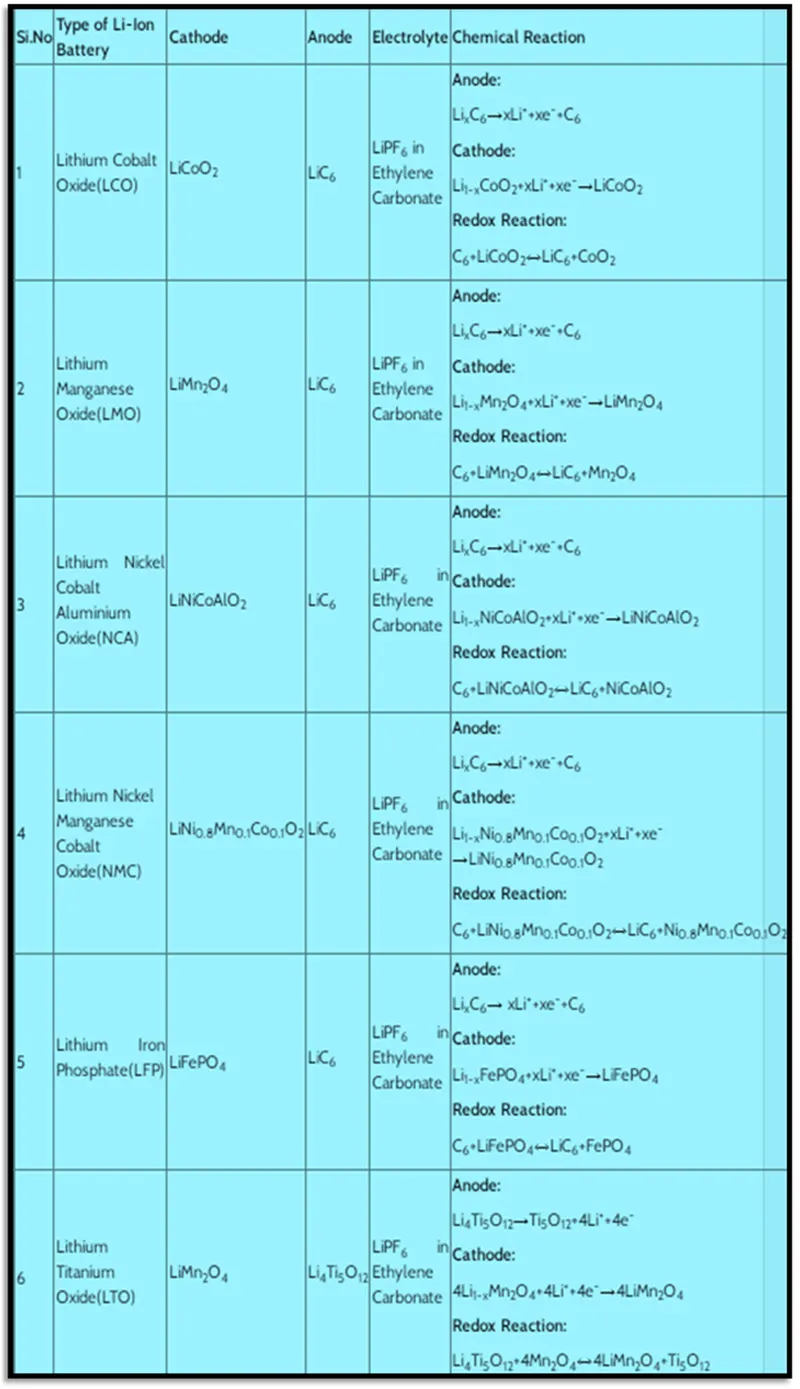

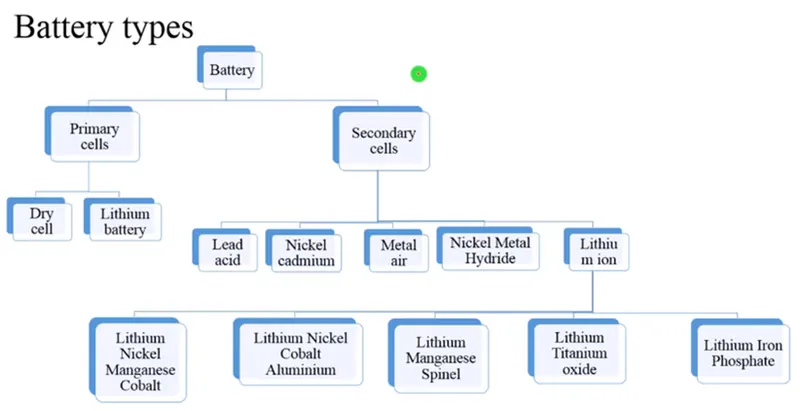

2 DIFFERENT TYPES OF LITHIUM-ION BATTERIES

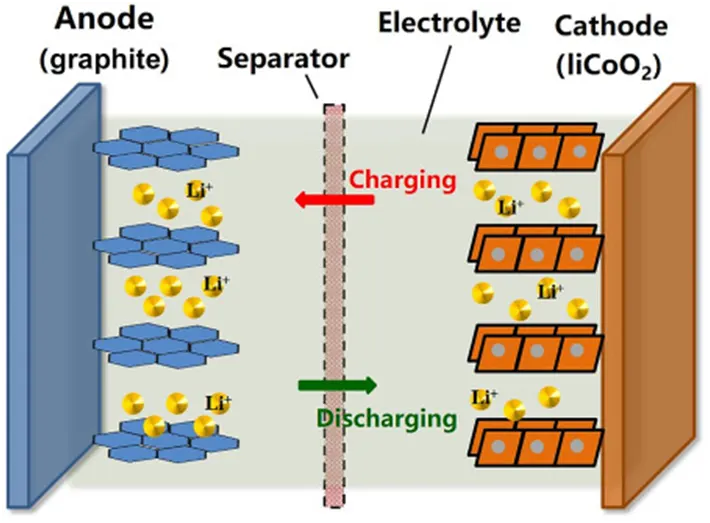

2.1 LITHIUM COBALT OXIDE (LCO)

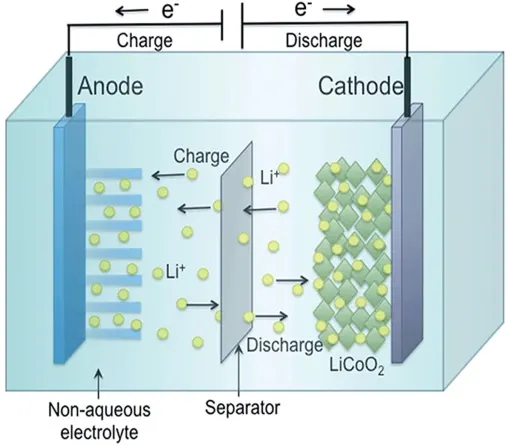

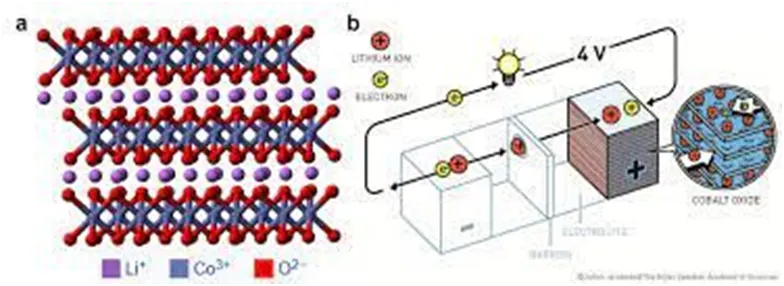

Also known as lithium cobaltate or lithium-ion cobalt batteries, lithium cobalt oxide batteries are made from t lithium carbonate and cobalt. Due to their very high specific energy, these batteries are used for cell phones. laptops and electronic cameras. They have a cobalt oxide cathode and use graphite carbon as their anode material: during discharge, lithium ions move from anode to cathode with the flow reversing when the battery is charging

This type of battery has some drawbacks, including relatively short battery life and limited specific power. Additionally. Battery University notes that these batteries are not as safe as other types, Even so, their characteristics make them the popular choice for coll phones and other portable electronic devices

2.2 LITHIUM MANGANESE OXIDE (LMO)

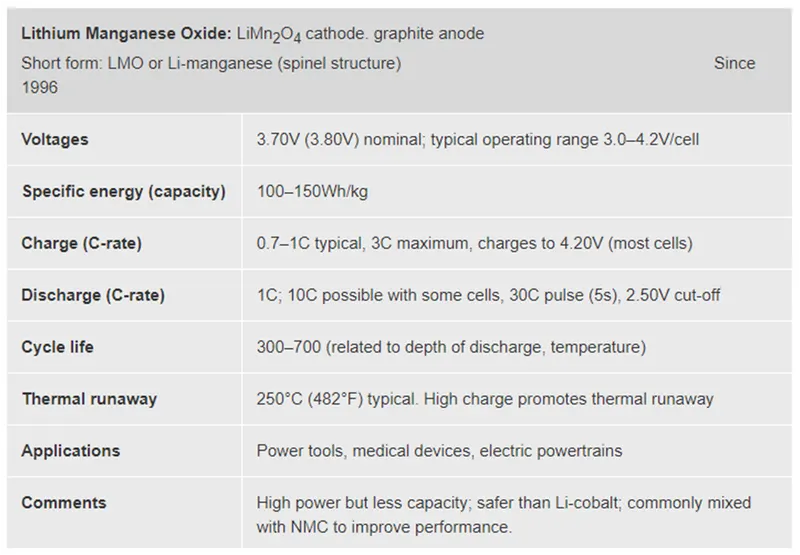

Lithium manganese oxide batteries are also commonly called lithium manganate or lithium-ion manganese batteries and are sometimes referred to as l-manganese or manganese spinel The technology for this type of battery was discovered in the 1980s with the first publication on the subject appearing in the Materials Research Bulletin in 1983. The first commercial lithium-ion cells made with lithium manganese oxide as a cathode material were produced in 1996 by Mol Energy

Lithium manganese oxide batteries are notable for their high-temperature stability and are also safer than other lithium-ion battery types. For this reason, they are often used in medical equipment and devices, but they may also be lithium-ion battery types. For this reason, they are often used in medical equipment and devices, but they may also be used for power tools, electric bikes and more. It is also possible to use lithium manganese oxide batteries to power laptops and electric powertrain cars

The architecture forms a three-dimensional spinel structure that improves ion flow on the electrode, which results in lower internal resistance and improved current handling. A further advantage of spinel is high thermal stability and enhanced safety, but the cycle and calendar life is limited.

Low internal cell resistance enables fast charging and high current discharging in a 18650 package. L manganese can be discharged at currents of 20-30A with moderate heat buildup. It is also possible to apply one-second load pulses of up to 50A. A continuous high lead at this current would cause heat buildup and the cell temperature cannot exceed 80 C 1176 -manganese is used for power tools medical instruments, as well as hybrid and electric vehicles

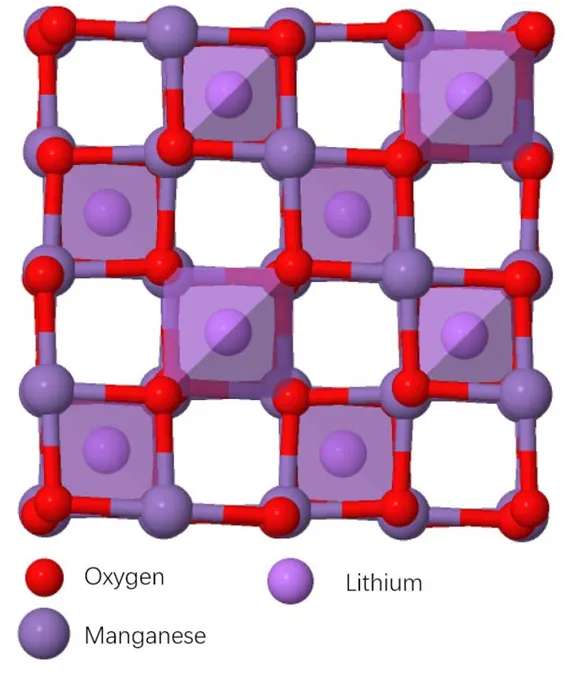

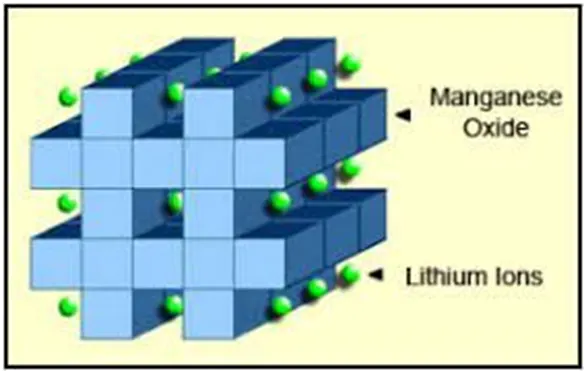

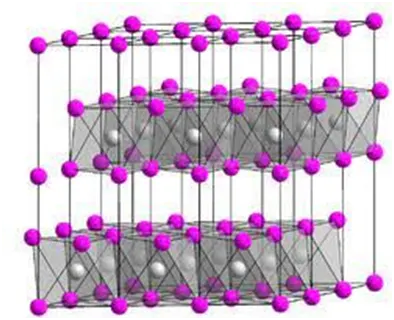

The figure illustrates the formation of a three-dimensional crystalline framework on the cathode of a Li-manganese battery. This spinel structure, which is usually composed of diamond shapes connected into a lattice appears after the initial information

The cathode crystalline formation of lithium manganese oxide has a three-dimensional framework structure that appears after initial formation Spinel provides low resistance but has a more moderate specific energy than cobalt.

U-manganese has a capacity that is roughly one-third lower than Li-cobalt. Design flexibility allows engineers to maximize the battery for either optimal longevity (life span), maximum load current (specific power) or high capacity (specific energy). For example, the long-le version in the 18650 cells has a moderate capacity of only 1100mAh: the high-capacity version is 1500mAh

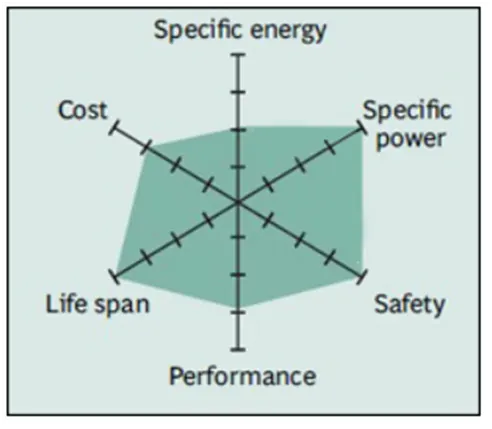

The figure shows the spider web of a typical Li-manganese battery. The characteristics appear marginal but newer designs have improved in terms of specific power, safety and life span. Pure Li-manganese batteries are no longer common today, they may only be used for special applications.

Although moderate in overall performance, newer designs of Li-manganese offer improvements in specific power, safety and life span

Most U-manganese batteries blend with lithium nickel manganese cobalt oxide (NMC) to improve the specific energy and prolong the life span. This combination brings out the best in each system, and the LMO (NMC) is chosen for most electric vehicles, such as the Nissan Leaf. Chevy Volt and BMW 3. The LMO part of the battery which can be about 30 per cent, provides a high current boost on acceleration the NMC part gives the long driving range.

Li-ion research gravitates heavily towards combining Li-manganese with cobalt-nickel manganese and aluminium as active cathode material in some architecture, a small amount of silicon is added to the anode This provides a 25 per cent capacity boost, however, the gain is commonly connected with a shorter cycle life as scan grows and shrinks with charge and discharge causing mechanical stress

These three active metals, as well as the Alcon enhancement, can conveniently be chosen to enhance the specific energy capacity), specific power load capability or longevity While consumer batteries go for high capacity industrial applications prepare battery systems that have good loading capable der a long life and provide sale and dependable service

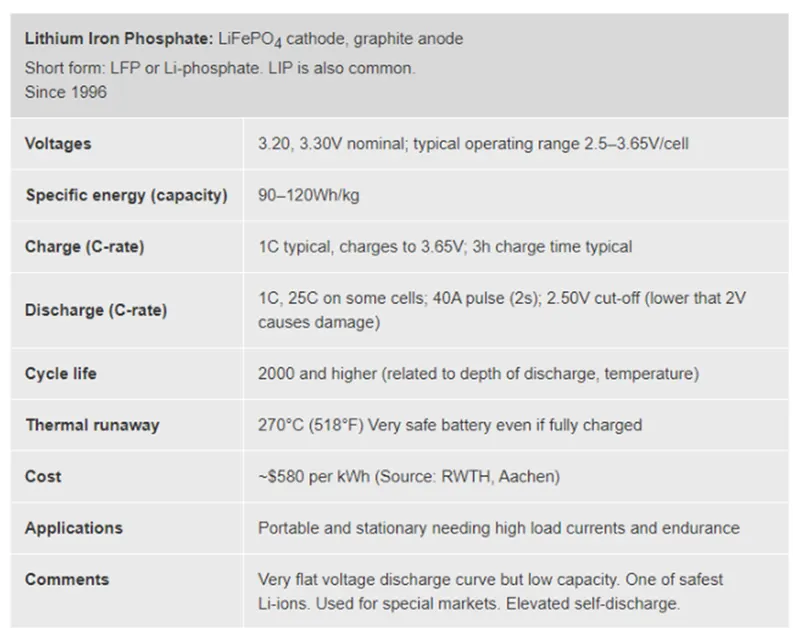

2.3 LITHIUM IRON PHOSPHATE (LIPO)

Lithium on phosphate batteries also known as li-phosphate batteries use phosphate as a cathode They benefit from low resistance properties, which enhance their safety and thermal stability

Other benefits include durability and a long Mecycle-fully charged batteries can be stored with little change to the total Mespan of the battery's charge L-phosphate batteries are often the most cost-effective option as well when their long battery life is taken into consideration.

However, the lower voltage of the hi-phosphate battery means that it has less energy than other types of lithium batteries Accordingly these batteries are often used in electric motorcycles as well as other applications that need a long lifecycle and significant safety Electric vehicles often use these batteries as well

Li-phosphate is more tolerant to full charge conditions and is less stressed than other lithium-ion systems of kept at high voltage for a prolonged time As a trade-off, its lower nominal voltage of 3. Zell reduces the species energy below that of cobalt blended thumb With most batteries, the cold temperature reduces performance and elevated storage temperature shorts the service life and Li-phosphate is no exception Li-phosphate has a higher self-discharge than other Lon batteries which can cause balancing ones with ageing Tho can be emitted by buying high-quality cells and/or using sophisticated control electronics, both of which increase the cost of the pack Cleanliness in manufacturing of importance for long every There is no tolerance for moisture et the battery will only deliver 50 cycles Figa summarizes the attributes of phosphate

Li-phosphate is often used to replace the lead-acid starter battery Four cells in series produce 12.80V, a similar voltage to six 2V lead-acid cells in series Vehicles charge lead-acid to 14.40V (2:40V/cell) and maintain a toppings charge. Topping charge is applied to maintain full charge level and prevent sulfation on lead-acid batteries

With four Li-phosphate cells in series each cell tops at 3.60V which is the correct full-charge voltage. At this point, the charge should be disconnected but the topping charge continues while driving Li-phosphate is tolerant to some overcharge however, keeping the voltage at 14.40V for a prolonged time, as most vehicles do on a long road trip could stress L-phosphate Time will tell how durable Li-Phosphate will be as a lead and replacement with a regular vehicle charging system Cold temperature also reduces the performance of Li-ion and this could affect the cranking ability in extreme cases

2.4 LITHIUM MANGANESE COBALT OXIDE (NMC)

Also known as lithium manganese cobalt oxide or NMC batteries, lithium nickel manganese cobalt oxide batteries are made of several materials common in lithium-ion battery types. They include a cathode made of a combination of nickel, manganese and cobalt

Like other lithium-ion battery varieties. NMC batteries can have either a high specific energy density or a high specific power. They cannot, however, have both properties. This battery type is most common in power tools and powertrains for vehicles

The cathode combination ratio is usually 60 per cent nickel, 20 per cent manganese and 20 per cent cobalt This means that the raw material cost is lower than it is for other lithium-ion battery options, as cobalt can be quite expensive. These batteries may come down in price further in the future, as some battery makers are planning to switch their battery chemistry to a higher percentage of nickel so that they can use less cobalt. This battery type is commonly preferred for electric vehicles due to its very low self-heating rate

One of the most successful Li-ion systems is a cathode combination of nickel-manganese-cobalt INMC Similar to L-manganese, these systems can be tailored to serve as Energy Cells or Power Cells For example. NMC in a 18650 cell for moderate load condition has a capacity of about 2800mAh and can deliver 4A to 5A: NMC in the same cell optimized for specific power has a capacity of only about 2.000mAh but delivers a continuous discharge current of 20A A silicon-based anode will go to 4.000mAh and higher but at reduced loading capability and shorter cycle life Silicon added to graphite has the drawback that the anode grows and shrinks with charge and discharge, making the cell mechanically unstable

The secret of NMC lies in combining nickel and manganese. An analogy of this is table salt in which the main ingredients, sodium and chloride, are toxic on their own but mixing them serves as seasoning salt and food preserver. Nickel is known for its high specific energy but poor stability manganese has the benefit of forming a spinel structure to achieve low internal resistance but offers low specific energy. Combining the metals enhances each other strengths

NMC is the battery of choice for power tools, e-bikes and other electric powertrains. The cathode combination is typically one-third nickel, one-third manganese and one-third cobalt, also known as 1-1-1. Cobalt is expensive and in limited supply. Battery manufacturers are reducing the cobalt content with some compromise in performance

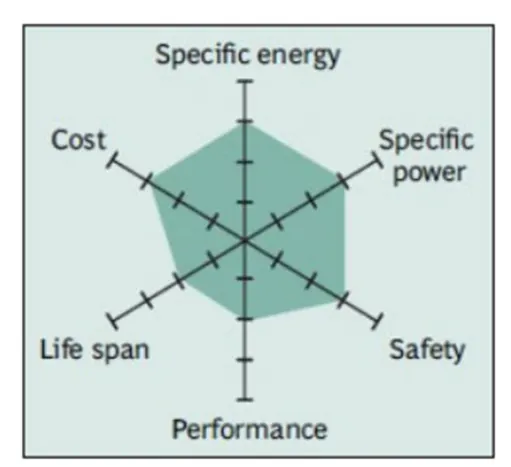

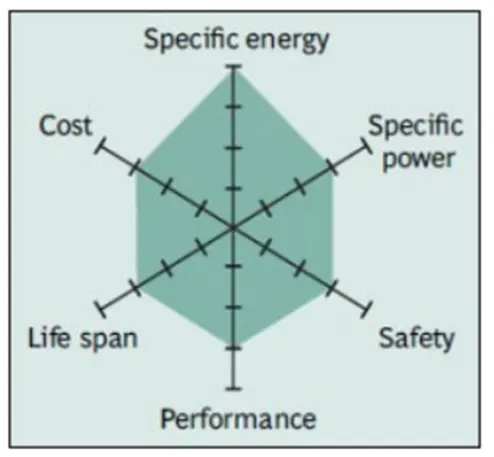

The figure demonstrates the characteristics of the NMC

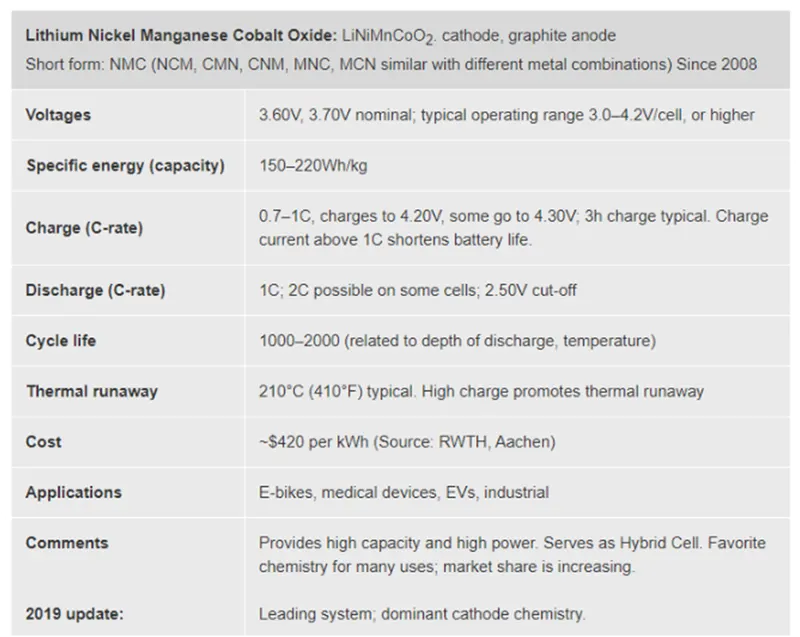

NMC has good overall performance and excels on specific energy. This battery is the preferred candidate for the electric vehicle and has the lowest self-heating rate

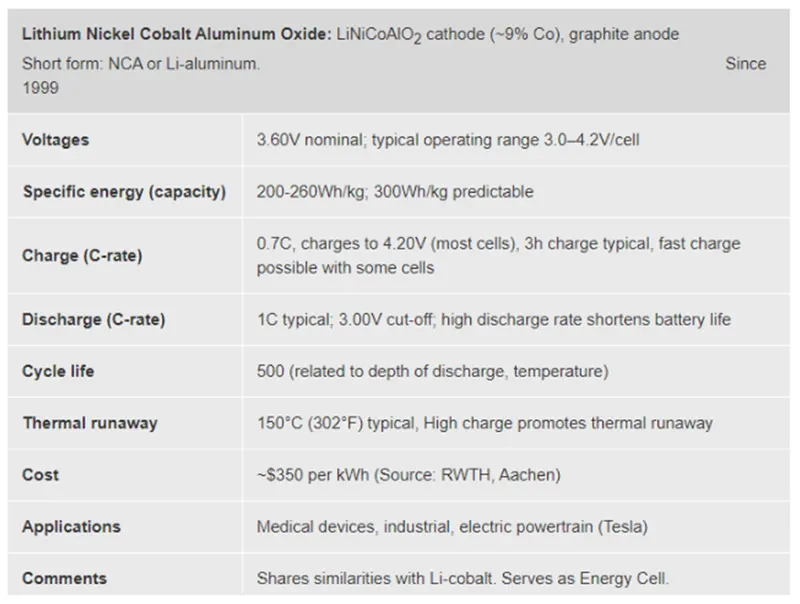

2.5 LITHIUM NICKEL COBALT ALUMINIUM OXIDE (NCA)

Lithium nickel cobalt aluminium oxide batteries are also called NCA batteries and are becoming increasingly important in electric powertrains and in grid storage.

NCA batteries are not common in the consumer industry but are promising for the automotive industry NCA batteries provide a high-energy option with a good lifespan, but they are not as safe as they could be compared to other lithium-ion battery types and are quite costly. The Boston Consulting Group notes that NCA batteries must be accompanied in cars by safety measures that monitor their performance and behaviour to keep drivers secure

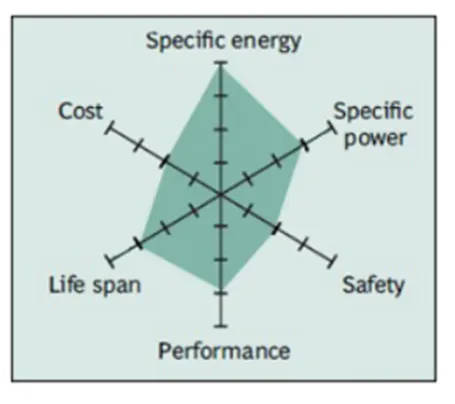

Return nickel cobalt aluminium oxide battery, or NCA, has been around since 1999 for special applications. It shares similarities with NMC by offering high specific energy, reasonably good specific power and a long life span Len flattering are safety and cost. Figure 11 summarizes the six key characteristics NCA is a further development of lithium nickel oxide adding aluminium gives the chemistry greater stability

High energy and power densities, as well as good life san male NCA a candidate for EV powers High and marginal safety, are negatives

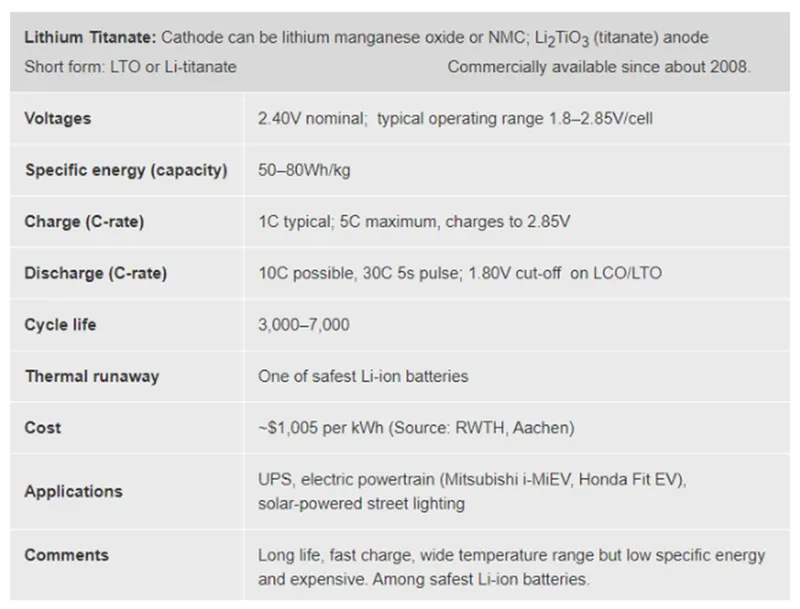

2.6 LITHIUM TITANATE OXIDE (LTO)

The advantages of Lithium Titanate Oxide (lithium titanium oxide battery technology are significant and the whole LTO technology is a game-changer for the entire battery industry. The LTO is bringing a new dimension of possibilities for energy storage with a number of economic as well as ecological aspects

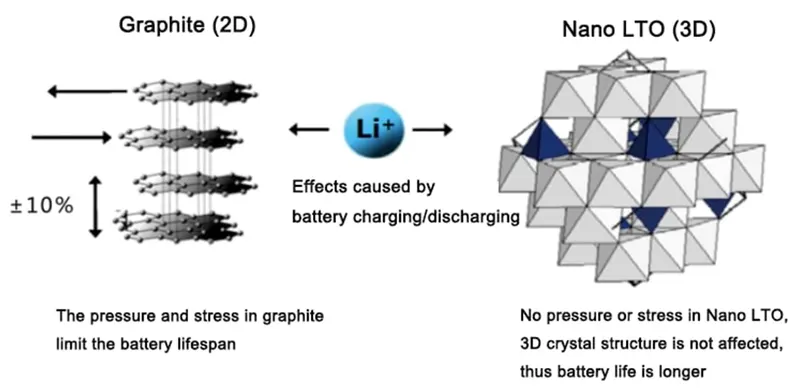

the LTO is a rechargeable battery based on or modified from the Lithium-Ion (Li-ion) battery technology: titanate oxide (LTO) replaces the graphite in the anode of the typical Li-ion battery and form the materials into a spinel 3D crystal structure. Having a nominal cell voltage of 2.40V.it releases high current discharge arent which is 10 times the capacity of the other types of lithium batteries. Instead of using carbon particles on its surface as other Lithium batteries do, LithilanTitanate utilizes lithium-titanatenanocrystals

Lithium Titanate batteries benefits range from a long lifetime to enhanced safety, low-temperature performance

and large potential for integration with energy storage solutions L-titanate replaces the graphite in the anode of a typical lithium-ion battery and the material forms into a spinel structure. The cathode can be lithium manganese oxide or NMC L-titanate has a normal cell voltage of 2.40V can be fast-charged and delivers a high discharge current of 10C or 10 times the rated capacity. The cycle said to be higher than that of a regular on L-titanate w safe has excellent love temperature discharge characteristics and obtains a capacity of 80 percentat-30° C(-22° F)

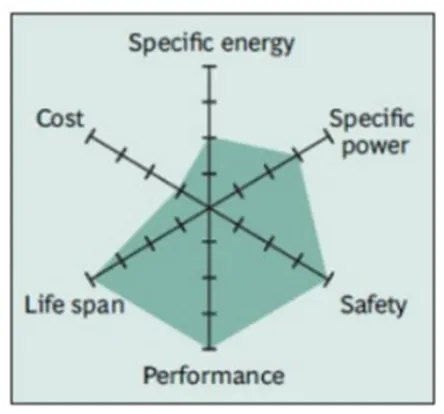

LTO (commonly L4TijOu) has advantages over the conventional cobalt-blended Li-ion with graphite anode by attaining zero-strain property, no SEI film formation and no lithium plating when fast charging and charging at low temperature. Thermal stability under high temperature is also better than other Li-ion systems however, the battery is expensive. At only 65While the specific energy is low, rivalling that of NiCd Li-titanate changes to 180V/cell and the end of discharge is 180V/cell Figure illustrates the characteristics of the U-titanate battery Typical uses are electric powertrains UPS and solar-powered street lighting

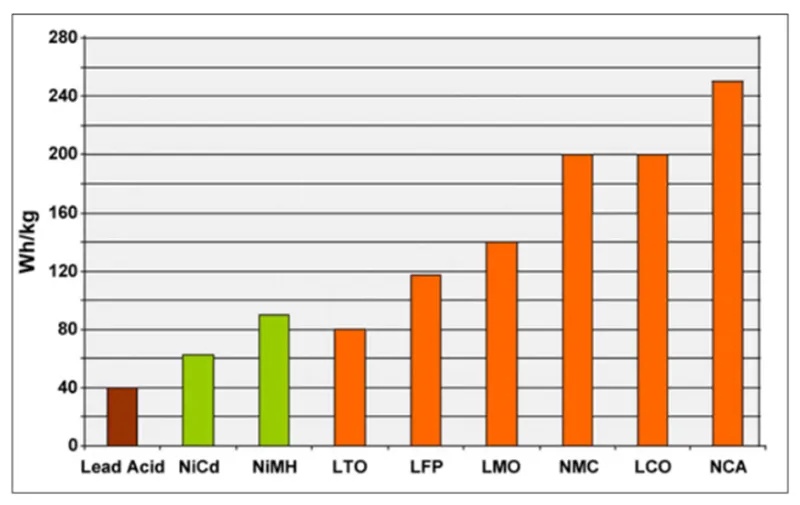

The figure compares the specific energy of lead-, nickel- and lithium-based systems. While Li-aluminum (NCA) is the clear winner by storing more capacity than other systems, this only applies to specific energy in terms of specific power and thermal stability, Li-manganese (LMO) and Li-phosphate (LFP) are superior, Li-titanate (LTO) may have low capacity but this chemistry outlives most other batteries in terms of de span and also has the best cold temperature performance. Moving towards the electric powertrain safety and the cycle life will gain dominance overcapacity (LCO stands for Li-cobalt, the original Li-ion)

CONCLUSION :

In this way, we study the different types of Lithium-ion batteries
