Week 1 Understanding Different Battery Chemistry

1.Prepare a table which includes materials & chemical reactions occurring at the anode and cathode of LCO, LMO, NCA, NMC, LFP and LTO type of lithium ion cells.Give your detailed explanation on it

Although all lithium ion batteries, or li-ion batteries have many aspects in common, there is a variety of different types of lithium ion battery that are available.

Each lithium ion battery type has its own characteristics and this means that different types of Li-ion battery will be used in different areas.

Accordingly it is necessary to choose the right type of lithium ion battery for any application - understanding the different types and their characteristics enables the right type to be chosen for any particular application.

Parameters such as the chemistry, the cost, size, weight, capacity and many more attributes vary across the different types of lithium ion battery.

Items such as handheld items of electronic equipment ranging from mobile phones, to tablet computers, games, e-readers and more require high energy density levels combined with high levels of safety. For these applications Lithium Cobalt Oxide types of battery are normally used.

In other applications a lower energy density can be tolerated, but a longer battery life may be needed. The type of li-ion battery used for these applications is often the lithium ion phosphate battery type or lithium nickel manganese cobalt oxide as these lithium ion battery types offer longer usable life times at the expense of the very high energy density.

For automotive applications where high current is a necessity, the lithium nickel manganese cobalt oxide battery type is often used.

There are also other types of li-ion battery that are used for particular roles. With Lithium ion battery technology moving forward apace, new types of lithium ion battery are bound to appear on the market at frequent intervals.

There is a good variety of different types of lithium ion battery. The main differences are the anode and cathode materials.

Each of the different types of lithium ion battery provide different characteristics and accordingly they tend to be used in different applications. The main types are summarised in the sections below.

Lithium Cobalt Oxide, LCO

The Lithium Cobalt Oxide, LiCoO2, battery is a type of lithium ion battery that find uses in many consumer items of electronic equipment. It provides a very high level of specific energy density along with a good level of safety.

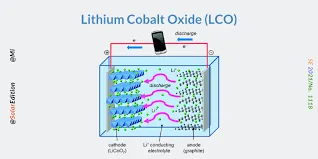

The battery consists of a cobalt oxide cathode with a layered structure. The anode is graphite (carbon). During the discharge cycle, lithium ions move from the anode to the cathode, and in the reverse direction during charge.

The graphite anode limits the battery life as the solid electrolyte interface changes and also as a result of anode thickening. Newer batteries may incorporate nickel or manganese to improve the lifetime as well as reducing manufacturing costs.

One of the drawbacks of the LCO battery is that its current capability in both charge and discharge is limited. As a guide, it should not be charged or discharged at a greater rate than its capacity, i.e. a 2400mAh battery should not be charged or discharged with a current greater than 2400mA. Often figures of 0.8 of the charge level are recommended

The LCO battery is now being supplanted in some applications by Lithium Manganese, as well as NMC and NCA types. This is occurring as a result of the improved performance of these other types as development improves the performance and as a result of cost.

chemical composition	LiCoO2
Specific energy (capacity)	150 - 200Wh/kg typical
Voltage	3.60V nominal with typical operating rate between 3.0 - 4.2 V/cell
Battery life	500 - 1000 cycles
Key features	High energy density; high level of safety
Main applications	Consumer electronics:- mobile phones, games, laptops, tablets, e-readers, etc.

Lithium Iron Phosphate Battery, LFP

The Lithium Iron Phosphate, LFP type of lithium ion battery provides a low internal resistance and high current capability.

In order to provide its high of current capability, this type of li-ion battery uses a nano-scale phosphate cathode material.

In terms of performance this type of lithium ion battery provides a slightly lower terminal voltage and it has a slightly higher self-discharge rate than other forms. However against this it provides a high current rating, and good thermal stability combined with a good level of, and good thermal stability.

chemical composition	LiFePO ₄
Key features	High current capability, longer calendar lifespan.
Main applications	Power tools, some medical tools, hobbyist

Lithium Manganese Oxide, LMO

This type of lithium ion battery uses Lithium Manganese Oxide, LiMn2O4 as its cathode material. This type of lithium ion battery is structured to allow high currents to flow and this enables it to provide very high current levels and also to be fast charged as well.

It generally uses a three-dimensional spinel structure, i.e. one in which the crystal structure in the cubic, isometric, system, with the oxide anions arranged in a cubic close-packed lattice. This structure improves the flow of ions on the electrode, thereby increasing he current capability and lowering the internal resistance of the cell. A typical 1500mAh battery may be able to deliver steady currents of up to 20 A, obviously for a relatively short time because of the overall battery capacity.

The structure of this type of lithium ion battery also has the advantage that it improves the thermal stability and improves the safety of the cell.

However the disadvantage of the cell is the limited number of charge discharge / cycles as well as the limited calendar life, i.e. the degradation over time since manufacture.

chemical composition	LiMn2O4
Specific energy	100 - 150Wh/kg
Voltage	~3.70V nominal
Main applications	Power tools, some medical tools some vehicles.

Lithium Nickel Cobalt Aluminium Oxide, NCA

The Lithium Nickel Cobalt Aluminium Oxide battery, or NCA, is a li-ion battery type that is rarely seen in consumer applications but is being investigated for the automotive industry. Its main advantage is that it has a good life span and high energy and power density figures.

However these features come at a cost and in view of the safety elements, it must be used with care. Further development is also required to bring it to a state where this type of li-ion battery can be more widely used.

chemical composition	LiNiCoAlO2
Key features	High energy density, high power density, good life span.
Application	in Automotive industries

Lithium Nickel Manganese Cobalt Oxide, NMC

The lithium nickel manganese cobalt oxide lithium battery type uses a cathode comprising of a combination of nickel, manganese, and cobalt.

The key to this lithium ion battery type is the combination of nickel and manganese. Nickel is known for its high specific energy, but poor stability whereas manganese provides low internal resistance but at the cost of low specific energy. Combining both in a cell in the correct manner is able to provide the required balance of the properties of both metals.

The cathode combination often consists of a combination of nickel, manganese and cobalt in equal proportions in a combination known as 1-1-1. This combination reduces cost by reducing the cobalt content, whilst still retaining some of the key performance parameters.

Another popular combination consists of 5 parts nickel, 3 parts cobalt & 2 parts manganese (5-3-2).
