Week 1 Spur Gear Challenge

OBJECTIVES

1. To carry out a structural analysis in spur gears using cast iron, cast steel, and cast bronze to obtain maximum stress, deformation, and intensity.

2. To compare the analysis results for three different cases and suggest the best one.

METHODOLOGY

1. Material Assignment
The gears were assigned with Cast Iron ductile, Cast Steel, and Bronze Cast for the three different cases.

The important properties of these materials are listed in the table below.

Table 1. Properties of Materials

S.N. Material Young's Modulus Tensile Yield Tensile Ultimate Poisson's Ratio
pa Strength(pa) Strength(pa)

1. Cast Iron Ductile 1.71E11 3.44E08 5.48E08 0.275
2. Cast Steel 2.03E11 3.49E08 5.05E08 0.3
3. Bronze Cast 8E10 1.44E08 2.67E08 0.345

2. 3D Model import
The 3D model was imported from the design provided in .stp format.

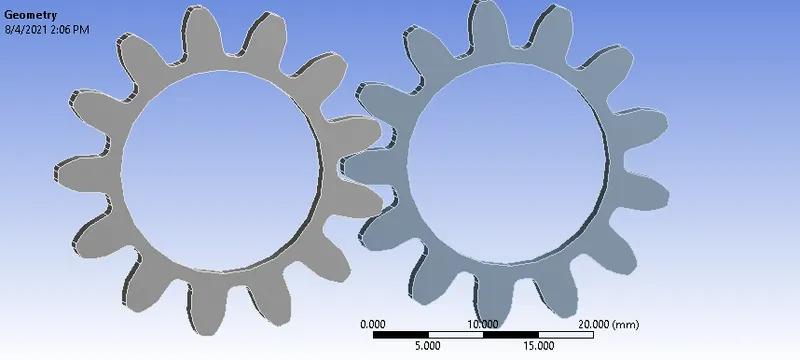

Fig: 3D model of the gears

3. Contacts and Joints

The faces of both the gears that would come into contact during the motion were identified, selected and a frictional contact was set up between them. Augmented Lagrangian was used as a formulation method to prevent the chattering and penetration of the tooth face. The interface was adjusted to make contact initially.

Revolute joints were applied to the inner face circle of both the gears to allow them to rotate about their axis. By selecting the body ground in the connection type, it was assured that joints were referenced with respect to fixed ground.

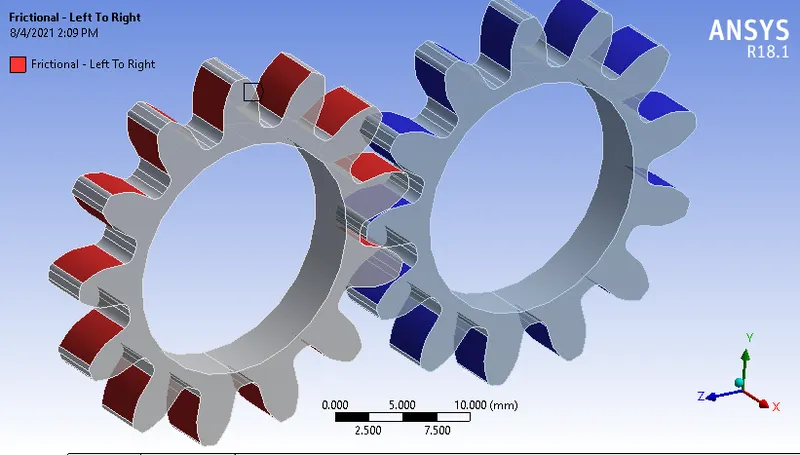

Fig: Contacts setup

4. Meshing

Element size was kept to 0.75 mm not to exceed the number limit in Academic Version. The adaptive sizing was turned off and the mesh was provided with total of 5340 elements.

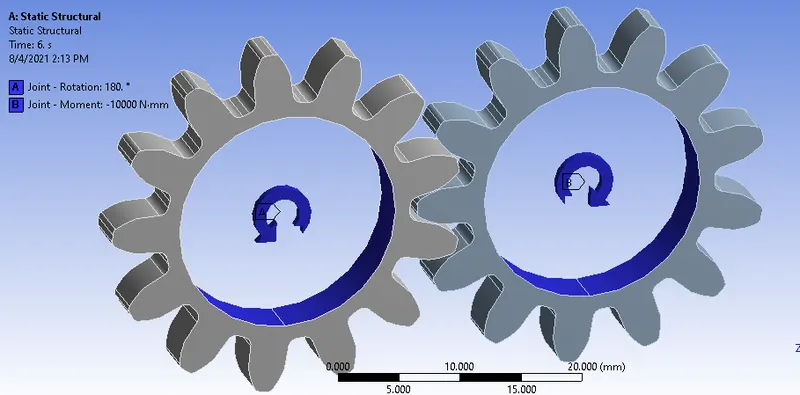

5. Loads and Constraints

Anticlockwise rotation was given to the gear in left and a clockwise moment of 10 Nm was applied to the gear in the right through the revolute joints assigned. The large deflection was turned on so that ANSYS will be able to account for the change of stiffness due to change in shape.

The anticlockwise rotation of 180 was divided into 6 steps, each of 30 degrees. For every time step, the further settings were made the same.

RESULTS

After all the boundary conditions were applied, the results in form of equivalent stress, total deformation, and stress intensity were analyzed for all the cases. The contours and the graph for each of the values are listed below.

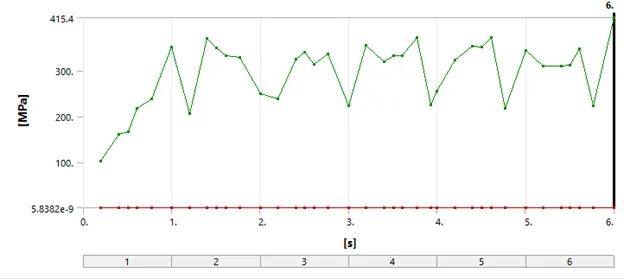

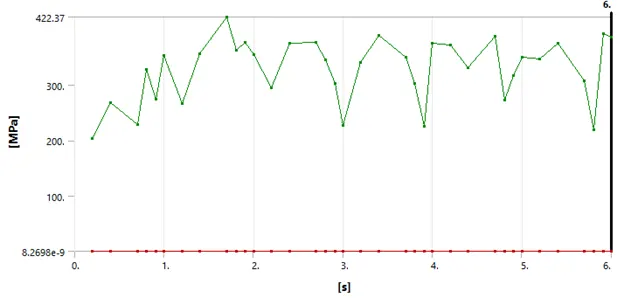

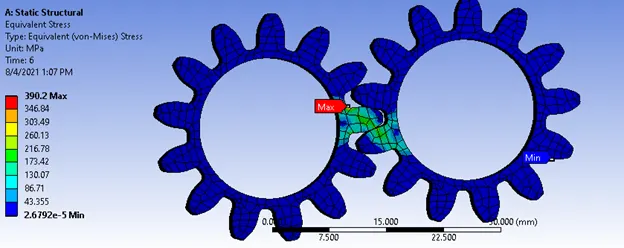

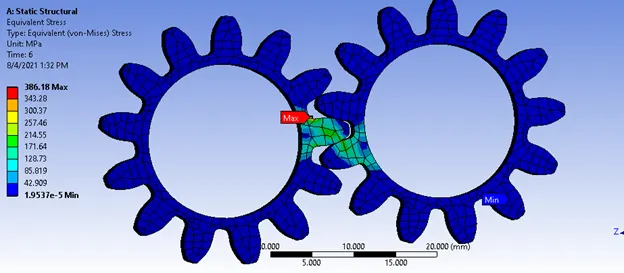

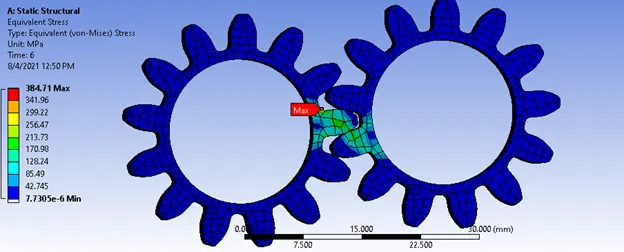

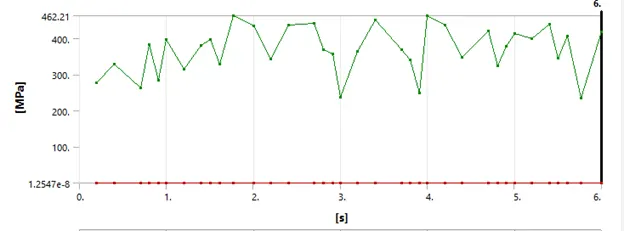

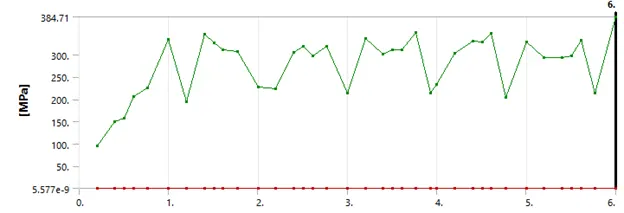

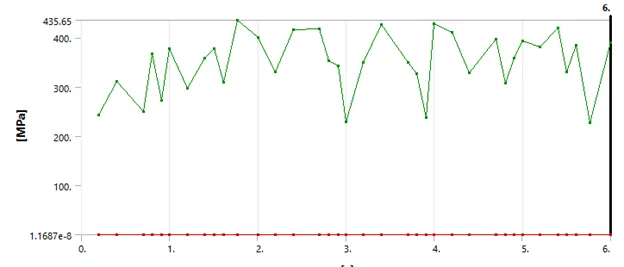

Equivalent Stress

a. Cast iron ductile

b.Cast Steel

c. Bronze Cast

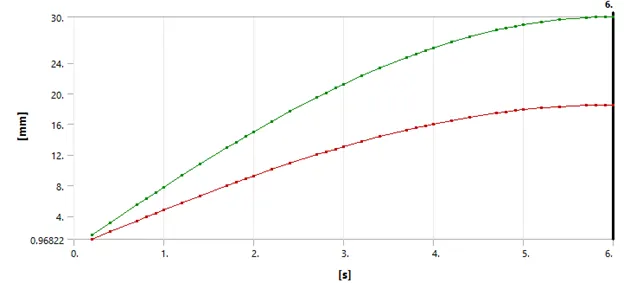

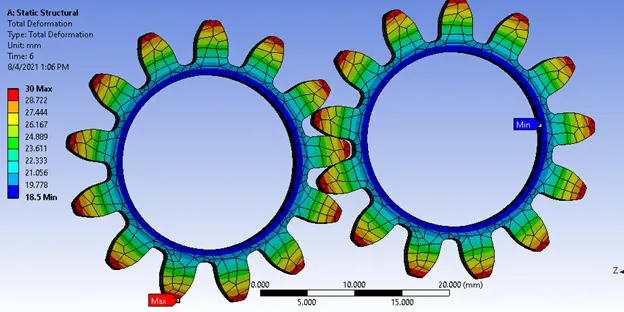

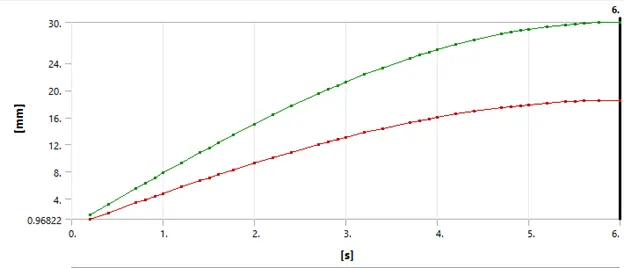

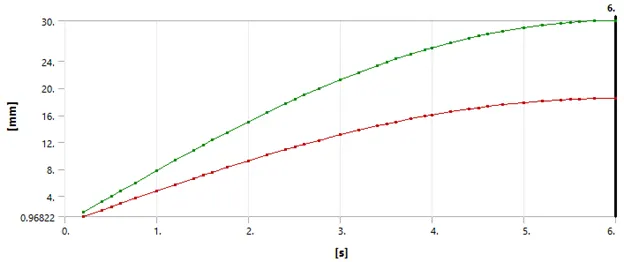

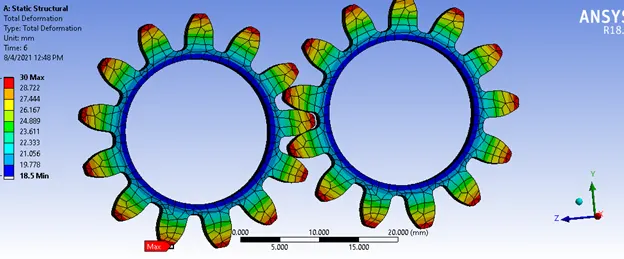

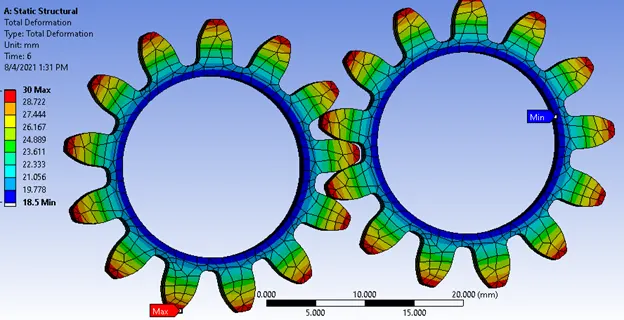

Total Deformation

a. Cast iron Ductile

b. Cast Steel

c. Bronze Cast

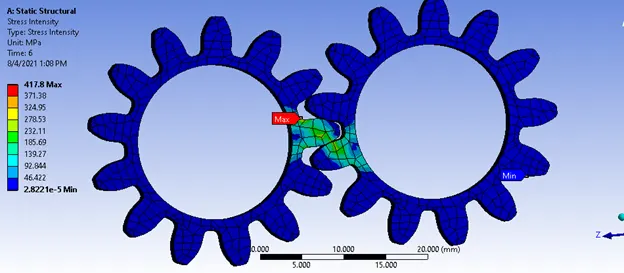

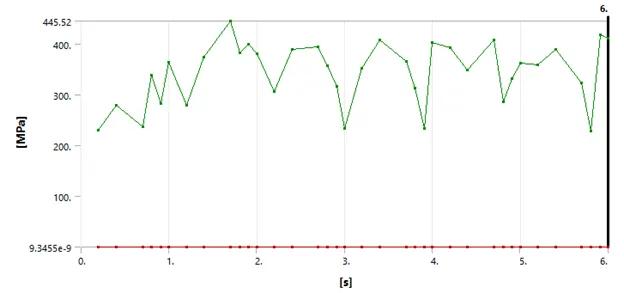

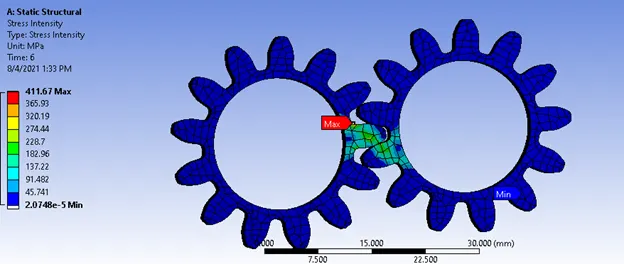

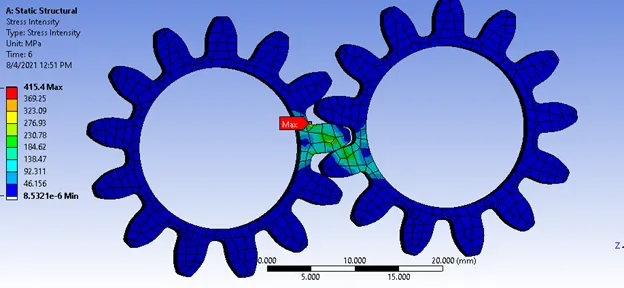

3. Stress Intensity

a. Cast Iron (Ductile)

b. Cast Steel

c. Cast Bronze

Summary of the results

Material	Stress (Max)	Deformation (Max)	Stress Intensity(Max)
Cast Steel	435.65 MPa	30 mm	462.21 MPa
Cast Iron	422.37 MPa	30 mm	445.52 MPa
Cast Bronze	384.71 MPa	30 mm	415.14 MPa

ANALYSIS

For all the three materials, the maximum stress was observed in the root of the teeth. Simlarly, the stress intensity measured was also found to be maximum in the same region. The deformation is however found to be similar for all the cases. The graph of the output components with respect to time was observed and the values are noted in the table above. The results can be written in brief as:

Equivalent Stress: Cast Steel>Cast Iron> Cast Bronze

Stress Intensity: Cast Steel>Cast Iron> Cast Bronze

From the results, it is observed that the equivalent stress and the stress intensity is maximum for cast steel and minimum for the cast bronze. The smaller values of stress intensity assists the part in achieving a longer life. Hence, from the analysis, it can be considered that cast bronze is the typical material for the spur gears due to the lower values of equivalent stress and stress intensity experienced by the material for the same boundary conditions.
