Week 1 Challenge

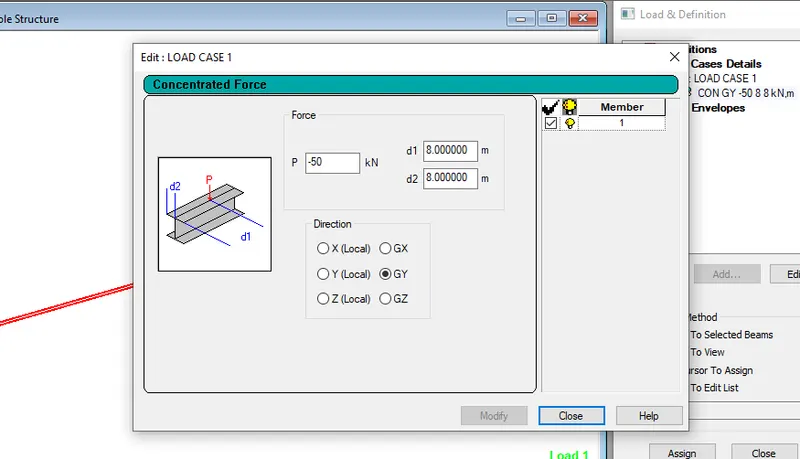

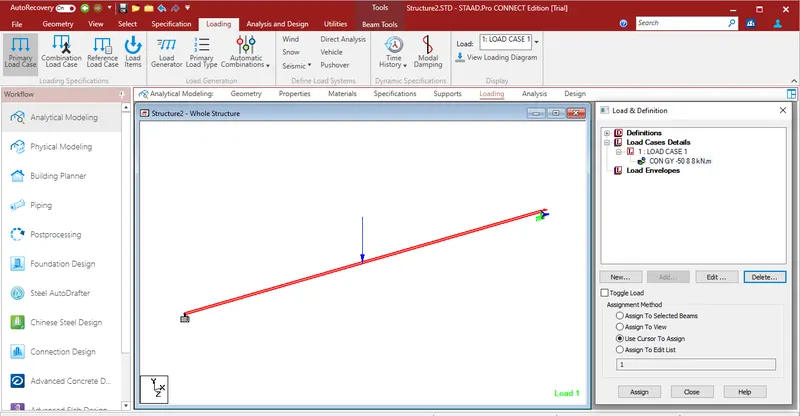

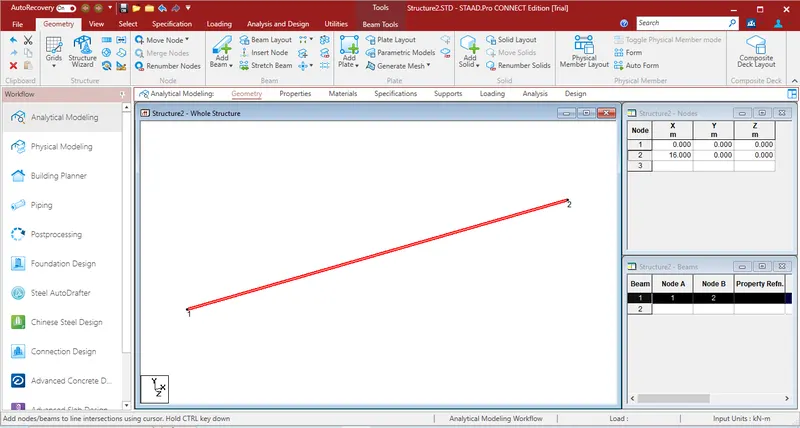

AIM:To create the beam with 16m span of fixed one end and roller support and 50kn point load at mid point and of Shear force diagram and Bending moment diagram by using STAAD Pro software.

INTRODUCTION: STAAD Pro is used for analysis of structure by using materials,size,geometery, loads.

PROCEDURE:

1.1ANS:

• Ope the STAAD Pro. software.
• Select the share option.
• Then select the mail.
• Then select the STAAD pro file in the format of .std file.
• Then upload it.

1.2ANS:

• Steel
• Concrete
• Aluminium
• Timber
• Composite material

As per IS code

1.3ANS:

Yes,it is possible in analaytical tab with camera logo.

1.4ANS:

• Analaytical model interface
• Physical intreface
• By command

1.5ANS:

• Open the STAAD pro
• Select the members.

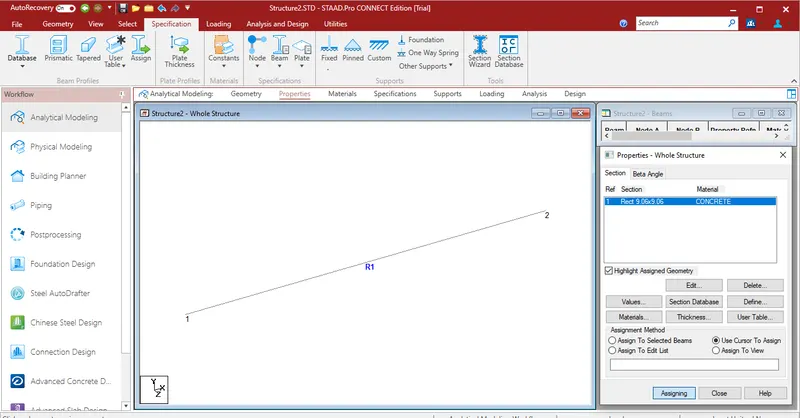

• Select the selectio tool ad asign the properties by using the member in ribbon ta,
• Then assign,ok.

2.1ANS:

• Ultimate strength
• Yield strength
• Torsion
• Bukling
• Effective length
• L/R ratio

2.2ANS:

The following are the available cursor in STAAD Pro

• Node
• Beam
• Solid

2.3ANS:

In view tab select the different type of view like top,right.

2.4ANS:

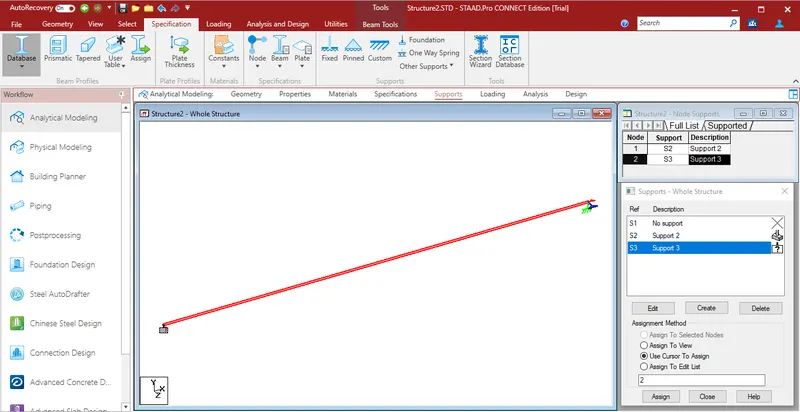

In analaytical model tab ,supports like pinned or fixed for simply support.

2.5ANS:

The following are the steps in Design basic report

• Project introduction
• Strutural layout
• Load combinations
• Analysis
• plan

2.6ANS:

• Steel
• Concrete
• Aluminium
• Timber
• Composite material

3.1ANS:

Structure system in STAAD

• Space
• Plan
• Truss
• Frame

3.2ANS:

• Global coordinate system
• Local coordinate system(X,Y&Z)

3.3ANS:

Design basic report

• Project introduction
• Strutural layout
• Load combinations
• Analysis
• plan

3.4ANS:

The following are the analysis

• perform analysis
• P-Belt analysis
• Bucklilng analysis
• Push over analysis
• Non linear analysis

3.5ANS:

• Fixed-All six degrees are fixed.
• Fixed but condition-Some degrees are fixed-restrained.

PARCTICAL

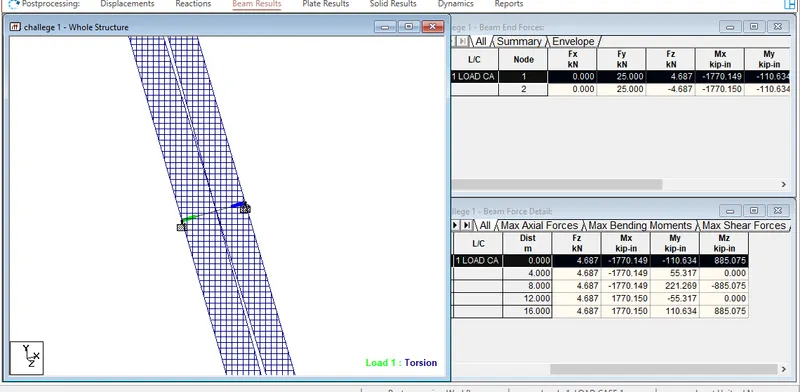

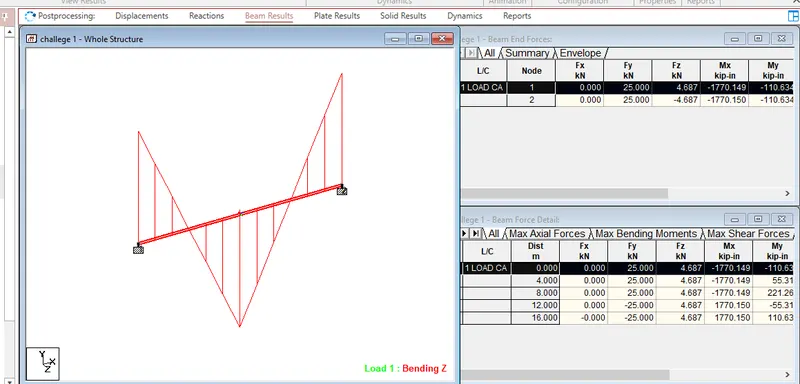

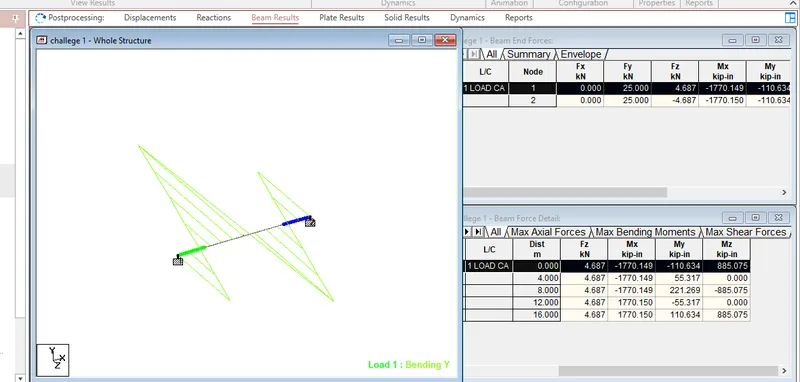

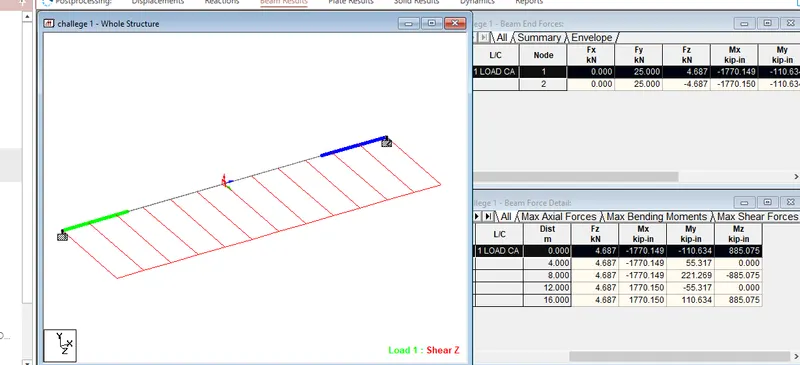

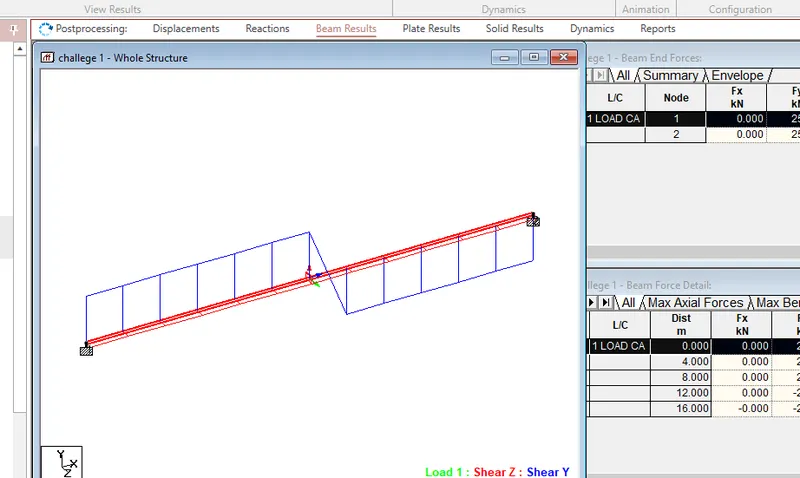

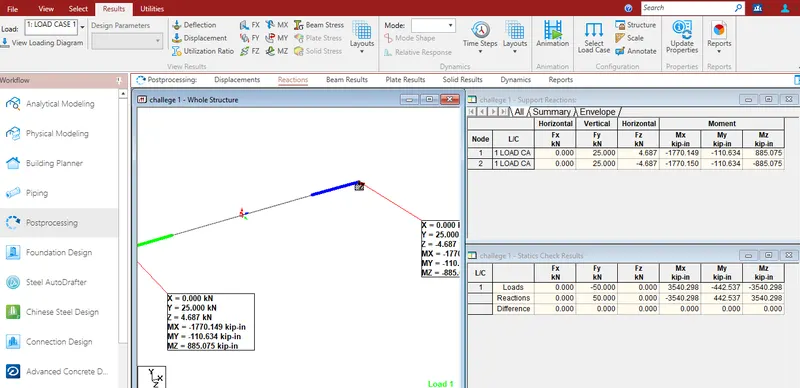

RESULT:To Complete the beam with 16m span of fixed one end and roller support and 50kn point load at mid point and of Shear force diagram and Bending moment diagram by using STAAD Pro software.
