Week 1 Challenge

1.

1, Ans :

• Open the STAAD PRO and locate share option in file .
• Then select the email option and select .STD file and send it.

2 , Deffirent materials :

• Concrete
• Steel
• Timber
• Aluminium
• Composite sections.

3, Ans:

• Yes, It is possible to get picture after the post processing mode , after getting results plot the diagram which you want and click take picture icon.

4, Ans:

• The way whic we can create model are,
• Using geromentry grids
• Using prototype template
• Using coordinate grids.

5, Ans:

Steps involved in assign properties in the model,

• Go to properties panel on right side,
• And select the material type and click the radio putton
• Click Assign to the selected member and it will assign to the member.

2, Ans:

2.1 :

• Six design parameters involved in the RCC design,
• Compressive strenght of concrete Fc
• Tensile strength of concrete Fy
• Maximum dia bars
• minimum dia bars
• Clear cover
• Code of practice
• End concrete design

2.2, Ans:

• Different type of Curser are
• Beam cursor
• Node cursor
• Plate cursor
• Load cursor
• Solid cursor
• geomentry cursor.

2,3 Ans:

• Different view of model,
• Front view
• Back view
• Top view
• Bottom view
• Right side veiw
• Left side veiw
• 3D veiw or isomentric veiw.

2,4 Ans:

• Define simply supported condition
• Goto support panal in the tab
• Click to create the support there will get the different support condition for simply support condition.
• Then select the view or select the memeber to Assing the pinned conditon.

2.5, Ans:

• Topics involved in DBR
• Project name and location
• Diagrams of the project
• Concrete methodology
• Budget of the project
• Quality assurance.

2,6 Ans:

• Multi material define,
• We can use multi material in single project with defining it,
• Tember , concrete , steel and aluminium we can use it in same project to execute.

3. 1, Ans:

• Structure system in Staad pro
• Plane frames
• Space frames
• Trusses

Plane frames:

• It is 2D frame which is used for creating straight elements

Space frames:

• It is 3d frame which is used for longer spans

Trusses:

• The structural system used for steel to assemble in triangel formet to assign it.

3.2, Ans:

• Coordinate system addopted in the STAAD PRO,
• This coordinate system consist of X,Y and Z axis
• The coordinate system consist of two types
• Local systemI
• Globel system

Local ,

This coordinate system X axis is fixed to left and other axis can be rotated and we can get the work done.

Global .

Here all axis are fixed we can not change or rotate it .

3.3, Ans:

• DBR
• Design breif report
• This is the report which will be done before the model executed
• This process will have overall details of the project from top to bottom.
• It has Project name and project location
• Concrete methodology
• Budget of project
• Quality assurance.
• Detail diagrams .

3.4, Ans:

• Different type of Analysis,
• Linear elastic analysis
• P delta analysis
• Bulking analysis
• Pushover analysis

3.5, Ans:

• Different between Fixed and Fixed but Conditon
• In fixed conditon all point are fixed .
• But in Fixedbut conditon we can have some execuption which is we can add are remove the forces as we required.

PRACTICAL :

PROCEDURE :

• Open staad pro and create plane with beams.
• Then assign nodes with 0,0 and 16,0.
• Add beam to draw connect the nodes.
• Define materials of the beam with size 0.25 * 0.50 and material type concrete.

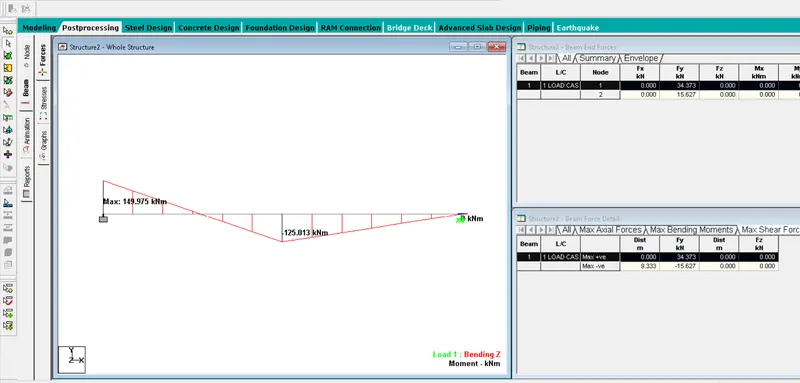

• Assign load in load define to add point load at center of the beam with 50 kn concentrated load from x 8 m to get mid of beam.
• Assign beam supports on one end with fixed and other end with fixed but which is avaliable in the support conditions.
• Once all assign we have go get the EDIT tab and EDIT input command line change the load define at end of the material define.

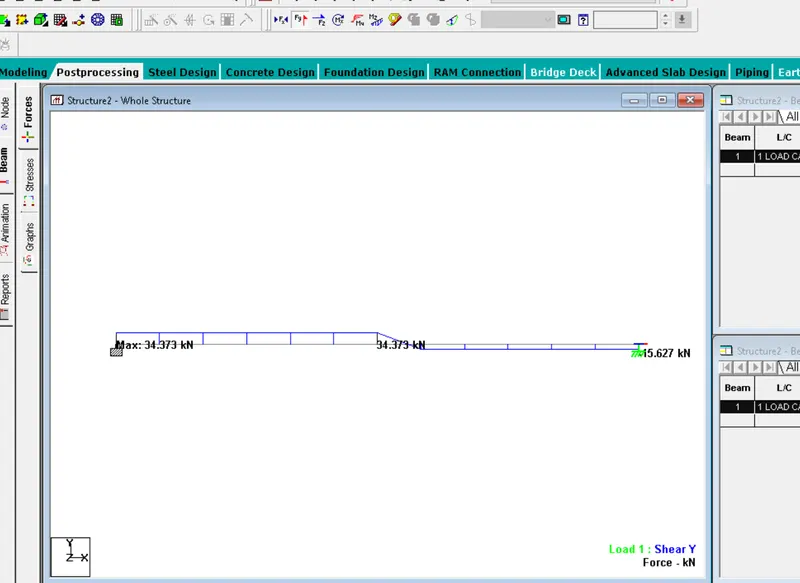

• Then perform analysis , Final then the result will be avaliable.

• Hence proved.
