Vasavi_External Exam_Tekla

Analyze and Design a Boiler shed structure as per IS code in Tekla Structural Designer. Kindly refer to the enclosed plan and elevation given below for modelling.

TOOLS USED :

• Grids.
• Levels.
• File.
• Model.
• Manage property sets.
• Column.
• Beams.
• Frames.
• Loads.
• Loadcases.
• Wall panels.
• Roof panels.
• Analyze.

PROCEDURE :

1. First open a new file to start the structure as per the plan given in the attachments.

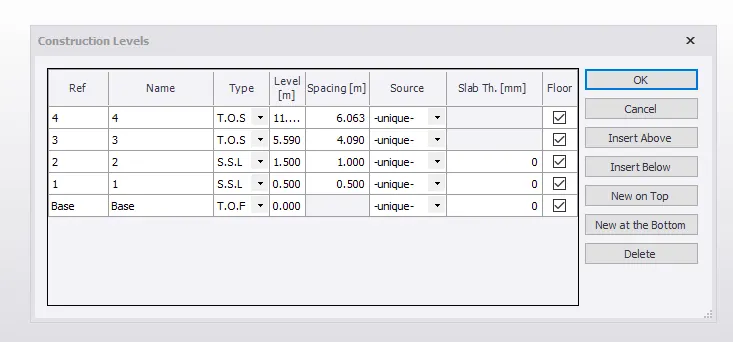

2. Click on construction levels and add all the levels as per the cross section plan given.

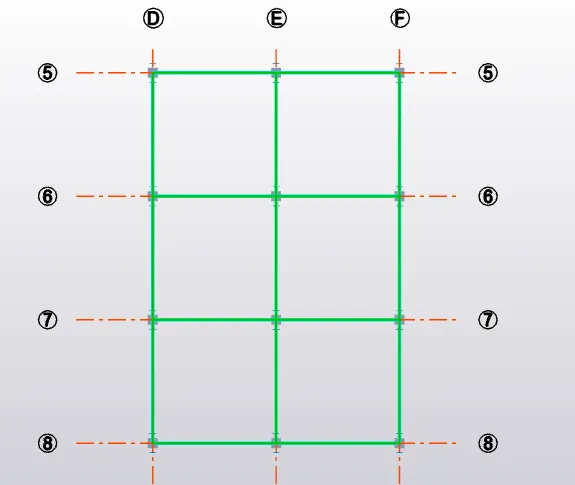

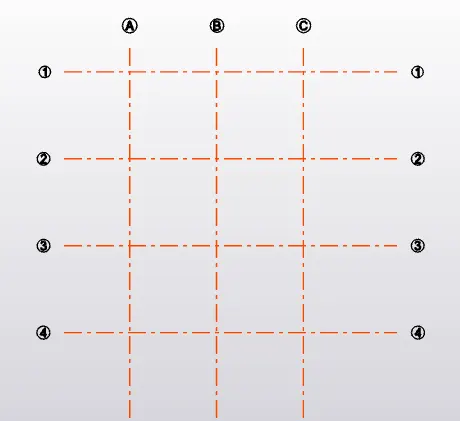

3. Select grids tool and draw a horizontal grid line.

4. With the option parallel quick draw the remaning grid lines.

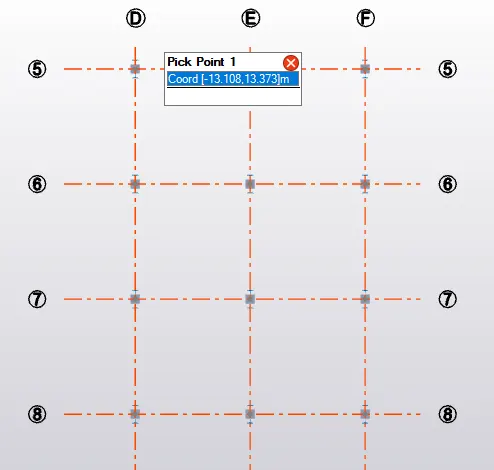

5. Repeat the same procedure for the velricle grid lines also.

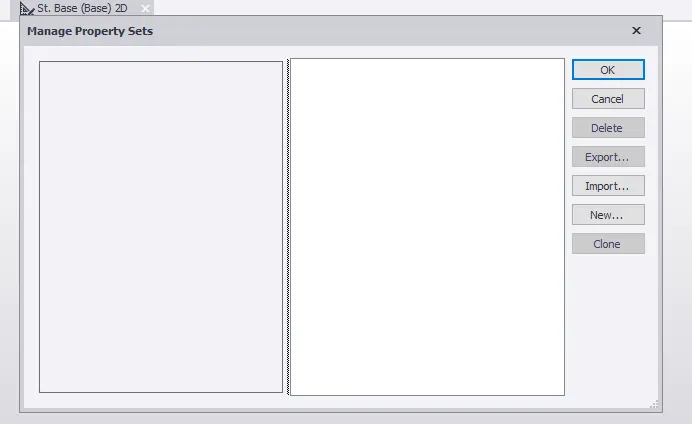

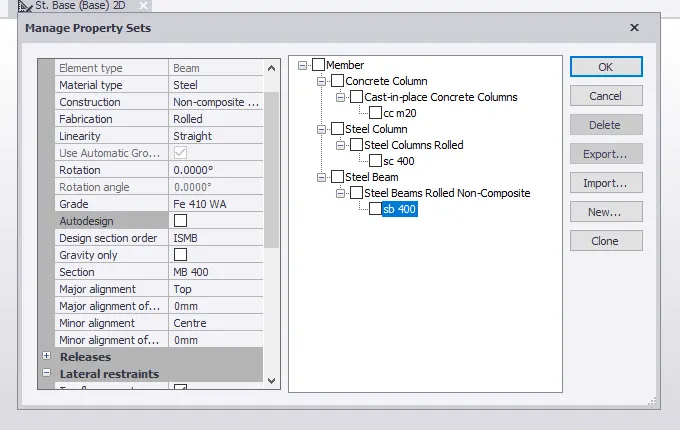

6. Now click on manage property sets tool and create members like concrete column, steel column and steel beams of different grades.

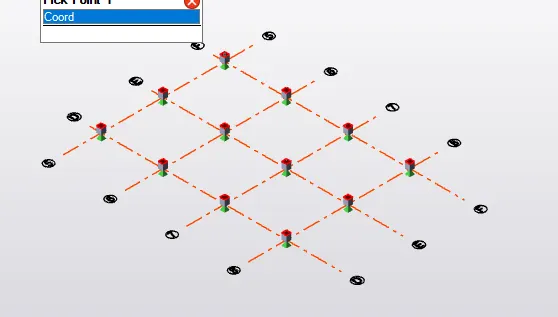

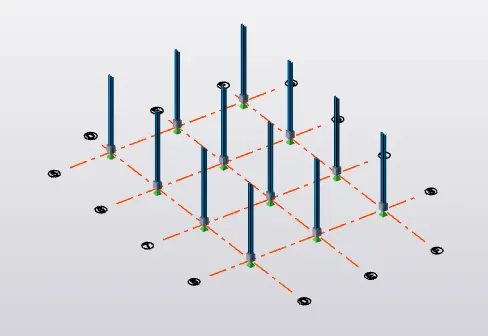

7. Now construct concrete column where ever necessary.

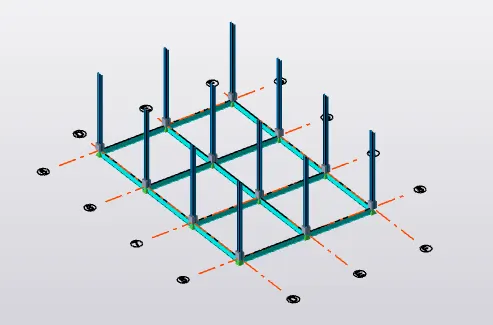

8. Next on the concrete column construct steel columns and join the using primary beams.
9. To give extra strength and support to the structure provide secondary beams .

10. Next select the frames tool and create frams which will be helpful to do the remaning work.

11. Validate the model to check weather there are any errors.

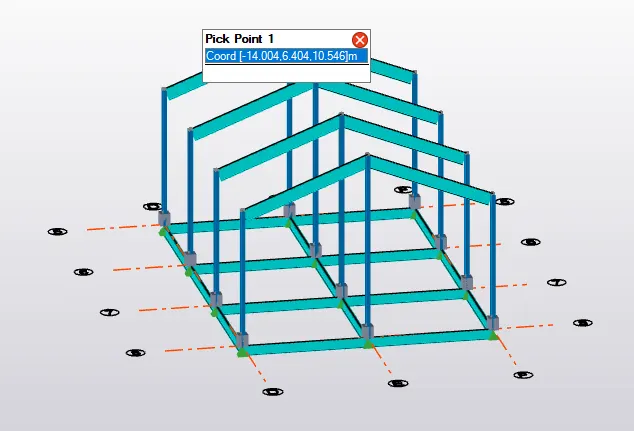

12. Now on selecting the particular frame construct the rafter and the roof using high grade steel bars.

13. After construction of the roof convert the beams to fully fixed support.

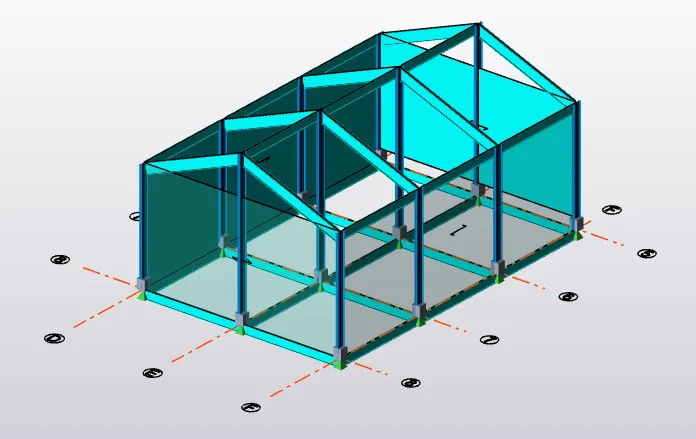

14. Now with the help of x braces tool construct x braces on both sides of the structure and as well as on the roof.

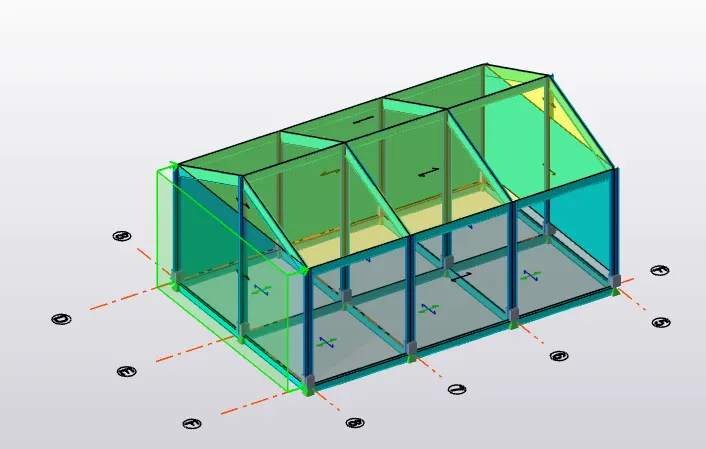

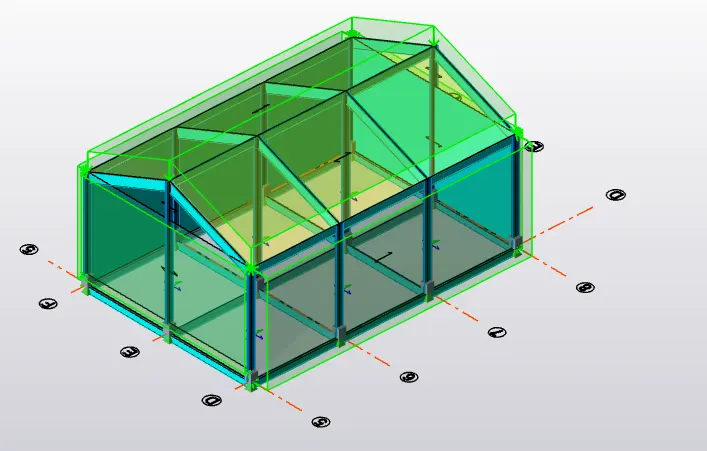

15. Now create wall and roof panels to the structure on all sides.

16. Perform the clane loading calculations.

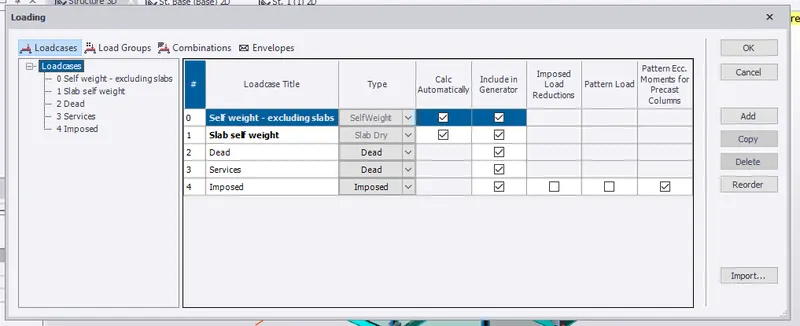

    17. Now click on loads and create new loads like dead and live loads.

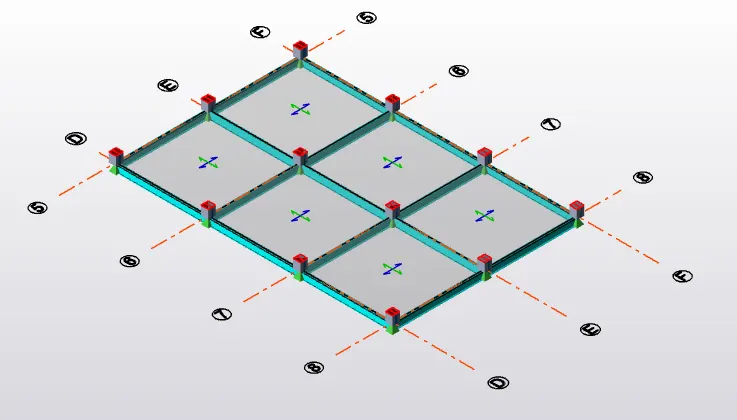

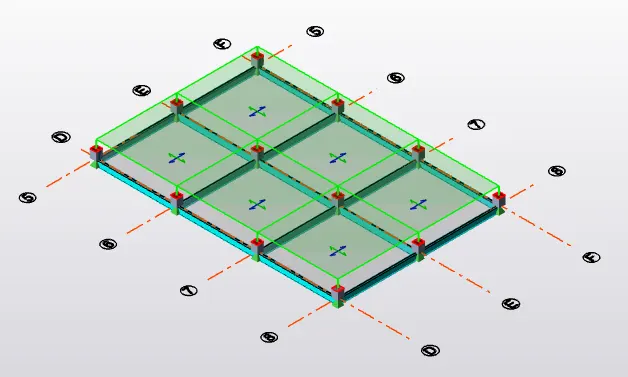

    18. Create slabs to the structure by clicking on slabs on beam option.



    19. Now place live and dead load on the structure as per IS standard codes.

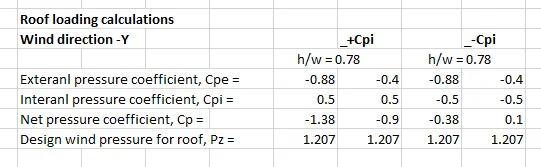

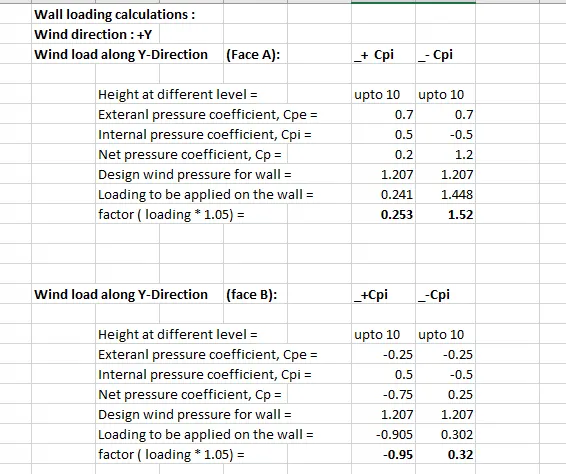

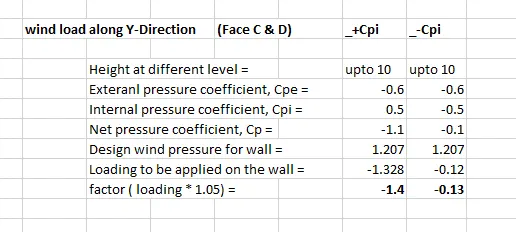

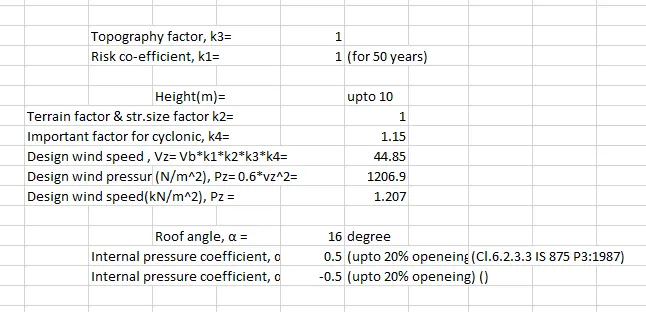

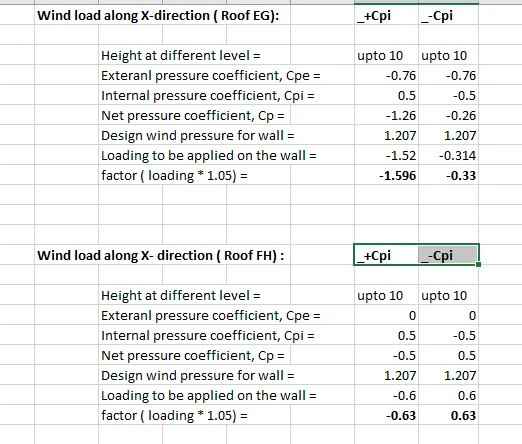

    20. Now create new wind loads with both + Cpi and -Cpi values.

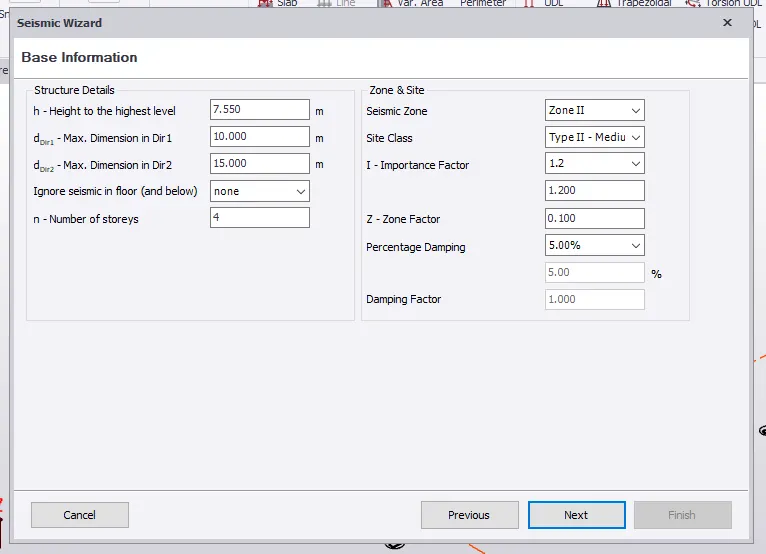

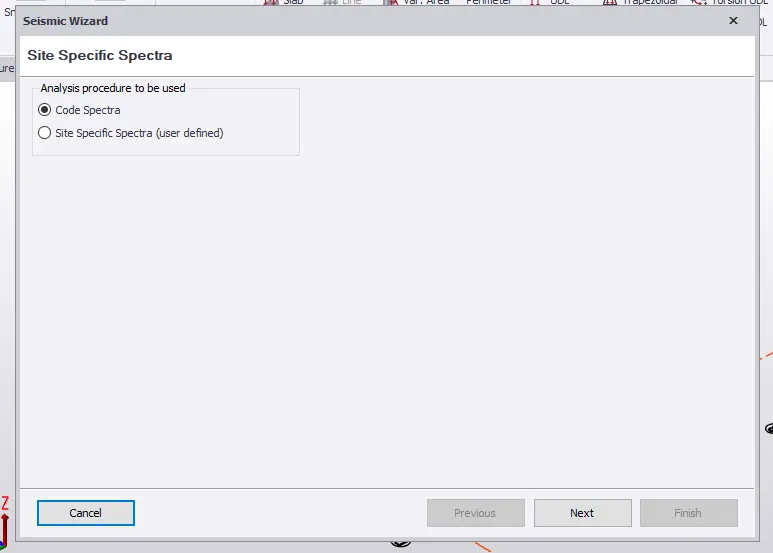

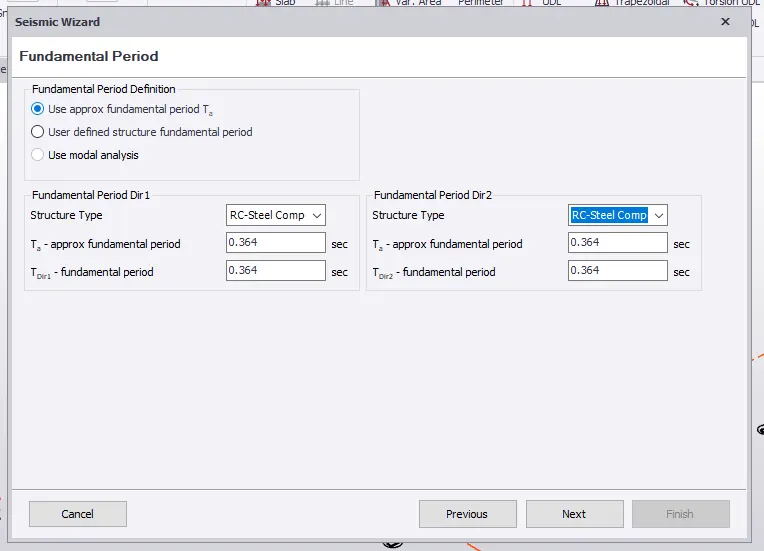

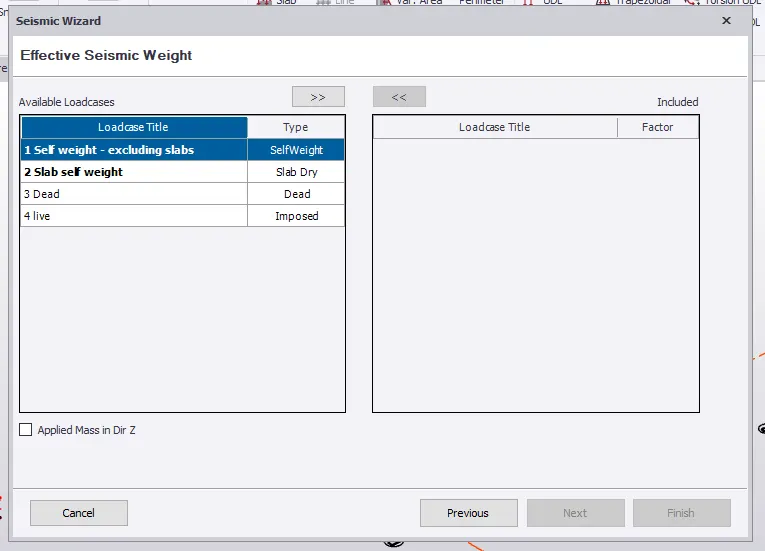

    21. At last add seismic load to the structure.



    22. Analyze the structure and do necessary changes to correct the errors.
    23.

    RESULT :

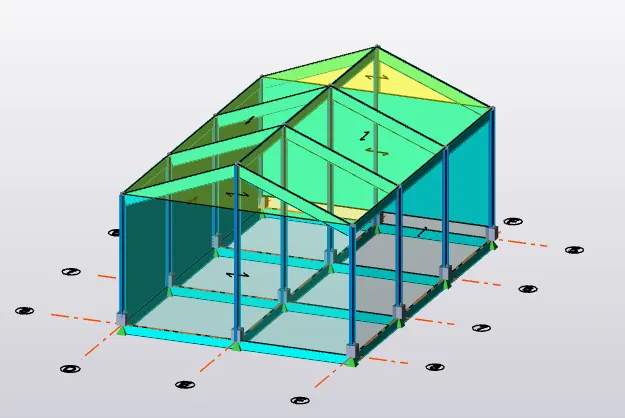

    With the above steps we can construct a steel structure and add different kinds of loads and analyze the structure.
