REVIT_Revision w.r.t to code_Week 5

1) Why are building codes or standards essential for the modeling/ efficiency of drawings in Revit?

ans) building codes give us certain rules to be followed in the planning by specifying certain limits by taking various things into consideration. By following the building code there will be more chances of the plan being approved.Every effort that we make in the project is associated with money. If we design for a specific height, then all the tasks associated are completed and the building doesn't get approved. All work might have no use. We should change the plan again using the building code and make changes again.

2) From the National Building Code list the groups that will be essential to you
when you begin modeling in Autodesk Revit.

ans)

1. Civil Engineers
2. Architects
3. Structural Engineers
4. Electrical Engineers
5. Fire protection Engineers
6. Plumbing Engineers
7. HVAC Engineers
8. Town Planner
9. Urban Engineers
10. Landscape Architects
11. Environmental Specialist
12. Security system Engineers
13. Interior Designer
14. Quantity Serveyor
15. Other Specialist

3)List the five major steps that occur in project cycle . The steps should include from conceptualization of project to maintenance and final stage.

Ans) The five major steps that occur in project cycle are develpoed by Project Management Institute(PIM). They are:

1. Initiation: It is a very important stage of the phase. We as a team will identify the key issues the new project will strive to solve. We will determine how feasible this project is and whether it actually makes sense to go ahead with its execution or not. By the end of this phase, everyone in the team should be very clear on the project rationale. Keeping the key factors in the mind such as justification behind the project ,Options that were considered, timeframes and budget and potential risk behind taking up this task.
2. Project Planning: Before execution of any project we need to create a detailed plan of action for no further obligation. A project plan brings clarity and systematization to what can quickly become a very chaotic process. The team will come up with a roadmap that specifies the milestones of our project with the steps we will be taking to achieve them. In addition, we will also come up with a clearer understanding of the timeline of the project as well as deadlines that each team member will have to stick to. Most crucially, we will gather and allocate resources to where they’re needed.
3. Execution:The bulk of the project action happens during the execution.This is the longest and most important phase of your project, in which all of the action happens.Here each and every detail is taken into consideration and make it out possible with atmost attention.Making sure that every thing goes smooth and steady by providing proper equipments for the communication.By the end of this stage, we will be able to see the physical manifestation of the pre-execution brainstorming and planning.
4. Monitoring: The cost and communication play a key role in the sustainable progressing of the project.Quality of outputs and quality of performance are the one which makes us stand out by any another companies to take a lead.A lot of assessment and analysis happen at this stage, including evaluating individual team member.

Termination Stage: This stage is all about analysis and assessment.Tying up the loose ends at the last moment also is a very crucial step in making the project to take up to another level.Its all about what all went well and what could’ve been improved.

4) Give examples of different disciplines involved in the construction of a project.

ans)

Construction: Managing the building.civil engineering systems from cradle to grave to include coordination between the owner, contractor, and designer.

Cost Estimation: It includes accounting, financial contracts, and estimating the ·cost of activities.

Contractors: effective contract administration is integral to acquiring the next job or project as a construction manager.

Geotechnical: Designing foundations and earthwork systems to support soil itself and transfer loads from structures into the earth while limiting settlements.

Management: Managing equipment, personnel, and supplies to build more effectively, efficiently, and economically.

Structural: Designing systems of structural members used to support loads for a specified public function such as bridges, buildings, dams, and bell towers.

Surveying: Measuring physical features to include horizontal distances and elevation differences to determine property lines, lay outbuildings, and produce maps.

Appropriate multi-disciplinary teams need to be constituted to successfully meet the requirements of different stages. Each team may comprise need-based professionals out of the following depending upon the nature, magnitude, and complexity of the project:

a) Architect,

b) Civil engineer,

c) Structural engineer,

d) Electrical engineer,

e) Plumbing engineer,

f) Fire protection engineer, g) HVAC engineer,

h) Environment specialist,

j) Town planner,

k) Urban designer,

m) Landscape architect,

n) Security system specialist,

p) Interior designer,

q) Quantity surveyor,

r) Project/construction manager, and

s) another subject specialist (s).

5)How are buildings classified ? Place the following buildings under each category
a. Four unit apartments
b. School with capacity of 1000 students
c. A single unit shop.
d. Multi story Shopping complex
e. Steel machine factory

Ans) Buildings are classified on bases of occupancy and based on type of construction. They are:

1. Agricultural Building
2. Commercial Building
3. Residential Building
4. Educational Building
5. Governement Building
6. Industrial Building
7. Military Building
8. Religieous Building
9. Transportation Building
10. Power plant Building

• Four unit apartments: Residential Building
• School with capacity of 1000 students: Educational Building
• A single unit shop: Mercantile building
• Multi story shopping Complex: Commercial Building
• Steel Machine Factory: Industrial Building

6)Distinguish the roles of the Design team and Management team

ans)

DESIGN TEAM :

A design team can be a singular individual working on design projects across an organization, up to a team of 50+ designers who have their own department. There's a lot that goes into effectively leading a design team.

In building projects, various aspects like form; space planning; aesthetics; fire and life safety; structural adequacy; plumbing services; lighting and natural ventilation; electrical and allied installations; air conditioning, heating, and mechanical ventilation; acoustics, sound insulation, and noise control; installation of lifts and escalators; building automation; data and voice communication; other utility services installations; landscape planning and design; urban planning; etc need to be kept in view right at the concept stage. The projec1requiring such multidisciplinary inputs need a co-ordinated approach among the professionals for proper integration of various design inputs. For this, and

to take care of the complexities of multi-disciplinary requirements, a design team of professionals from required disciplines shall be constituted at the appropriate stage. Here,

it is desirable that the multi-disciplinary integration is

initiated right from the concept stage. The learn shall finalize the plan. The composition of the team shall

depend on the nature and magnitude of the project Design is an evolutionary and participatory process,

where participation of the owner constitutes a very important input at all stages, and the same shall be ensured by the design team. (SP 7 GROUP 1 (2005)NCB - 4.1 DESIGN

TEAM ) MANAGEMENT TEAM:

The management team is the group of individuals that operate at the higher levels of an organization and have day-to-day responsibility for managing other individuals and maintaining responsibility for key business functions. ·

The objective of project management or construction management is primarily to achieve the accomplishment of the project in accordance with the designs and specifications in a stipulated time and cost framework,

with a degree of assurance prior to commencement and satisfaction on Accomplishment. (SP 7 GROUP 1 (2005)NCB-4.2 PROJECT MANAGEMENT AND CONSTRUCTION MANAGEMENT TEAM )

7) Refer to NBC, Identify the modeling requirements for the project ( from week 4).
a. Height Limitations
b. Area Limitations
c. Room sizing
d. Wall height
e. Thickness based on fire life and safety
f. Passageway requirements

Ans) AIM: To model the fourth week project as per the NBC requirements.

1. heightlimitations :

A-2 HEIGHT RESTRICTION

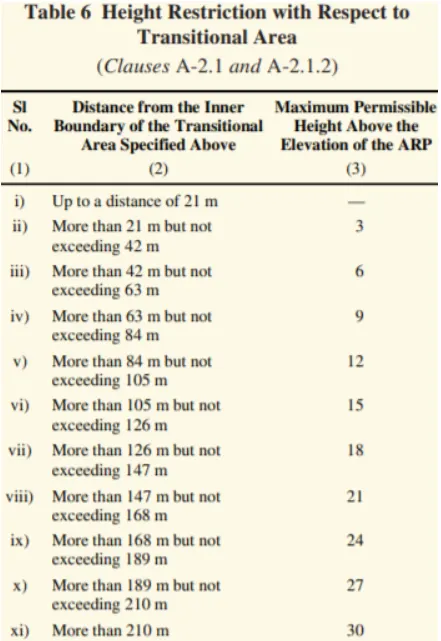

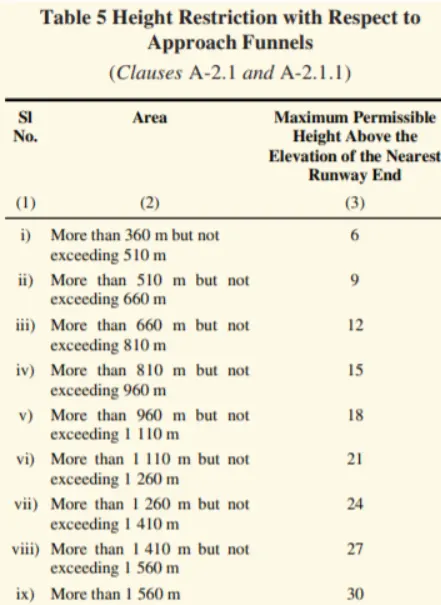

No building or structure higher than the height specified in Tables 5 and 6 shall be constructed or erected, or no tree which is likely to grow or ordinarily grows higher than the height specified in Tables 5 and 6, shall be planted, on any land within a radius of 20 km from ARP of the aerodromes listed.

C-2. 5 Height of Building (FORM NBC )

The height of the building shall not exceed 15m. NOTES

1 For buildings up to the height of 15 m, there is no need to provide lifts. 2 Housing for the low-income group shall preferably be up to

a maximum of two stories.

3 Buildings for housing beyond 15 min height should be resorted to in exceptional circumstances and it should be

governed by provisions laid down in this Code.

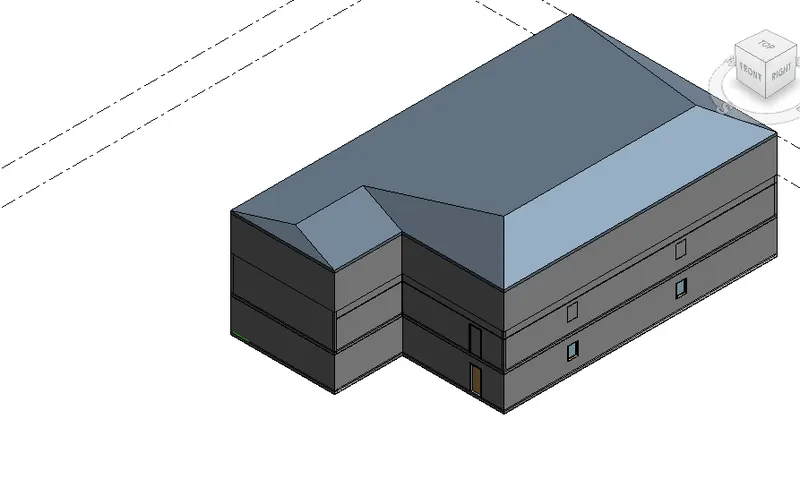

According to me. model, the height is 7.3m. Therefore it does not extend 15 m, so my project is according to NBC standards in height limitations

b.area limitations : (FORM NCB ).

The minimum plot size with ground coverage not exceeding 75 percent, shall not be less than 40 m2 in small and medium towns and not less than 30 m2 in metropolitan cities. Plot sizes below 30 m2 but not less than 15 m2 may be pen11itted in the case of cluster planning.

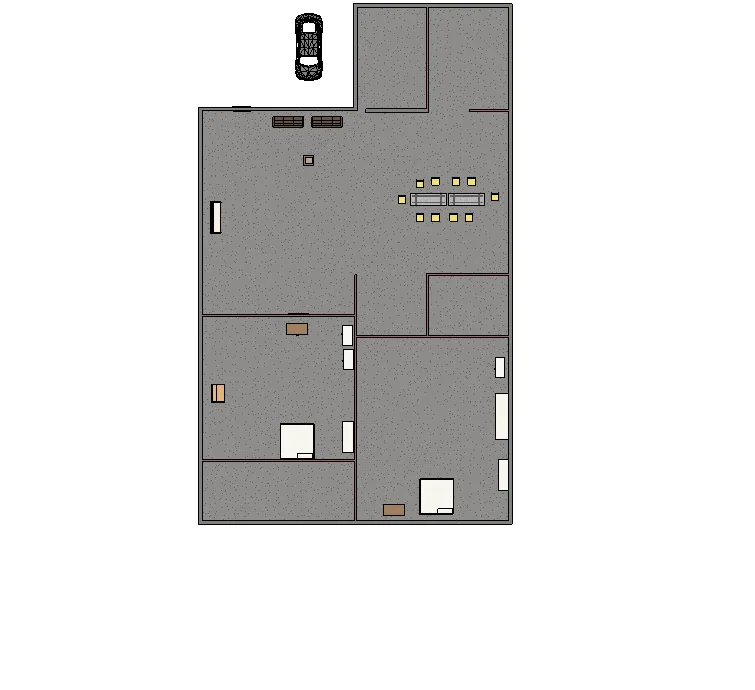

According to my model the area is not less than 40 m^2, my plot size is 40.1 feet x 43.9 feet

1. Room sizing

Every dwelling unit to be provided should have at least two habitable rooms. Even if a one-room house is provided initially it should be capable of adding a new second room in the future. However, in case single room tenements are required 10 be provided where future additions are not possible, the carpel area of the multipurpose single room should be at least 12.5 m2. Such one-room dwelling units with 12.5 m2 carpel area

of habitable space is permitted only in case of on-site rehabilitation of slum dwellers. In a house of two rooms, the first room shall not be less than 9.0 m2 with a minimum width of 2.5 m and the second room shall not be less than 6.5 m2 with a minimum width of 2.1 m provided the total area of both the rooms is not less

than 15.5 m2.ln incremental housing the bigger room shall always be the first room.

According to my model, the room sizing is according ta NCB

d.wall height

F-3.4 Minimum Height.

The minimum height of rooms/spaces shall be as follows:

PART 3 DEVELOPMENT CONTROL RULES AND GENERAL BU/WING REQUIREMENTS 59 a) Habitable room 2.75 m

2. b) Kitchen 2.6 m
3. c) Bath/ water-closel2 m
4. d) Corridor 2.1 m

F-3.4.1 /n the case of sloping roofs, the average height of the roof for habitable rooms shall be 2.75 m and the minimum height at eaves shall be 2.10 m.

According to my model, the walls are according ta NCB

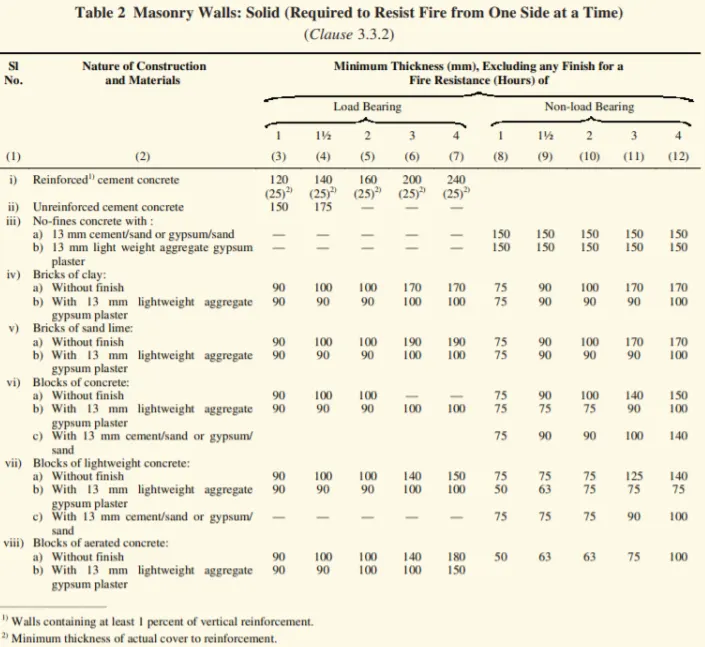

e.Thickness (NCB GROUP 1 TO 5)

According to my model, the thickness of the wall is according to NCB

f.Passageway requirements

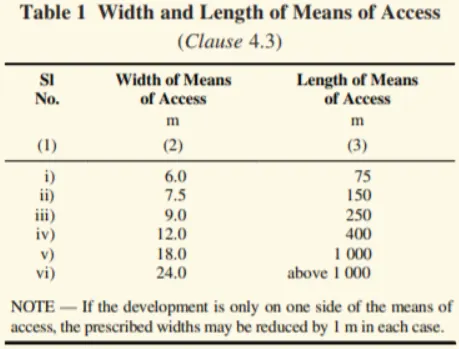

The residential plots shall about on public means of access like street/road. Plots which do not abut on a street/road shall abut/frot on means access. the width and other requirements of which shall be as given in table1

8) We have identified requirements for modeling from question 7, Use these numbers from the codebook and verify the numbers used in modeling the unit from week 2 to week 4. If the numbers are not reasonable, use the numbers obtained from the codebook to create a revision of the model.

ans)
