Usage of Navigation tool , Timeliner and Clash Detection test using Naviswork

1 Aim: Use the Architecture/ Structure Project file developed by you in Week 6 to 8. Export the Revit architecture and structure model to Navisworks Cache file following the export settings discussed in class

Procedure:

Open

open the Architecture/ Structure Project file developed by you in Week 6 to 8

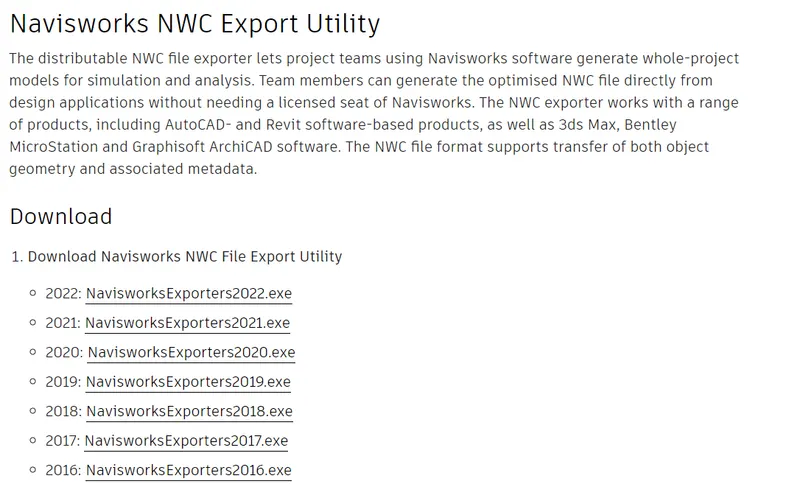

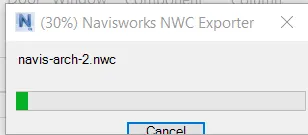

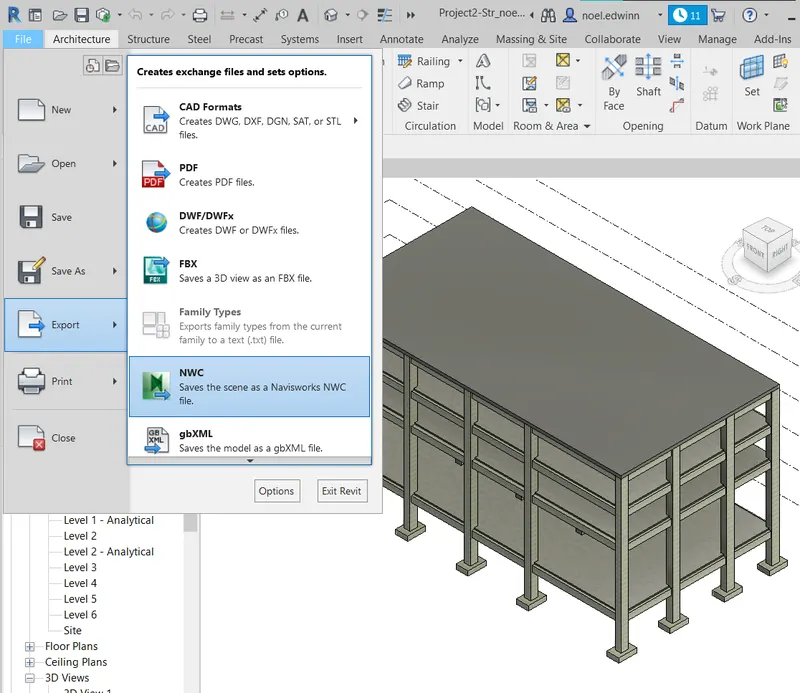

Export the Revit architecture and structure model to Navisworks

export settings

File>Export>CAD format>Dwf

DXF export dialog box open and click next to create the DWF file

Extraction dialog box open and close after the creation

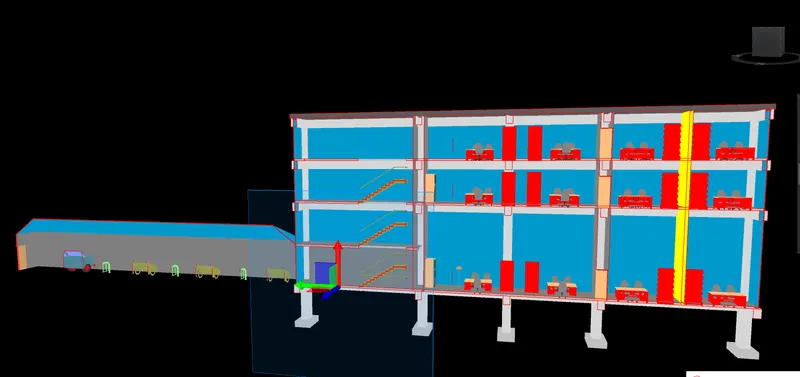

NavisWork Manage

While the File is created, open the file in the Naviswork mange 2020

2) Aim: Use Navigate Tool to walk around the model and walk through the rooms created and record your moving as animation in your Navisworks file

Procedure:

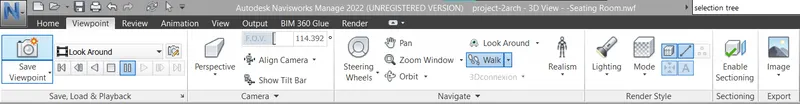

Navigate Tool to Look around the model

• for navigation , tool 1 was the look around option is used
• it helps to look up and down
• move left and right
• we can save the snap of the view

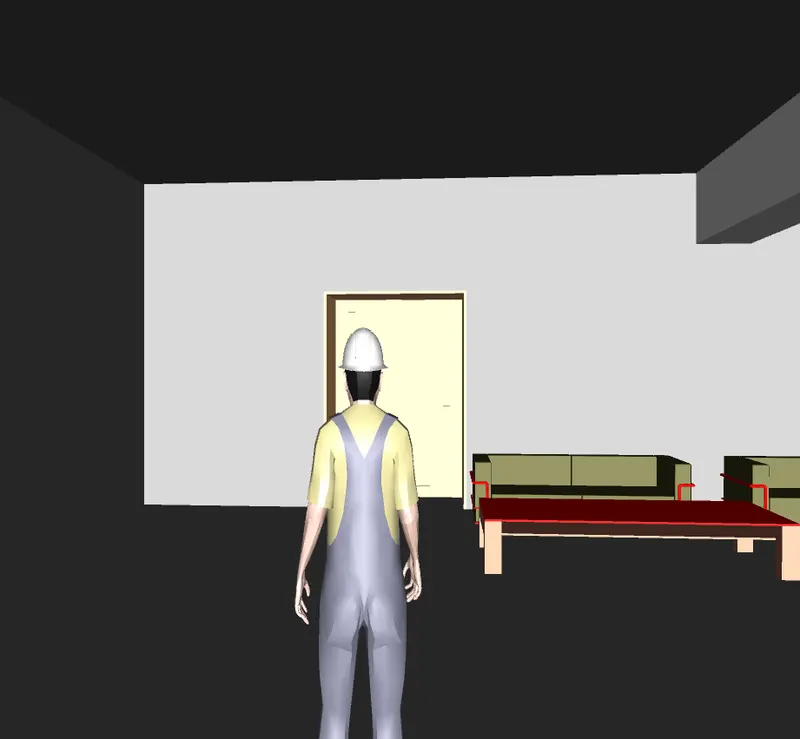

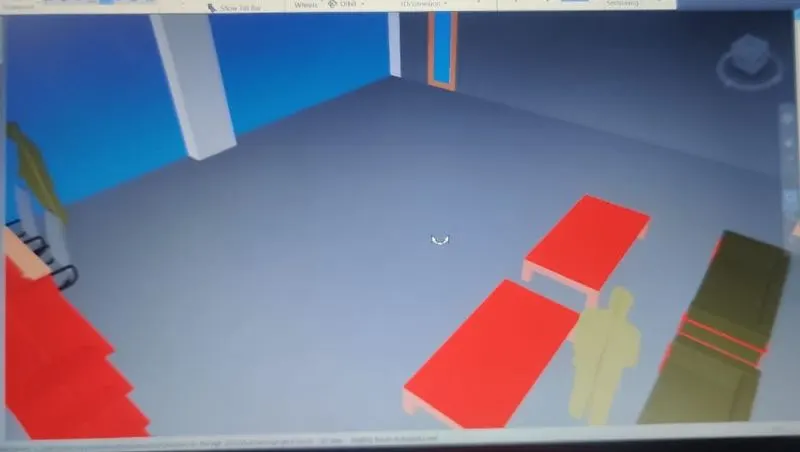

Navigate Tool walk through the rooms created

• we can use, record your moving as animation
• walk through view help as to find the movement of the rooms

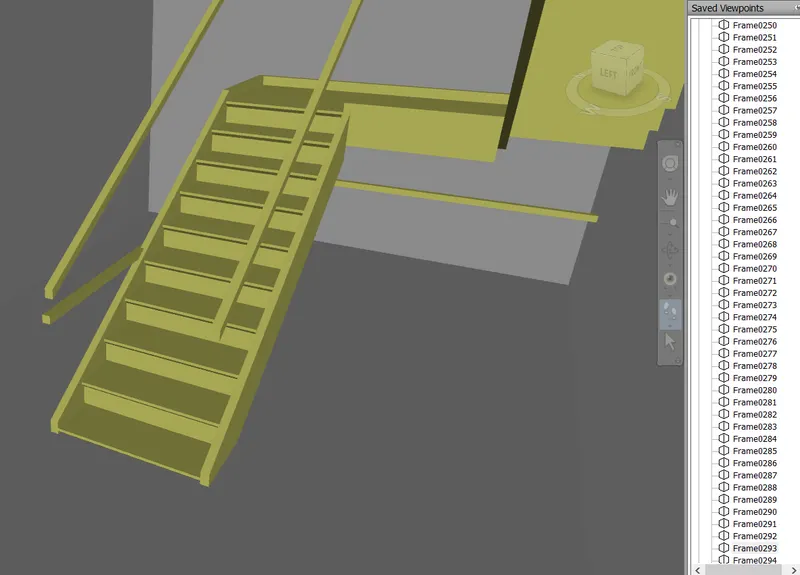

record your moving as animation in your Navisworks

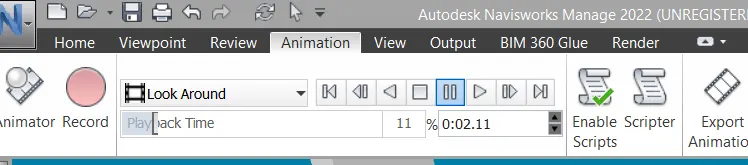

• Animation>record option help to record the moment of the walkthrough view

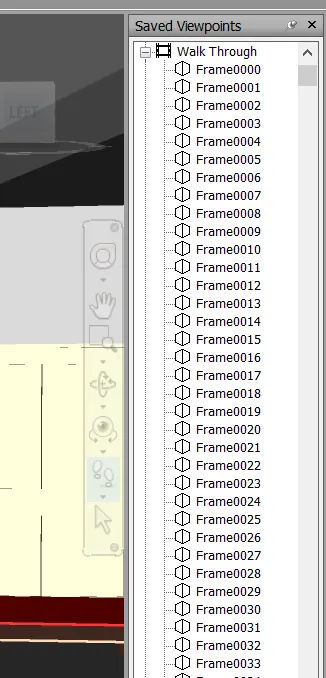

• and we can find the frame by frame process in the naviswork

3) Use Navigate tool to use Realism feature to walk through the model and record your moving as animation in Navisworks file

Navigate Tool to Realism the model

• for navigation, tool 1 was the look around option is used
• it helps to look up and down
• move left and right
• we can save the snap of the view
• The 3D miniature will go in all direction

record your moving as animation in your Navisworks

• Animation>record option help to record the moment of the walkthrough view
• and we can find the frame by frame process in the naviswork

4) Aim: Embed both architecture and structure *.nwc file to your Navisworks file. Create a clash detection test between the two models

Procedure:

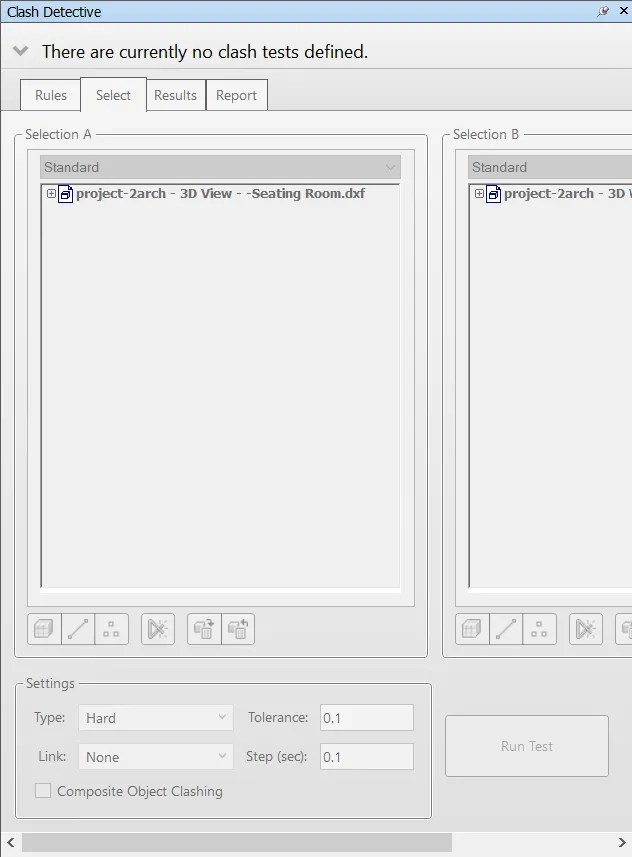

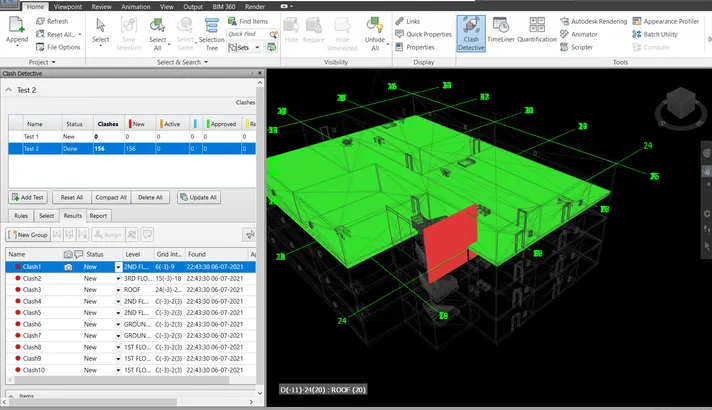

a. Run the Clash Detection Test

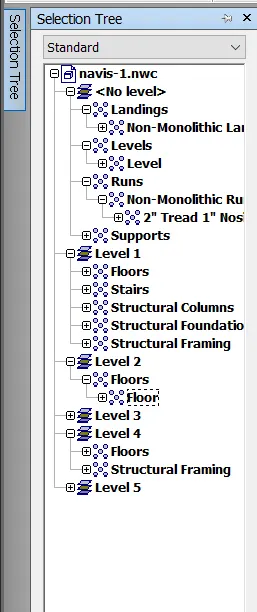

• Embed both architecture and structure *.nwc
• first, open the structure file in the naviswork
• secondly, open the architecture file in the naviswork
• use the append option to add both the files

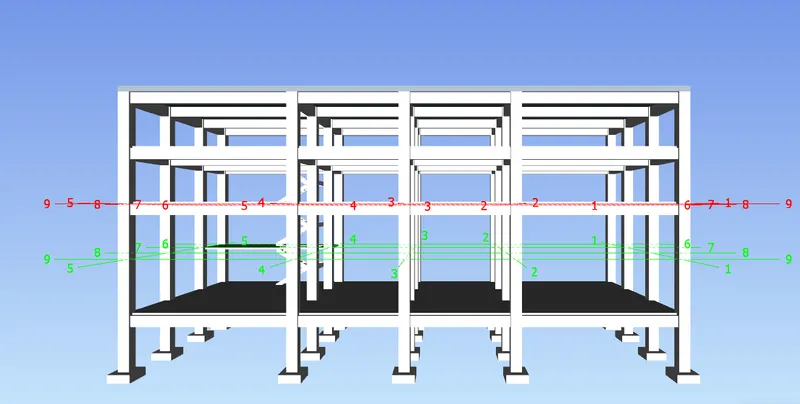

b. Study the clashes between the two models

• After inserting the two files In the naviswork manage

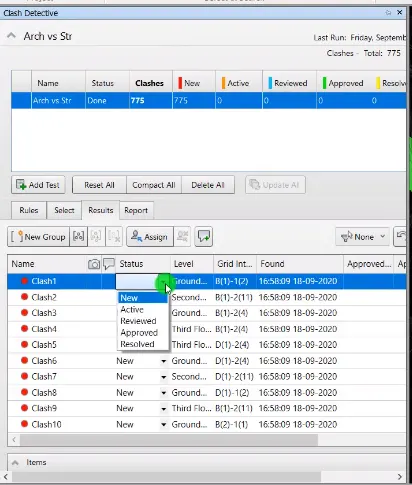

• Run the Clash Detection test
• the results are obtained in the result column

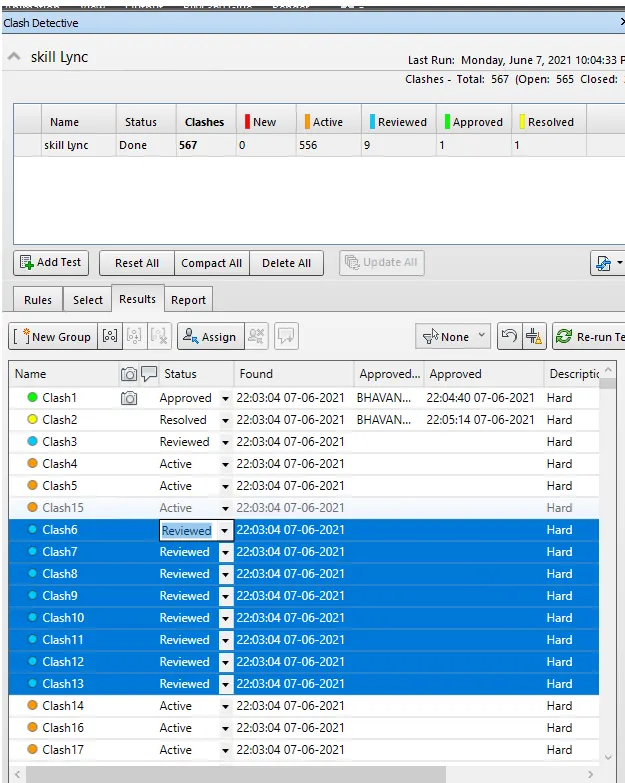

• we will have the 3 options in the list approved, resolved,reviewed

c. List which of the clashes could be approved

• all approved are in the green color list
• the list is shown below

e. List which of the clashes can be resolved

• all resolved are in the yellow color
• the list is shown below

f. Save the results after color-coding the clashes to the Navisworks file

• All three colors are shown below for the reference
• save the results and rearrange the point for the correction

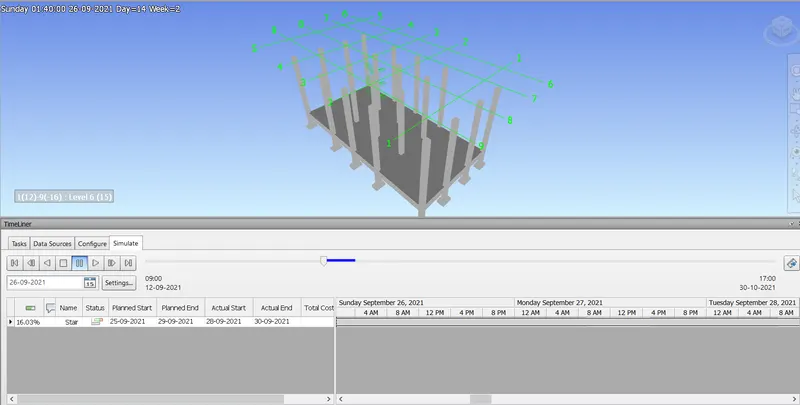

5) Aim: Using the Timeliner feature in Navisworks prepare a schedule for the project developed in weeks 6 to 8 by adding reasonable assumptions for task start date and end date and simulate the task completion as a visual simulation. Record it and save the timeline simulation to the Navisworks file

Procedure:

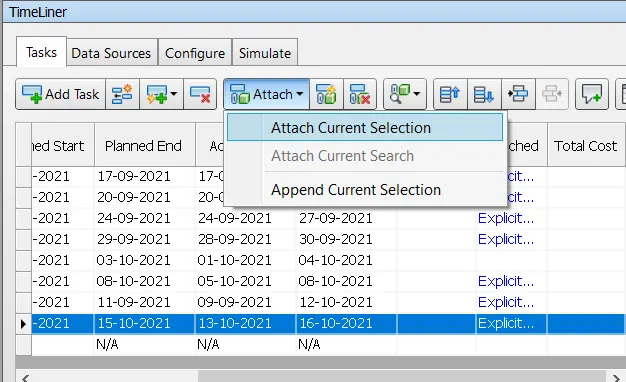

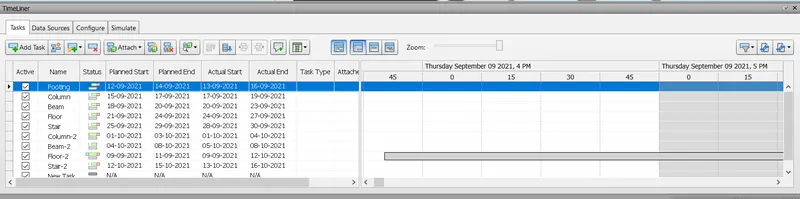

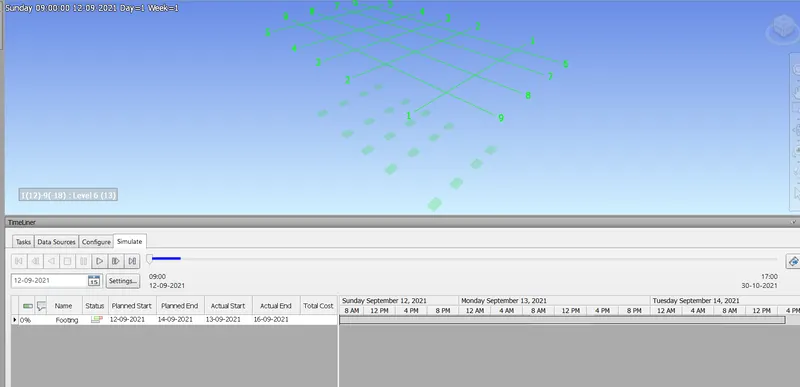

Using Timeliner

as we have used the structural file into naviswork manage 2022

item is in the file

step by step process will be noted in the timelinear method

• Start date
• end date
• Actual start date
• Actual End date
• task type

all are required in the scheduling process

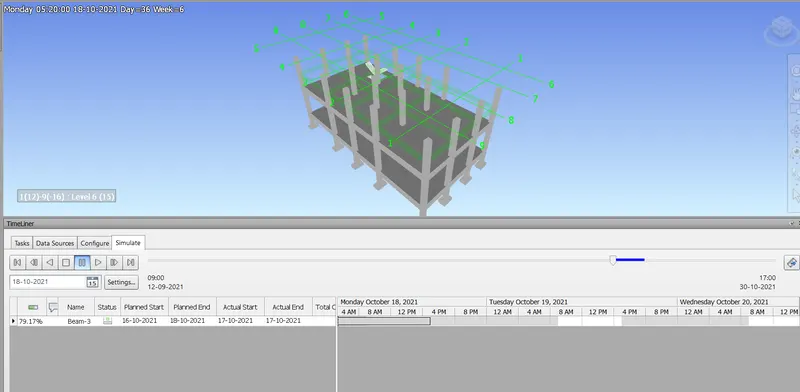

Select the Footing to the roof timing of the construction

Add all the simulation processes in the building work

Result:
