Creating a Floor plan, Footing detail and Isometric view using AutoCad

Aim: To create the given footing plan,footing detail and isometric view using AutoCad

Introduction: The main objective of this assignment is to get in touch with various tools in AutoCad like rectangle,plylines,modification tools like copy,move etc.These tools wiil be understood by creating footing detail, two bedroom building,cross section of 2 bedroom building showing foundation details and isometric view of steps and gable wall.

Note: Reference alphabets are provided only when required

Procedure:

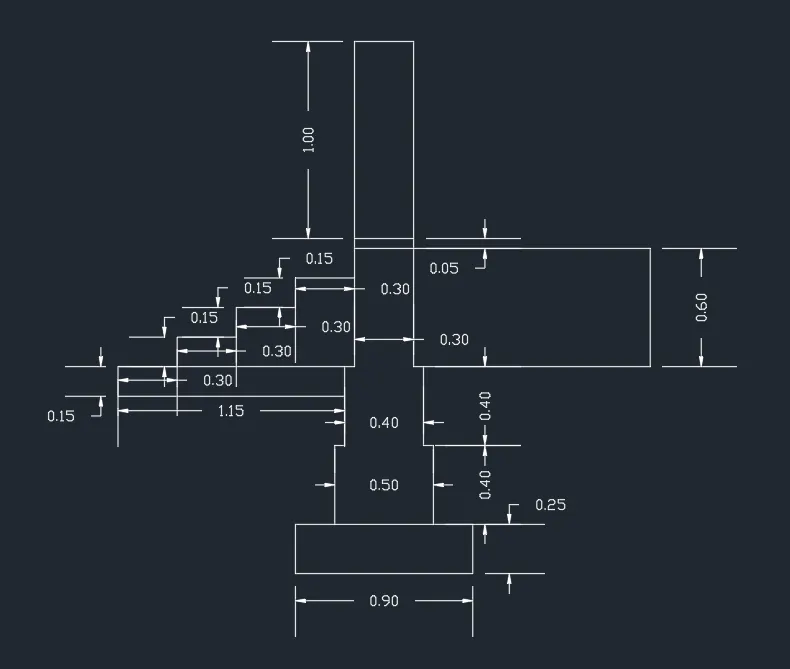

Cross section of load bearing wall over spread footing:

• Type RECTANGLE in command line and press enter
• Specify first corner of the rectangle
• Enter the dimension as length = 0.90,width =0.25
• Specify the other corner
• Select LINE from the ribbon
• Specify the start point a
• Specify next point @0.20,0
• Specify next point @0,0.40
• Specify next point @.05,0
• Specify next point @0,.40
• Specify next point @.05,0
• Specify next point @0,.60
• Specify next point @.30,0
• Specify next point @0,-.60
• Specify next point @.05,0
• Specify next point @0,-.40
• Specify next point @.05,0
• Specify next point @0,-.40
• Press Esc and then reselect line tool from ribbon
• Specify the start point b
• Specify next point @0,.05
• Specify next point @.30,0
• Specify next point @0,-.05
• Press Esc and then reselect line tool from ribbon
• Specify the start point c
• Specify the next point @0,1
• Specify next point @.30,0
• Specify next point @0,-1
• Press Esc and then reselect line tool from ribbon
• Specify start point d
• Specify next point @-.30,0
• Specify next point @-.05,0
• Specify next point @-1.15,0
• Specify next point @0,-.15
• Specify next point @1.15,0
• Press Esc and then reselect line tool from ribbon
• Specify start point e
• Specify next point @.30,0
• Specify next point @0,.15
• Specify next point @.30,0
• Specify next point @0,.15
• Specify next point @.30,0
• Specify next point @0,.15
• Specify next point @.30,0
• Press Esc and then reselect line tool from ribbon
• Specify start point f
• Specify next point @1,0
• Specify next point @0,-.60
• Specify next point @-.95,0

RESULT:

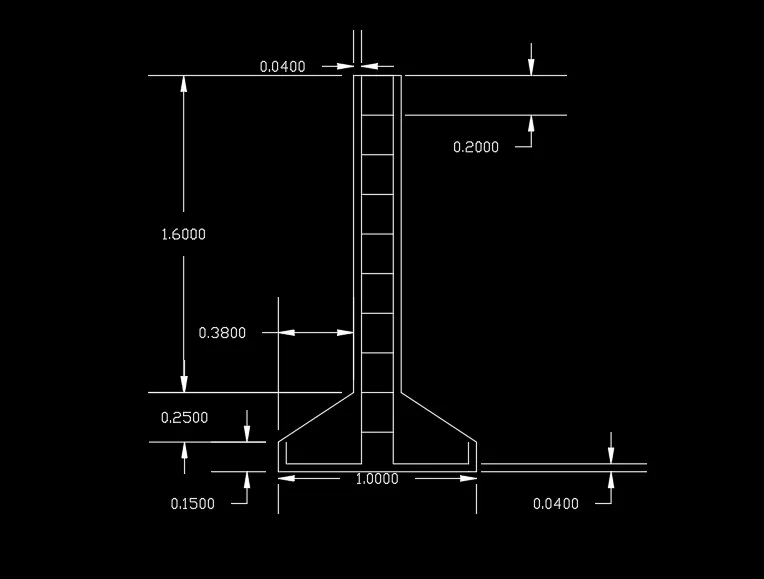

Cross section of isolated footing:

• Open AutoCad and type QNEW
• Click on imperial<advance setup<decimal
• Set precision to 0.00,angle to decimal degree
• Type ds in command box
• Snap spacing(x and y spacing)=0.5
• Grid spacing(x and y spacing)=0.5
• Draw line with command LINE and give 1 unit length
• Specify relative coordinates @0,0.15
• Specify next coordinate @0.38,0.25
• Specify next coordinate @0,1.6
• Specify next coordinate @0.24,0
• Specify next coordinate @0,-1.6
• Specify next coordinate @0.38,-0.25
• Specify next coordinate @0,-0.15 or select Close
• Draw a line at a distance of 0.04 units from the top with line command
• Give value 0.04,then give the length of first line as 1.96
• Specify coordinate for second line @-0.38,0
• Specify third line coordinate @0,0.06
• Copy first line by command COPYand give value of 0.16 units
• Copy the second horizontal line by COPY command and specify base point and drag to desired position
• Copy the third horizontal line and select the base point and drag it
• Give offset from top line with an offset distance of 0.2 units
• Give command OFFSET and select the object giving offset distance as 0.2 and select multiple option for 9 such lines
• Trim the excess lines

RESULT:

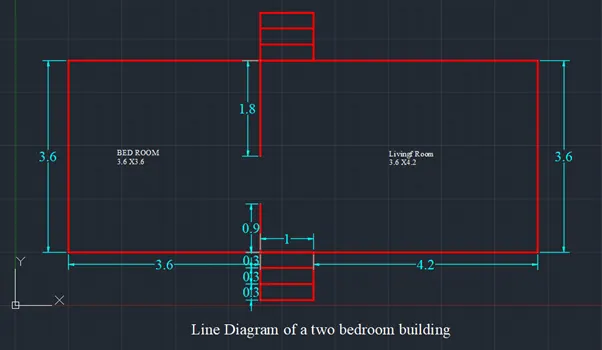

Line Diagram of a two bedroom building:

• Open AutoCad and type QNEW
• Click on imperial<advance setup<decimal
• Set precision to 0.00,angle to decimal degree
• Type ds in command box
• Snap spacing(x and y spacing)=0.5
• Grid spacing(x and y spacing)=0.5
• Select polyline from ribbon and create bedroom of 3.6*3.6
• Command POLY and click a point then move the cursor towards south and give 0.9 units
• Now move the cursor to west and give 3.6 units
• Move to north and give distance of 3.6 units and then move to east and give 3.6 units and finally to south with 1.8 units
• The step outline is created using LINE tool
• Now from the corner point of 1.8 units draw a vertical line at a distance of 0.9 units
• MOve the cursor to east and give distance of 1 unit
• Move to south with 0.9 unit
• Now draw living room is drawing using polyline also
• Give command POLY from the last point and then start the polyline
• Give 4.2 units in east
• Now move to south and go 3.6 units
• Move to west and go 3.6 units
• Create outline step again
• Specify command LINE select the last point drawn
• Move to south and go 0.9 units
• Move to west and go 1 units
• Move to north and go 0.9 units
• Create the steps using offset with using command OFFSET and give 0.3 units distance by selecting object
• Click on multiple and move the cursor to the direction where it is to be drawn
• Repeat for other side also

RESULT:

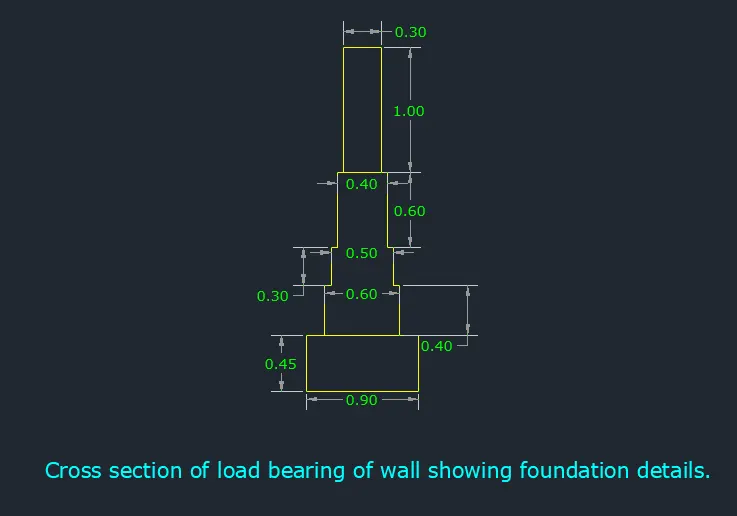

Cross-section of a load bearing wall showing foundation walls:

• Open AutoCad and type QNEW
• Click on imperial<advance setup<decimal
• Set precision to 0.00,angle to decimal degree
• Type ds in command box
• Snap spacing(x and y spacing)=0.5
• Grid spacing(x and y spacing)=0.5
• Create a rectangle by choosing RECTANGLE from ribbon
• Specify the dimensions- length= 0.9,width=0.45
• Select polyline from ribbon and specify first point 0.15 unit fron the corner of rectangle
• With the curor pointing north go 0.4 units
• Move east by going 0.05 units
• Move north by distance 0.3 units
• Move east by distance 0.05 units
• Move north by 0.6 units
• Move east by 0.4 units
• Move south by 0.6 units
• Move east by 0.05 units
• Move south by 0.3 units
• Move east by 0.05 units
• Move south by 0.4 units
• The top portion is drawn by polyline by select POLY from ribbon and give distance b0.05 units from the last point
• Move north by 1 units
• Move east by 0.3 units
• Move south by 1 units

RESULT:

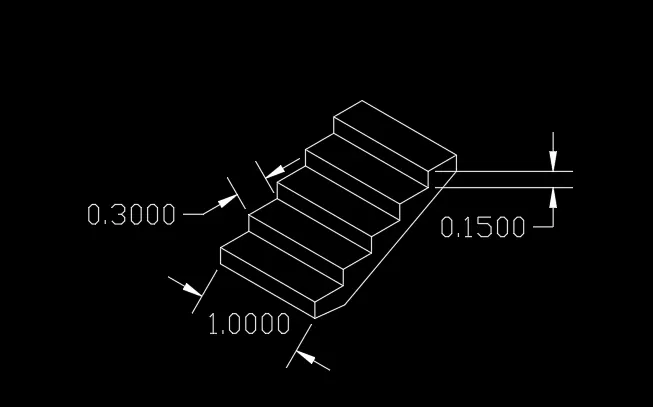

Isometric view of steps :

• Open AutoCad and type QNEW
• Click on imperial<advance setup<decimal
• Set precision to 0.00,angle to decimal degree
• Type ds in command box
• Activate the isometric view from the toggle bar then snap off<grid off . Make sure ortho is on
• From isometric drafting select isoplane left
• Select line tool from ribbon and move towards west by 1 units
• Move towards north by 0.15 units
• Move towards east and go 1 unit and south by 0.15 unit
• Change the isometric drafting to isoplane top
• Move the cursor to back and give 0.3 unit from the last drawn point
• Move to front and go 0.3 unit
• Change the isometric drafting to isoplane right
• Copy the object with ortho off
• Command 'co' and specify the base point and place it to new point and repeat for 4 steps
• With isoplane right draw a horizontal distance of 0.3 unit from starting point of stair
• Draw a vertical distance of 0.15 unit from the last stair
• Join the two point with ortho off and the stair is drawn

RESULT:

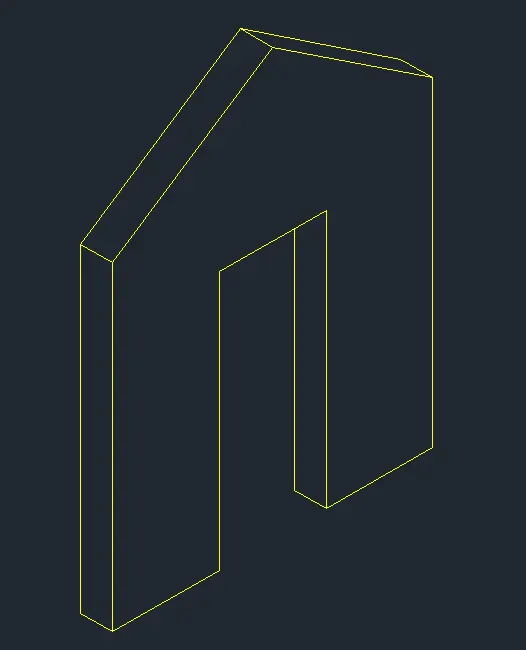

Isometric view of gable wall:

• Open AutoCad and type QNEW
• Click on imperial<advance setup<decimal
• Set precision to 0.00,angle to decimal degree
• Type ds in command box
• Activate the isometric view from the toggle bar then snap off<grid off . Make sure ortho is on.
• Select line tool from ribbonand move cursor to left by 1 unit
• With cursor pointing upwards give 3 unit
• Draw 3 units to right and 3 units downward
• Select isoplane right then take line from ribbon and draw a line upwards 2.42 units from the starting point
• Draw 1 unit towards the right and 2.42 unit downwards
• Click on end point and close the figure
• Change to isoplane left and draw 0.3 unit as thickness on the left side
• Give the thickness of opening with isoplane left 0.3 units towards left and 2.12 units upwards
• Extend the thickness line of opening 1.13 units upward and 3.25 units from bottom
• With ortho off,draw the line between the corner of left side and the projected line done just before this step
• Draw it to other side also till it meets the right corner
• Draw the vertical line with ortho on to join the centre portion and erase the projected and horizontal lines
• Copy both the inclined lines and join the right end.

RESULT:
