Usage of Navigation tool , Timeliner and Clash Detection test using Naviswork

1 ANSWER:

AIM:The purpose is to export Revit architectural and structural model to Navis works .

PROCEDURE:

• Open architechtural file that has to be exported

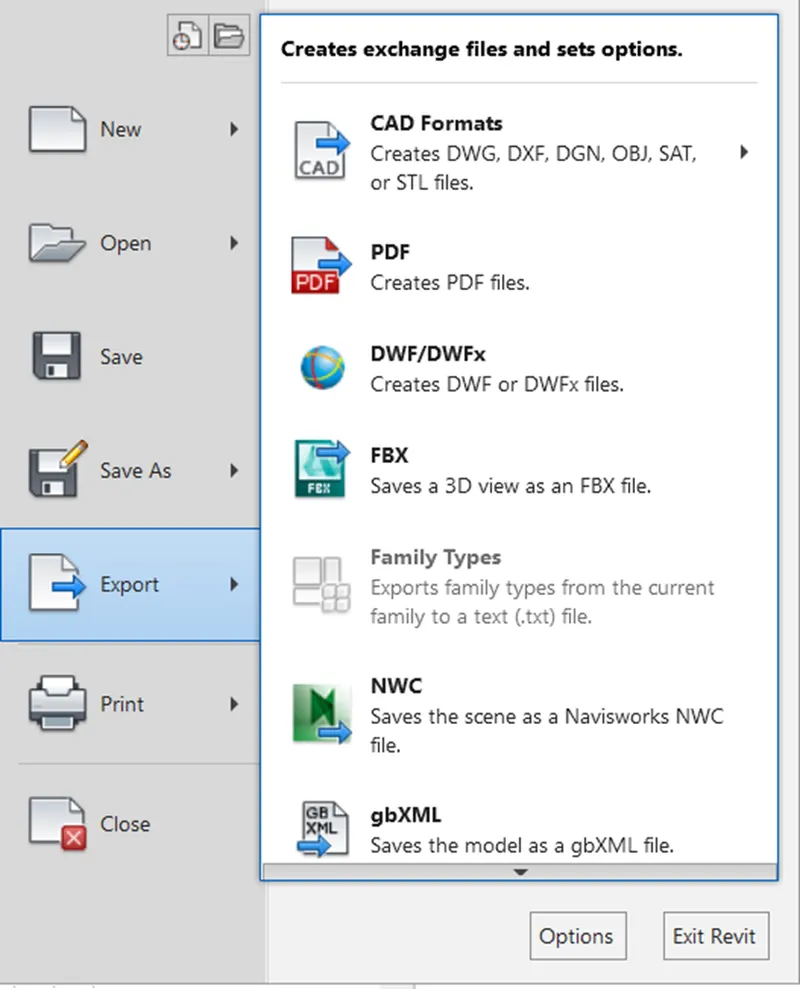

• Click on file option
•
• Then select NWC,from the options appeared

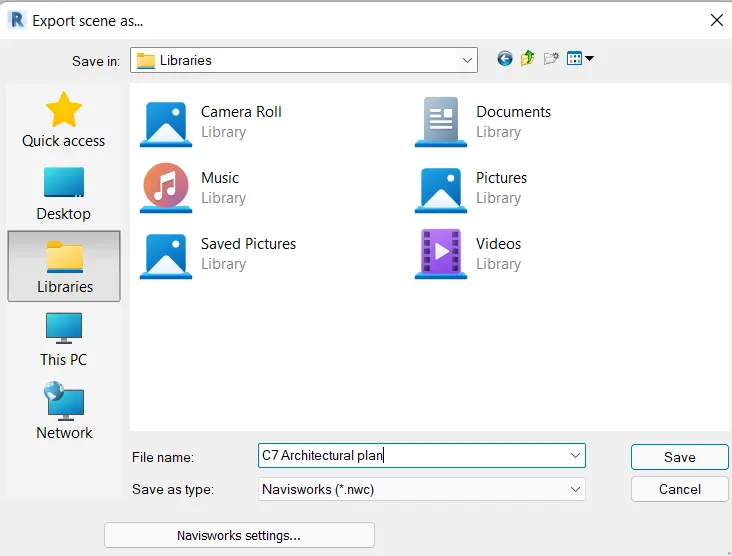

• Now select the destination folder where the file has to be saved and rename it and click on save
•
• In the same way repeat the process for structural file linked with this architectural file and export the structural file also

RESULT : Archichiture and structural files are exported to Navis works

2 ANSWER:

AIM:The purpose is to walk through the rooms of the model

PROCEDURE:

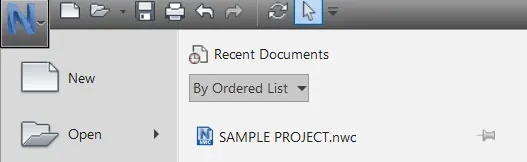

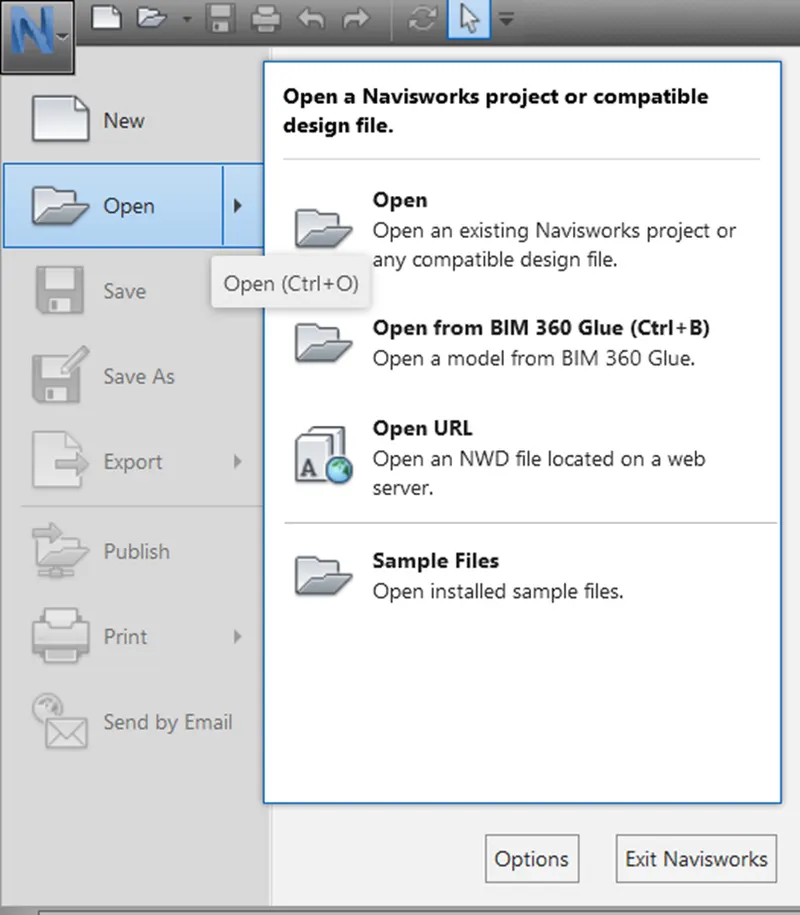

• Open Navis works manage and click On N option on the top left corner as shown
•
• Now click on open and and the select the architecture file that was exported earlier
•
•

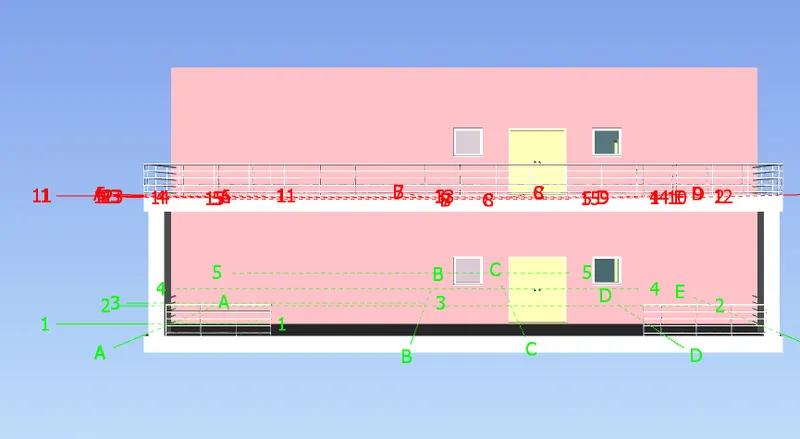

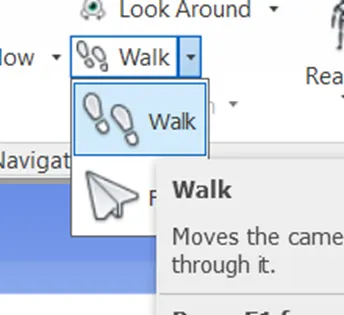

• Then to walkthrough through the model click on walk option and use mouse to go to every room
•
•
•

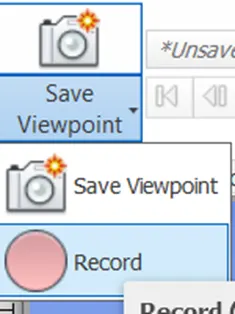

• Now to record the view click on viewpoint and click on record as shown
•

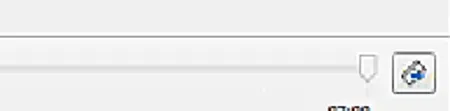

• Then go through the view and click on stop on the top right bar
• And save the view with an appropriate name
•

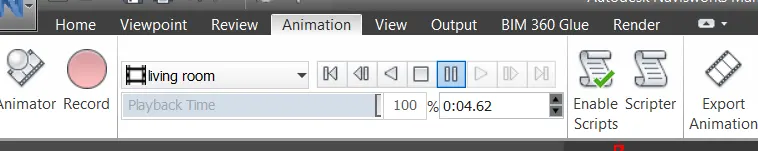

• Now to see the recorded view go to animation tab and click on play button to see the created animation as shown
•

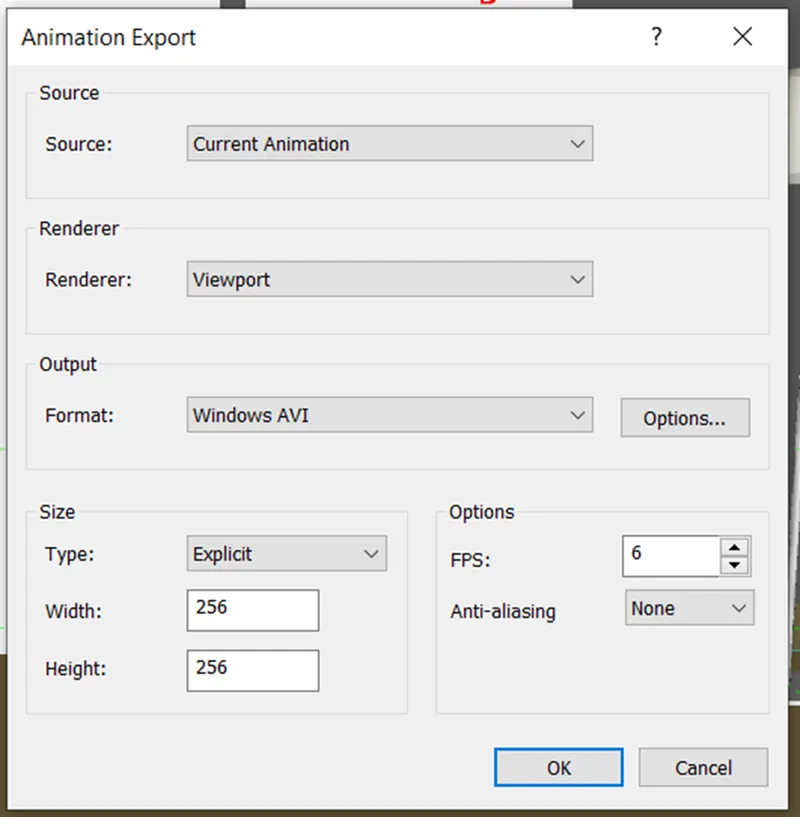

• To save the video to system click on export animation
•
• Change the required settings and click on ok

RESULT:Hence we walked through the model and recorded the view

3 ANSWER:

AIM:The purpose is to use navigate tool to use realism feature to walk through our model

PROCEDURE:

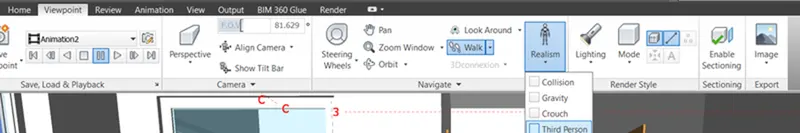

• Open the navis works file and click on realism feature
•

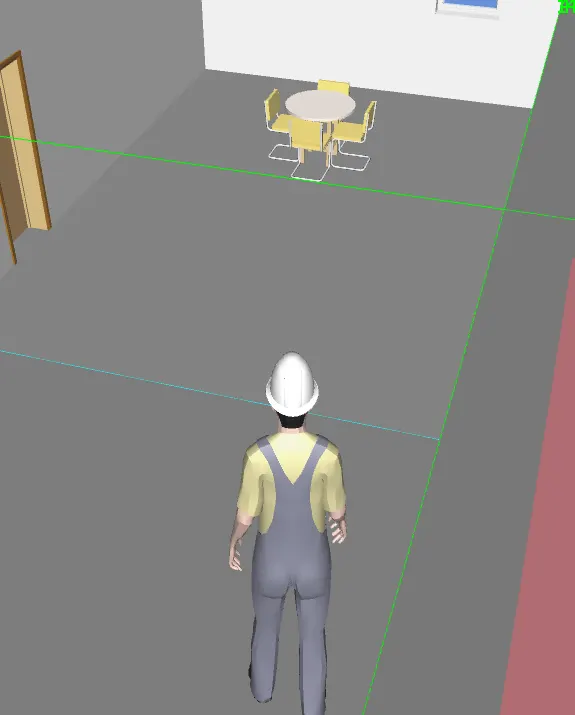

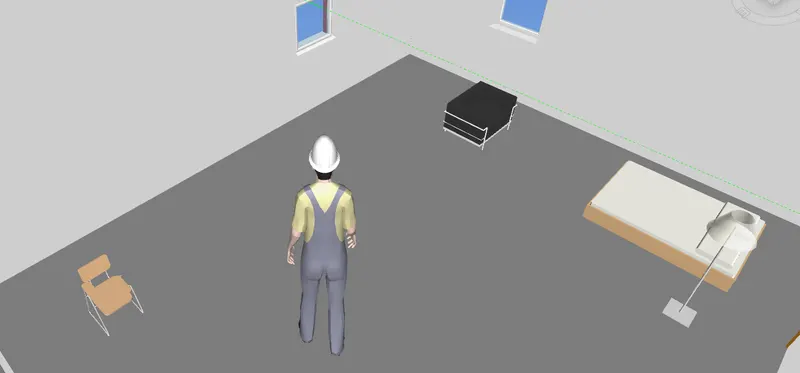

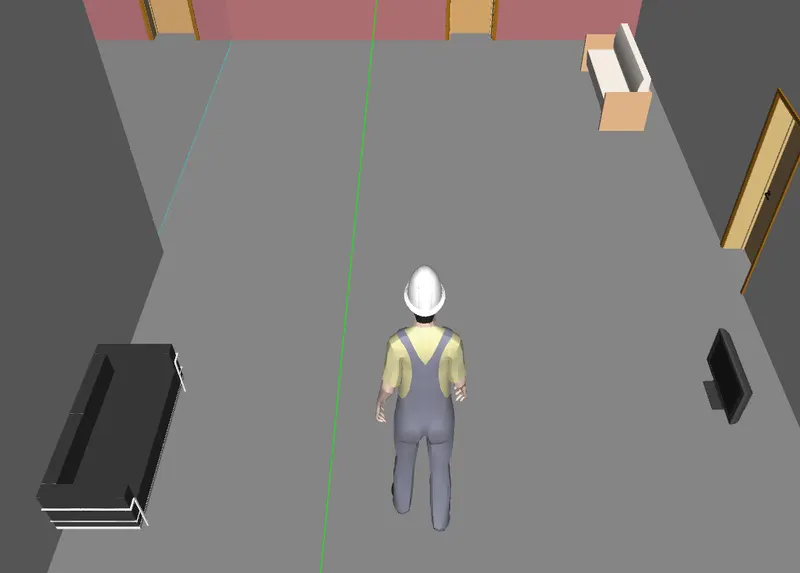

• Click on third person

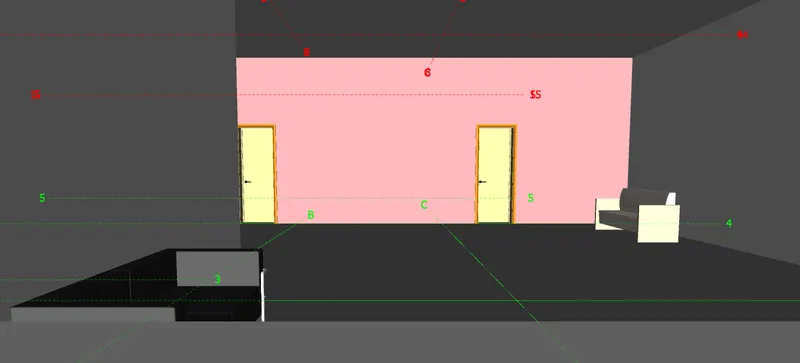

• Now use the cursor to move around the rooms as shown
•
•
•
• Now to record the views ,repeat the same process as done in earlier question i.e click on view point record

RESULT:Hence we walked through the model using realism option

4 ANSWER

AIM:The purpose is to run the clash detective test between architectural and structural model

PROCEDURE:

• Open a nwc architecture file which was exported using revit

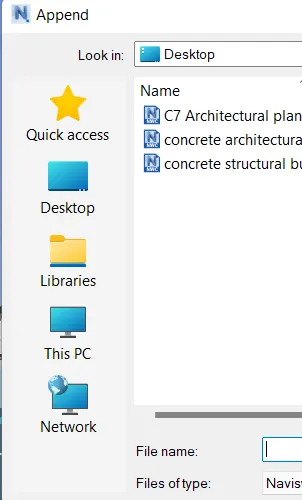

• Now go to home and click on append as shown
•
• Then add the structural one and click on open
•
• Now under home click on clash detective option
•
•

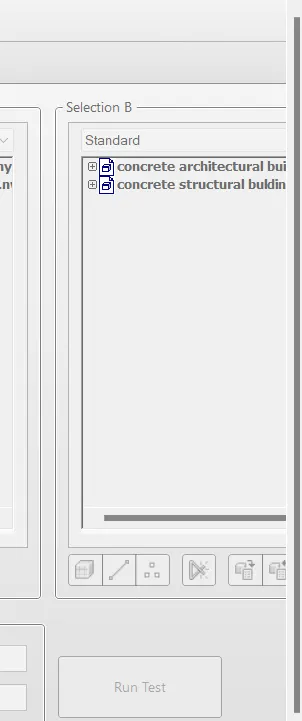

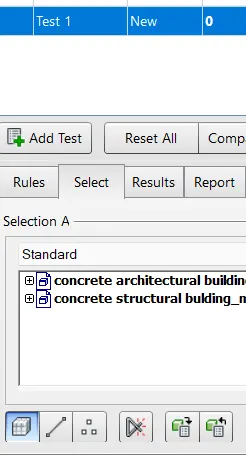

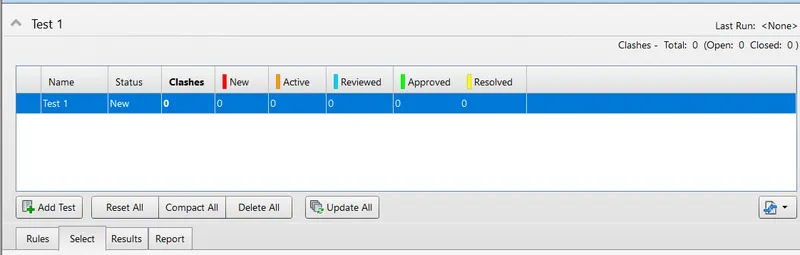

• From the pop up appeared on the screen click on run test and add the architecture and structural file
• then rename the test name
• Now click on run test
•
•

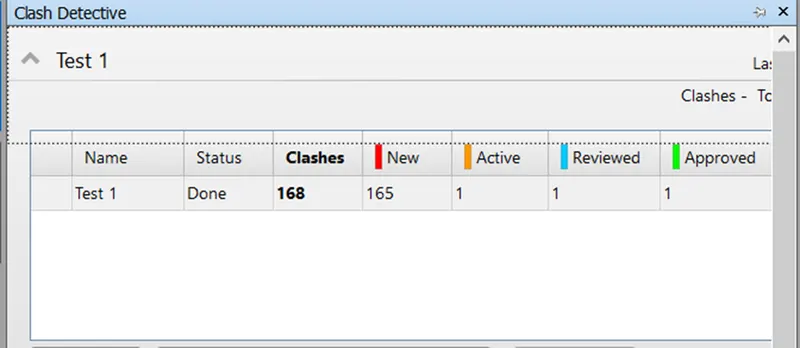

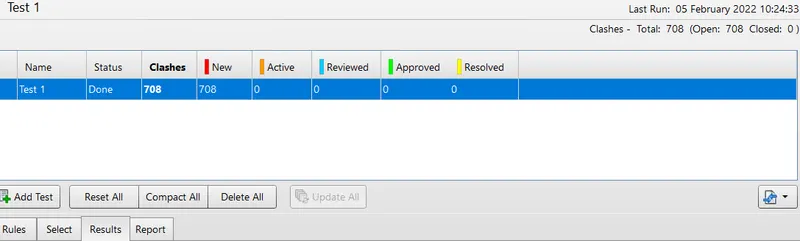

• Now clashes will be found
•

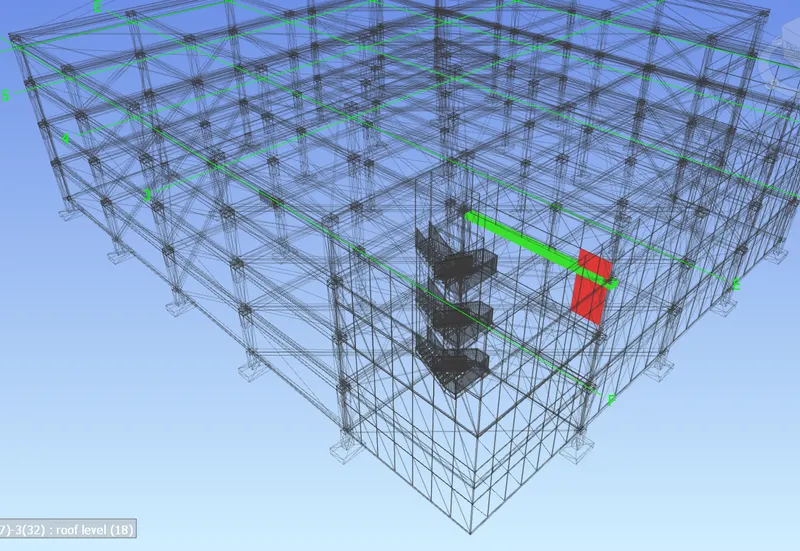

• Now to study the clashes click on each one of them below in the list ,the clashes are appeared in red and green colour from the model
•
•
•

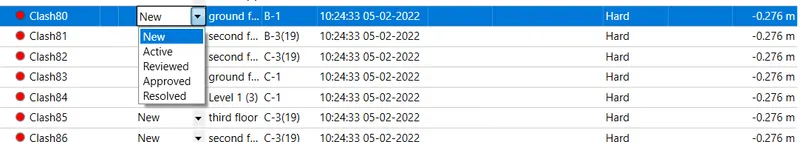

• If in case a clash is resolved then set it to approved

RESULT:Hence,the clash test was run for the model and the clashes are resolved and approved

5 ANSWER :

AIM:The purpose is to use the timeliner option and prepare a scheduler for the project

PROCEDURE:

• Open the architectural nws file

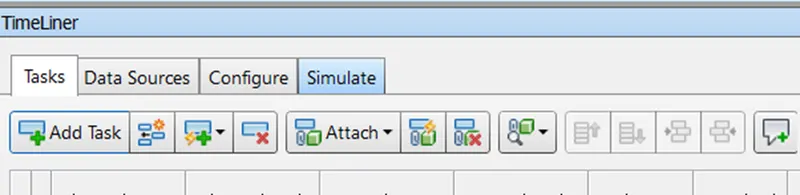

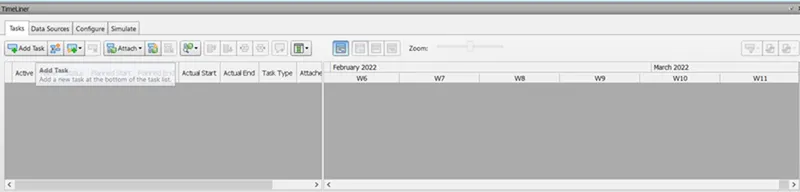

• Under home tab click on Time liner option
•

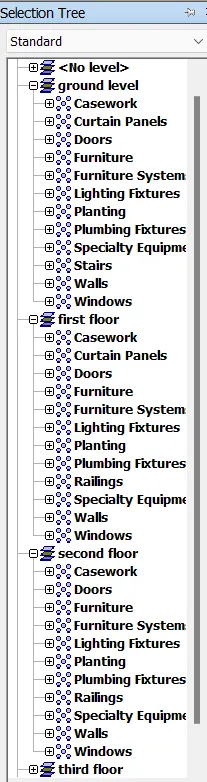

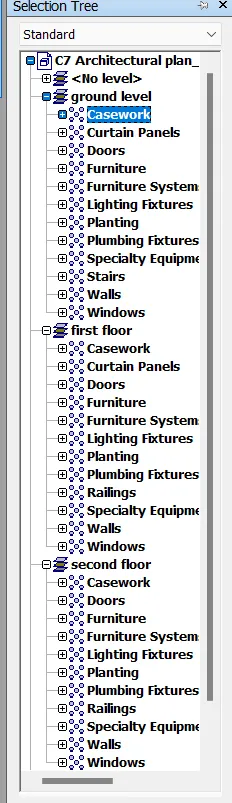

• Click on selection tree and from that select the required items
•
•

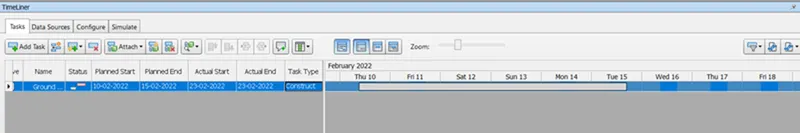

• Now click on add task ,rename it as ground floor case work
•
• Then set the planned and actual start and end dates and type as construction
•
• Now click on selection tree select case work
•

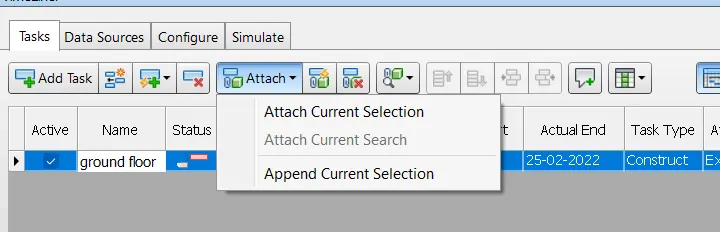

• Now select on task 1 click on attach and click on current selection(case work) as shown
•

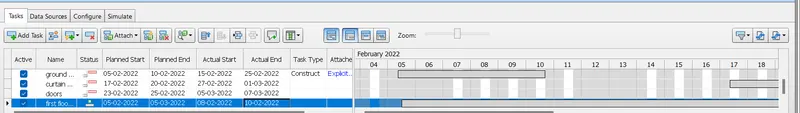

• Similarly add all the tasks in order with start dates and end dates
• Now To watch the simulation video click on simulate and click on play option
•
• The entire time line video can be seen above

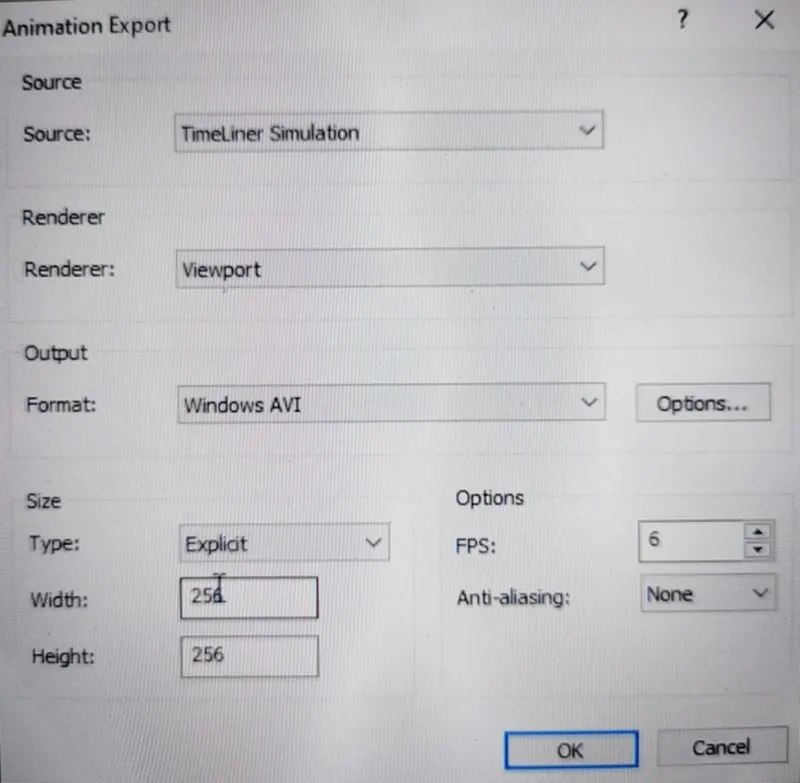

• Now to export the time liner video to system click on export animation and set the source to timer liner simulation and adjust the settings and click on ok
•
•

RESULT:Hence the timeliner feature is useed and a schedule is prepared and finally saved.
