Usage of Navigation tool , Timeliner and Clash Detection test using Naviswork

1.) PROCEDURE:

• First we have Open Revit file we want to export in Naviswork.

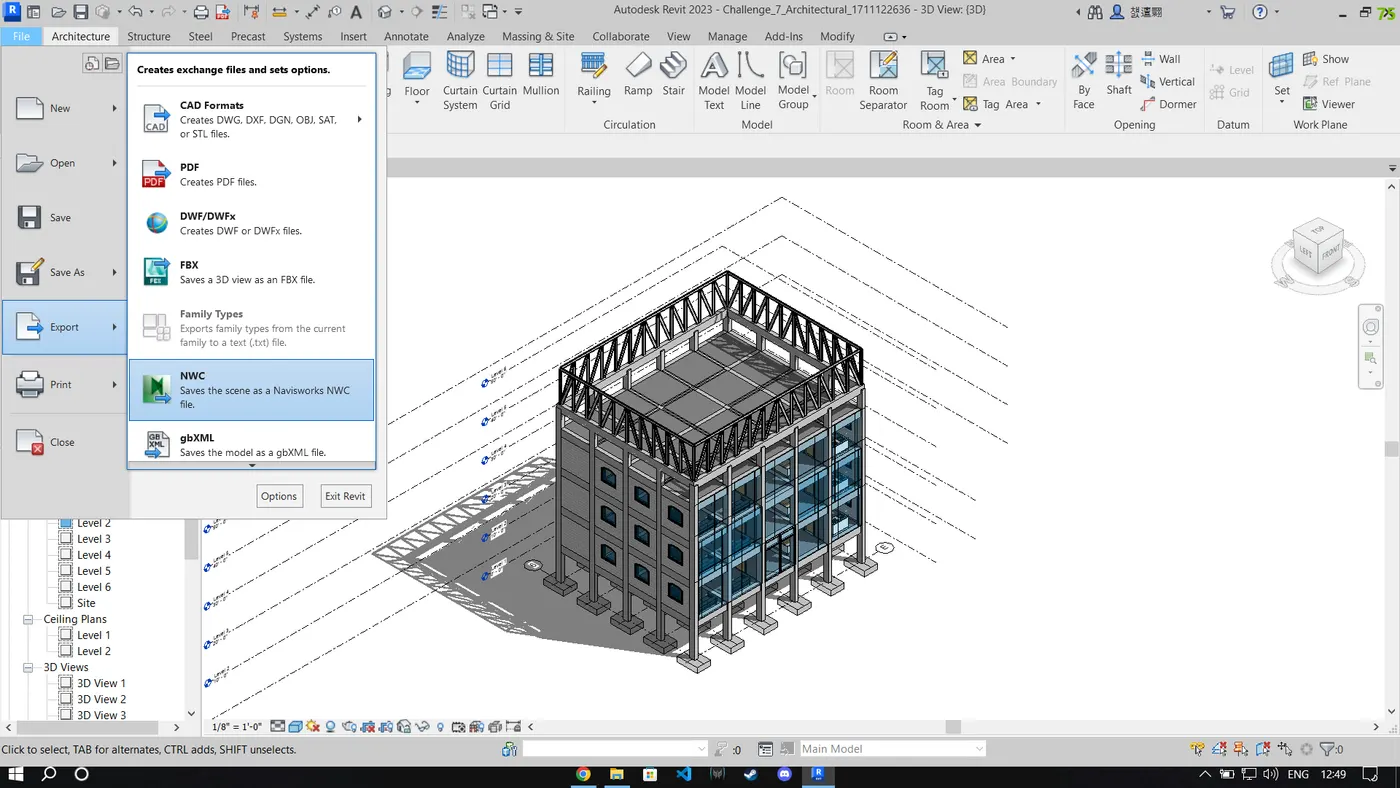

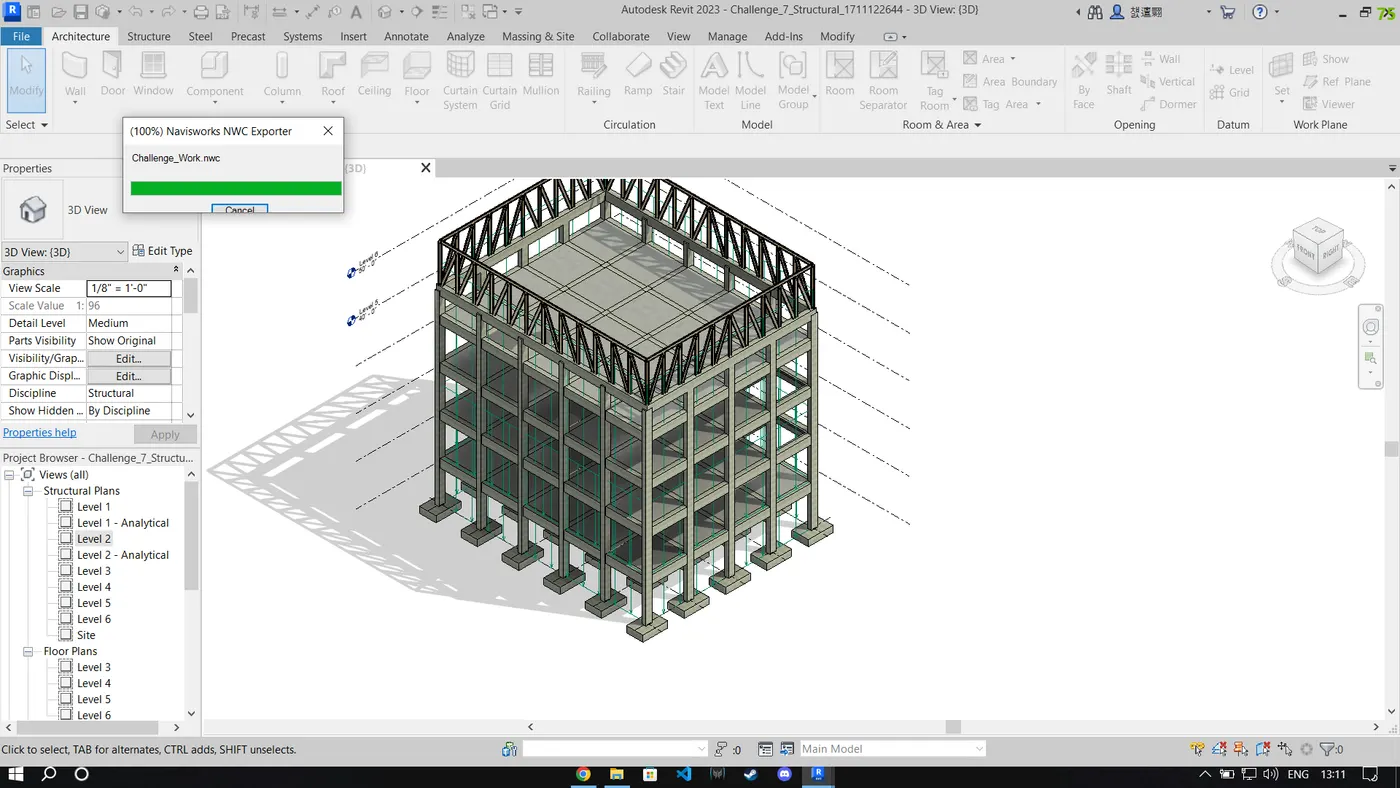

• In the file menu export to NWC format both Architecture and Structural File.

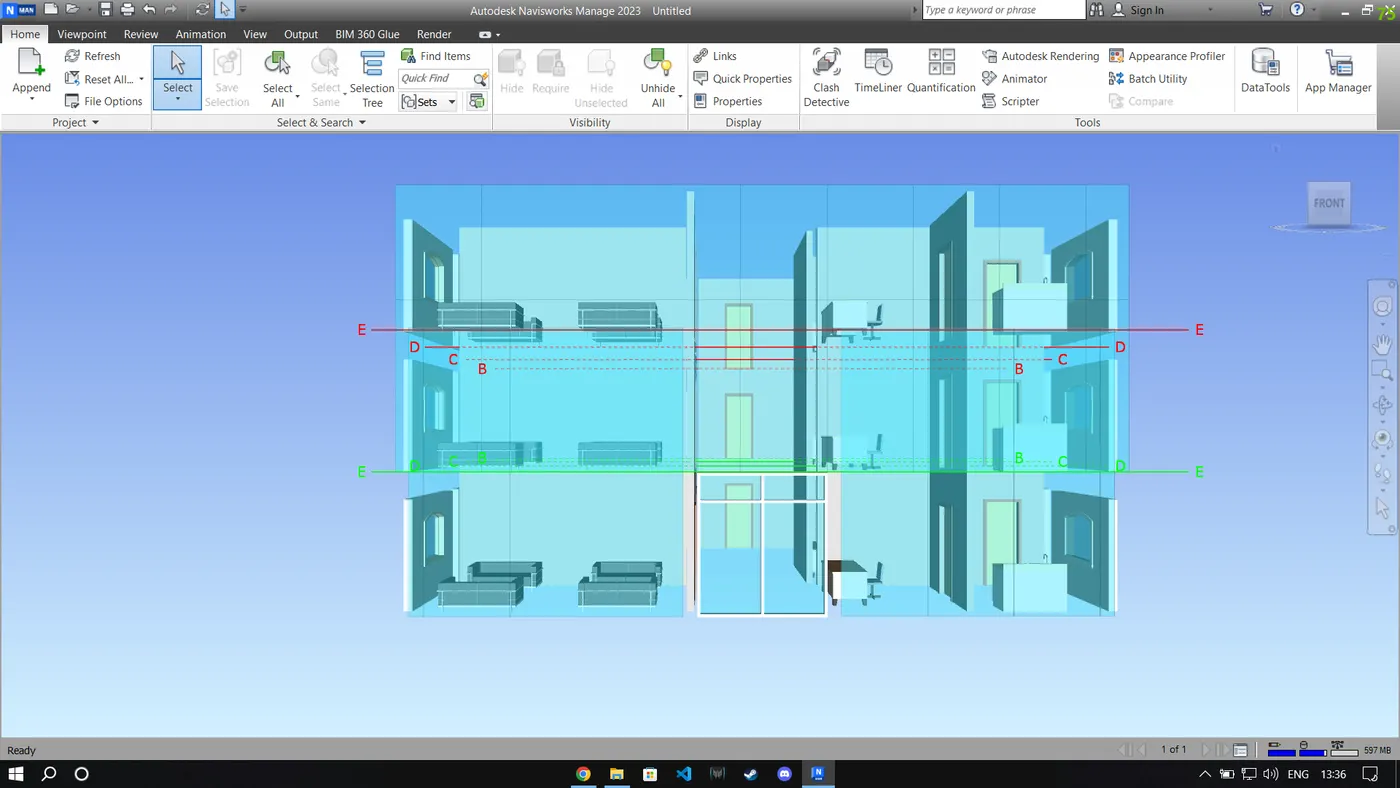

• Once Exported Open Naviswork and open the Architectural File Cache in Naviswork.

RESULTS : The Model was succesfully Exported to the Naviswork.

2.) PROCEDURE:

• Open the Architectural File in Naviswork.

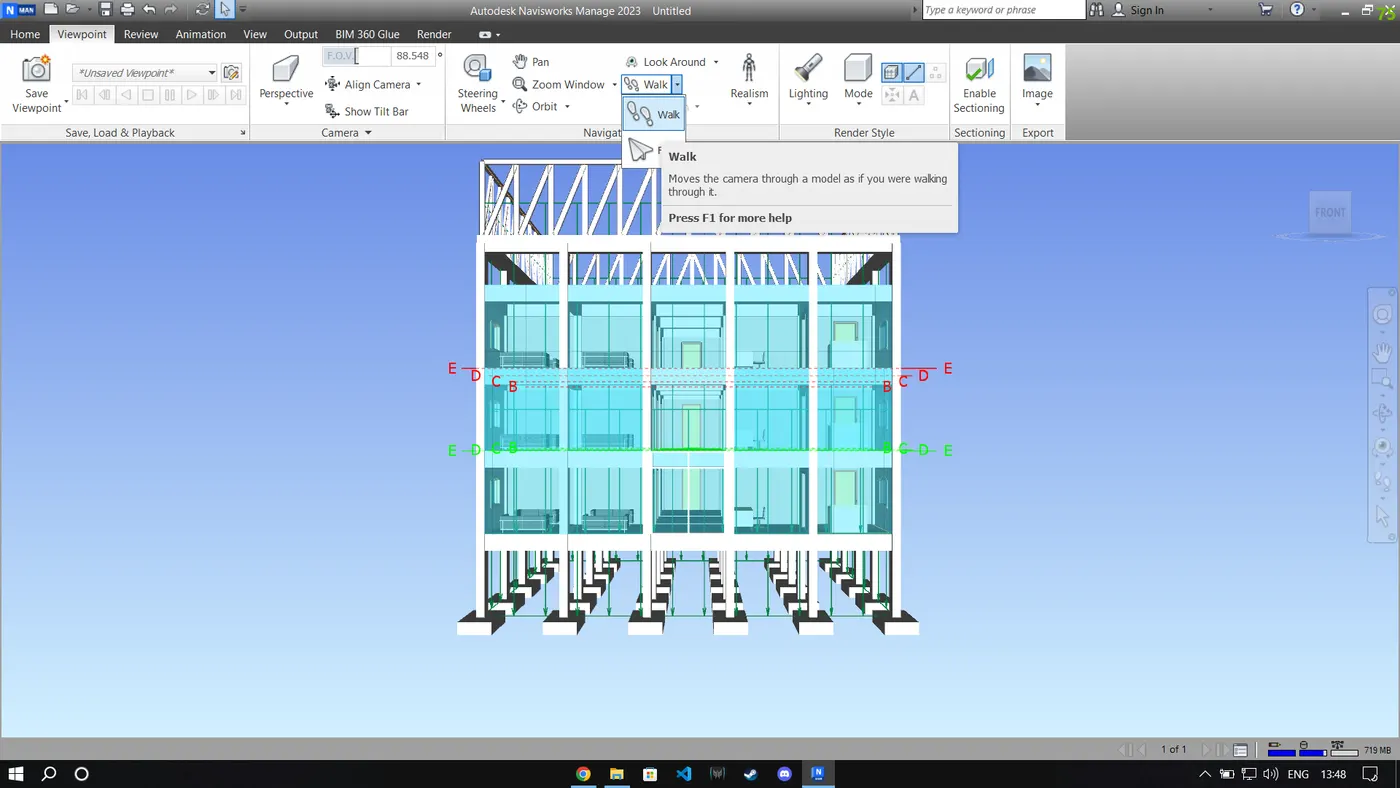

• Click on Walk option Icon In Viewport Tab.

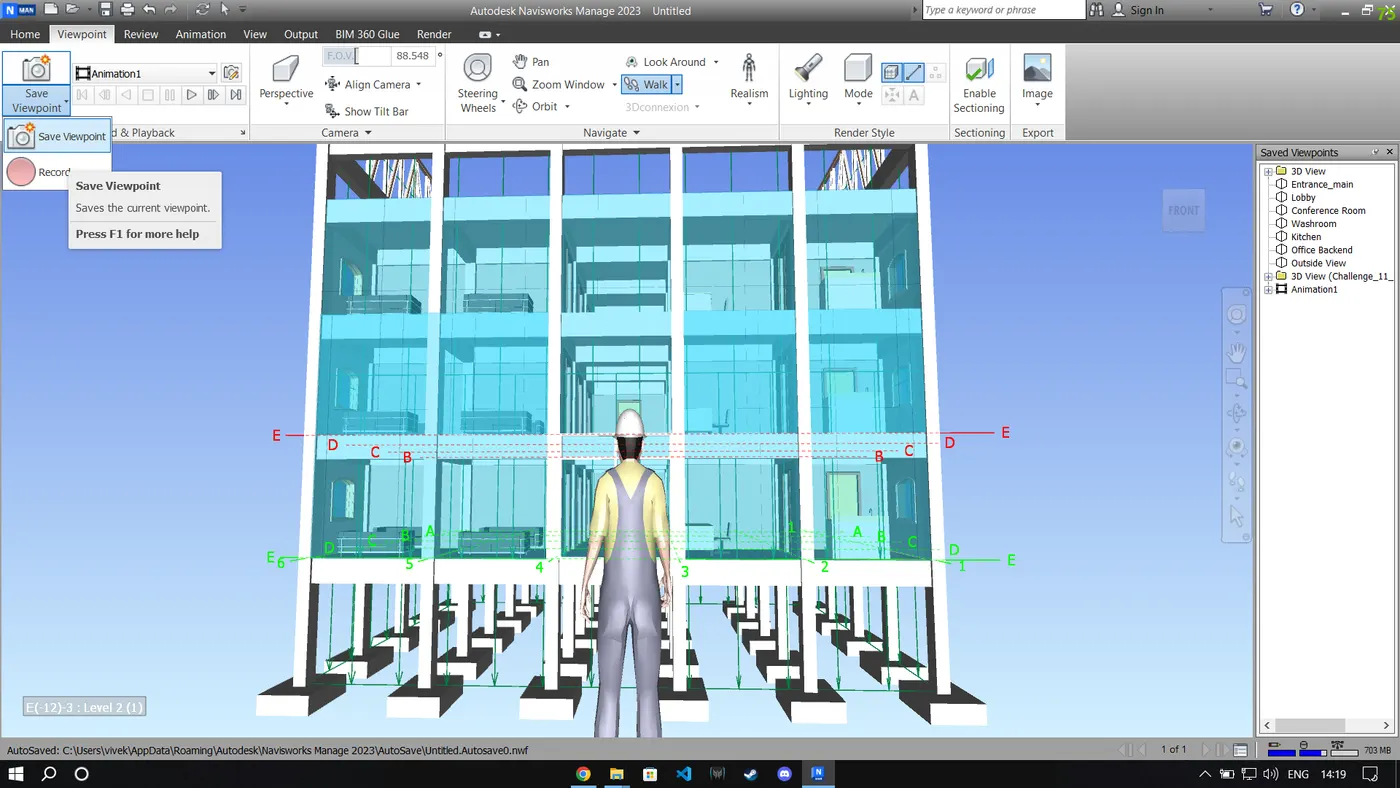

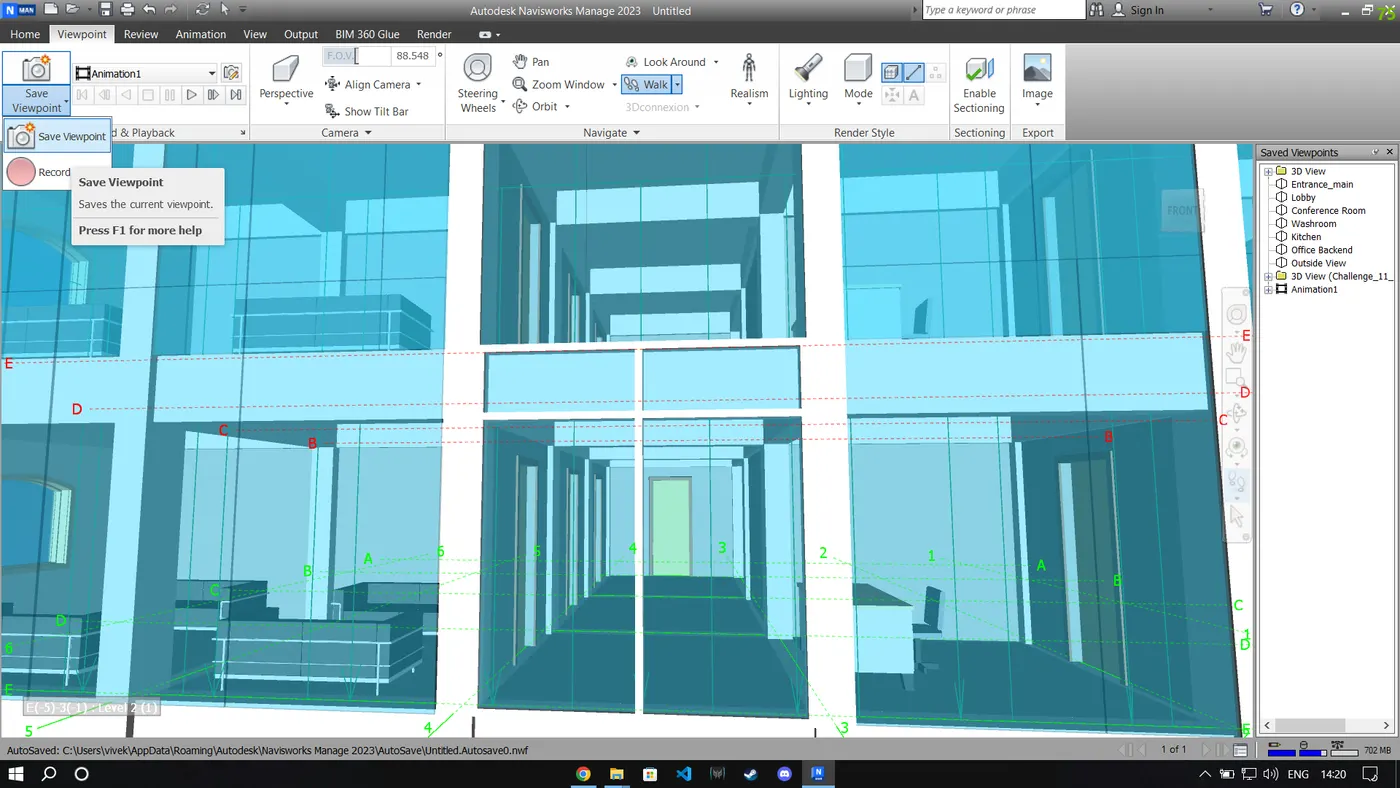

• Click on the record option and click save viewport under the option viewpoint tab.

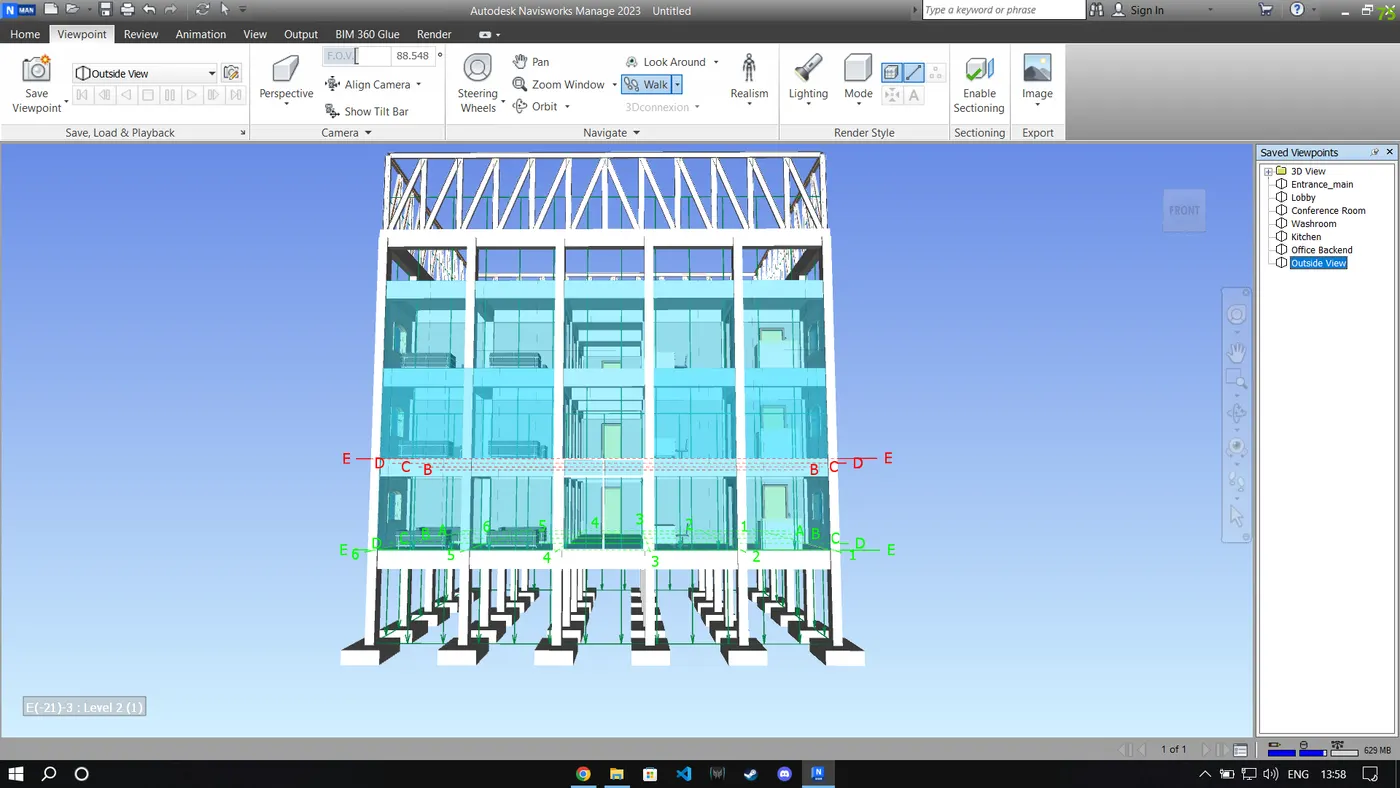

• Save various viewpoint by clicking on save viewpoint tab.

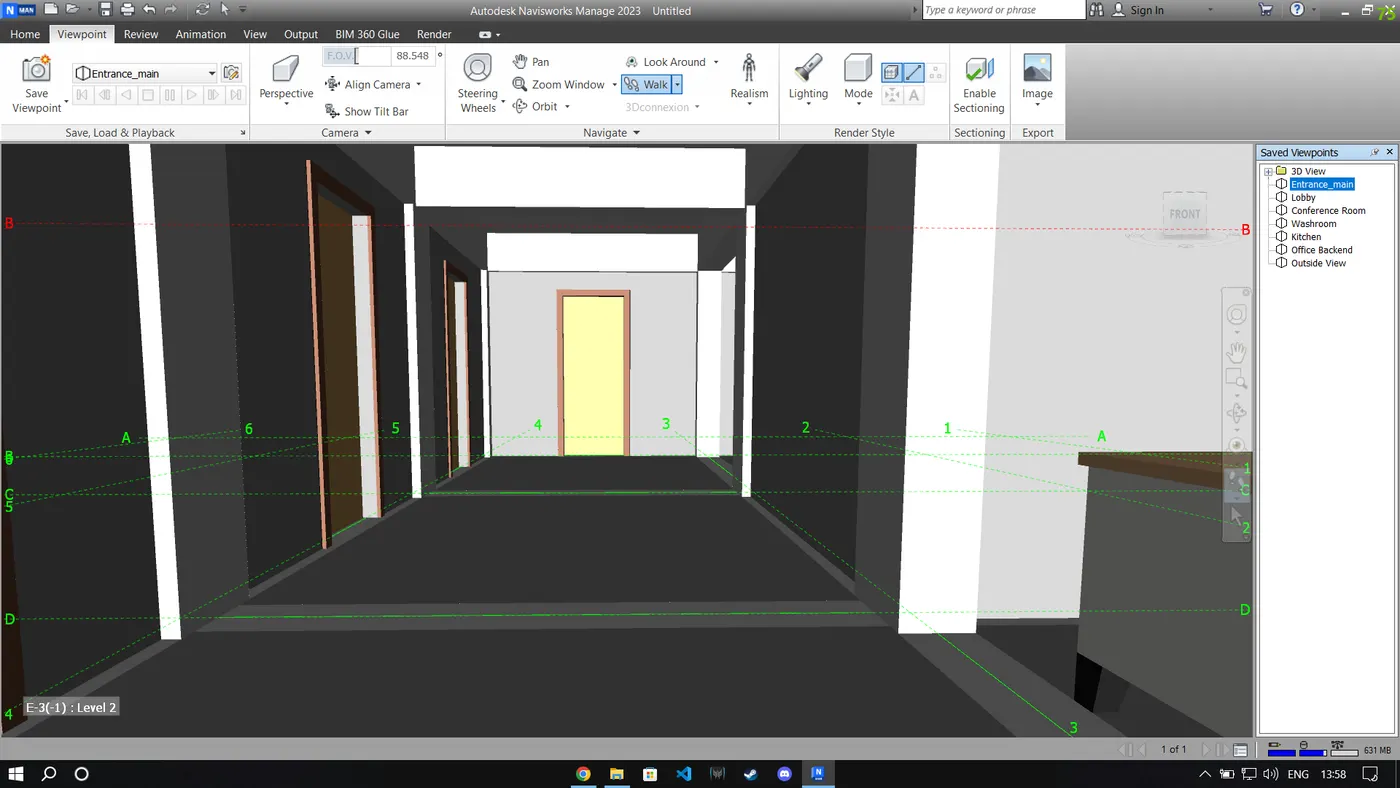

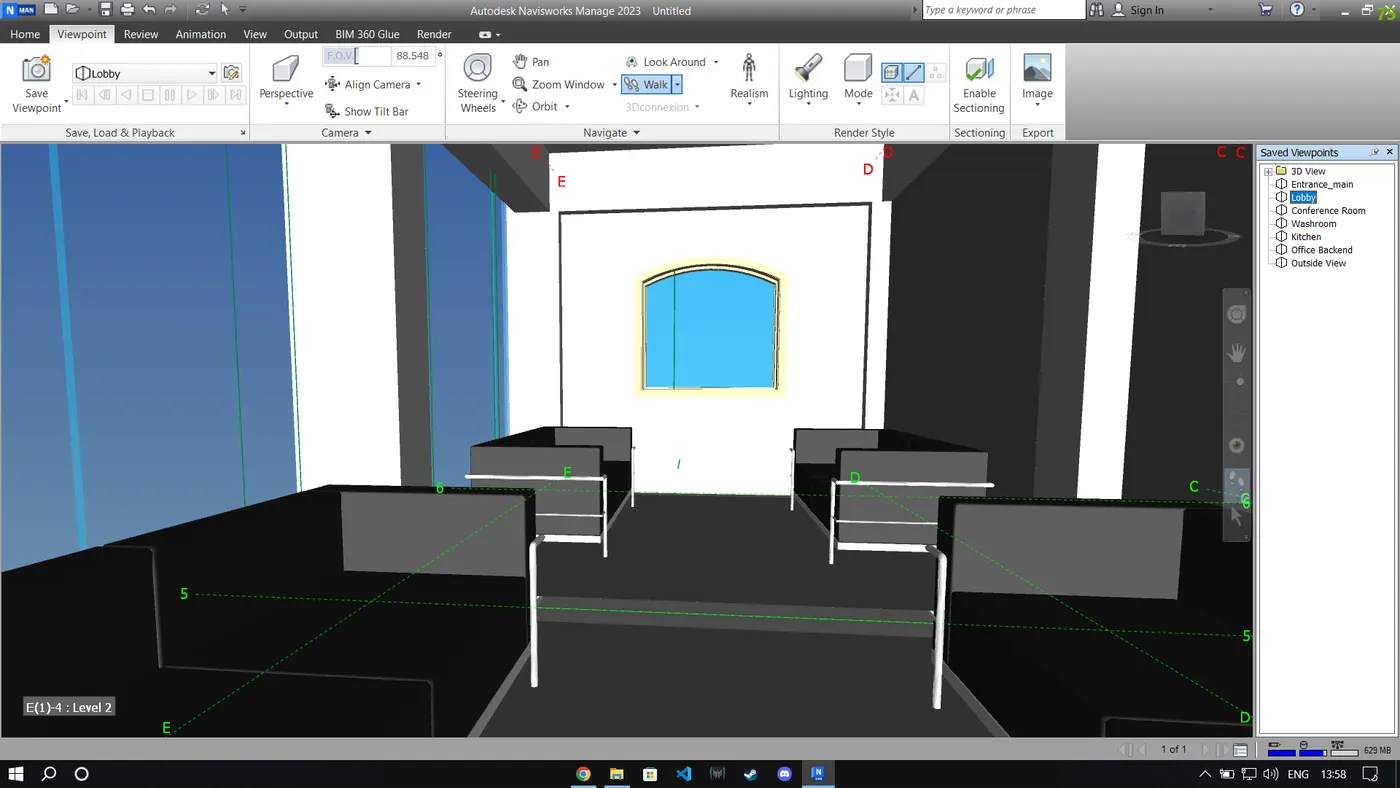

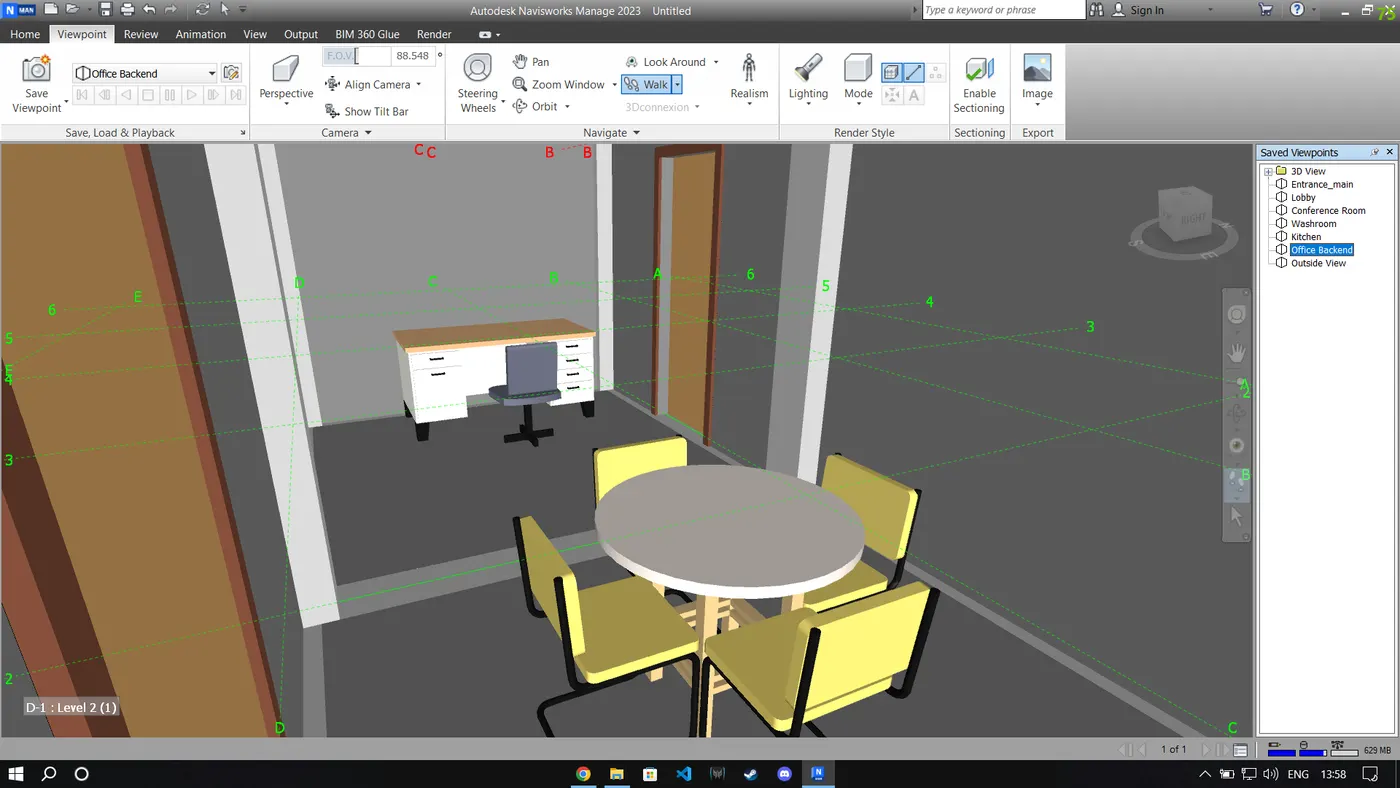

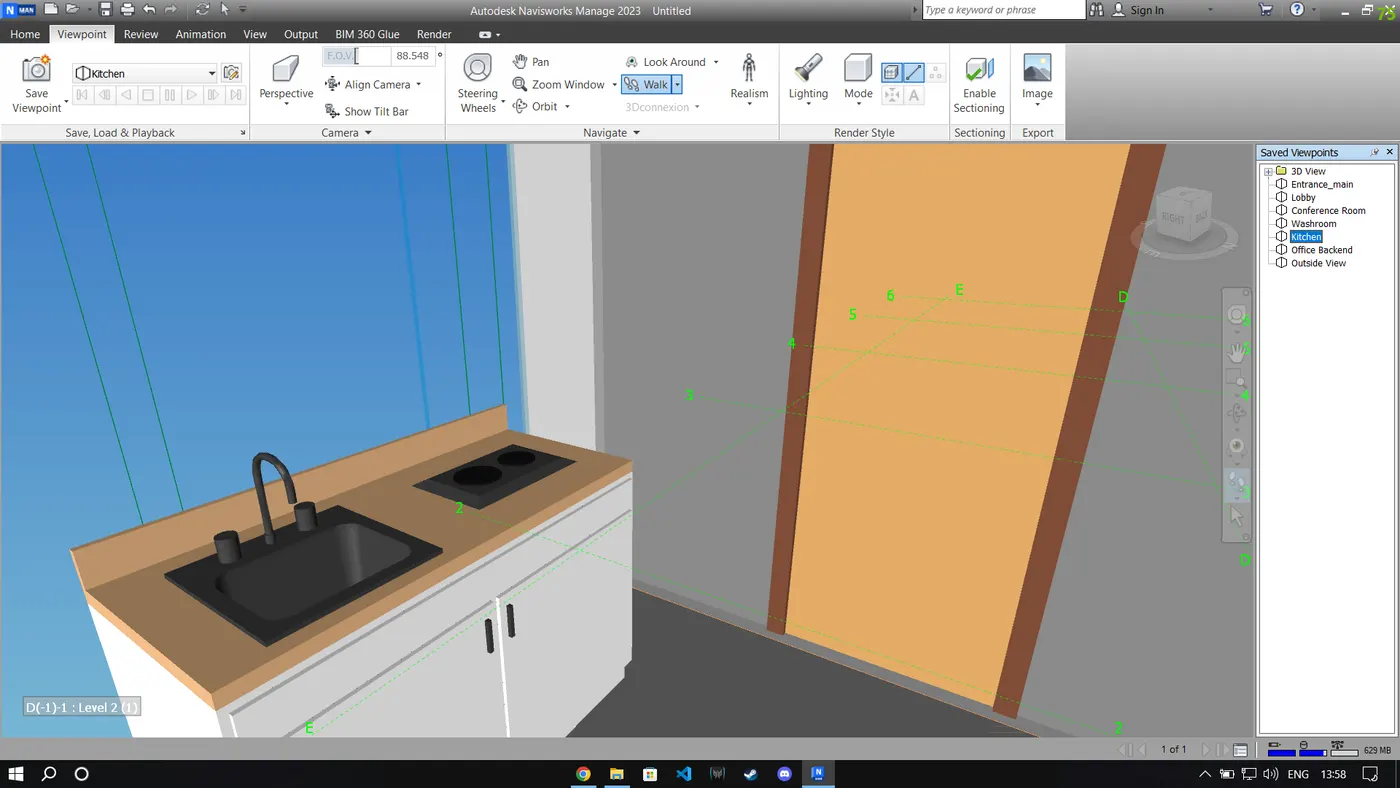

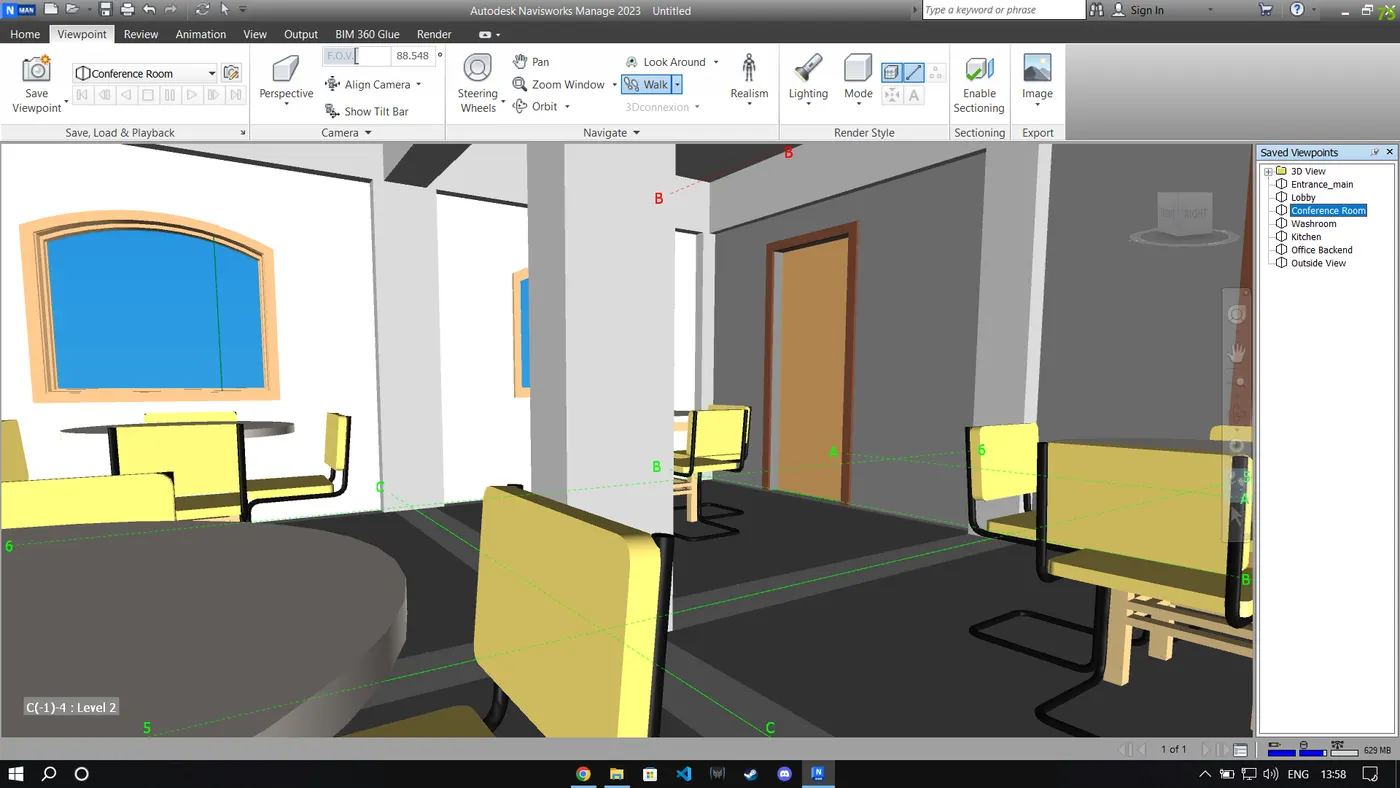

• Use walk option and walk among various part of the building to save different viewpoints.

3.) PROCEDURE:

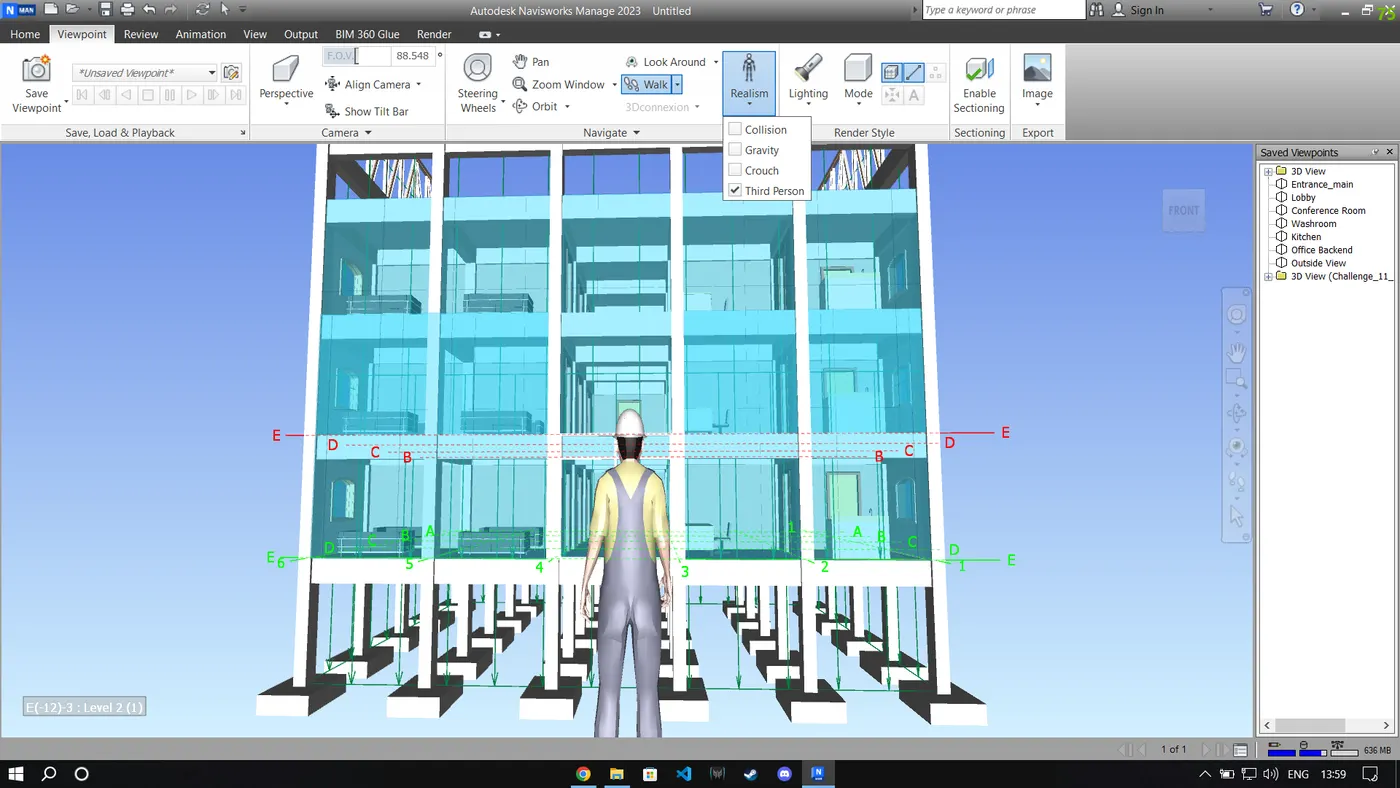

• Tick on the Third person option in the Realism menu under the viewpoint tab Click on the record option in the save viewport option under the viewpoint tab.
• We can save viewpoint using the save viewpoint option above it

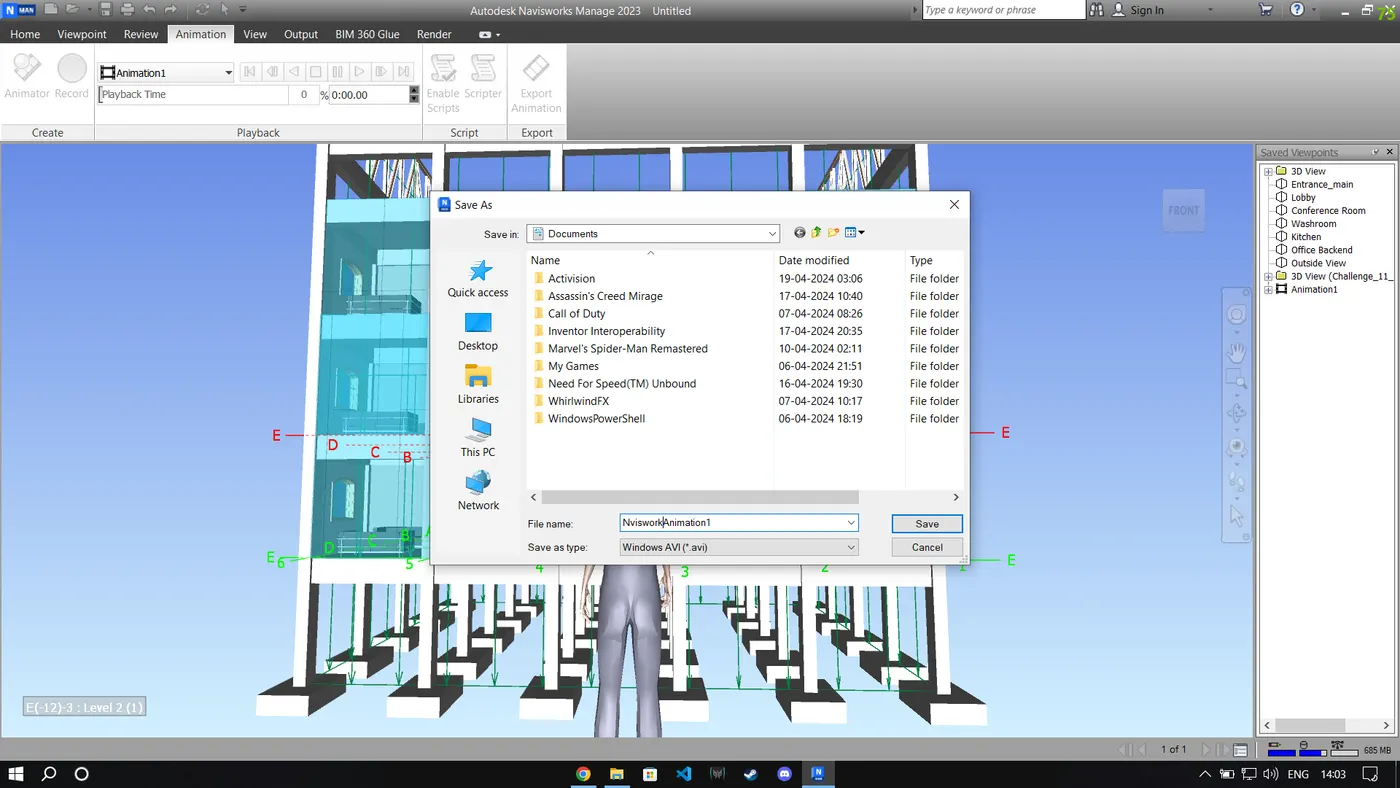

• We can Export the video file as avi format.

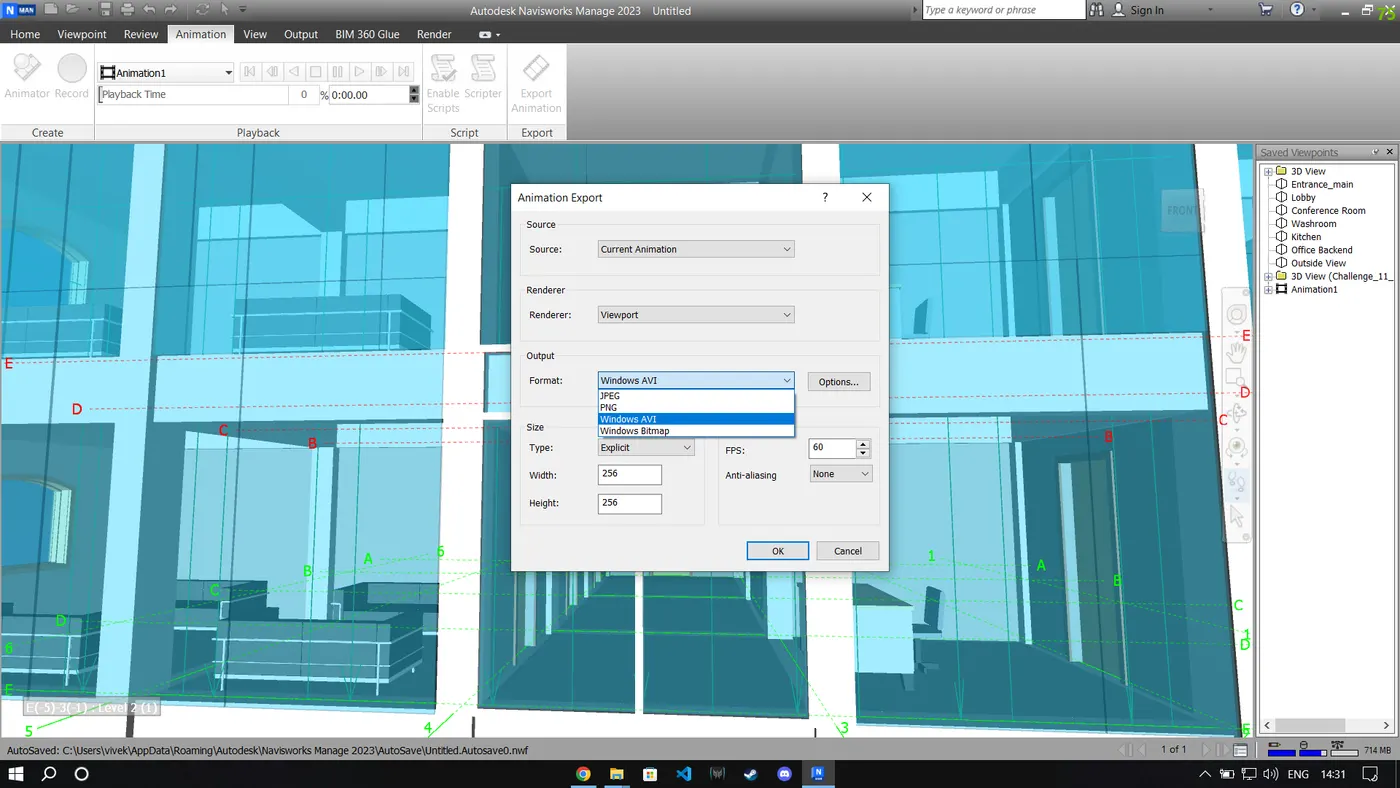

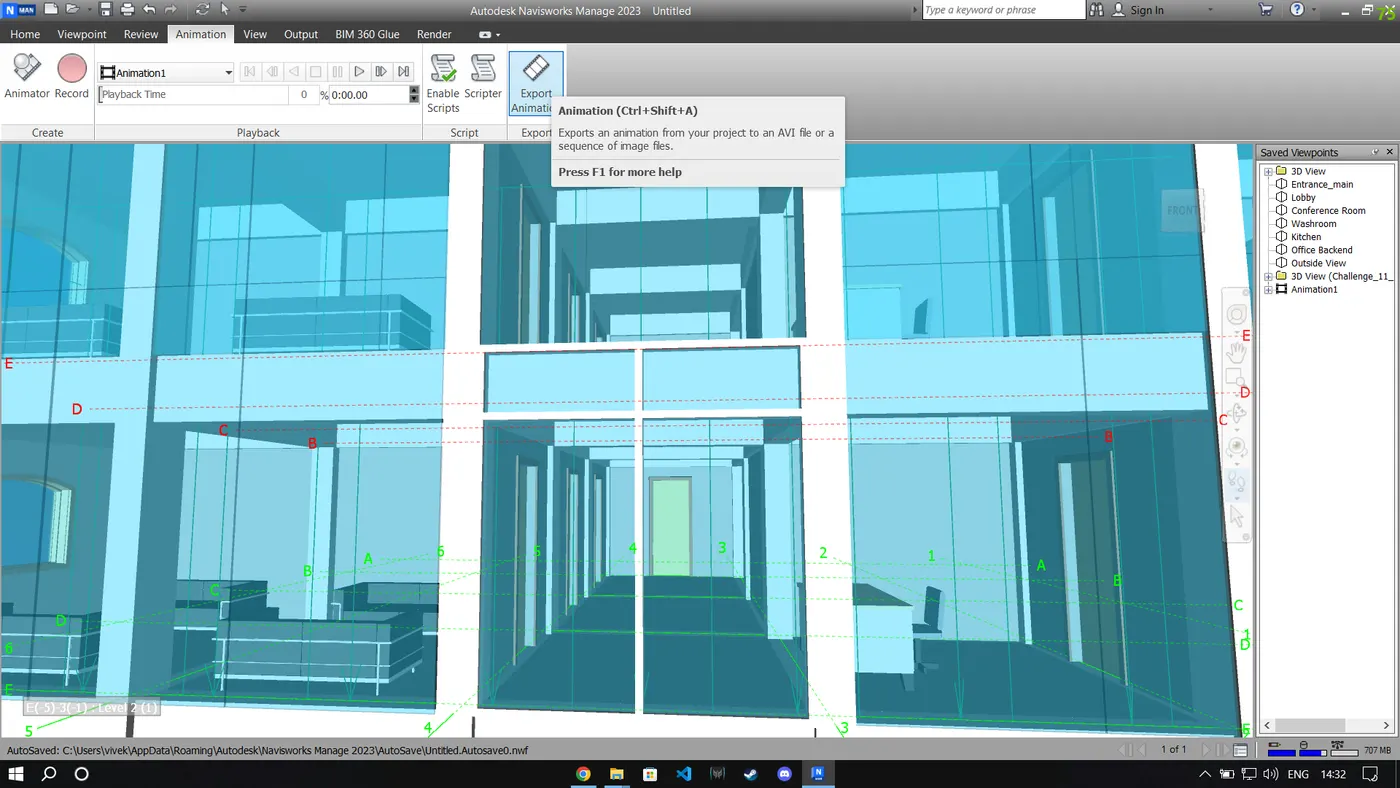

• We can go to animation tab select export animation

• Select video format as AVI
• Click OK to Render and Export video.

RESULTS: The Walkthrough of model using Realism Feature is Completed video is attached in attachment.

4.) PROCEDURE:

• Open Naviswork and Append Both Architectural and Structural files.

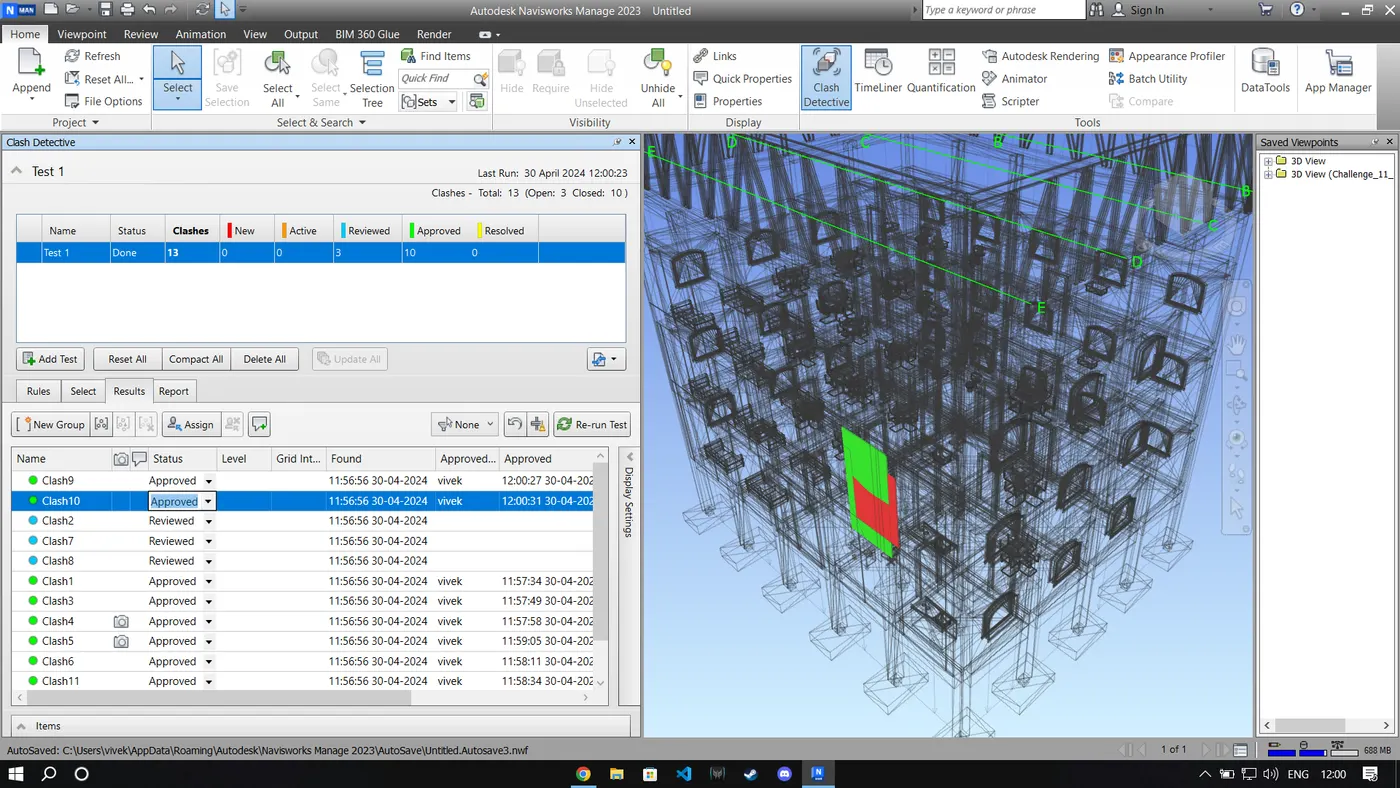

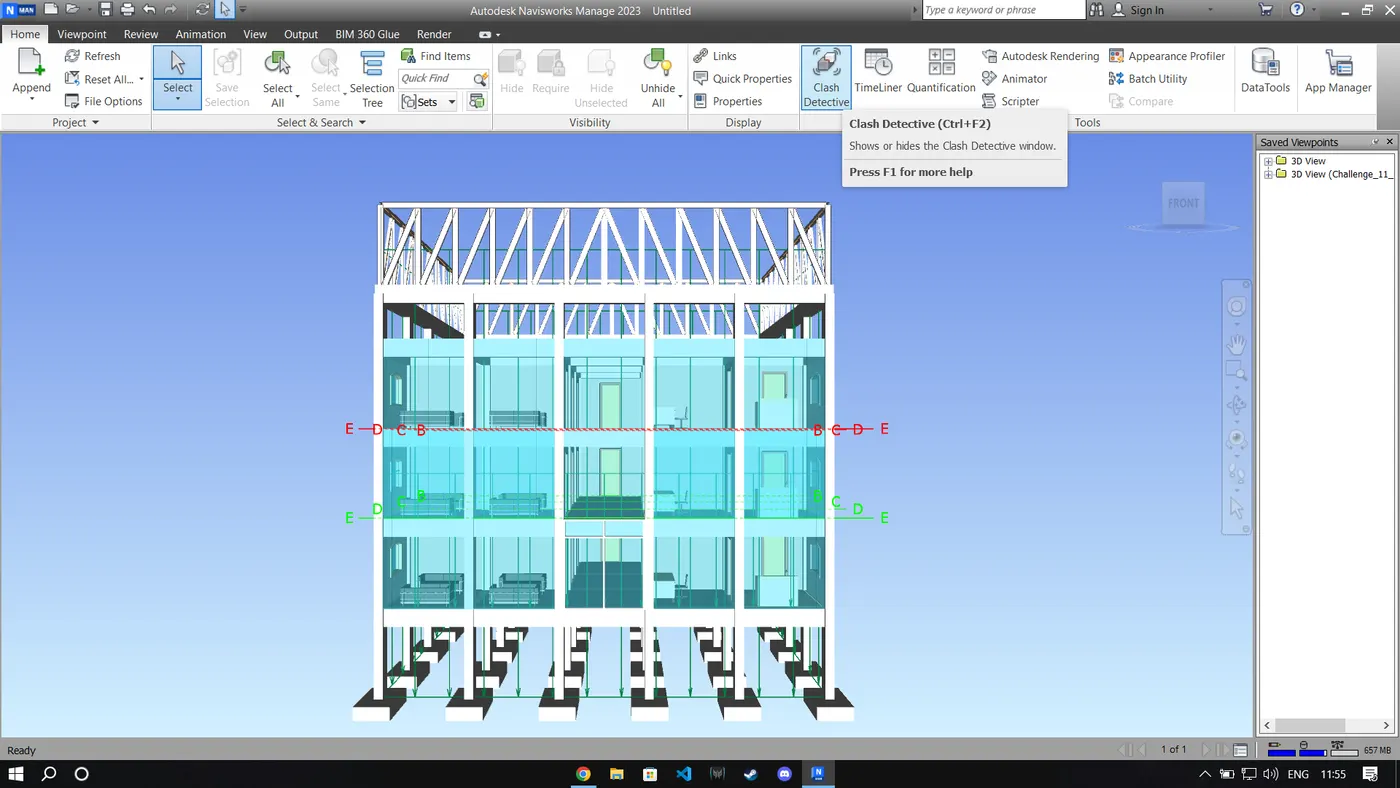

• Click on Clash Detective tool in Home Tab
• Select the files to run test

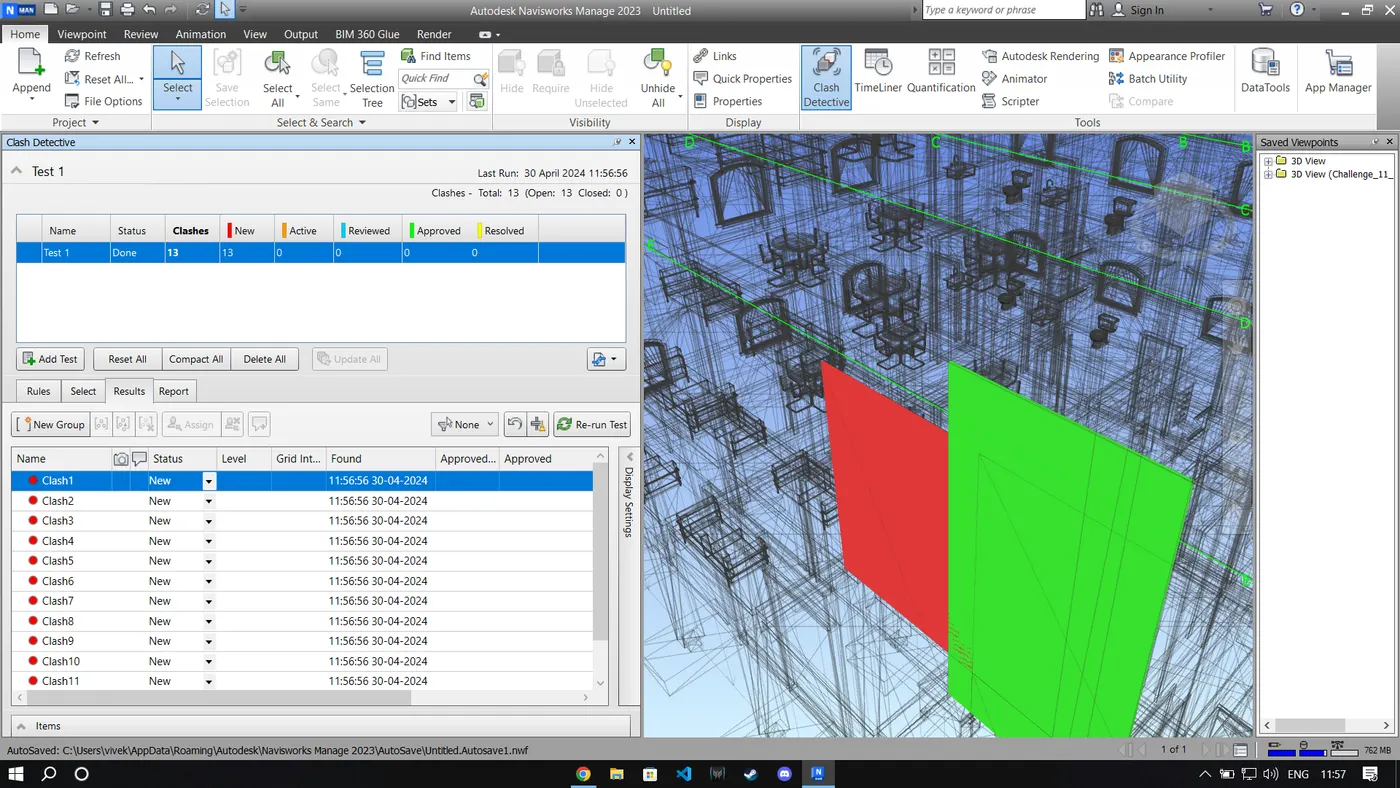

• Click on run test
• Clashes will be seen as red

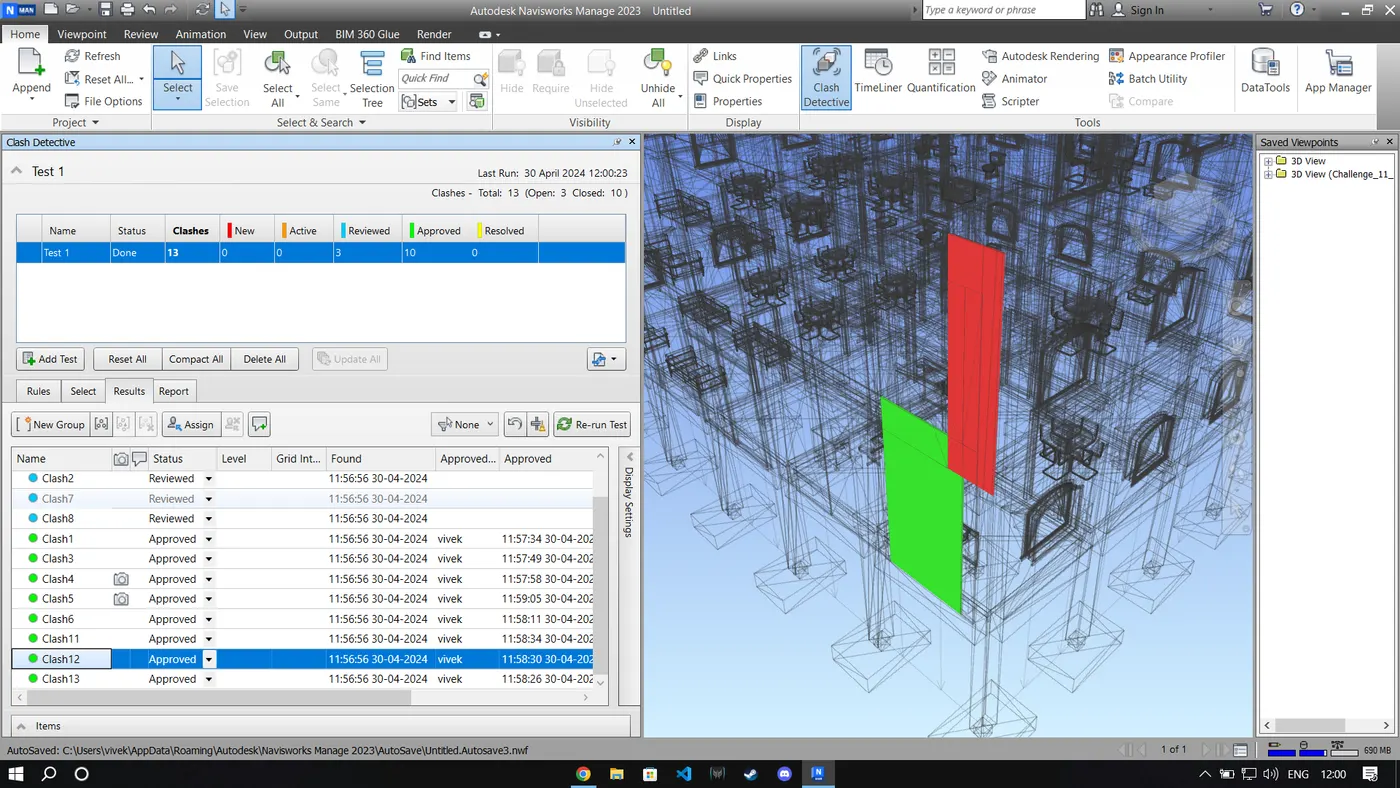

• We can approve the clash and neglect the clash as it turns to green.

• Clashes can be resolved which can change model boundary conditions these clashes can be excluded from the detective test.

5.) PROCEDURE:

• Open The Structural file in Naviswork.

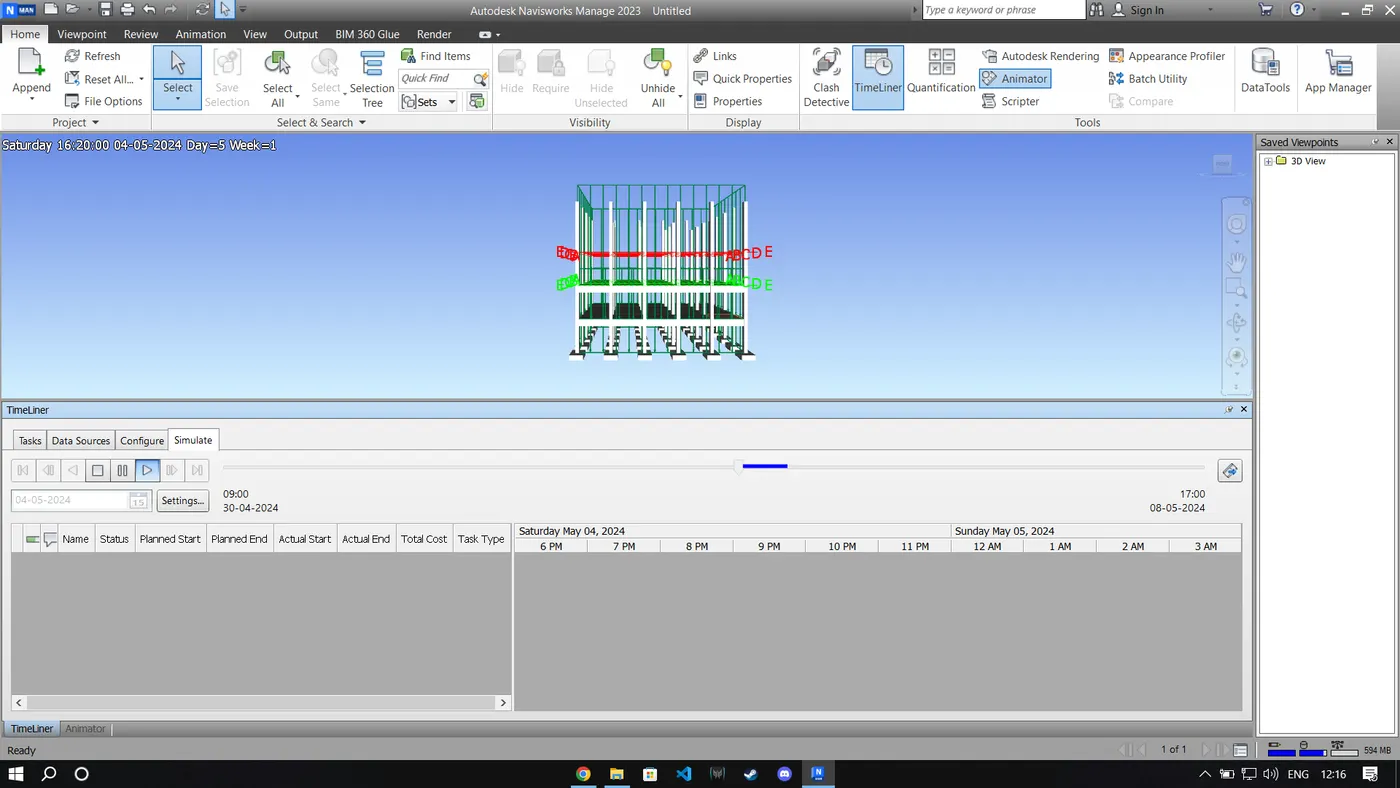

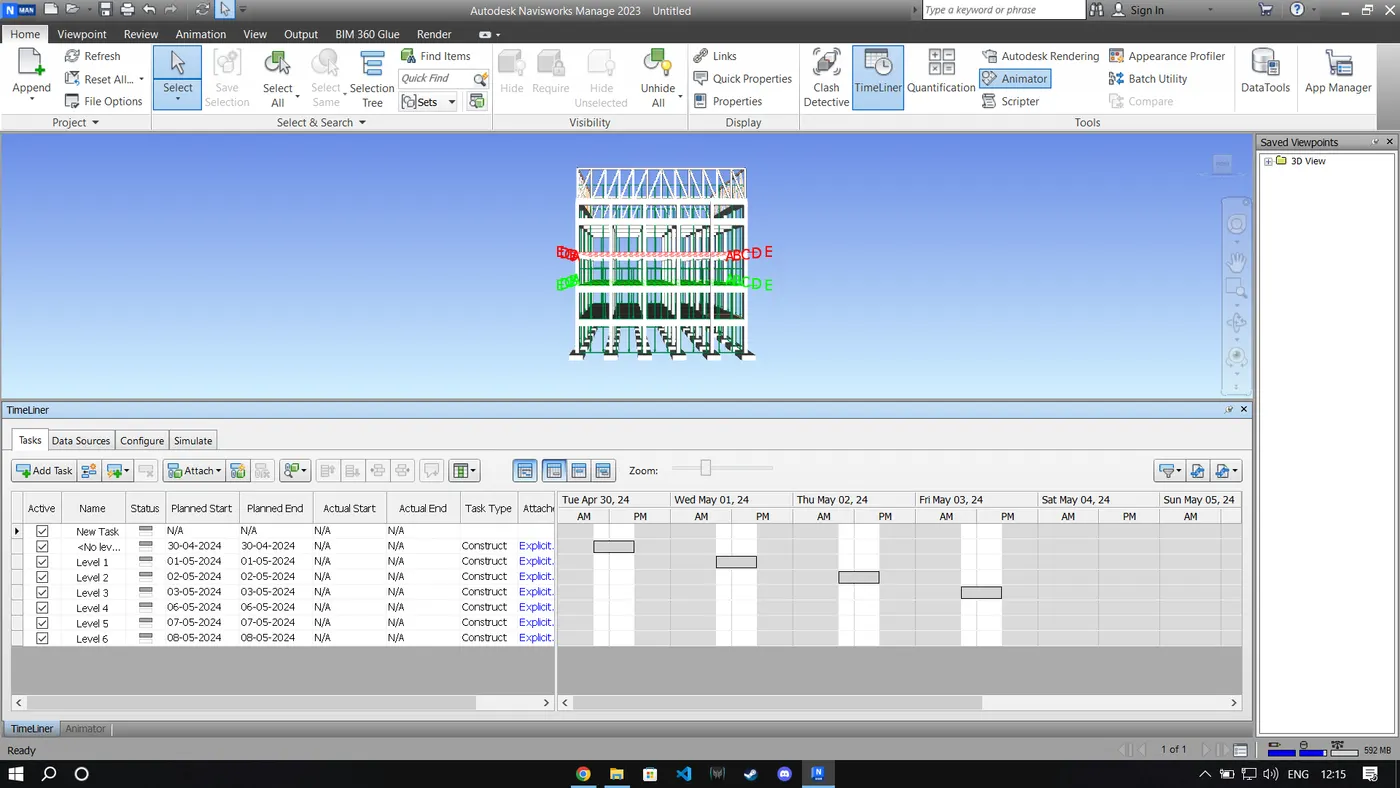

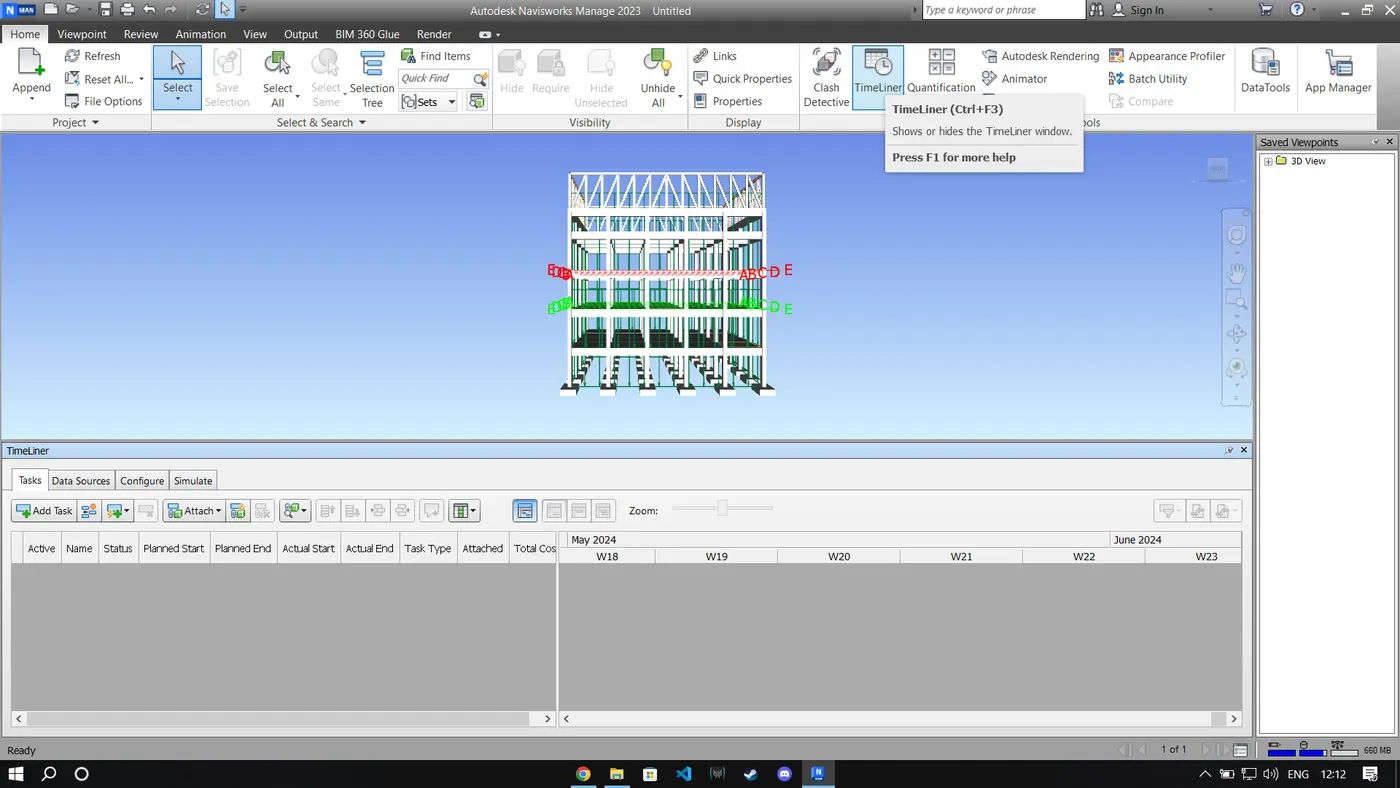

• Click on the timeliner option in the Home tab
• Click on add task in the timeliner to add new tasks

• Create the tasks as required from start to end by providing a starting and ending date, and providing type as a construct.

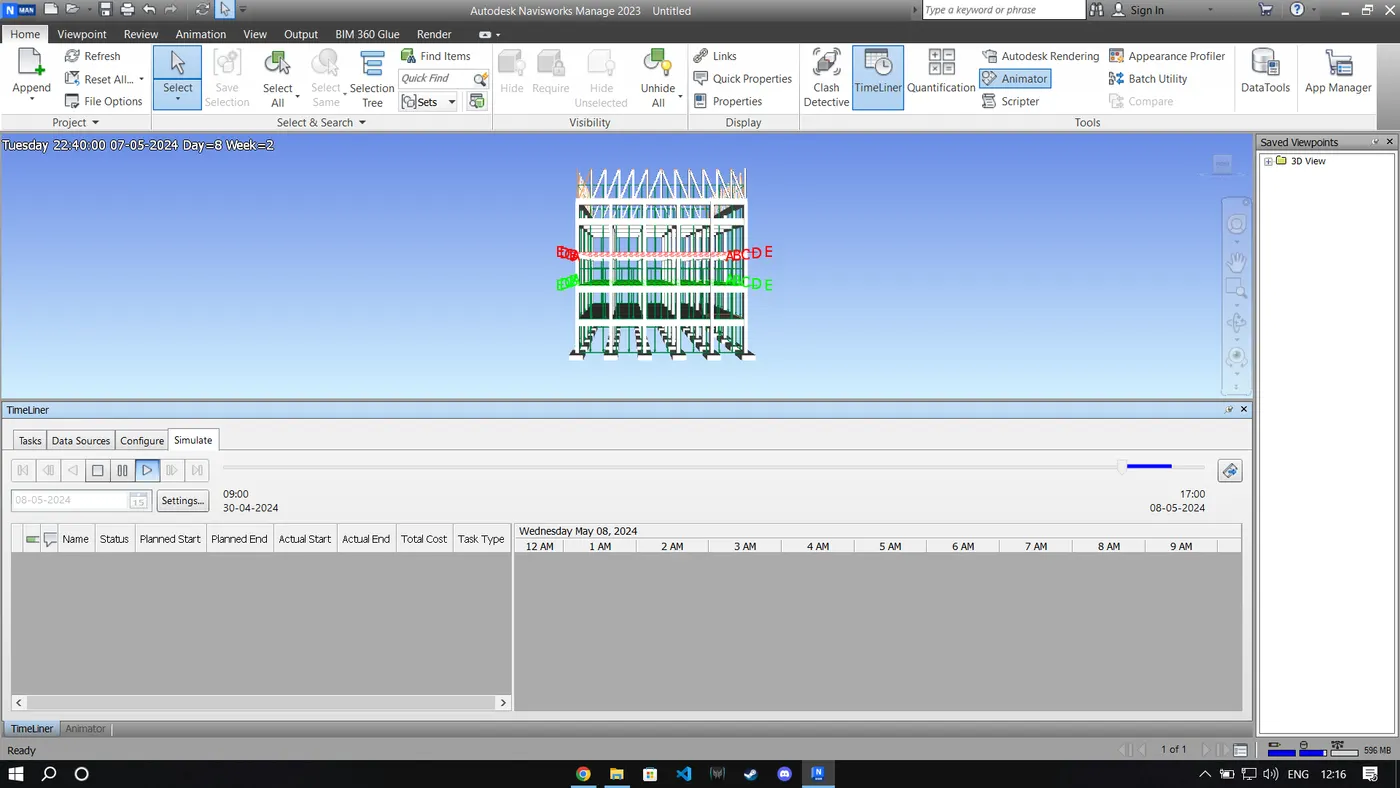

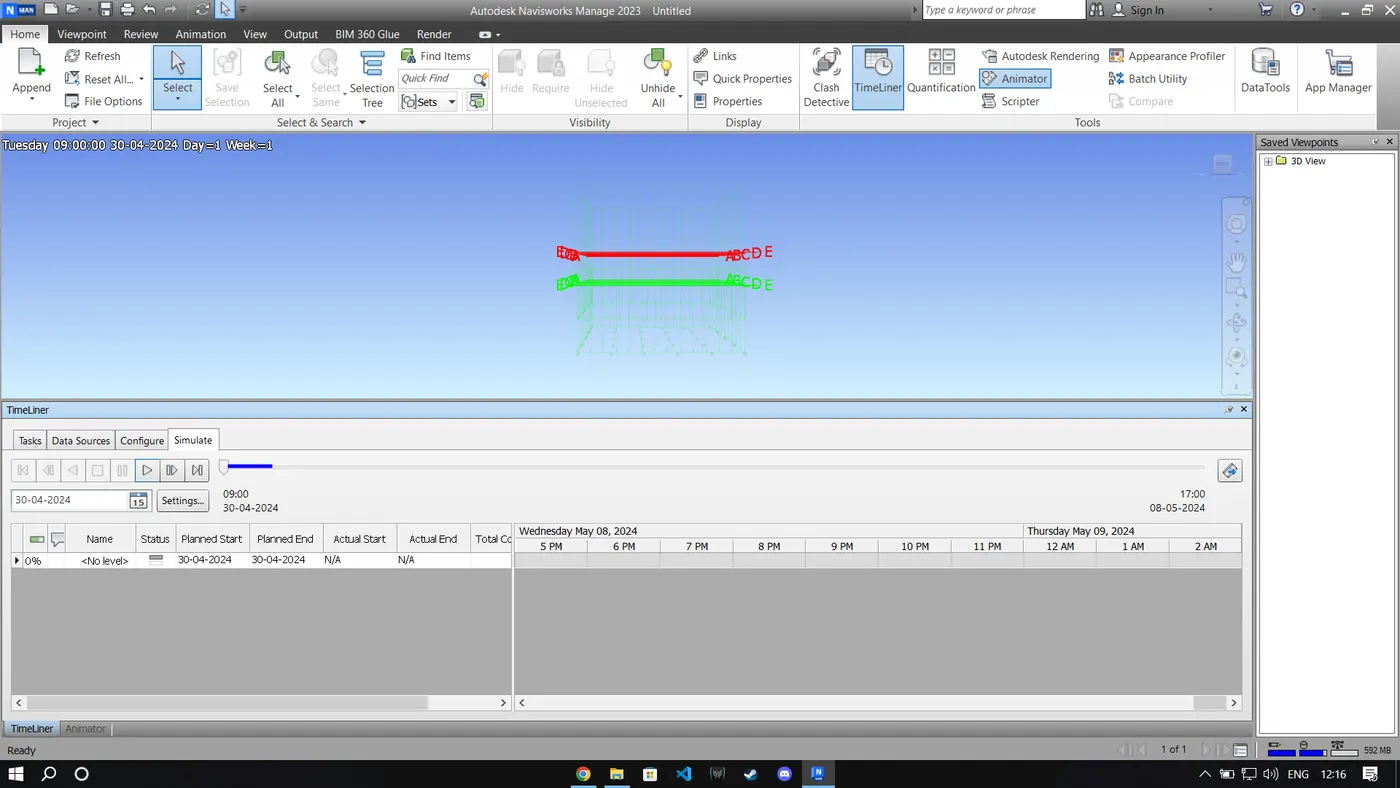

• After entering all the tasks click on stimulate, record it and save the work.

CONCLUSION:

• All results of each drawing have been attached which were drawn in Revit and Navisworks.
