Usage of Navigation tool , Timeliner and Clash Detection test using Naviswork

1) Use the Architecture/ Structure Project file developed by you in Week 6 to 8. Export the Revit architecture and structure model to Navisworks Cache file following the export settings discussed in class

steps

1) Open revit

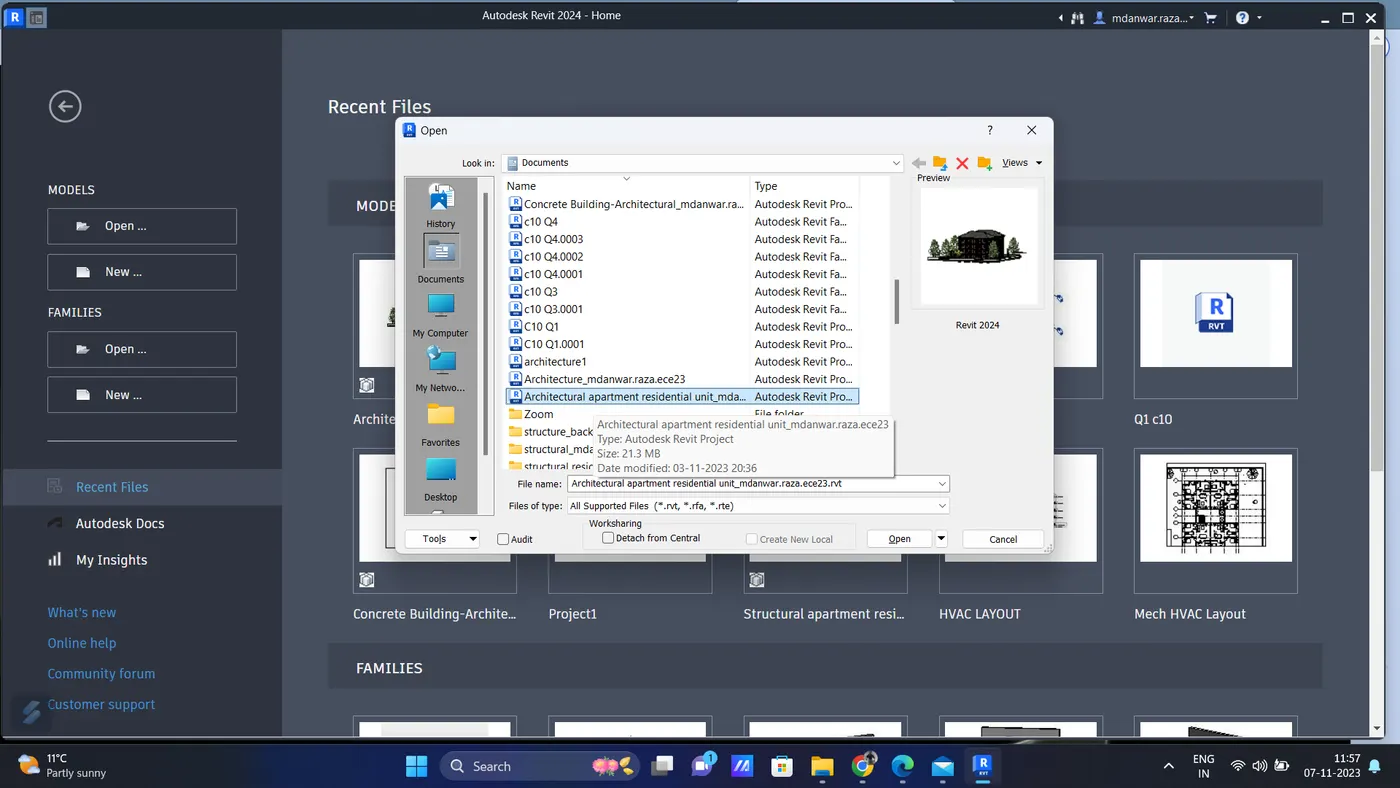

2) Open any week 6 to 8 project file.

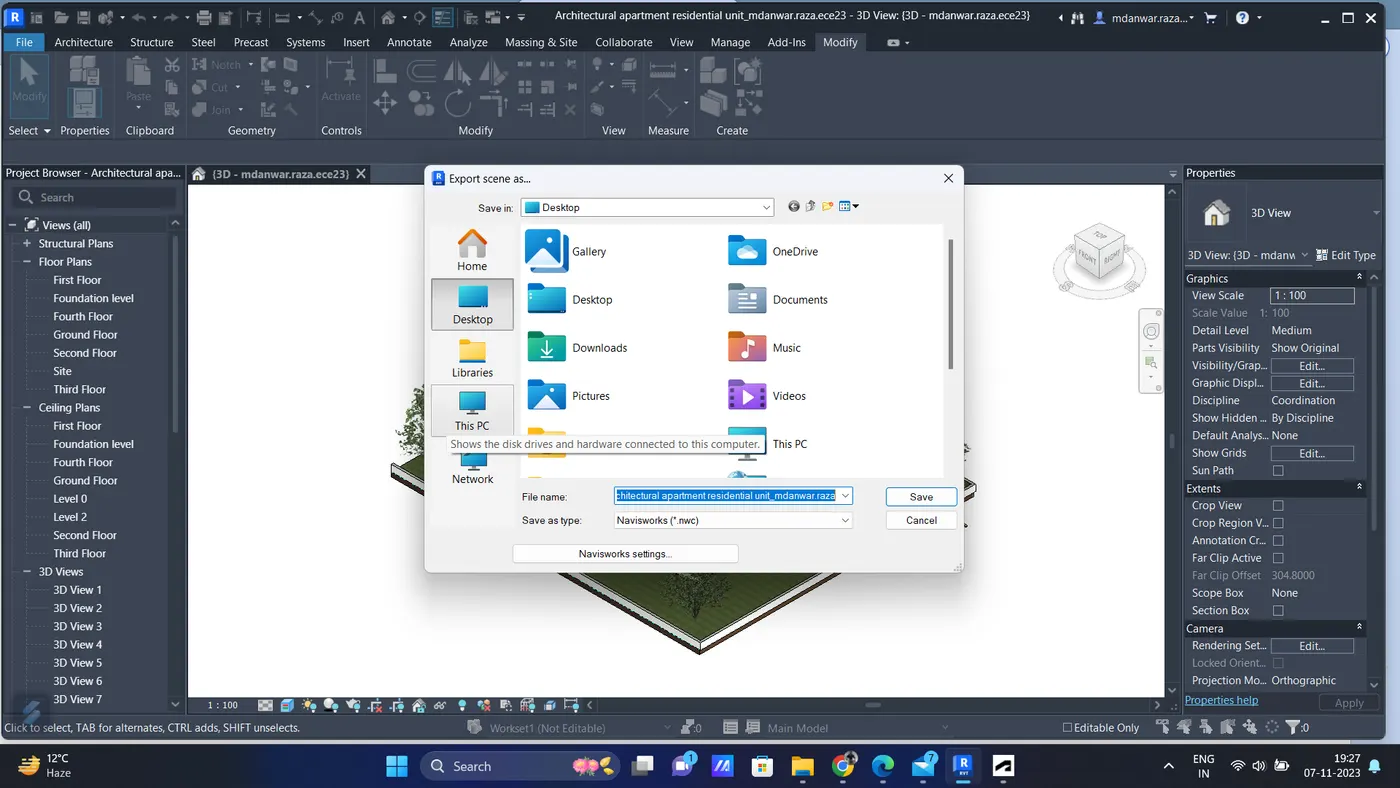

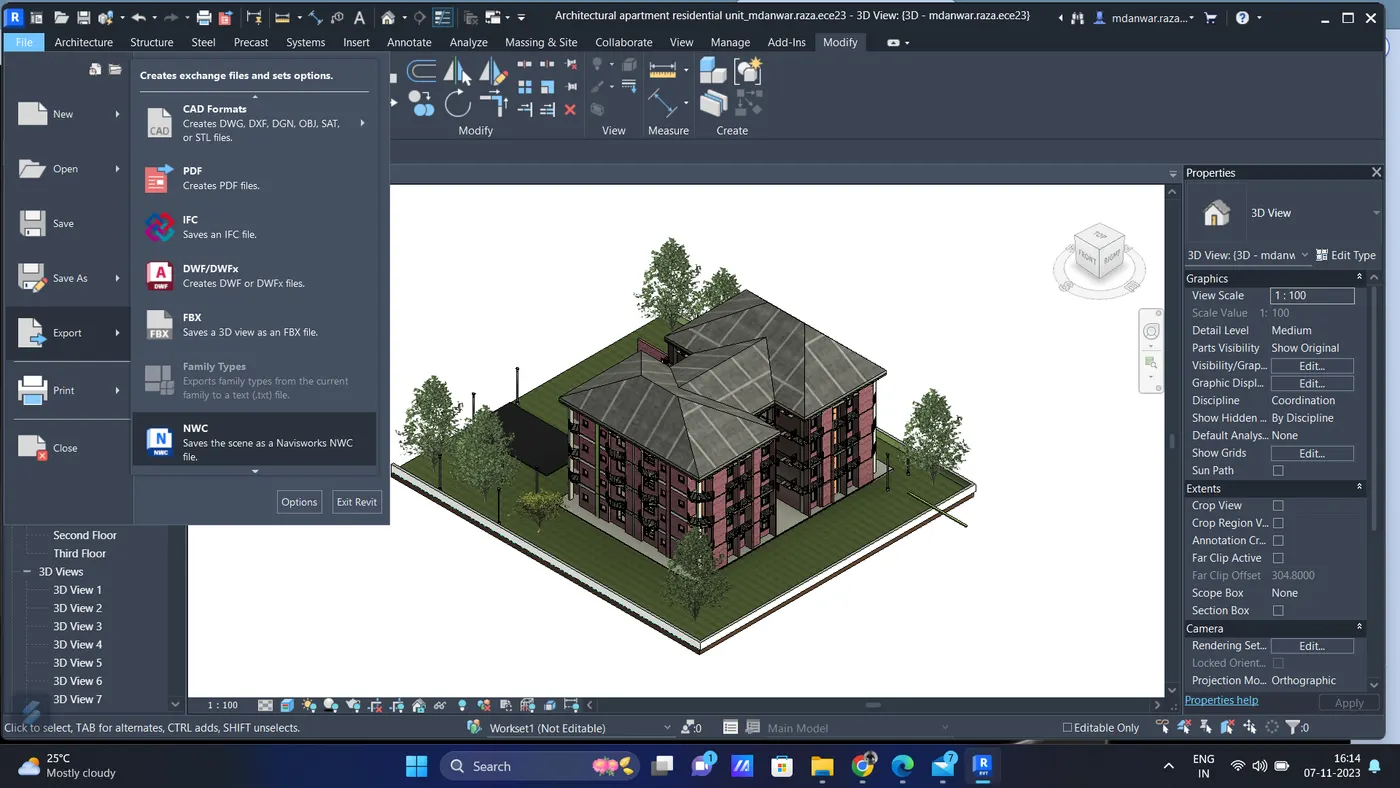

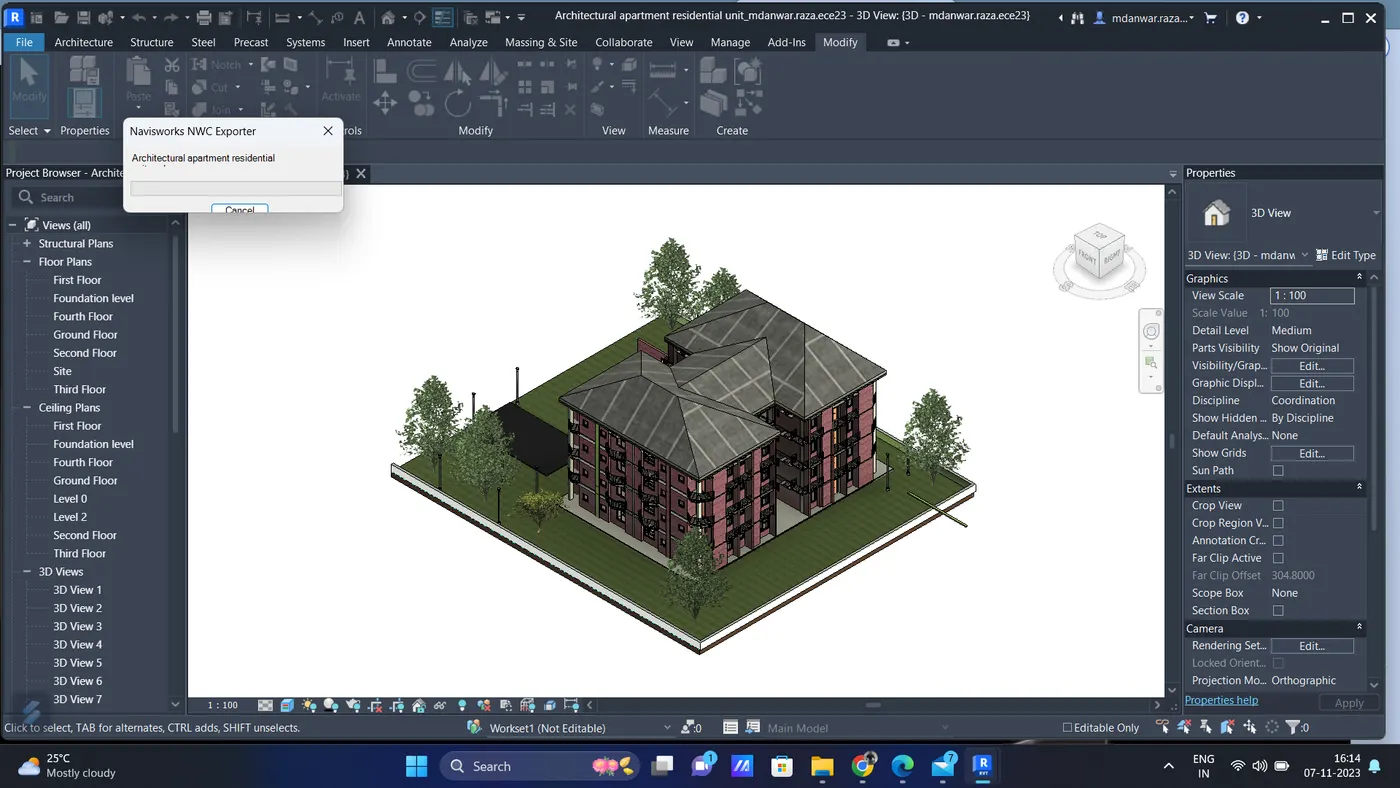

3) click on file option go to export option and creat exchanging file to NWF.

2) Use Navigate Tool to walk around the model and walk through the rooms created and record your moving as animation in your Navisworks file

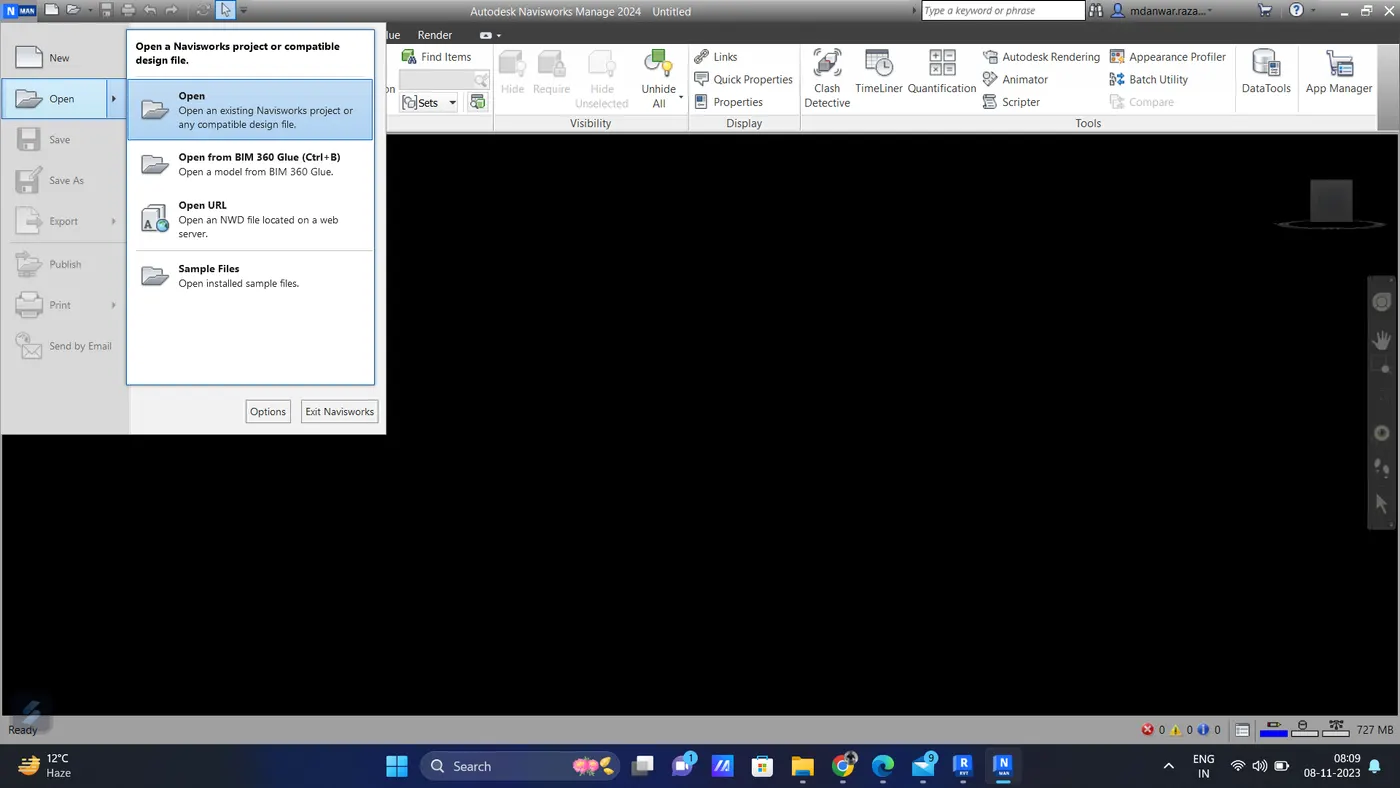

1) file menu open NWS file

2) Go to viewpoint save veiw and click walkthrough record video

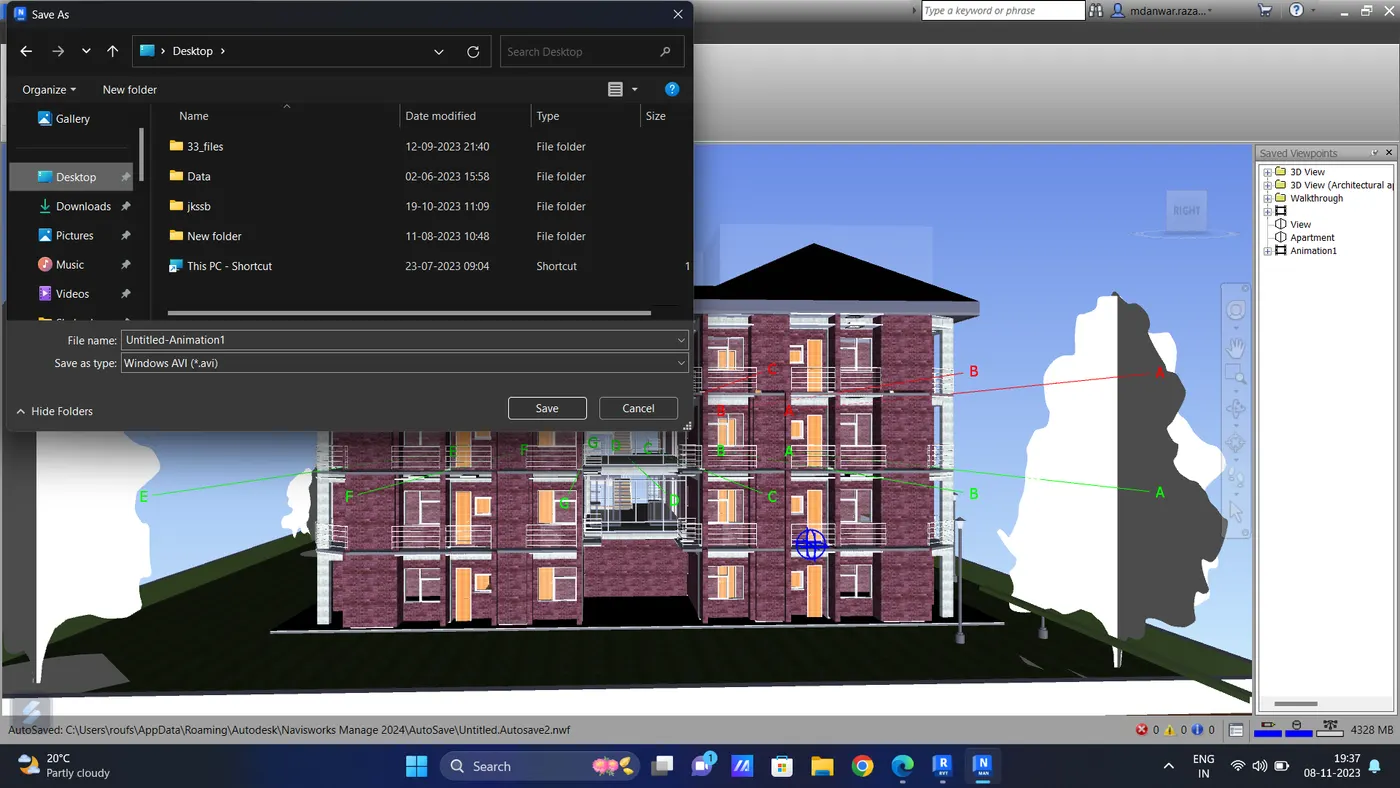

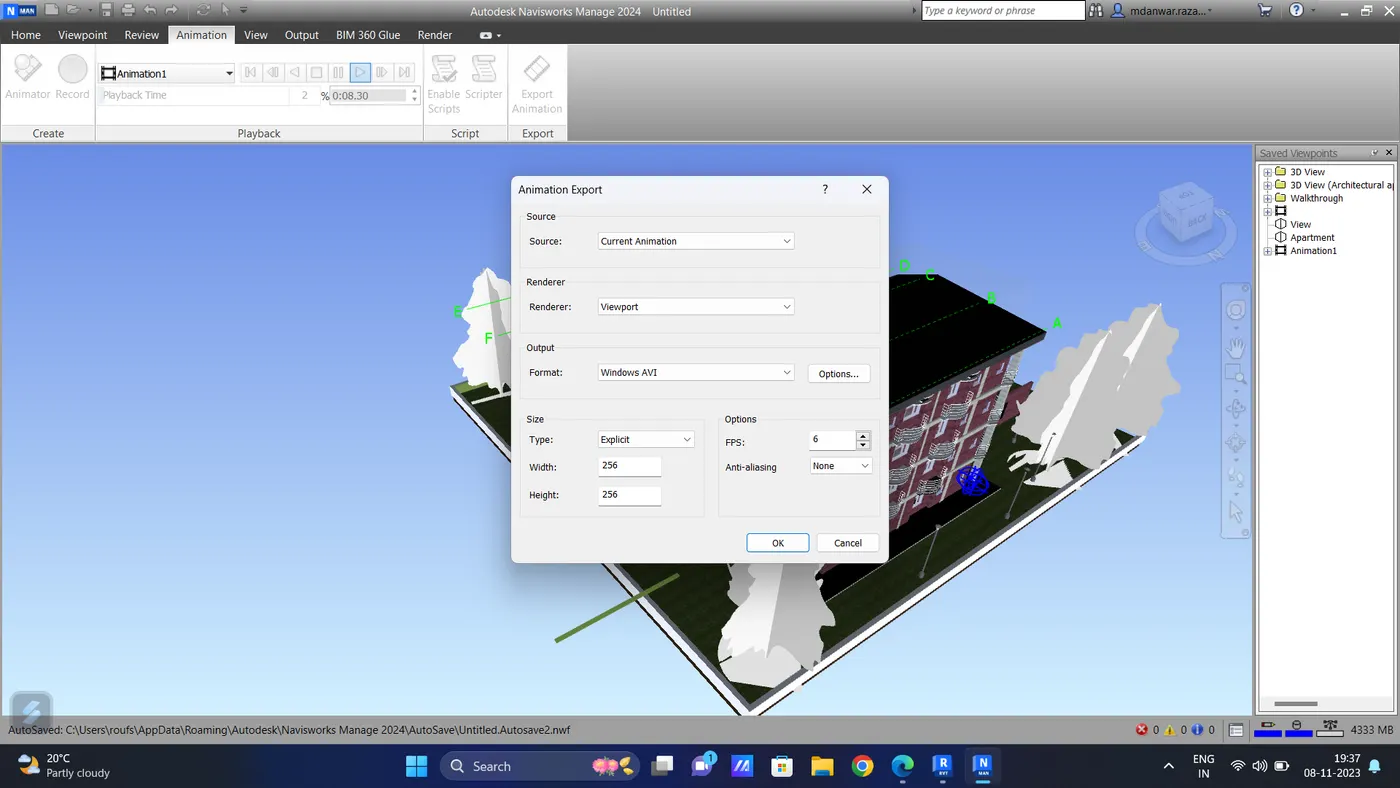

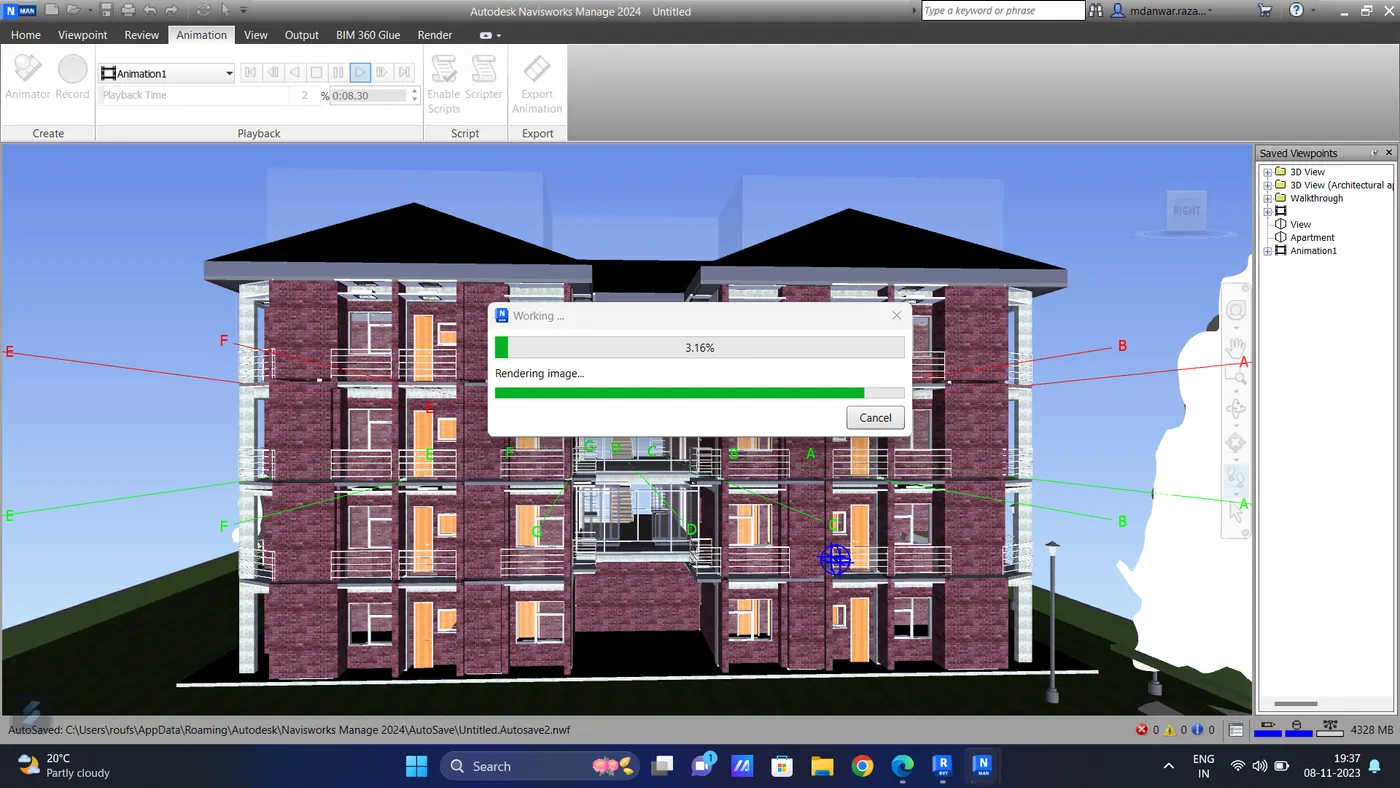

3) Click Amination tab and export video

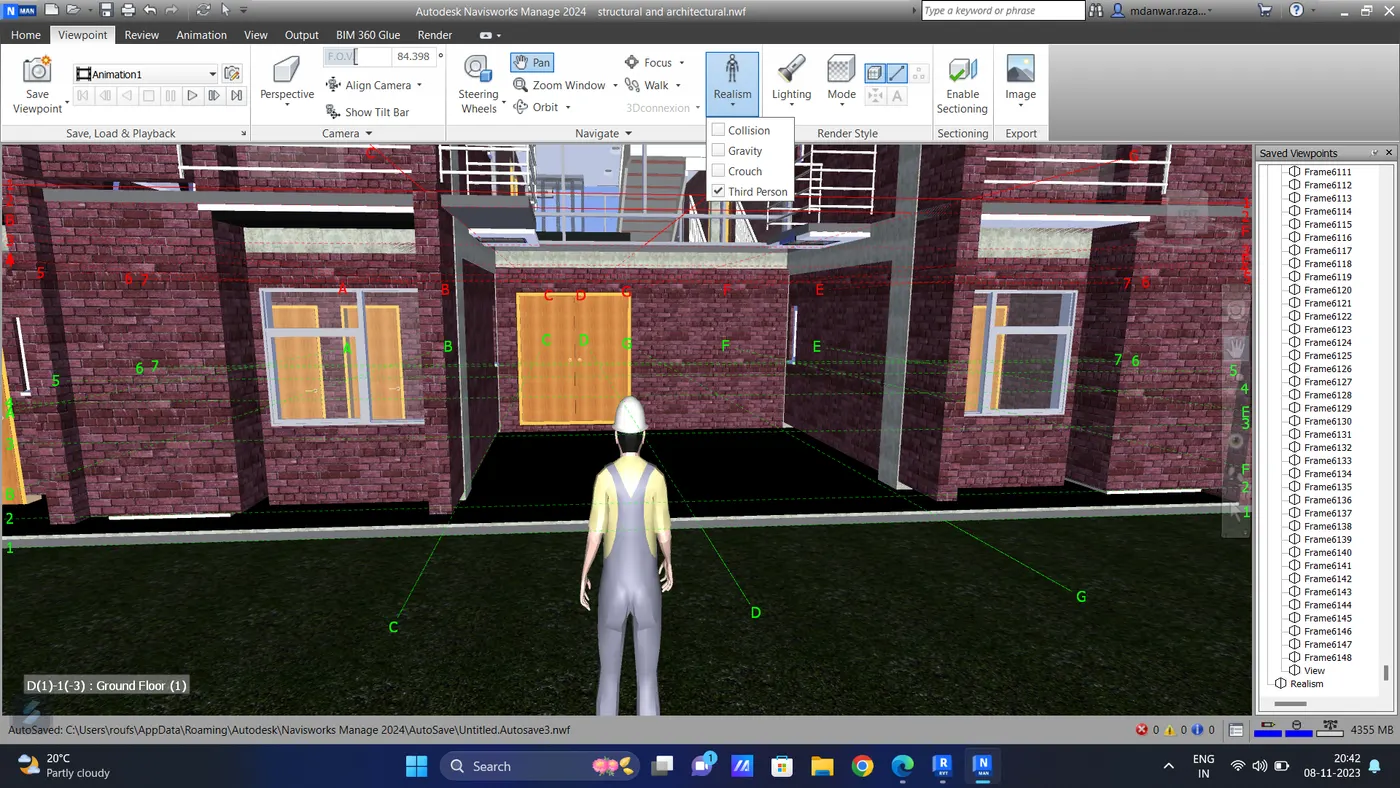

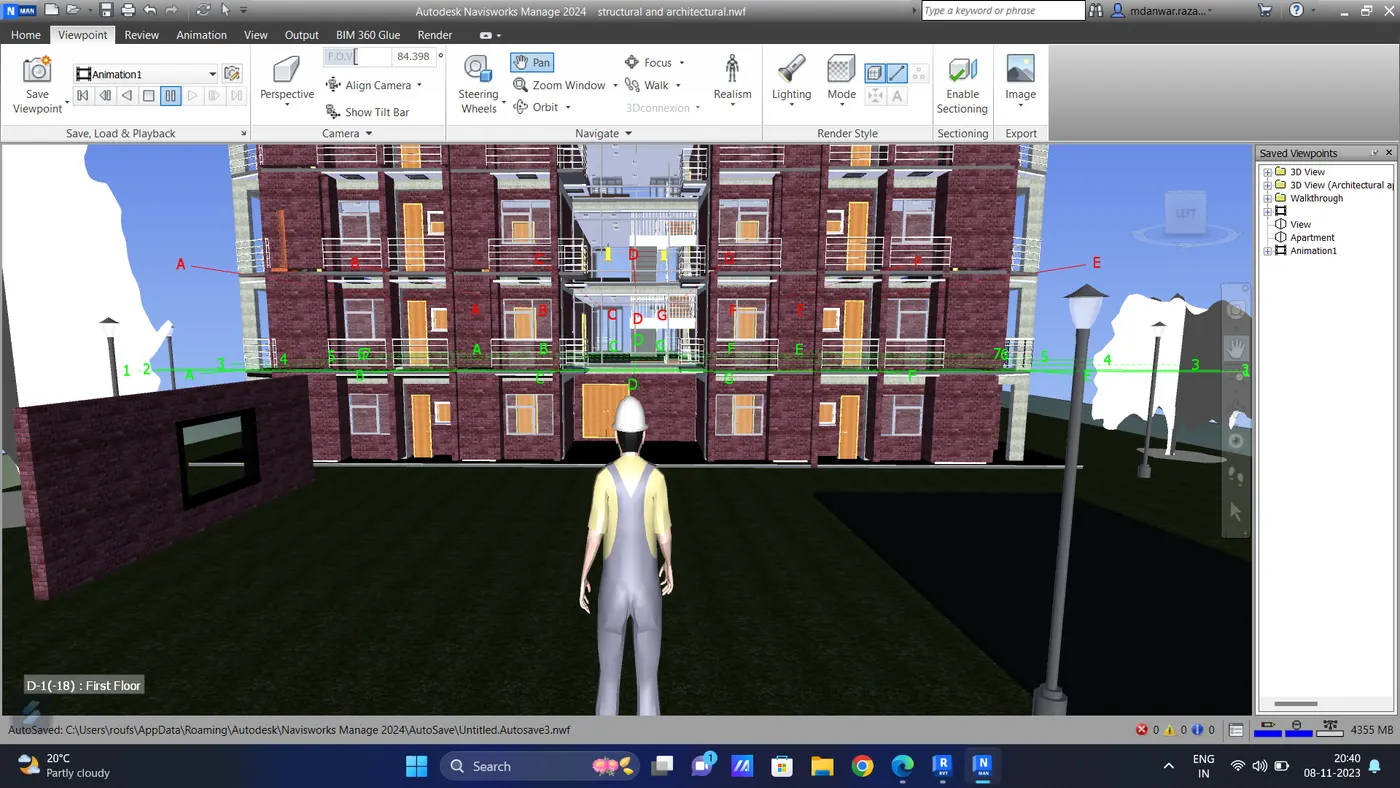

3) Use Navigate tool to use Realism feature to walk through the model and record your moving as animation in Navisworks file

• open the architectural model in naviswork
• click on view point and select the view
• click on realism command
• check on third person and select the record option
• select walk
• walk through all the rooms of model
• click on stop

4) Embed both architecture and structure *.nwc file to your Navisworks file. Create a clash detection test between the two models

a. Run the Clash Detection Test
b. Study the clashes between the two models
c. List which of the clashes could be approved
d. List which of the clashes could be neglected ( will be taken care later)
e. List which of the clashes can be resolved
f. Save the results after color coding the clashes to the Navisworks file
g. In case of resolution annotate the clash and save the view to defined views in Navisworks

AIM: To embed both architectural and structure *.nwc file to navisworks file and create a clash detection between thhe two models

TOOLS USED:

• HOME
• OPEN
• APPEND
• CLASH DETECTION
• RUN TEST

PROCEDURE:

• Open the architectural file in naviswork

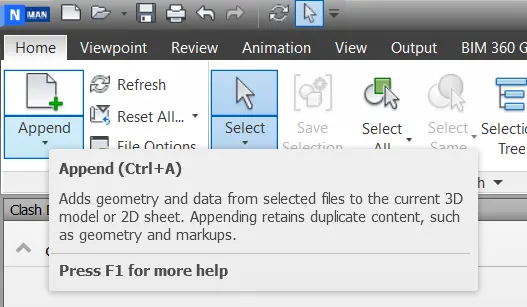

• click on append in home tab
• select the structural model to identify clashes between models

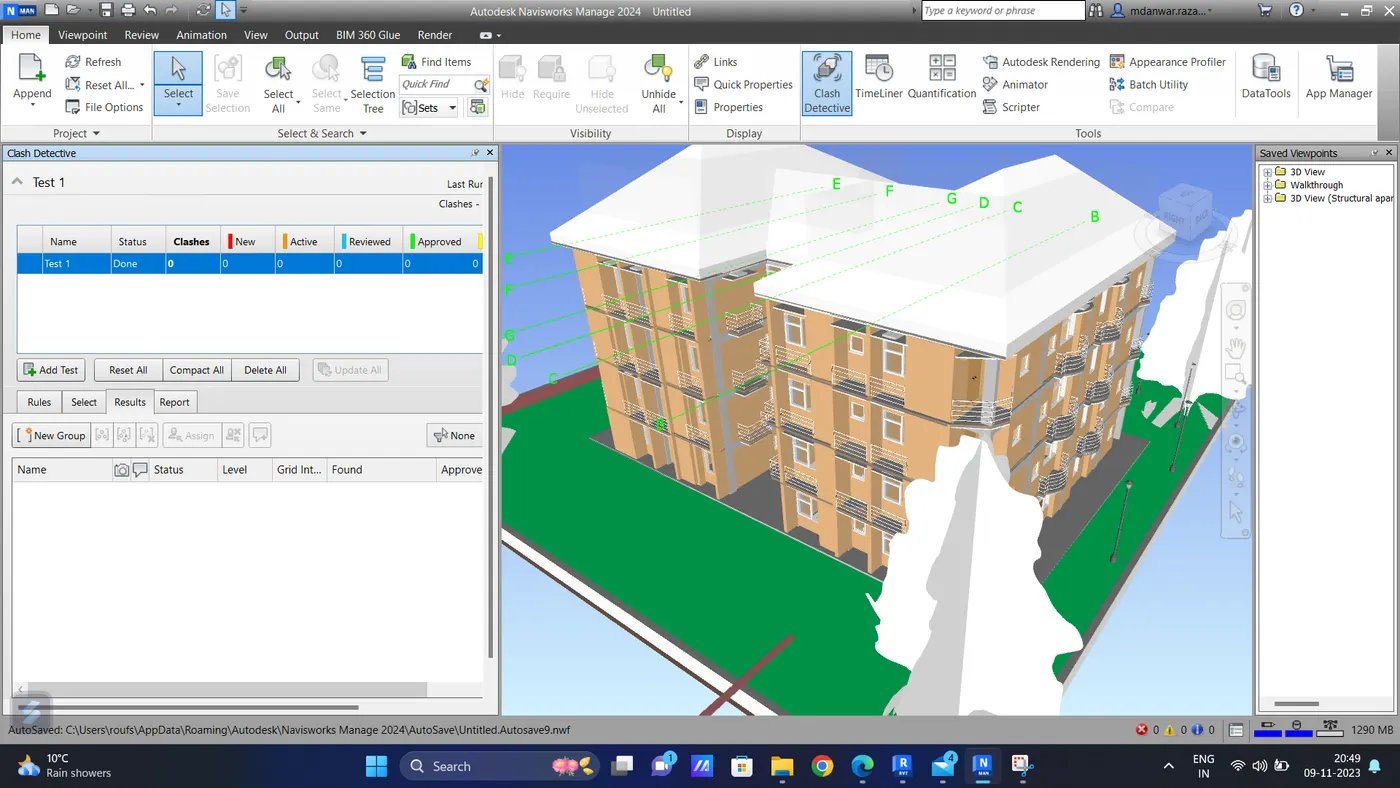

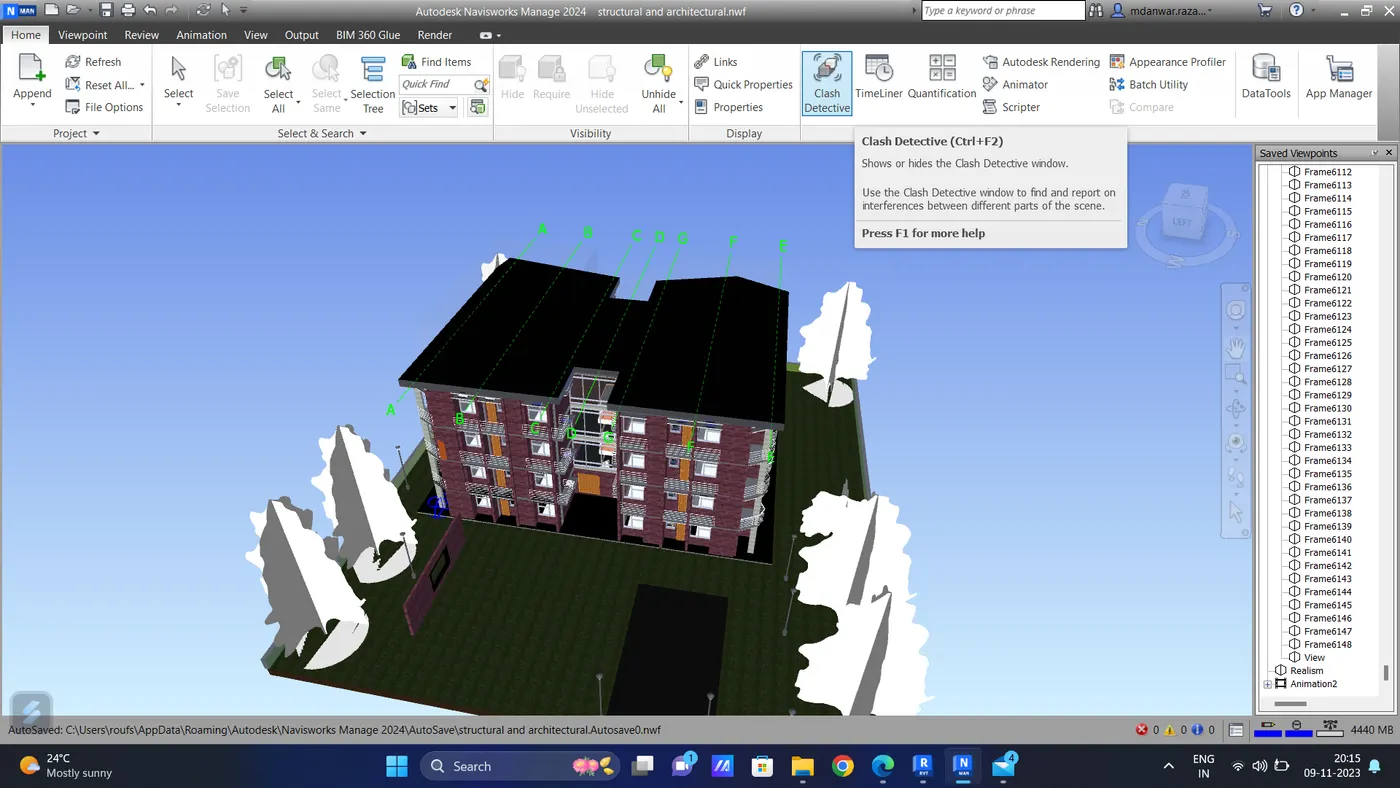

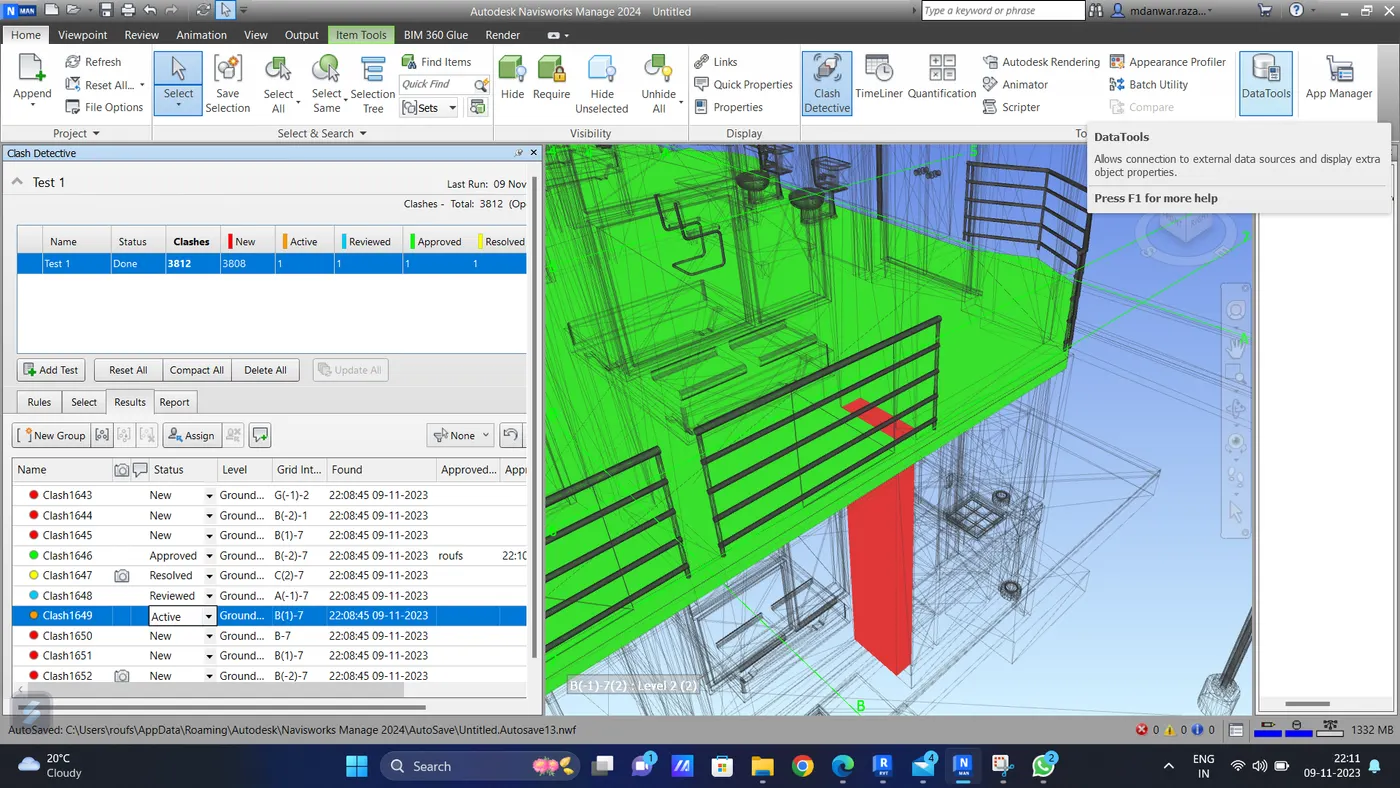

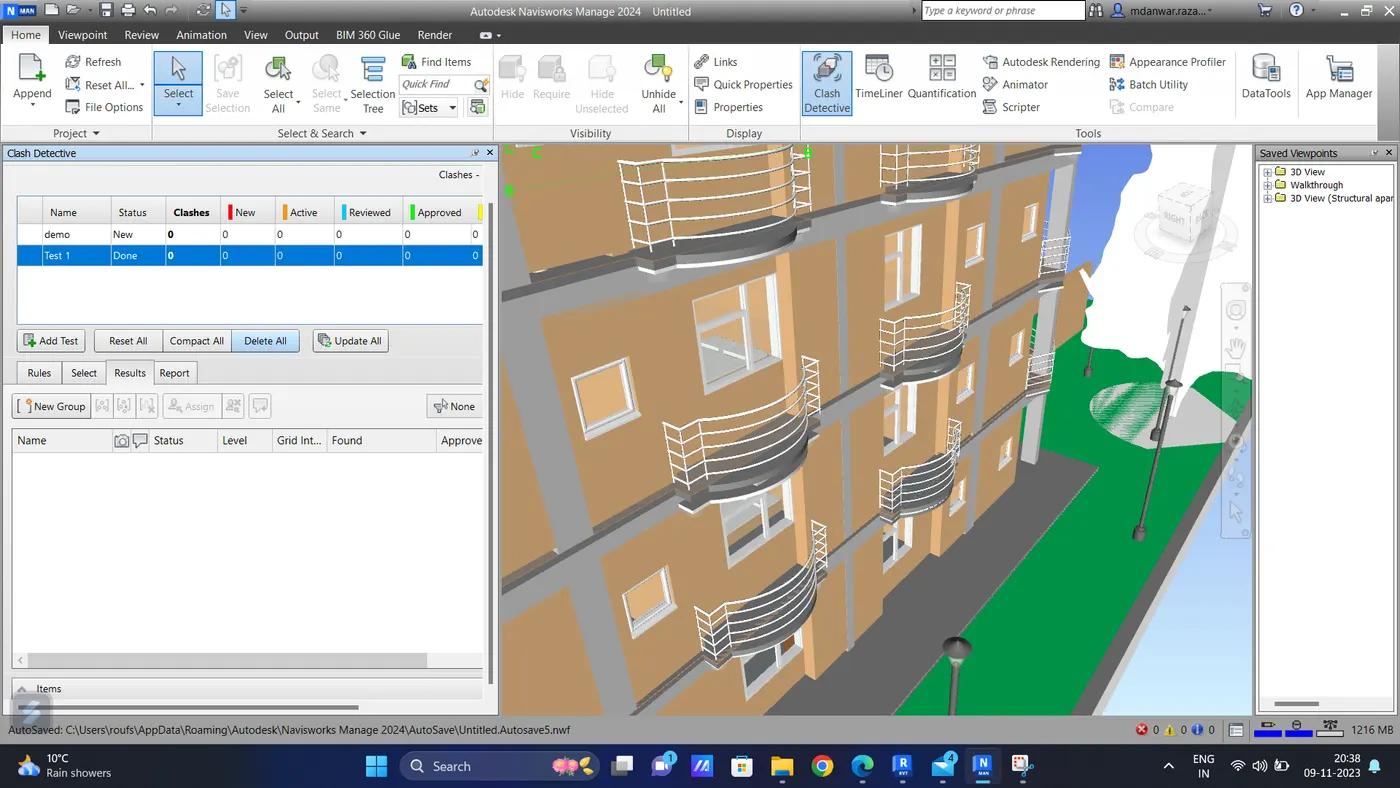

• click on clash detective
• select the architectural in one section and structural in other section

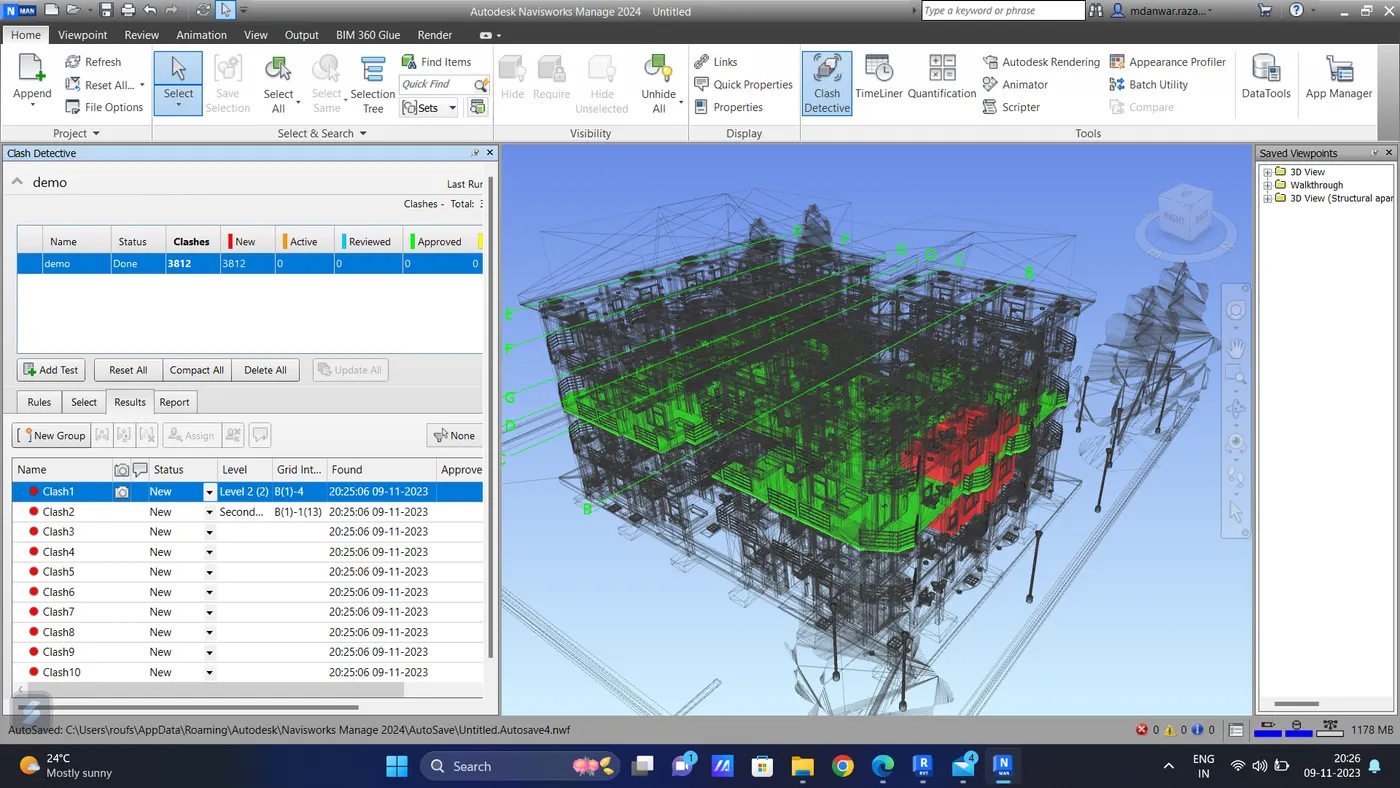

• click on run test

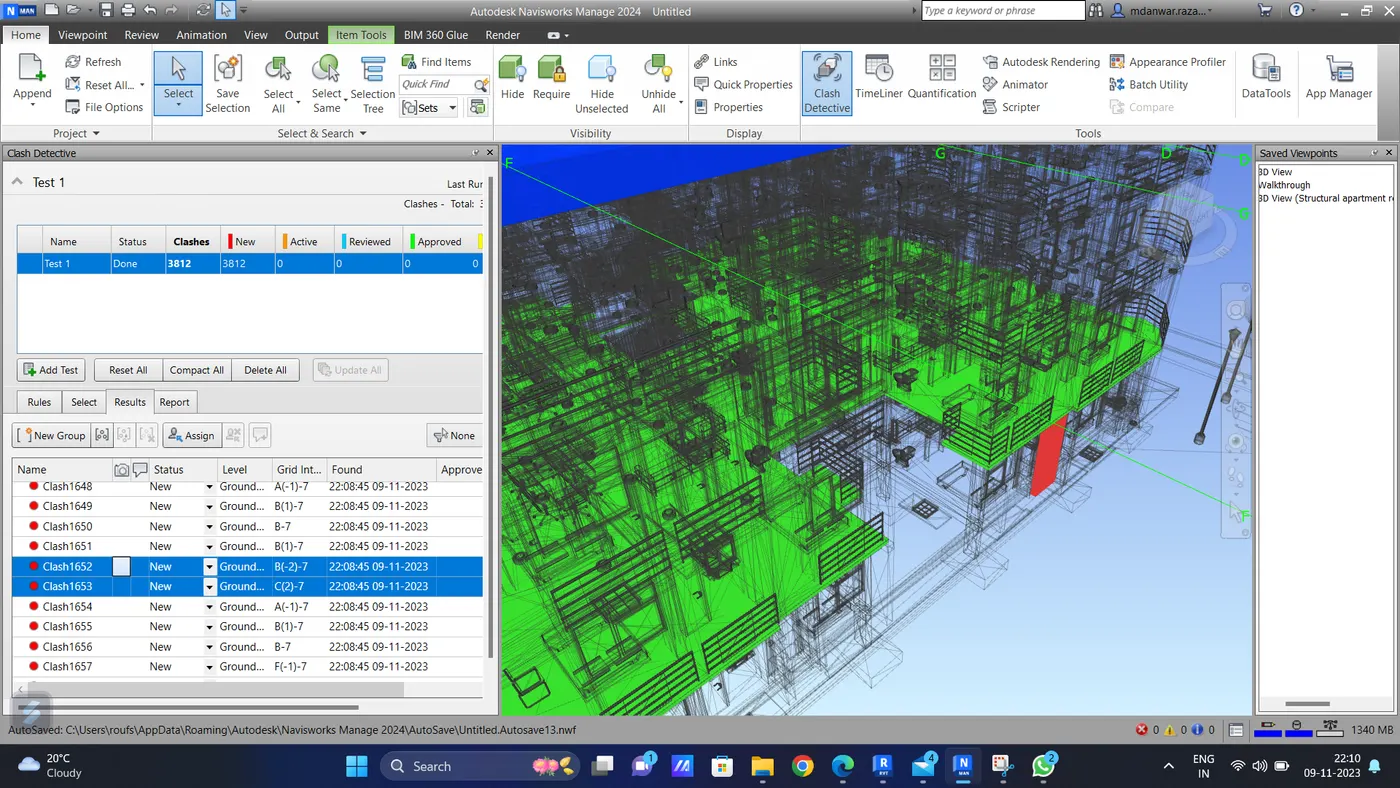

• after test study aboout clashes like beams colukns etc.,

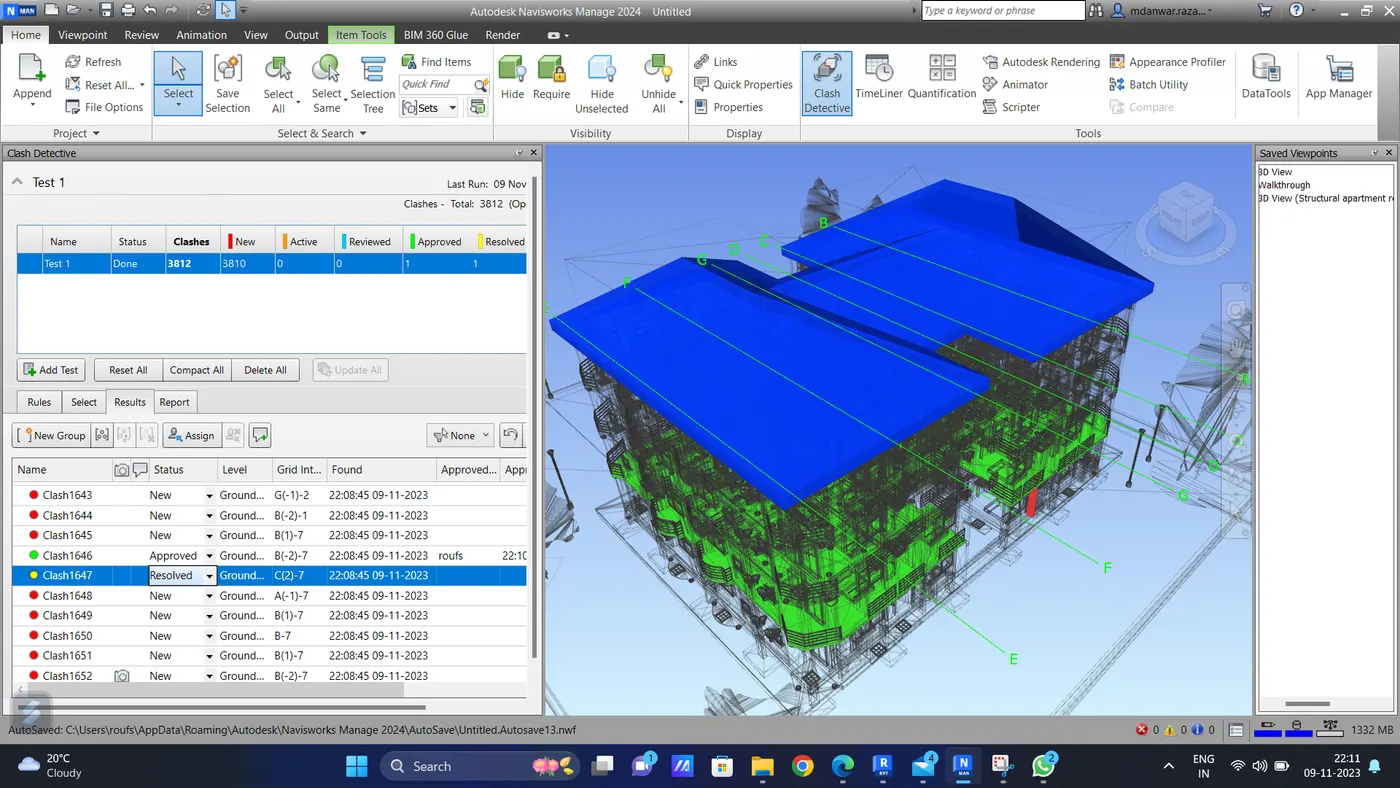

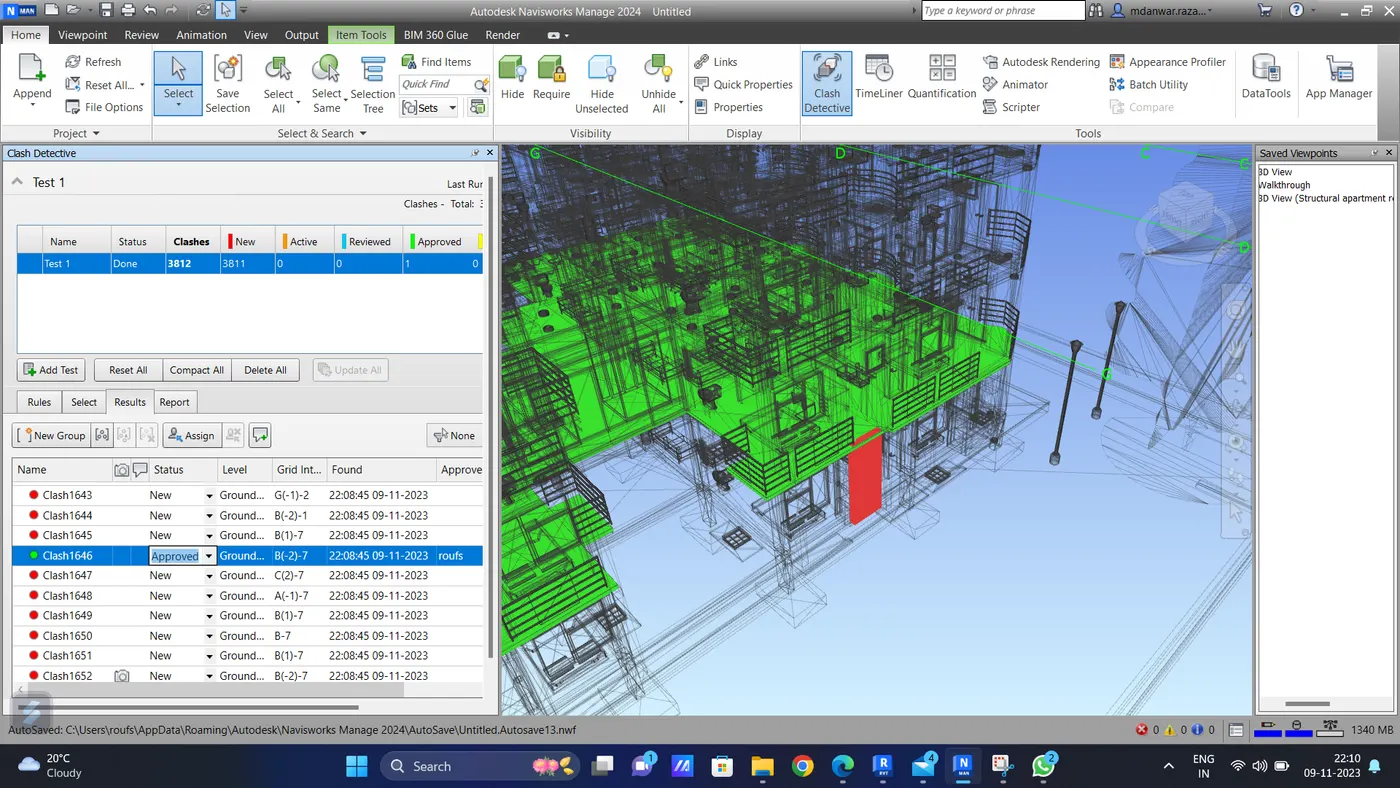

• list the clashes which can be approved,reviewed,resolved by selcting them in drop down menu

both architectural and structural files has been embed and clash detectin has done and they are studied and clashes which can be reviewed,approved,resolved are listed and saved in naviswork file

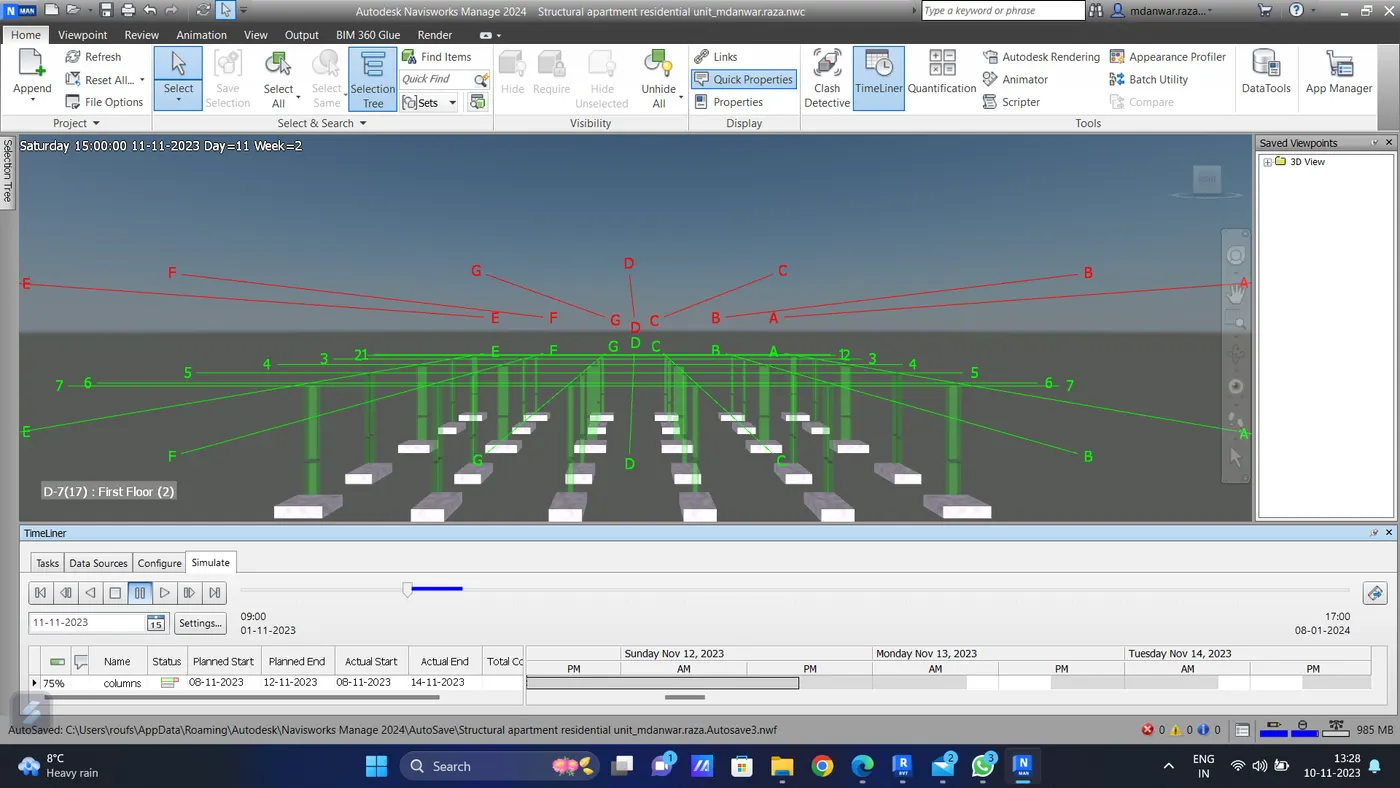

5) Using the Timeliner feature in Navisworks prepare a schedule for the project developed in week 6 to 8 by adding reasonable assumptions for task start date and end date and simulate the task completion as a visual simulation. Record it and save the timeline simulation to Navisworks file

AIM: To use timeline feature in naviswork and prepare a schedule for the project developed in week 6 to 8 by addding reasonable assumptions for taskdate and end date and simulate the task completion as a visual simulation.

TOOLS USED:

• HOME
• TIMELINER
• ADD TASK
• ATTACH THE MATERIALS

PROCEDURE:

• open the structual file in naviswork exported from revit
• go to home

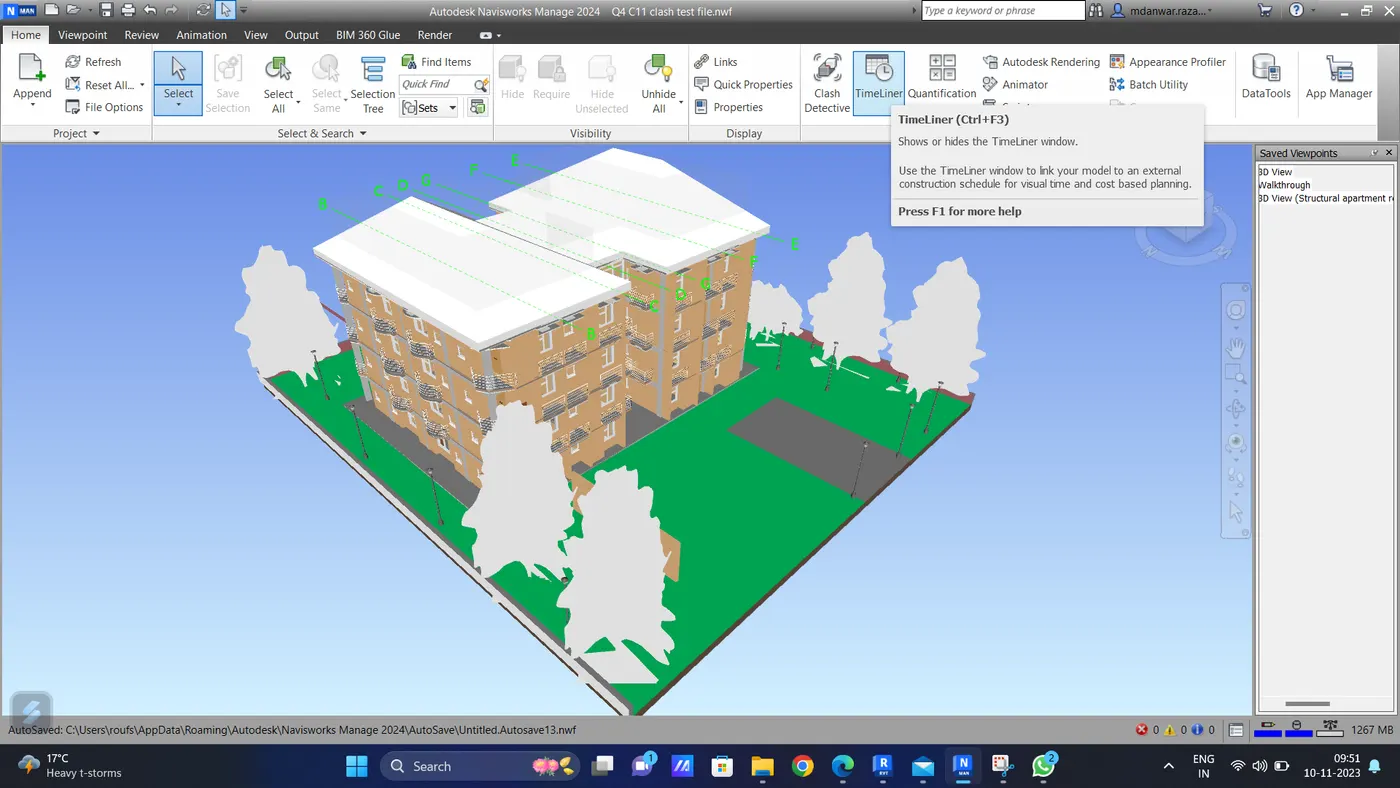

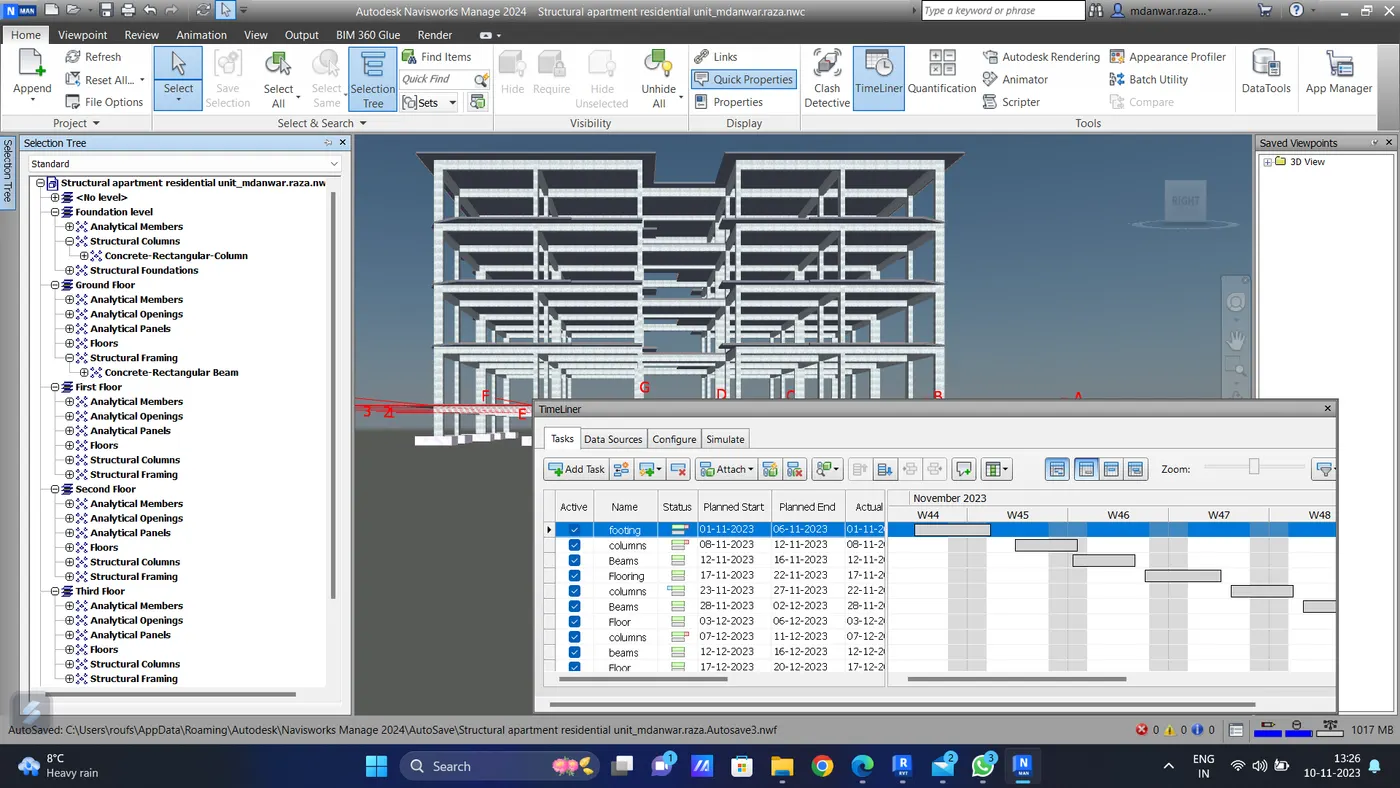

• click on timeliner

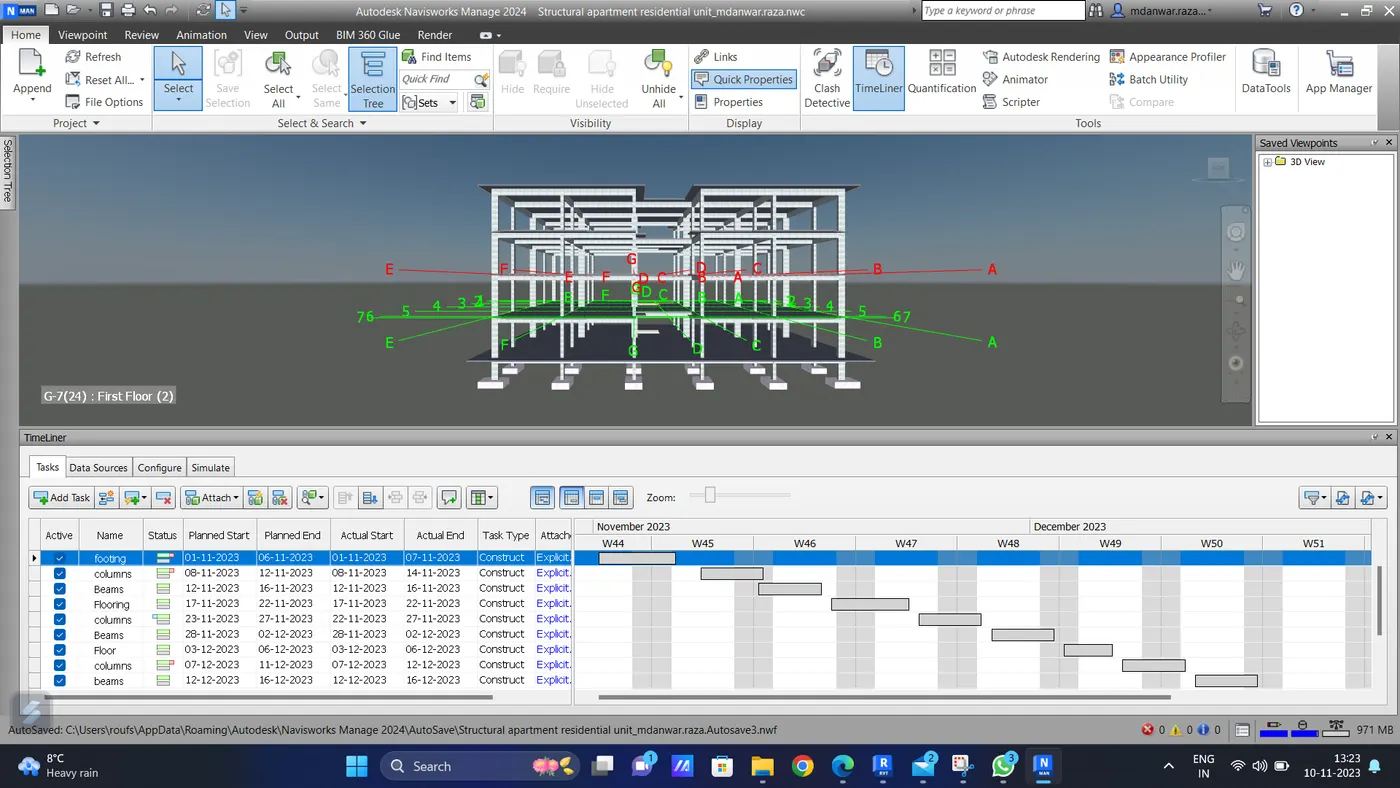

• add tasks and attach the materials by clicking on selection tree
• assign planned and actual start and ends dates to task
• Follow the the same procedure for entire building in which order the tasks have to complete

• click on record
• click on simulate to play recorded tasks and stop recording

• save the project

RESULT:

• Schedule has been done using timline features in naviswork
