Usage of Navigation tool , Timeliner and Clash Detection test using Naviswork
) AIM: To Exporting the Revit architecture and structure model to Navisworks Cache file as discussed in the video.
PROCEDURE:
- First of all we have to install the software form autodest website.
- Go to Autodesk website

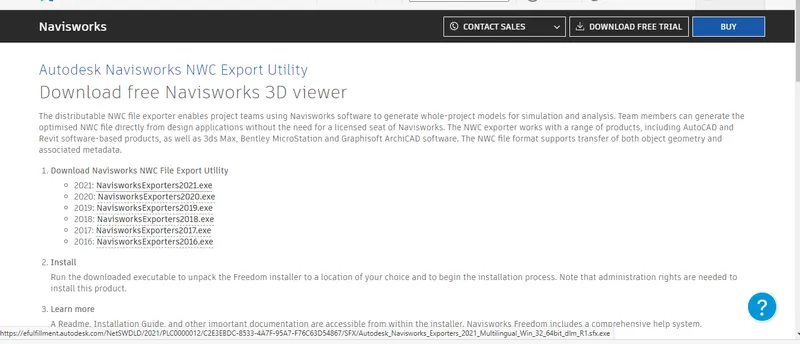

- Search Naviswork export utility and download 2021 version
- Click run and extract it.
- Open a saved file in Revit application

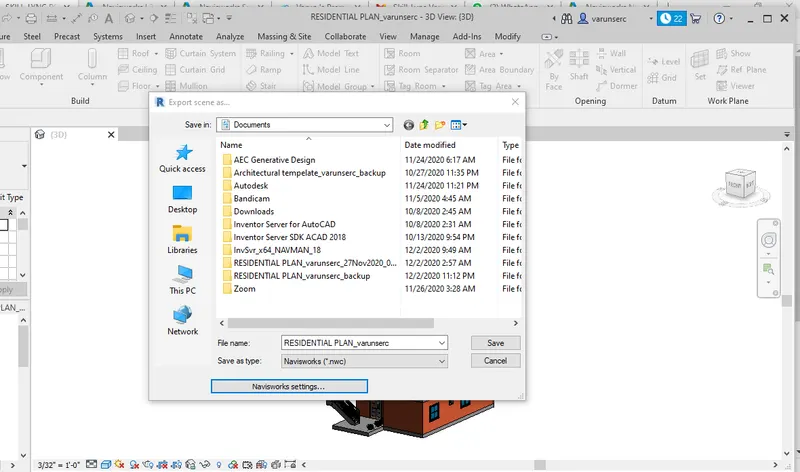

- Click file and export it into NWC
- Save the file in appropriate location
- Open Navisworks Manage 2021

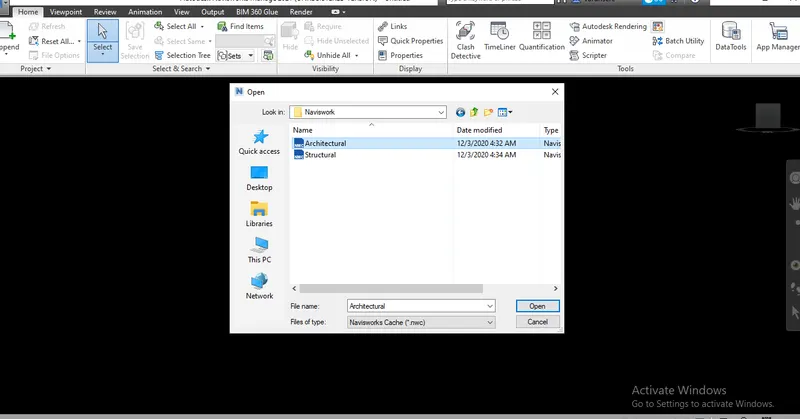

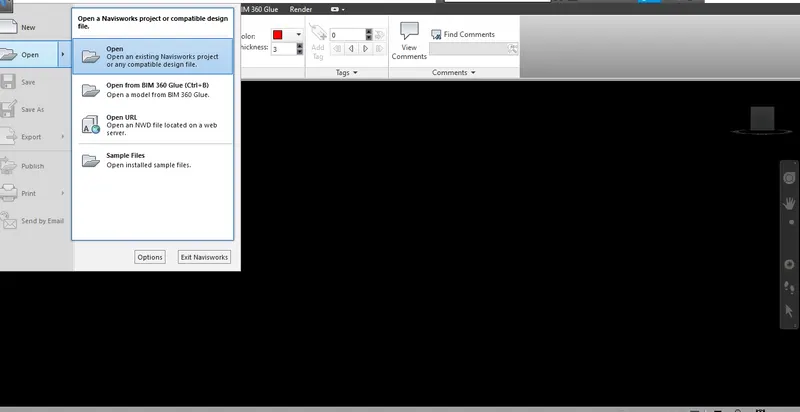

- Click file menu and choose Open

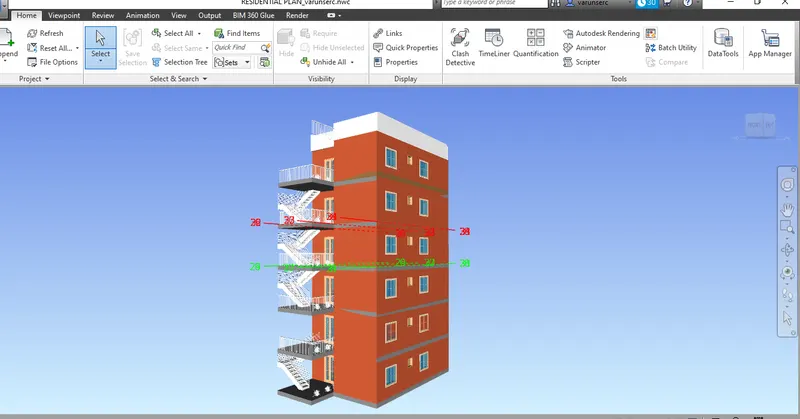

- Open a file which we saved from revit application
RESULT:
Thus the Revit file has been exported to Navisworks sucessfully.
2) AIM: To creating the walk through model and recording the movements using Navisworks.
PROCEDURE:
- Open a Naviswork and import a file

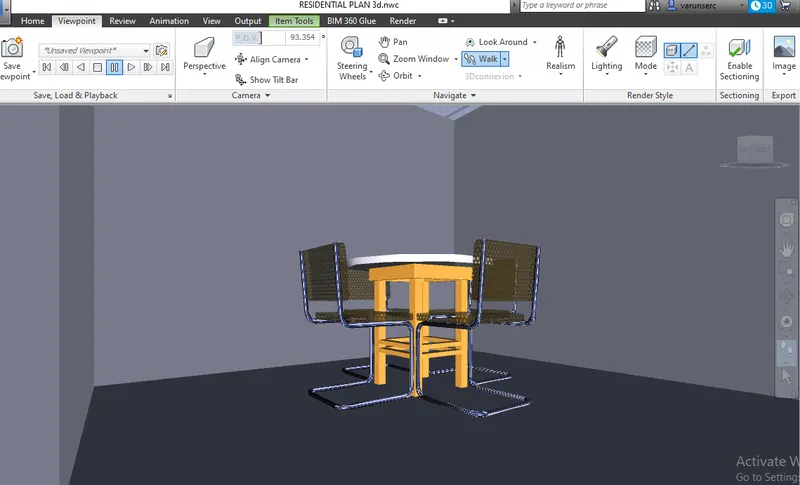

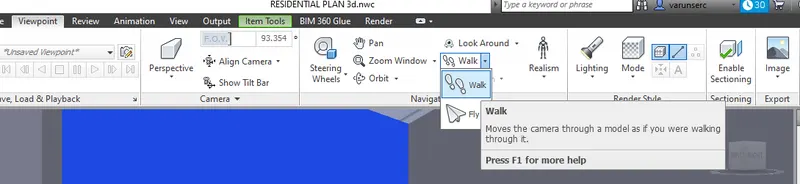

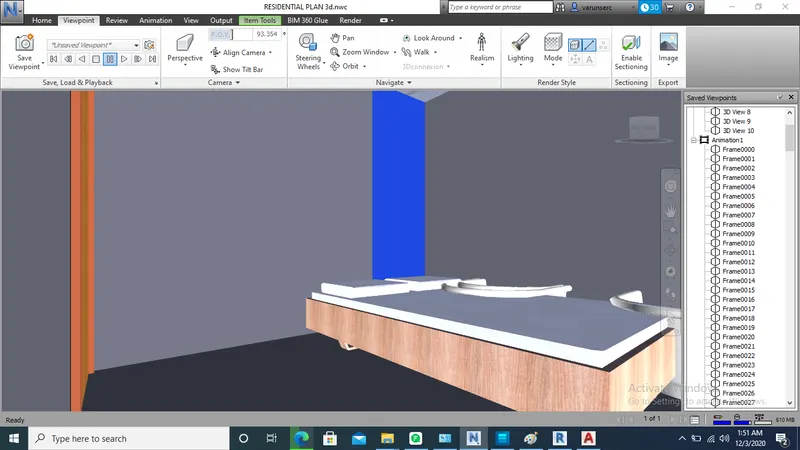

- Click Walk tool in Viewport tab
- In the selection tree select the 3d view which you want to walk through
- By using the mouse move as your wish
- Depends upon the mouse moving the screen will moving inside the room as a human walking.

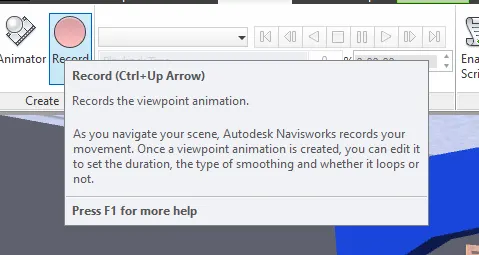

- Click the record option in the viewport
- Once the recording starts move your walk through
- Stop the recording and the saved files will automatically appears in selection tree
RESULT:
Thus the Walk through our model using navigation tool has been done successfully.
3) AIM: To creating the Realism feature to walk through the model using Navigation tool in Navisworks
PROCEDURE:
- Open a Naviswork and import a architectural file

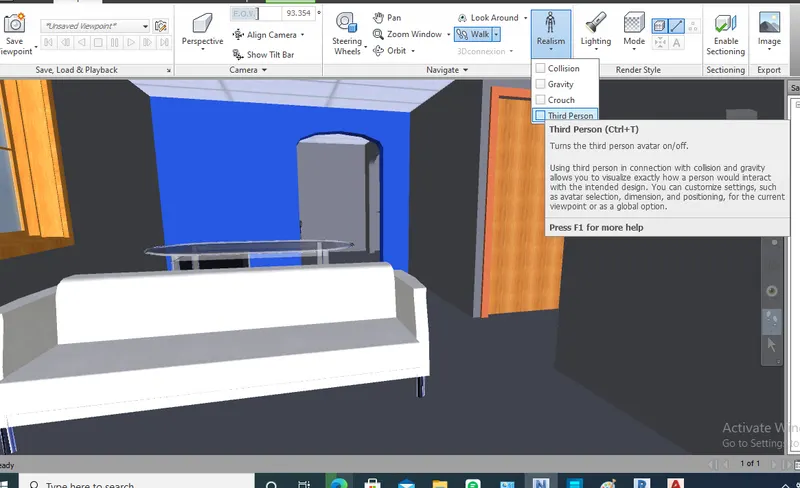

- Click Realism tool in Viewport tab
- Choose Third person option.
- After clicking the Realsim option

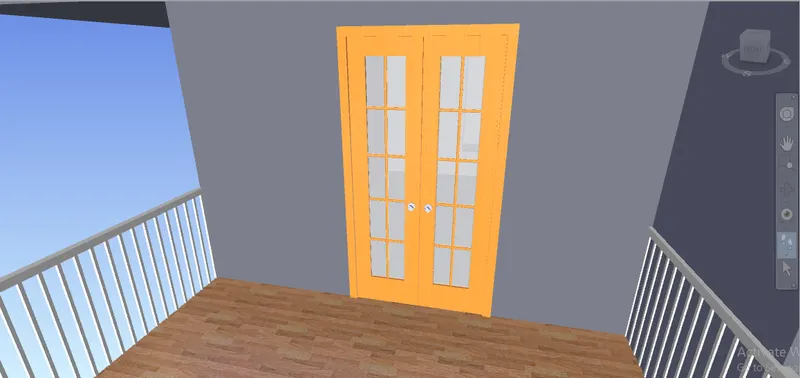

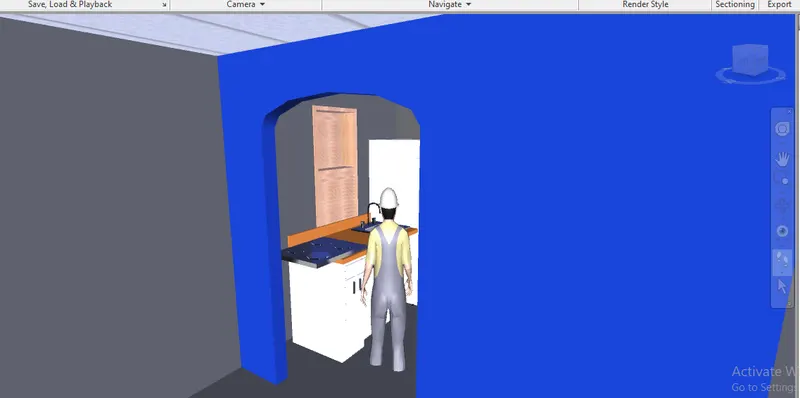

- A human model will appear in the screen
- From this human human model we can easily walk through and seeing the plan more realistically.
RESULT:
Similarly we can record this walk framings as we did in normal walk through tool
4) AIM: To run the clash detection test between two files and listing the clashes using Navisworks
PROCEDURE:
- Open a Architectural file
- Export it to the Naviswork

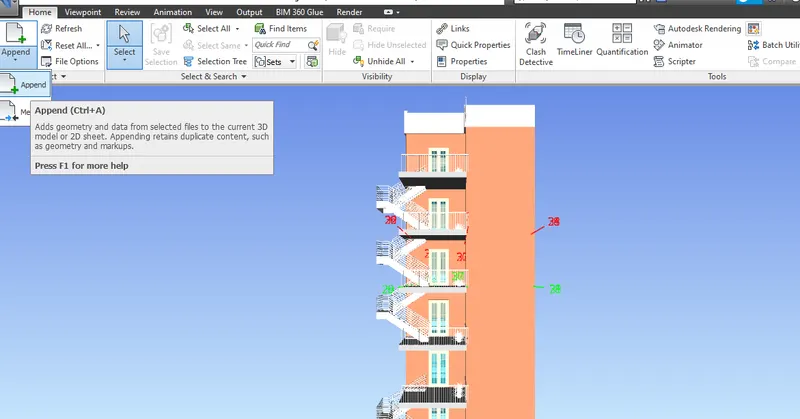

- After exporting the architectural file click Append
- Choose Append and import Structural file into this file

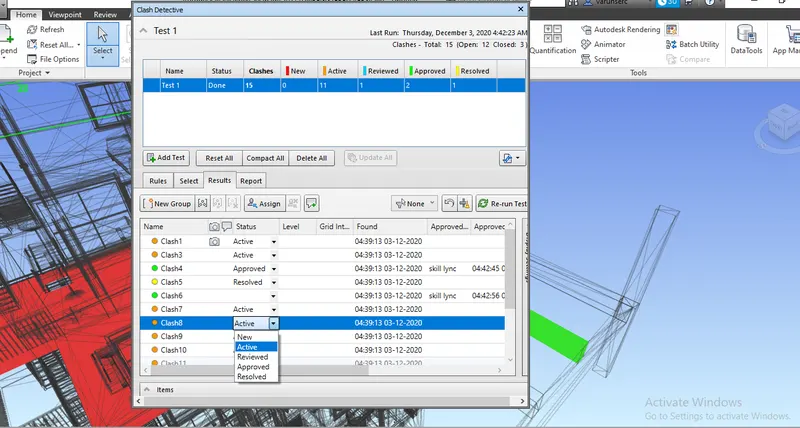

- Once the architectural and structural file has been merged click Clash detective tool in Viewport
- Click Start Test
- Choose Architectural vs Structural
- Click Run test

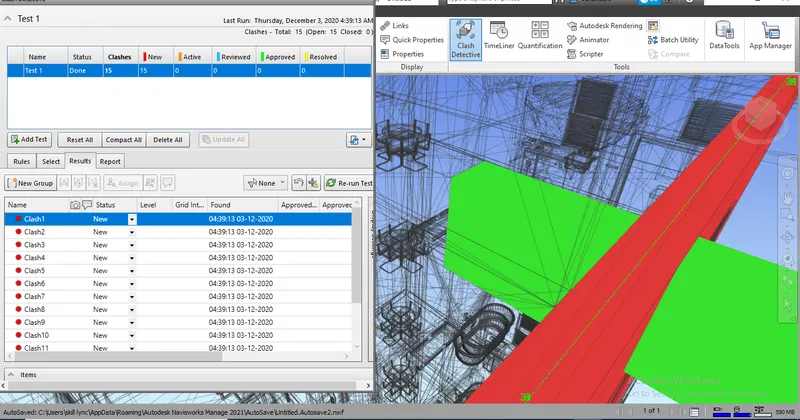

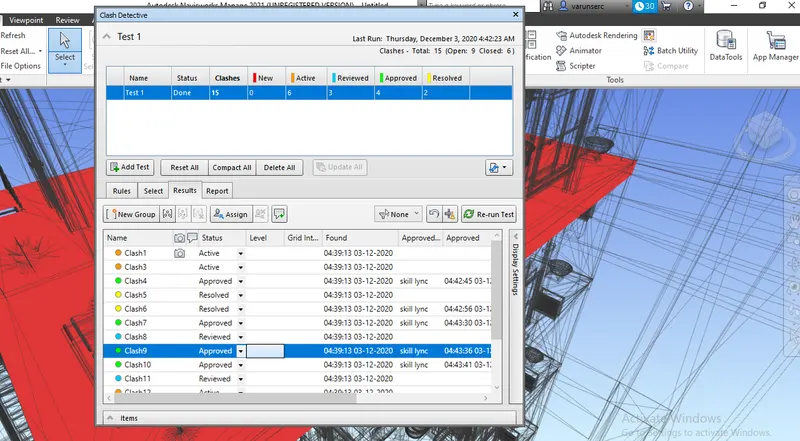

- After running the test the result screen will appears.
- In the result tab totally 15 clashes has been found
- Here i allocate the status as Approved, Reviewed, Active. Resolved based on the preference.
- When you click the clash and switch it into Approved it turns as Green round similarly Yellow for Reviewd, Orange for Active
RESULT:
Out of 15 clashes i assigned 5 clash as active, 4 clash as approved, 2 clash as resolved and 4 clashes as renewed. Thus the clash detective test has been done successfully.
5) AIM: To creating the schedule of the project using Navisworks.
PROCEDURE:
- Open Naviswork and import the file you want to schedule

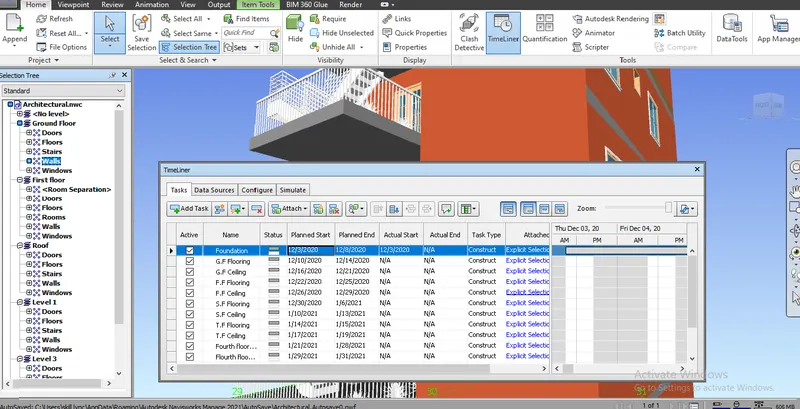

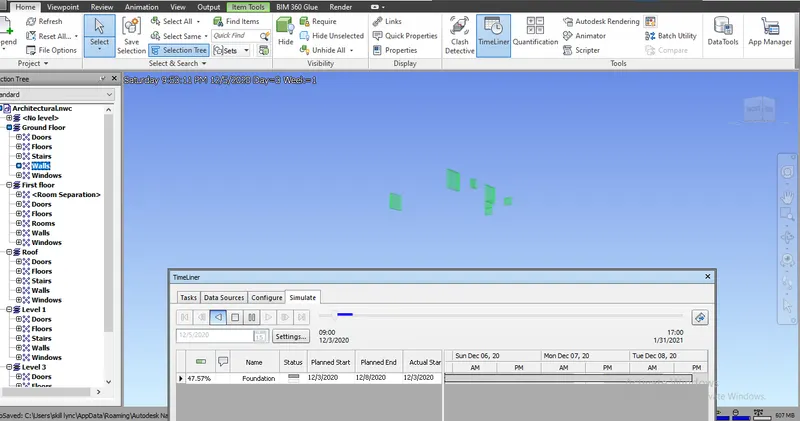

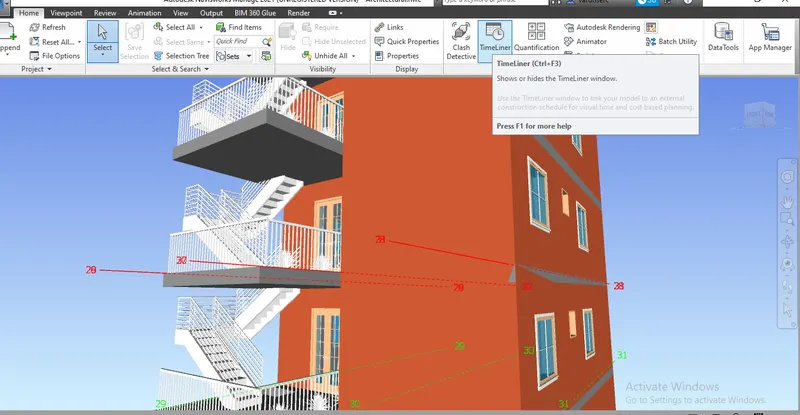

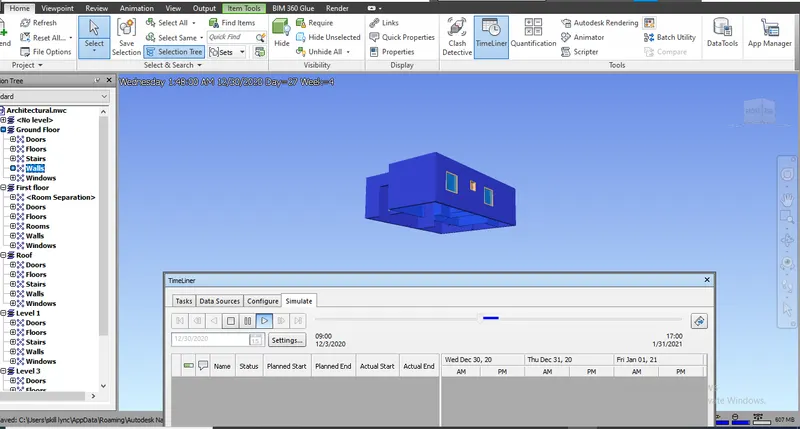

- Click Timeliner tool in home tab
- After clicking the timeliner tool enable the selection treen on the left side of the screen
- Click Add task option
- Name the task and assign the start date and end date of the activity
- Click Attach and choose current selection simultaneously.
- After entering all the necessary data in the field
- Click Simulate tool
- Click play option
- Now the schedule will play as per the selection and date
- Video will play from foundation to roof as per the date we scheduled
RESULT:
Thus the schedule has been done using timeline features in Navisworks successfully.
Note: Any of the results for above questions are not attached due to network reason.
