Challenge

Usage of Navigation tool , Timeliner and Clash Detection test using Naviswork

USAGE OF NAVIGATION TOOL, TIMELINE AND CLASH DETECTION TEST USING NAVISWORK :

QUESTION : 1

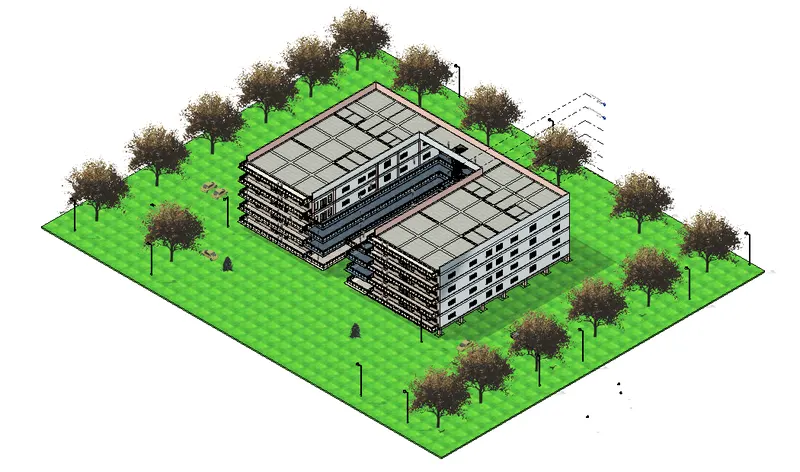

Use the Architecture/ Structure Project file developed by you in Week 6 to 8. Export the Revit architecture and structure model to Navisworks Cache file following the export settings discussed in class
ANSWER :
AIM :
EXPORT THE ARCHICTURAL/STRUCTURAL MODEL FILE TO NAVISWORK :
PROCEDURE :
STEP : 1
go to the google and type AUTODESK STUDENT
then go to the autodesk and login our student id
then go to the search section and type autodesk naviswork manage 2023

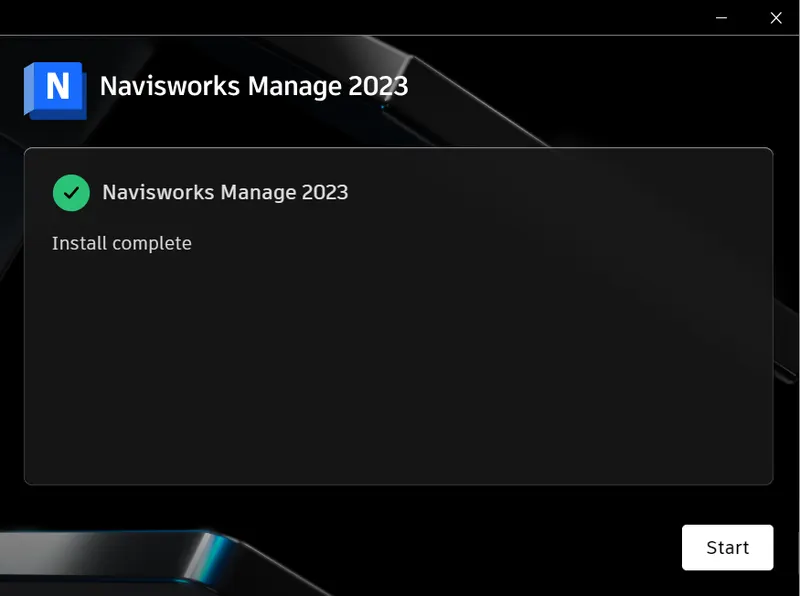

then download and install it .
STEP 2

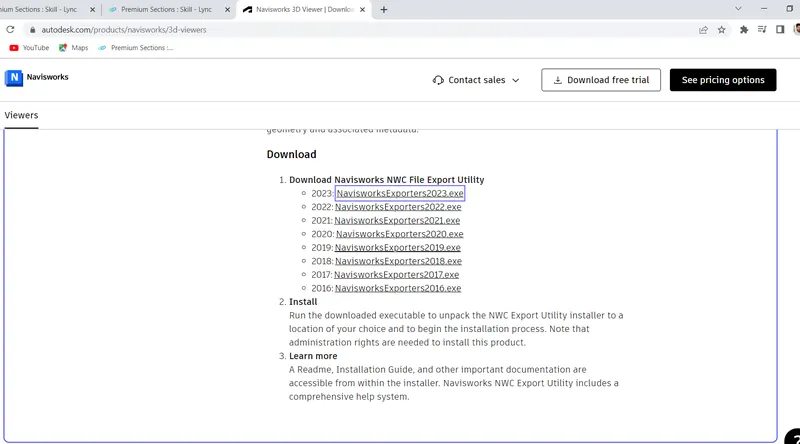

Again go to the google and type NAVISWORK 3D VIWER
and select the navisworks exportes 2023 file select it and install it
now our naviswork software is ready
STEP 3 :
Now go to the revit 2023 software

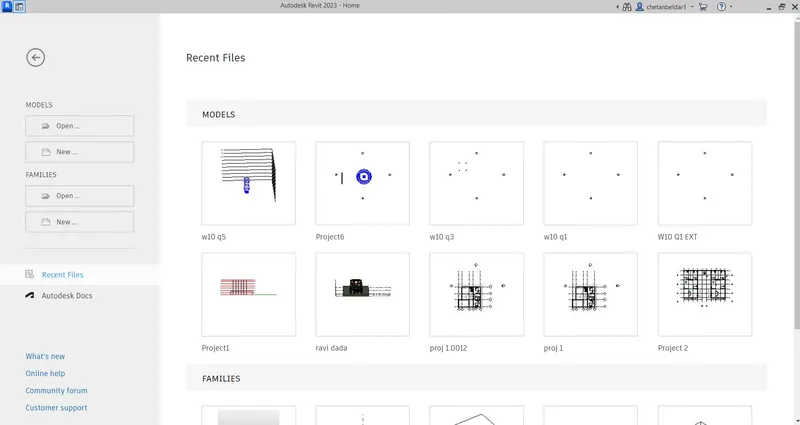

then homepage of revit is open as shown below
STEP 4
Click on open option from homepage
select the project file which is alrady created in challange no 7
select it and open it shown below
STEP 5
click on file
then click on export
click on NWC
create a new folder name as naviswork and save it
STEP 6
go to the naviswork manage 2023 software
click on file option

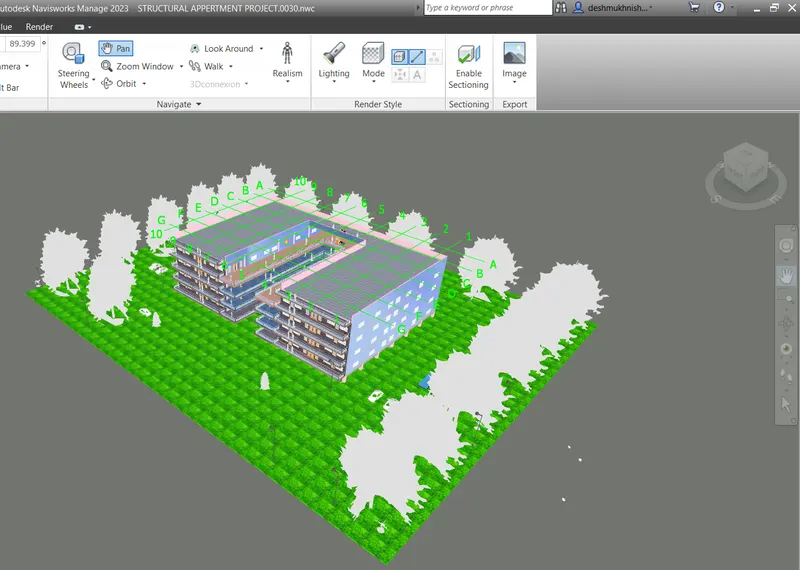

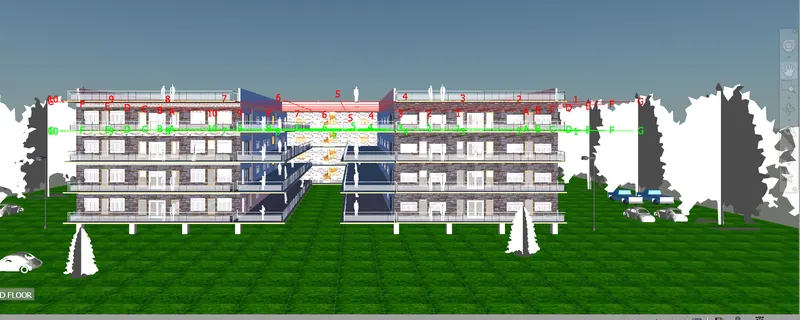

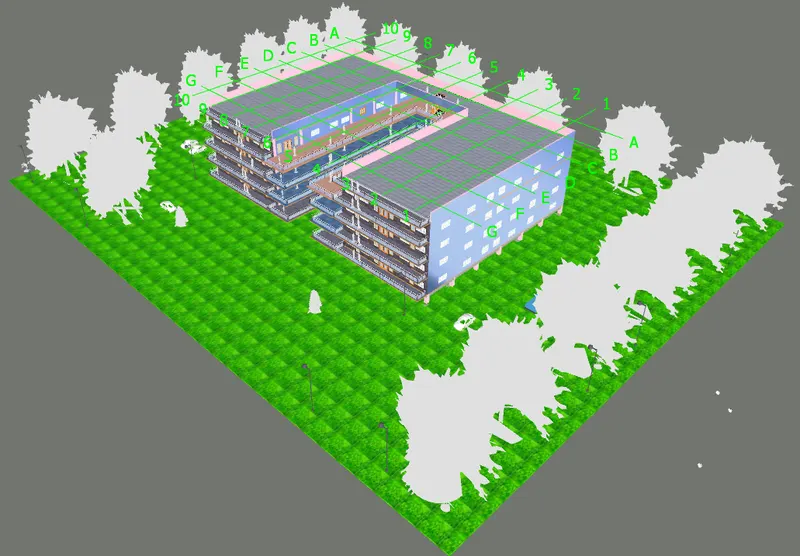

select the folder and open it shown below

QUESTION : 2
Use Navigate Tool to walk around the model and walk through the rooms created and record your moving as animation in your Navisworks file
ANSWER :
AIM :
BY USING NAVIGATION TOOL WALL AROUND THE MODEL BY USING WALK THROUGH THE ROOMS :
PROCEDURE
STEP 1
Start the naviswork manage 2023 software
then homepage of naviswork is open
click on file
then click on open

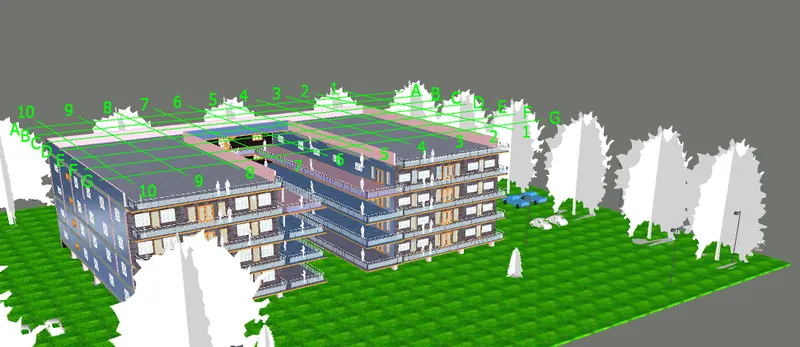

select the file anf open it as shown below
STEP 2
go to tha view point
click on save view point
then enter in to the room through door by using zooming

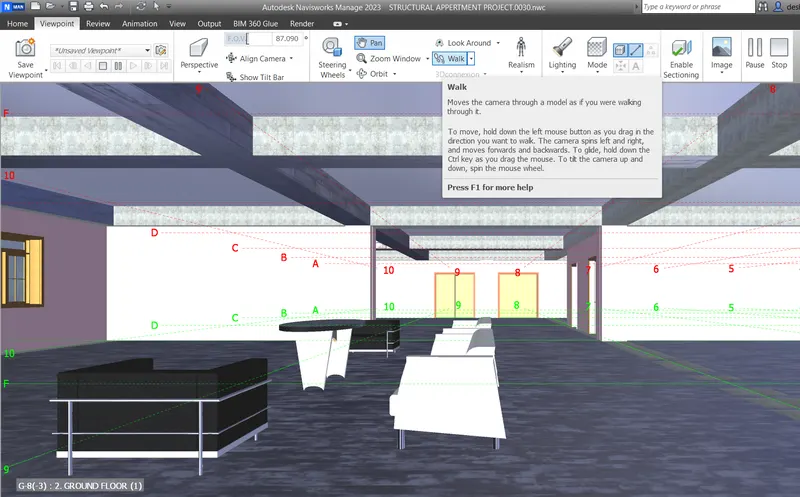

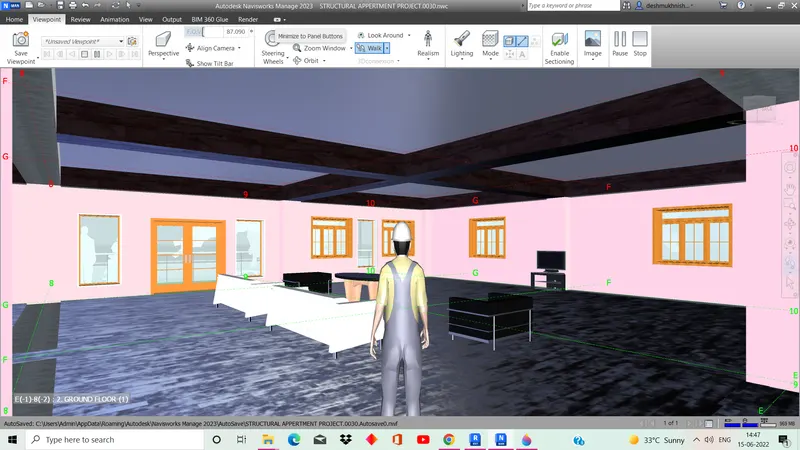

then click on walk option and wall into the all rooms as shown below
STEP 3
after recording the walking then click on stop recording .
RESULTS :

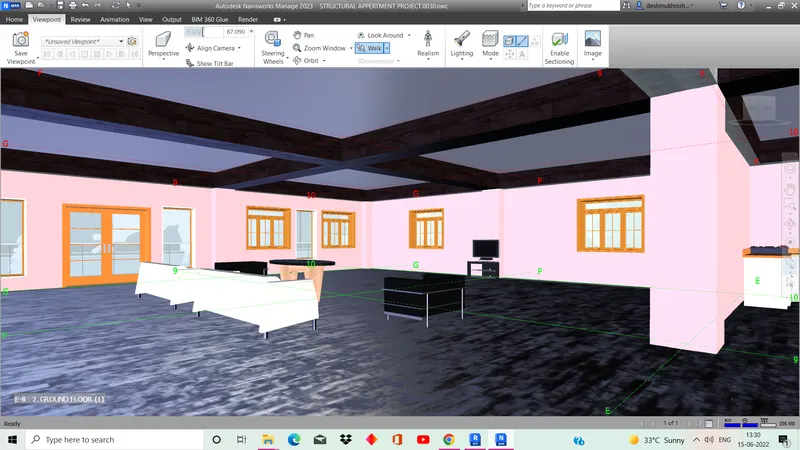

LIVING ROOM

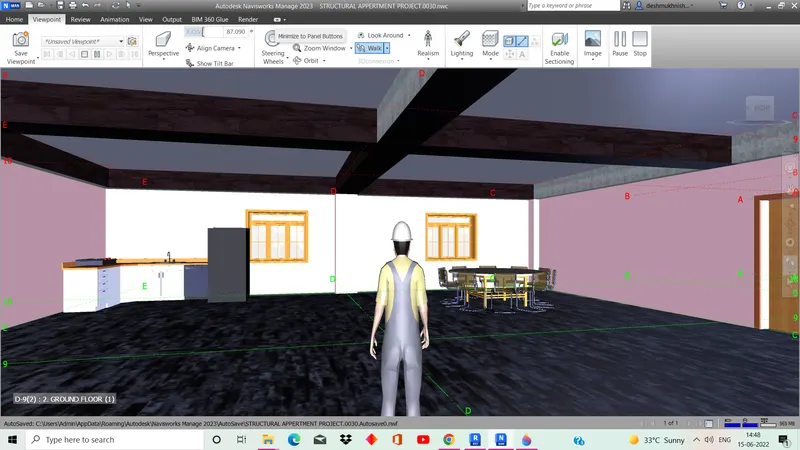

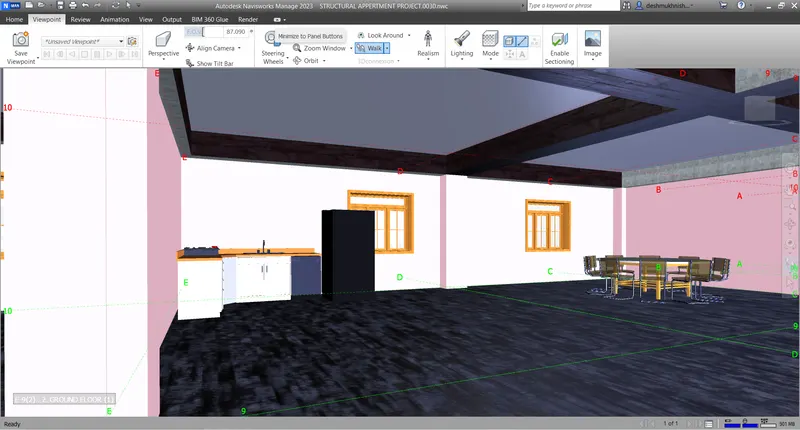

KITCHEN

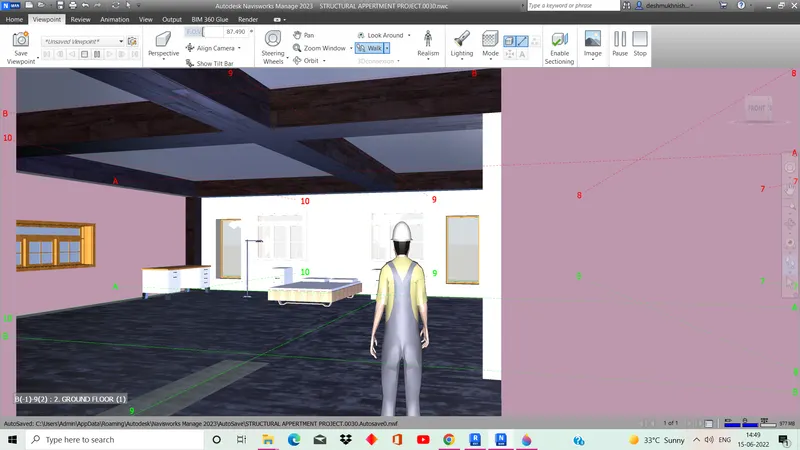

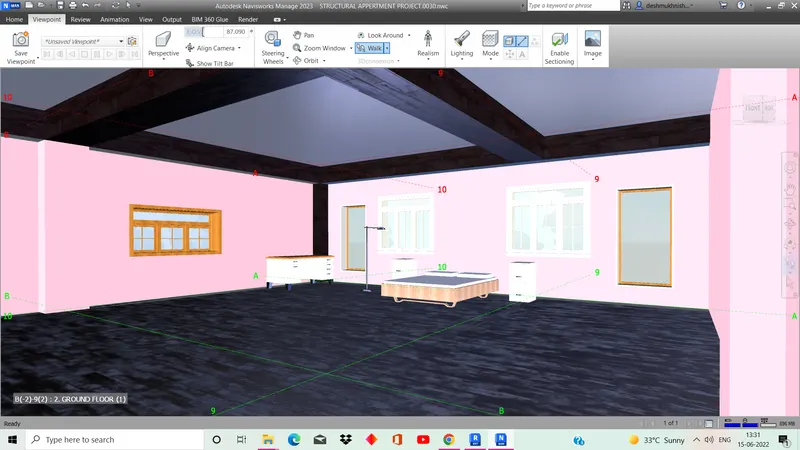

BED ROOM :
TOILET

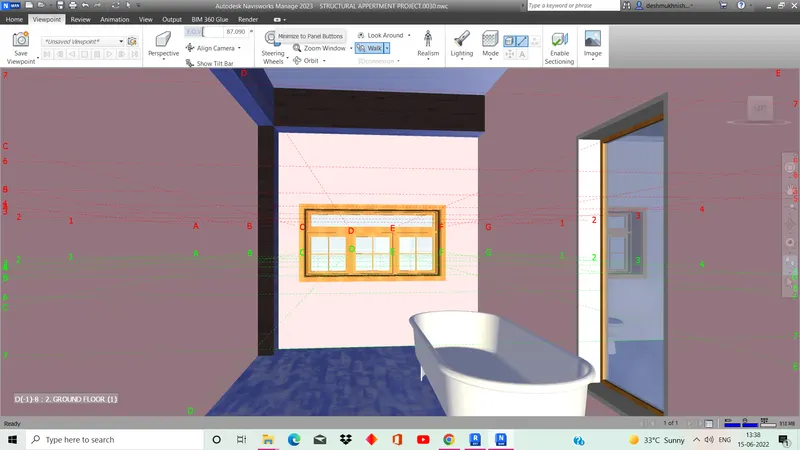

BATH

QUESTION : 3
Use Navigate tool to use Realism feature to walk through the model and record your moving as animation in Navisworks file
ANSWER :
AIM :
USING NAVIGATE TOOL USE THE REALISM FEATURE AND WALK THROUGH MODEL AND RECORD IT :
PROCEDURE :
STEP 1
Start the navieswork manage 2023 software
and then window of naviswork is open
then click on file option
click on open option
select the file and open it as shown below
STEP 2
Go to the animation tab
click on record option
and start the recording

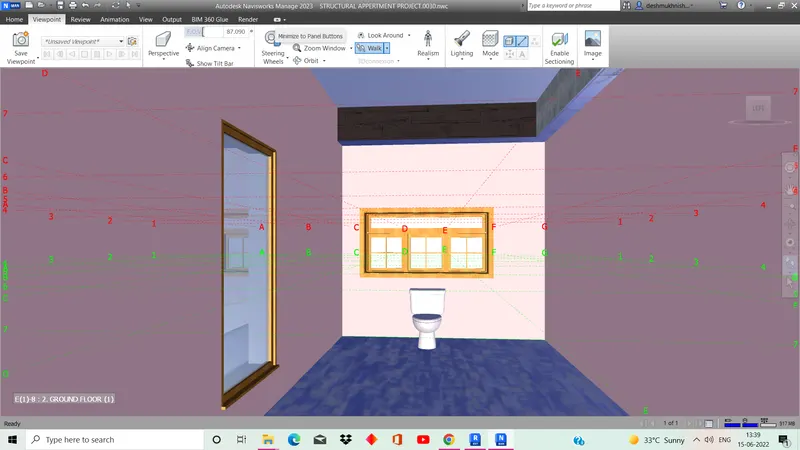

STEP 3
Click on view point

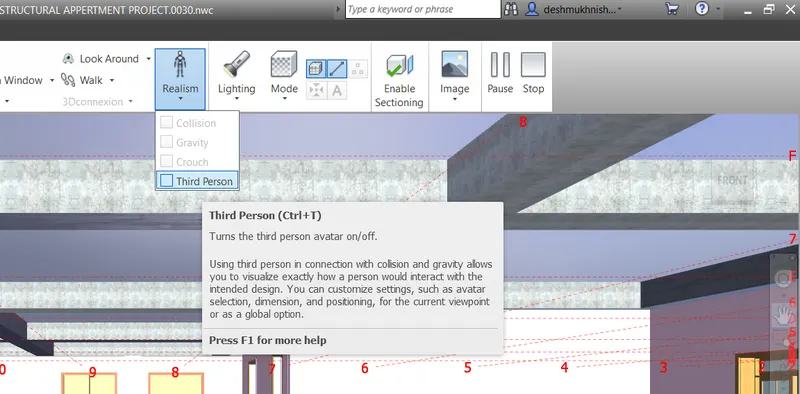

then click on realism option

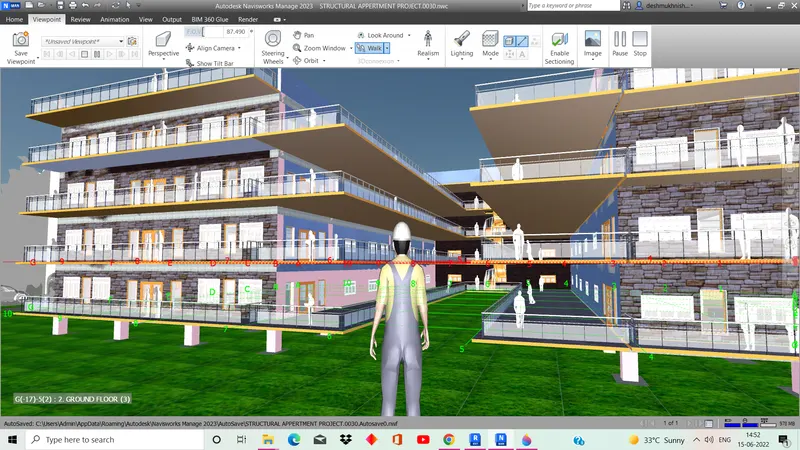

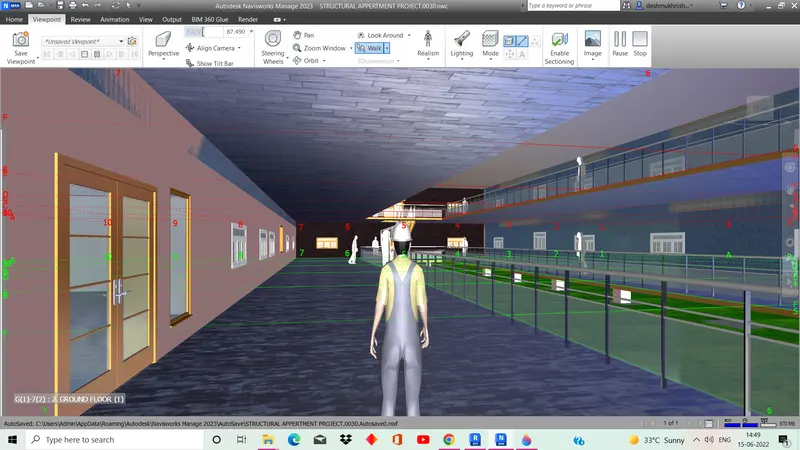

select the third person option
then click on walk
and walk into the all rooms
as shown in results
then stop recording after moving the all rooms
RESULTS :

QUESTION : 4
Embed both architecture and structure *.nwc file to your Navisworks file. Create a clash detection test between the two models
a. Run the Clash Detection Test
b. Study the clashes between the two models
c. List which of the clashes could be approved
d. List which of the clashes could be neglected ( will be taken care later)
e. List which of the clashes can be resolved
f. Save the results after color coding the clashes to the Navisworks file
g. In case of resolution annotate the clash and save the view to defined views in Navisworks
ANSWER :
AIM :
CREATE A CLASH DETECTION TEST BETWEEN TWO MODELS :
PROCEDURE :
STEP 1
Start the naviswork manage 2023 software
then click open option
select the file and open it as shown below
STEP 2
go to the home tab

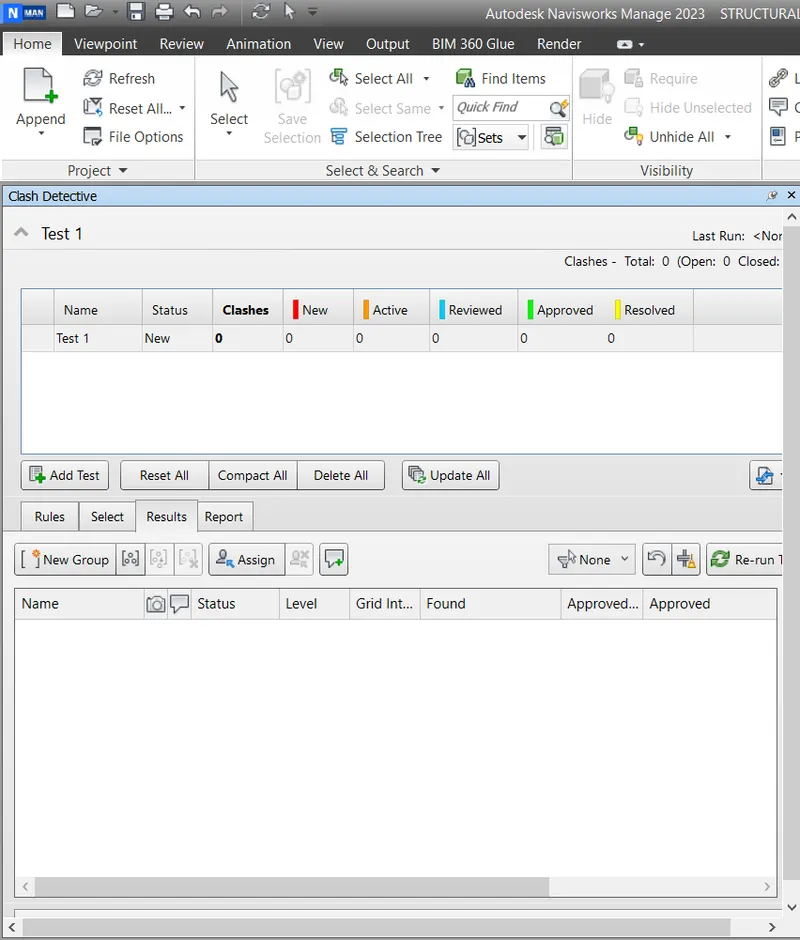

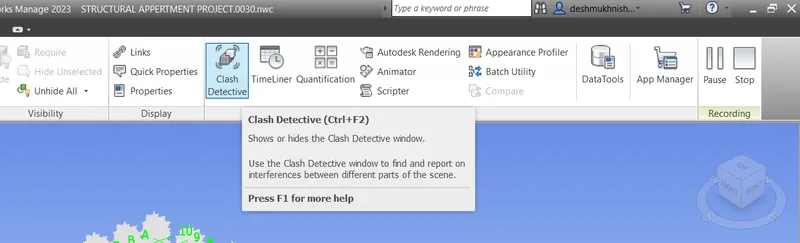

click on clash detection test shown below

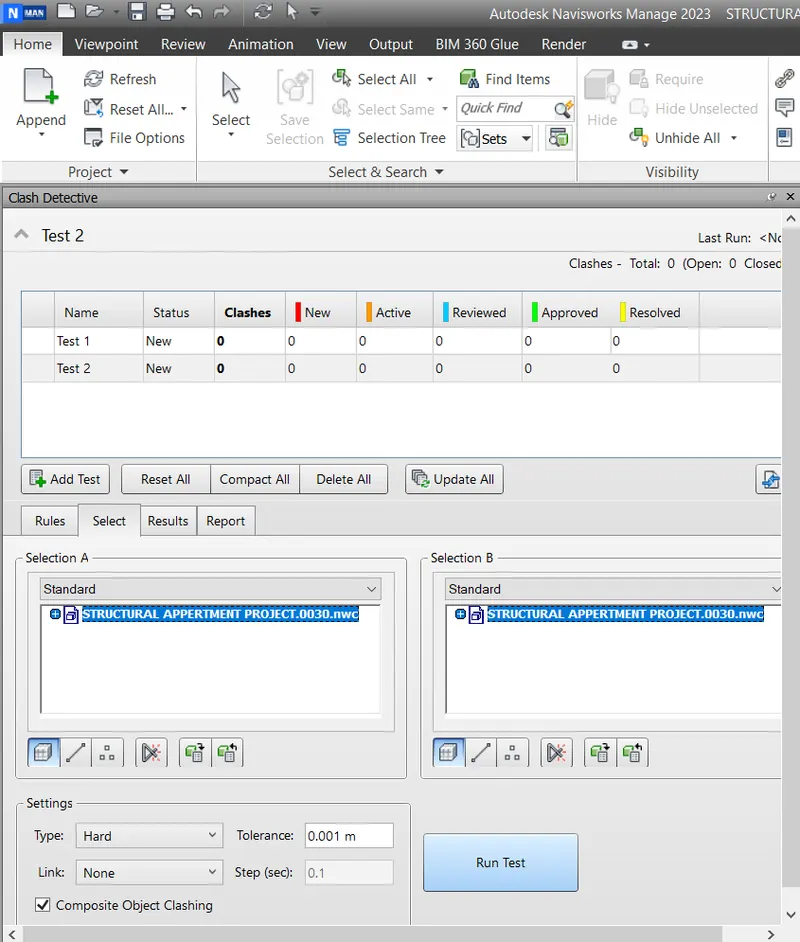

then click one windown is open as shown below
then click on add test
then run the test
STEP 3
Then resolve the clashes , approved some , review some etc shown in results .
RESULTS :

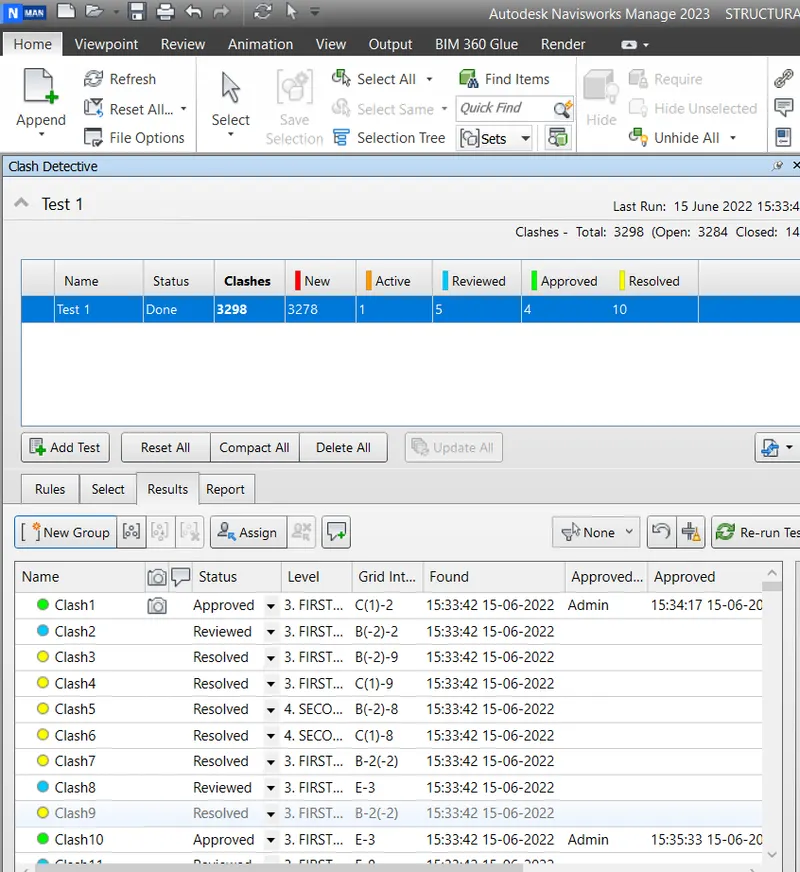

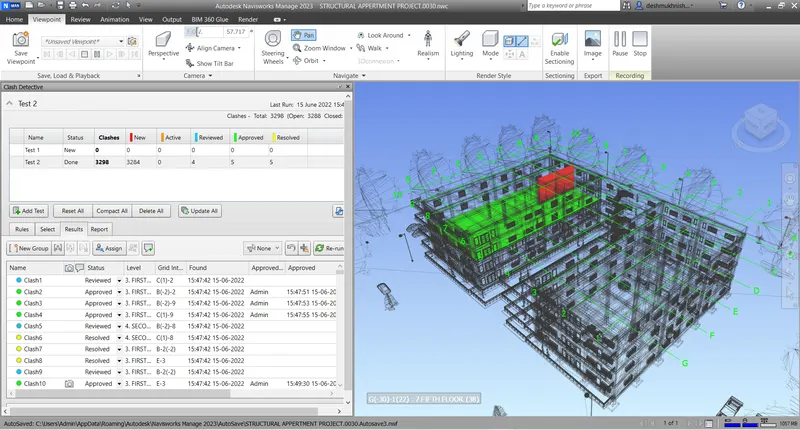

CLASH DETECTION TEST :

QUESTION : 5
Using the Timeliner feature in Navisworks prepare a schedule for the project developed in week 6 to 8 by adding reasonable assumptions for task start date and end date and simulate the task completion as a visual simulation. Record it and save the timeline simulation to Navisworks file
ANSWER :
AIM :
USE TIMELINER FEACTURE IN NAVISWORK AND PREPARE A SCHEDULE FOR THE PROJECT :
PROCEDURE :
STEP 1
Start the naviswork manage 2023 software
then one window is open
then click on OPEN option
then select the file and open the project model shown below
STEP 2
then go to the home tab

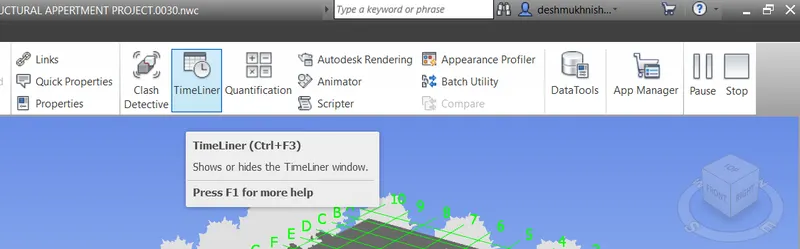

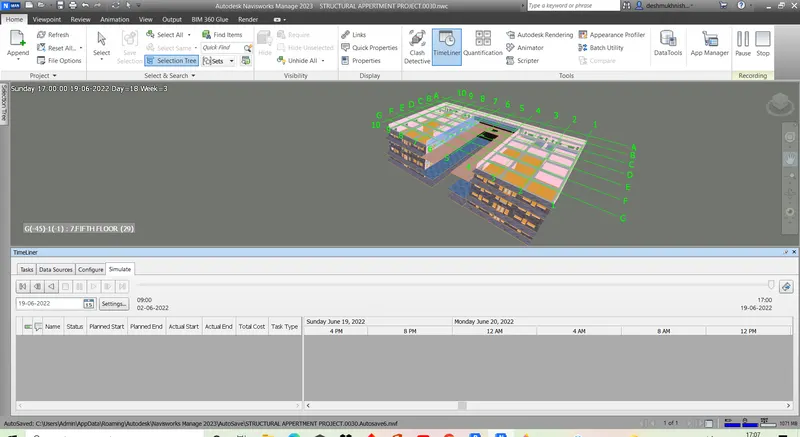

click on timeline option shown below

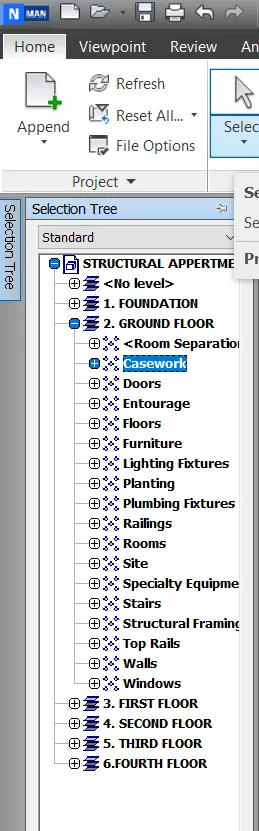

then click on selection tree then one window is open as shown below

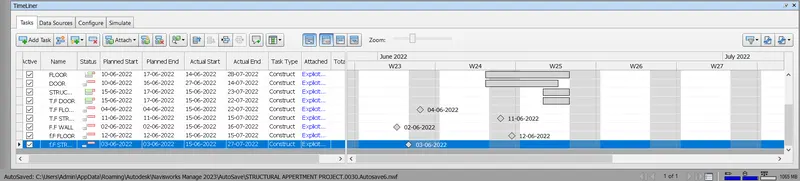

STEP 3
Click on add task
then give the name and attached the element as shown below
STEP 4

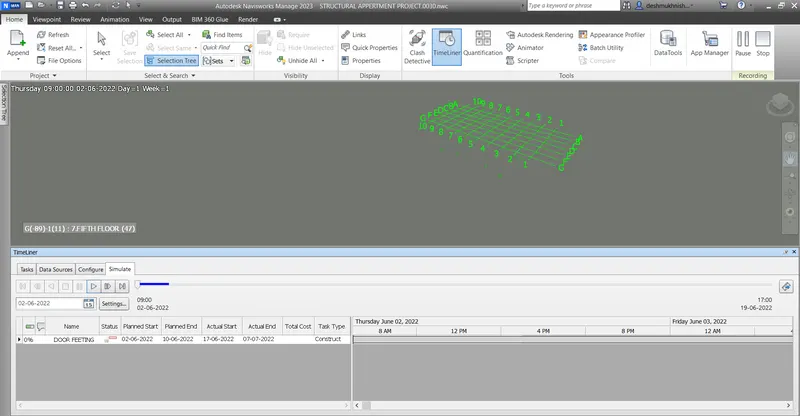

Click on simulate option
one windown is open as shown below
then click on play
we see the our design model through video
RESULTS :
