Usage of Collaborate tool in REVIT

Ans.1

AIM-: Seeting up the project base point and project cordinates using manage tab.

Procedure-:

• First open REVIT with Architectural Template

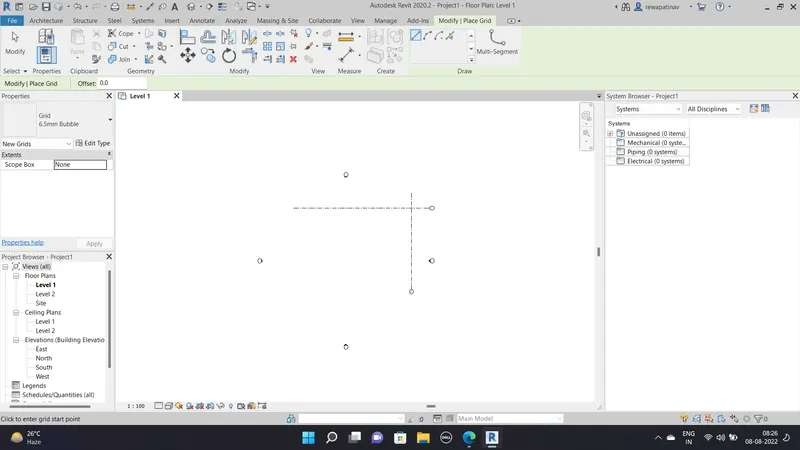

• Create grids one vertical and one horizontal

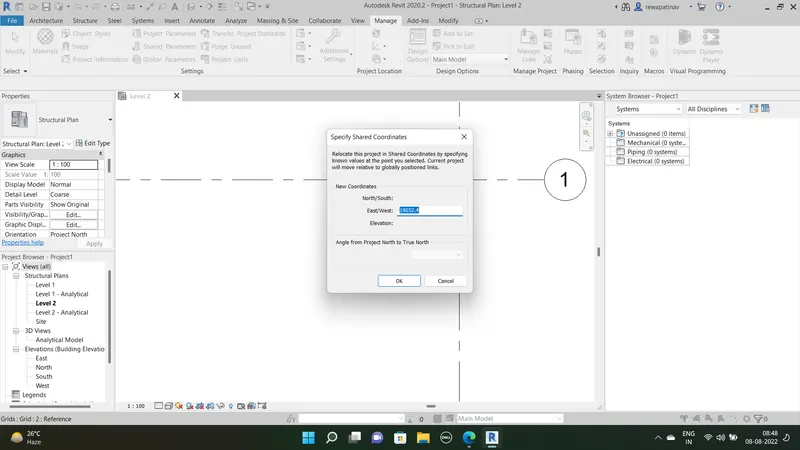

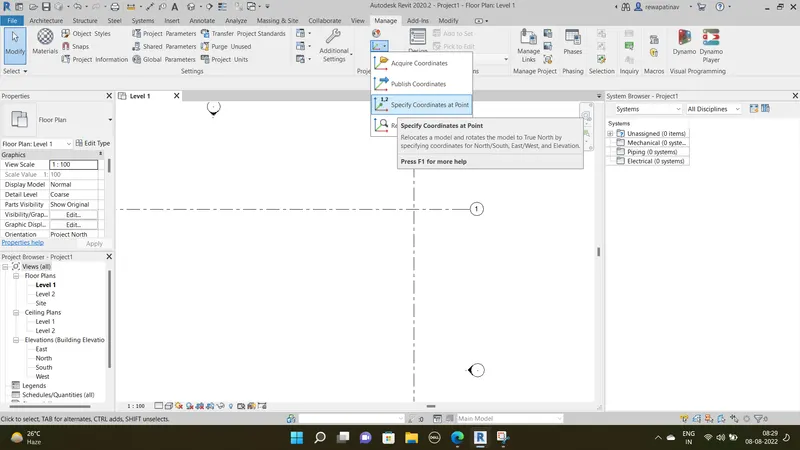

• Now go to manage tab and choose option as specify cordinate at pioints
• Than point selected the crossing of the grid using the mouse cursor and Given the value East/west as 0

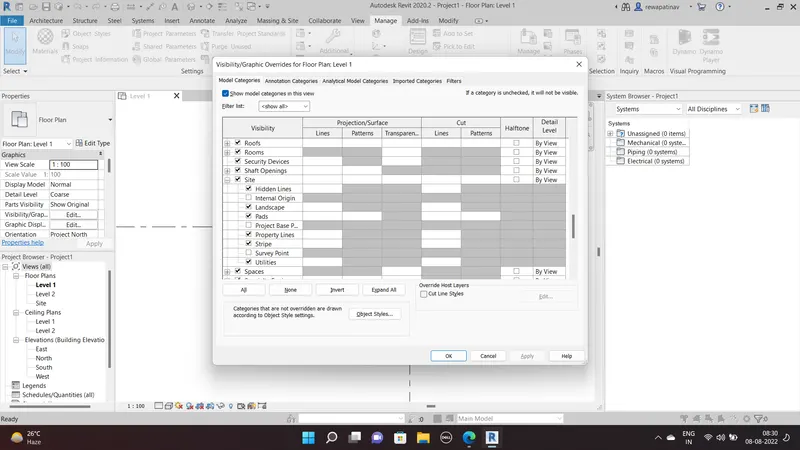

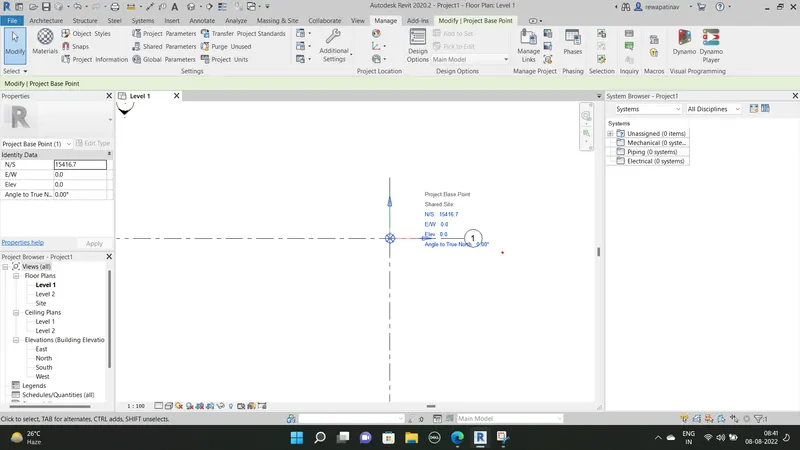

• Than go to the VG Visibility graphics dialouge box open > Site> Project Base Point Checkmark >apply ok

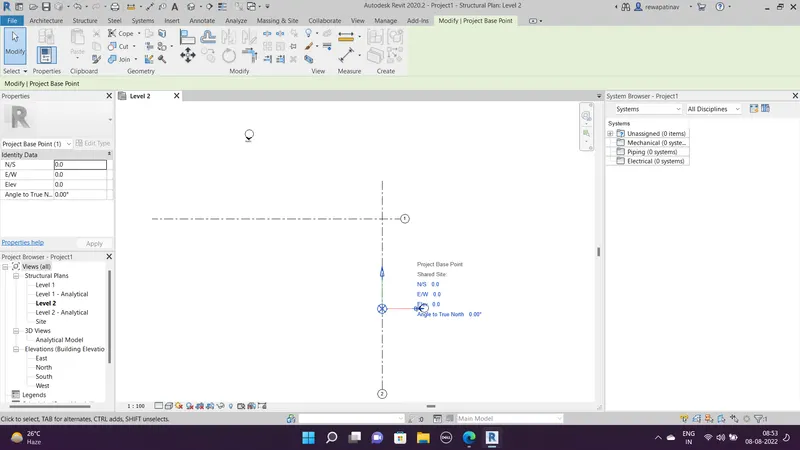

• than project base point appears on the screen

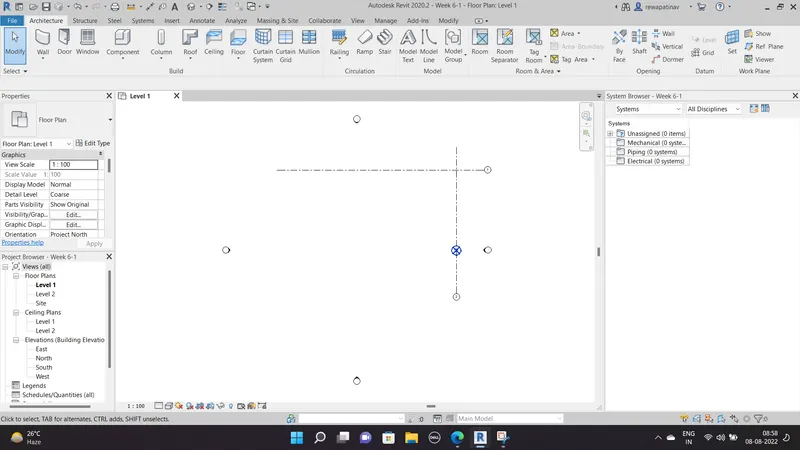

Drag the Project base point at the grid crossing

Ans.2

AIM-By using the structural templete defining the project parameters and bse point as done in the architectural templete.

Procedure -:

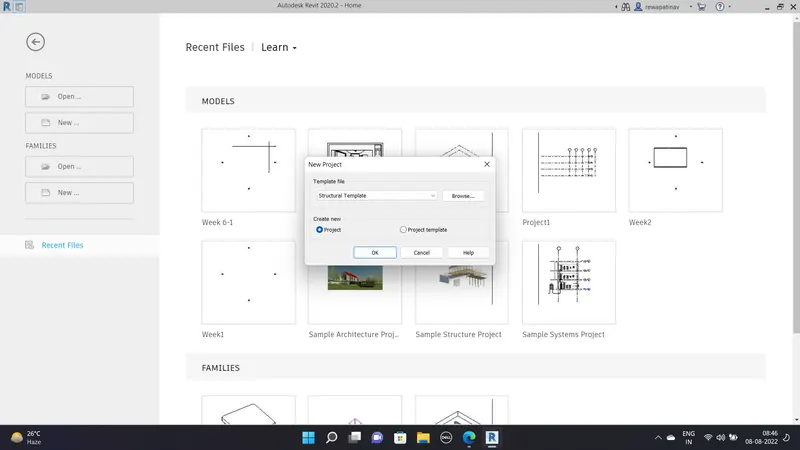

• open the Revit with Structural templete
• Created hozontal and vertical grids
• than goto manage tab select option specify cordinates
• than selected cross piont of grids and than enter the value 0

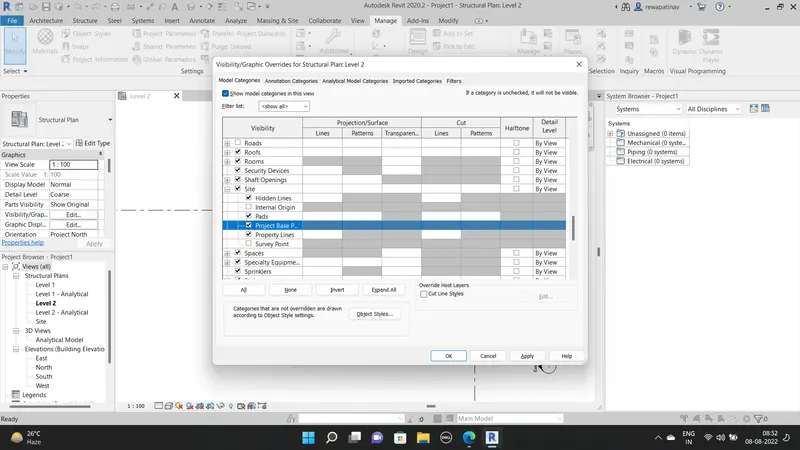

Than Type VG Visibility graphics

Got to SITE >Chech mark> peoject base point >check mark >apply >ok

Than all point as Zero

Ans.3

AIM- Reopen architectural model and make the file as central Model using collaborate tab.

procedure-: open the architectural File

Than Goto Collaborate tab

Seelect option collaborate

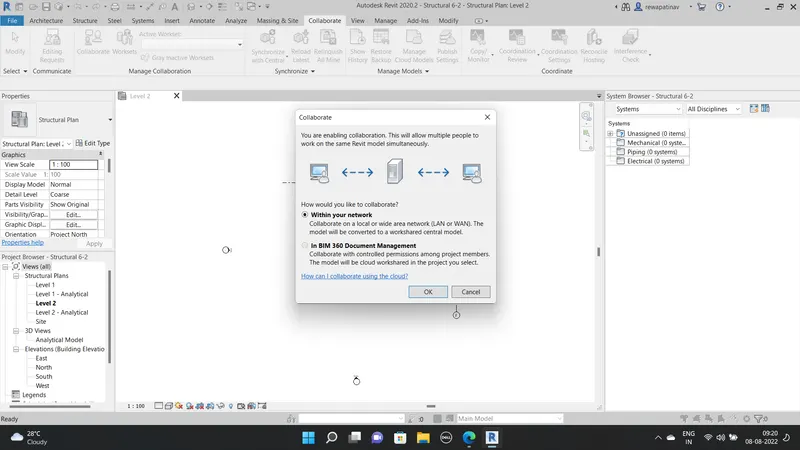

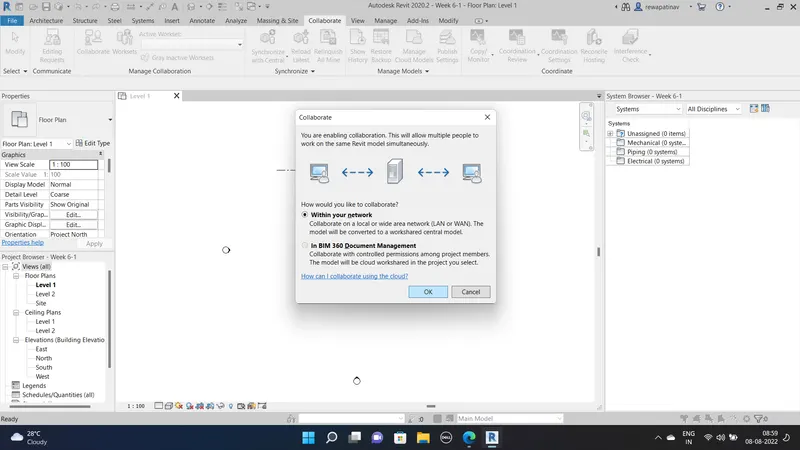

Than a dialouige bix as option Within your Network opttion Select than >OK

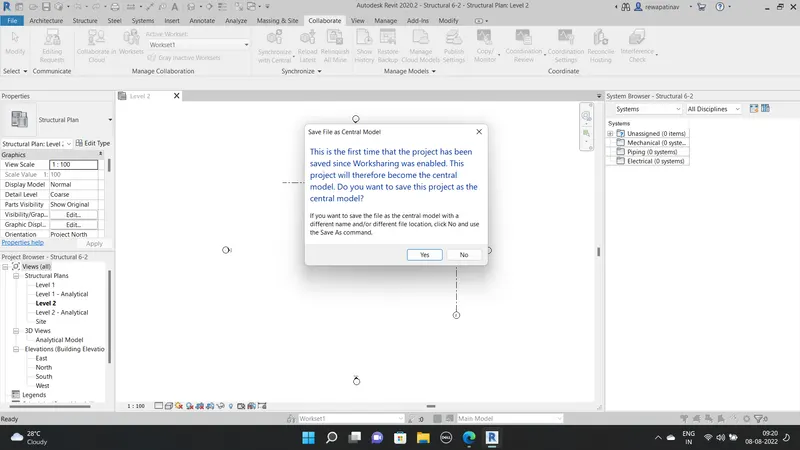

• Than go to save Botton and than Yes to make Central model File

Ans.4

AIM-Create the Grids in longitudinal and trasverse directions

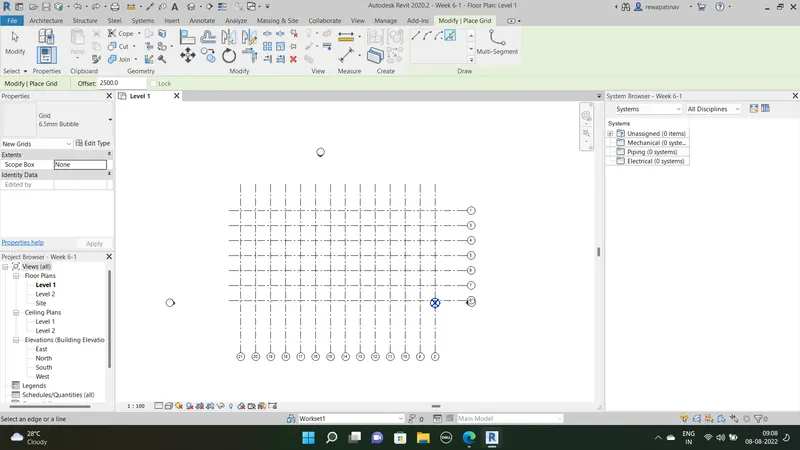

procedure - open architectuiral file than grids option >pick line > offset 2500

than multiple grids are created

Ans.5

AIM-Synchronise the changes from local copy to central model File

Procedure -:

• open architectural file
• Fo to the Collaborate tab

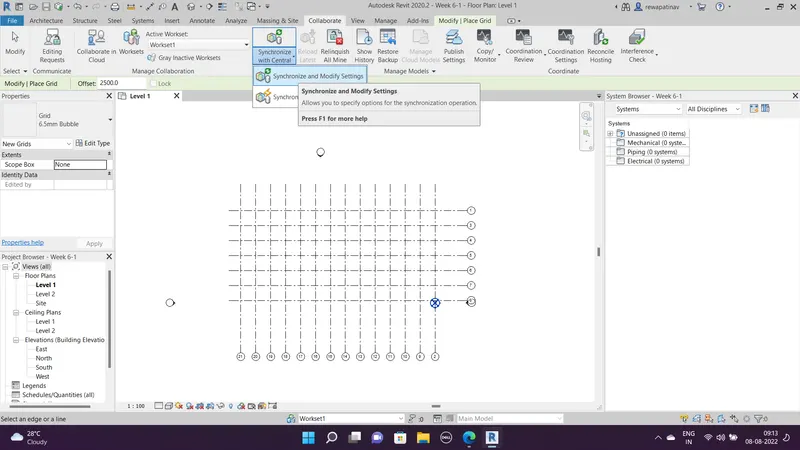

• Tham options sselected as Synchronise with central
• > synchronise and modify the setting option

Ana.6

AIM-: open structural File and use collaborate tab to make it cenratl model

Procedure -:

open Strutcural File

Go to collaborate tab and than select collaborate

than witin my network >yes >

Than Go to SAVE > Yes

Ans.7

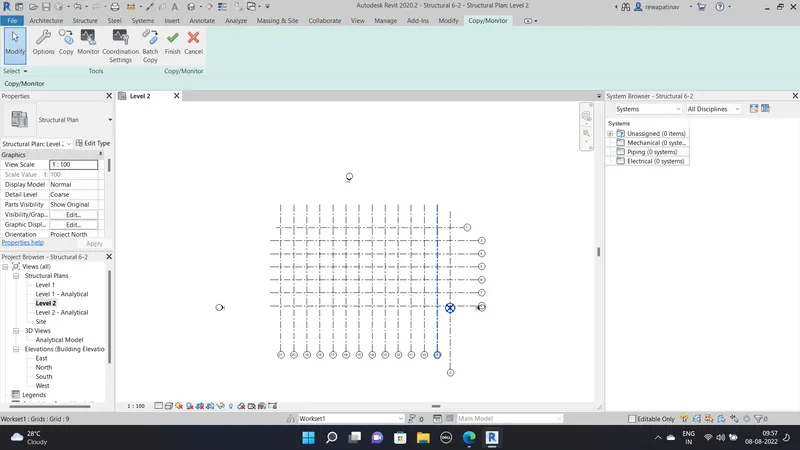

AIM -:under the Collaborate tab, select the grids and levels from the architectural model, and using Copy Monitor copy the grids to the structural model

Procedure-:

• Open structural File
• Go to the insert tab Link the revit File Select architectural File
• Than Go to the Collaborate Tab

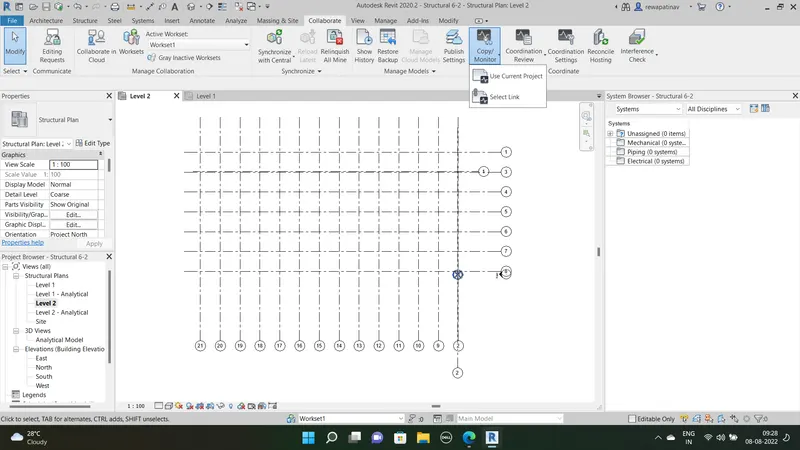

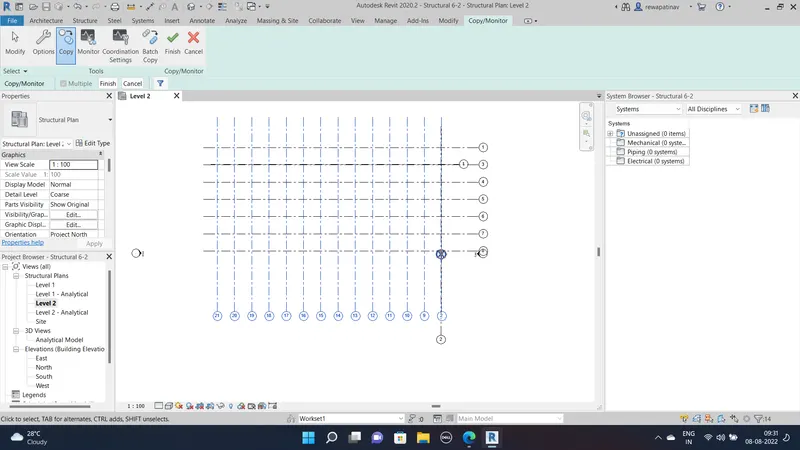

• Copy /monitor than
• Select Link Than Copy> Multiple> select grids of architecture >Finish>
• Than Finish Green Check mark

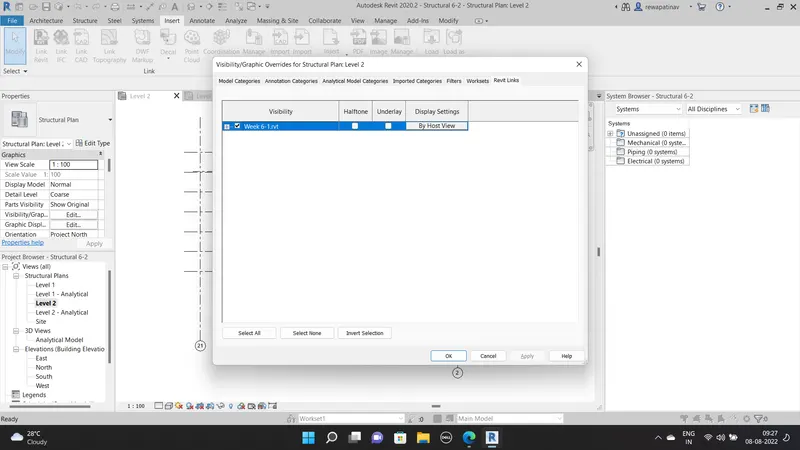

• Now to VG and uncheck the revit link
• To check the grids copied or not

Ans.8

AIM-: Create another new file and combined it with the both architectural and structural File under the manage tab Link Both

Procedure -

• open revit with construction Templete
• Go to Collaborate Tab to made the file as central model file
• than Selected within my network
• YThan save as File name costruction

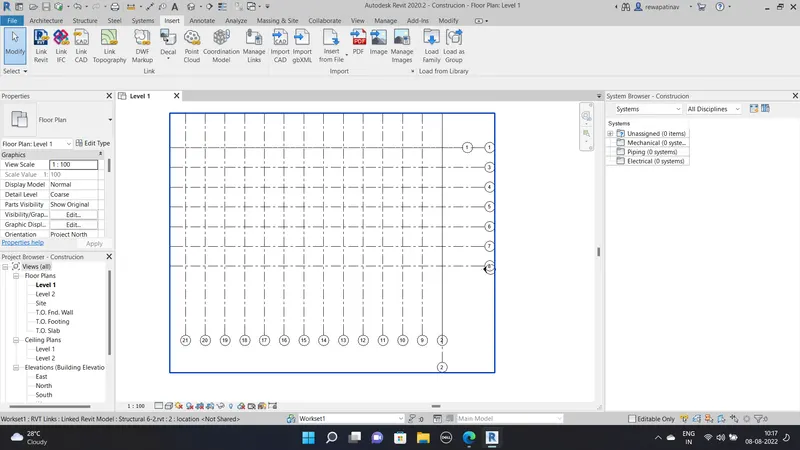

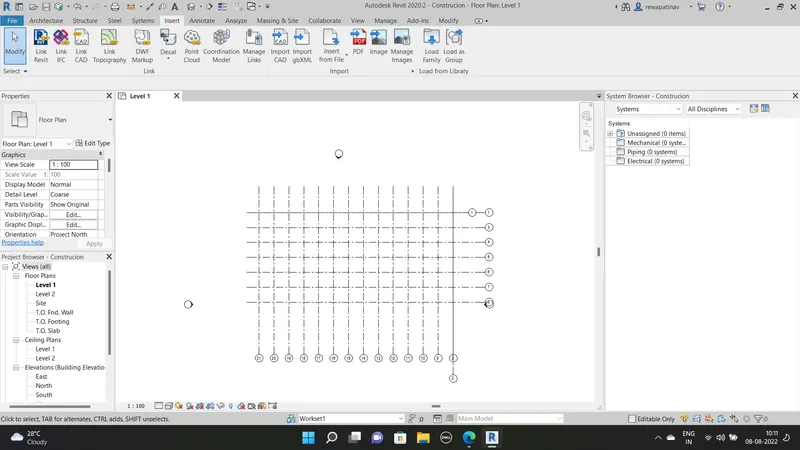

• Now go to INSERT tab and Revit Link option
• Sect teh architectural File and open
• Than again revit link with structural File and open

Ans.9

AIM-check the combined File

Simply check the grids in the constrution file if the grids are collide with each other than its done

in my File its collide with eachother than its ok

Ans.10

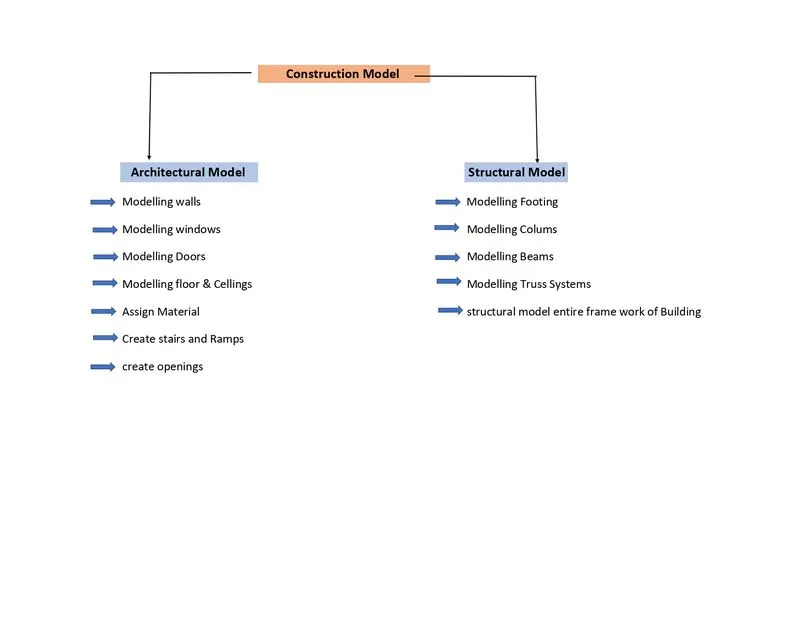

AIM-:Flow chart prepared

Many of the people can work in a project simultaneously
