Usage of Collaborate tool in REVIT
1.]
Ans.
AIM - To set project base point and project shared coordinates for the project using manage tab in the architectural template.
INTRODUCTION -

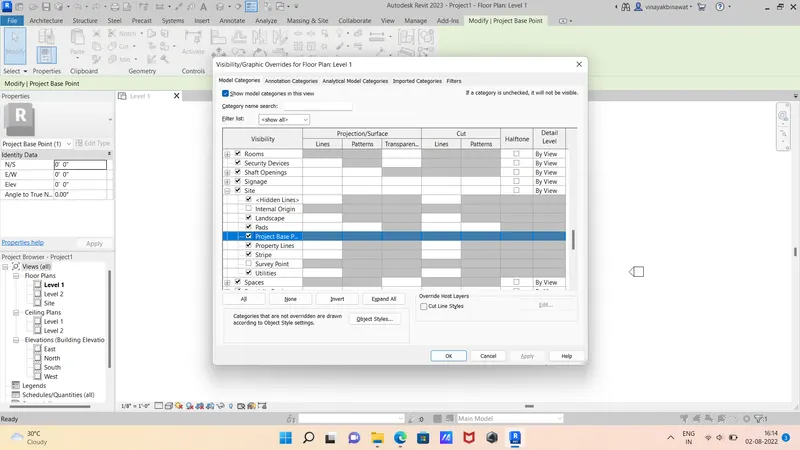

- The project base point can be used to establish a reference for measuring distances and positioning objects in relation to the model.
- Initially,In stock templates,it identifies the origin (0,0,0) of the project coordinate system. Use the project base point as a reference point for measurements across the site.
- When you combine multiple models and files in a single project,use shared coordinates to establish the positions of the files in relation to each other.
- A Revit project has internal coordinates for all the elements that compose the model in a project. Those coordinates are known to this project only.
- This is sufficient if you have a standalone model whose position is not relevant to other models or to a site.
- However, if you want the position of the model to be known to other linked models,you need to share coordinates.
- Use the Shared Coordinate tools to establish the relative positions of the different files and ensure that those relationships are maintained.
- To establish a common coordinate position and then share that position between files,use the Acquire Coordinates tool or the Publish Coordinates tool.
PROCEDURE -
Step 1 :
- First we have to open the revit.
- Next create a project using the architectural template.

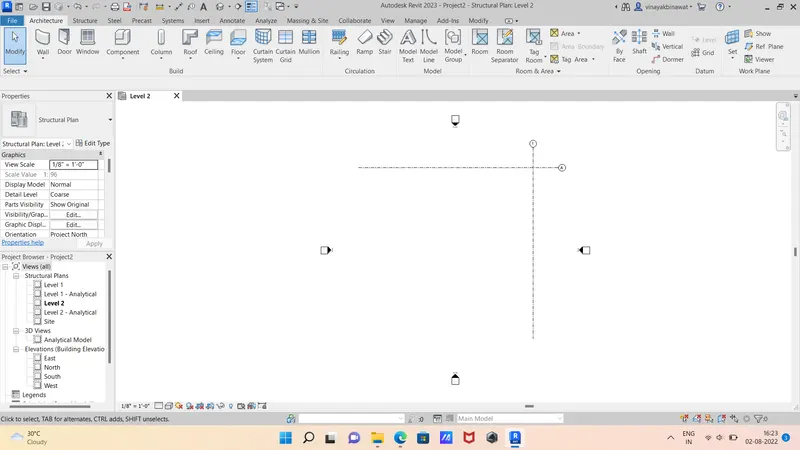

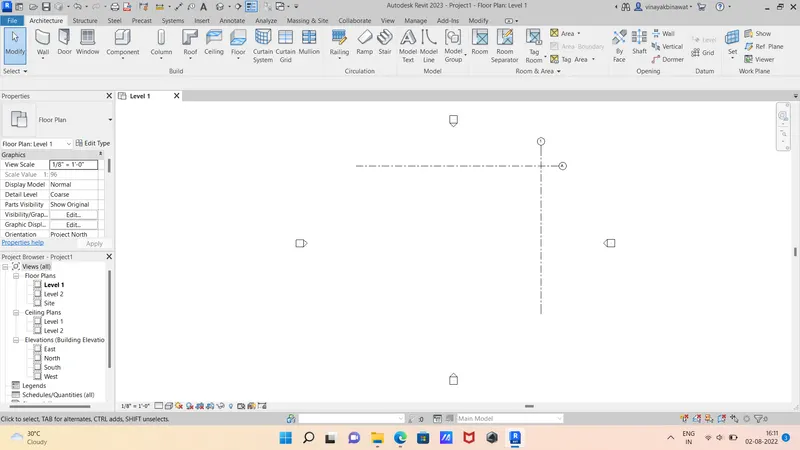

- Next draw the horizontal and vertical grid,intersecting each other.
- And give name for horizontal grid as A.
- Next give the name for vertical grid as 1.
Step 2 :

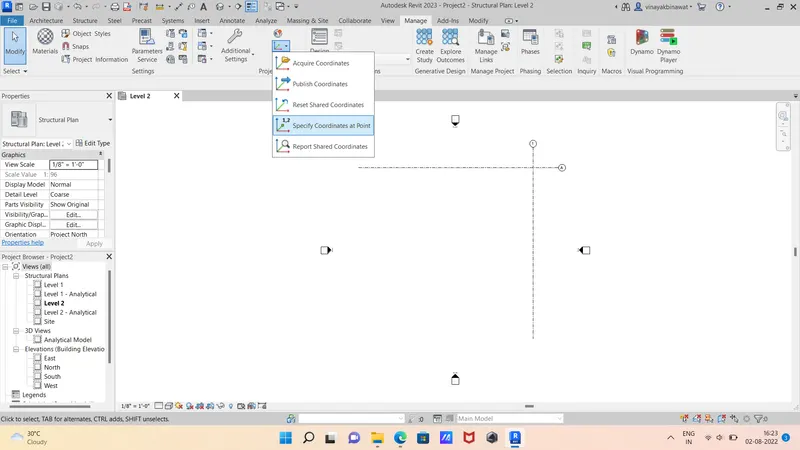

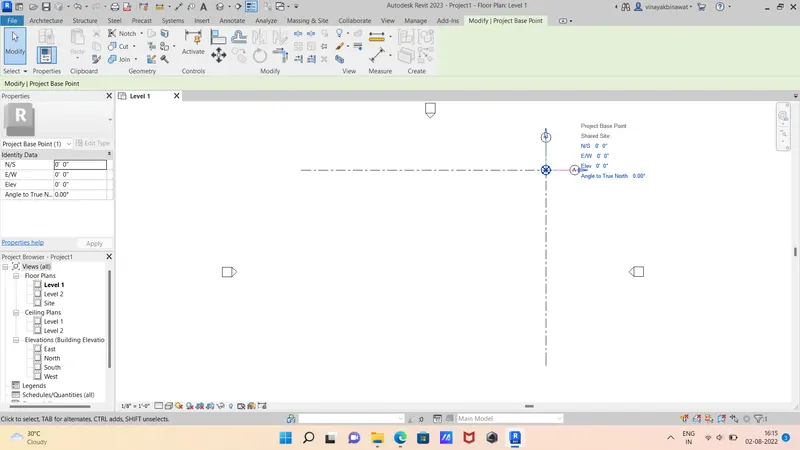

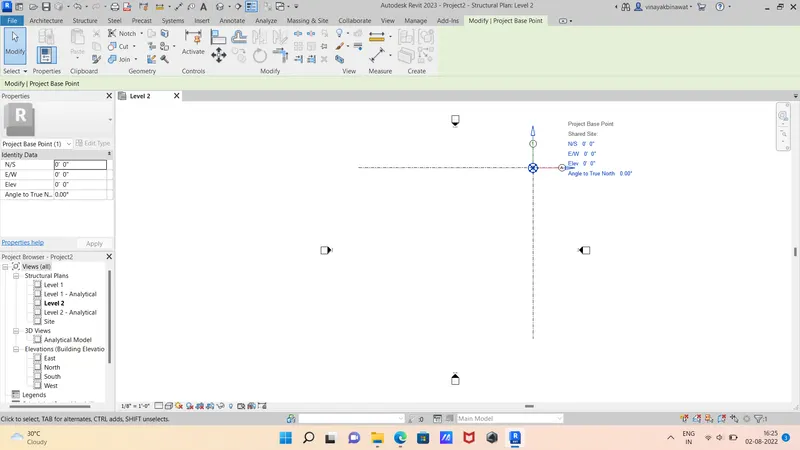

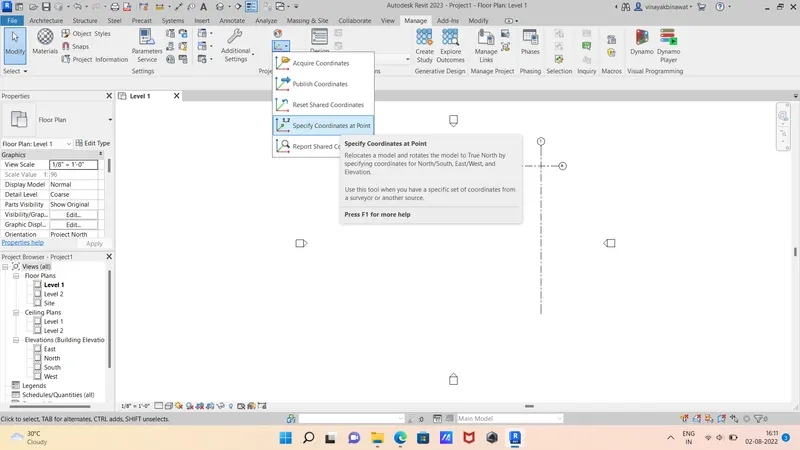

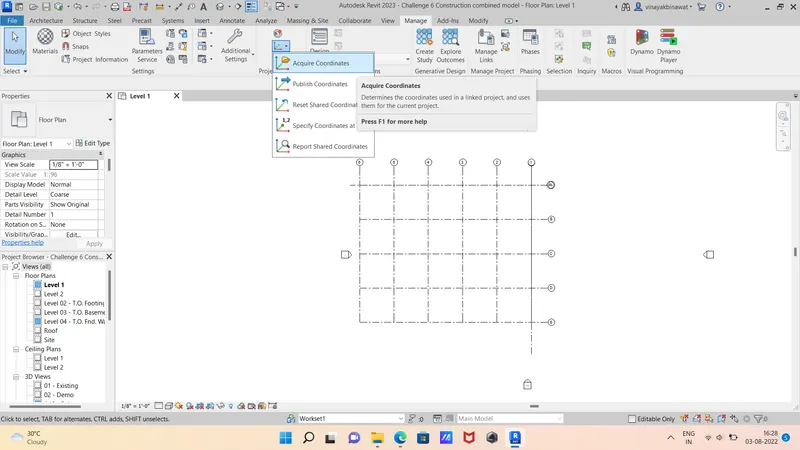

- Next we use coordinates option in the manage tab, and select the specify coordinates at point option and click on the horizontal grid.

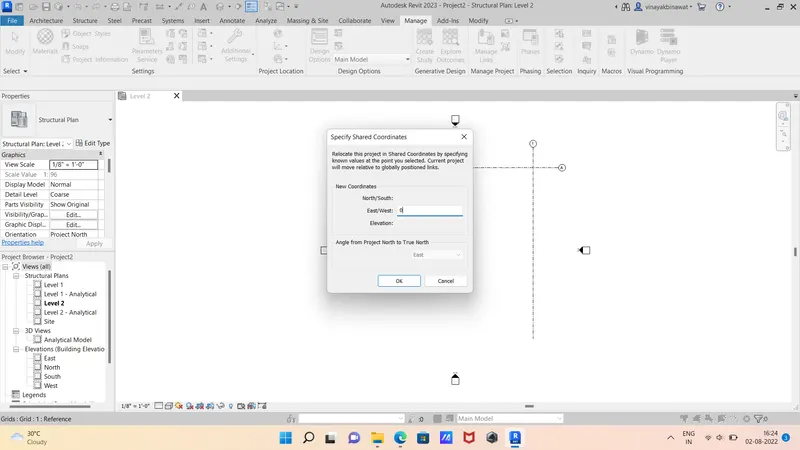

- After selecting the horizontal grid, the specify shared coordinates tab will appears.

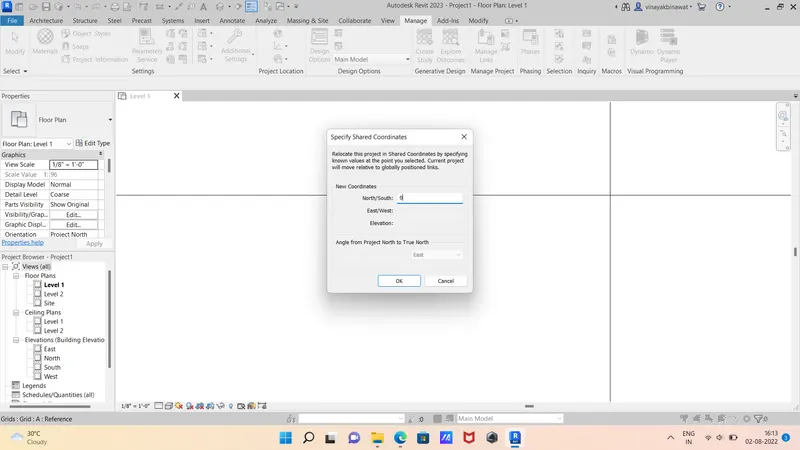

- In the specify shared coordinates tab we need to enter the coordinates for north/south as 0'-0".
Step 3 :
- Next we use coordinates option in the manage tab, and select the specify coordinates at point option and click on the vertical grid.
- After selecting the vertical grid, the specify shared coordinates tab will appears.
- In the specify shared coordinates tab we need to enter the coordinates for east/west as 0'-0".

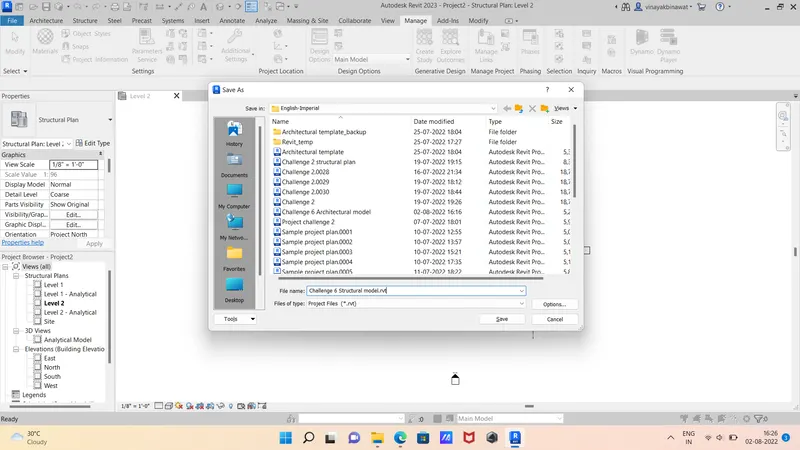

Step 4 : Next we have to save the project as named as the model.
RESULT - Using the Manage tab the project base point and project shared coordinates have been setup successfully for the project in the architectural template.
2.]
Ans.
AIM - To set project base point and project shared coordinates for the project using manage tab in the structural template.
INTRODUCTION -
- The project base point can be used to establish a reference for measuring distances and positioning objects in relation to the model.
- Initially,In stock templates,it identifies the origin (0,0,0) of the project coordinate system. Use the project base point as a reference point for measurements across the site.
- When you combine multiple models and files in a single project,use shared coordinates to establish the positions of the files in relation to each other.
- A Revit project has internal coordinates for all the elements that compose the model in a project. Those coordinates are known to this project only.
- This is sufficient if you have a standalone model whose position is not relevant to other models or to a site.
- However, if you want the position of the model to be known to other linked models,you need to share coordinates.
- Use the Shared Coordinate tools to establish the relative positions of the different files and ensure that those relationships are maintained.
- To establish a common coordinate position and then share that position between files,use the Acquire Coordinates tool or the Publish Coordinates tool.
PROCEDURE -
Step 1 :
- First we have to open the revit.
- Next create a project using the structural template.
- Next draw the horizontal and vertical grid, intersecting each other.
- And give name for horizontal grid as A.
- Next give the name for vertical grid as 1.
Step 2 :
- Next we use coordinates option in the manage tab, and select the specify coordinates at point option and click on the horizontal grid.
- After selecting the horizontal grid, the specify shared coordinates tab will appears.
- In the specify shared coordinates tab we need to enter the coordinates for north/south as 0.
Step 3 :
- Next we use coordinates option in the manage tab, and select the specify coordinates at point option and click on the vertical grid.
- After selecting the vertical grid, the specify shared coordinates tab will appears.
- In the specify shared coordinates tab we need to enter the coordinates for east/west as 0.
Step 4 : Next we have to save the project as named as the model.
RESULT - Using the Manage tab the project base point and project shared coordinates have been setup successfully for the project in the structural template.
3.]
Ans.
AIM - To make the architectural model as a central model using the collaborate tab.
INTRODUCTION -
- With server-based worksharing, some of the tasks to manage the central model require a different approach than file-based worksharing.
- The central model is the master project file for a workshared project.
- The central model stores the current ownership information for all elements in the project, and acts as the distribution point for all changes published to the file.
- All team members save their own local copies of the central model, work locally,and then use the Synchronize with Central command to synchronize their edits to the model with the central model.
PROCEDURE -

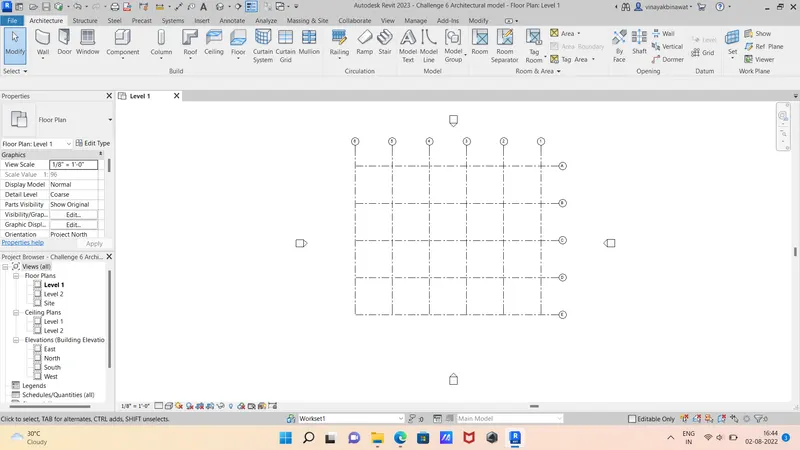

Step 1 : First open the revit, and draw the vertical and horizontal grids.
Step 2 :

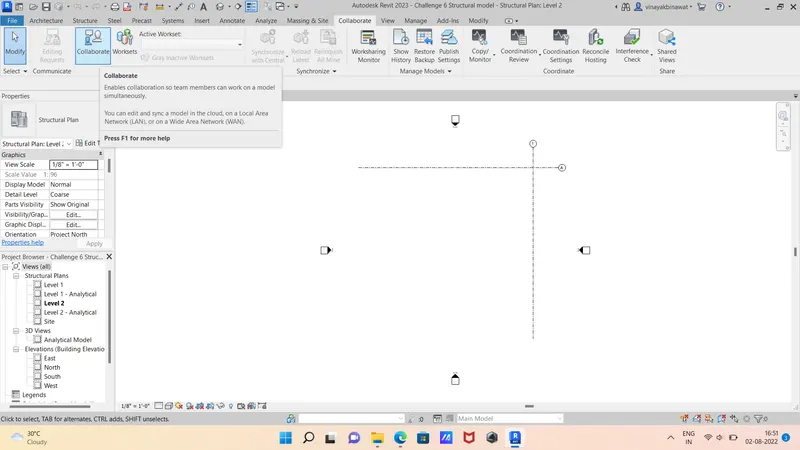

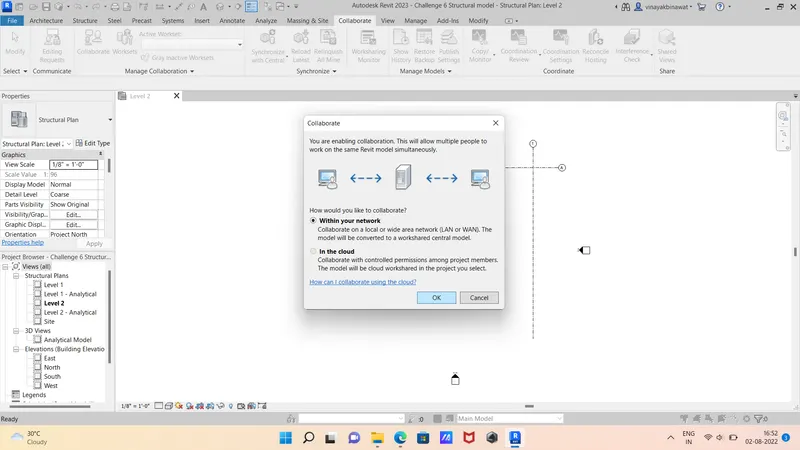

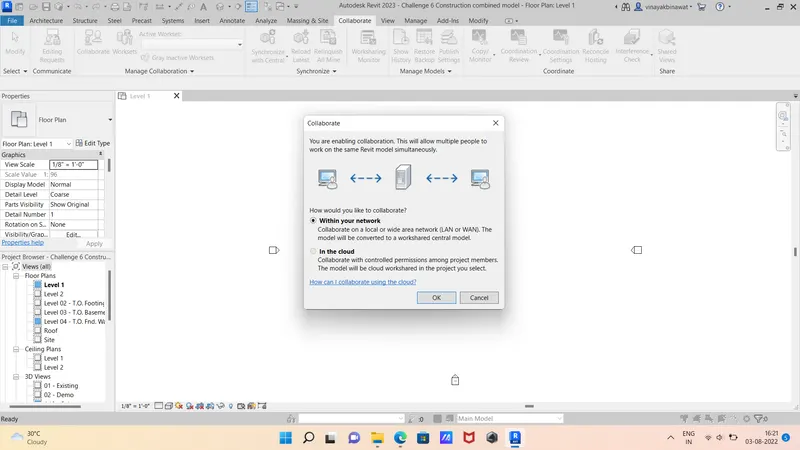

Next click on the collaborate tab,then the new tab will be visible.Then click on the ok button.

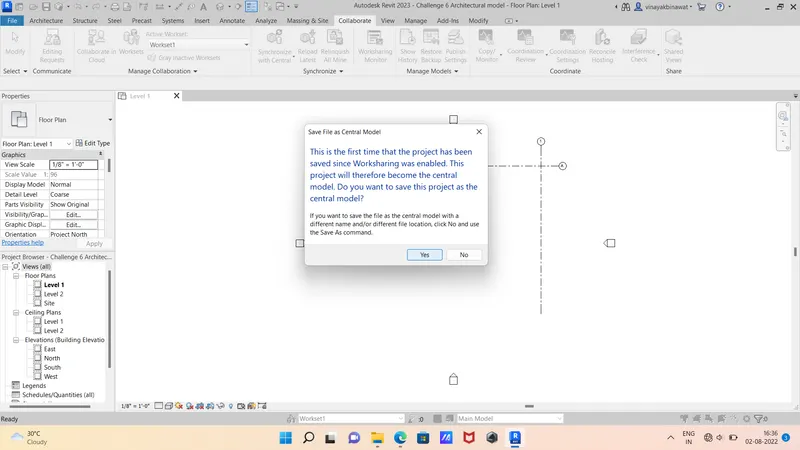

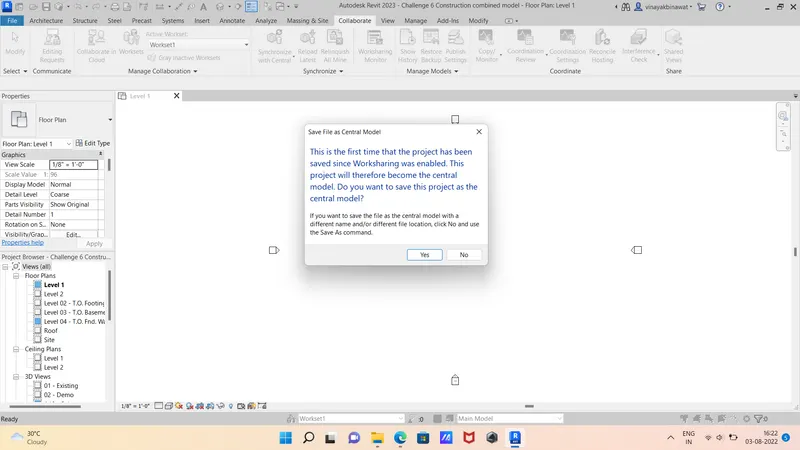

Step 3 : Next we see another tab,and select save model and continue option.

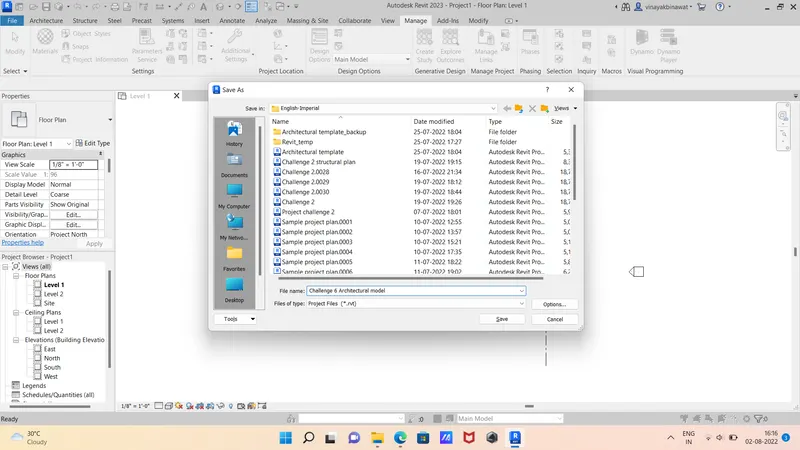

Step 4 : Next we have to save the project as named as the model.

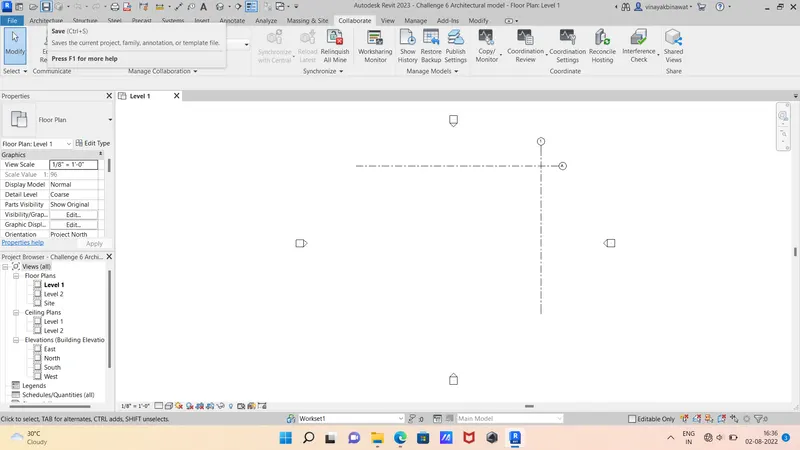

Step 5 : Next we save the project file as a central model.
RESULT - Created an architectural model as a central model using the collaborate tab.
4.]
Ans.
AIM - To create the Grids Longitudinal and Transverse pattern for the project similar to the task done in Week 2.
INTRODUCTION -
- Grid lines are finite planes,We can drag their extents in elevation views so that they do not intersect level lines.
- This allows you to determine whether grid lines appear in each new plan view that you create for a project.
- Grids can be straight lines, arcs or multi-segmented.You can hide grid lines after you add them.
- Use the Grid tool to place column grid lines in the building design.
- We can then add columns along the column grid lines.
- As we start to construct our 3D model,we need some method of controlling the vertical height of our elements be it floor heights,the base and top of columns,window sill heights,etc. This is where Levels come into play. In order to create an effective and efficient model,it is crucial that you understand the use of Levels.The correct use of Levels will ensure that your model can readily be adjusted with the minimum of effort.
PROCEDURE -
Step 1 : First we create the vertical grids.
Step 2 : Next we create the horizontal grids.
Step 3 : The vertical and horizontal grids are created successfully.
RESULT - Created the Grids Longitudinal and Transverse pattern for the project similar to the task done in Week 2.
5.]
Ans.
AIM - To synchronize the changes from the local copy to the central file of the architectural model.
INTRODUCTION -
- The Synchronize with Central process loads changes from other files to the central file, and then saves local changes to the central file, which are saved by default.
- The Central File Access plane of Worksharing Monitor displays the progress of the Synchronize with Central option, which involves several distinct steps.
PROCEDURE -
Step 1 :
- First we have to collaborate using the collaborate toolbar.
- Next we have to save the project as central model.

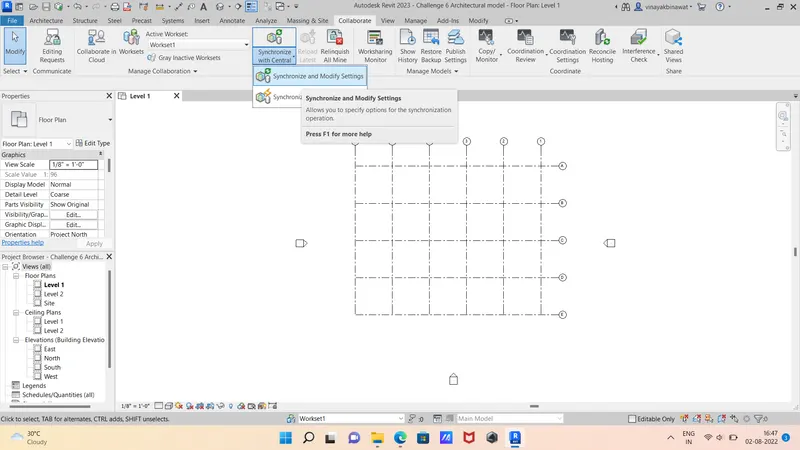

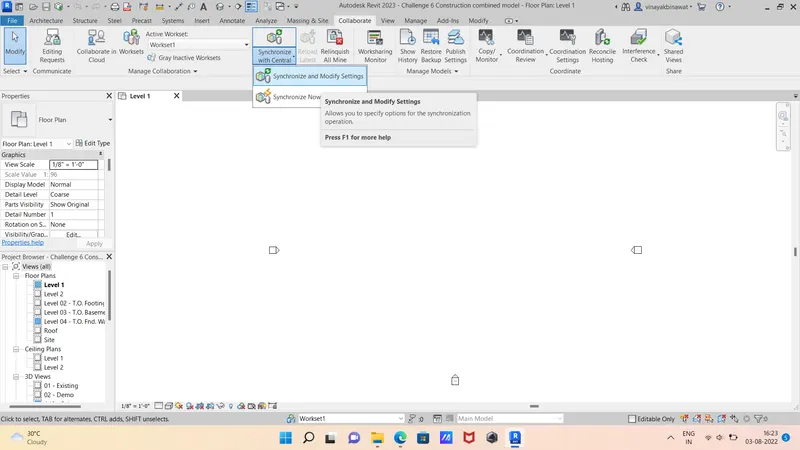

- Next the syncronize option will be visible.

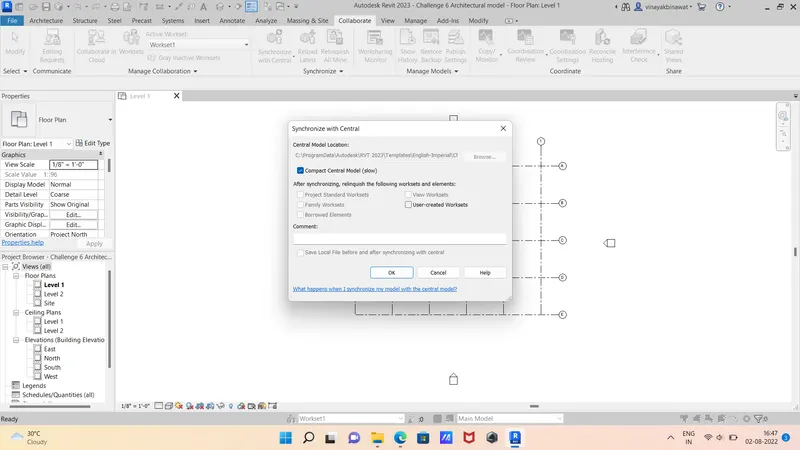

Step 2 : After selecting the syncronize option,a new tab will appears and click ok.
RESULT - Synchronized the changes from the local copy to the central file of the architectural model.
6.]
Ans.
AIM - To save the model as a central file using the collaborate tool in the structural model.
INTRODUCTION -
- With server-based worksharing,some of the tasks to manage the central model require a different approach than file-based worksharing.
- The central model is the master project file for a workshared project.
- The central model stores the current ownership information for all elements in the project,and acts as the distribution point for all changes published to the file.
- All team members save their own local copies of the central model, work locally,and then use the Synchronize with Central command to synchronize their edits to the model with the central model.
PROCEDURE -
Step 1 :

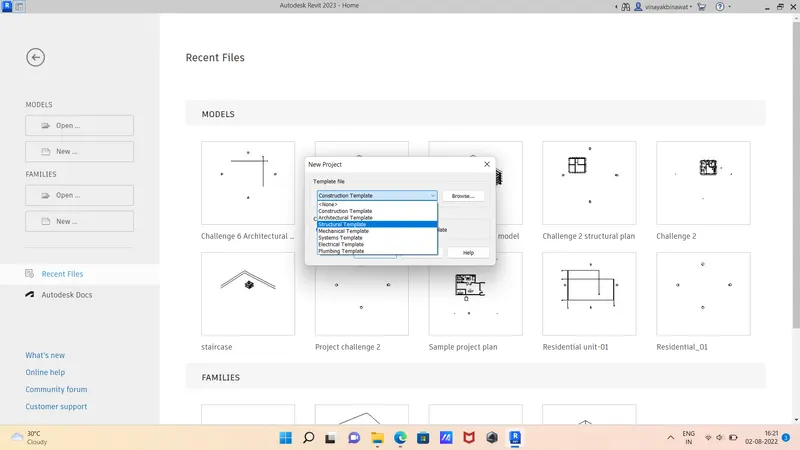

- First select the structural template,then the new project will be opened.
- Next click on the collaborate tab,then the new tab will be visible.
- Then click on the ok button.

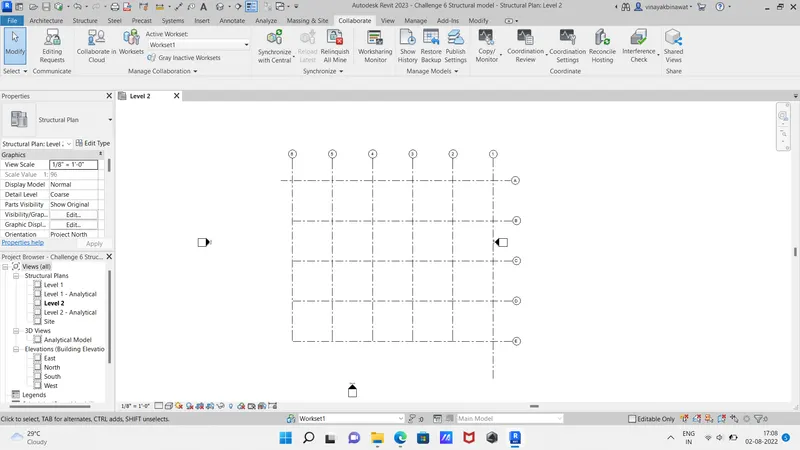

Step 2 : Next we save the project file as a central model.
RESULT - Saved the model as a central file using the collaborate tool in the structural model.
7.]
Ans.
AIM - To copy the grids from the architectural model to the structural model using Copy Monitor option.
INTRODUCTION -
- When you start the Copy/Monitor tool,you can select Use Current Project or Select Link.
- Then you can select Copy or Monitor:
- Copy: Creates a copy of a selected item and establishes a monitoring relationship between the copied element and the original element. If the original element changes,a warning alerts you when you open the project or reload the linked model. (This Copy tool is different than the other copy tools,which are used for copying and pasting.)
- Monitor: Establishes a monitoring relationship between 2 elements of the same type.If an element changes,a warning alerts you when you open the project or reload the linked model.
PROCEDURE -
Step 1 :
- First we have to create the longitudinal grids and traverse grids.

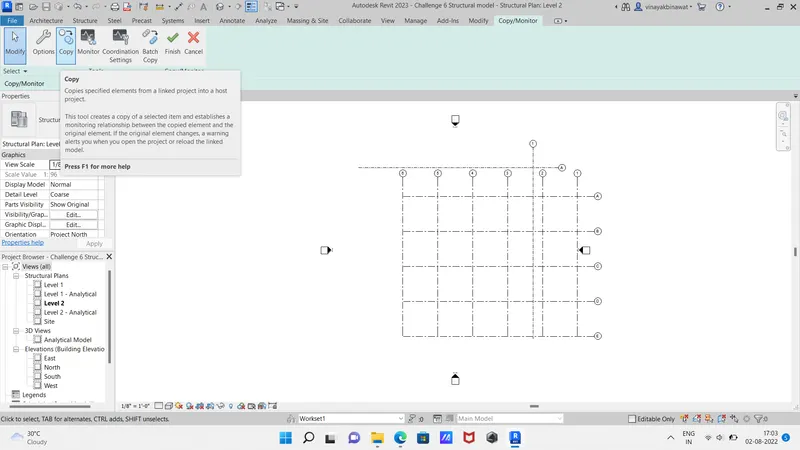

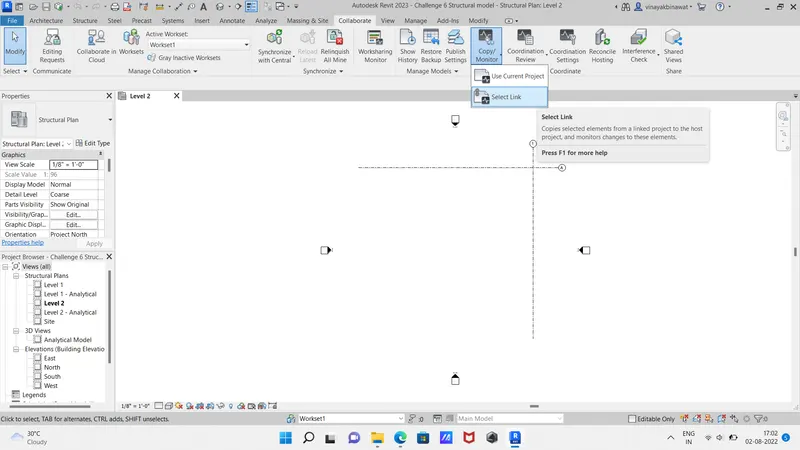

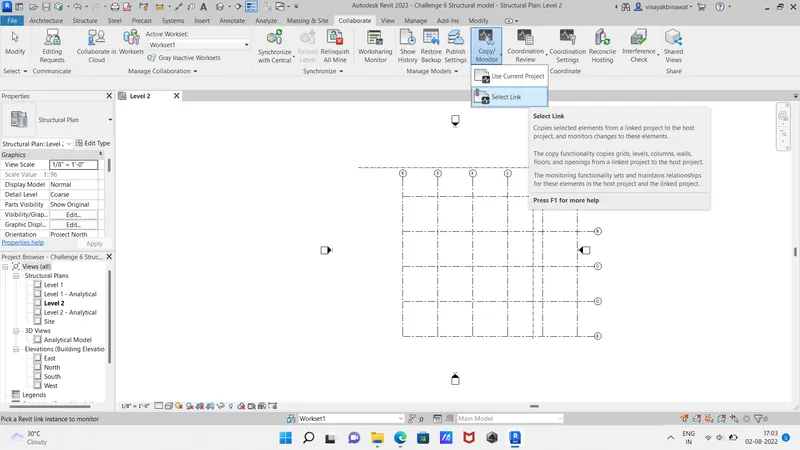

- Next we select the copy/monitor tool,and click on the select link option.
Step 2 : After selecting the copy/monitor option,then select the copy option and select the grids which you want to copy,and press enter.
Step 3 : Copied the grids from architectural model to the structural model using the copy/monitor tool.
RESULT - Successfully copied the grids from architectural model to the structural model using the copy/monitor tool.
8.]
Ans.
AIM -
To create new file with a construction template and need to save the new file as central model. To link both architectural and structural files in a single project using the manage links tool.
INTRODUCTION -
- To manage a link in the model, select it in the Manage Links dialog, and use an appropriate tool.
- You can select multiple links to modify by pressing Ctrl and clicking on the number of the link in the dialog.
PROCEDURE -

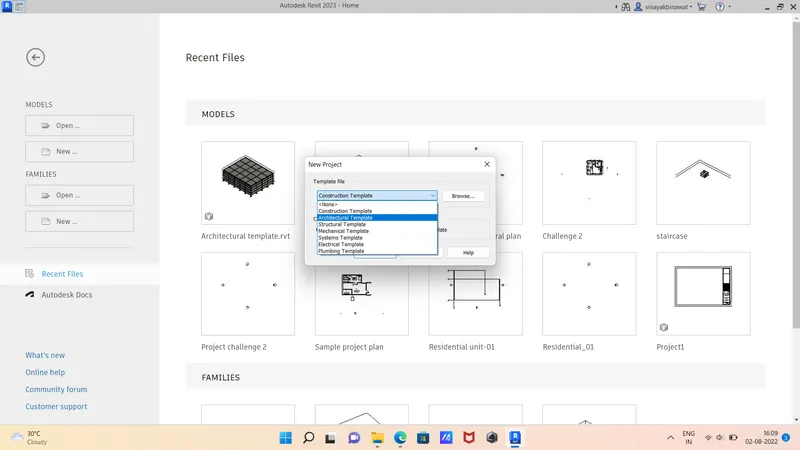

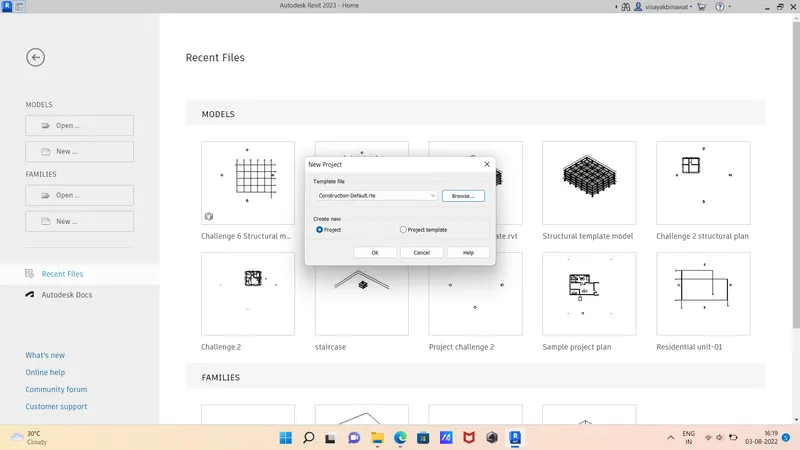

Step 1 : First open a new project using the construction template.
Step 2 : Next the project tab will be opened.
Step 3 :
- Next select the collaborate toolbar.

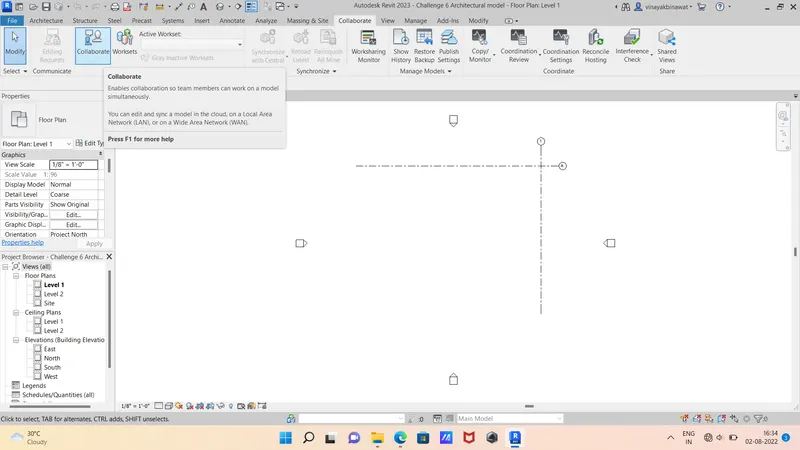

- And next click on the collaborate option.
- Next the new tab will be visible.
- Then click on the ok button.
Step 4 : Next we save the project file as a central model.
Step 5 : Next the syncronize option will be visible.
Step 6 : After selecting the syncronize option,a new tab will appears and click ok.
Step 7 :

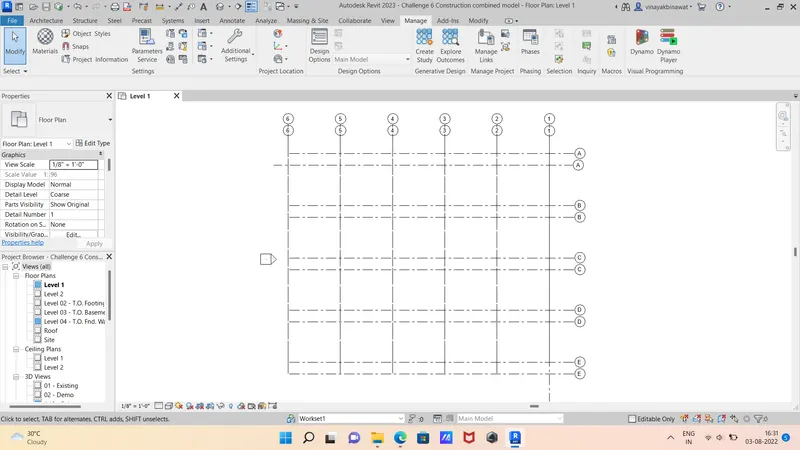

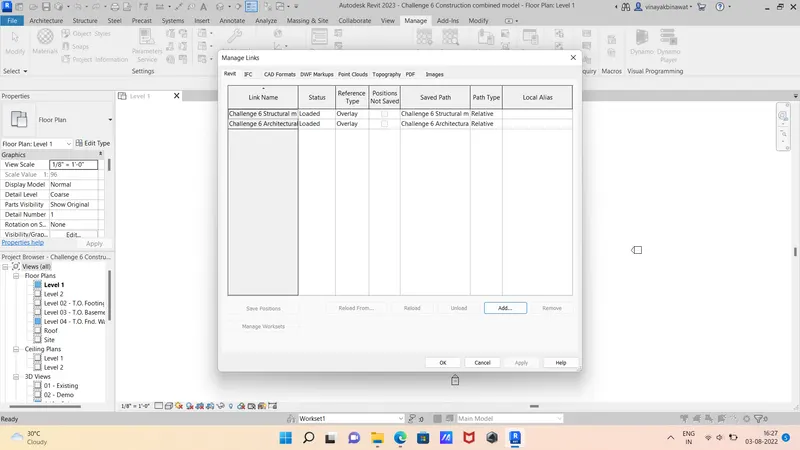

- Next we click the mange links and link the structural and architectural models.

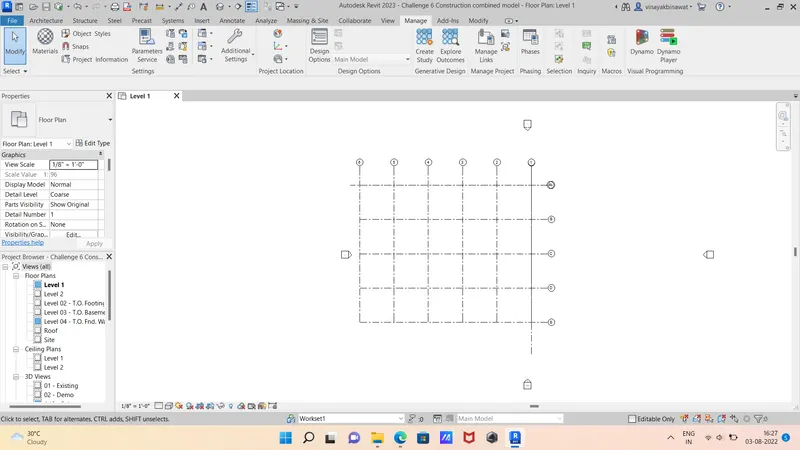

- After clicking the ok button on the manage links,then the grids will be resulted.
Step 8 : Next we click the acquire coordinates and select the models and press enter.

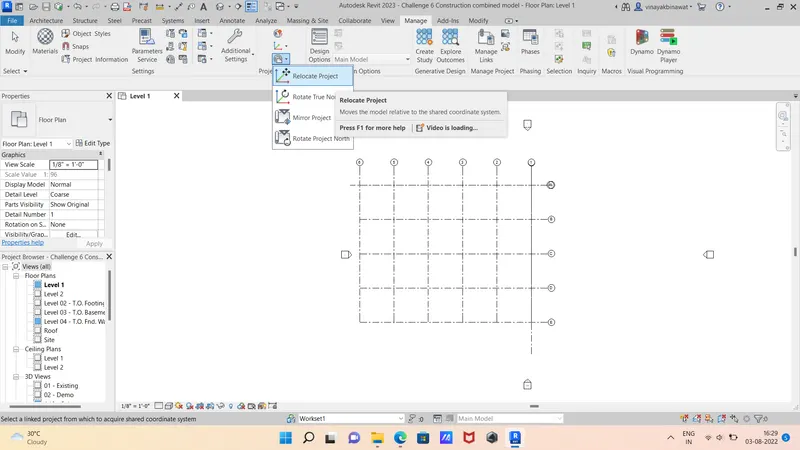

Step 9 : Next we click on the relocate project option and select the points of both architectural and structural model visible on the screen.
Step 10 : The both structural model and architectural model are linked.
RESULT - Created new file with a construction template and saved the new file as central model.And both architectural and structural files are linked successfully in a single project using the manage links tool.
9.]
Ans. Yes, the grids from structural and architectural model matching in the construction template created successfully and my model is set up.
10.]
Ans. Construction Model
Architectural Model Structural Model
- Modelling walls - Modelling column
- Modelling windows - Modelling beam
- Modelling doors - Modelling footing
- Assign materials - Modelling structural floors
- Modelling architectural floorings - Modelling labs
- Modelling architectural roofings and ceilings - Modelling tree systems
- Enables to provide the geographic conditions - Modelling connections
- Modelling staircase - Structural model in general develops the - Creates openings entire framework of structure
- Architectural model in overall contributes to the
aesthetic beauty of a building
