Usage of Collaborate tool in REVIT
1) Open an architectural template. Using the Manage tab set project base point and project shared coordinates for the project
AIM:
To set project base point and project shared coordinates for the project.
INTRODUCTION:
Project base point:
The project base point defines the origin (0,0,0) of the project coordinate system. It also can be used to position the building on the site and for locating the design elements of a building during construction.
Project shared coordinates:
When you combine multiple models and files in a single project, use shared coordinates to establish the positions of the files in relation to each other. A Revit project has internal coordinates for all the elements that compose the model in a project. Those coordinates are known to this project only
PROCEDURE:
Open Architectural template draw a grid

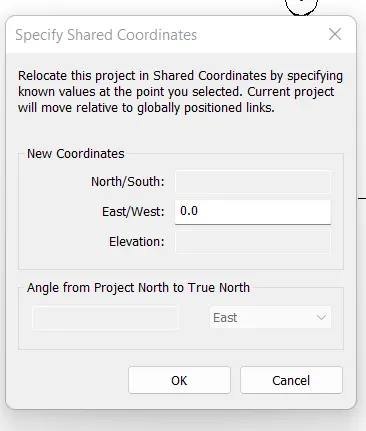

Go to manage tab select coordinate option >specify coordinates at a point>enter 0

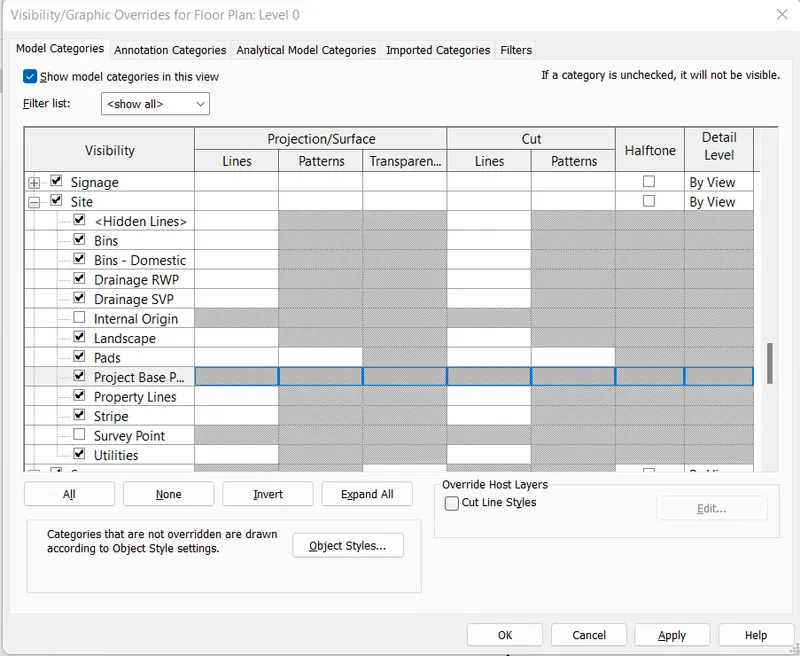

Enter VG command ,scroll down ,expand site option & select project site option>apply>ok

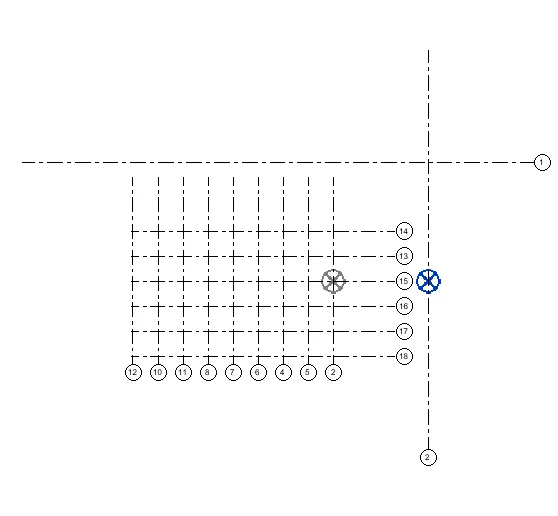

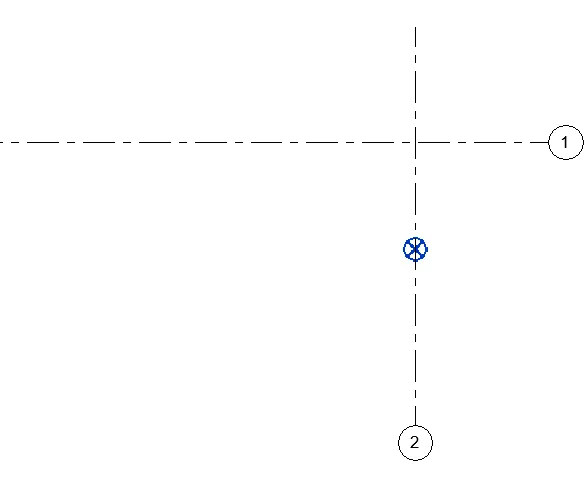

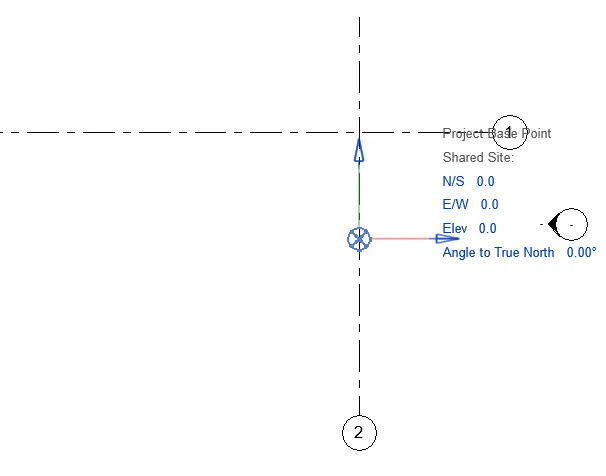

Circular tool which appeared is called project base point
RESULT:
Project base point and project shared coordinates are created successfully
2) Open another new file but with a structural template. Using the manage tab set project parameters the same as the architectural model. Copy the parameters from the architectural model to the structural template or enter the parameters manually into the structural model
AIM:
Using the manage tab set project parameters the same as the architectural model. Copy the parameters from the architectural model to the structural template or enter the parameters manually into the structural model
INTRODUCTION:
Template structure is a structure that you copy & clone to get the real, "workable" structures. Technically, template structures are ordinary structures, containing ordinary issues. It is up to you to designate a structure to be a template and configure it accordingly.
PROCEDURE:
Open Structural template draw a grid
Go to manage tab select coordinate option >specify coordinates at a point>enter 0
Enter VG command ,scroll down ,expand site option & select project site option>apply>ok

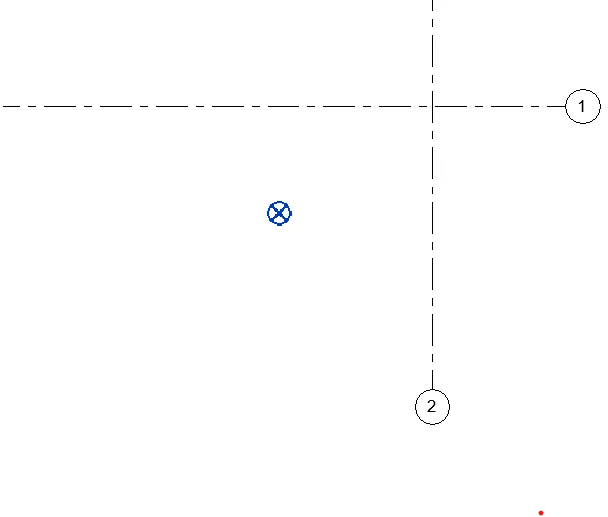

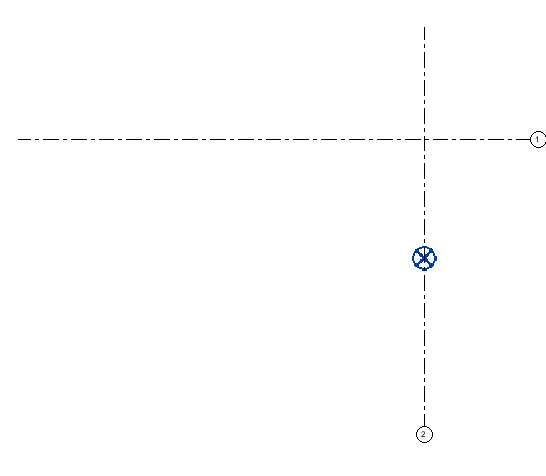

Circular tool which appeared is called project base point
RESULT:
The parameters from the architectural model to the structural template copied successfully
3) Re-open the architectural model. Using the tools under the Collaborate tab make the architectural model a central model (enabling simultaneous working on the model)
AIM:
Using the tools under the Collaborate tab make the architectural model a central model
INTRODUCTION:
The central model is the master project file for a workshared project. The central model stores the current ownership information for all elements in the project, and acts as the distribution point for all changes published to the file
PROCEDURE:
Open revit ,reopen the saved file

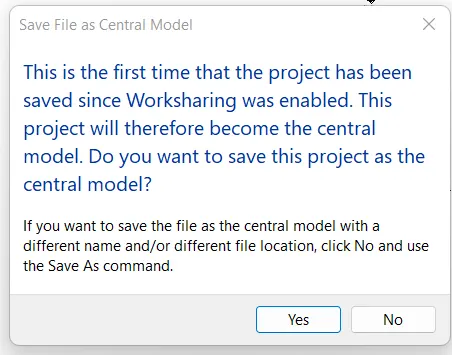

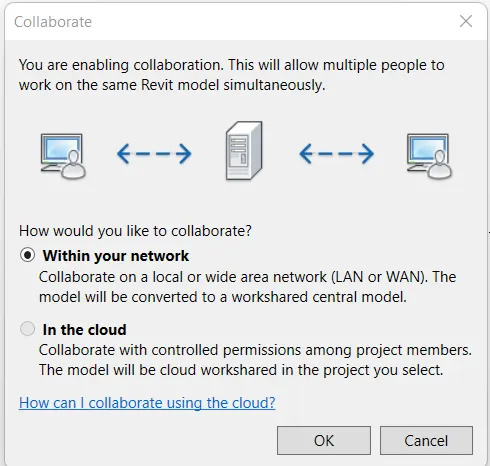

To create a centre model go to collabrate tab>collabrate option>ok

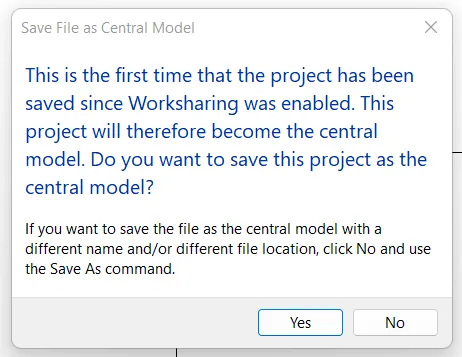

Now save the file again
RESULT:
Using the tools under the Collaborate tab , the architectural model a central model is created
4) Create the Grids Longitudinal and Transverse pattern for the project similar to the task done in Week 2
AIM:
Create the Grids Longitudinal and Transverse pattern for the project similar to the task done in Week 2
INTRODUCTION:
Grid lines are finite planes. You can drag their extents in elevation views so that they do not intersect level lines. This allows you to determine whether grid lines appear in each new plan view that you create for a project. Grids can be straight lines, arcs or multi-segmented
PROCEDURE:
Open Architectural file created
Select grid under Architectural tab ,pick a line ,give an offset of 2000

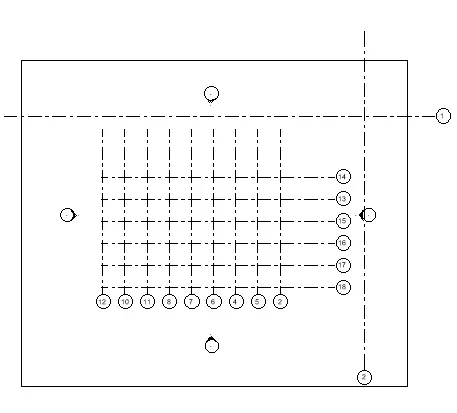

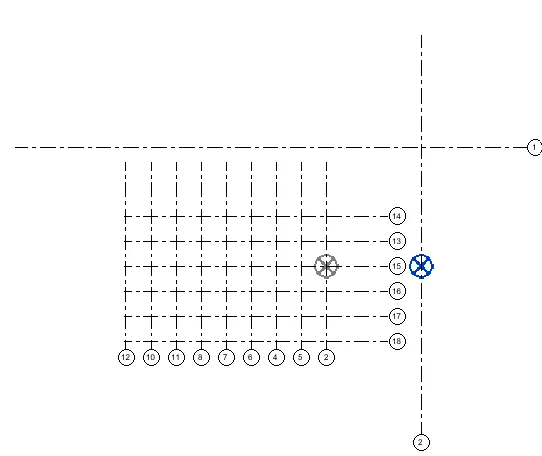

Create the longitudnal & transverse grid by clicking the already exisiting transverse & longitudnal grid
RESULT:
Longitudnal & transverse pattern are created
5) Synchronize the changes from the local copy to the central file of the architectural model.
AIM:
Synchronize the changes from the local copy to the central file of the architectural model.
INTRODUCTION:
When working on a workshared project, use the Synchronize with Central tool to save your local changes to the central model. To Synchronize with Central: Click Collaborate tab Synchronize panel Synchronize with Central drop-down
PROCEDURE:
Open the saved file

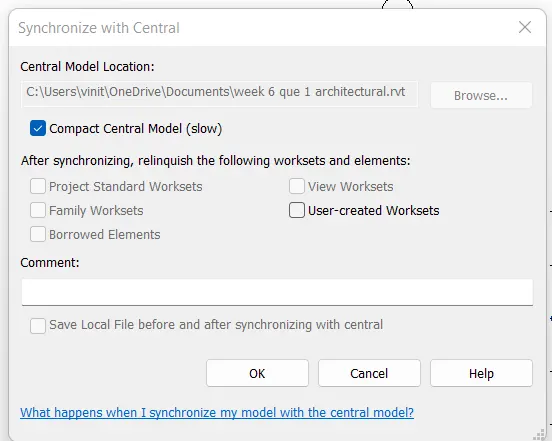

Under collabrate tab,select synchronize with central option >synchronize & modify settings
Click compact central model & give ok
RESULT:
The changes from the local copy to the central file of the architectural model is synchronized successfully
6) Open the structural model and use the collaborate tools to save the model as a central file
AIM:
Open the structural model and use the collaborate tools to save the model as a central file
INTRODUCTION:
Revit provides several different ways to collaborate with team members who are also using the software. You can link multiple Revit models together, allowing team members to work in context. Through worksharing, users on the same local area network (LAN) can work together in the same Revit model
PROCEDURE:
Open the structural file created

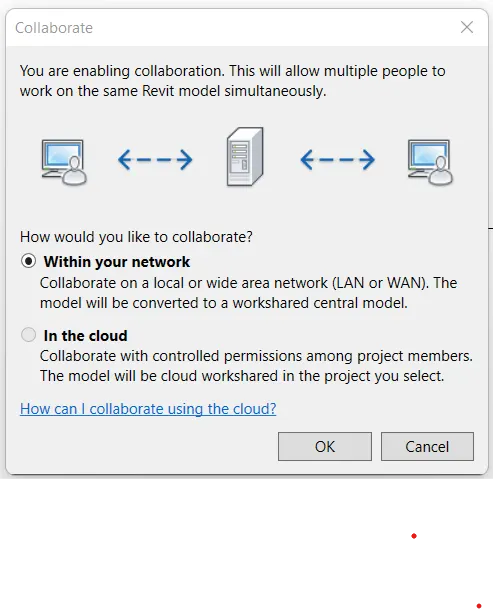

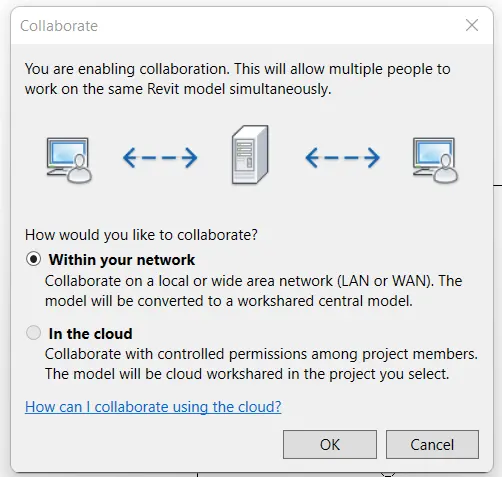

Go to collabrate tab>collabrate option>within a network >ok

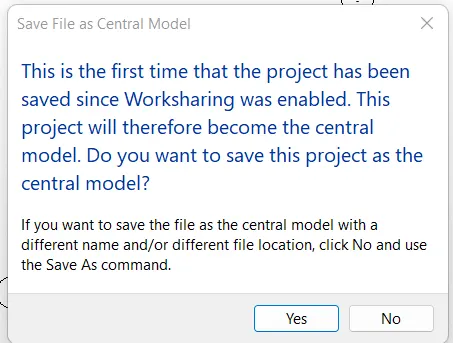

Now save the file
RESULT:
Structural model is created as central file successffully
7) Under the Collaborate tab, select the grids and levels from the architectural model, and using Copy Monitor try to copy the grids to the structural model. See what happens when the copy monitored grid is moved around in the structural model
AIM:
select the grids and levels from the architectural model, and using Copy Monitor try to copy the grids to the structural model.
INTRODUCTION:
Copy/Monitor is used primarily to copy information from one model to another. This can for example be used by a structural designer at the beginning of their project to transfer all levels, grids and walls from an Architecture model to Structural model
PROCEDURE:
Open the structural model created
To insert Architectural model to the structural model created ,Go to insert tab>linl revit option
To copy/monitor go to collabrate tab>copy/monitor option

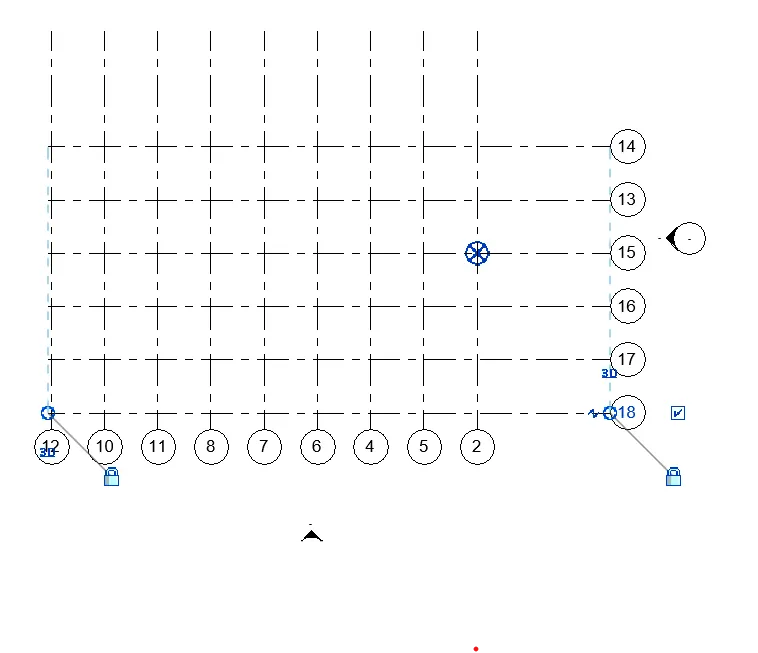

Click copy option>select multiple>Finish
To cross check it type VG command ,click revit link,unselect it,give apply,ok
RESULT:
Copy monitored grid is moved around in the structural model successfully
8) Create another new file with a construction template. Save the new file as a central model. This file will include both architectural and structural model. Under the manage tab, Click manage links to link both architectural and structural files. Save the file and close all the files.
AIM:
Create another new file with a construction template. Save the new file as a central model. This file will include both architectural and structural model.
INRODUCTION:
The central model is the master project file for a workshared project. The central model stores the current ownership information for all elements in the project, and acts as the distribution point for all changes published to the file
PROCEDURE:
Open the construction template.
Save the file as construction
To create a central model go to collabrate tab >collabrate option>ok
Now to insert the architectural & structural file created go to insert tab>link revit option>open saved file>ok
RESULT:
New construction template is created ,changed to central model & attached architectural & structural file created
using manage link successfully.
9) Are the grids from structural and architectural model matching in the construction template created? If yes the model is set up for project 2. If not work on the shared parameters and linking options under Manage links
( Hint: origin to origin, by shared coordinates or by project base point to base point ) to link the models in an appropriate manner
AIM:
Are the grids from structural and architectural model matching in the construction template created? If yes the model is set up for project 2. If not work on the shared parameters and linking options under Manage links
INTRODUCTION:
The Manage Links dialog has tabs for Revit models, IFC links, CAD Formats, DWF Markups, Point Clouds, Topography, PDF, and Images. Under the tabs are columns that provide information about the link. Tools to Manage Links. To manage a link in the model, select it in the Manage Links dialog, and use an appropriate tool
PROCEDURE:

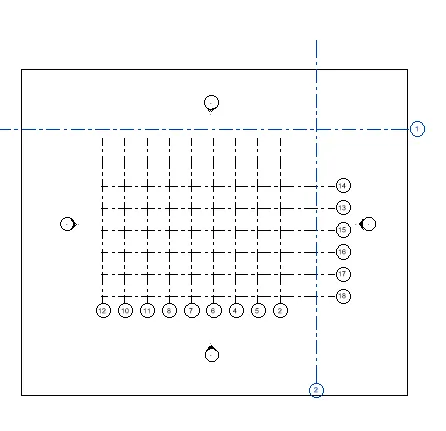

Under the insert tab click the manage link & matching the grids by shared coordinate
RESULT:
Using manage link the structural & architectural grids are matched successfully
10) List a flow chart of a project tree set up in terms of Construction model, Architecture & Structure model, in this exercise and understand how many people can work on the same project using Revit simultaneously
The number of peoples work on the same project using revit simultaneoulsy depend upon the type of the project
CONSTRUCTION MODEL
ARCHITECTURAL MODEL STRUCTURAL MODEL
Modelling walls Modelling column
Modelling windows Modelling beam
Modelling doors Modelling footing
Assign materials Modelling structural floors
Modelling architectural floorings Modelling labs
Modelling architectural floorings & ceilings Modelling trees systems
Enables to provide the geographic conditions of Modelling connections
Modelling staircase Structural model in general develops the entire
Create openings framework of a structure
Architectural model in overall contributes to the Aaesthetic beauty
of the building
