Usage of Collaborate tool in REVIT

SSai Bhavan Goud Udthawar14 May 2021

1 Ans:

Aim: To set the base point of the project using the manage tab and project shared coordinates for the project.

Procedure:

First, open the Revit
Now select the Architectural Template

Now Workspace opens

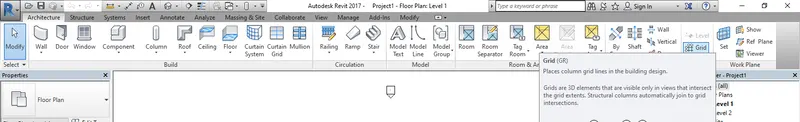

Now in architectural tab->In datum->select grid

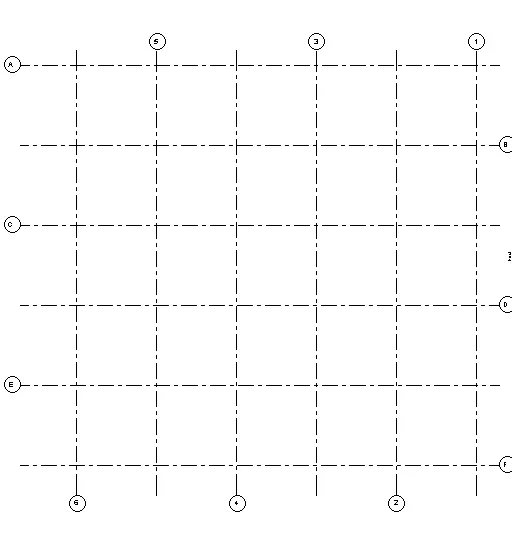

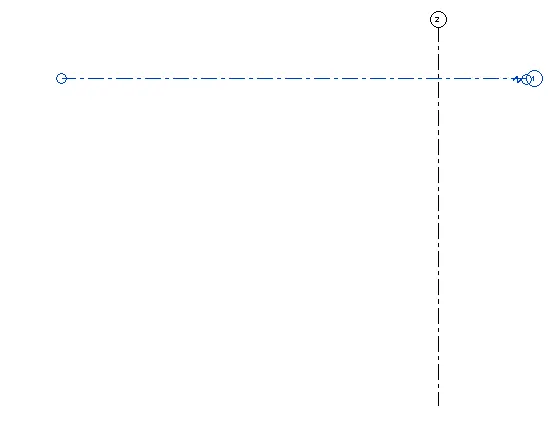

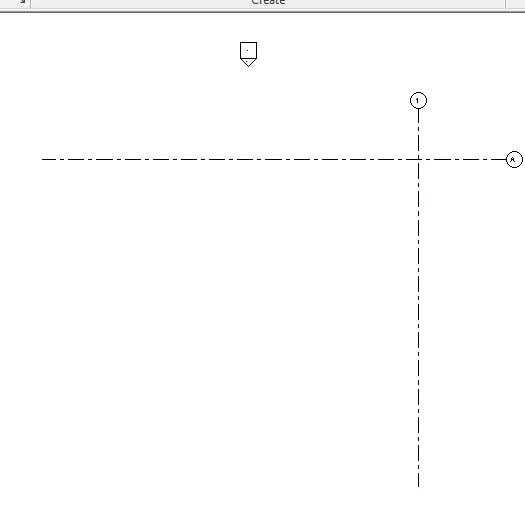

Now draw the grid lines as shown

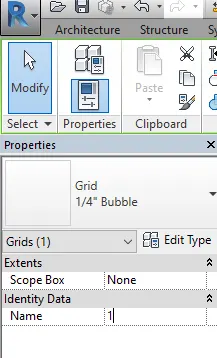

Now select horizontal grid line and change the name to A and select vertical grid line and name it as 1

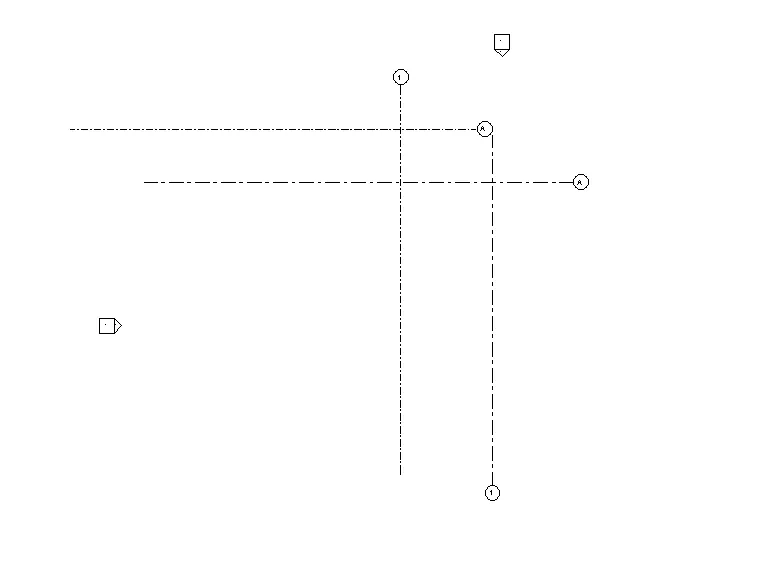

Now you get grid lines with naming 1 and A as shown

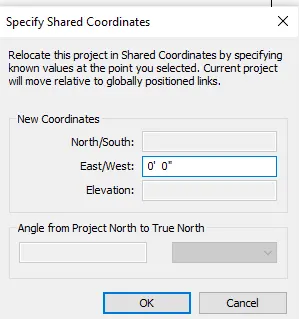

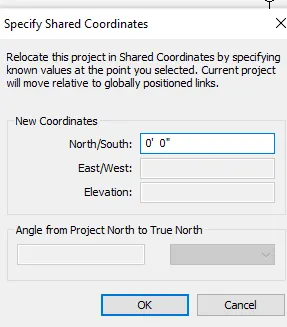

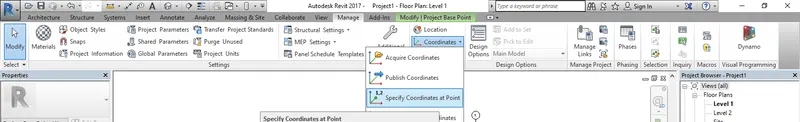

Now go to manage tab->in project location->click on coordinates and select specify coordinates at the point as shown

Now select horizontal line and give 0'0" as shown

Now select vertical line and give 0'0" as shown

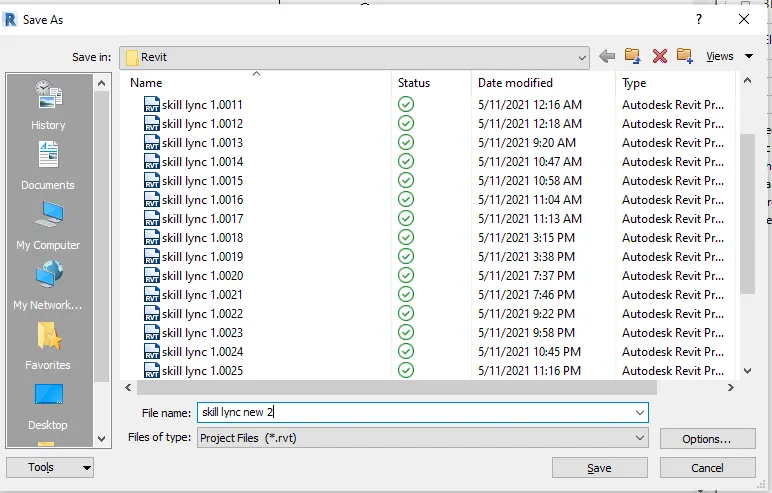

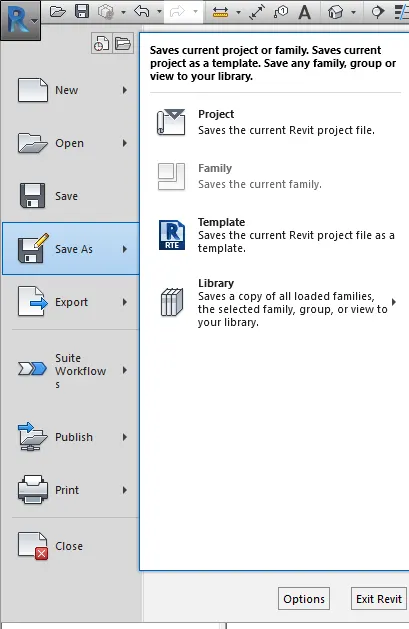

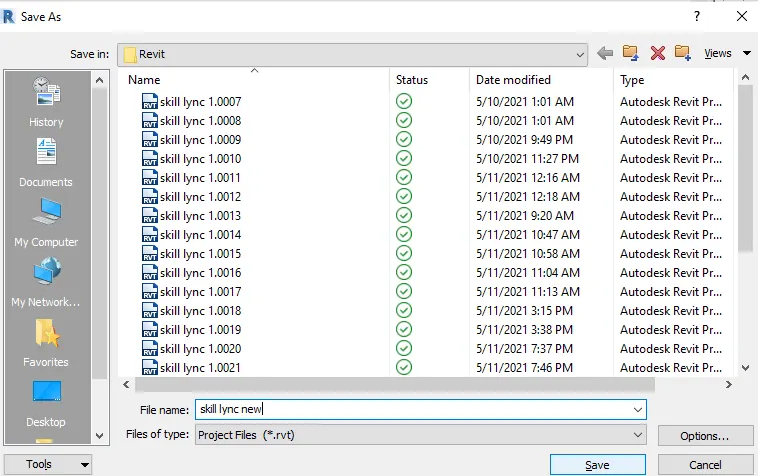

Now save the project as shown

Result:

We have done with setting base point of the project using the manage tab and project shared coordinates for the project.

2 ans:

Aim: To set the parameters of a new structural template same as the architectural model

Procedure:

First, open the Revit
Now select the structural Template

Now Workspace opens
Now in architectural tab->In datum->select grid

Now draw the grid lines as shown

Now select horizontal grid line and change the name to A and select vertical grid line and name it as 1

Now you get grid lines with naming 1 and A as shown

Now go to manage tab->in project location->click on coordinates and select specify coordinates at the point as shown

Now select horizontal line and give 0'0" as shown

Now select vertical line and give 0'0" as shown

Now save the project as shown

Result:

We have done with setting the base point of the project using the manage tab and project shared coordinates for the project.

3 ans:

Aim: To collaborate the architectural model as a central model

Procedure:

Open the architectural template which is created in 1st question

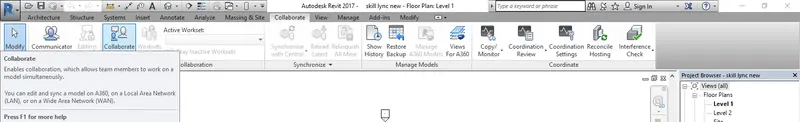

Now in collaborate, tab->select collaborate as shown

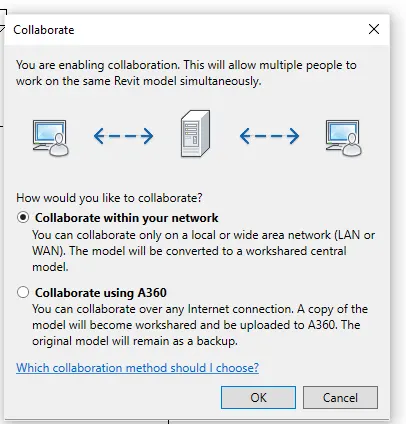

Now a new window opens

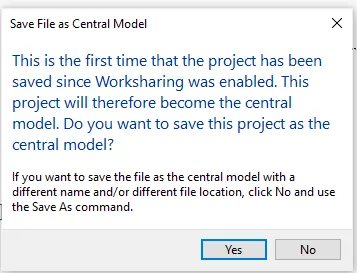

Now select collaborate within your network and click ok

Now click on save

Result:

Now we have collaborated the architectural model as a central model

4 ans:

Aim: To create a longitudinal and transverse pattern for the project similar to the task done in week 2

Procedure:

Open the Revit software
now select the architecture template
Now we get workspace
Now in architectural tab ->in datum->select grid

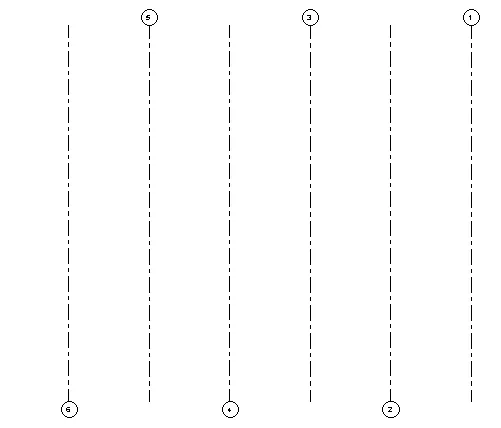

Now draw vertical grid with spacing of 20' each as shown

Change the names as shown

Now draw a horizontal grid with a spacing of 20' each as shown

Result:

Hence the grid is created

5 ans:

Aim: To synchronize the changes from the local copy to the central file of an architectural model.

Procedure:

Open the architectural template which is collaborated

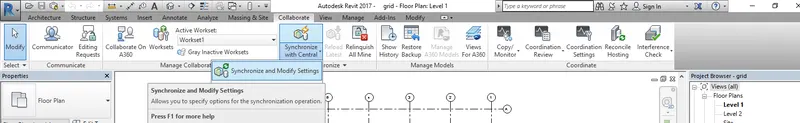

Now go to collaborate tab->in synchronizing -> select synchronize with central and select synchronize and modify settings as shown

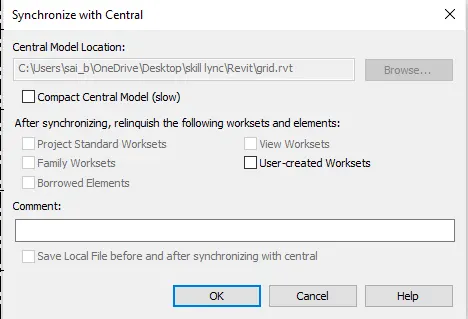

Now a synchronize with central dialogue box opens as shown

Result:

Now we have done with synchronize

6 ans:

Aim: To collaborate the structural model as a central model

Procedure:

Open the structure which is created in 2nd question
Now in collaborate, tab->select collaborate as shown

Now a new window opens
Now select collaborate within your network and click ok

Now click on save

Result:

Now we have collaborated the structural model as a central model

7 ans:

Aim: Under the Collaborate tab, select the grids and levels from the architectural model, and using Copy Monitor try to copy the grids to the structural model.

Procedure:

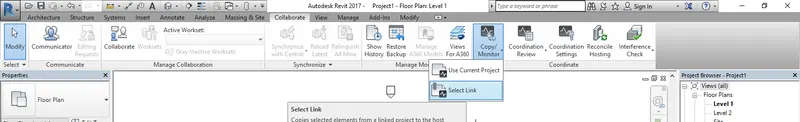

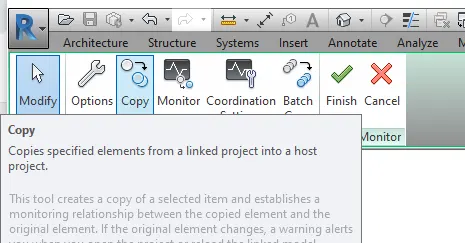

Now open the architectural tab and go to collaborate->in cordinate-> click on cop/monitor->select select link

Now copy option and select multiple and select the grid lines

Now select finsih

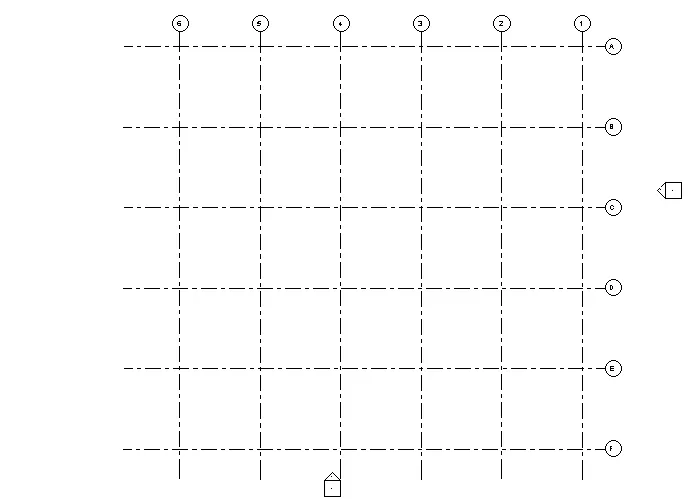

Now open structral template and we could see the same grids again

Result:Task has been completed successfully

8 ans:

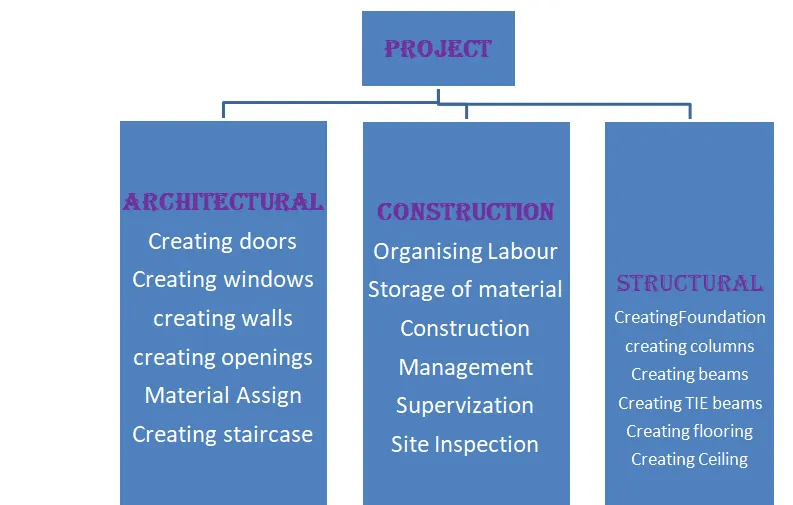

Aim: To create a construction template and save it as a central model and link both architectural and structural files

Procedure

Open Revit software

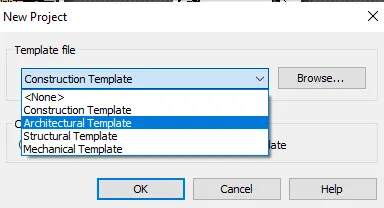

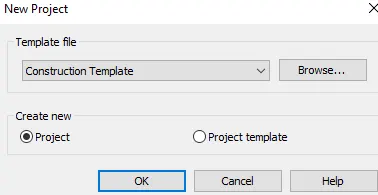

Now select a new project as a construction template

Now we get a new workspace

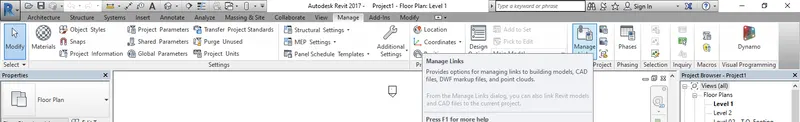

Now go manage tab->in manage project ->select manage links

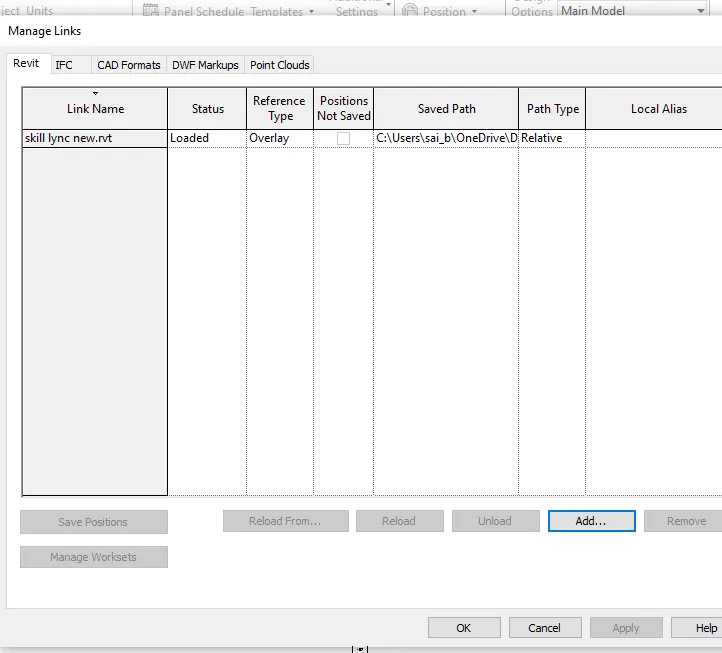

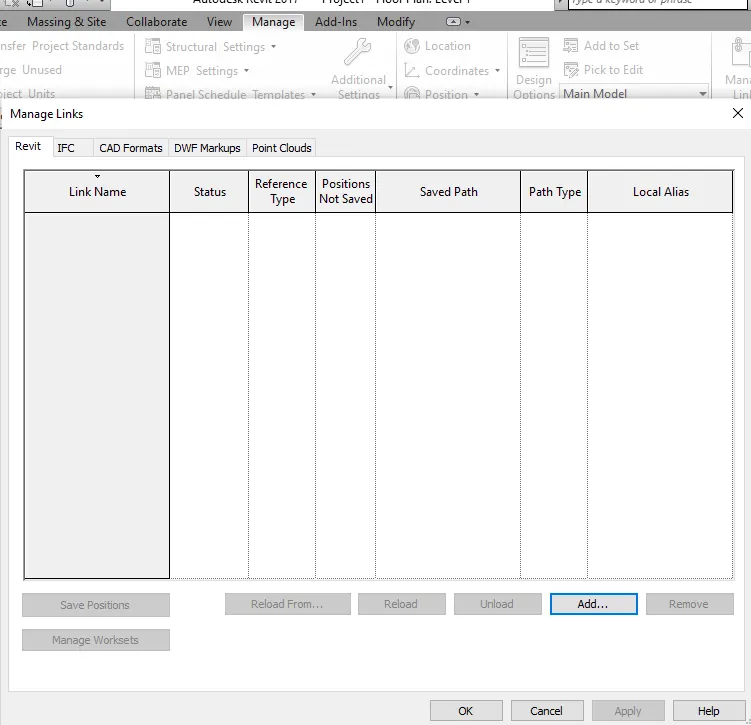

Now manage links tab opens as shown

Now click on add
Now load the architectural file as shown

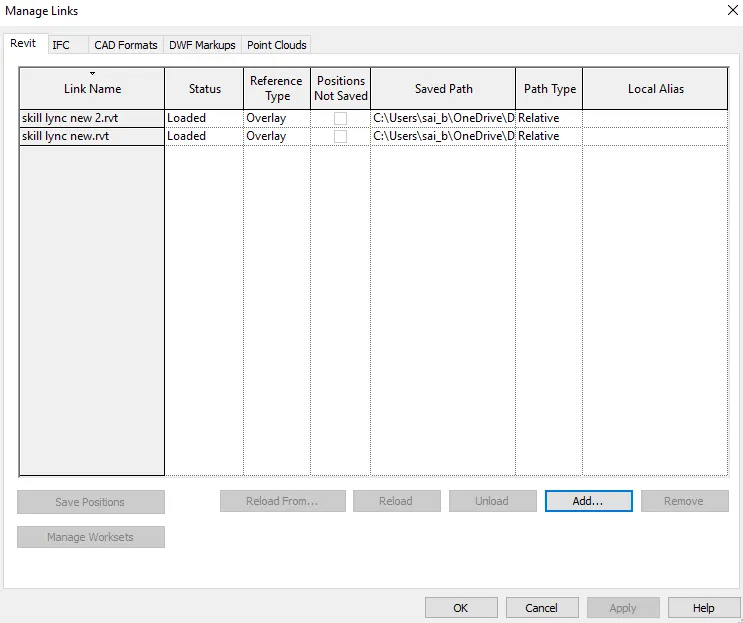

Now load the structural file as shown

Now click ok

9 ans:

Aim: To match the grids of the architectural and structural template if not matched using shared coordinates and linking options under manage links

Procedure:

Open the file that which has been created in 8 ans

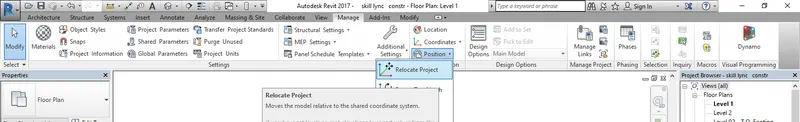

Now go to manage->In project location->click on a position and select relocate the project

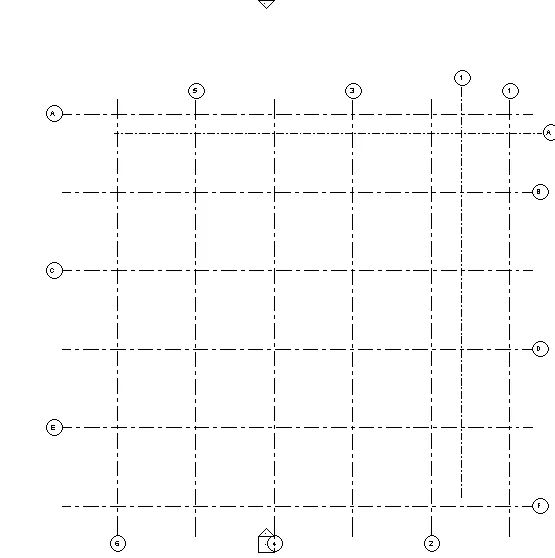

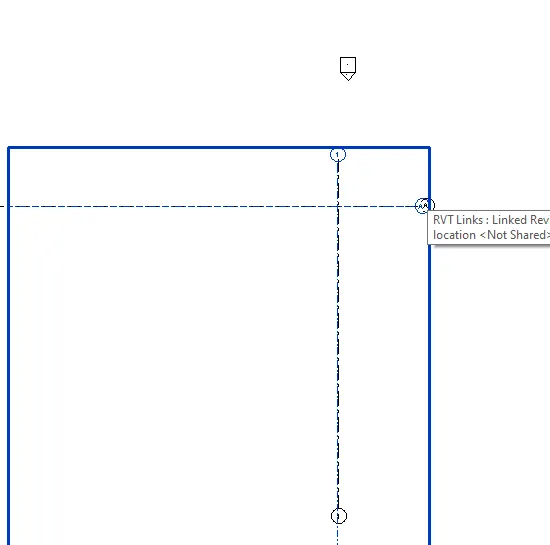

Now match the grids of the architectural and structural template as shown

Result: we have done with matching both grid lines

10 ans:
