Understanding the concepts on Degrees of Freedom

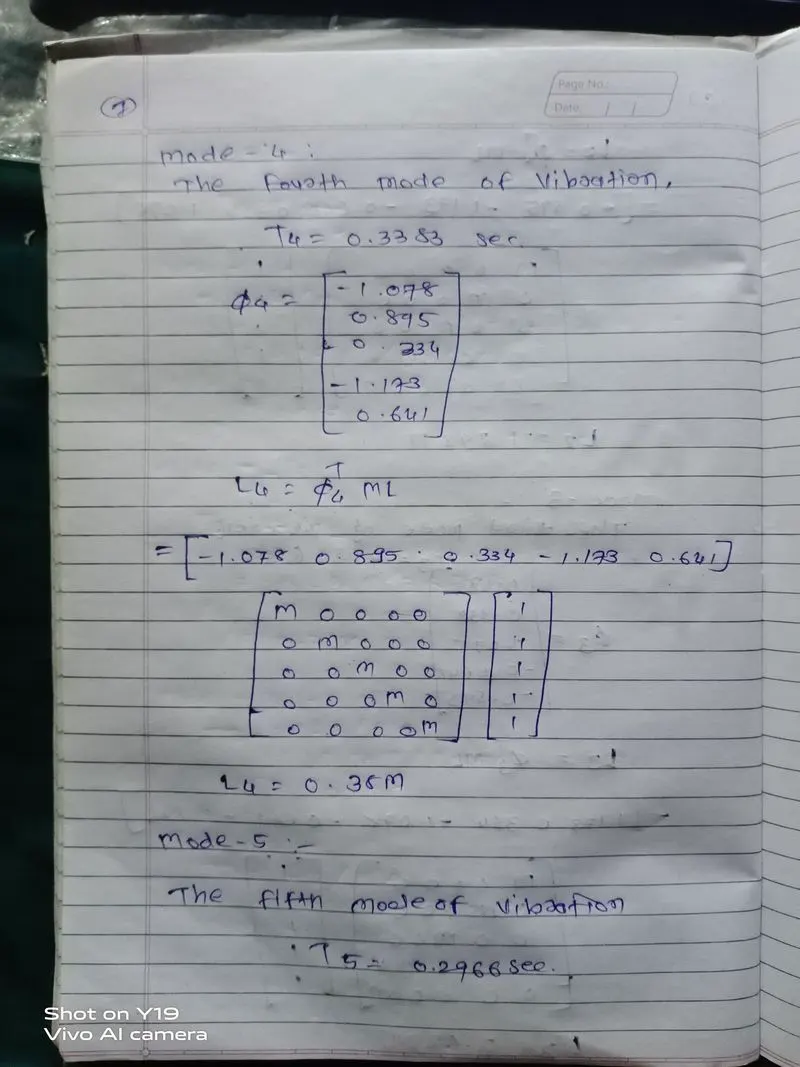

AIM:- To complete Ln ,Mn and Γn for each of the five modes from the given equations.

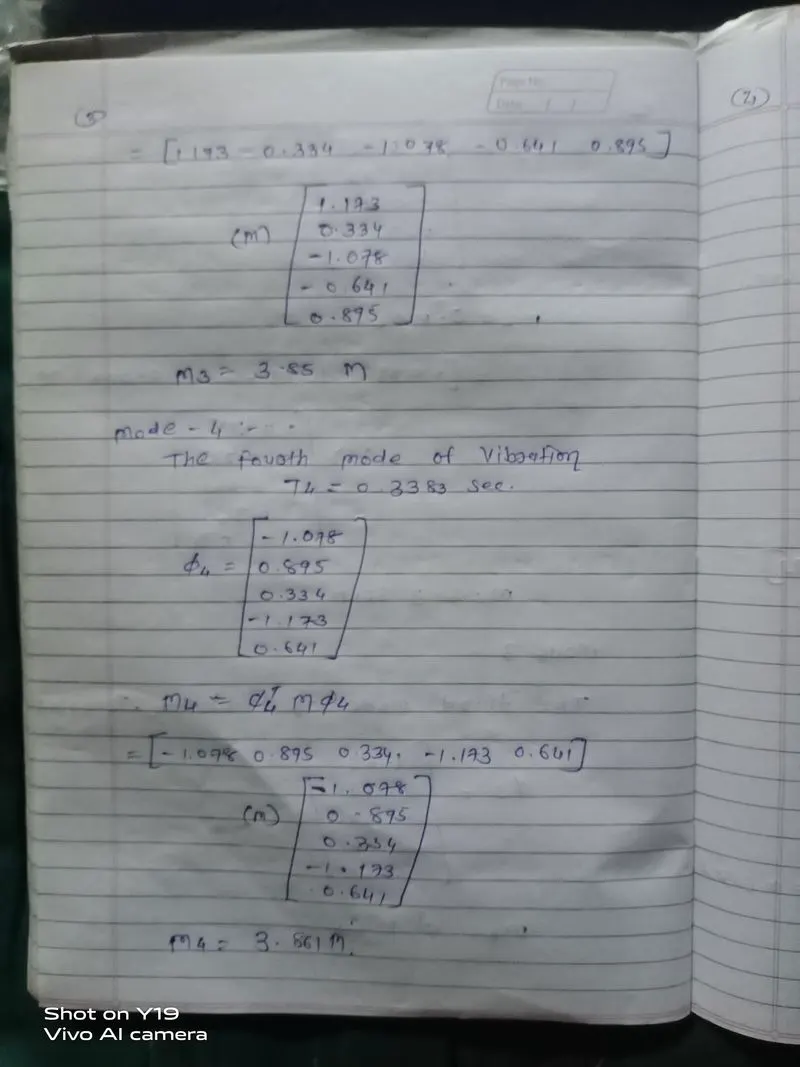

to calculate the effective modal mass Mn* and the modal mass participating ratio for the 5 modes.

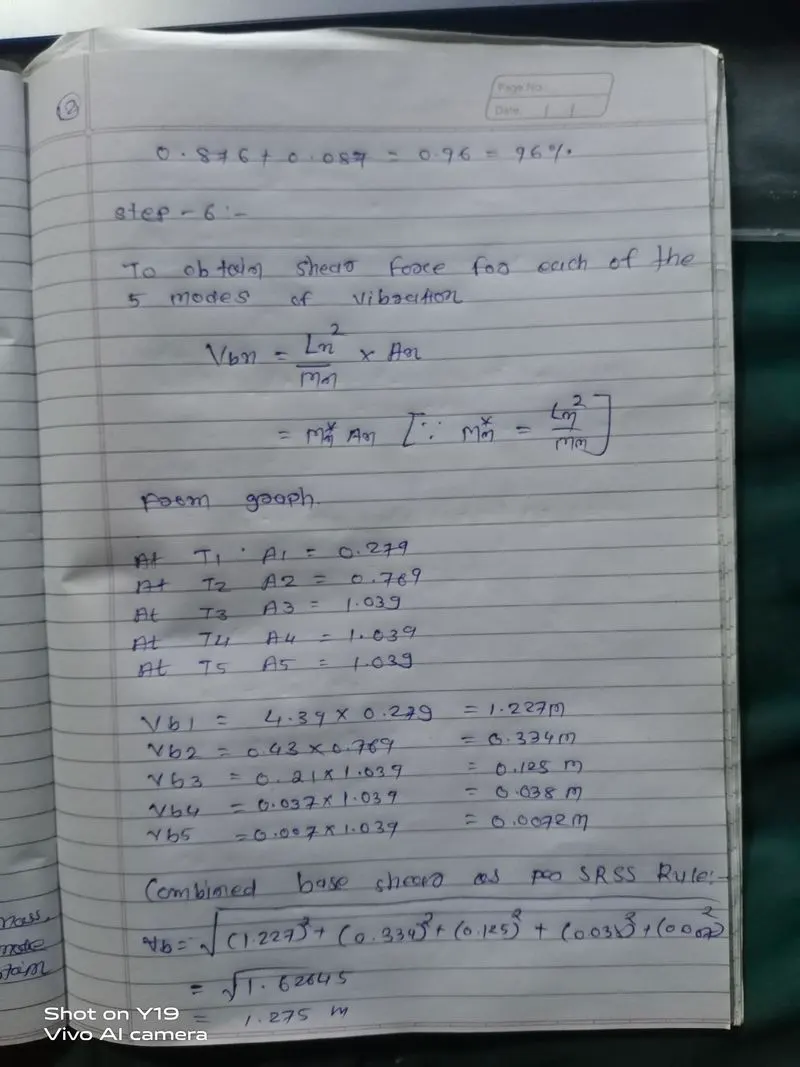

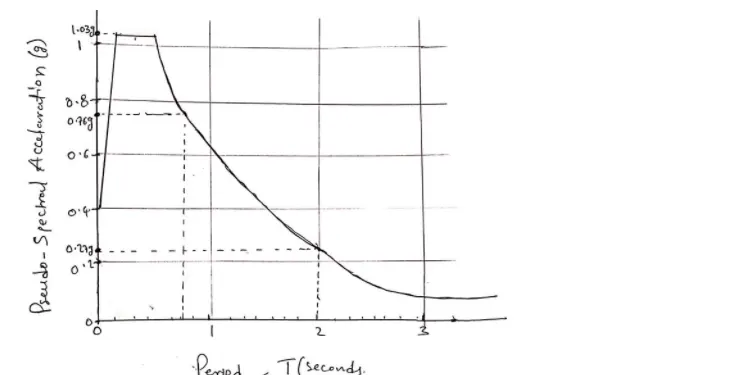

To obtain the base shear for each of the 5 modes of vibration and the combined base shear as per SRSS rule.

PROCEDURE:-

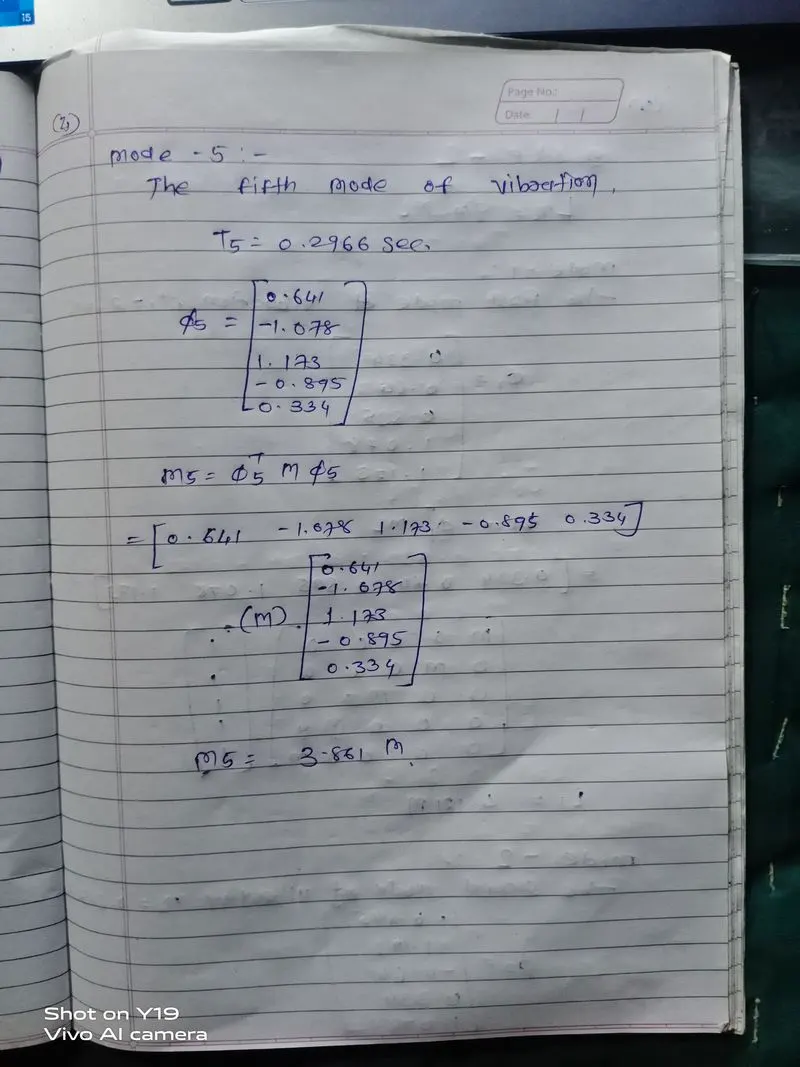

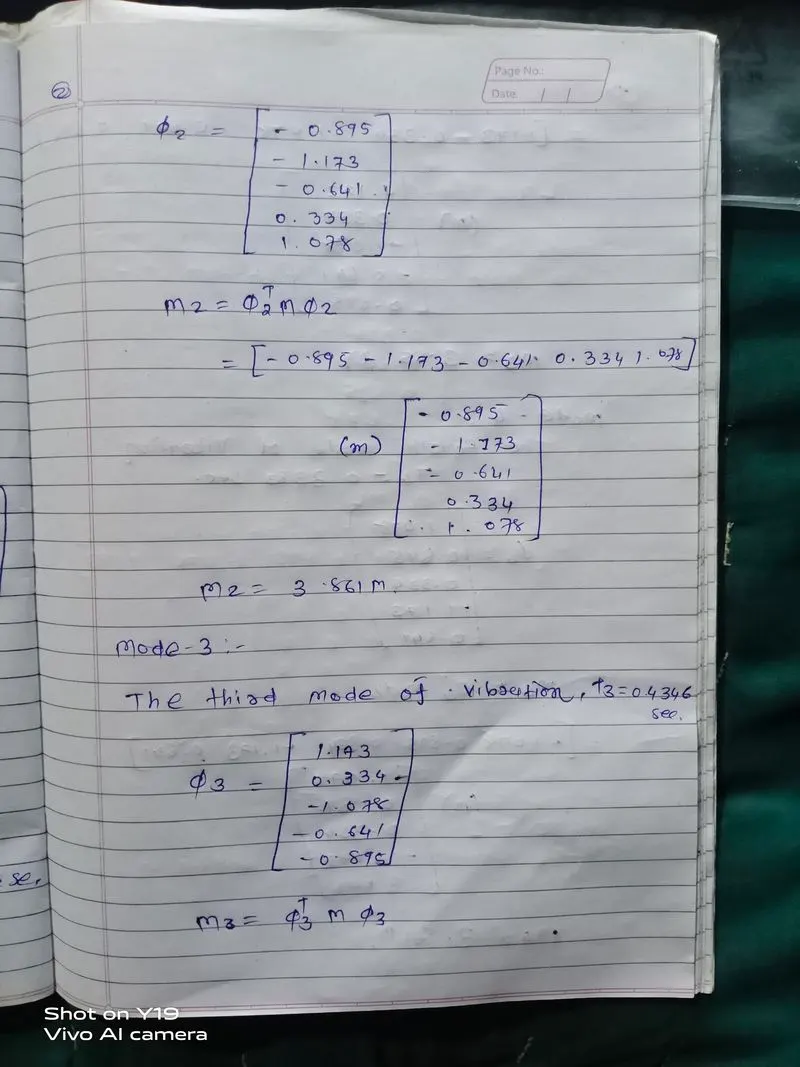

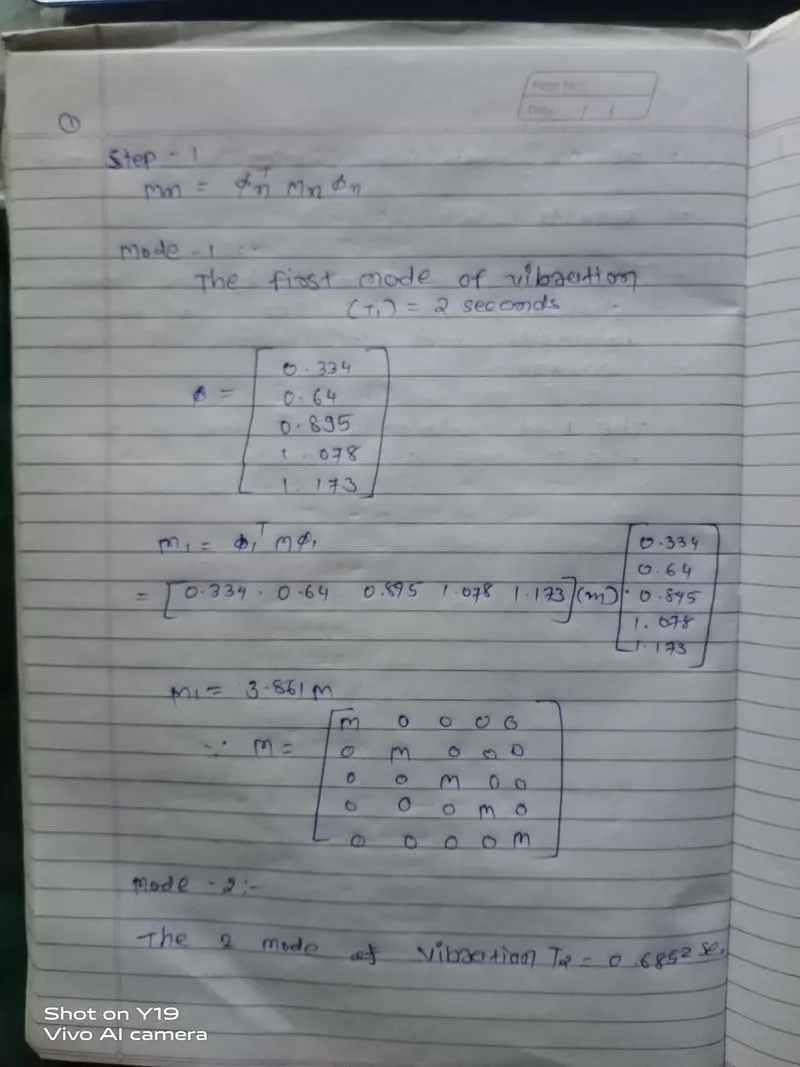

Step :- 1

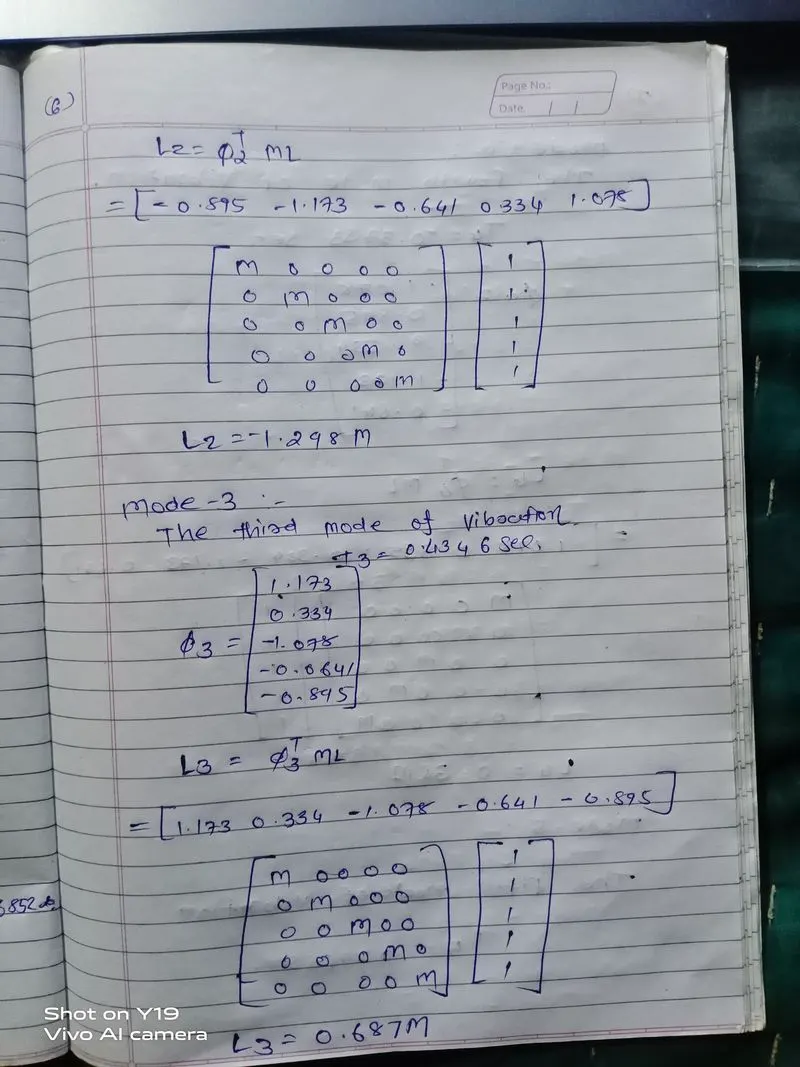

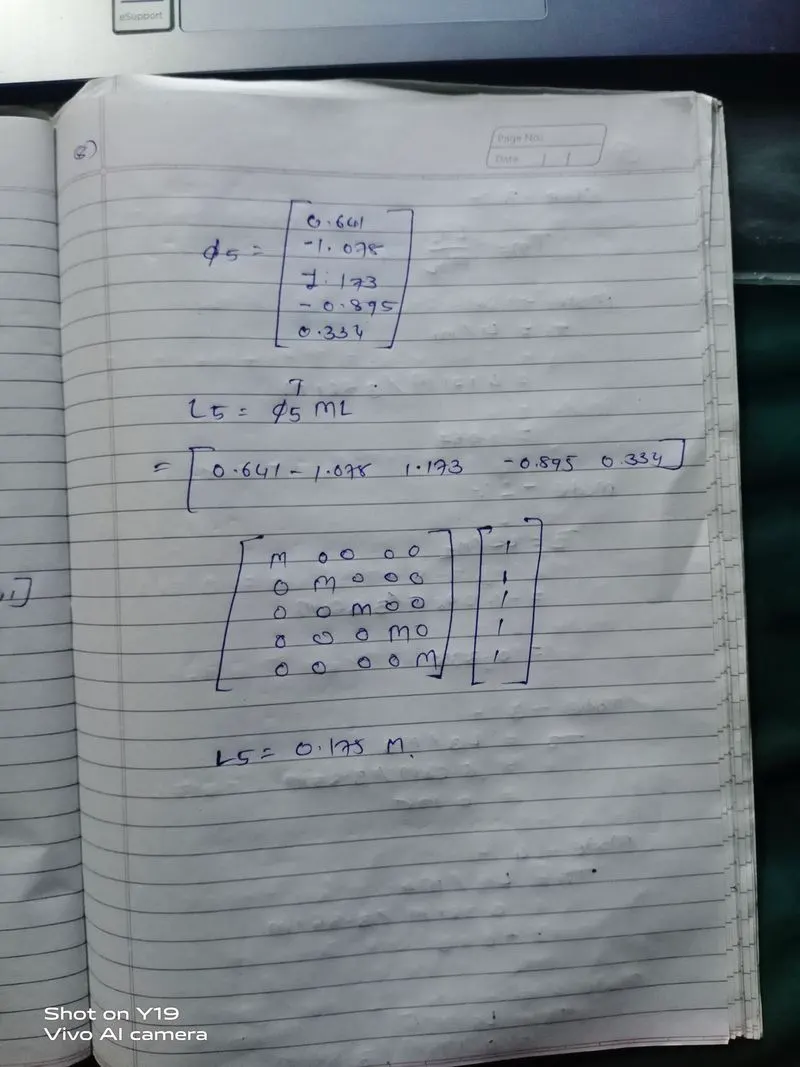

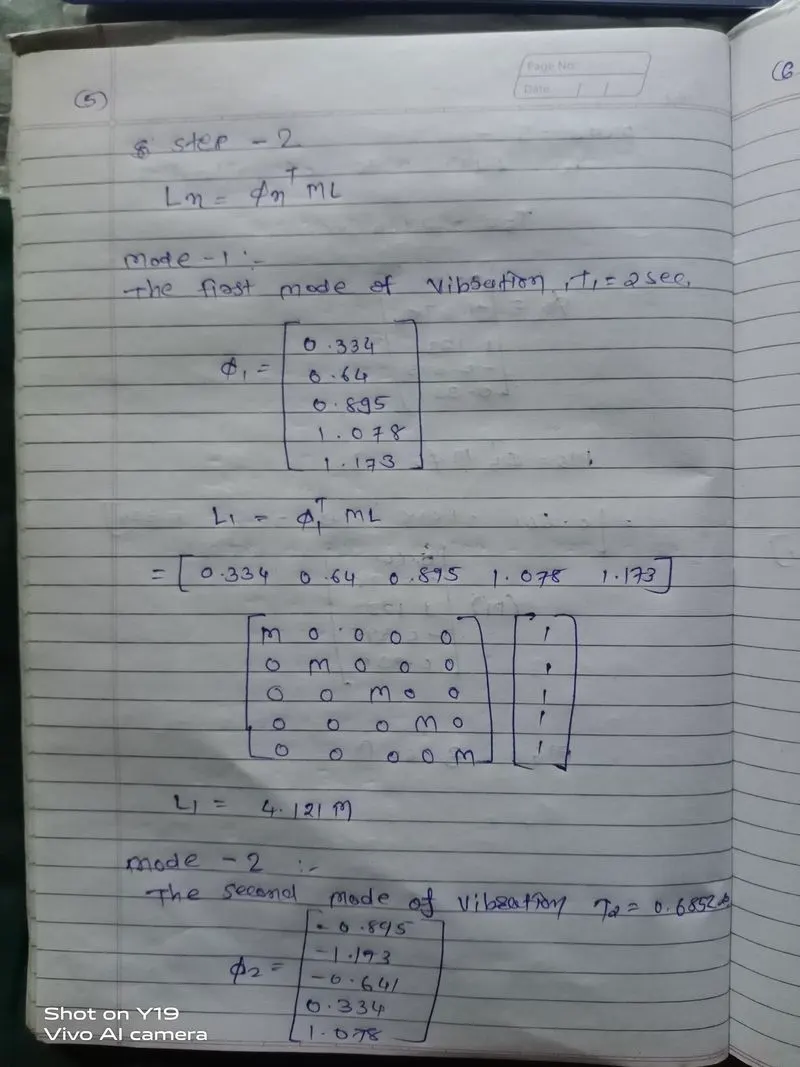

Step -2:-

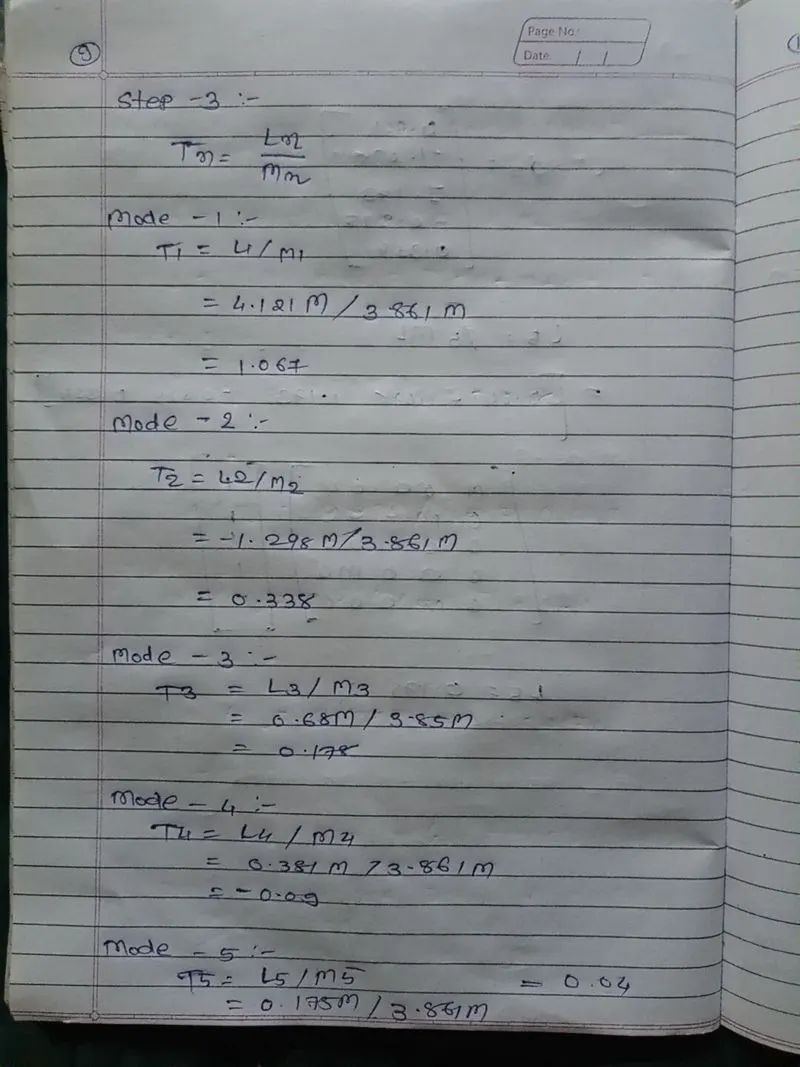

Step -3:-

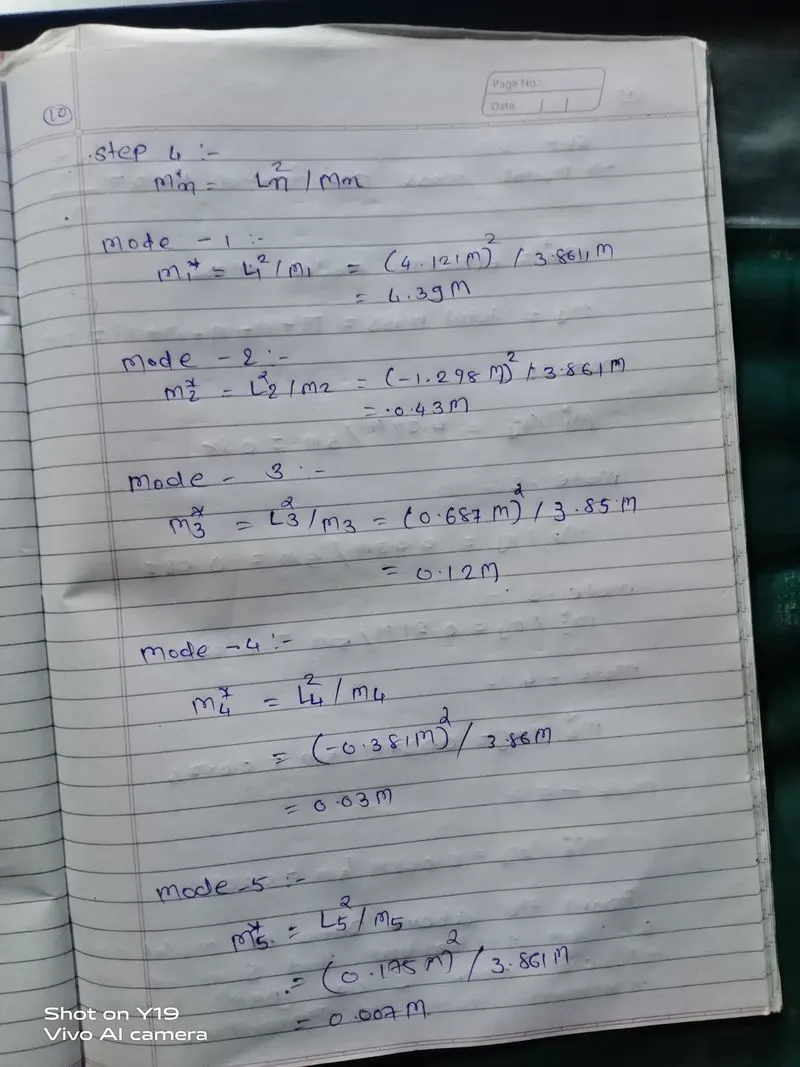

Step -4:-

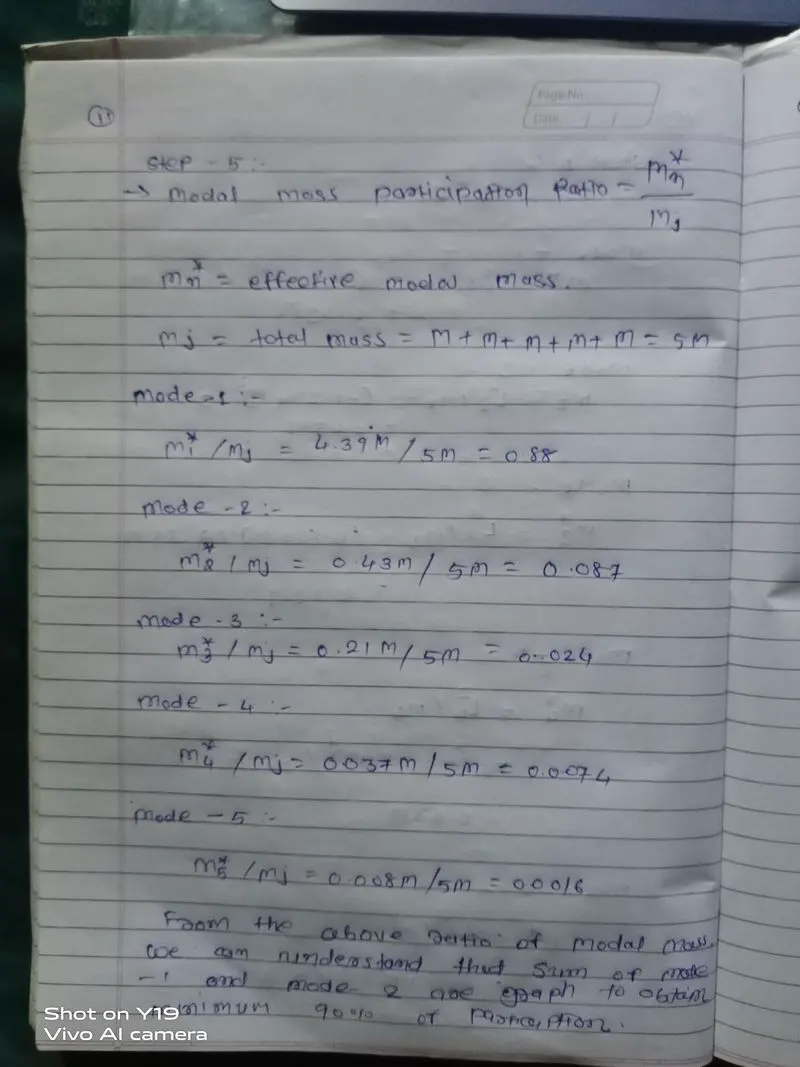

Step 5:-

.
