Underbody Coating
Write a one-pager about Under-Body Coating and its purpose, its types in detail, and its pros and cons:

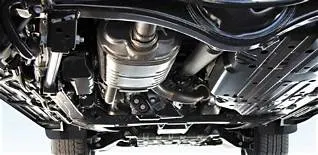

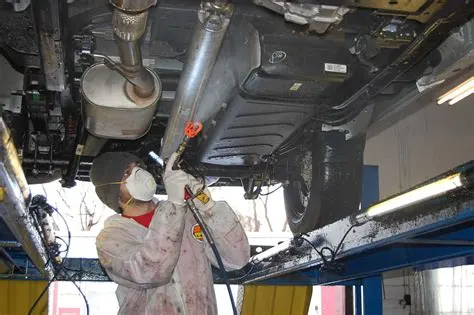

Underbody coating is a thick cladding (typically made of rubber) that is placed uniformly to the car’s underside. When the automobile is fresh off the lot and spotless, it is usually sprayed or painted on. But it’s acceptable if you apply the undercoating after a couple of years. This is because it might protect the undercarriage from additional harm.
The main purpose of undercoating is to check rust especially in the body components like frame rails along with other exposed metal parts. Underbody coating can also reduce wear and tear.
TYPES:
- Rubberized Underbody Coating.
- Wax-Base Underbody Coating.
- Asphalt-Based Underbody Coating.
- Polyurethane Underbody Coating.
Rubberized Underbody Coating:
This is generally thought of as the best underbody coating for your car. It preserves the underbody well, protecting it from scratches. Applying this to the undercarriage is not much of a hassle either.
Rubberized Vehicle underbody coating is easy to apply and offers sound-cushioning as well as protection from dust, moisture, and dings or dents.
In addition to your undercarriage, rubberized undercoating is also safe to use on wheel wells and quarter panels, and dries to a soft rubbery finish that prevents further rust, damage, or moisture seeps. The coating can be painted over and, if necessary for bodywork, can be easily removed with an undercoating removal spray.
Overall, the rubberized coating is generally the best option for protecting your vehicle's undercarriage, as it provides the simplest and best protective measures against rust and moisture.
- Heavy-duty undercoating seals protect & insulate.
- Rubberized for maximum durability.
- Excellent professional blend all-purpose coating.
- Use it for rust prevention, sound deadening, abrasion resistance and more.
- Seals: frames, rocker panels, wheel wells and more.
- Fully cures in 24 hours at 77°F (25°C).
- For best adhesion apply to a clean, dry surface.
- Tap the bottom of the can to loosen the agitator ball then shake well.
- Apply a uniform coating by holding a can 10-12 inches away from the surface.
- Multiple coatings can be applied, allow 15-20 minutes between coats.
Wax-Based Underbody Coating:
This – more or less – ephemeral undercoating will wear away in a few months’ time. On the upside, wax-based undercoating puts up a big fight against moisture. It is also the most affordable option out there.
A paraffin-based undercoating will be the cheapest and quickest option available with which to protect the undercarriage of your vehicle. However, keep in mind that it will wear off quicker than other types of undercoating and will need to be stripped and reapplied at least once every year.
Wax-based undercoatings never truly harden. During application, they drip or flow into seams and cracks to provide protective properties. They are usually available in a spray gun canister or in an aerosol can and offer at least a base protection in moderately humid climates.
Wax-based underbody coating spray is primarily used on wax-coated vehicle underbodies and partially for the secondary treatment of all protective coatings, like those based on PVC, PVC/wax, bitumen/rubber and rubber/resins. In addition, the material has proven successful for the following applications.
- Secondary treatment of inaccessible areas, such as corners, edges, seams etc. Where rust spots are preferably formed.
- Addition of existing coating material based on PVC, bitumen/rubber, rubber/resins and wax.
- For selective applications and for repair coating of all underbodies after an accident.
Asphalt-Based Underbody Coating:
Best suited for lorries, trucks and large vehicles this provides a greater degree of protection compared to rubber-based coatings. However, asphalt-based coatings contain little amounts of rubber for sound-insulation purposes. The process of applying this coating is a bit time-consuming though.
For standard vehicles, any of the aforementioned types of undercoating will provide sufficient protection. For large trucks and heavy machinery, asphalt-based undercoating provides a bit of extra durability against rocks, chips, and moisture.
Asphalt-based undercoating generally contains a little bit of rubberized material that sets up firmly and also helps soften noise. Generally sold in five gallon containers, this type of undercoating also needs more cure time than the other three, and is NOT paintable, making it best to use only for undercarriages.
Polyurethane Underbody Coating:
This coating closes up splits and fractures on the underbody of the vehicle. It offers up good protection against corrosion and also bonds with the metal. Unlike in the case of asphalt-based coating, you can paint over the polyurethane coating.
The other option for undercoating your vehicle is to use a polyuethane-based sealant. This type of vehicle undercoating is a little bit quicker and easier to apply.
Polyurethane Undercoat is a two-pack modified polyurethane based on the chemical reaction of polyfunctional acrylic and isocyanate based material. Specially designed undercoat for exterior and interior masonry and wooden surfaces.
Oftentimes, polyurethane undercoating will come in canisters ready to preload into an application gun. This type of sealant works by seeping into all cracks and seams, displacing salt and moisture and oozing around rusty areas to bond with and protect unoxidized metal. It also sands quickly in case you'll need to perform bodywork and can be painted over.
On the flipside, this type of car undercoating generally requires a little bit more surface prep work before applying -- sanding and applying an etching primer to bare metals before using are generally recommended.
- Excellent mechanical film properties such as film hardness, adhesion, scratch and abrasion resistance.
- Good algae and fungi resistance.
- Highly resistant to splash and spillage of corrosive chemicals, solvents and detergent.
- Excellent adhesion on old epoxy and polyurethane painted surfaces.
- Provides a very stable base coat for subsequent coat.
- Easy application.
Pro's and Con's of Underbody Coating:
Pro's:
1. It extends the lifespan of your car
The protection against rusting gives you the biggest advantage, which is the long-life of the vehicle. If undercoating is done the right way, then it will provide protection for up to 10 years. In some cases, the time span is more than ten years, which extends the lifespan of your vehicle.
2. No more loud road noise
The undercoating serves as an extra layer of insulation, reducing the noise from penetrating inside components. Thus padding acts as a barrier between you and the source of the noise. If the road noise bothers you while driving your car, truck, or SUV, then applying to undercoat can help you.
3.It provides a layer of protection against corrosion.
Con's:
- It is less helpful if corrosion is already present.
- It works best on new cars.
- It adds weight to the vehicle.
- An undercoating is not impervious to damage.
