Tool Test-2

AIM

To check for the geometrical errors and mesh the Surfaces with the given 2D element Quality criterias and check for Tet collapse errors and solve it for volume meshed elements

PROCEDURE

• Import the model
• Do CONS resolution,length=1,
• Do TOPO

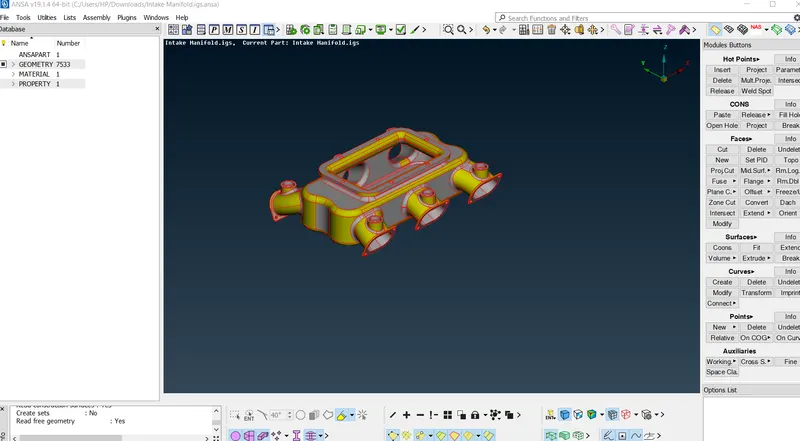

a)Before TOPO

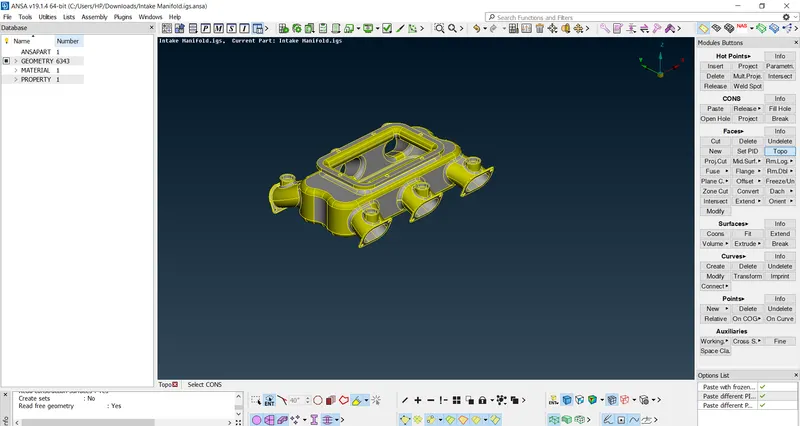

B)After TOPO

• Do ORIENT, to make the faces normal to one direction

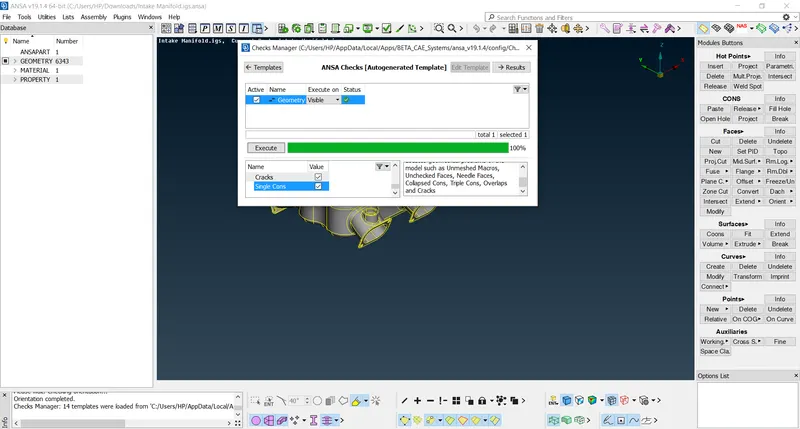

• Go to CHECKS>GEOMETRY,and execute

• Apply target elemental length ,min and max length and change elements to tria
• Apply quality parameters as given
• provide lengh in mesh module,ie give target element length
• generate mesh by best operation

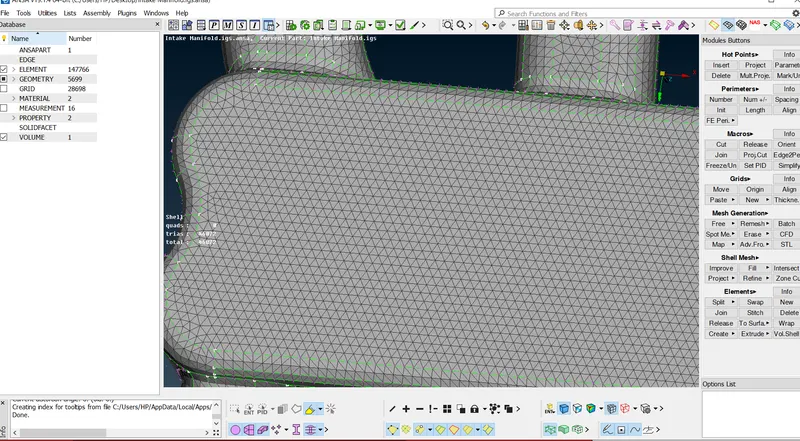

a)For flat surfaces change elements to tria

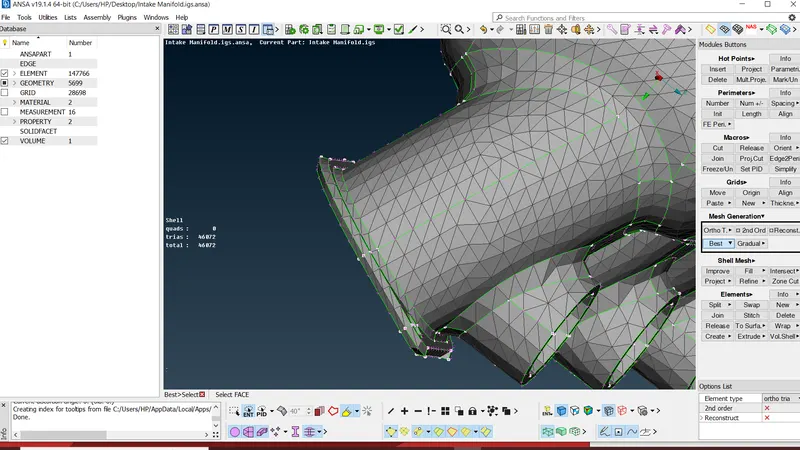

b)For curved surfaces change elements to orthotria

• Check for quality errors ,if any perform reconstruct and smooth operation

• After meshing check for geometrical errors
• Make sure there are no quad element

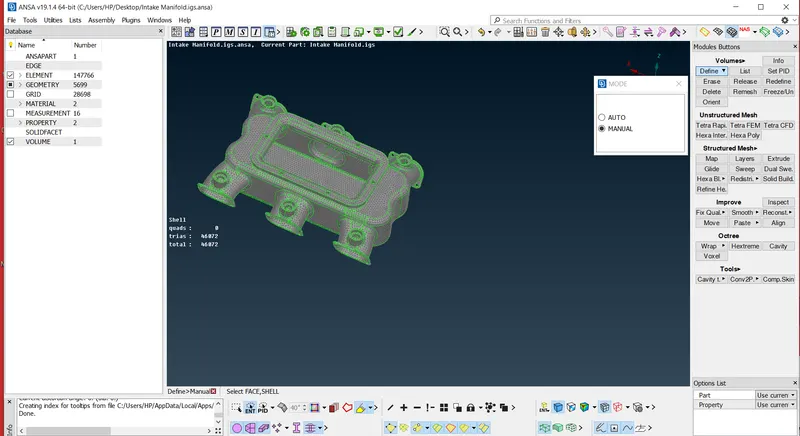

• Go to volume mesh module,and define volume by manual

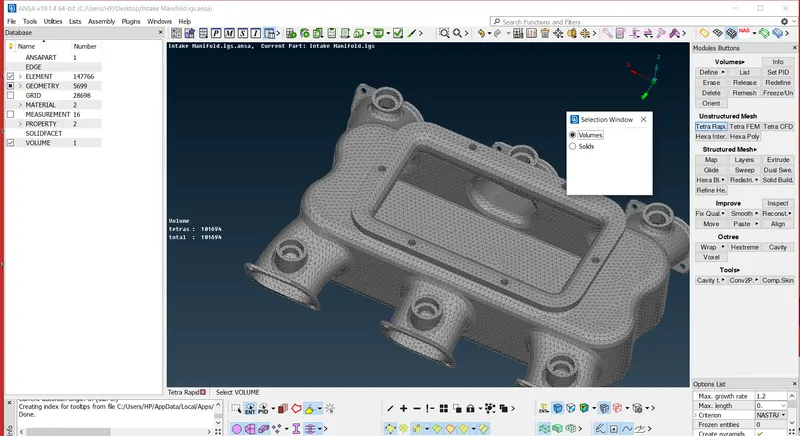

• Use TETRARAPID option to perform 3D mesh on the defined volume

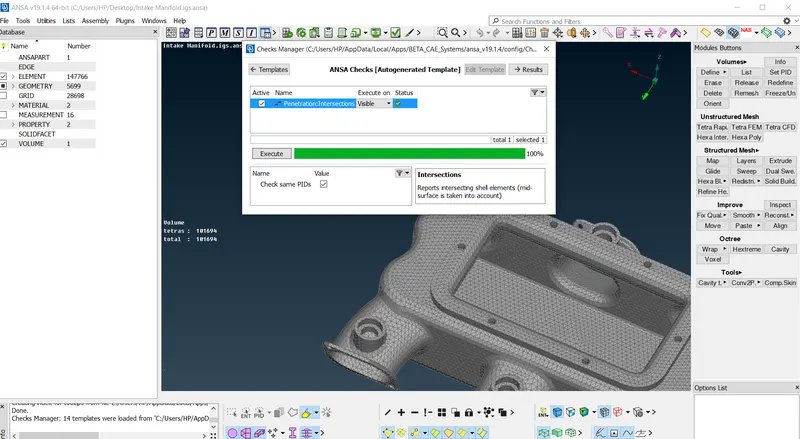

• After volume meshing,Go to Checks>penetration and check for penetration and intersectional errors

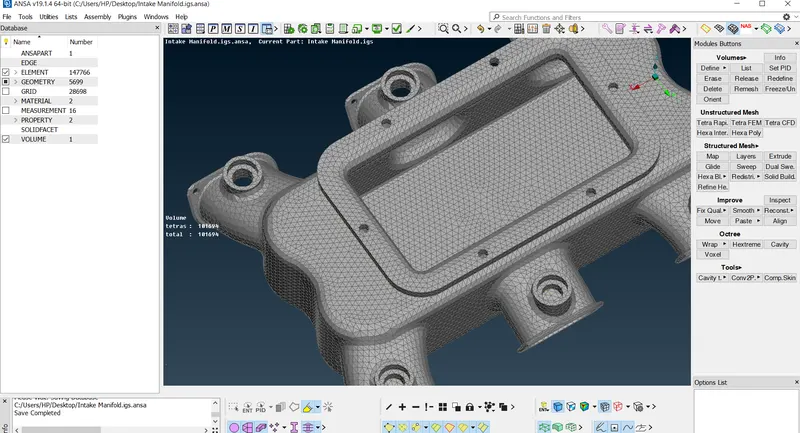

• After penetration check,Below model is thus created by volume meshing
