Tool Test-2
AIM:
- For the given Intake Manifold component, check for the geometrical errors and mesh the Surfaces with the given 2D element Quality criteria's given below.
|
Sr. No |
Quality Criteria |
Value |
|
1 |
Target/Average length |
3 |
|
2 |
Minimum Length |
1 |
|
3 |
Maximum Length |
5 |
-
Use tetra elements to mesh the Volumes defined in the model and check for the below quality after Volume meshing.
Sr.No
Quality Criteria
Value
1
Tet collapse
0.2
- After the shell mesh

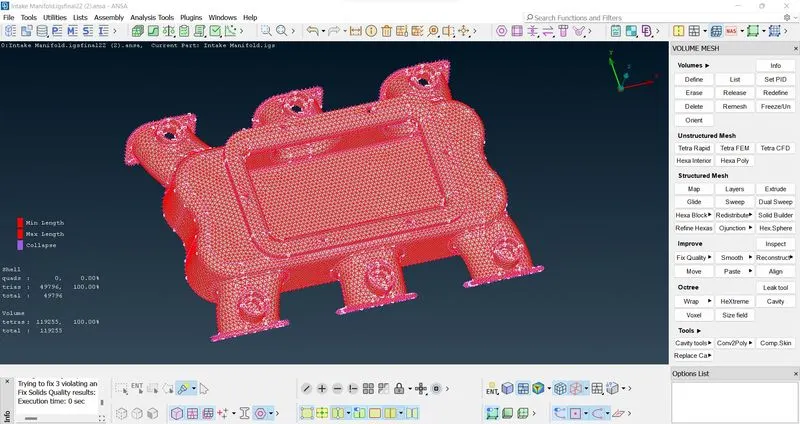

- After the volume mesh and I used here Tetra FEM for volume mesh with zero off
