Tool Test-2

Time taken: 7 hrs

Aim: For the given Intake Manifold component,check for the geometrical errors and mesh the Surfaces with the given 2D element Quality criteria given below.

Objective: All the 2D elements in your model should clear the above mention Quality criteria.

Procedure:

1. First step import the model.

2. Then use orient command.

3. After that geometric cleanup of the Model and fix the error occurs during geometric cleanup.

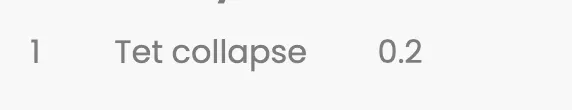

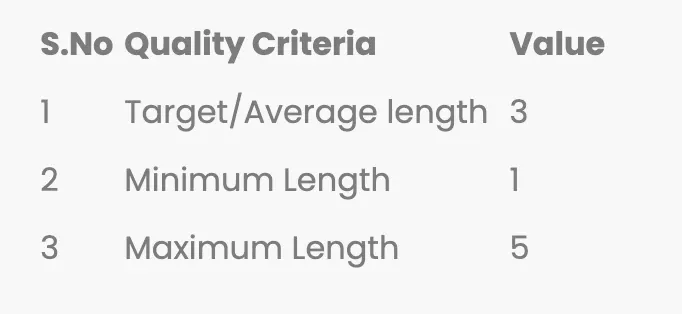

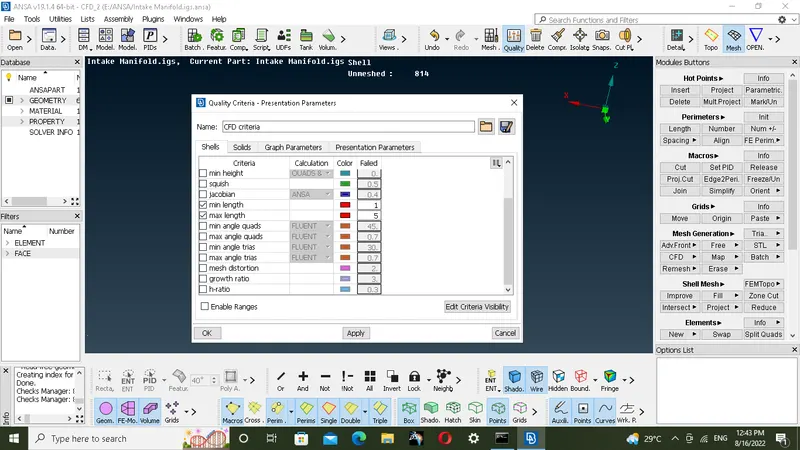

4. After that set the Quality criteria.

5. Also mention the mesh perimeter values and set ortho tria.

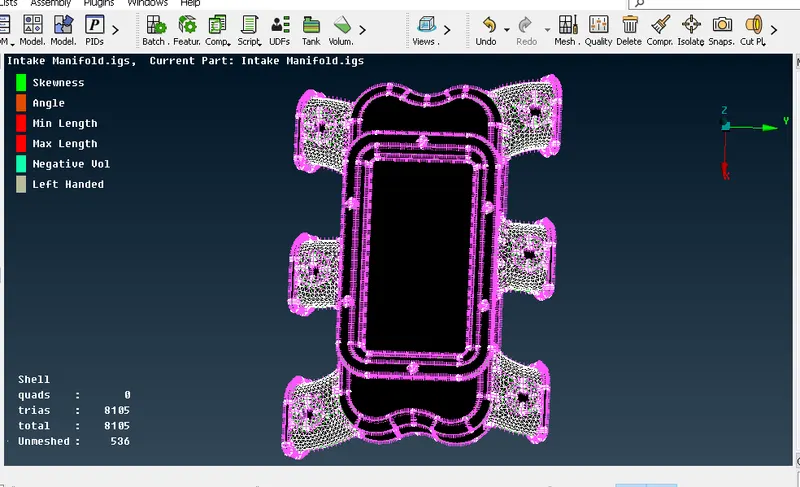

6. Generate mesh for particular model using Spot mesh option for curves and complited parts and rest of the model is meshed through tria.

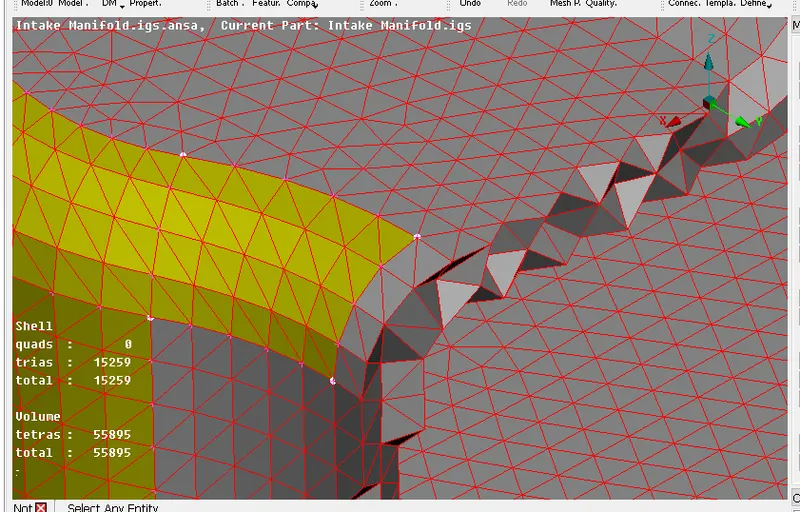

7. To avoids trias in meshing use command like Split,Swap,Num+/-,Reconstruction and Smooth option respectively.

8. Once the 2D mesh is completed then go for Volume mesh.

9. In Volume mesh first define the PID after that in list option select Remesh.

Start the Process:

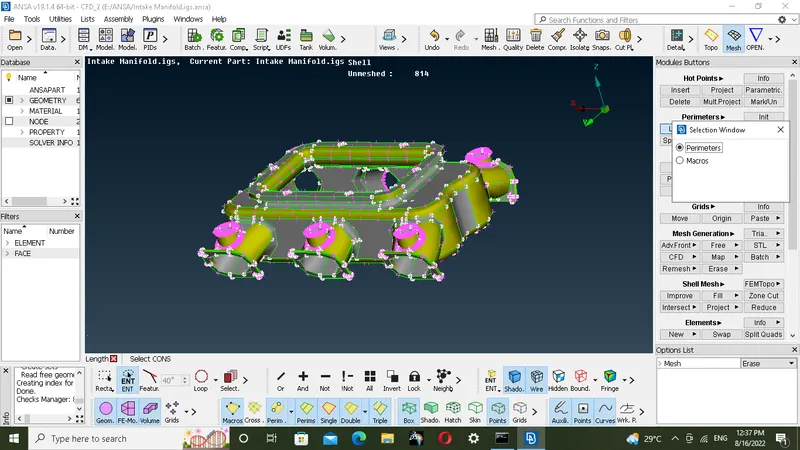

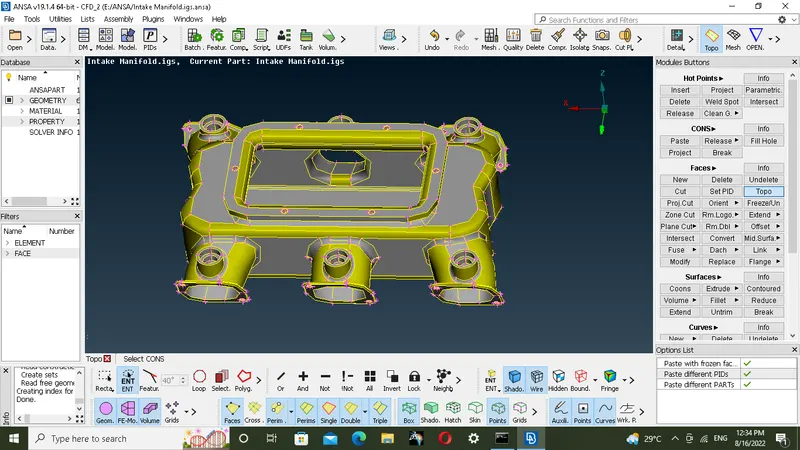

import the model and perform topo

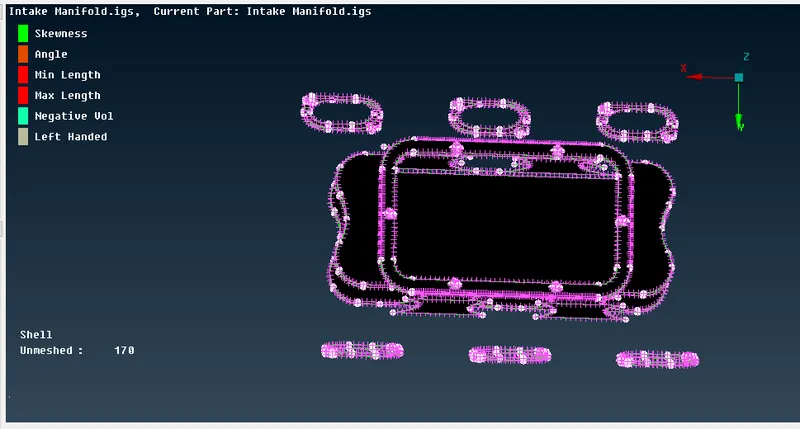

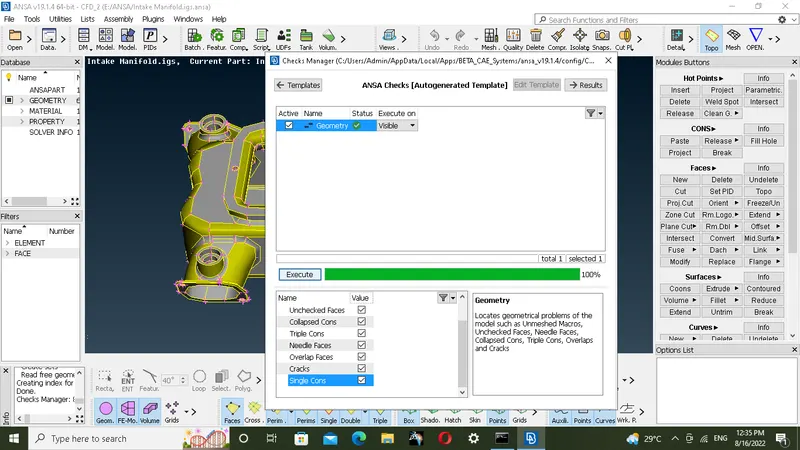

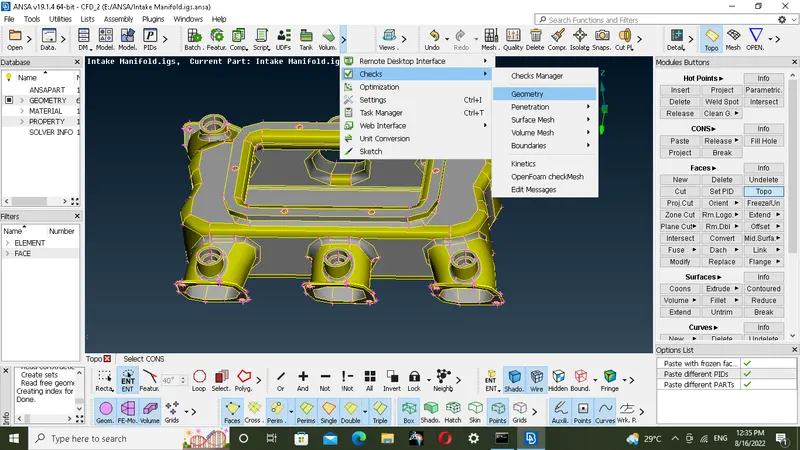

geometric cleanup

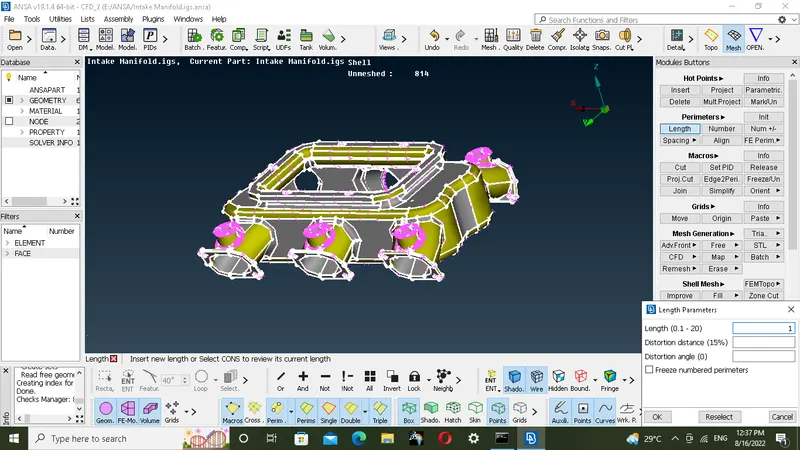

provide length

provide quality criteria values

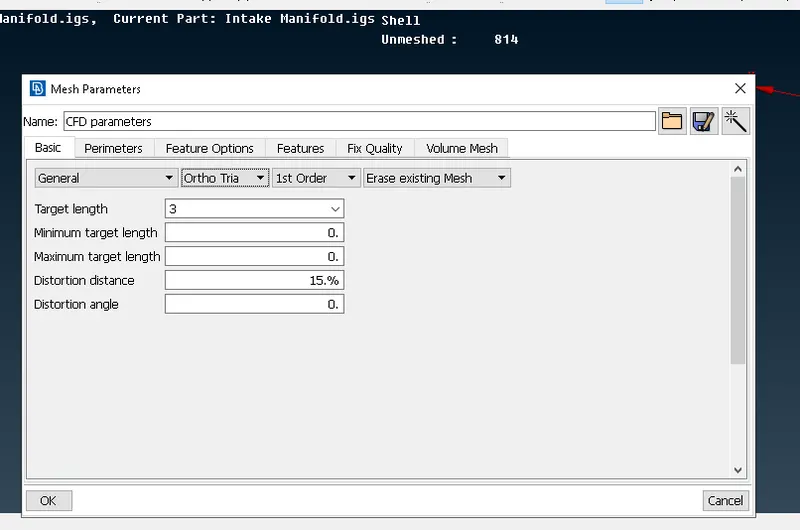

mention the mesh parameter

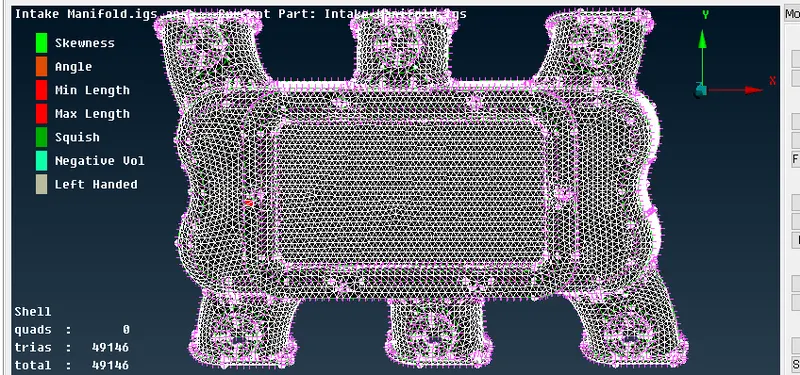

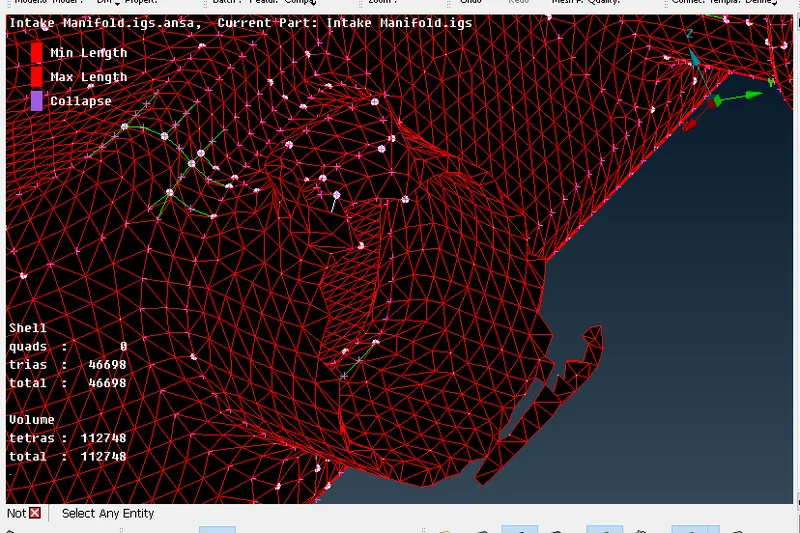

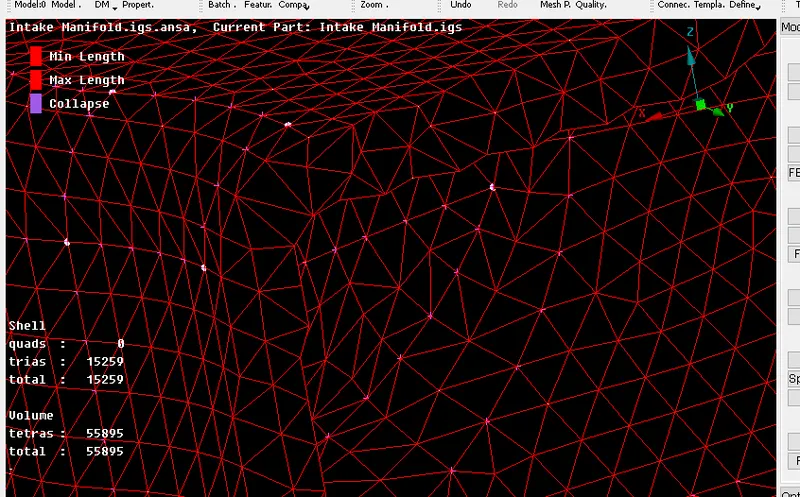

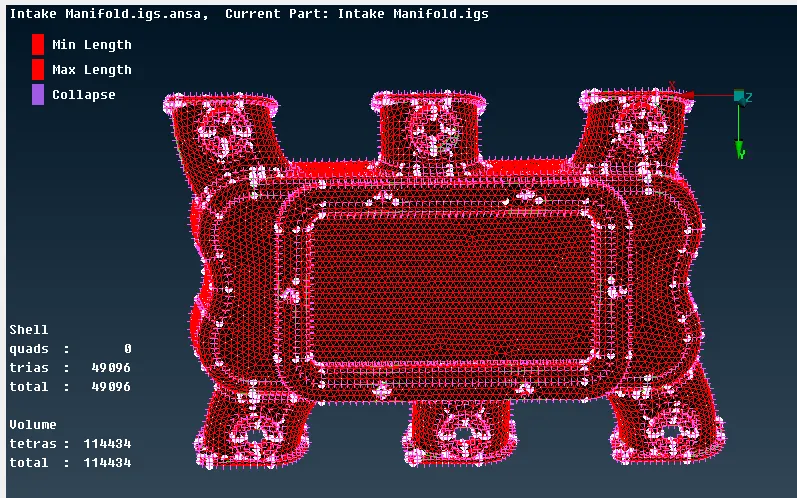

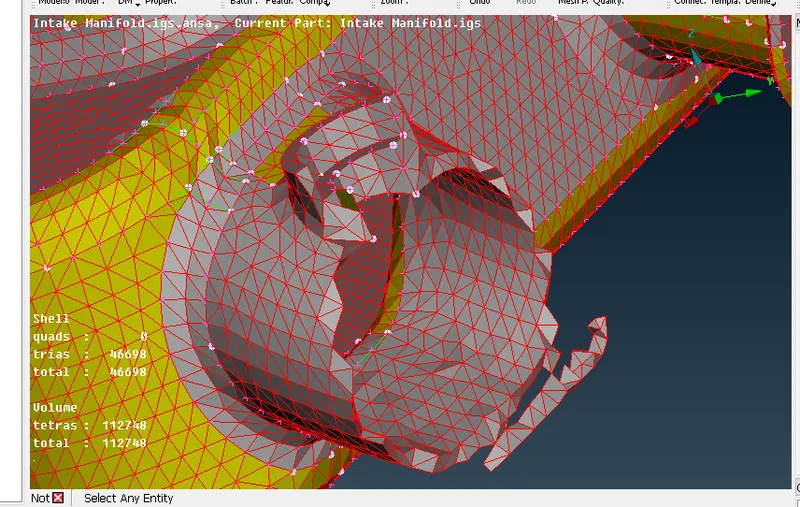

generate 2D mesh using spot mesh option.

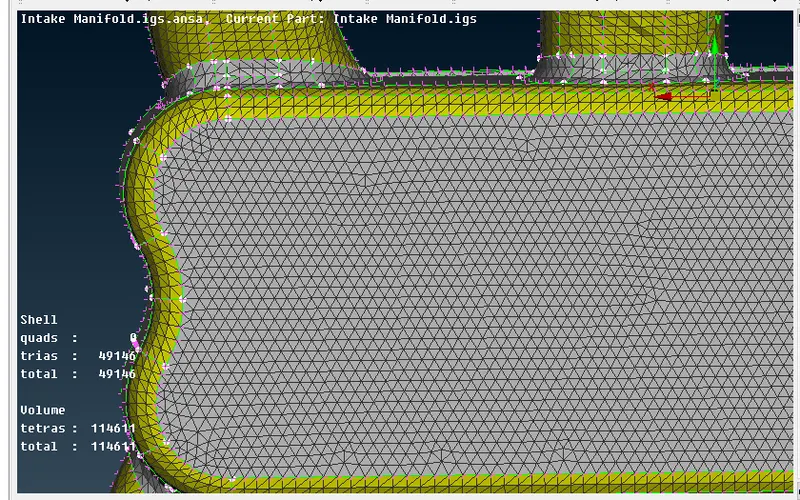

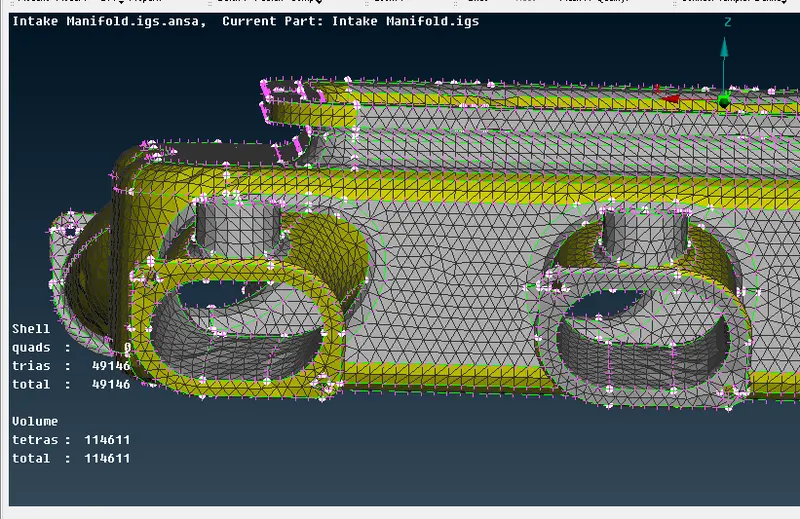

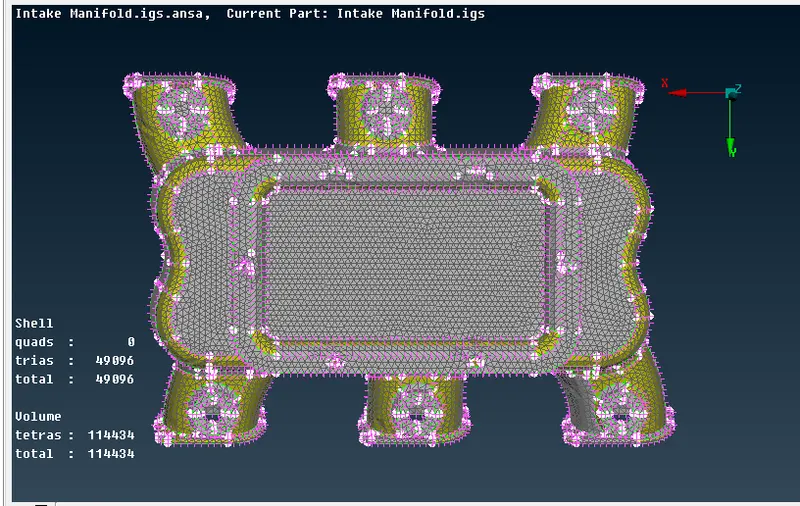

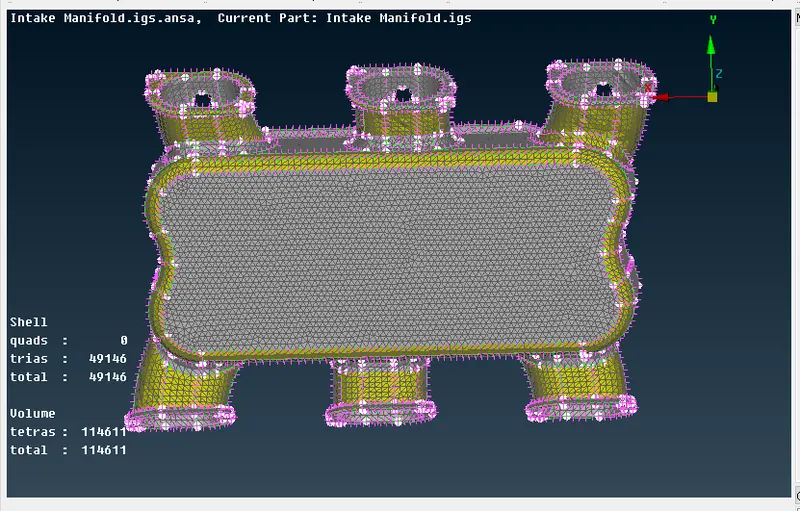

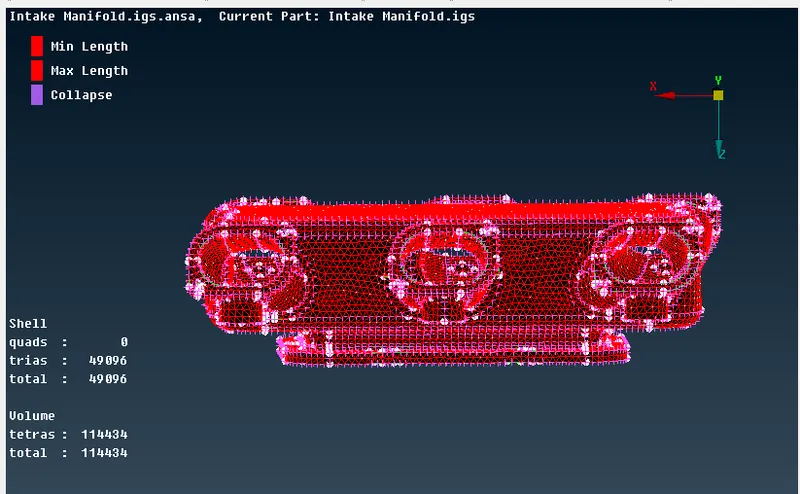

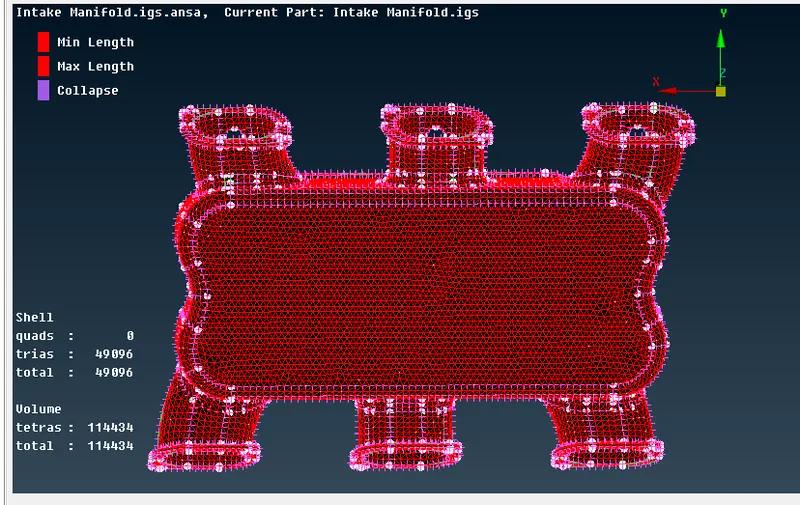

generate volume mesh

Conclusion:

1. We sucessfully generate the 2D mesh and clear all the Quality criteria.

2. We sucessfully generate the Volume mesh
