Tool Test-2

AIM:

For the given Intake Manifold component, check for the geometrical errors and mesh the Surfaces with the given 2D element Quality criterias given below.

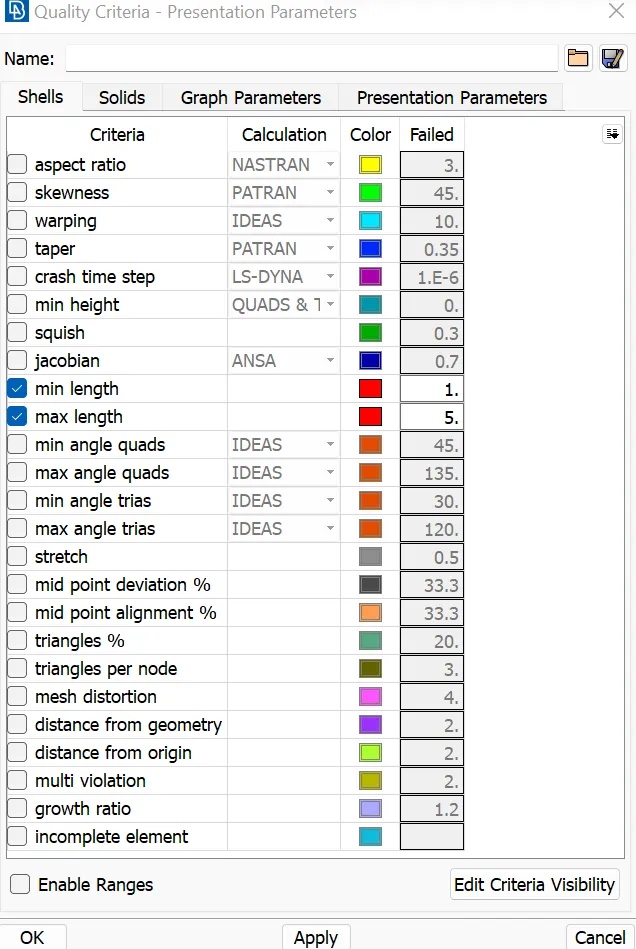

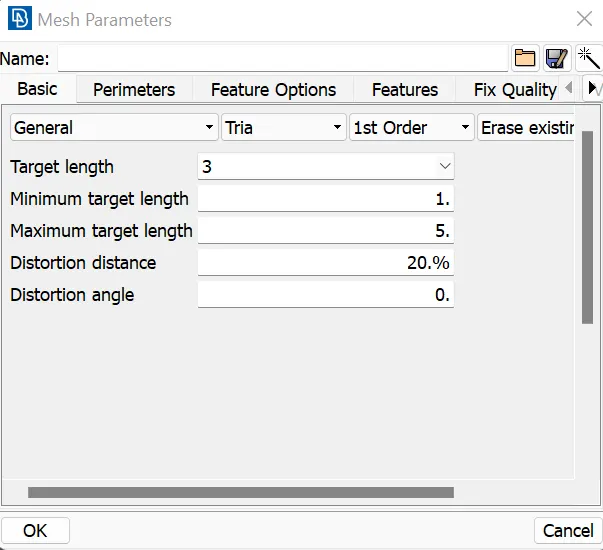

GIVEN PARAMETERS:

S.No	Quality Criteria	Value
1	Target/Average length	3
2	Minimum Length	1
3	Maximum Length	5

Use tetra elements to mesh the Volumes defined in the model and check for the below quality after Volume meshing.

S.No	Quality Criteria	Value
1	Tet collapse	0.2

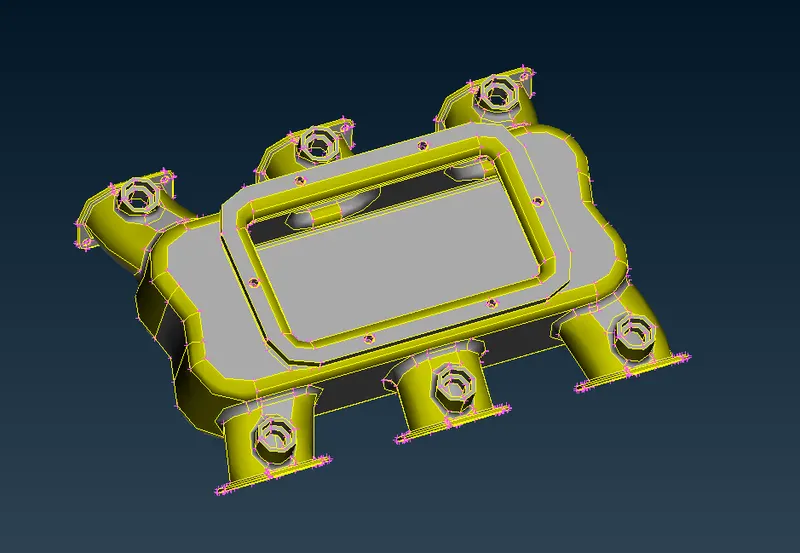

IMPORT THE MODEL:

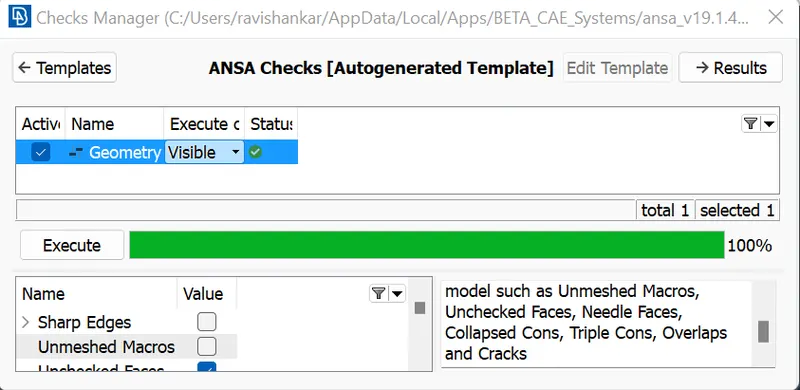

CLEAN THE GEOMETRY:

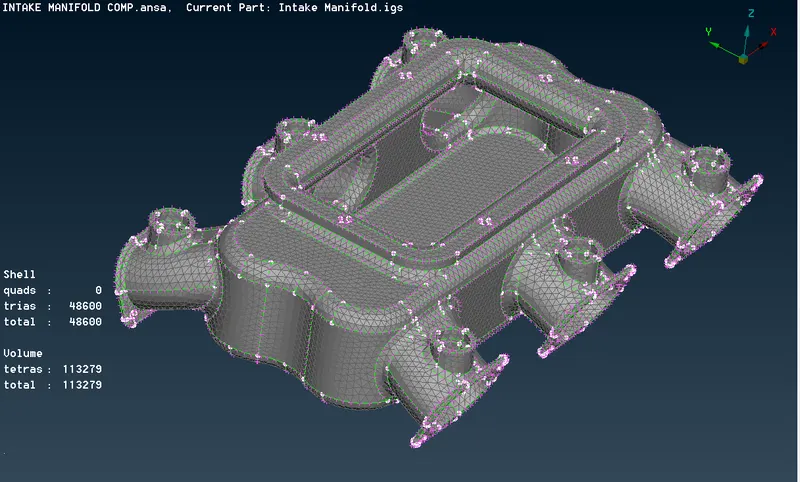

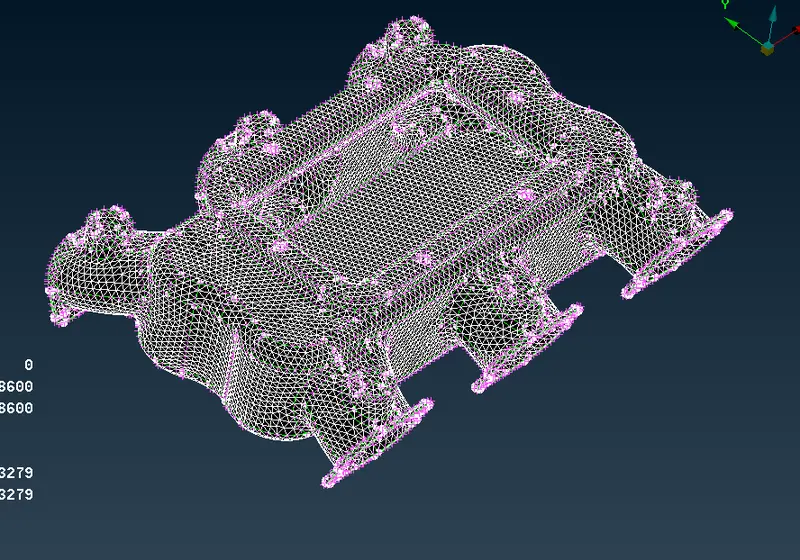

HERE IS THE FINAL OUTCOME OF THE MODEL AFTER MESHING.

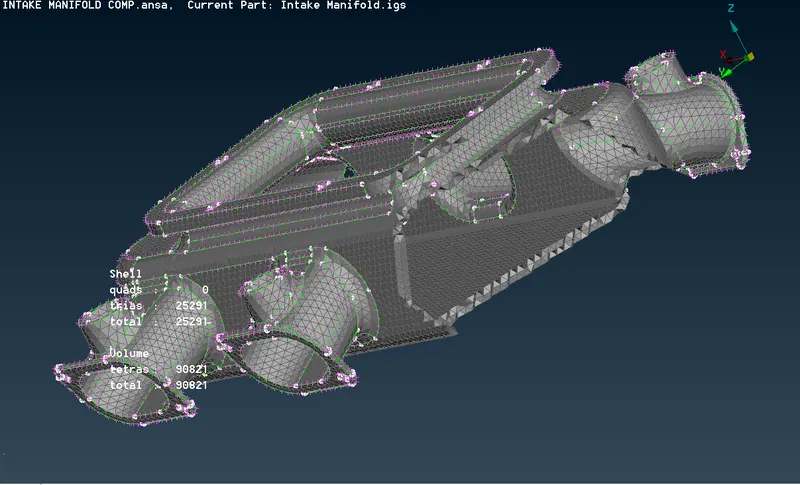

HERE WE CAN CUT THE MODEL WHETHER IT WILL MESH PROPERLY.

CONCLUSION:

HERE WE CAN CHECK THE GEOMETRICAL ERRORS AND MESH THE SURFACES WITH THE GIVEN 2D ELEMENT QUALITY CRITERIA.

DRIVE LINK:

https://drive.google.com/file/d/1q_JwFdkT4dbrICZ31pb89gOcKn-MeWzD/view?usp=sharing
