Tool Test 1

AIM:

To mesh the model and apply given criteria

Quality Criteria:

S.No	Quality Criteria	Value
1	Target/Average length	4
2	Minimum Length	2
3	Maximum Length	6
4	Aspect	3
5	Warpage	15
6	Skewness	45
7	Jacobian	0.7
8	Minimum Quad Angle	45
9	Maximum Quad Angle	135
10	Minimum  Tria Angle	30
11	Maximum Tria Angle	120
10	Tria Percentage	15

MODEL -1 : 3 HOUR

MODEL -2 : 3 HOUR

result model have been mesh as shown below :

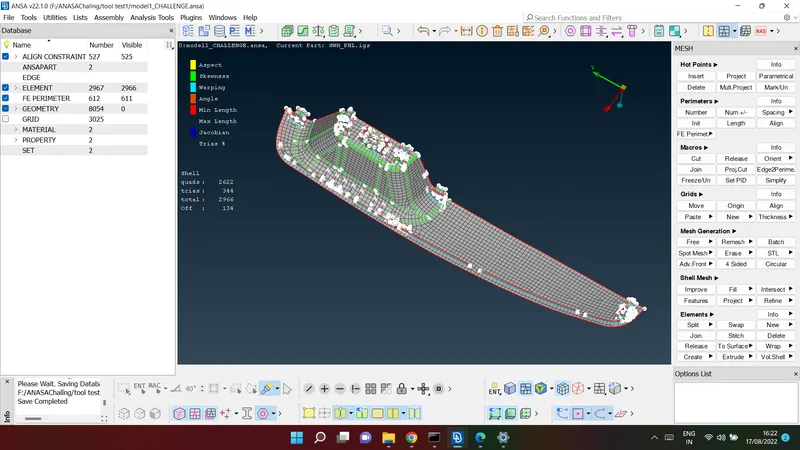

model -1 final image :

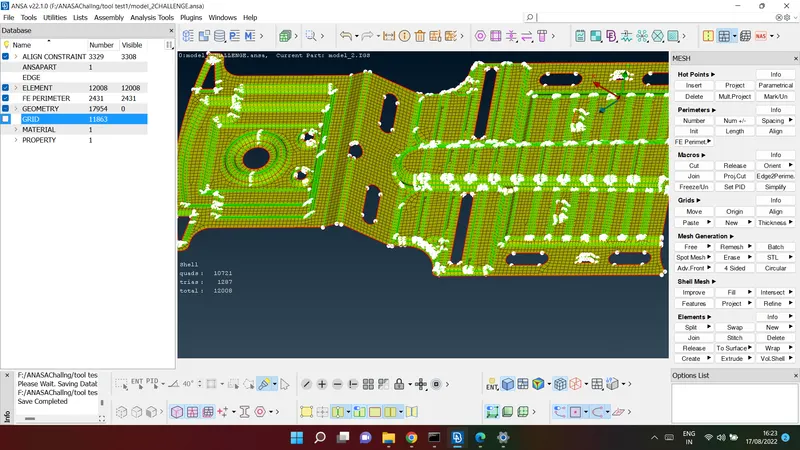

Model-2 final image :

Result :

mesh is done properly with the given criteria

thank you
