Tool Test 1

AIM:

For both the models, Mid surface should be taken and meshed as per below quality criteria.

GIVEN QUALITY CRITERIA:

S.No	Quality Criteria	Value
1	Target/Average length	4
2	Minimum Length	2
3	Maximum Length	6
4	Aspect	3
5	Warpage	15
6	Skewness	45
7	Jacobian	0.7
8	Minimum Quad Angle	45
9	Maximum Quad Angle	135
10	Minimum Tria Angle	30
11	Maximum Tria Angle	120
10	Tria Percentage	15

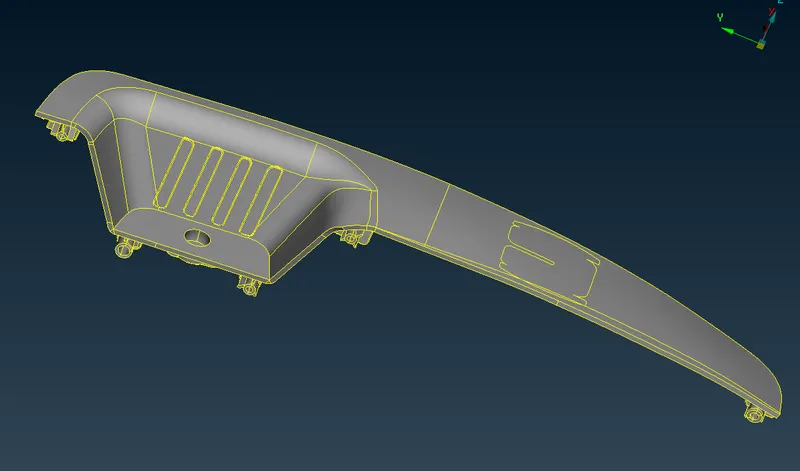

MODEL (1) SWITCH PANEL:

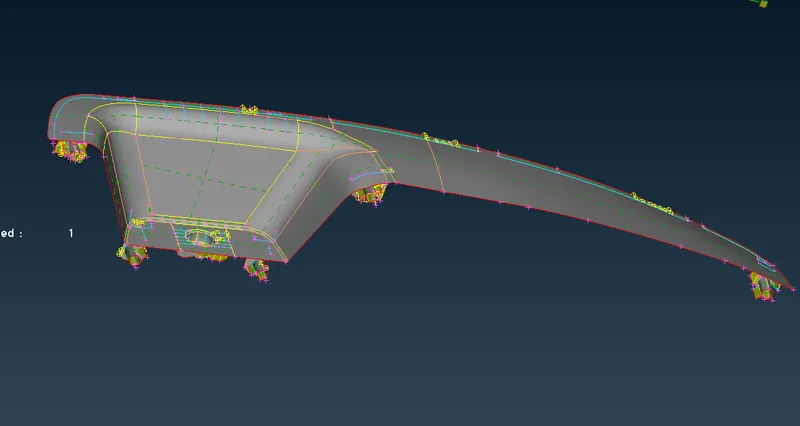

FIRST WE HAVE TO IMPORT THE MODEL IN ANSA.

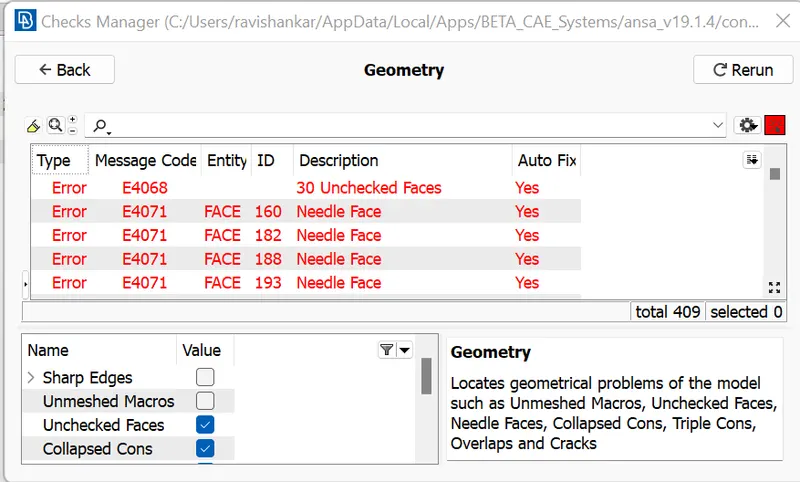

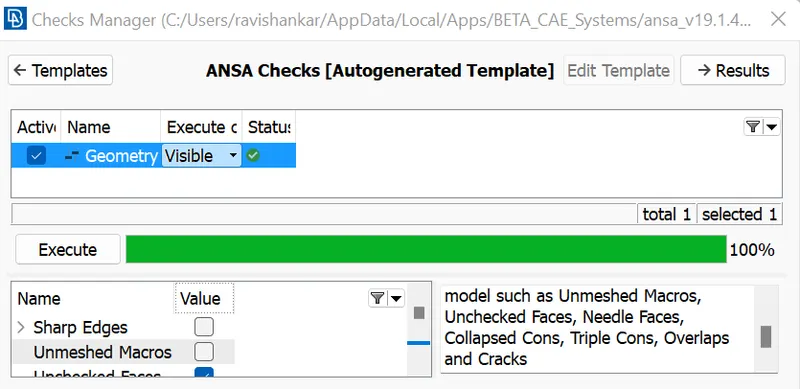

AFTER THAT WE HAVE TO CHECK THE GEOMETRY OF THE MODEL.

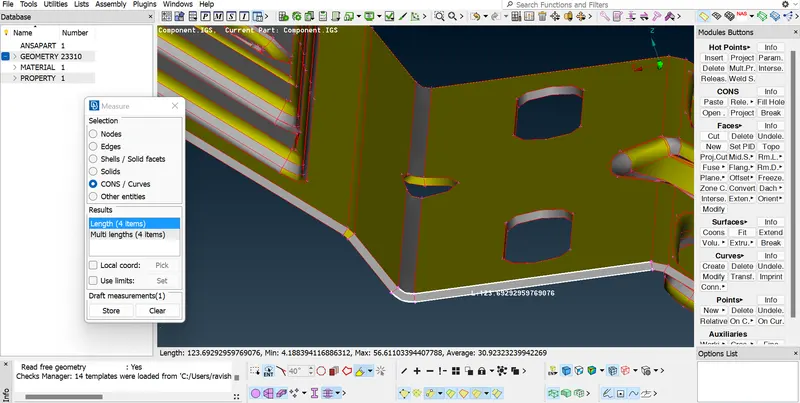

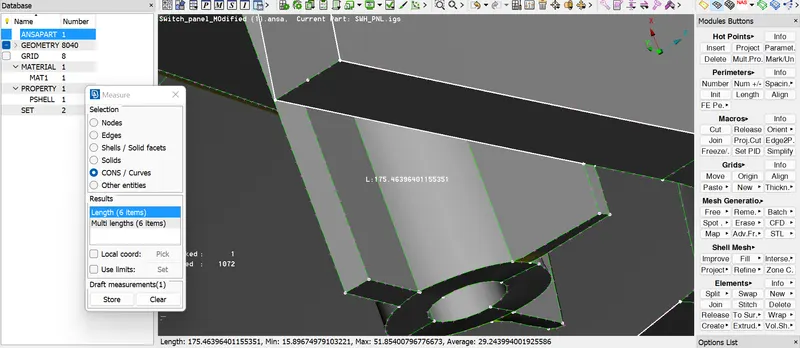

AFTER THAT WE HAVE TO MEASURE THE SIZE OF THE COMPONENT FOR OFFSET.

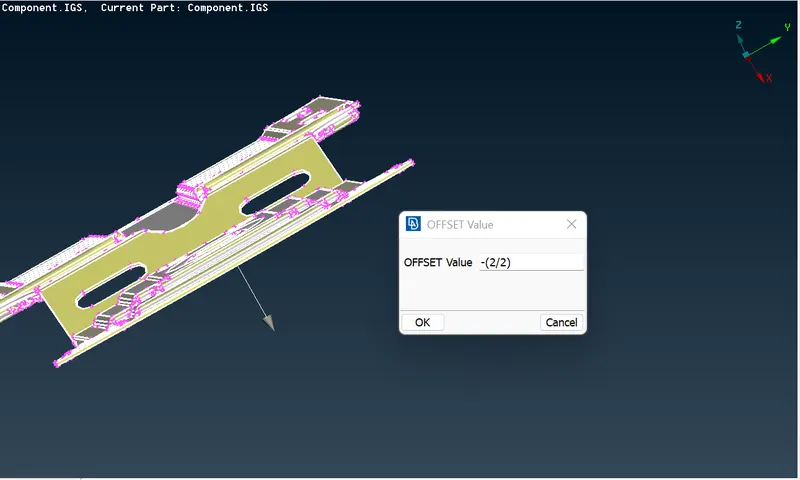

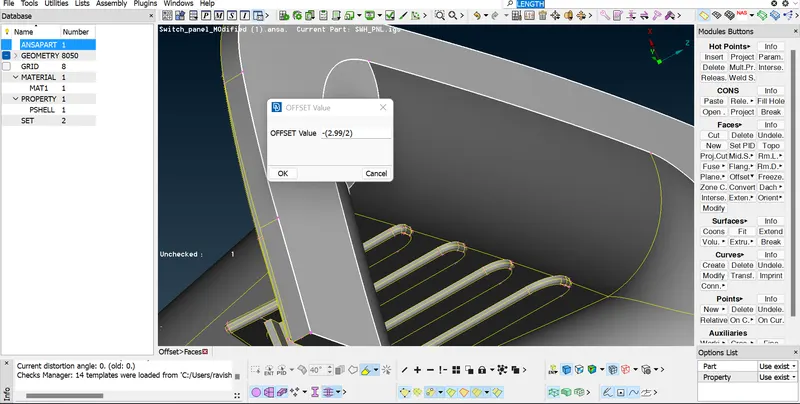

INPUT THE OFFSET VALUES.

AFTER THAT WE HAVE TO TAKE THE MID SURFACE FOR THE COMPONENT.

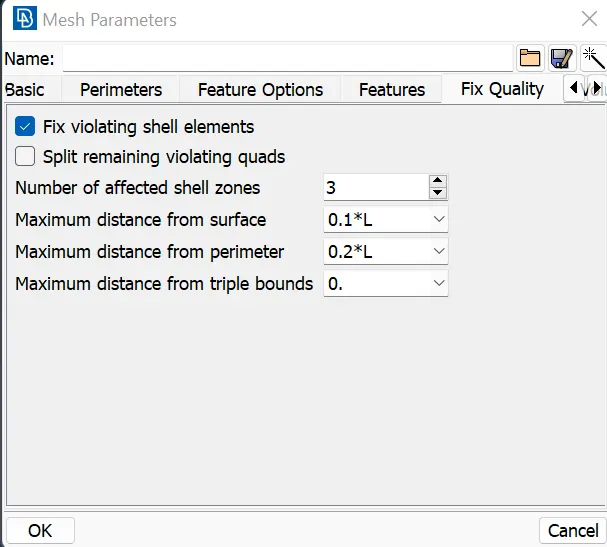

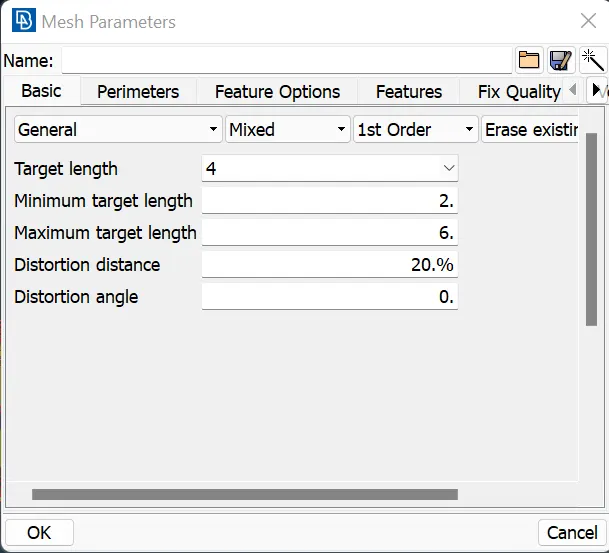

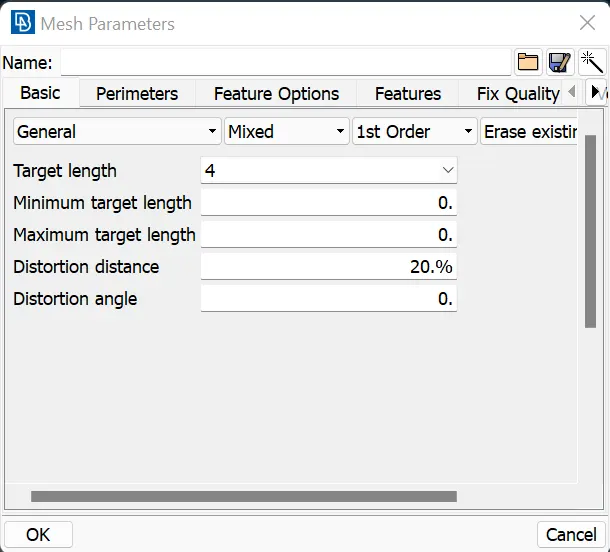

MESH PARAMETERS VALUE:

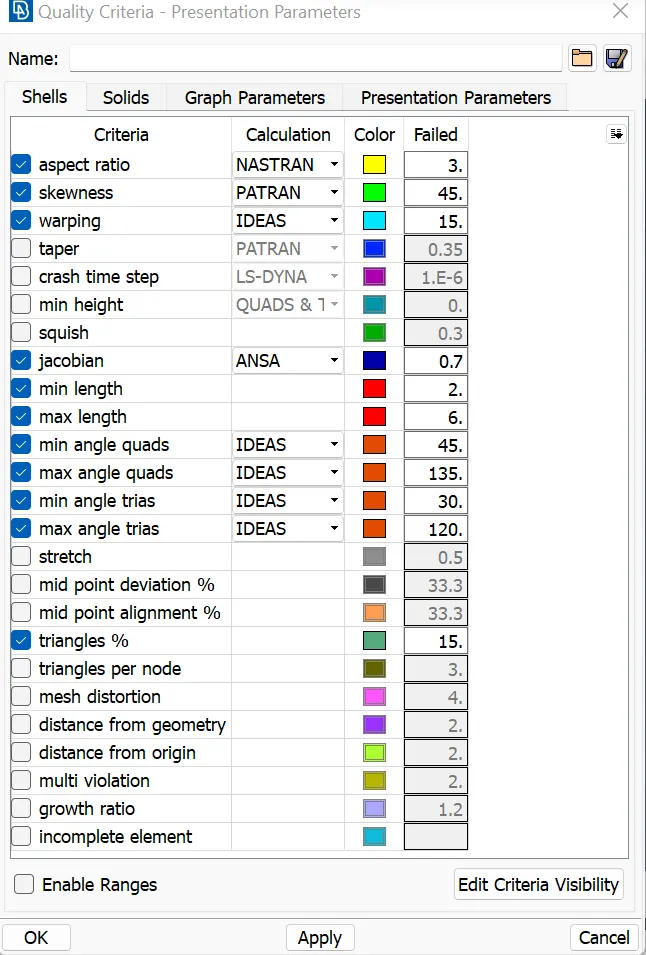

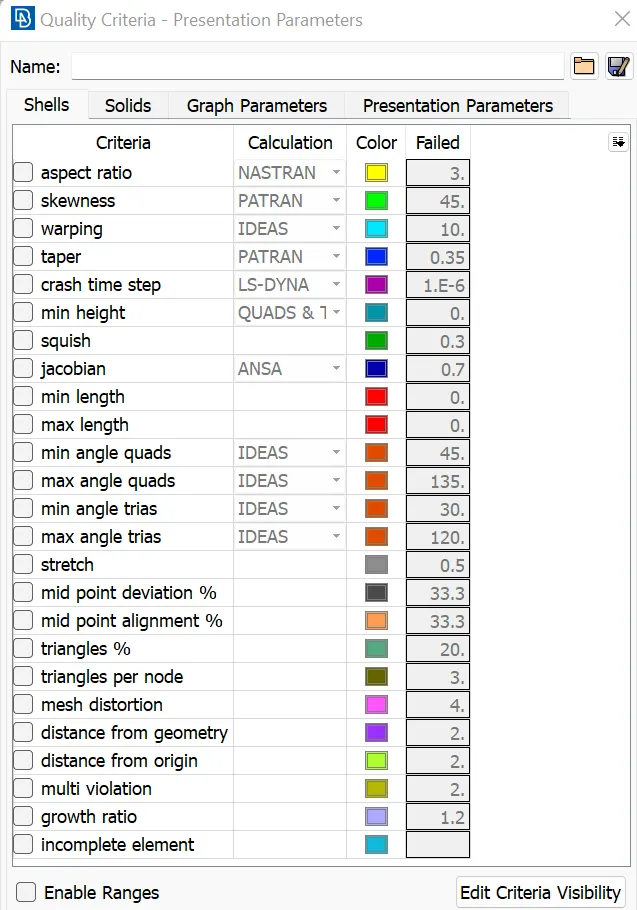

QUALITY CRITERIA:

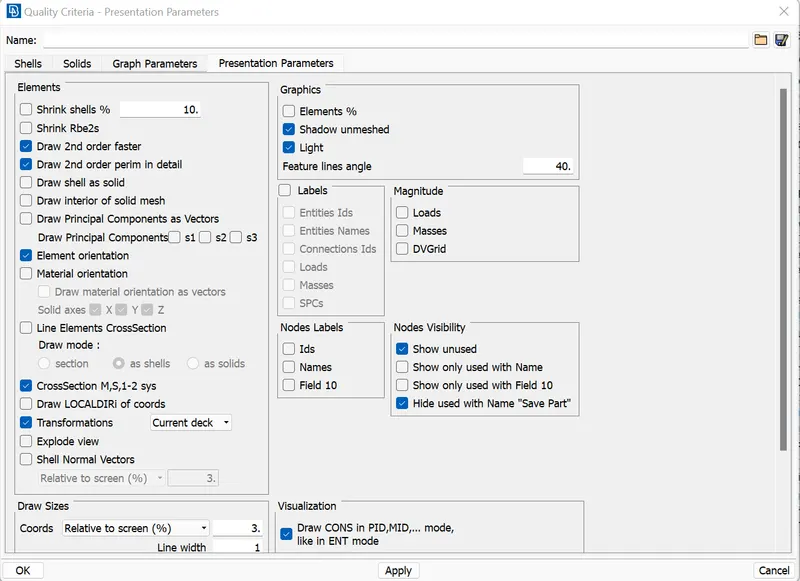

INPUT ALL THE QUALITY CRITERIA VALUES

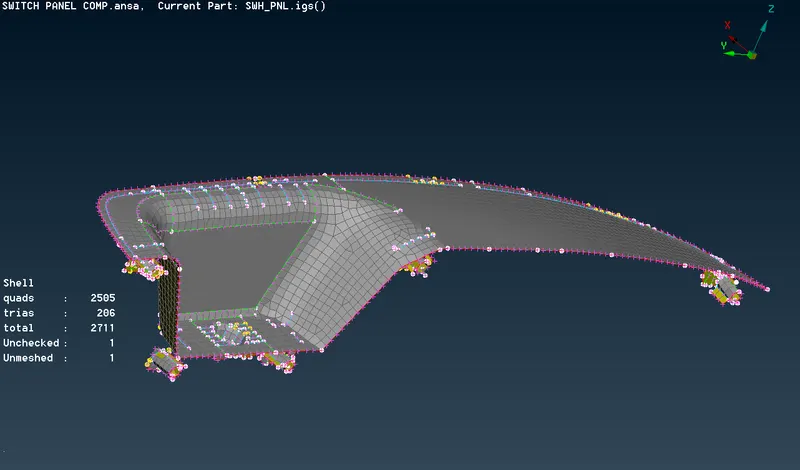

NEXT, WE HAVE TO MESH ALL THE MODELS:

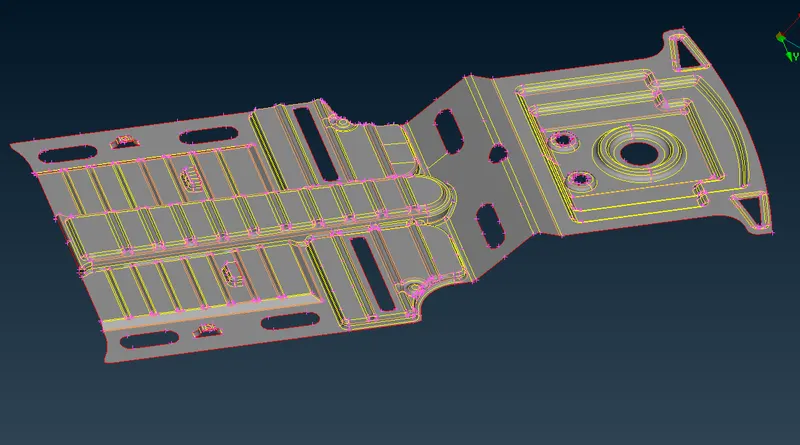

MODEL (2)(FLOOR PANEL):

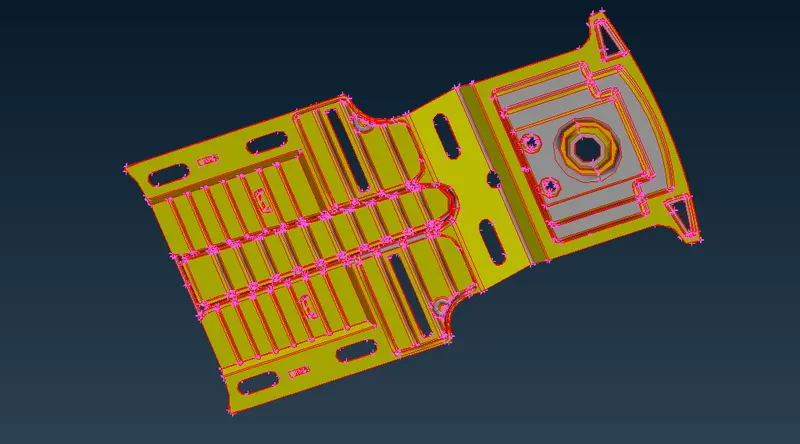

IMPORT THE MODEL

TAKE LENGTH OF THE MODELS:

MIDSURFACING OF THE MODEL:

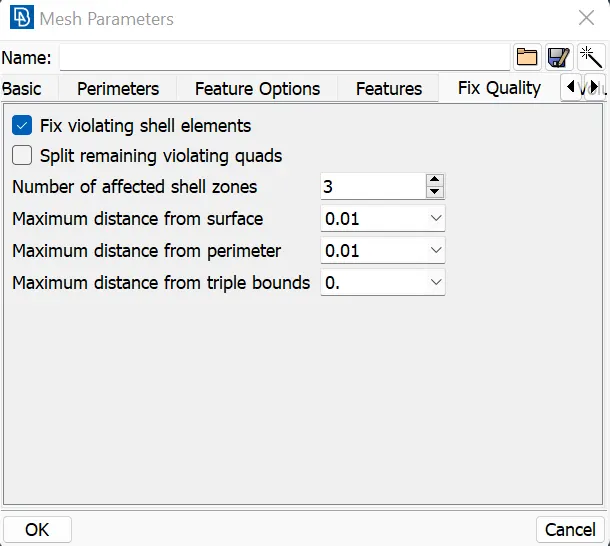

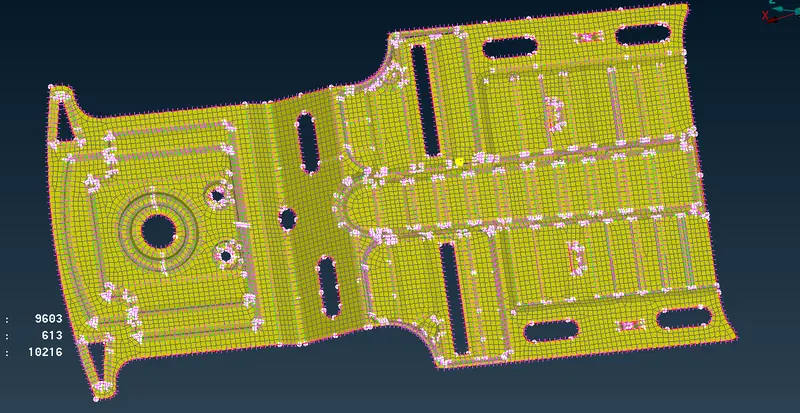

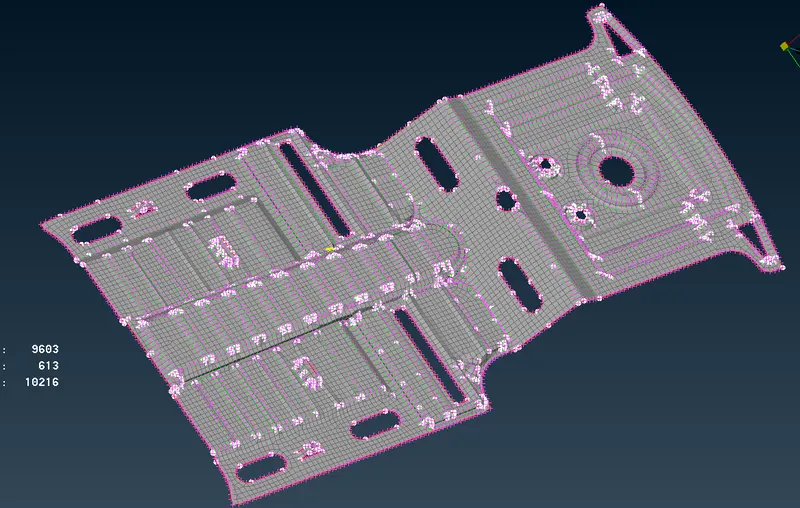

MESHING THE MODEL:

RESULT:

HERE WE CAN DEFINE ALL OF THE GIVEN DATA.
