To plan a structural layout and to create grids using TSD

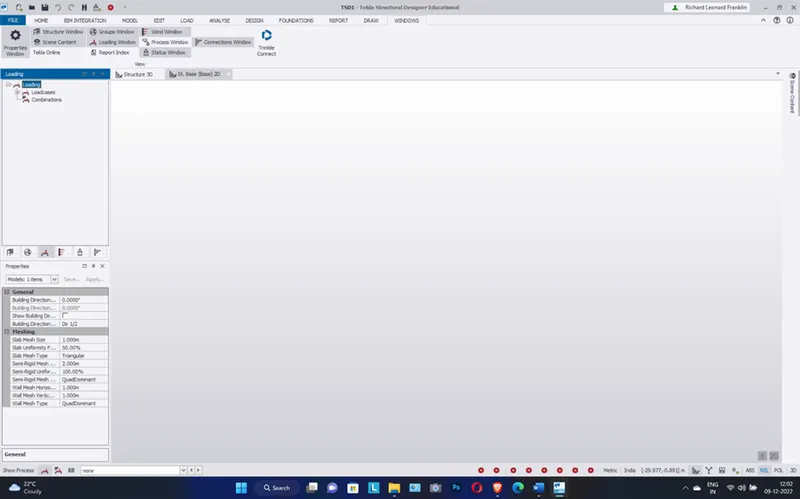

1. Summarize the user interface in TSD with the for the following items: -

• Project Workspace – How to access and usage

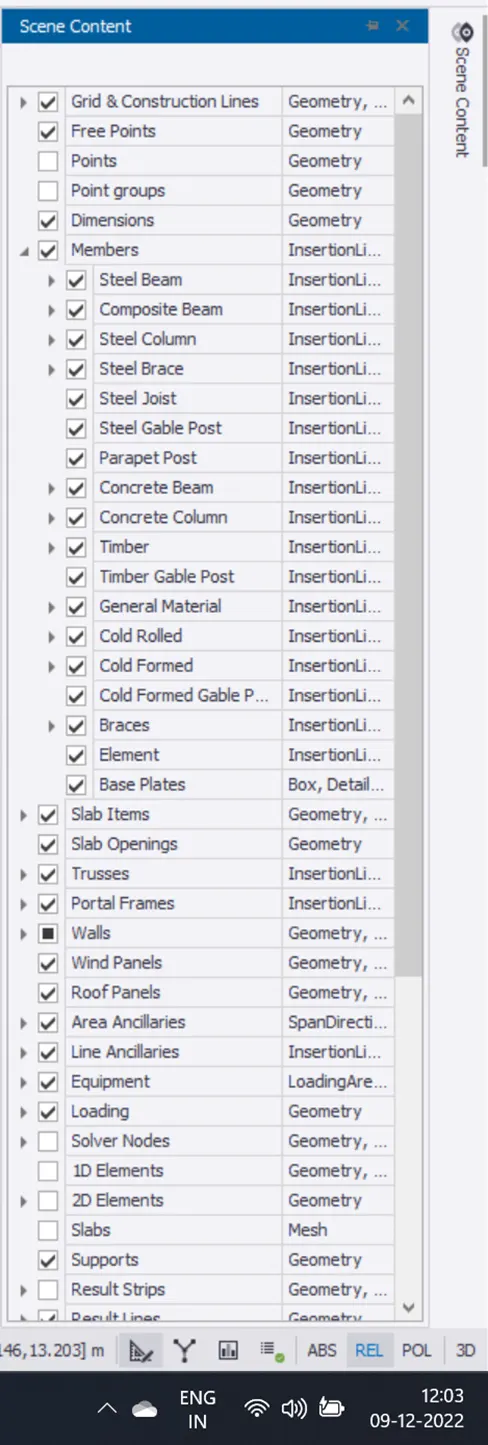

• Scene Content – Demonstrate the use of scene content

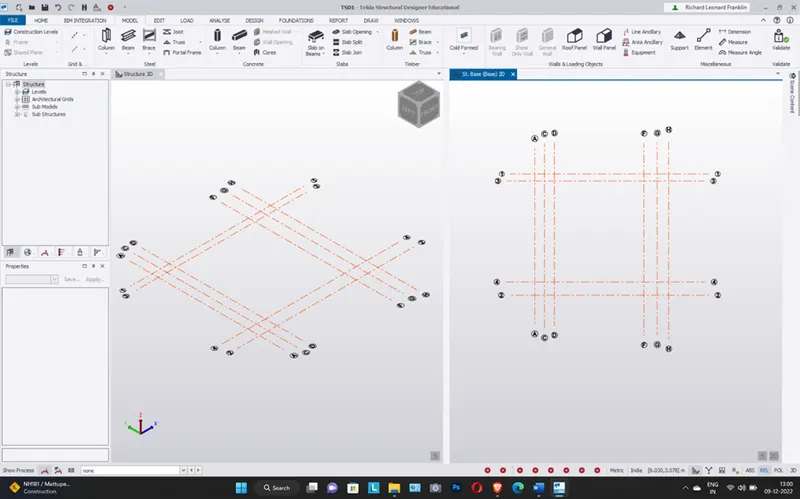

• Create two scene views

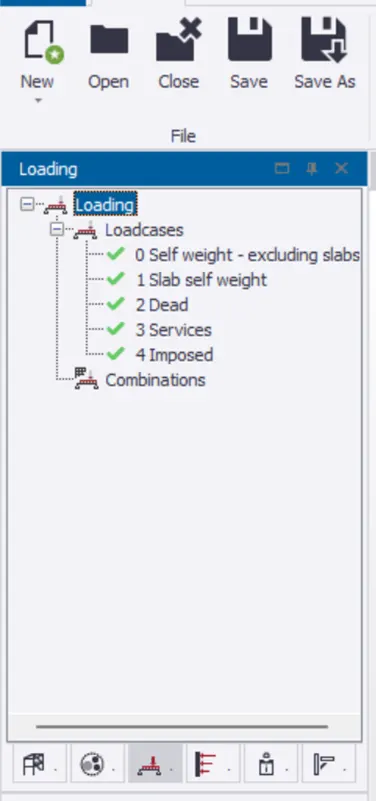

• Loading drop list- How to access

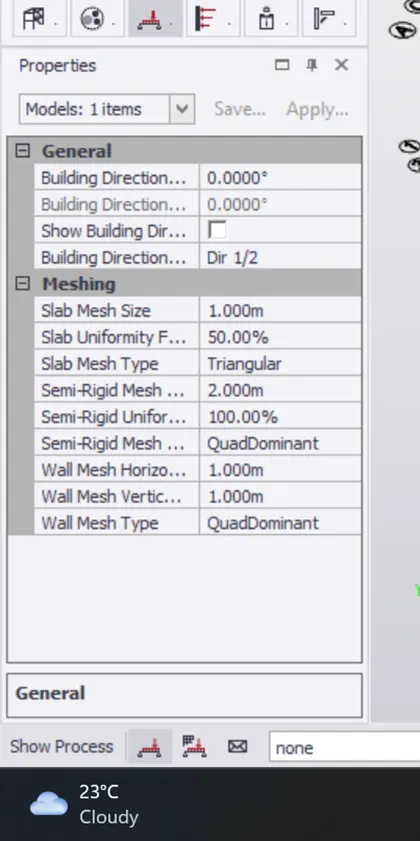

• Properties windows – how to access and usage

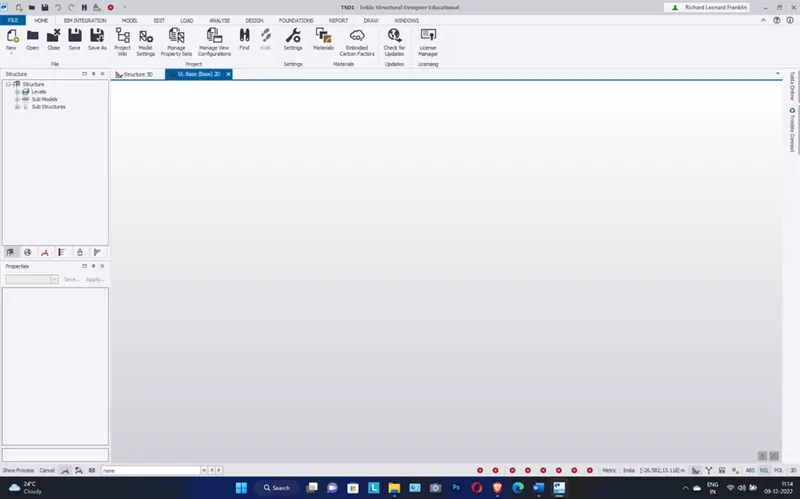

2. Create a new file in TSD and set up the settings for a steel building to have member grade FE410 and concrete grade of M30 as per IS codes. The covers for the members to be as per the following input:

MEMBERS	IN CONTACT WITH GROUND	ABOVE GROUND
Column	50mm	40mm
Slab	30mm	25mm
Pile cap	75mm
Foundation	50mm

3. With reference to the input drawing as per Attachment 1, 1.1, and 1.2 and study the steel building plan and summarize your understanding of the plan. Based on your study assume and explain the location of columns and beam and develop a hand sketch for each plan

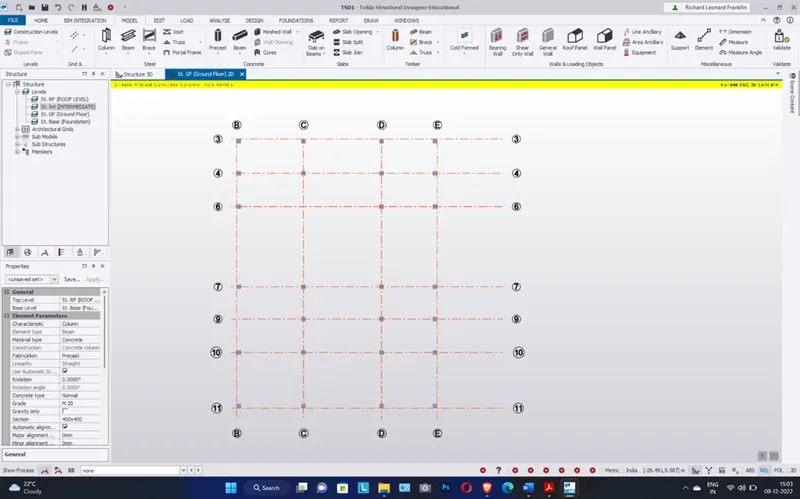

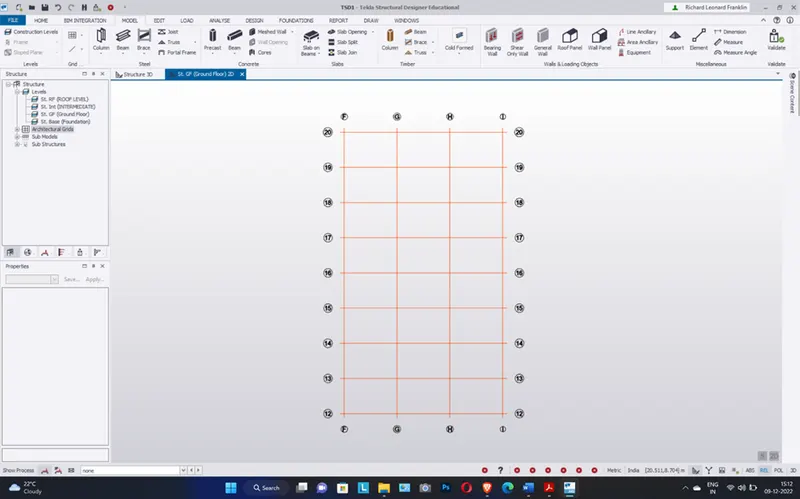

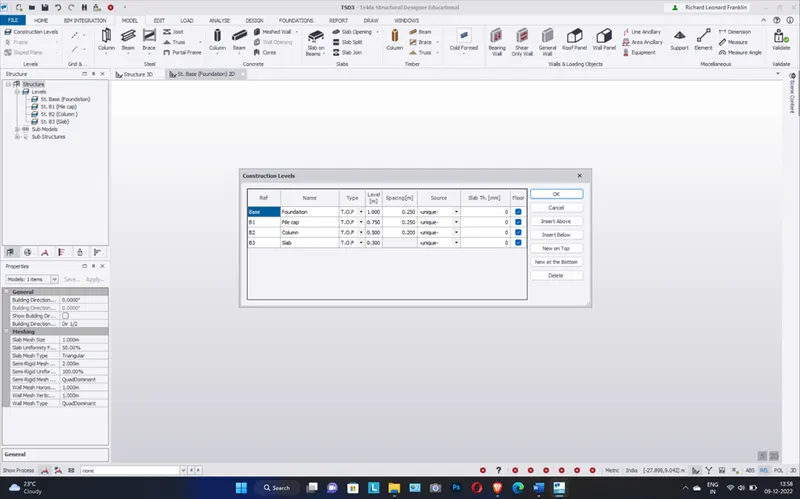

4. Model grid lines and construction levels as per Attachment 1. 1.1 and 1.2. All dimensions are in mm

• The base level to be 500mm below ground level.
