To plan a structural layout and to create grids using TSD
To plan a structural layout and to create grids using TSD
Aim
Ans 1.

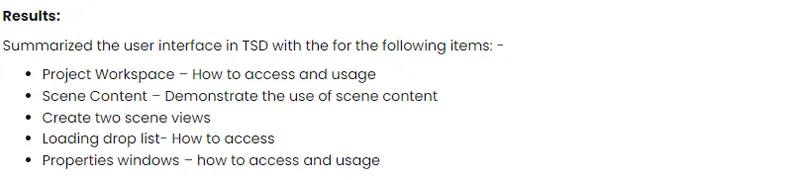

1. Summarize the user interface in TSD with the for the following items: -
- Project Workspace – How to access and usage
- Scene Content – Demonstrate the use of scene content
- Create two scene views
- Loading drop list- How to access
- Properties windows – how to access and usage
Project Workspace

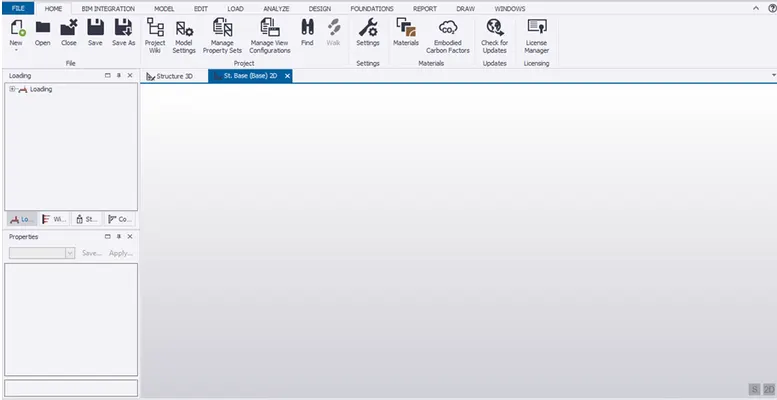

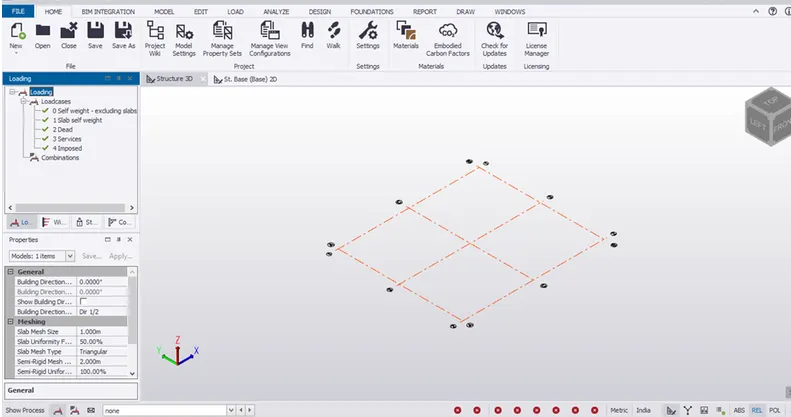

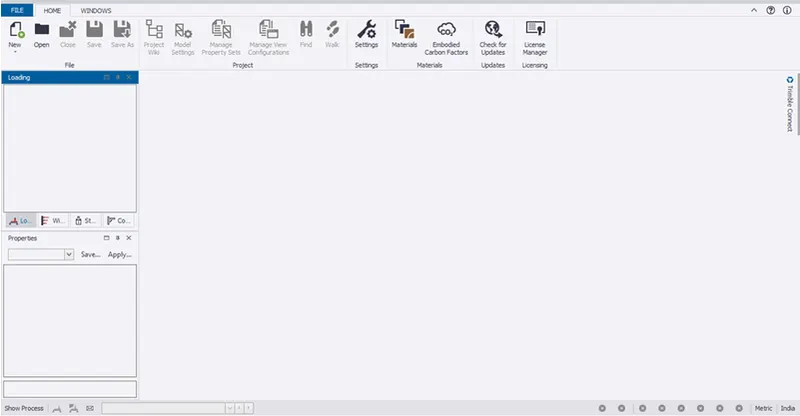

Open the teclas structure designer software & it will show the below screen

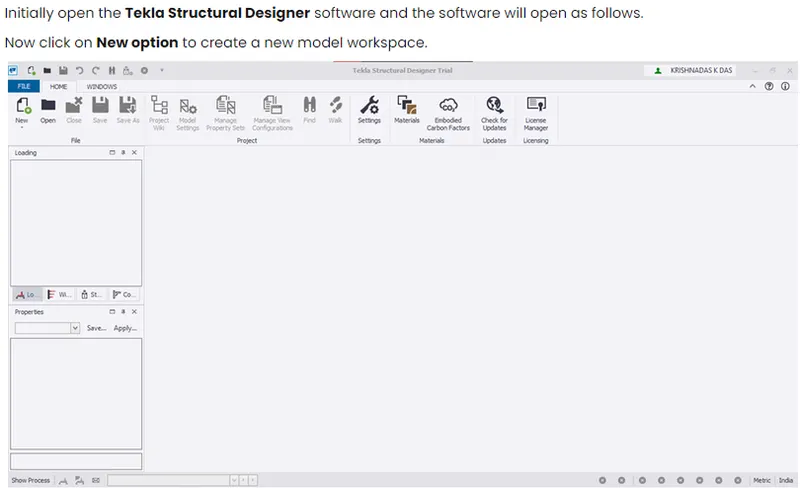

Click on the new project and now all the ribbons are shown in the figure
Scene Content

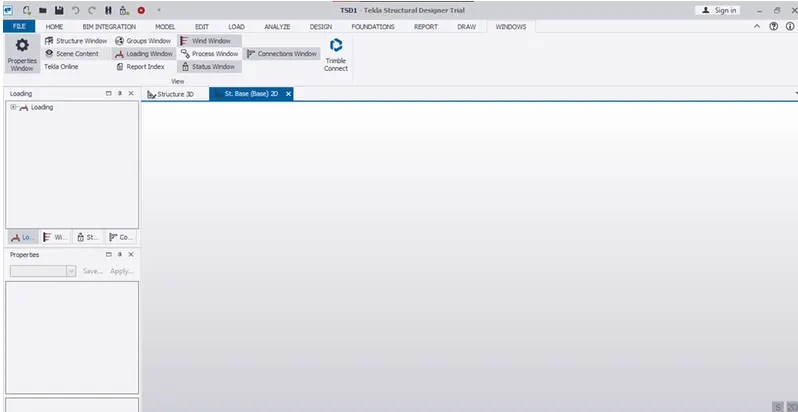

Access the screen content go to Windows tab
Make all the content visible in the screen content
Create two scene views

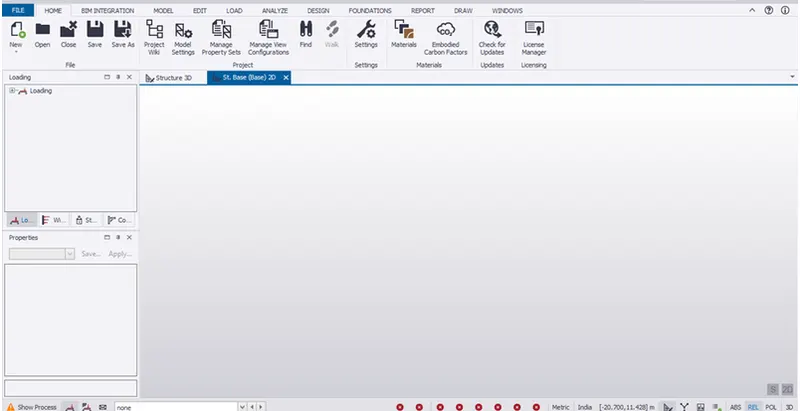

2d view

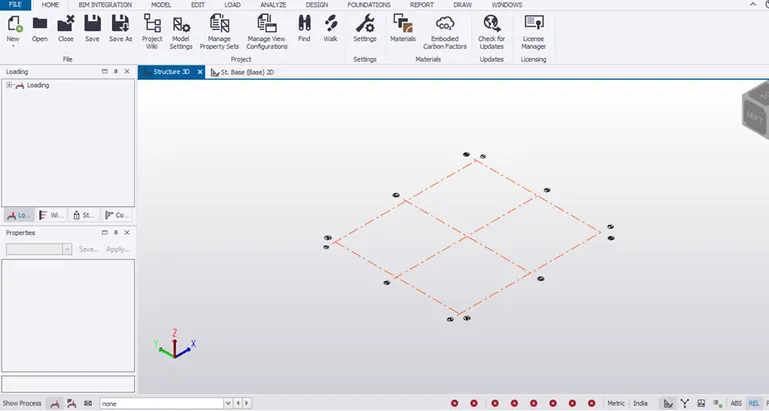

3d view

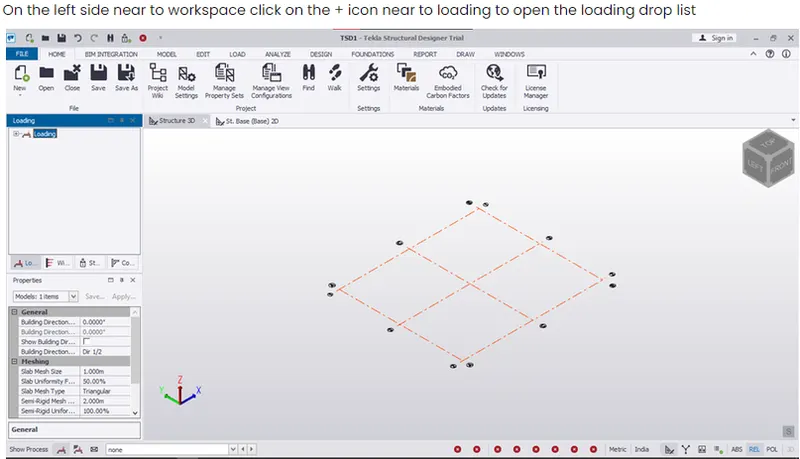

Loading drop list

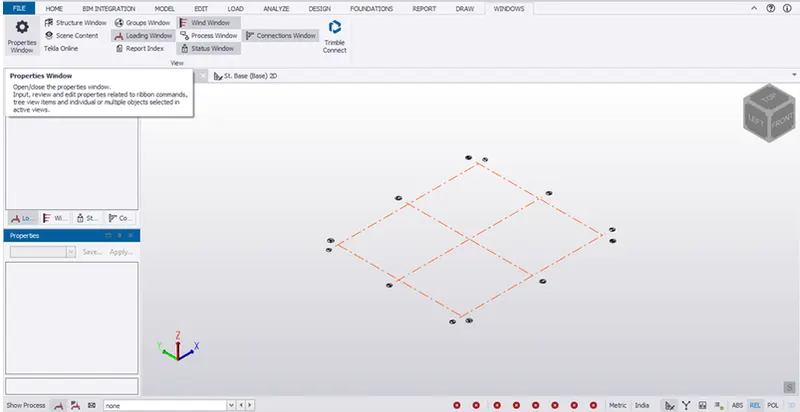

Properties windows
Ans 2.
Aim
Create a new file in TSD and set up the settings for a steel building to have member grade FE410 and concrete grade of M30 as per IS codes.

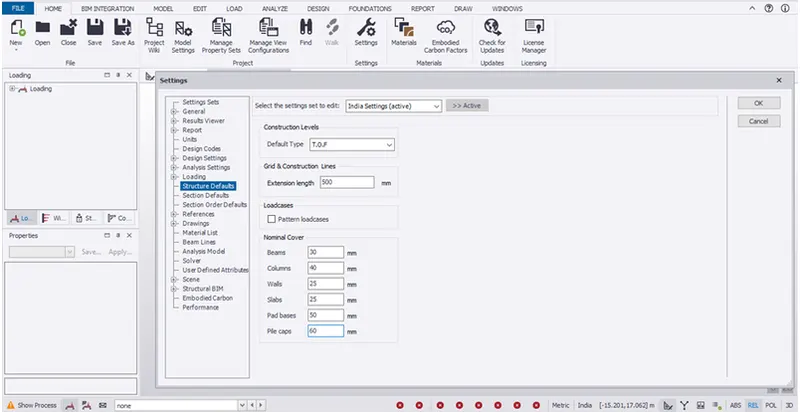

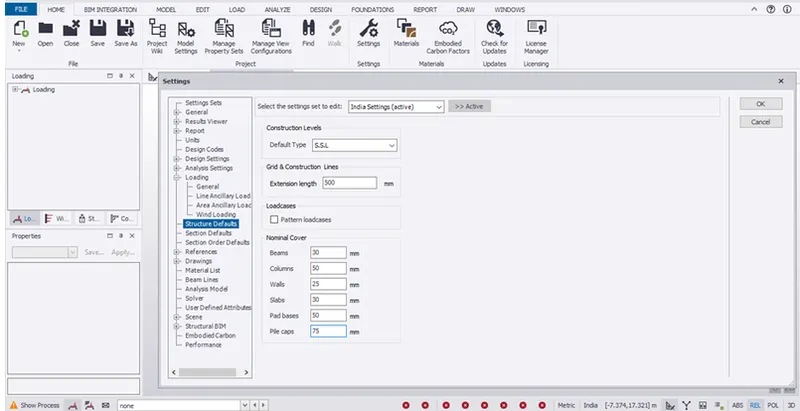

Click on the material icon

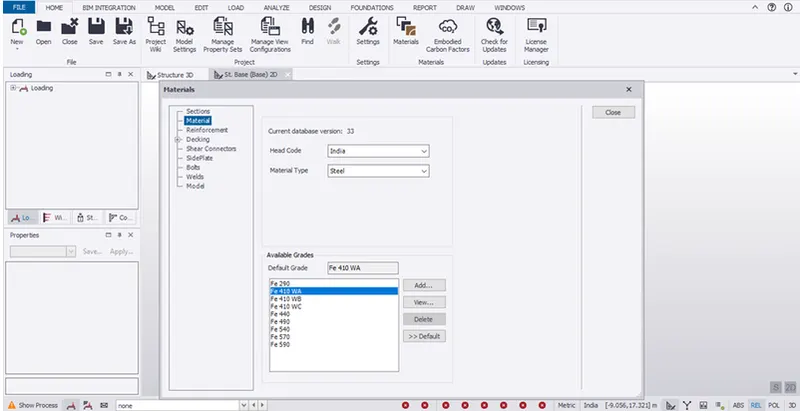

For Fe415

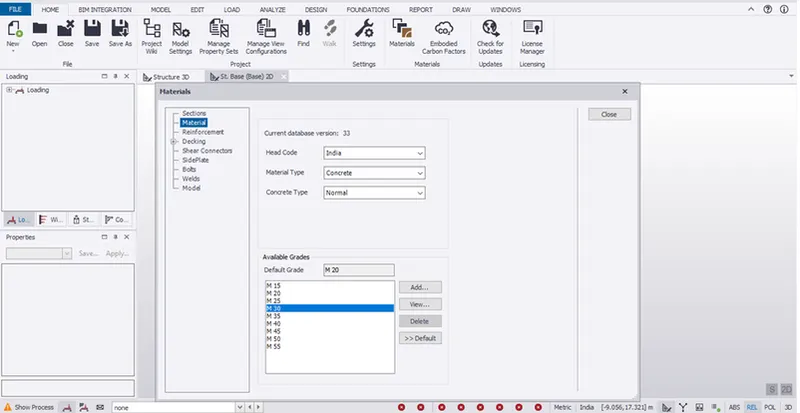

For M30
Select SSL and apply the cover value
Now select the TOP and apply the correct cover value
Ans 3.
Aim

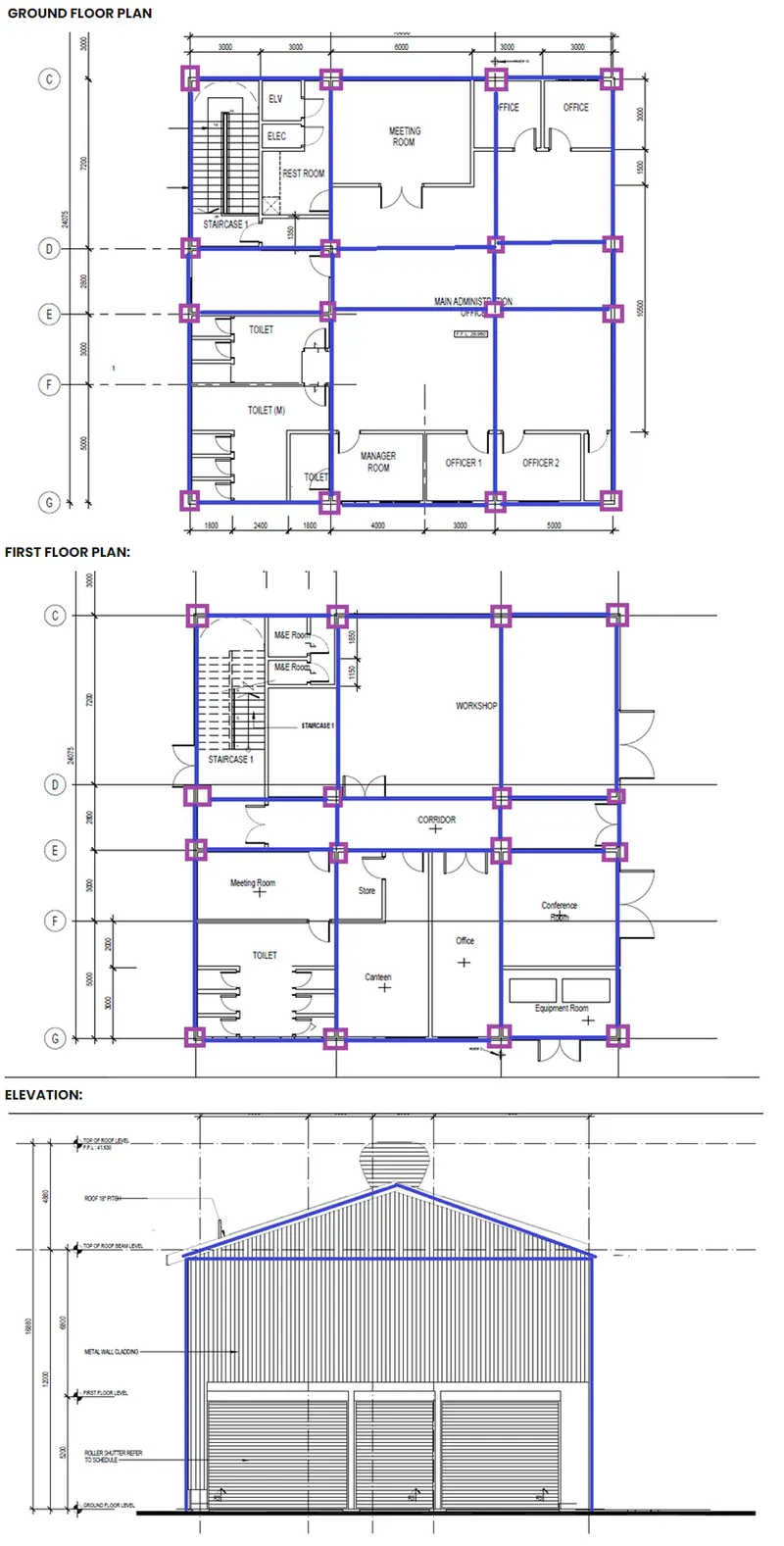

With reference to the input drawing as per Attachment 1, 1.1, and 1.2 and study the steel building plan and summarize your understanding of the plan. Based on your study assume and explain the location of columns and beam and develop a hand sketch for each plan
The column sare to be placed at the following places
- At the corner of the building
- Intersection of the beam or wall
- Spanning between the column
- Columns are to be properly align
Ans 4.
Aim
Model grid lines and construction levels as per Attachment 1. 1.1 and 1.2.
- The base level to be 500mm below ground level.
Procedure:
(The Intial procedure is same as that we have done the above model in TSD.)

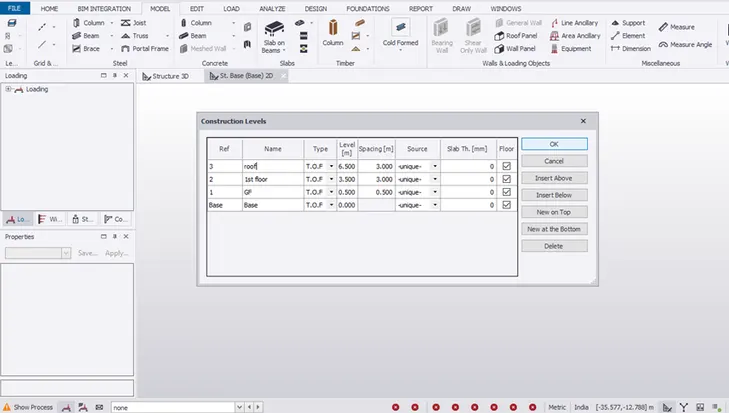

The construction dialogue box appears
Name the level Ground floor, First floor and so on.

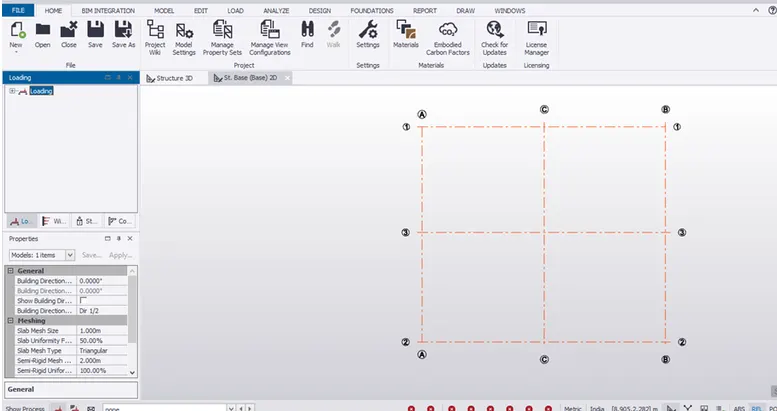

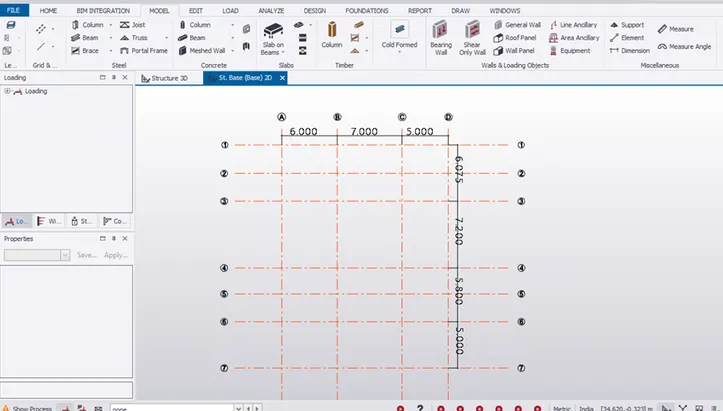

Draw the grid line using quick parallel grid lines
Result:
The Grid lines are drawn as per the given Attachment.
